Installation and user manual
STRA

160420/0 STRA MG manual 1
EN –ORIGINAL INSTRUCTION
All rights reserved. The information given in this document has been collected for the general convenience of our clients. It has been based on general data
pertaining to construction material properties and working methods known to us at the time of issue of the document and is therefore subject at any time to
change or amendment and the right to change or amend is hereby expressly reserved. The instructions in this publication only serve as a guideline for
installation, use, maintenance and repair of the product mentioned on the cover page of this document. This publication is to be used for the standard model
of the product of the type given on the cover page. Thus the manufacturer cannot be held responsible for any damage resulting from the application of this
publication to the version actually delivered to you. This publication has been written with great care. However, the manufacturer cannot be held
responsible, either for any errors occurring in this publication or for their consequences.
To improve comprehension for people whose rst language is not English, we have written parts of this manual in Simplied Technical English
(STE). STE is a controlled language originally developed for aerospace industry maintenance manuals. It oers a carefully limited and
standardized subset of English, along with specic writing rules.

160420/0 STRA MG manual 2
ENGLISH Page
Preface 3
1. Introduction 3
2. Product description 3
3. Safety instructions 5
4. Installation 5
5. Use 11
6. Maintenance 12
7. Troubleshooting 13
8. Disposal 13
9. Spare parts 13
TABLE OF CONTENTS

160420/0 STRA MG manual EN - 3
PREFACE
Using this manual
Pictograms and symbols
The following pictograms and symbols are used in this manual:
TIP
Suggestions and recommendations to simplify
carrying out tasks and actions
ATTENTION
A remark with additional information for the user. A
remark brings possible problems to the user’s
attention.
CAUTION!
Procedures, if not carried out with the necessary
caution, could damage the product, the workshop or
the environment.
CAUTION
Denotes risk of electric shock.
WARNING!
Fire hazard! Important warning to prevent re.
WARNING!
Explosion hazard! Important warning to prevent
explosions.
Personal protective equipment (PPE)
Instruction to use respiratory protection when you do
service, maintenance and repair jobs, as well as
during functional testing. We recommend to use a
half-face respirator according to DIN EN 141/143,
protection class P3.
Personal protective equipment (PPE)
Instruction to use protective gloves when you do
service, maintenance and repair jobs.
Text indicators
Listings indicated by “-” (hyphen) concern enumerations.
Listings indicated by “•” (bullet point) describe steps to perform.
Service and technical support
For information about specic adjustments, maintenance or
repair jobs which are not dealt with in this manual, please
contact the supplier of the product. He will always be willing to
help you. Make sure you have the following specications at
hand:
- product name
- serial number
You can nd these data on the identication plate.
Product indications
Unless specically stated, the contents of this manual applies
to the STRA.
1 INTRODUCTION
1.1 Identication of the product
The identication plate contains, among other things, the
following data:
- product name
- serial number
- supply voltage and frequency
- power consumption
1.2 General description
The straight rail system is designed to be connected to a
vehicle’s tailpipe to capture and remove the exhaust emissions.
The STRA is fully automatic, from the fan activation to the
automatic nozzle release from the exiting vehicle. It is easy in
use with only a one-step connection to the system as the vehicle
enters the facility.
The STRA is ideal for drive-through bays in which up to four
vehicles are parked in tandem.
1.3 Technical specications
Physical dimensions and properties
Material
• rail
• rubber seal
• aluminum
• rubber coated with UHMW
(with low friction layer)
Length 30 - 100 ft. (9 - 30 meters)
Color silver/black
Ambient conditions
Operating temperature: all ambient conditions allowed
Max. relative humidity 80%
Outdoor use allowed no
Scope of supply
STRA pneumatic
Aluminium prole | RRS | RRRS-X | CA-15 | W-15 | STR-MZ |
RRBC | RRIBC | RRDC-200 | RRTS II | SBKM | SBT-SL*
*Crab and hose package to be ordered separately
STRM magnetic
Aluminium prole | RRS | RRRS-X | CA-15 | W-15 | STR-MZ |
RRBC | RRIBC | RRDC-200 | RRTS II | SBKM | SBT-SL*
*Crab and hose package to be ordered separately
Options and accessories
STRA MG IC | Hose package
STRA PN ICCA | Hose package
2 PRODUCT DESCRIPTION

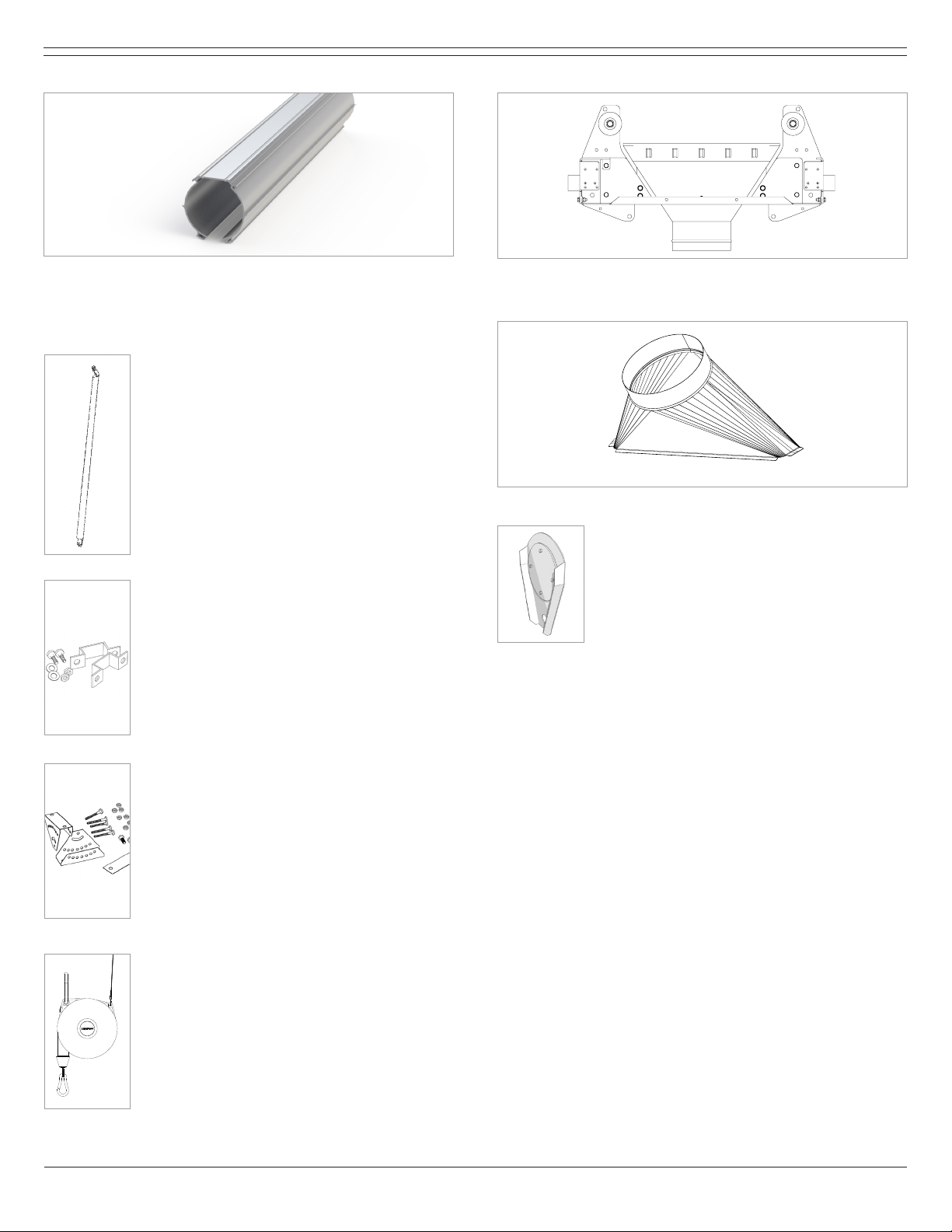

2.1 Product components
The product consists of the following main components and
elements:
Support leg
The aluminium support leg is used for both
vertical and horizontal mounting. The standard
length is 19 ft (5,7 m) and has to be cut to
proper lengths. The dimension is 2 x 2 x
0.1 in. (50 x 50 x 2.5 mm).

160420/0 STRA MG manual EN - 4
STRA extraction rail
The STRA track is delivered in 2 lengths:
STRA-Track - 19.6 ft (5,8 m)
STRA-Track 1/2 - 9.5 ft (2,9 m)
Side brace
There are three dierent lengths available, 20
in. (500 mm), 30 in. (750 mm) and 6 ft (1800
mm). The brace can be mounted separately or
in pairs using the same brackets.
Side brace clamp kit
The kit includes two aluminum brackets for
one or two side braces, and one clamp. This kit
is available in all three side brace lengths.
Braces can also be ordered separately.
Adjustable mounting kit (vertical)
The kit includes two similar brackets.
They can also be used if the roof is angled
and they can be mounted in both directions.
Maximum angle is 30 degrees. It also includes
two STRA brackets for mounting the STRA rail
to the support leg.
Balancer
The non-locking spring recoil balancer has a
lifting capacity of 17.6 - 37 lbs (8 - 17 kg) with
a cable length of 6.6 ft (2.2 m). The main
function of the Balancer Locking Cable (BLC) is
to control the point of disconnection. As the
hose reaches it’s maximum length, the BLC will
bottom out, in turn pulling the Magnetic Grip
nozzle from the moving vehicle.
Crab trolley
The ventilated sliding crab runs inside of the rail and can be
positioned anywhere along the rail.
Duct connection 8 in. (Ø 200 mm)
STRA end caps
The STRA closed end cap is provided with the
rail, and is mounted to the back end of the rail
for a back in system, or the entrance end of
the rail for a drive through system.

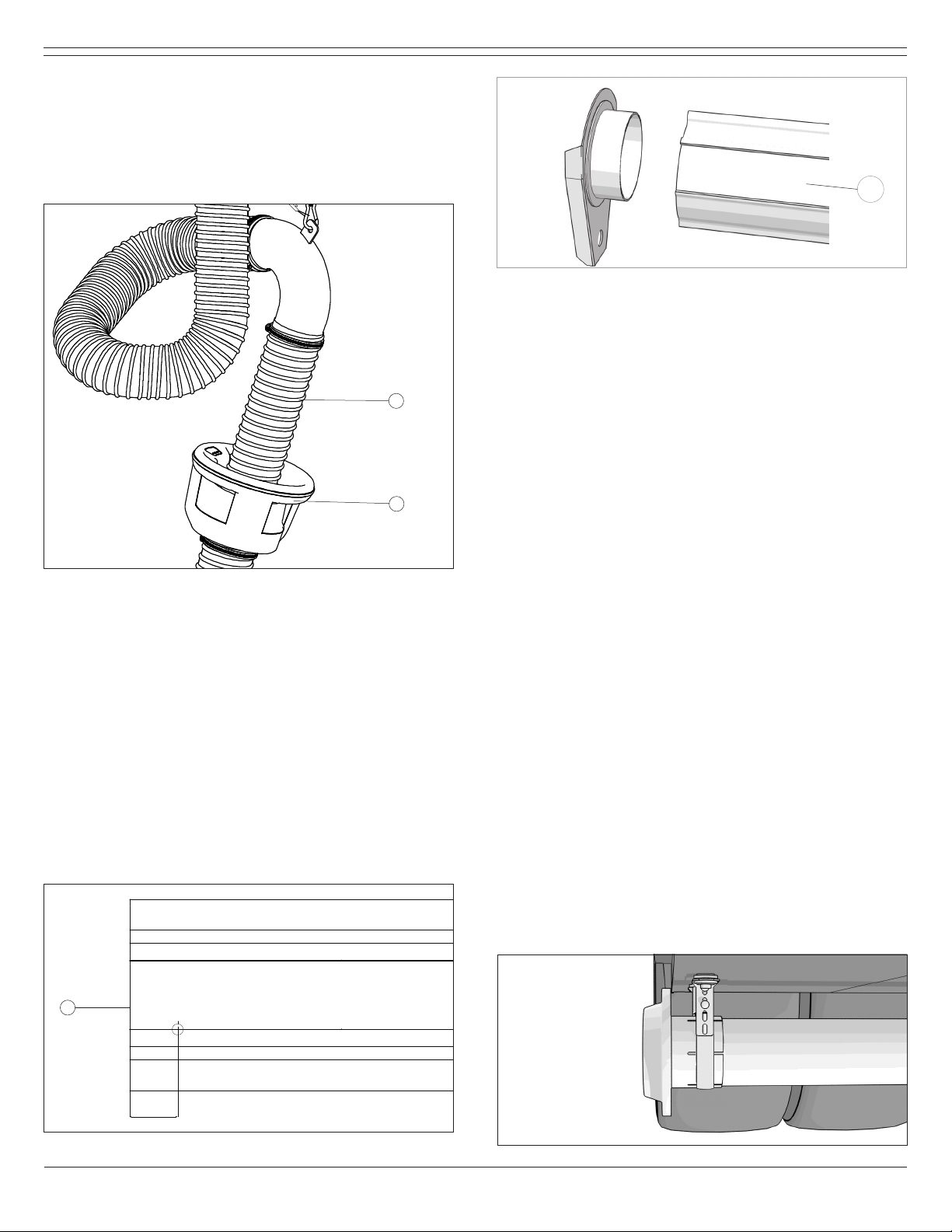

Hose Kit
Hose kits available:
- ST (standard temperature) hose, 400°F (205°C) continuous,
500°F (260°C) intermittent,
- HT (high temperature) hose, 900°F (480°C) continuous,
1,050°F (570°C) degrees intermittent (upper, mid and lower
hose)
- Hose diameter is either 4 in. or 5 in. (100 mm or 125 mm)
- Magnetic Grabber is either 3, 4 or 5 in. (75, 100, or 125 mm)
The dierent hose packages which contain the following parts:
- Transition parts
- Exhaust removal hose with clamps
- Hoses: upper, mid and lower hose
- Metal hose saddle
- Safety disconnect handle
- Magnetic Grabber®nozzle
- Magnetic Grabber®conical tailpipe adapter (available in 3, 4, 5,
6 and 7 in.)

160420/0 STRA MG manual EN - 5
3 SAFETY INSTRUCTIONS
General
The manufacturer does not accept any liability for damage to
the product or personal injury caused by ignoring of the safety
instructions in this manual, or by negligence during installation,
use, maintenance, and repair of the product mentioned on the
cover of this document and any corresponding accessories.
Specic working conditions or used accessories may require
additional safety instructions. Immediately contact your supplier
if you detect a potential danger when using the product.
The user of the product is always fully responsible for
observing the local safety instructions and regulations.
Observe all applicable safety instructions and regulations.
User manual
- Everyone working on or with the product, must be familiar
with the contents of this manual and must strictly observe
the instructions therein. The management should instruct the
personnel in accordance with the manual and observe all
instructions and directions given.
- Do not change the order of the steps to perform.
- Keep the manual with the product.
Users
- The use of this product is exclusively reserved to authorized,
trained and qualied users. Temporary personnel and
personnel in training can only use the product under
supervision and responsibility of skilled engineers.
- Stay alert and keep your attention to your work. Do not use
the product when you are under the inuence of drugs,
alcohol or medicine.
- The product is not to be used by children or persons with
reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given
supervision or instruction.
- Children must be supervised not to play with the product.
Technical specications
Do not change the specications given in this manual.
Modications
Modication of (parts of) the product is not allowed.
Installation
- The installation of this product is exclusively reserved to
authorized, trained and qualied engineers.
- The electric connection must be executed in accordance with
the local codes and requirements. Ensure compliance with
the EMC regulatory arrangements.
- During installation, always use Personal Protective
Equipment (PPE) to avoid injury. This also applies to persons
who enter the work area during installation.
- Use sucient climbing gear and safety guards when working
on a higher level than 2 meters (local restrictions may
apply).
- Do not install the product in front of entrances and exits
which must be used for emergency services.
- Mind any gas and water pipes and electric cables.
- Make sure that the workspace is well illuminated.
- Stay alert and keep your attention to your work. Do not
install the product when you are under the inuence of
drugs, alcohol or medicine.
- Air containing particles such as chromium, nickel, beryllium,
cadmium, lead etc., should never be recycled. This air must
always be brought outside the working area.
Use
- Inspect the product and check it for damage. Verify the
functioning of the safety features.
- Check the working environment. Do not allow unauthorized
persons to enter the working environment.
- Protect the product against water and humidity.
- Make sure the room is always suciently ventilated; this
applies especially to conned spaces.
- Make sure that the workshop, in the vicinity of the product,
contains sucient approved re extinguishers (suitable for re
classes ABC).
Service, maintenance and repairs
- Obey the maintenance intervals given in this manual. Overdue
maintenance can lead to high costs for repair and revisions and
can render the guarantee null and void.
- Always use Personal Protective Equipment (PPE) to avoid
injury. This also applies for persons who enter the work area.
- Make sure the room is suciently ventilated.
- Use tools, materials, lubricants and service techniques which
have been approved by the manufacturer. Never use worn
tools and do not leave any tools in or on the product.
- Use sucient climbing gear and safety guards when working
on a higher level than 2 metres (local restrictions may apply).
- Clean the area afterwards.
4 INSTALLATION

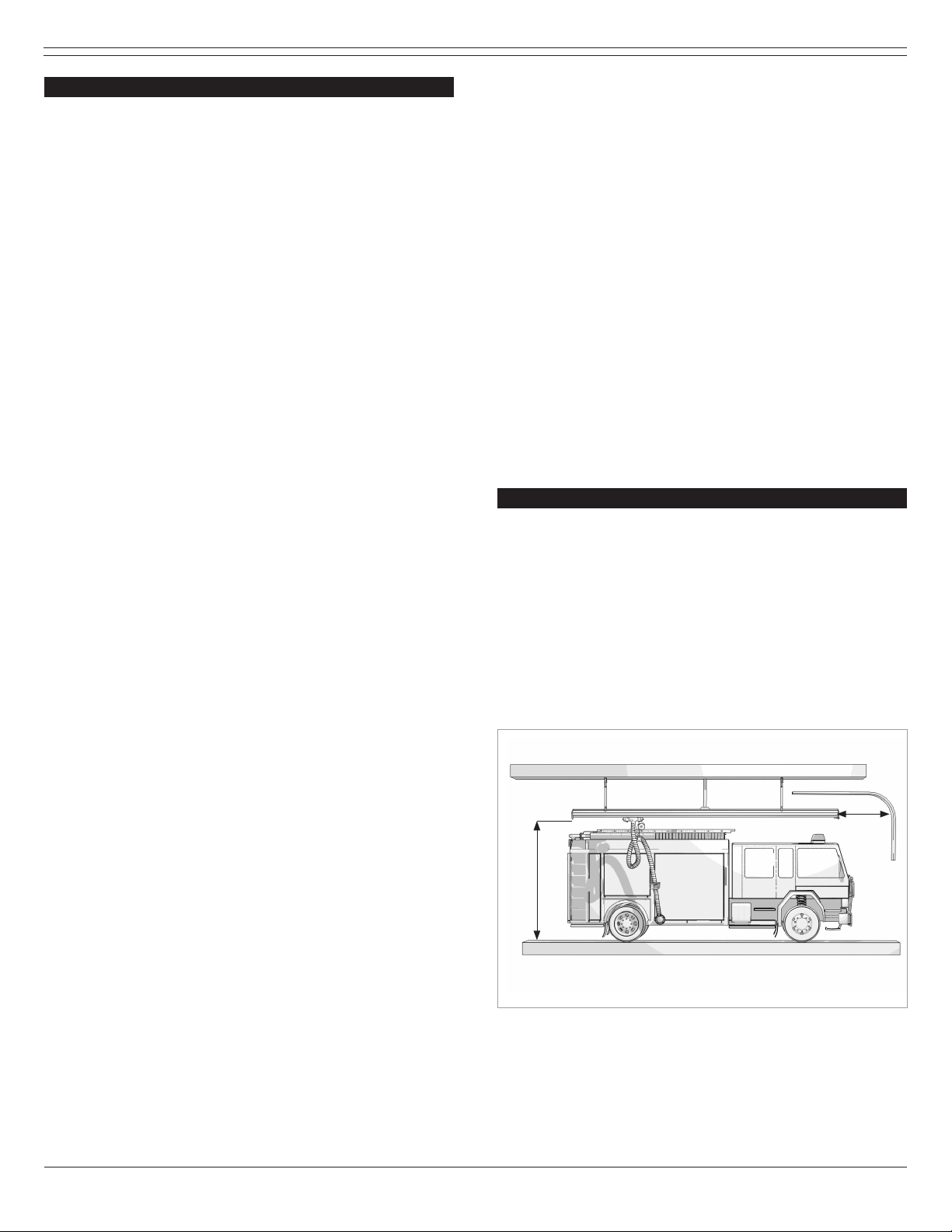

4.1 Preparation
• Determine the installation height of the rail (measured from
the bottom of the rail).
• Determine the recommended distance from the end stop to the
door in the installation table below.
• Determine the recommended balancer locking cable (BLC)
length in the installation table below.
• After installation, ne tune the BLC if the disconnection point is
not close enough to the door.
Rail height
Distance end stop/door

160420/0 STRA MG manual EN - 6
Installation table
Rail height Distance end
stop - door Length BLC
Feet (m) Feet (m) Inch (mm)
10 (3 m)
min. 5 (1,5 m) 23.8 (600 mm)
recommended 5.5 (1,7 m) 26.9 (685 mm)
max. 6 (1,8 m) 30.4 (770 mm)
13 (4 m)
min. 6 (1,8 m) 23.9 (600 mm)
recommended 6.5 (2 m) 26.7 (680 mm)
max. 7 (2,1 m) 29.7 (750 mm)
16 (5 m)
min. 7 (2,1 m) 24.4 (620 mm)
recommended 7.5 (2,3 m) 26.9 (685 mm)
max. 8 (2,4 m) 29.6 (750 mm)
4.2 Back-in measurements
Determine the position of:
- Exhaust pipe
- Garage / exit door.
- Distance from exit door to the tailpipe.
1. Determine the location of the exhaust pipe (1) on the vehicle:
- Which side of the vehicle is the tailpipe positioned?
- Where does the exhaust exit the vehicle?
- What is the diameter of the tailpipe?
Measure the height and width of the garage (2). Determine the
type of bay doors:
- Rollup door
- Segmented panel overhead door (four-fold doors)
- Other type
Determine the height of the rail that can be installed under the
door when fully raised.The height should be in line with the
specications indicated in this manual in order to ensure correct
product performance.
Measure the distance between the door and the exhaust pipe
(3). This is the minimum length of the STRA rail. Check before
installation that this is the minimum required length of the STRA
back-in application.
The distance from the end of the rail to the door(s)
must be in line with the installation table above.
2
31
CAUTION!
Be sure to order the right grabber dimension. If a
incorrect version is used on the tailpipe, the system
could be damaged or will not properly remove
exhaust from the facility.
4.3 STRA rail location
1. STRA Rail
2. Tailpipe
3. Bay door
4. Rail height
5. Distance to vehicle
6. Distance to exit door
Side view
End view
• The STRA rail (1) is mounted at a height (4) between 12 and
14 ft (3,7 and 4,3 m) over the oor on the side in which the
tailpipe (2) is located.
The rst rail hanger leg should be approximately 4 to 5 ft
(1.2 to 1.5 m) from the end of the STRA rail.
• The rail should be mounted 18 to 24 in. (460 to 610 mm)
from the body of the vehicle (5), and positioned on the
tailpipe side of the vehicle. Preferably the rail is on or within
the boundaries of the exit door. Measure the garage door and
truck width in order to determine the rail mounting position.
• The rail should be mounted immediately under a sectional
door with a clear height from the track to the door of 4 to 6
in. (100 to 150 mm).
1
2
4
6
3
5
18 to 24
in.

160420/0 STRA MG manual EN - 7
• The recommended distance from the end of the rail to the
door(s) (6) can be found in the installation table on page 6.
WARNING!
Product may contain sharp edges. Use care when
servicing the unit, failure to do so could result in
minor personal injury.
ATTENTION
Based on the door height and distance from end of
the rail, a cantilever under the door may be required,
so that the vertical hanger leg does not obstruct the
door track. Typically, the cantilever is required once in
a back-in-system and twice on a
drive-through-system.
4.4 Splicing two rails
To splice two rails, position the rail sections on saw horses.
• Insert and center a splice plate 4 in. (100 mm) (2) inside the
rail, clamp in place with a C-Grip and drill 2 Ø 0.42 in. (10,5
mm) holes that are 2.6 in. (65 mm) apart on the top and on
both sides.
The splice is mounted together with 12 pcs of M10 x 25 mm
(0.42 in.) bolts.*
• Use the upper v-groove to drill the holes in the rail and insert
the bolts but leave them loose (3).
• Silicone the joint and slide the other rail section onto the
splice. Line up straight in both directions and clamp.
• Drill the same holes on the mating rail.
• Tighten the bolts in sequence - rst tighten the top bolts, and
then the remaining bolts on the sides.
*Fastening material is included in the splice package.
ATTENTION
Make sure the spliced rails are straight and the rail
channels are lined up. This will ensure that the rubber
seal can be inserted properly.
4.5 Assemble the legs and the rail
• Support legs can be attached to the following:
- Steel beems - use unistrut bar clamps (1). To attach to the
top or bottom of a bar joist, use a thru bolt in the slot of the
bar joist.
- Drywall ceiling with wood framing - locate center of trusses,
cut strut to span 3 trusses, drill 1/4 in. pilot holes and
mount strut using 3/8 in. X 3 1/2 in. grade 5 lag bolts.
- Poured or Pre-Cast Concrete - use a stud or wedge type
concrete anchor usually a 3/8 in. X 3 in.
• Mount the support leg to the roof or to beams. The rst leg
should be 4 to 5 ft (1.2 to 1.5 m) from the end of the rail.
Leg assemblies will need to be placed every 10 to 12 ft. (3 to
3,6 m) and braced side to side using the appropriate length
(20, 30 or 72 in.) side brace kit.
Note: Longer braces can be made out of ¾ in. EMT conduit
and attached to the leg using the Plymovent leg/brace
mounting kit. You should have at least one long brace
running front to back.
• Fasten the top suspension upper bracket to the support leg.
Predrill 0.2 in (5 mm) and then 0.42 in. (10,5 mm) (3 and 4)
that align with the holes in the bracket. Position the bracket
on the leg so it is centered, then drill the third hole in the leg
(2). Add bolts and nuts but do not tighten, as you will need
to cut the support leg.
• Mount the the support leg to the roof or to the beams. To
calculate the leg length, determine the mounting height of
the rail, then subtract that dimension from the bottom of the
strut. Cut the support leg to this length.
• Side suspension: plummet the position of the supports and
attach the side suspensions to the rail. Center a triangular
foot and drill 2- 13/32 in. holes to attach the foot. Mount top
suspension lower bracket to the support leg without
tightening the bolts. Mount the support leg to the roof or to
beams. Attach the leg assembly to the strut on ceiling using
3/8 in. strut hardware. Attach the side brace kit (5).
• For multiple legs, turn the side braces perpendicular to the
rail and install one long front to back brace. Repeat for each
leg assembly.
2 in.
1 in
2 in.
1
4 in.
use upper v-groove to drill holes
2
3

160420/0 STRA MG manual EN - 8
4.6 Inserting the rubber seal
1. STRA prole
2. Rubber seal
3. Tool no. 0000102158
• Turn the rail prole with the opening upwards. The rubber lip
seal can be easily installed with the Plymovent STRA Lip Tool
before hanging the rail from the support legs; or you can
install the lip after the rail is hung from the support legs.
• The rubber lip seals are directional and must be installed with
the inside bend towards the center of the rail (angled inward
and facing each other). With the rail still on saw horses, install
the rubber lip with the bend facing inward. To make this easier,
spray the lip and aluminum channel with a soapy solution.
• Start installing the rst 6 in. (150 mm) of rubber lip by hand
using a screwdriver and then position the lip tool on the rail to
roll the rest of the lip into the bend. Cut the ends at a 90
degree ush with the end of the rail. Repeat for the other side.
4.7 Connect to duct and lift the rail
• On the top of the rail, lay out 3/8 in. holes for the leg
mounting feet locations, to match the distances between the
leg assemblies previously hung from the ceiling. The
maximum end of rail to the rst hanger leg should be 4 to 5
ft (1,2 to 1,4 m). A cantilever under the garage door may be
required.
• Pre drill these holes. Raise the pre-assembled rail using
multiple scissor lifts or lifting mechanisms such as a chain
fall. Position rail under leg assemblies and attach with
hardware.
• Plymovent recommends lifting a continuous length of rail up
to 100 ft (30 m) maximum, in which the maximum distance
between the lifting points is 33 ft (10 m).
Top suspension:
• Lift the rail according to the instruction and x the bolts on
the RRTS lower bracket (1).
• When the rail is in the right position x the suspensions with
the bolts.
• Fasten the suspensions with the security bolt.
Side suspension:
• The leg is connected to the vertical support legs with
couplings.
• Adjust the rail both vertically and horizontally until it is level.
• Tighten the couplings thoroughly and screw a safety bolt,
which is required (2).
1
5
max. 13 ft.
23
4

160420/0 STRA MG manual EN - 9
• To connect the rail to the fan and the duct system by the
connection socket (3), cut a 19.6 in (500 mm) x 2.3 in. (60
mm) hole in the side of the rail prole. Apply silicone
sealeant to the bottom ange of the duct connector and
attach with the provided self-drilling screws. Repeat this step
if you are using multiple duct connections on longer rails.
4.8 Assemble and hang the hose/grabber
1. Upper hose
2. Saddle
3. Balancer
4. Safety Cable
5. Locking Cable
6. Mid Hose
7. Safety Disconnect Handle
Follow these steps to assemble and align the exhaust hose
assembly:
• Mount the upper hose (1) to the trolley using a hose clamp.
• Attach the upper hose to the short side (from the tab) of the
metal saddle (2). You may need to twist the hose to to have
the u-bend or loop positioned away from the vehicle in the 3
o’clock position if looking down at the crab trolley, with the
balancer at the 12 o’clock position.
•
• Install the balancer (3) using the caribiner hook and safety
cable (4), and attach the Balancer Locking Cable (BLC) to the
carabiner which is attached to the trolley (5). Assemble the
BLC using the length listed in the Installation Table on page
10. Ideally, 6 in. (15 cm) of the Balancer cable should be
exposed when the Grabber nozzle is connected to the
vehicle.
• Install the BLC so that it is on the back side of the balancer
and away from the adjustment locking clip. This will keep the
BLC from coming into contact and potentially breaking the
locking clip. The balancer snap hook should be oriented with
the catch or door of the hook on the same side of the
balancer as the locking clip. This will ensure that the BLC
does not open the snap hook, allowing the BLC to come
loose. The BLC attachment to the metal saddle snap hook
should be opposite of the catch or door so that it does not
open it.
1
2
3
4
5

160420/0 STRA MG manual EN - 10
• Attach the mid hose (6) to the long side of the metal saddle
with the supplied hose clamp. The ST mid hose is directional,
so install with directional arrow pointing up or with the
airow.
• With the balancer holding the hose all the way up cut the mid
hose at approx 4 ft (1,2 m) from the oor and attach to the
Safety Disconnect Handle with the supplied hose clamp (7).
• Make sure the height of the Grabber nozzle is between 14 in.
and 18 in. (35,5 to 45,7 cm) from the nished oor.
• Slide the completed trolley in the rail with the
balancer facing the driving direction / exit door.
4.9 Installing the end caps
• With a 8.5 mm drill make a hole at 0.9 in. (22 mm) from end
of rail (1).
• Mount end socket with hydraulic shock absorber at the exit
side and mount the end cap with cover or end cap with duct
connection with 4 pcs of M8x20 bolts and nuts that are
provided. Do not use self-drilling tech screws (2).
• Repeat for the back end cap, but do not install until the rail is
hung, so you can install the crab/trolley.
• After installation, ne tune the BLC if the disconnection point is
not close enough to the door.
0.9 in. (22 mm)
1
4.10 Install the PC-500 pressure switch
Please refer to the separately delivered manual for installation.
4.11 Install the tailpipe connector
1. Distance exhaust pipe-truck body
2. Tailpipe
3. Conical tailpipe adapter
4. Tailpipe bracket
• The distance between the middle point of the tailpipe and the
body of the vehicle (1) must be at least:
- 3 in. (75 mm) in all directions for a 3 in. (75 mm) system
- 4 in. (100 mm) in all directions for a 4 in. (100 mm)
system
- 5 in. (125 mm) in all directions for a 5 in. (125 mm)
system
This should be checked before the conical tailpipe connector is
attached.
• The end of the tailpipe (2) must be cut in a 90° angle and all
sharp edges must be ground o.
• The conical tailpipe adapter (3) is positioned on the tailpipe.
When attached the minimum space between the tailpipe
connector and the body of the vehicle should now be at least
0.6 in. (15 mm) from the top and both sides of the tailpipe
adaptor.
• The tailpipe support/hanger (4) must be positioned within 20
in. (500 mm) from the exhaust pipe end (2). If not, the
optional tailpipe bracket must be installed. (see: option:
installing the tailpipe brackets)
• The exhaust pipe must be in a 90° angle to the truck body
with a max inclination of 5°.
• The distance between the exhaust pipe and the wheel must
be a minimum 12 in. (300 mm).
• The tailpipe adapter must be installed ush with the
body of the vehicle in accordance to NFPA1500 (5). Make
sure you meet EN-1846-2 requirements related to minimal
clearance to the road.
6
7
2

160420/0 STRA MG manual EN - 11

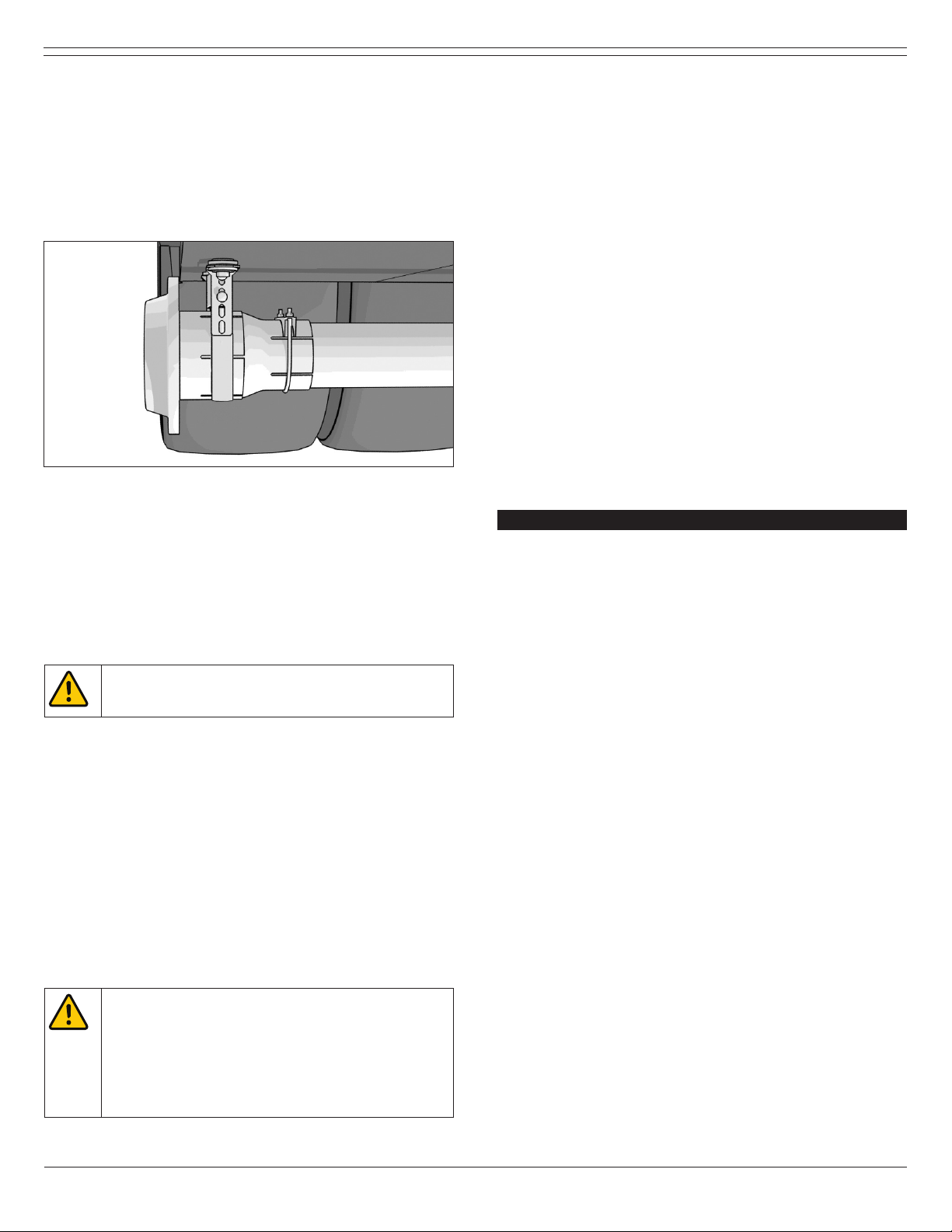

4.12 Modify the tailpipe
In case you want to install a 5 in. (125 mm) conical tailpipe
adapter and the vehicle uses a 4 in. (100 mm) tailpipe, you will
have to install a tailpipe reducer. The tailpipe reducer is a part
that adapts the 4 in. (100 mm) tailpipe into a 5 in. (125 mm)
tailpipe so the conical tailpipe adapter can be installed. The
tailpipe reducer is positioned over the existing tailpipe and xed
using a 4 in. (100 mm) tailpipe clamp. Product number: Refer
to your FIRE Price list for specic product numbers.
4.13 Check the balancer tension
The balancer is delivered from the factory with pre-tension
already set. After every component of the system is installed,
you may need to adjust the balancer pre-tension to its nal
setting, to ensure that the balancer is functioning properly.
Increase or decrease the spring tension until the rubber stop
loosely hits the balancer housing and cable is retracted.
It is possible the balancer tension needs to be ne-tuned after
the total system is installed and a test run is done.
ATTENTION
The balancer is delivered under tension. Be careful
when unwinding this balancer.
4.14 Safety Disconnect Handle
Function:
The safety coupling disconnect opens in case of missue of the
systemor failure of the disconnection and can always be re-used.
Adjustment:
The Safety Disconnect Coupling is delivered completely
assembled with a preset tension. The standard setting on
delivery gives you a release force of 100 lbf (nominal) (450N)
and a reconnection force of 35 lbf (150N).
Release force:
You can adjust the safety coupling disconnect by using dierent
springs available from Plymovent. These are not included, so
please contact your Plymovent authorized distributor.
ATTENTION
After the Safety Disconnect has released please check
if all spring blocks in the product are free of damage
and functioning correctly. Any damaged parts should
be replaced and the correct functioning should be
veried. If the Safety Disconnect is not functioning
correctly, it can potentially cause damage to person or
property.
4.15 Tailpipe modication options
Tailpipe Reducer
The tailpipe adaptor is used when an exhaust tailpipe needs to
be converted from a smaller size to a larger size to allow the
conical tailpipe adapter to be installed.
Tailpipe reducer packs
The tailpipe reducer pack enables vehicles with dierent tailpipe
sizes to connect to the Plymovent Magnetic Grabber tailpipe
connector. This product can be used in combination with the
Magnetic Grabber tailpipe bends as well as direct onto the
Magnetic Grabber tailpipe connector. The tailpipe reducer pack
allows a wide range of exhaust pipes to connect to the
Plymovent system.
Tailpipe support bracket
The tailpipe support bracket can be used for various dimension
exhaust tailpipes and ensures a secure connection between the
tailpipe and body / chassis. In some cases, you may need to
divert the exhaust ow from the tailpipe to the side of the
vehicle. The Magnetic Grabber®connector can then be installed
to this modication.
When a tailpipe modication is needed, Plymovent recommends
you consult the manufacturer of the vehicle, to ensure a correct
and sturdy installation of the Magnetic Grabber®connector.
5 USE
The STRA is an automatic, magnetic or pneumatic exhaust gas
extraction system designed for the exhaust extraction of re and
rescue vehicles with low level, undercarriage exhaust pipes. The
system is used to remove harmful vehicle exhaust emissions
from the facility by capturing and removing the exhaust at the
emission source, the exhaust pipe.
As a vehicle moves within the facility, the nozzle must be
connected to the vehicle. The connection of the nozzle to the
tailpipe will activate the fan. The extraction hose connected to
the nozzle moves along with the vehicle.
Exhaust gases pass from the nozzle through the extraction hose
and into the ducting and extraction fan before escaping to the
atmosphere.
As the vehicle exits the facility, the trolley moves along to the
end of the rail. The balancer locking cable prevents the balancer
from unwinding and pulls the nozzle from the tailpipe, allowing it
to disconnect. The disconnection of the nozzle automatically
stops the fan.
5.1 Operating the Magnetic Grabber®
5.1.1 Connecting the Magnetic Grabber
Please ensure that, on the side of the vehicle where the system
is installed, no persons are present in an area of 3 ft (1 m)
under and / or around the STRA system and /or between the
vehicle and the entry / exit door when the vehicle exits the
building. This way possible injuries can be avoided by a possible
backwards motion of the Grabber in the direction of the station
and park position.
When a vehicle returns to its bay the Magnetic Grabber nozzle
can easily be attached to the conical tailpipe adapter.

160420/0 STRA MG manual EN - 12
The Magnetic Grabber nozzle must be placed straight onto the
conical tailpipe adapter, but to connect it is easiest to rst attach
the top of the Magnetic Grabber and then press down on the
safety disconnect in order to attach the lower part of the
Magnetic Grabber.
The conical design of the connection surface ensures safe and
easy positioning.
6 MAINTENANCE
6.1 Periodic maintenance
The product has been designed to function without problems
for a long time. In order to guarantee this some simple, regular
maintenance activities are required which are described in this
chapter.
The maintenance activities in the table below can be carried
out by the user.
Component Action Frequency:
every X months
X=6 X=12
Hose Check the hose for
any defects
X*
Nozzle Check if the nozzle
is still tightly xed
to the hose
X*
Clean the
connection parts of
the nozzle
X
Rail Clean the inside of
the rail
X
Trolley Check if the trolley
runs smoothly
through the rail
and stops correctly
at the end stop
X
Clean the trolley X
Rubber seal Clean the inside of
the rubber seal
X
Balancer Check the balancer
locking cable and
support wire.
Adjust tension
when needed.
X
*Before every use.
ATTENTION
Do not use solvents to clean the system.

160420/0 STRA MG manual EN - 13
7 TROUBLESHOOTING
Problem Possible cause Solution
The nozzle does
not connect tightly
to the tailpipe
(adapter).
The magnets in the
Grabber cannot
make a clear
connection.
Clean the tailpipe
adapter from any
soot or dirt.
The swing-back of
the hose drop after
disconnection is too
extreme.
The balancer
pre-tension is too
strong.
Decrease the
balancer
pre-tension.
The BLC is too
long.
Shorten the BLC.
The distance
between the
vehicle and the
standard hose
position is not
correct.
Make sure the
vehicle and rail are
positioned
correctly.
The end stop is
located too far
from the door.
Reposition the rail
closer to the entry
door.
The swingback of
the hose drop after
disconnection is too
extreme.
The balancer
pre-tension is too
strong.
Decrease the
balancer
pre-tension
The end stop is
located too far
from or too close to
the door.
Reposition the end
stop.
The distance
between the
vehicle and the
standard hose
position is
incorrect.
Rightly position rail
and vehicle.
8 DISPOSAL
After life of the product, dispose it of in accordance with
federal, state or local regulations.
9 SPARE PARTS
10
Pos. Art. no. Description Note
1 0000113752 Internal crab
2 - Hose For article
numbers and
prices please
refer to the price
list.
3 - Balancer For balancer
spare parts
please refer to
the balancer
manual.
1
2
3
4
5
67

160420/0 STRA MG manual EN - 14
Pos. Art. no. Description Note
4 0000114045 Steel saddle 4 in.
(100 mm)
4 0000114046 Steel saddle 5 in.
(125 mm)
5 - SDCH For article
numbers and
prices please
refer to the
spare part price
list.
6 - Magnetic Grabber For article
numbers and
prices please
refer to the price
list.
7 - Tailpipe adapter For article
numbers and
prices please
refer to the price
list.

160420/0 STRA MG manual
