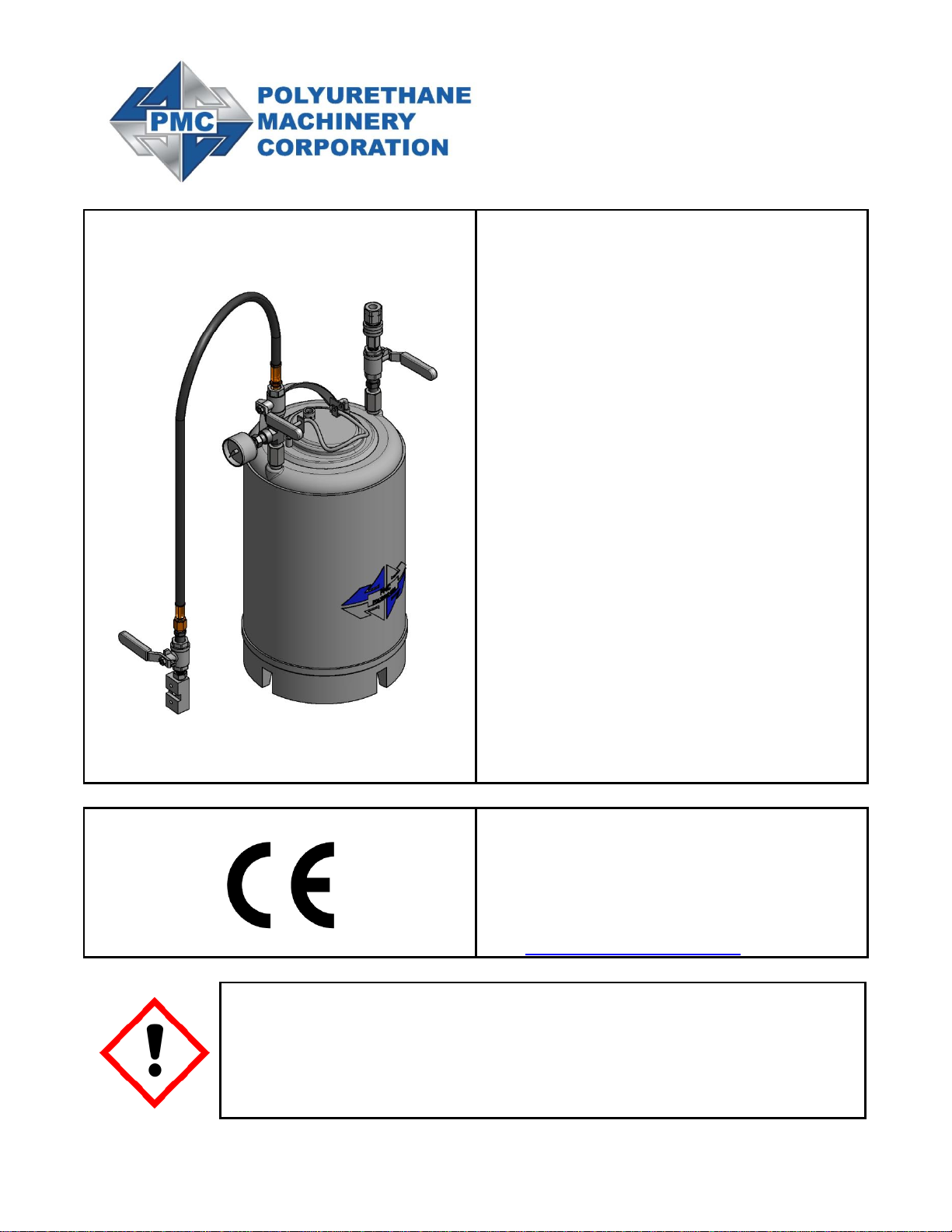

PMC 200426 User manual

200426
200427
2.5 Gallon Flush Tank
For Professional Use Only
Not approved for use in explosive
atmosphere locations
Service Manual
Ref. # MN-04025
Revision 1.2
October 20, 2020
Polyurethane Machinery Corp.
Corporate: 1 Komo Dr, Lakewood, NJ 08701
Manufacturing: 2 Komo Dr, Lakewood, NJ 08701
Phone: [phone]
Fax: [phone]
URL: http://www.polymac-usa.com
Before using the Flush Tank, carefully read all the technical and safety
documentation included in this manual. Pay special attention to the
information in order to know and understand the operation and the
conditions of use of the Flush Tank. All of the information is aimed at
improving user safety and avoiding possible breakdowns from the
incorrect use of the Flush Tank.

TABLE OF CONTENTS
WARRANTY .......................................................................................................................................1
SAFETY AND HANDLING..................................................................................................................3
CHARACTERISTICS ..........................................................................................................................5
TECHNICAL SPECIFICATIONS.........................................................................................................5
DESCRIPTION....................................................................................................................................6
START UP ..........................................................................................................................................7
FLUSHING PROCEDURE...................................................................................................................8
PART IDENTIFICATION .....................................................................................................................9
Flush Tank Assemblies....................................................................................................................9
Flush Tank Body Assembly ...........................................................................................................10
Coupling Block Assemblies............................................................................................................11

1
WARRANTY
Polyurethane Machinery Corporation (hereinafter “PMC”) provides this LIMITED WARRANTY
(hereinafter “Warranty”) to the original purchaser (hereinafter “Customer”) covering this
equipment and the original PMC manufactured accessories delivered with the equipment
(hereinafter “Product”) against defects in material or workmanship of the Product (hereinafter
“Defect” or “Defective”) for a period of one (1) year from the date of first purchase as shown on
the original PMC invoice (hereinafter “Warranty Period”).
If during the Warranty Period under normal use, the Product is suspected by Customer to be
Defective in material or workmanship, it is Customer’s responsibility to contact PMC and return
the Product to PMC as directed by PMC, freight prepaid. If PMC determines that the Product is
Defective and that such Defect is covered by this Warranty, PMC will credit Customer for the
reasonable freight charges incurred by Customer in returning the Defective Product to PMC, and
PMC (or its authorized agent) will, at PMC’s option, repair or replace the Product, subject to the
following:
Original Invoice: The original invoice must be kept as proof of the date of first sale and the Product
serial number. The Warranty does not cover any Product if the Original Invoice appears to have
been modified or altered, or when the serial number on the Product appears to have been altered
or defaced.
Product Maintenance: It is the Customer’s responsibility to maintain the Product properly. See
your maintenance schedule and owner’s manual for details. The Warranty does not cover an
improperly maintained Product.
Non-PMC Components and Accessories: Non-PMC manufactured components and accessories
that are used in the operation of the Product are not covered by this Warranty. Such components
and accessories shall be subject to the warranty offered to the Customer, if any, by the original
manufacturer of such component or accessory.
Other Warranty Exclusions: The Warranty does not cover any Product that PMC determines has
been damaged or fails to operate properly due to misuse, negligence, abuse, carelessness,
neglect, or accident. By way of example only, this includes:
•Normal wear and tear.
•Improper or unauthorized installation, repair, alteration, adjustment or modification of the
product.
•Use of heating devices, pumping equipment, dispensers, or other parts or accessories
with the product that have not been approved or manufactured by PMC.
•Failure to follow the operating instructions and recommendations provided by PMC.
•Cosmetic damage.
•Fire, flood, “acts of God,” or other contingencies beyond the control of PMC.

WARRANTY
2
THE WARRANTY DESCRIBED HEREIN IS THE EXCLUSIVE REMEDY FOR THE
CUSTOMER AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS, IMPLIED,
STATUTORY OR OTHERWISE, AND THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE AND ALL
OTHER WARRANTIES ARE HEREBY DISCLAIMED. TO THE FULLEST EXTENT
PERMITTED BY LAW, PMC SHALL NOT BE RESPONSIBLE, WHETHER BASED IN
CONTRACT, TORT (INCLUDING, WITHOUT LIMITATION, NEGLIGENCE),
WARRANTY OR ANY OTHER LEGAL OR EQUITABLE GROUNDS, FOR ANY
CONSEQUENTIAL, INDIRECT, INCIDENTAL, LOST PROFITS, SPECIAL, PUNITIVE
OR EXEMPLARY DAMAGES, WHETHER TO PERSON OR PROPERTY, ARISING
FROM OR RELATING TO THE PRODUCT, EVEN IF PMC HAS BEEN ADVISED OF
THE POSSIBILITY OF SUCH LOSSES OR DAMAGES.
Non-Warranty Service by PMC: If PMC determines that the suspected Defect of the Product is
not covered by this Warranty, disposition of the Product will be made pursuant to the terms and
conditions of PMC’s written estimate on a time and materials basis.
Continuing Warranty for Products Repaired or Replaced under Warranty: Following the repair or
replacement of a Product covered by this Warranty, such Product will continue to be subject to
the original Warranty for the remainder of original Warranty Period or for three (3) months from
the repair or replacement date, whichever is longer.
No Rights Implied: Nothing in the sale, lease or rental of any Product by PMC shall be construed
to grant any right, interest or license in or under any patent, trademark, copyright, trade secret or
other proprietary right or material owned by anyone; nor does PMC encourage the infringement
of same.
Exclusive Warranty: This writing is the final, complete, and exclusive expression of the Warranty
covering the Product. Any statements made by PMC, its employees or agents that differ from the
terms of this Warranty shallhave no effect. It is expressly understood that Customer’s acceptance
of this Warranty, by performance or otherwise, is upon and subject solely to the terms and
conditions hereof, and any additional or different terms and conditions proposed or expressed by
Customer or anyone, whether in writing or otherwise, are null and void unless specifically agreed
to in writing by an Officer of PMC.

3
SAFETY AND HANDLING
This chapter contains important information on the safety, handling, and use of your Flush Tank.
Before using the Flush Tank, carefully read all the technical and
safety documentation included in this manual. Pay special
attention to the information in order to know and understand the
operation and the conditions of use of the Flush Tank. All of the
information is aimed at improving user safety and avoiding
possible breakdowns from the incorrect use of the Flush Tank.
WARNING! Presents information to alert of a situation that
might cause serious injuries if the instructions are not
followed.
CAUTION! Presents information that indicates how to avoid damage to
the equipment or how to avoid a situation that could cause minor
injuries.
NOTE! Is relevant information of a procedure being carried out.
Careful study of this manual will enable the operator to know the characteristics of the Flush Tank
and the operating procedures. By following the instructions and recommendations contained
herein, you will reduce the potential risk of accidents; you will provide a better opportunity for
incident-free operation for a longer time, greater output, and the possibility of detecting and
resolving problems quickly and simply.
Keep this Operations Manual for future consultation of useful information at all times. If you lose
this manual, ask for a new copy from your PMC Distributor or go online and visit our web site at
www.polymac-usa.com.
The Flush Tank has been designed and built for the flushing of polyurea chemical application
guns, polyurethane foam chemical application guns, and some two-component epoxy application
guns.

SAFETY AND HANDLING
4
WARNING! The design and configuration of the Flush Tank
does not allow its use in potentially explosive atmospheres,
or the pressure and temperature limits described in the
technical specifications of this manual to be exceeded.
Always use liquids and solvents that are compatible with the unit. If in doubt, consult your PMC
Distributor. When working with the Flush Tank, it is recommended that the operator wear suitable
clothing and elements of personal protection, including, without limitation, gloves, protective
goggles, safety footwear, and face masks. Use breathing equipment when working with the Flush
Tank in enclosed spaces or in areas with insufficient ventilation. The introduction and follow-up of
safety measures must not be limited to those described in this manual. Before using the Flush
Tank, a comprehensive analysis must be made of the risks derived from the products to be
dispensed, the type of application, and the working environment.
To prevent possible injury caused by incorrect handling of the raw
materials and solvents used in the process, carefully read the
Material Safety Data Sheet (MSDS) provided by your supplier.
Deal with the waste caused according to current regulations.
To avoid damage caused by the impact of pressurized fluids, do
not open any connection or perform maintenance work on
components subject to pressure until the pressure has been
completely eliminated.
Use suitable protection when operating, maintaining or being
present in the area where the equipment is functioning. This
includes, but is not limited to, the use of protective goggles,
gloves, shoes and safety clothing and breathing equipment.
The equipment includes components that reach high
temperatures and can cause burns. Hot parts of the equipment
must not be handled or touched until they have cooled
completely.
To prevent serious injury through crushing or amputation, do not
work with the equipment without the safety guards installed on
the moving parts. Make sure that all the safety guards are
correctly reinstalled at the end of the repair or maintenance work
of the equipment.

5
CHARACTERISTICS
•Quick and easy installation
•No electricity required
•Flow control
•Portable and versatile system
TECHNICAL SPECIFICATIONS
Maximum Working Pressure _______________________________________ 100 PSI (7.0 bar)
Pressure Relief Valve Rating_______________________________________ 100 PSI (7.0 bar)
Air Hose Connection _________________________________________ 1/4” Quick Disconnect
Solvent Hose Length ________________________________________________36 in (0.91 m)

6
DESCRIPTION

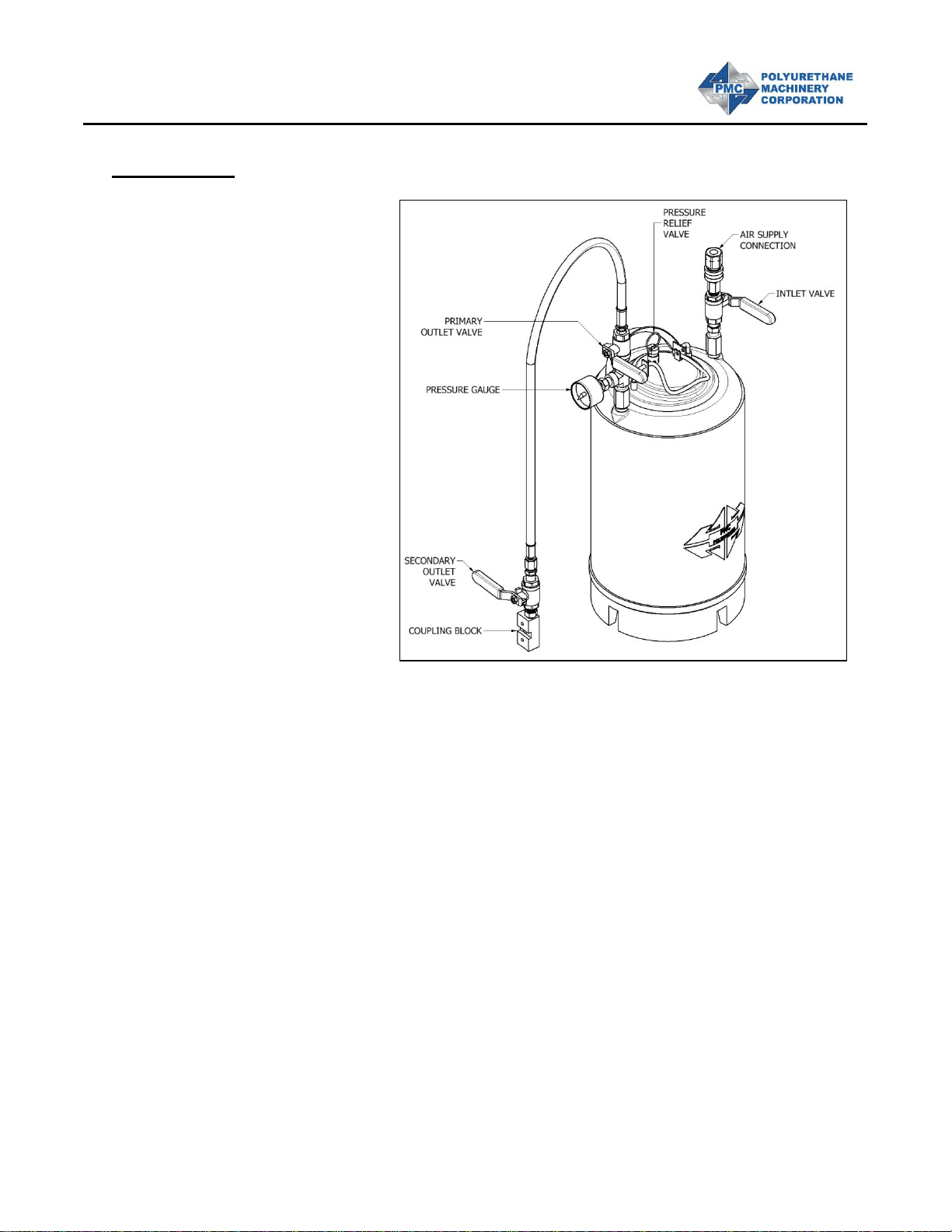

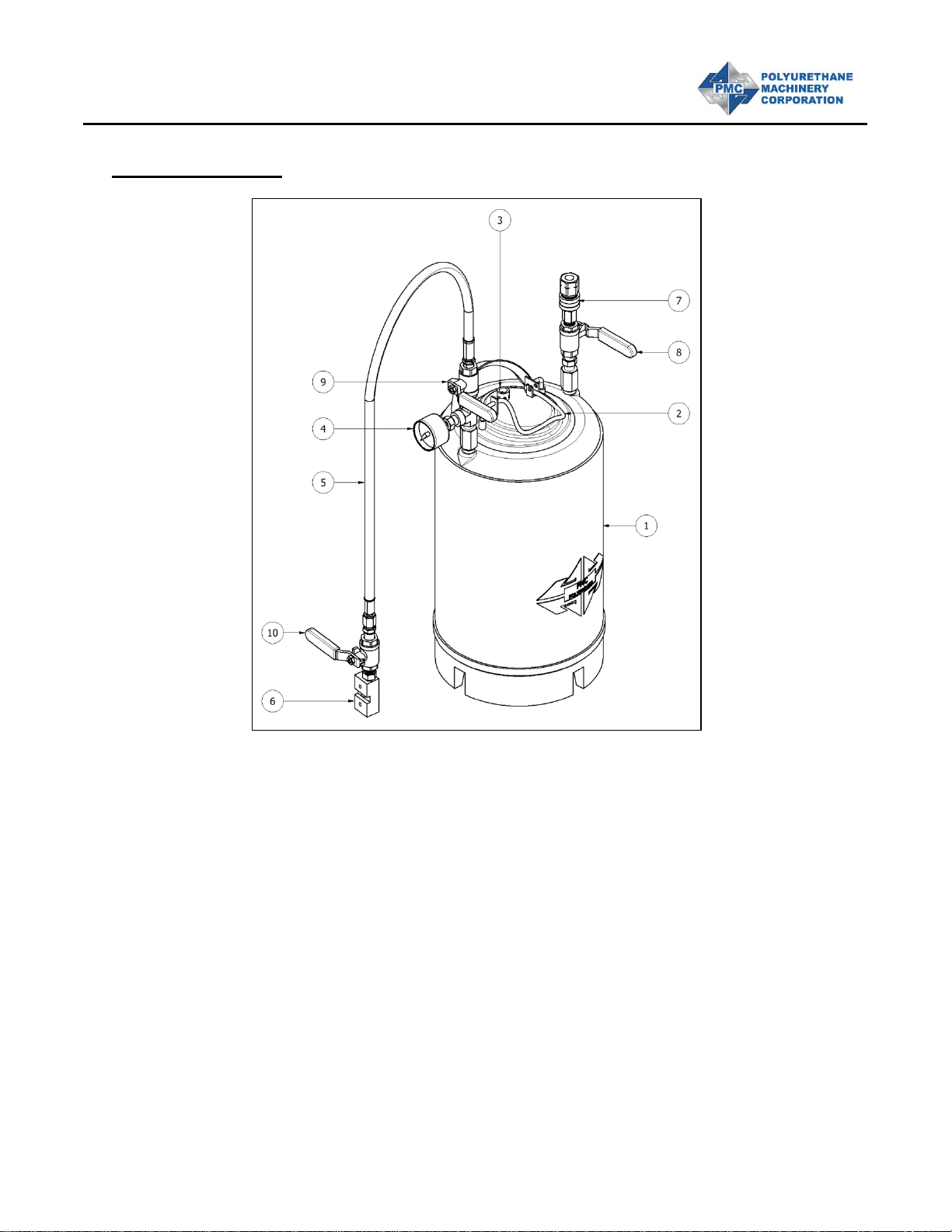

1. Flush Tank Body
2. Flush Tank Lid
3. Pressure Relief Valve
4. Pressure Gauge
5. Solvent Hose
6. Coupling Block
7. Quick Disconnect
8. Inlet Valve
9. Primary Outlet Valve
10. Secondary Outlet Valve

7
START UP
1. Relieve fluid pressure in
the gun (See Gun Manual
for proper procedure)
2. If necessary, relieve air
pressure in the tank by
pulling up on the
Pressure Relief Valve.
3. Ensure ALL Valves are in
the closed position.
4. Open the lid and fill tank
2/3 full with compatible
solvent.
5. Close and secure the lid.
6. Connect the air supply
(130 psi MAX) to the flush
tank and slowly open the
Inlet Valve.After a few
seconds, check the
Pressure Gauge to
ensure the pressure has
stabilized.
7. Close the Inlet Valve, and
then disconnect the air
supply.

8
FLUSHING PROCEDURE
1. Ensure ALL Valves are
closed.
2. Attach the Coupling
Block to the spray gun.
3. Open the Primary Outlet
Valve, and then open the
Secondary Outlet Valve.
4. Direct the gun into a
grounded metal pail,
ensuring that the flush
coupling block is
maintaining direct contact
with the side of the pail.
Flush for approximately
10 seconds.
5. Close the Secondary
Outlet Valve and purge
the remaining solvent in
the hose.
6. Close the Primary Outlet
Valve and disconnect the
coupling block from the
spray gun.

9
PART IDENTIFICATION
Flush Tank Assemblies
200426, 200427
PARTS LIST
ITEM
QTY
PART NUMBER
DESCRIPTION
INCLUDED IN
PART NUMBER
1
1
200413
FLUSH TANK BODY ASSEMBLY
ALL
2
1
HI-05106
COUPLING BLOCK ASSEMBLY, FLUSH KIT, AP
200426
1
200218
COUPLING BLOCK ASSEMBLY, FLUSH KIT, F-AP
200427

PART IDENTIFICATION
10
Flush Tank Body Assembly
200413
PARTS LIST
ITEM
QTY
PART NUMBER
DESCRIPTION
1
1
200400
2.5 GAL FLUSH TANK
2
2
200401
FLUSH TANK FITTING
3
1
GP-00100-1
1/4 PIPE NIPPLE
4
1
GU-04022
QUICK DISCONNECT; MALE
5
1
GU-04021
QUICK DISCONNECT; FEMALE
6
1
GP-00100-3
MALE RUN TEE
7
1
HI-05105
NPT REDUCER
8
1
NE-06007
AIR PRESSURE GAUGE
9
2
PU-04000-82
BALL VALVE
10
1
200425
HOSE, FLUSH TANK
11
1
HI-05064
1/4 NPTF X 4 JIC
12
1
HI-05082
BALL VALVE
13
1
HI-05095
1/4 X 1/8 HEX NIPPLE
14
1
SP-3-3
PRESSURE RELIEF VALVE

PART IDENTIFICATION
11
Coupling Block Assemblies
HI-05106, 200218
PARTS LIST
ITEM
QTY
PART NUMBER
DESCRIPTION
INCLUDED IN
PART NUMBER
1
1
RM-05106
COUPLING BLOCK, FLUSH KIT, AP
HI-05106
1
200214
COUPLING BLOCK, FLUSH KIT, F-AP
200218
2
2
TN-04187
SHCS 10-32 X 3/16 PORT PLUG
ALL
3
1
TN-04193
COUPLING BLOCK MOUNTING SCREW
ALL
4
1
TN-04197
COUPLING BLOCK STABILIZER MOUNTING SCREW
ALL
Replacement Tank O-Ring
PARTS LIST
PART NUMBER
DESCRIPTION
USAGE
OR-00049A
O-RING, #417, VITON
REPLACEMENT TANK SEAL O-RING
