PMV Mounts PMVMOUNT2036F User manual

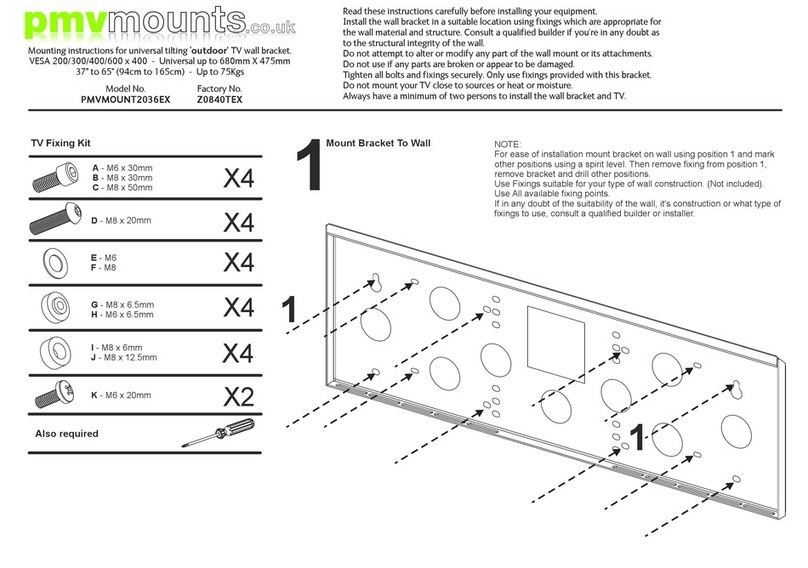

Mount Bracket To Wall
1NOTE:
For ease of installation mount bracket on wall using position 1 and mark
other positions using a spirit level. Then remove fixing from position 1,
remove bracket and drill other positions.
Use Fixings suitable for your type of wall construction. (Not included).
Use All available fixing points.
If in any doubt of the suitability of the wall, it's construction or what type of
fixings to use, consult a qualified builder or installer.
TV Fixing KitTV Fixing Kit
K - M6 x 20mm
D - M8 x 20mm
A - M6 x 30mm
B - M8 x 30mm
C - M8 x 50mm
I - M8 x 6mm
J - M8 x 12.5mm
G - M8 x 6.5mm
H - M6 x 6.5mm
E - M6
F - M8
1
1
X4
X4
X4
X4
X2
X4
pmvmounts.co.uk
ŸRead these instructions carefully before installing your equipment.
ŸInstall the wall bracket in a suitable location using fixings which are appropriate for
the wall material and structure. Consult a qualified builder if you’re in any doubt as
to the structural integrity of the wall.
ŸDo not attempt to alter or modify any part of the wall mount or its attachments.
ŸDo not use if any parts are broken or appear to be damaged.
ŸTighten all bolts and fixings securely. Only use fixings provided with this bracket.
ŸDo not mount your TV close to sources or heat or moisture.
ŸAlways have a minimum of two persons to install the wall bracket and TV.
Mounting instructions for universal flat to wall TV bracket.
VESA 200/300/400/600 x 400 - Universal up to 680mm X 475mm
37" to 65" (94cm to 165cm) - Up to 75Kgs
Model No.
PMVMOUNT2036F
Factory No.
Z0840B
Also required
All manuals and user guides at all-guides.com
all-guides.com

2
Kx2
Hang And Secure Screen On
TV Mounting Plate
3
Attach Screen Fixing
Plate To Screen
A-J x4
ba
A-Dx4
G-Jx4
E-Fx4
