PMV Mounts PMVMOUNTXFBP User manual

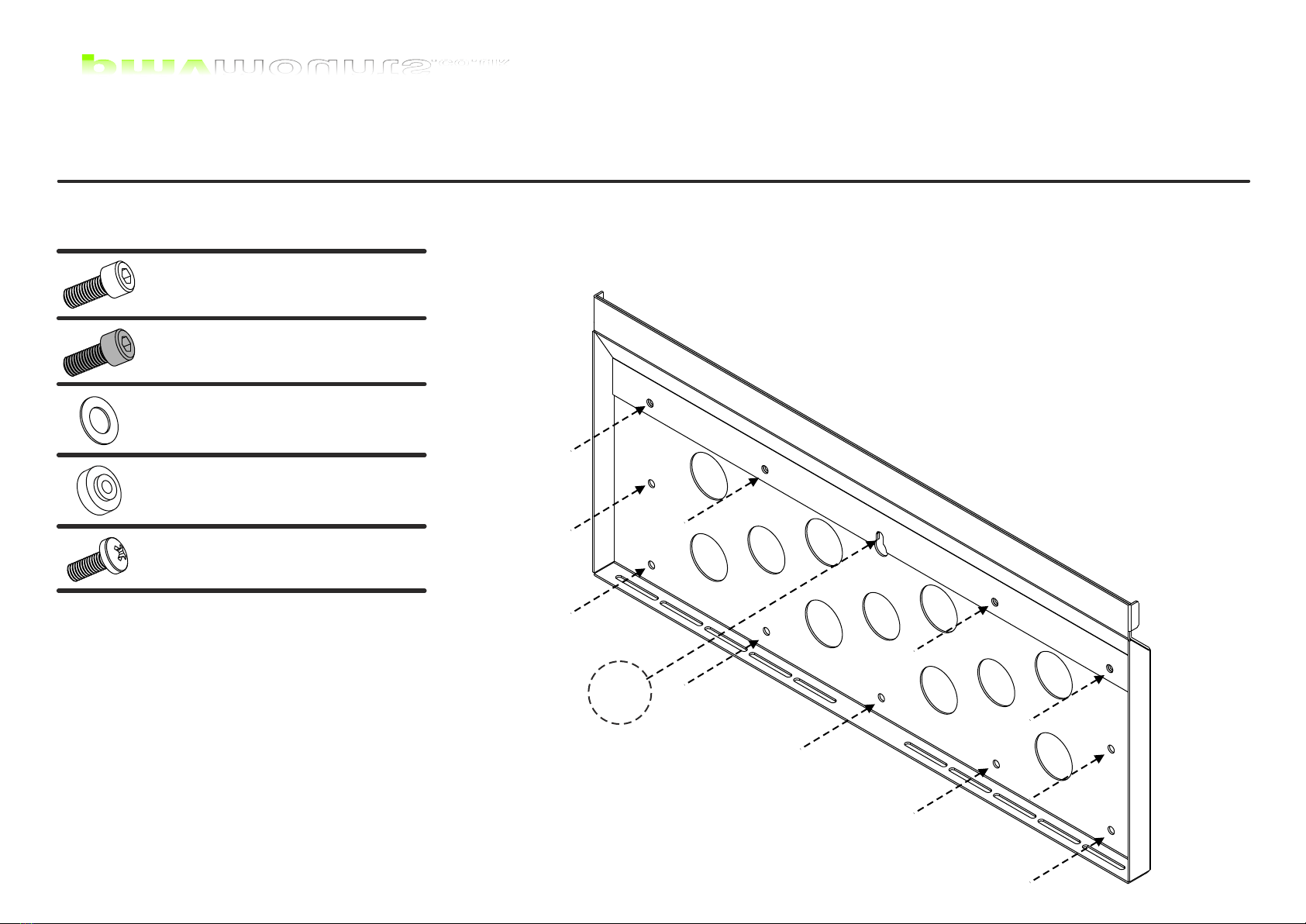

Mount Bracket To Wall
1NOTE:
ŸFor ease of installation mount bracket on wall using position 1 and mark
other positions using a spirit level. Then remove fixing from position 1,
remove bracket and drill other positions
ŸUse Fixings suitable for your type of wall construction.
ŸUse All available fixing points
ŸIf in any doubt of the suitability of the wall, it's construction or what type of
fixings to use, consult a qualified builder or installer.
1
TV Fixing KitTV Fixing Kit
G - F0194 M6 x 16mm
C - M10 (P1.25) x 30mm
A - F0222 M6 x 30mm
B - M10 (P1.5) x 30mm
x6
x6
x2
F - F0238 M6 x 6.5mm
x4
x6
D - F0057 M6 Washer
E - F0396 M10 Washer
pmvmounts.co.uk
ŸRead these instructions carefully before installing your equipment.
ŸInstall the wall bracket in a suitable location using fixings which are appropriate for
the wall material and structure. Consult a qualified builder if you’re in any doubt as
to the structural integrity of the wall.
ŸDo not attempt to alter or modify any part of the wall mount or its attachments.
ŸDo not use if any parts are broken or appear to be damaged.
ŸTighten all bolts and fixings securely. Only use fixings provided with this bracket.
ŸDo not mount your TV close to sources or heat or moisture.
ŸAlways have a minimum of two persons to install the wall bracket and TV.
Mounting instructions for XL Portrait flush to wall TV bracket.
VESA 200/300/400/600/600x400 - Universal up to 650mm X 650mm
52" to 90" (132cm to 229cm) - Up to 135Kgs
Model No.
PMVMOUNTXFBP
Factory No.
Z0840XWP

2
Gx2
Gx2
Hang And Secure Screen On
TV Mounting Plate
3
Attach Screen Fixing
Plate To Screen
A-F x4/6
ba
For M6 bolts use washer 'D' and shoulder spacer 'F'
Use larger (12mm) holes in arm to insert shoulder spacer
For M8 bolts use washer 'E'
Use smaller (10mm) holes in arm
Landscape Portrait
