Polaris Elite Premium B 18 User manual

Vacuum Sterilizer
Elite Premium B
Instruction Manual
Autoclave

2

Vacuum Sterilizer
Autoclave
1
Chapter One – Introduction
(1-1) How to use the manual 4
(1-2) Terminology and signs 5
Chapter Two – General Information
(2-1) Commitments of the Company 7
(2-2) Guarantee 7
(2-3) Persons Authorized to Use the Device
Chapter Three – Introduction to the Device
(3-1) General Introduction of the Autoclave Device 10
(3-2) Introduction of Elite Premium Dental Autoclave 12
(3-2-1) Device Specications 12

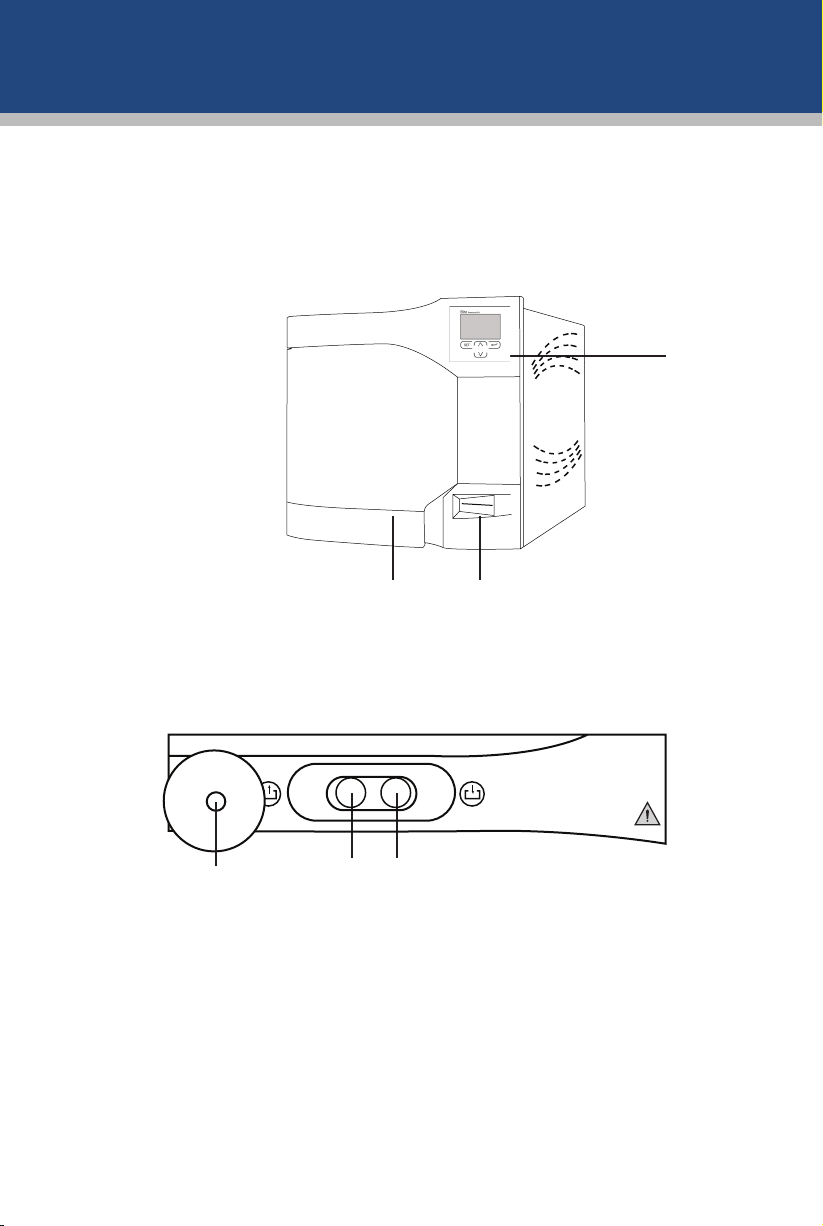

(3-2-2) Description of the Main Components of the Device 14
(3-2-3) Description of Device Panel 15
(3-2-4) Technical Specications 16
(3-2-5) Auxiliary Equipment 17
Chapter Four – Moving and Installation
(4-1) Opening the Package 19
(4-2) Moving the Device 19
(4-3) Environmental Conditions 19
(4-4) Device Installation 20
Chapter Five – Product Application
(5-1) Application Programs 25
(5-2) Dening New Programs 28
(5-3) Time and Date Adjustment 29
(5-4) Temperature and Pressure Calibration 30
(5-5) Fuse Replacement 31
Chapter Six – Safety
(6-1) General Safety 33
(6-2) Safety Measures of the Device 33
Chapter Seven – Maintenance
(7-1) Cleaning 36
(7-2) Periodical Maintenance 36
(7-3) Technical Maintenance Issues 37
Contents

2
Dear Customer
We thank you for your selectivity and trust in purchasing
domestically produced products, and we are pleased that after
continuous efforts, we have been able to manufacture
Autoclave device and put it at your disposal.
This product has been designed by our technical and
engineering team of experienced and committed people in the
elds of mechanical, electronics and computer engineering, and
by utilizing updated technology and building upon 25 years of
experience in manufacturing dental equipment, this product has
reached production of export index quality.
In designing the product, three principles of accuracy, reliability
and safety performance and also user friendly have been
considered, so in order to correctly and completely utilize
product features, we ask you to read the instruction manual
carefully and if you have any questions or you need more
information, contact the after-sales unit.
The instruction manual is a comprehensive reference for the
efcient and safe use of the product. Following the instructions
of this manual has a great role in reducing consumable costs,
avoiding risks and ultimately increasing product life. The
instruction manual should always be kept near the product and
the user should periodically read it.
Please impart us with your constructive guidance, so that we
can benet from your comments, recommendations, and gain
knowledge about your needs.
We hope that you will nd using Elite Premium to be an enjoyable
and successful experience,
Polaris Engineering and Manufacturing

Introduction
Autoclave

4
Introduction
(1-1) How to use the manual
This manual presents the instructions about use, installation,
and maintenance of Autoclave made by Polaris Co. It should
be noted that:
•The product should be used according to the instructions of
this manual. Thus, all parts of it should be read carefully before
starting and installing the tool. Special attention should be
paid to the highlighted parts. (refer to section 2-1).
•Observing the instructions of the manual assures the health
and safe operation of the tool.
•Manual is an integral part of the product. Thus, it should
always come with the product and should be used optimally
as a reference for use during the operation of the product. It
should be available even during the sale of the product, or
even when it is not used.
•In case of losing or damaging the manual, get a replacement
one from the after-sales service department of Polaris Co.
The following are explained in detail in this manual:
•Installation and start up of the product
•Operation details of the product and its parts
•Maintenance condition
•Primary safety and preventive details

Vacuum Sterilizer
Autoclave
5

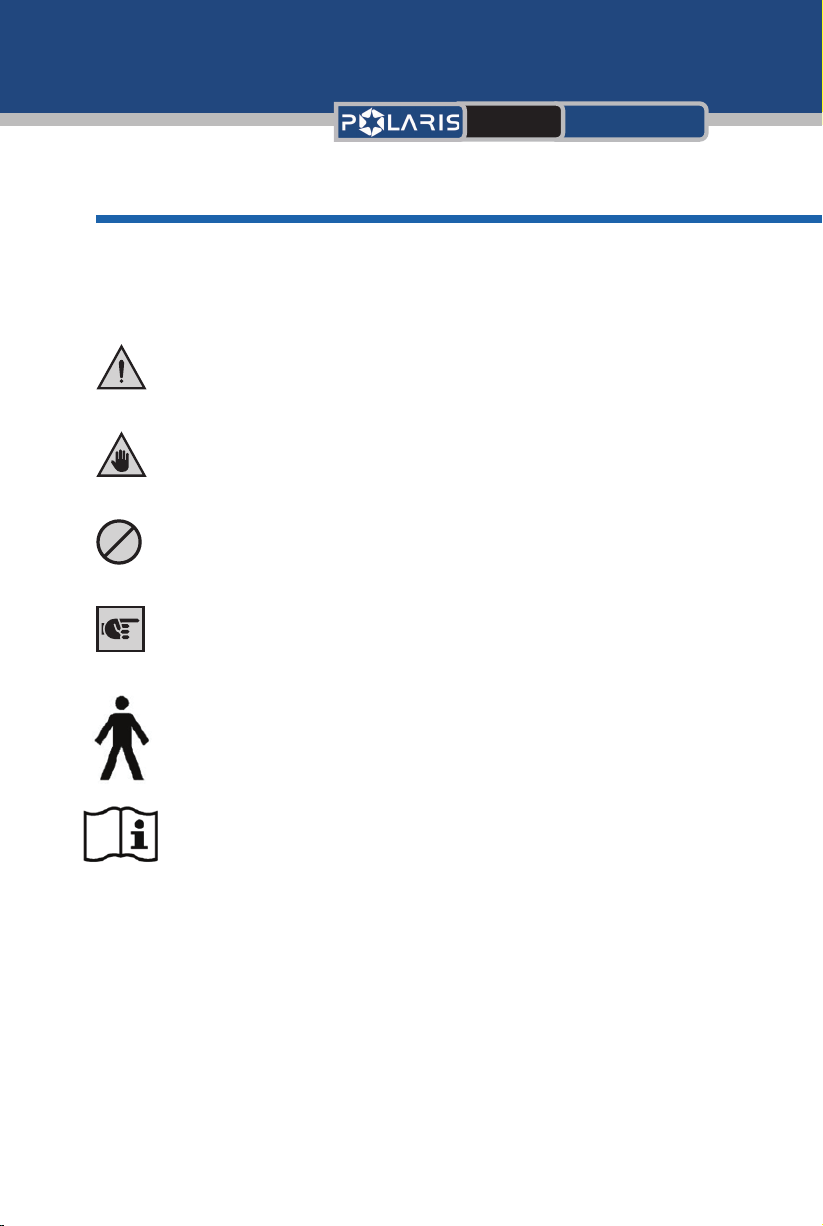

(1-2) Terminology and signs
Knowledge of signs meanings is of great importance. A list of
signs has been introduced in the following for initial recognition
and reference to them if necessary.
Type B device
Read the manual
Danger!
Indicates compulsory warnings.
Warning!
Indicates functional recommendations.
Forbidden!
Indicates forbidden activities.
Caution!
Refers to user instructions of the tool.

General Information
Autoclave

Vacuum Sterilizer
Autoclave
7
(2-1) Company liabilities
(2-2) Guarantee
Polaris Co. is not liable for any problem involving the follow-
ing: Failure to follow the instructions of this manual (incorrect
use of the product), repair by an unauthorized person and part
replacement without coordination with the after-sales service
department, failure due to power uctuations.
Guarantee of this product includes repairs, supply, and
replacement. If used appropriately, Polaris Co, the guarantee cov-
ers all main parts of the device for 18 month.
Following cases and parts are not covered by guarantee:
•power uctuations
•incorrect transportation of device
•inappropriate and frequent use of device despite
having obvious aws
•not observing the maintenance instructions
• power cable
•any repair or replacement by unauthorized persons.
• main and display keys
Commutation fees of company representatives to install
or repair during guarantee period will be received from
buyer at site.
The device can’t be used before installation and
insurance of correct operation of protective parts.
It is highly recommended that user has a general
knowledge of this manual before using this device. The
cases which appear to be operation aws in the device
should be registered by user and they should be sent to
the after-sale service department.

8
•Authorized representatives of Polaris Co.
These persons are endorsed by the company to work on the
device under any operational circumstances. They are also
authorized to do any electrical and mechanical adjustment/
repair, maintenance program and authorized parts replacement.
General Information

Product Introduction
Autoclave

10
(3-1) General Introduction of the Autoclave Device
What is an Autoclave?
Generally speaking, an autoclave is a device with a steam con-
tainer used from sterilizing laboratory or hospital materials and
equipment. Autoclave is used for medical, dental, medicinal,
food industries, microbial environments culture and veterinary
medicine purposes etc.
Autoclave is an important device in treatment centers for ster-
ilizing necessary equipment used in surgery. Performing a safe
surgery, producing a medicine or culturing a microbial environ-
ment requires a proper autoclave.
(3-1-1) Classication of Autoclaves based on Steam Tank
Availability
The autoclave works with water steam and the steam sterilizes
the content inside the device such as pegs, gloves or other
contaminated items at high temperature (121 – 134 `C) under
pressure (2.3 – 3.2 Bar). Therefore the autoclave can be classi-
ed into two groups based on the steam factor:
A- Steam supplied from an exterior source (central steam)
B- Steam supplied from the steam generator of the autoclave,
which can be provided using a series of electrical elements
oating inside a water tank or through a gas-operated steam
source generated through a gas torch put in front of the water
tank.
Autoclave is manufactured in various types for laboratories,
hospitals and dental clinics in cylindrical or cube shapes, verti-
cally or horizontally, with one or two doors. They may be used
based on the designated application.
(3-1-2) Classication of Autoclaves based on Geometry
and Volume
Autoclave may be classied based on geometry and volume in
the three following classes:
Device Introduction

Vacuum Sterilizer
Autoclave
11
1- Vertical autoclave (laboratory autoclave)
2- Horizontal autoclave (gravity autoclave, pre-vacuum
autoclave, pulsomatic autoclave) or hospital autoclave
3- Desktop autoclave (dentistry autoclave)
(3-1-3) Classication of Dental Autoclaves
Autoclaves can be classied in the eld of dentistry regarding
their application range (and method of sterilization) into three
general classes:
N Type: for sterilizing unwrapped solid loads.
S Type: for sterilizing unwrapped solid loads and other loads
recommended by the manufacturer. Please note that this type
of autoclave is not capable of sterilizing every type of load
(those special for B type autoclaves).
B Type: for sterilizing wrapped metal loads, unwrapped metal
loads, wrapped hollow loads, unwrapped hollow loads, porous
and cloth loads.
(3-1-4) General Components of an Autoclave Device
An autoclave (sterilizer) may be constructed with the following
parts. Additional or less items may also be available based on
the device’s application.
Interior tank (chamber), exterior tank (jacket), autoclave door
(sonar, pneumatic), steam generator source, elements, vacuum
pump, valves (on-way, electrical and pneumatic), relief valve
and connectors.

12
(3-2) Introduction of Elite Premium Dental
Autoclave

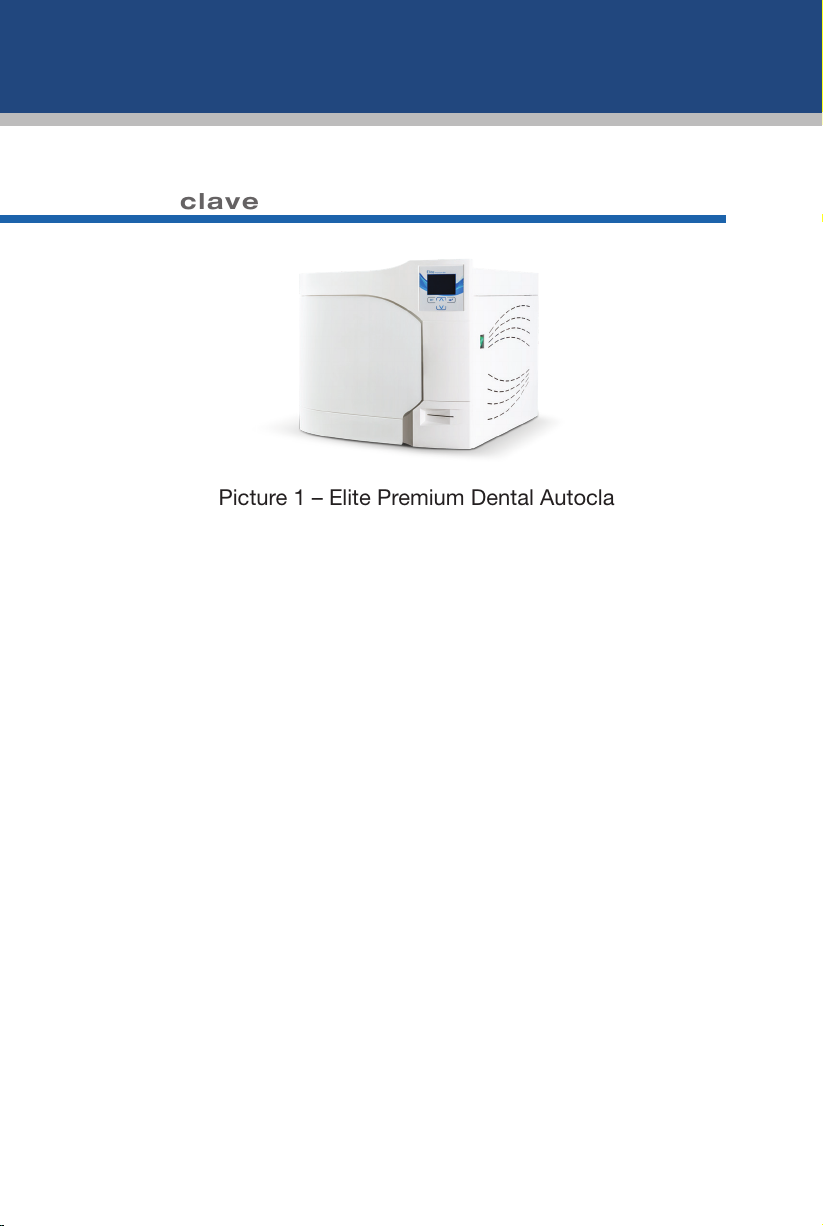

Picture 1 – Elite Premium Dental Autoclave
Elite Premium is a B type dental autoclave and a new
generation of sterilizers which provides an extensive range
of application and assures a high performance authenticity
by using the vacuum environment technology and steam
pressure. Five functional programs according to global
standards along with advanced hardware provides the
capability of sterilizing all surgery equipment (metal or non-
metal), clinical cloths and gowns, operating room equipment
and items, injection systems etc. Considering the high
importance and sensitivity of this product and in addition to
national standard instructions 4860 and 4863 throughout all
design and manufacture stages, all production stages are
performed according to CE Europe, EN 13060 and ISO 13485
standards.
(3-2-1) Device Specications
•Equipped with procedure performance authenticity
assessment system
•Equipped with mechanical controllers (relief valve) and
electronic controllers for the pressure (with feedback from the
pressure sensor) to assure maximum performance safety
•Equipped with water level controller and warning system
•Equipped with ve xed programs and two user-adjusted
programs

Vacuum Sterilizer
Autoclave
13
•Equipped with heat and pressure calibration system
•Equipped with a robotic lock system with a uniform
appearance
•Equipped with an integrated tank made out of stainless steel
•Equipped with two water outlet and inlet valves on the front
and back of the device
•Equipped with a printer installed on the device for printing
the sterilization process details
•Equipped with a timer and time recorder for extracting time-
based information and details from the total sterilization
process
•Equipped with an LCD monitor
•Equipped with a relief valve to assure maximum safety
•Easy application
•Equipped with an active drain system for the dirty water tank
in both manual and automatic modes
•Can be manufactured in 18 to 24 liter capacities (made to
order capacity)
•Resistant against explosion
•Having temperature adjustment, pressure, hydrostatic
test and sterilization process quality control certicates
with biologic standard indicators (ISO 11138 standard) and
chemical and Bowie & Dick test certicates (ISO 11140
standard)
•Equipped with air micro lters for putting clean air into the
chamber
•Equipped with an automatic electrical pump for water supply

14
into the clean water tank
•Manual water supply option
(3-2-2) Description of the Main Components of the
Device
LCD and control panel set
PrinterDevice door equipped with
robotic lock
Anti-bacterial lter Dirty water output Distilled water input
Use only distilled water

Vacuum Sterilizer
Autoclave
15
LCD and control panel set
Output current guiding canal from relief valve
Fuses and power cables
Distilled water input
Dirty water output
Distilled water output
(3-2-3) Description of Device Panel
FF: FRESH FULL
FE: FRESH EMPTY
WF: WASTE FULL
Enter Setting Down Up
Select program
UNIVERSAL
QUICK B
QUICK S
PRION
GENTLE
USER DEFINED
SET
Elite Premium B18
SET

16
(3-2-4) Technical Specications
All our products at Polaris Co. are manufactured according
to the latest global technology at the highest quality. We use
the latest design and production methods to increase the
lifespan of our products and to improve our quality.
Size B18: 475 × 475 × 465 mm
B24: 475 × 705 × 465 mm
Sterile tank volume B18: 18 liters
B24: 24 liters
Functional temperature 121 and 134 `C
Net weight B18: 53 kg
B24: 57 kg
Power source 210-240 V AC – 50.60 Hertz
Maximum power
consumption 1800 Watts
Vacuum pump Compatible with urban electricity 210-240 V AC –
50.60 Hertz
200 Watts power 0.5 mg /l
Vacuum pump
Compatible with urban electricity
240-210 V AC – 50.60 Hertz
200 Watts power
Capable of creating vacuum at
850- millibar
Fuse 15 ampere
Technical Specications of the Autoclave
Table 1

Vacuum Sterilizer
Autoclave
17
(3-2-5) Auxiliary Equipment
Part Units
Water ask 1
Hose (attached to ask) 1
Tray 3
Manual 1
Fuse 2
Automatic water connection
hose 1
Dirty water connection hose 1
Tray handle 1
O-ring 2
Printer paper 1
Hose head 1
Tray holder handle 1
Tray holder 1
List of Auxiliary Equipment of the Device
Table 2

Transportation and
installation
Autoclave
