Important Information
- Before installing the cleaner, make sure the pool filter is clean.
- New plumbing lines should be flushed out before installing the cleaner.
- The Polaris should not be used to remove plaster dust in new pools.
- Disconnect the cleaner before cleaning or backwashing the pool filter. After cleaning, let the
filtration system run for at least five (5) minutes before re-connecting the cleaner.
- Always remove the Polaris from the pool before super oxidation or chlorination treatments.
A WARNING
To avoid risk of injury, do not handle the Polaris while it is operating, except when checking the
wheel RPM. Always remove the cleaner before swimmers enter the pool.
For customer service or support:
- Please mail Warranty Card immediately.
- For on-Iine support: www.polarispoo|.com
- To contact Polaris: US
Customer Service
2620 Commerce Way
Vista, CA 92081-8438
1-800-822-7933
Canada
2115 South Service Road West, Unit 3
Oakville, Ontario - Canada L6L 5W2
1-888-647-4004
CAUTION: USE OF THE POLARIS IN A VINYL LINER POOL
Certain vinyl liner patterns are particularly susceptible to rapid surface wear or pattern removal caused by objects coming into contact
with the vinyl surface, including pool brushes, pool toys, floats, fountains, chlorine dispensers, and automatic pool cleaners. Some
vinyl liner patterns can be seriously scratched or abraded simply by rubbing the surface with a pool brush. Ink from the pattern can
also rub off during the installation process or when it comes into contact with objects in the pool. Zodiac Pool Systems, Inc. is not
responsible for, and the Limited Warranty does not cover, pattern removal, abrasion 0r markings on vinyl liners.

9P0laris' Page 3
Congratulations on the purchase of your new automatic pool cleaner, and thank you for
choosing Polaris. The Polaris 3900 Sport/P39 is designed to give you years of dependable
and efficient service.
Like most mechanical devices, it will require periodic adjustments, routine maintenance, and
the replacement of certain hardworking parts. Please have the cleaner checked occasionally
by your local Polaris dealer or service center.
Always insist on genuine Polaris replacement parts. Non-Polaris parts are not made to our
specifications. They may have an adverse effect on the operation of your Polaris or may even
damage it.
For best results, the cleaner should be installed by a pool professional. Forthose with
experience and confidence in handling plumbing and mechanical equipment, installation is
outlined in this manual.

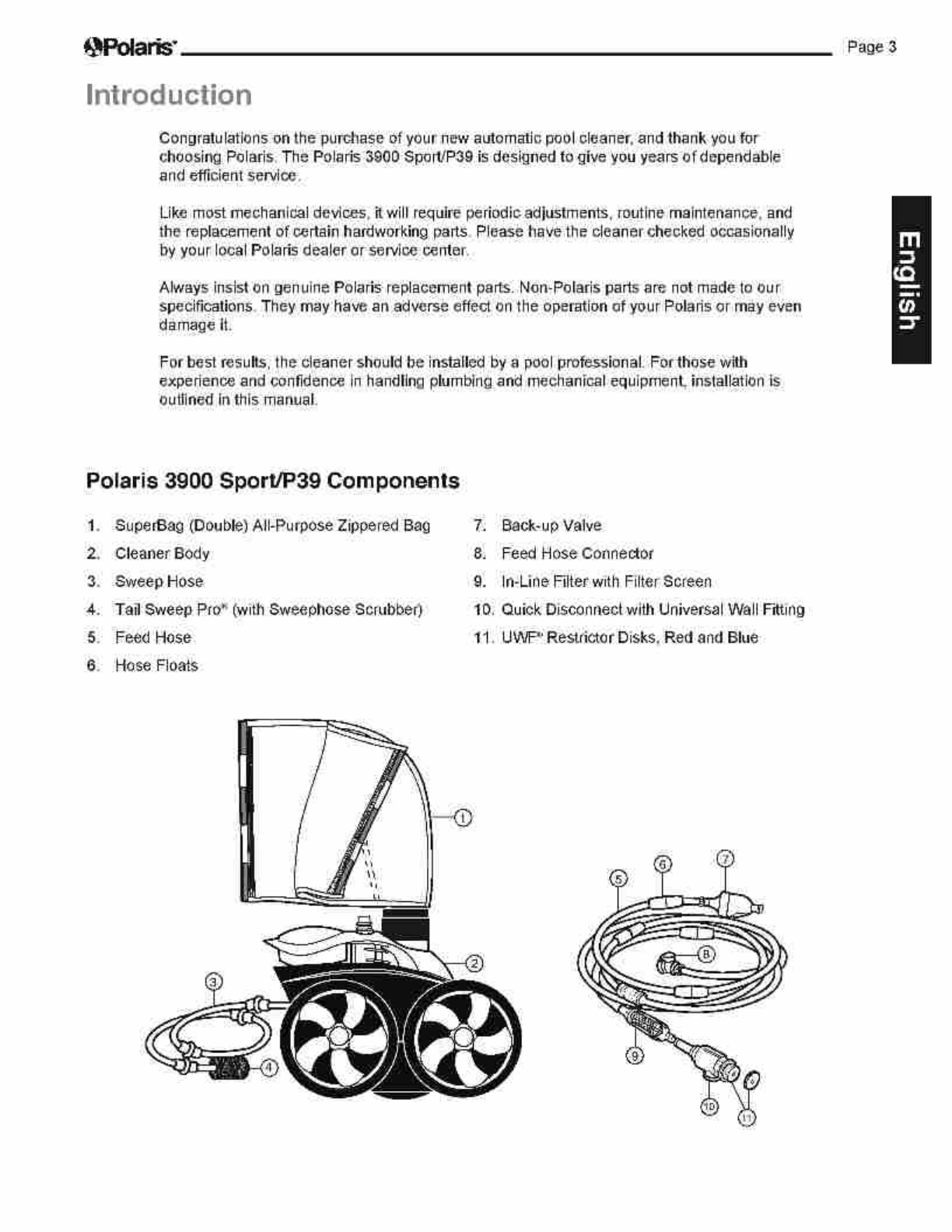

Polaris 3900 Sport/P39 Components
P’Ffifl‘p’N.‘
SuperBag (Double) AII-Purpose Zippered Bag 7. Back-up Valve
Cleaner Body 8. Feed Hose Connector
Sweep Hose 9. |n-Line Filter with Filter Screen
Tail Sweep Pro® (with Sweephose Scrubber) 10. Quick Disconnect with Universal Wall Fitting
Feed Hose 11. UWF® Restrictor Disks, Red and Blue
Hose Floats

Page 4 9Polaris°

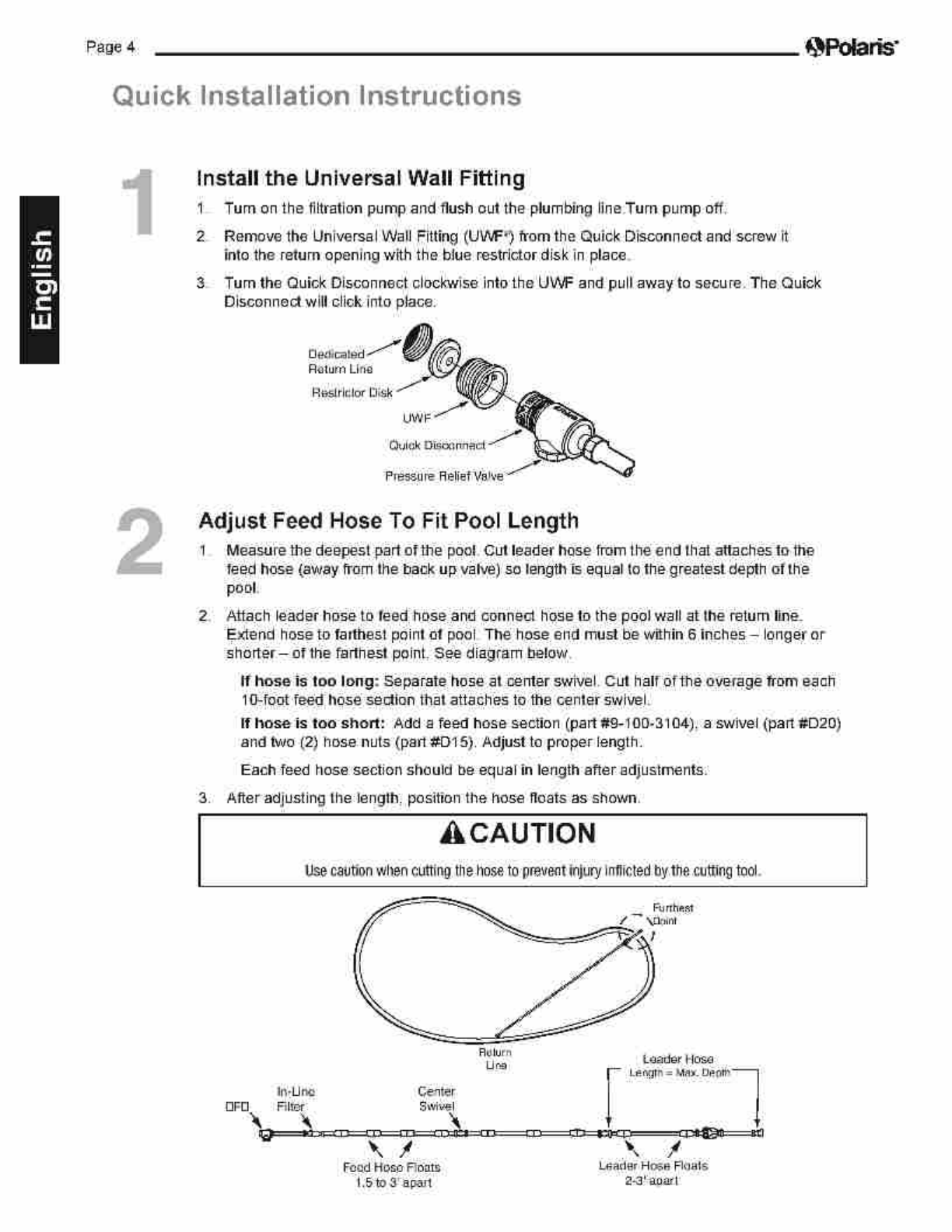

Install the Universal Wall Fitting
1. Turn on the filtration pump and flush out the plumbing |ine.Turn pump off.
2. Remove the Universal Wall Fitting (UWF®) from the Quick Disconnect and screw it
into the return opening with the blue restrictordisk in place.
3. Turn the Quick Disconnect clockwise into the UWF and pull away to secure. The Quick
Disconnect wi|| click into place.
Dedicated /
Return Line
Restrictor Disk
Pressure Relief Valve
Adjust Feed Hose To Fit Pool Length
1. Measure the deepest part of the pool. Cut leader hose from the end that attaches to the
feed hose (away from the back up valve) so length is equal to the greatest depth of the
pool.
2. Attach leader hose to feed hose and connect hose to the pool wall at the return line.
Extend hose to farthest point of pool. The hose end must be within 6 inches — longer or
shorter— of the farthest point. See diagram below.
If hose is too long: Separate hose at center swivel. Cut half ofthe overage from each
10-foot feed hose section that attaches to the center swivel.
If hose is too short: Add a feed hose section (part #9-100-3104), a swivel (part #D20)
and two (2) hose nuts (part #D15). Adjust to proper length.
Each feed hose section should be equal in length after adjustments.
3. After adjusting the length, position the hose floats as shown.
ACAUTION
Use caution when cutting the hose to prevent injury inflicted by the cutting tool.
. Fu rthest
/ \Eloint
)
Leader Hose
Length = Max. Depth
EIFEI Filter Swivel
Feed Hose Floats Leader Hose Floats
1.5 to 3‘ apart 2-3‘ apart

9P0laris' Page 5

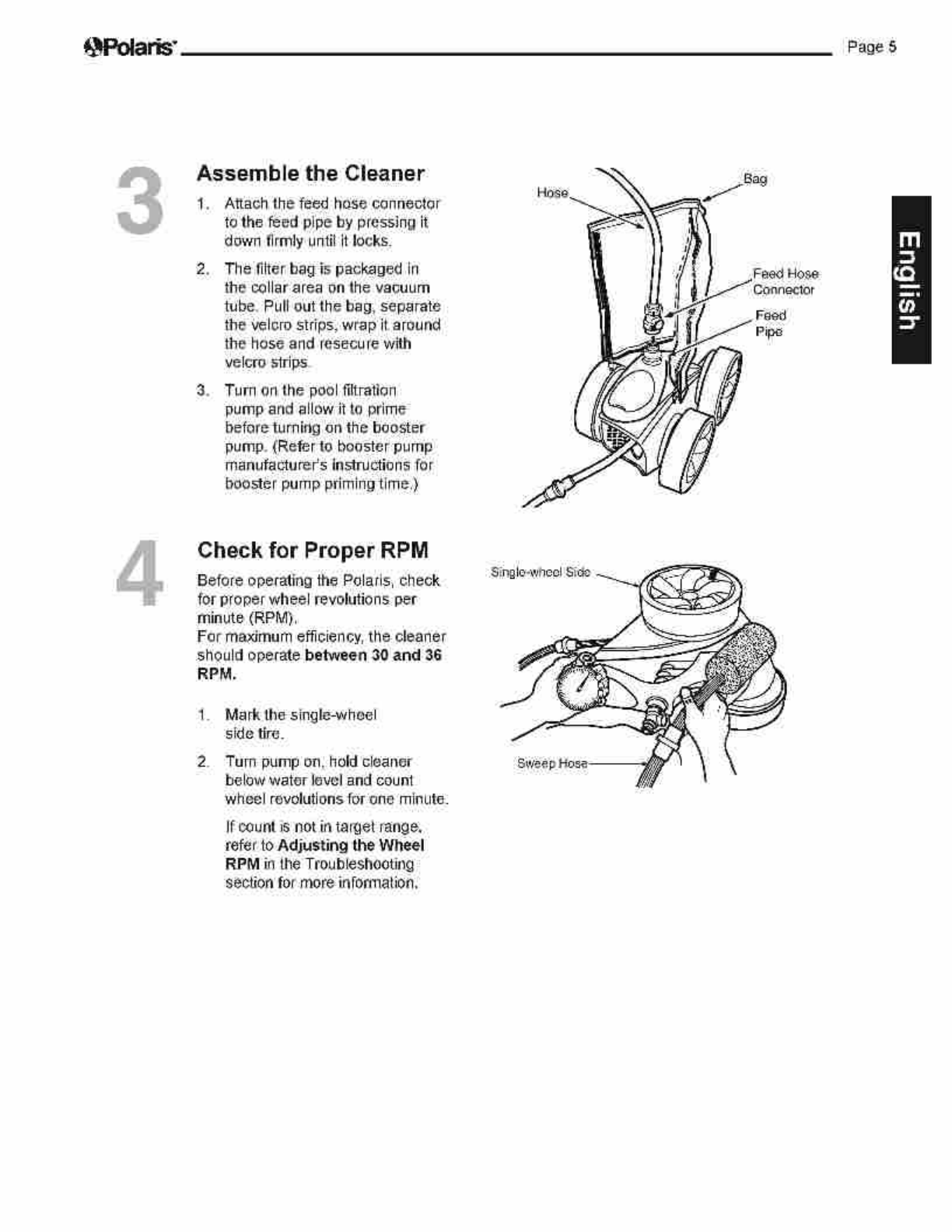

Assemble the Cleaner
1. Attach the feed hose connector
to the feed pipe by pressing it
down firmly until it looks.
2. The filter bag is packaged in
the collar area on the vacuum
tube. Pull out the bag, separate
the velcro strips, wrap it around
the hose and resecure with
velcro strips.
Feed Hose
Connector
3. Turn on the pool filtration
pump and allow it to prime
before turning on the booster
pump. (Referto booster pump
manufacturer’s instructions for
booster pump priming time.)
Check for Proper RPM
Before operating the Polaris, check
for proper whee| revolutions per
minute (RPM).
For maximum efficiency, the cleaner
should operate between 30 and 36
RPM.
SingIe-wheel Side
1. Mark the singIe-wheel
side tire.
2. Turn pump on, hold cleaner
be|ow water level and count
whee| revolutions for one minute.
Sweep Hose
If count is not in target range,
refer to Adjusting the Wheel
RPM in the Troubleshooting
section for more information.

Page 6 9Polaris°
When operating correctly, the cleaner vacuums, sweeps and scrubs all surfaces randomly
throughout the pool. Approximately every three (3) minutes the cleaner goes into back-up mode.
This action pulls the cleaner away from pool obstacles and increases its random pattern.
Thrust Jet Adjustment
The thrust jet powers the direction of
the cleaner. Factory position is seven
(7) o’clock but, depending on the
pool, other settings can be helpful to
improve cleaner coverage.
Sweep Hose Adjustment
The sweep hose should move in a
gentle sweeping motion. To adjust
the motion, turn off the booster pump
and turn the sweep jet clockwise
to increase or counter—clockwise to
decrease the movement.
Thrust Jet
Cleaning the Bag
-> Empty the filter bag when it is
half full, especially if the debris
load is sand.
-> It is easier to empty the filter
bag when it is dry. Alternate
between two (2) bags.
To remove the bag, detach the velcro
strips. Twist the bag collar and pull up to
free the bag from the cleaner. Unzip both
sides ofthe bag to remove the debris.

9P0laris' Page 7
Cleaning the ln-Line Filter
Screen
f 47»
To clean the in-line filter screen, pull it out ‘i '- g0“!
ofthe filter assembly, rinse and press firmly ‘ '
back into place.
A CAUTION
Always disconnect the Polaris before cleaning or backwashing your pool filterto avoid potential
clogging or damage to the system. Allow the filtration system run for at least five (5) minutes
before re-connecting the cleaner.
Storage and Winterizing
Never store the cleaner in direct sunlight. When storing forthe winter, drain all the water from the
cleaner (freeze damage is not covered under the warranty). Use the Quick Disconnect to remove
the UWF from the pool wall. If necessary, use the UWF Removal Tool (part #10-102-00) available
from any Polaris dealer.

Page 8
$Polaris°
Exploded Parts Diagram
50/
50A—
4; o)
4; 4;
4; U1
4;
O
@— 49/49A
To The
Polaris
6
No. Part# Description Qty No. Part# Description Qty No. Part# Description Qty
1 39-310 3900 SporUP39 SuperBag* 1 22 39-300 WMS Assembly with O-Ring 1 38 D16 Nut, Feed Hose, Black 10
2 39-003 3900 Top Housing Assembly 1 22A R0544000 0-ring WMS Upperto 38A D15 Nut, Feed Hose, Gray 10
2A R0669900 P39 Top Housing Assembly 1 Vactube Interface 39 9-100-9005 UWF ConnectorAssy, Black 1
3 R0538000 Float, Head Kit 1 23 39-005 Rear Housing 1 39A 9—100—9001 UWF Connector Assy, Gray 1
4 R0537900 Canopy 1 24 39-004 3900 Bottom Housing 1 40 D44 Adapter Hose, 3-1/2" 1
5 R0538100 Housing Top 1 24A R0559700 P39 Bottom Housing 1 41 48-080 |n-|ine Filter Assy, Gray 1
6 C40 Screw, 10-32 x 3/8" 88 25 39-401 Single-Side Wheel 1 41A 43.035 ln-line Filter Assy, Black 1
Pan Head 17 26 B16 Sweep Hose Attach Clamp, Black 1 42 48-222 Screen, |n-Iine Filter 1
7 39-006 Vacuum Tube/Feedpipe Assy 26A B15 Sweep Hose Attach Clamp, Gray 1 43 D11 Float, Feed Hose, Black 9
with O-Ring 1 27 39-021 Sweep Hose Wear Ring, Blue*8 43A D10 Float, Feed Hose, Gray 9
7A 48-141 0-ring, Feed Hose Connector 1 28 B25 Orifice Tip w/ Orifice Tip Guard 1 44 021 Swivel Ball Bearing, Black 3
8
39-008 Hubcap 3 29 9-100-3105 Sweep Hose Scrubber* 1 44A 020 Swivel Ball Bearing, Gray 3
9
48-232 WideTrax® Tire, Black* 3 29 R0522400 Sweep Hose Scrubber, 3 pk 1 45 D47 Feed Hose, 10 ft, Black 2
10 48-036 Wheel Lock Screw 3 30 R0540000 Tail Sweep Pro®, Bulk Box (18) 1 45A D45 Feed Hose, 10 ft, Gray 2
11 39-410 Double-Side Wheel w/Bearing2 30 TSP1OS TailSweep PRO, Strip Clip 12 45 D52 Leader Hose, 10 ft., Black 1
11A 9-100-1108 Ball Bearing 8 31 39-500 Sweep Hose Complete, Black*1 45A D50 Leader Hose, 10 ft, Gray 1
12 39-126 Chain* 1 31A R0669600 Sweep Hose Complete, Gray* 1 47 052 Back-up Valve Kit, Black 1
13 39-420 Wheel Sprocket Assy w/Bearing 2 32 10-112-00 UWF® Restrictor Disk, Red & Blue 2 47A G52 Back-up Valve Kit, Gray 1
14 39-602 Wheel Spacer 2 33 6-550-00 Universal Wall Fitting, Black 1 43 053 Mechanism for (552 1
15 39-100 Frame (Warranty only) 1 33A 6-550-00 Universal Wall Fitting, Gray 1 49 43-240 Feed Hose Connector Assembly, Black1
16 39-111 Bumper 1 34 10-108-00 UWF Restrictor Kit, Gray 1 49A 43-140 Feed Hose ConnectorAssembly, Gray1
17 39-120 Chain Tensioner K11 1 35 6-505-00 O-Ring, UWF 1 50 GS Feed Hose Assembly Completey Black1
18 39-430 Rear Axle Block Assy 1 36 9-100-9006 Pressure Relief Valve, Black 1 50A 05 Feed Hose Assembly Complete, Gray1
19 39-440 Front Axle BlockAssy 1 36A 9-100-9002 Pressure Relief Valve, Gray 1 51 R0538200 Screw, Self Tapping, Canopy 3
20 48-045 Screw, 10-32 x 7/8" 88 37 D30 Quick Disconnect, UWF Black 1 52 R0537800 Chain Guard 1
Pan Head With Star Washer 4 37A D29 Quick Disconnect, UWF Gray 1 53 R0547400 Turbine Gear Assy 3
21 39-200 Gearbox Assembly 1 54 R0547500 Drive Sprocket Assy 2
*Wear items not covered by warranty.

9P0laris'
Page 9

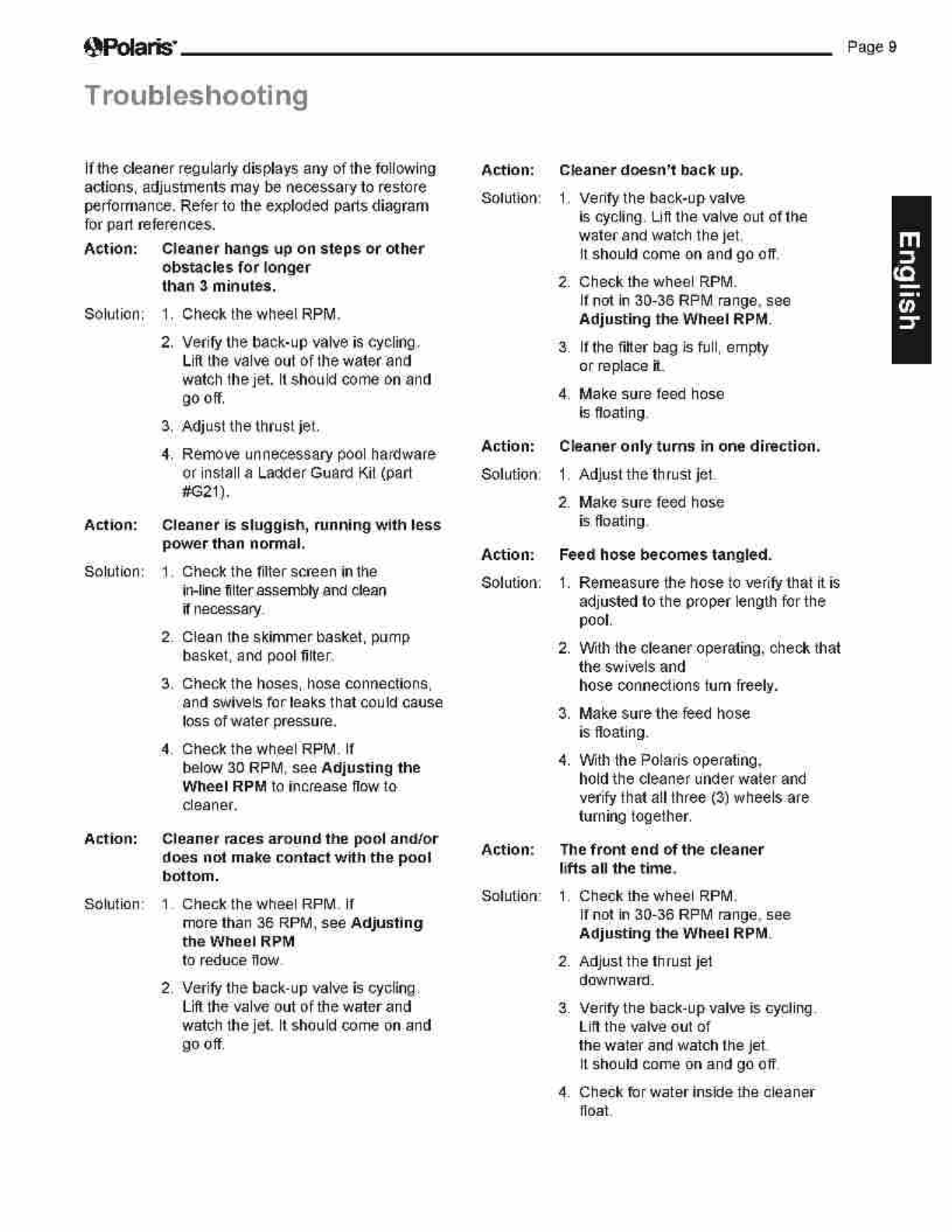

lfthe cleaner regularly displays any of the following Action:

actions, adjustments may be necessary to restore
performance. Referto the exploded parts diagram
for part references.
Action: Cleaner hangs up on steps or other
obstacles for longer
than 3 minutes.
Solution: 1. Check the wheel RPM.
2. Verify the back-up valve is cycling.
Lift the valve out ofthe water and
watch thejet. It should come on and
go off.
3. Adjust the thrust jet.
4. Remove unnecessary pool hardware Action.
or install a Ladder Guard Kit (part Solution:
#G21).
Action: Cleaner is sluggish, running with less
ower than normal.
p Action:
Solution: 1. Check the filter screen in the
in-line filter assembly and clean
if necessary.
2. Clean the skimmer basket, pump
basket, and pool filter.
3. Check the hoses, hose connections,
and swivels for leaks that could cause
loss of water pressure.
4. Check the wheel RPM. If
below 30 RPM, see Adjusting the
Wheel RPM to increase flow to
cleaner.
Action: Cleaner races around the pool and/or
does not make contact with the pool
bottom.
Solution: 1. Check the wheel RPM. If
more than 36 RPM, see Adjusting
the Wheel RPM
to reduce fiow.
Action:
2. Verify the back-up valve is cycling.
Lift the valve out ofthe water and
watch thejet. It should come on and
go off.
Solution:
Solution:
Solution:
Cleaner doesn’t back up.
1. Verify the back-up valve
is cycling. Lift the valve out ofthe
water and watch the jet.
It should come on and go off.
2. Check the wheel RPM.
If not in 30-36 RPM range, see
Adjusting the Wheel RPM.
3. lfthe filter bag is full, empty
or replace it.
4. Make sure feed hose
is floating.
Cleaner only turns in one direction.
1. Adjust the thrust jet.
2. Make sure feed hose
is floating.
Feed hose becomes tangled.
1. Remeasure the hose to verify that it is
adjusted to the proper length forthe
pool.
2. Vlfith the cleaner operating, check that
the swivels and
hose connections turn freely.
3. Make sure the feed hose
is floating.
4. Vlfith the Polaris operating,
hold the cleaner under water and
verify that all three (3) wheels are
turning together.
The front end of the cleaner
lifts all the time.
1. Check the wheel RPM.
If not in 30-36 RPM range, see
Adjusting the Wheel RPM.
2. Adjust the thrust jet
downward.
3. Verify the back-up valve is cycling.
Lift the valve out of
the water and watch the jet.
It should come on and go off.
4. Check for water inside the cleaner
float.

Page 10
$Polaris°
Action:
Solution:
Action:
Solution:
Action:
Solution:
Sweep hose is sucked into the
vacuum tube.
1. Make sure the opening at the end
of the sweep hose is not blocked by
the sweep hose scrubber. Replace
scrubber if it is worn or missing.
. Adjust the sweep hose to a gentle
sweeping motion.
. Check the wheel RPM. If
more than 36 RPM, see Adjusting
the Wheel RPM to reduce flow.
4. Add a sweep hose weight
(part #82).
The cleaner does not clean the
entire pool.
1. Verify that feed hose reaches within
6 inches of the farthest point ofthe
pool. If not, order a new hose section
from your Polaris dealer.
2. Adjust thrust jet to improve coverage.
The cleaner is running in circles on
its side.
1. Check for water inside the cleaner
fioat
. Check the filter bag, if full it can weigh
the cleaner down on one side.
. Check the hose fioats to make sure
they are spaced evenly.
. Check the wheel RPM. If
more than 36 RPM, see Adjusting
the Wheel RPM to reduce flow.
Adjusting the Wheel RPM
lf count is less than 30 RPM:
If an adjustable valve is installed on the
cleaner line, open it completely so water can
flow freely to the Polaris.
Check the filter screen in the in-line filter for
debris that restricts water flow.
Clean the skimmer, filter and pump basket,
clearing debris that restricts
water flow.
Check the hoses, connections and
swivels for leaks that cause loss of
water pressure.
Remove the blue restrictor disk from
the UWF®.
lf count is more than 36 RPM:
- Replace the blue restrictor disk in the UWF
with the red restrictor. lfthe flow is still too
high, unscrew the pressure relief valve until
the proper RPM is reached.
NOTE The pressure relief valve should only be
adjusted when a restrictor is installed.
- If an adjustable valve is installed on the
cleaner line, adjust it to reduce the water
flow to the cleaner.

9P0laris'
Troubleshooting Worksheet
If these solutions do not result in
improved performance, contact the
Polaris dealer who sold you the cleaner
or call Customer Service.
In order to provide faster and more
convenient service, please have the fol-
lowing information available at the time
of your call or when taking the Polaris
in for service.
1. Serial#:
2. WheelRPM:
3. Is the back-up valve cycling?
D Yes D No
4. Is the feed hose the proper
length?
El Yes El No
5. Are the swivels rotating freely?
D Yes D No
6. How often do you clean the
filter screen inside the quick
disconnect?
El Never El OnceaWeek
El Twice aWeek El Once a Month
7. Are the vacuum jets obstructed?
(While the cleaner is operating, hold
it upside down and look into the
vacuum tube. There should be three
(3) distinct, even jets of water.)
Cl Yes El No
8. Is the drive train functioning?
(As you spin each wheel
independently, all the wheels
should spin.)
El Yes El No
Page 11
