Introduction
Polycom’s Voice Interoperability for Enterprise Wireless (VIEW)
Certification Program is designed to ensure interoperability and high
performance between SpectraLink Wireless Telephones and wireless
LAN (WLAN) infrastructure products.
The products listed below have been thoroughly tested in Polycom’s
lab and have passed VIEW Certification. This document details how
to configure the Trapeze Networks Mobility Exchange (MX) switch
and Mobility Point (MP) access point (AP) with SpectraLink Wireless
Telephones.
Certified Product Summary
Manufacturer: Trapeze Networks: www.trapezenetworks.com
WLAN switches Access pointsApproved products: MX-400
MX-216/216R
MX-200/200R
MX-20
MX-8 †
MX-8R
MXR-2
MP-422 †
Security : WPA-PSK and WPA2-PSK
MX/MP software version certified: Release 5.0.11.4
SpectraLink handset models certified: ** e340/h340/i640 8020/8030
SpectraLink handset software certified: 89.119 122.010 or greater
SpectraLink radio mode: 802.11b 802.11b 802.11g 802.11a
Maximum telephone calls per MP: 10 10 12 * 12 *
Recommended network topology: Switched Ethernet (required)
†Denotes products directly used in VIEW Certification testing
* Maximum calls tested during VIEW Certification. The certified product may actually support a higher
number of maximum calls for 802.11a and 802.11g radio modes.
** SpectraLink handset models 8020/8030, e340/h340/i640 and their OEM derivates are VIEW Certified
with the WLAN hardware and software identified in the table. Throughout the remainder of this
document they will be referred to collectively as “SpectraLink Wireless Telephones”.

Configuration Guide
PN: 1725-36060-001_D.doc
4
Service Information
The AP must support SpectraLink Voice Priority (SVP). Contact
your AP vendor if you need to upgrade the AP software.
If you encounter difficulties or have questions regarding the
configuration process of the Mobility Exchange, please contact
Trapeze Networks by calling 866 TRPZ TAC or
925 474 2400 or by e-mailing [email protected].
Known Limitations
During VIEW Certification testing, the following limitations were
discovered.
•RF Active Scan must be disabled on MP radios that are providing
voice services, including SpectraLink Wireless Telephones.
•You must disable Internet Group Management Protocol (IGMP)
snooping when running SpectraLink Radio Protocol (SRP), which
is used with the SpectraLink 8000 Telephony Gateway. SRP uses
multicast packets to do an SRP Check-In, which are not forwarded
through the Mobility Exchange Switch when IGMP snooping is
enabled. When a tunneled virtual LAN (VLAN) is configured over
a Layer-3 network, IGMP snooping must be disabled each time the
tunnel is established, because the virtual VLAN is established with
IGMP snooping turned on by default.
Access Point Capacity and Positioning
Please refer to the Polycom Deploying Enterprise-Grade Wi-Fi Telephony
white paper. This document covers the security, coverage, capacity
and QoS considerations necessary for ensuring excellent voice quality
with enterprise Wi-Fi networks.
For more detailed information on wireless LAN layout, network
infrastructure, QoS, security and subnets, please see the Best Practices
Guide for Deploying SpectraLink 8020/8030 Wireless Telephones. This
document identifies issues and solutions based on Polycom’s
extensive experience in enterprise-class Wi-Fi telephony, and
provides recommendations for ensuring that a network environment
is adequately optimized for use with SpectraLink 8020/8030 Wireless
Telephones.

Trapeze Networks: Mobility System for MP 422 Access Points
PN: 1725-36060-001_D.doc 5
Network Topology

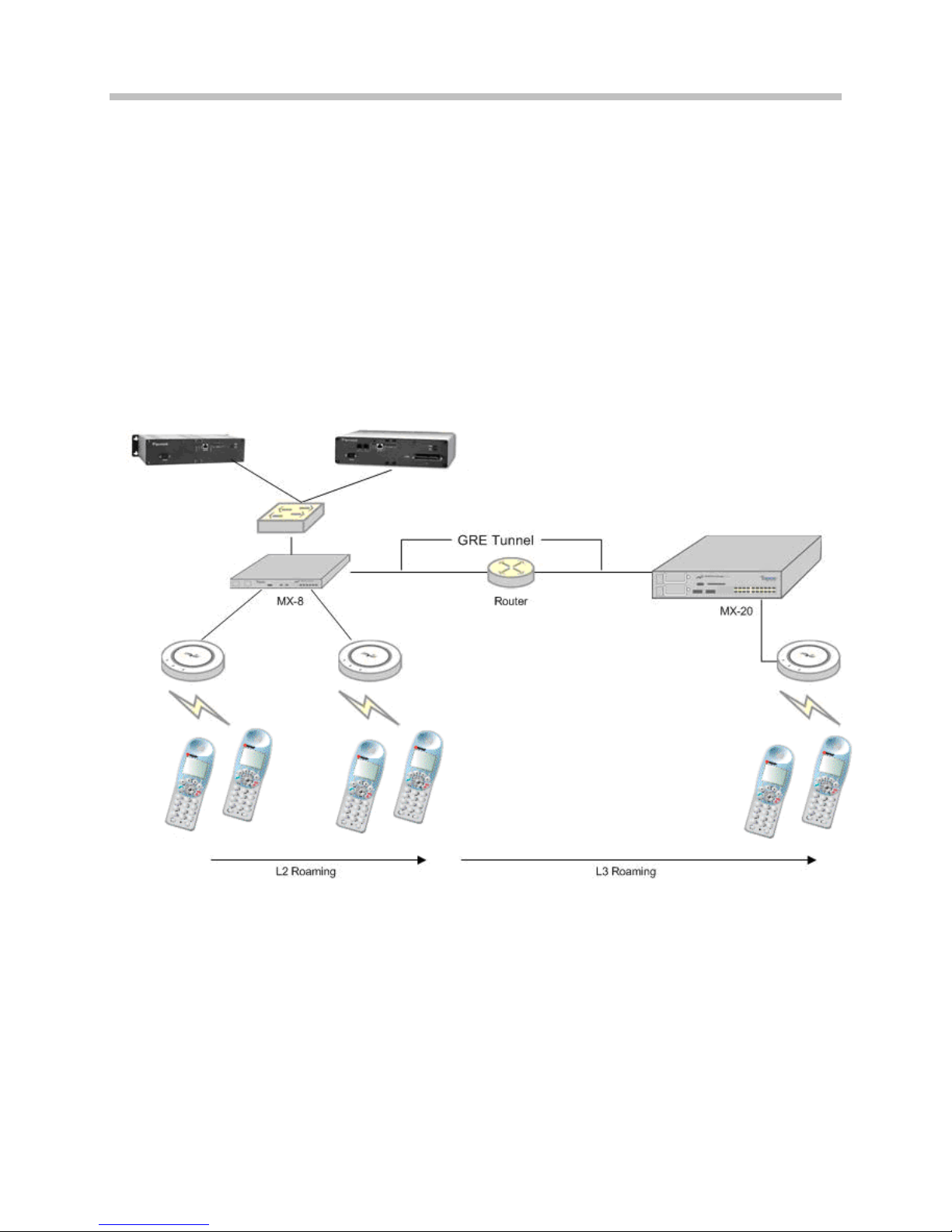

The following topology was tested during VIEW Certification. It is
important to note that these do not necessarily represent all
“Certified” configurations.
Both Layer-2 and Layer-3 roaming were tested. Layer-3 roaming of
SpectraLink Wireless Telephones requires the use of a generic routing
encapsulation (GRE) tunnel.
SpectraLink 8000
Telephony Gateway
SpectraLink 8000
SVP Serve
r
SpectraLink
Wireless Telephones

Configuration Guide
PN: 1725-36060-001_D.doc
6
Access Point Setup and Configuration
Installing software
Trapeze Mobility Exchange firmware cannot be downloaded from the
SpectraLink website. Therefore, you must use the software that was
shipped with your product, or contact Trapeze Networks for the latest
software release.
Command, comment, and screen text key
In the sections below you will find commands, comments and system
responses or other screen-displayed information involved in the
configuration process. This key explains the text styles and symbols
used to denote them..
Text Style Denotes:
xxxxxxxx Typed command
<xxxxxxxx> Encryption key, domain name or other information
specific to your system that needs to be entered
# xxxxxxxx Comment about a command or set of commands
xxxxxxxx System response or other displayed information
Configuring the Mobility Exchange Switch
1. Using a standard RS-232 cable, connect the Mobility Exchange Switch
to the serial port of a terminal or PC.
2. Run a terminal emulation program (such as HyperTerminal) or
use a VT-100 terminal with the following configuration:
Bits per second: 9600
Data bits: 8
Parity: None
Stop bits: 1
Flow control: None
3. Press Enter three times to display the Mobility Exchange Switch login
screen, and to get past the Username prompt and the Password
prompt. There are no default usernames or passwords.
4. Type enable to enter privileged mode. There is no default
password.

Trapeze Networks: Mobility System for MP 422 Access Points
PN: 1725-36060-001_D.doc
7
Service profile commands (SSID & security policy setup)
WPA2-PSK
Assume you are creating service profile “vowlan-wpa2” to define the
ESSID “phones,” as well as a WPA2-PSK security policy. The
following commands are needed to setup the service for MP access
points:
set service-profile Voice ssid-name vowlan-wpa2
# sets the name of the service profile and SSID to
vowlan-wpa2
set service-profile Voice auth-fallthru last-resort
# specifies the authentication for the service
profile to open access
set service-profile Voice rsn-ie enable
# enables WPA2 security
set service-profile Voice cipher-tkip disable
# disables TKIP
set service-profile Voice cipher-ccmp enable
# enables AES / CCMP
set service-profile Voice psk-phrase <passphrase>
# defines a passphrase
set service-profile Voice auth-psk enable
# enables pre-shared key authentication
set service-profile Voice auth-dot1x disable
# disables 802.1x authentication
set service-profile Voice attr vlan-name default
# maps the handsets to the vlan named default
WPA-PSK
Assume you are creating service profile “vowlan-wpa” to define the
ESSID “phones,” as well as a WPA-PSK security policy. The following
commands are needed to setup the service for MP access points:
set service-profile Voice ssid-name vowlan-wpa
# sets the name of the service profile and SSID to
vowlan-wpa
set service-profile Voice auth-fallthru last-resort
# specifies the authentication for the service
profile to open access
set service-profile Voice wpa-ie enable
# enables WPA security
set service-profile Voice psk-phrase <passphrase>

Configuration Guide
PN: 1725-36060-001_D.doc
8
# defines a passphrase
set service-profile Voice auth-psk enable
# enables pre-shared key authentication
set service-profile Voice auth-dot1x disable
# disables 802.1x authentication
set service-profile Voice attr vlan-name default
# maps the handsets to the vlan named default
Radio profile commands
Assume you are creating radio profile “voice” for all radios that will
be providing voice services. The following commands are needed to
setup the radio profile for the access points:
set radio-profile voice service-profile vowlan-wpa2
# maps the service profile to the radio profile
set radio-profile voice dtim-interval 3
set radio-profile voice active-scan disable
# prevents the AP from going off-channel to scan
set radio-profile voice auto-tune channel-config disable
# disables dynamic channel tuning for radios in this
profile.
set radio-profile voice qos-mode svp
# qos mode SVP must be set for SVP to be supported
Network topology and MP access point hardware
configuration
The network topology and access point hardware configuration can
be configured using the Mobility System software. Please refer to the
Trapeze Networks Mobility System Software Configuration Quick Start
Guide or the Trapeze Mobility Exchange Installation and Basic
Configuration Guide for more information. Some useful commands are:
To create VLAN “v1” and add port 3 as a member of “v1:”
set vlan 2 name v1 port 3
# 2 is the VLAN ID (must be unique for every VLAN on
the switch)
To create a configuration for a model MP-422 access point that is
directly attached to port 1 of an MX switch:
set port type ap 1 model mp-422 poe enable

Trapeze Networks: Mobility System for MP 422 Access Points
PN: 1725-36060-001_D.doc 9
Radio configuration
During VIEW Certification, the MP access points were tested directly
connected to a port on the MX (e.g. port 1). The following commands
will configure a specific access point’s radio to support the voice
service:
set ap 1 radio 1 mode disable
# if the radio is currently enabled. Radio 1 is the
802.11b/g radio
set ap 1 radio 1 radio-profile voice mode enable
# maps radio to the radio-profile and enables it
MP access points that are not directly connected to a port on the MX,
which Trapeze calls a distributed access point (DAP), were not tested.
If they are desired, the radio is configured with this command:
set dap 1 radio 1 mode disable
# if the radio is currently enabled. Radio 1 is the
802.11b/g radio
set dap 1 radio 1 radio-profile voice mode enable
# maps radio to the radio-profile and enables it
SVP configuration
The following commands are needed to enable SpectraLink Voice
Priority via access control list (ACL) “SVP.”
This rule places all IP protocol 119 (SVP) traffic on class of service
(CoS) queue 7 (SVP support):
set security acl ip SVP permit cos 7 119 0.0.0.0
255.255.255.255 0.0.0.0 255.255.255.255
(Optional) This rule permits all other data traffic. Do not use if the
VLAN “v1” is dedicated to voice services. Note: There is an implicit
“deny all” rule at the end of the ACL.
set security acl ip SVP permit 0.0.0.0 255.255.255.255
set security acl map SVP vlan v1 out
# maps the ACL to VLAN v1 for outbound traffic
commit security acl SVP
# activates the ACL
Be sure to disable IGMP snooping on VLAN “v1” by using the
command:
set igmp disable vlan v1

Configuration Guide
PN: 1725-36060-001_D.doc
10
Subnet roaming configuration between multiple MX
switches
To set up subnet roaming between two switches, a mobility domain
must be configured on both switches. Choose one of the switches to
be the “seed” switch.
The IP addresses used in mobility domain configuration must use
the system IP address of each switch).
The following commands are performed on the seed MX switch:
set system ip-address 1.1.1.1
set mobility-domain mode seed domain-name <domain name>
set mobility-domain member 1.1.3.1
# configures the domain member
The following commands are performed on the other (member) MX
switch:
set system ip-address 1.1.3.1
set mobility-domain mode member seed-ip 1.1.1.1
Be sure to disable IGMP snooping temporarily on the MX that does
NOT have the VLAN statically configured by using the command:
set igmp disable vlan v1
# the VLAN name must be specified after the vlan
keyword
If you have a previous mobility-domain configuration that is no
longer valid, you must clear the existing mobility-domain before a
new one can be defined:
clear mobility-domain
# system will respond: Success: change accepted
show mobility-domain config
# system will respond: There is no mobility domain
configuration
To check the mobility domain, use the following command:
show mobility-domain
The system will respond:
Mobility Domain name: default
Member State
1.1.1.1 STATE_UP SEED
1.1.3.1 STATE_UP MEMBER

Trapeze Networks: Mobility System for MP 422 Access Points
PN: 1725-36060-001_D.doc 11
Checking the configuration
Once the switch is configured, issue the following command at the
command prompt to check the SVP settings:
sh ap qos-stats
The following information should be displayed (repeat the command
to see changes):
CoS Queue Tx
===========================
port: 1 radio: 1
1,2 Background 0
0,3 BestEffort 604
4,5 Video 0
6,7 Voice 79106 # Voice should have
the most traffic.
port: 1 radio: 2
1,2 Background 0
0,3 BestEffort 0
4,5 Video 0
6,7 Voice 0
The switch and AP are now ready for use with SpectraLink Wireless
Telephones.
The network topology and other functions can also be configured
using the Mobility System software. Please refer to the Trapeze
Networks Mobility System Software Configuration Quick Start Guide or
Trapeze Mobility Exchange Installation and Basic Configuration Guide for
more information.

Configuration Guide
PN: 1725-36060-001_D.doc
12
Configuration File (For Reference Only)
The following configuration file was used during VIEW Certification
testing. The configuration below includes all configuration attributes,
including defaults. Use the command show configuration all for
this detailed version. To only see non-default configuration values,
use the command show configuration.
Note: All of the lines below are commands, except for those preceded
by the # symbol, which denotes a comment.
# General Configuration
set ip dns domain trpz.com
set ip dns enable
set log console enable severity error
set log session disable severity info
set log buffer enable severity error
set log trace enable severity debug mbytes 1
set web-aaa enable
set dot1x timeout supplicant 30
set dot1x timeout auth-server 30
set dot1x quiet-period 0
set dot1x reauth-max 2
set dot1x tx-period 5
set dot1x reauth-period 3600
set dot1x max-req 2
set dot1x key-tx enable
set dot1x reauth enable
set dot1x authcontrol enable
set dot1x wep-key-period 1800
set dot1x wep-rekey enable
set dot1x bonded-period 0
set prompt
set system ip-address x.x.x.x
set system countrycode US
set auto-config disable
# Security Profile
set service-profile VoWLAN-WPA ssid-name <SSID name>
set service-profile VoWLAN-WPA shared-key-auth disable
set service-profile VoWLAN-WPA wep active-unicast-index
1

Trapeze Networks: Mobility System for MP 422 Access Points
PN: 1725-36060-001_D.doc 13
set service-profile VoWLAN-WPA wep active-multicast-
index 1
set service-profile VoWLAN-WPA wpa-ie disable
set service-profile VoWLAN-WPA rsn-ie enable
set service-profile VoWLAN-WPA cipher-tkip enable
# for WPA this should be disabled
set service-profile VoWLAN-WPA cipher-ccmp enable
# for WPA this should be enabled
set service-profile VoWLAN-WPA cipher-wep104 disable
set service-profile VoWLAN-WPA cipher-wep40 disable
set service-profile VoWLAN-WPA auth-dot1x disable
set service-profile VoWLAN-WPA auth-psk enable
set service-profile VoWLAN-WPA beacon enable
set service-profile VoWLAN-WPA ssid-type crypto
set service-profile VoWLAN-WPA auth-fallthru last-resort
set service-profile VoWLAN-WPA psk-phrase <passphrase>
set service-profile VoWLAN-WPA tkip-mc-time 60000
set radius deadtime 0
set radius timeout 5
set radius retransmit 3
set enablepass password <password>
set authentication admin * local
# AP Radio Profile
set radio-profile RealRadio service-profile VoWLAN-WPA
set radio-profile RealRadio 11g-only disable
set radio-profile RealRadio beacon-interval 100
set radio-profile RealRadio dtim-interval 3
set radio-profile RealRadio max-tx-lifetime 2000
set radio-profile RealRadio max-rx-lifetime 2000
set radio-profile RealRadio rts-threshold 2346
set radio-profile RealRadio short-retry 5
set radio-profile RealRadio long-retry 5
set radio-profile RealRadio frag-threshold 2346
set radio-profile RealRadio preamble-length short
set radio-profile RealRadio auto-tune channel-config
disable
set radio-profile RealRadio auto-tune power-config
disable
set radio-profile RealRadio auto-tune channel-interval
3600
set radio-profile RealRadio auto-tune power-interval 600
set radio-profile RealRadio auto-tune channel-holddown
300

Configuration Guide
PN: 1725-36060-001_D.doc
14
set radio-profile RealRadio auto-tune power-backoff-
timer 10
set radio-profile RealRadio active-scan disable
set radio-profile RealRadio qos-mode svp
set radio-profile default 11g-only disable
set radio-profile default beacon-interval 100
set radio-profile default dtim-interval 1
set radio-profile default max-tx-lifetime 2000
set radio-profile default max-rx-lifetime 2000
set radio-profile default rts-threshold 2346
set radio-profile default short-retry 5
set radio-profile default long-retry 5
set radio-profile default frag-threshold 2346
set radio-profile default preamble-length short
set radio-profile default auto-tune channel-config
enable
set radio-profile default auto-tune power-config disable
set radio-profile default auto-tune channel-interval
3600
set radio-profile default auto-tune power-interval 600
set radio-profile default auto-tune channel-holddown 300
set radio-profile default auto-tune power-backoff-timer
10
set radio-profile default active-scan enable
set radio-profile default wmm enable
set dap security optional
set port type ap 1 model mp-422 poe enable
# AP Basic Configuration
set port type ap 1 model mp-422 poe enable
set ap 1 name <name>
set ap 1 bias high
set ap 1 blink disable
set ap 1 upgrade-firmware enable
set ap 1 group none
set ap 1 radio 1 channel 6 tx-power2 radio-profile
RealRadio mode enable
set ap 1 radio 1 auto-tune max-power default min-client-
rate 5.5 max-retransmissions 10
set ap 1 radio 2 channel 36 tx-power 17 radio-profile
default mode disable
set ap 1 radio 2 auto-tune max-power default min-client-
rate 24 max-retransmissions 10
set port type ap 2 model mp-422 poe enable

Trapeze Networks: Mobility System for MP 422 Access Points
PN: 1725-36060-001_D.doc 15
set ap 2 name MP02
set ap 2 bias high
set ap 2 blink disable
set ap 2 upgrade-firmware enable
set ap 2 group none
set ap 2 radio 1 channel 6 tx-power 2 radio-profile
default mode disable
set ap 2 radio 1 auto-tune max-power default min-client-
rate 5.5 max-retransmissions 10
set ap 2 radio 2 channel 36 tx-power 17 radio-profile
default mode disable
set ap 2 radio 2 auto-tune max-power default min-client-
rate 24 max_retransmissions 10
set arp agingtime 1200
set ip https server disable
set ip snmp server disable
set ip ssh server enable
set ip ssh 22
set ip telnet server enable
set ip telnet 23
set port enable 1
set port speed 1 AUTO
set port poe 1 enable
set port trap 1 NO
# Set additional ports as appropriate.
# SNMP Configuration
set snmp notify profile default drop all
set snmp protocol v1 enable
set snmp protocol v2c disable
set snmp protocol usm disable
set snmp security unsecured
# VLAN Configuration
set vlan tagtype dot1q
set vlan 1 name v1
set vlan 1 port 3
set vlan 1 port 4
set vlan 1 port 5
set vlan 1 port 6
set vlan 1 port 7
set vlan 1 port 8
set spantree backbonefast disable

Configuration Guide
PN: 1725-36060-001_D.doc
16
set spantree uplinkfast disable
set spantree fwddelay 15 vlan 1
set spantree hello 2 vlan 1
set spantree maxage 20 vlan 1
set spantree priority 32768 vlan 1
set spantree disable vlan 1
set igmp disable vlan 1
set igmp proxy-report enable vlan 1
set igmp querier disable vlan 1
set igmp mrsol disable vlan 1
set igmp version 2 vlan 1
set igmp mrsol mrsi 30 vlan 1
set igmp qi 125 vlan 1
set igmp oqi 255 vlan 1
set igmp qri 100 vlan 1
set igmp lmqi 10 vlan 1
set igmp rv 2 vlan 1
set igmp mrouter port 3 disable
set igmp receiver port 3 disable
# disable router and receivers on other ports as
appropriate
set fdb agingtime 1 age 300
set interface 1 ip 10.30.1.1 255.0.0.0
set mobility-domain mode seed domain-name mobdom
set mobility-domain member 10.30.1.2
set security acl ip SVP permit cos 7 119 0.0.0.0
255.255.255.255 0.0.0.0 255.255.255.255
set security acl ip SVP permit 0.0.0.0 255.255.255.255
set security acl map SVP vlan v1 out
commit security acl SVP
set ntp disable
set ntp update-interval 64
set igmp disable vlan v1
