1 - 1
1
Introduction
Introducing the V2IU 6400-S Converged Network Appliance
Installed at the edge of the operations center, 6400-S Series converged network
appliances secure critical voice, video and data infrastructure components
such as VoIP softswitches, video Gatekeepers, gateways and media servers.

User Guide V2IU 6400-S Converged Network Appliance
1 - 2

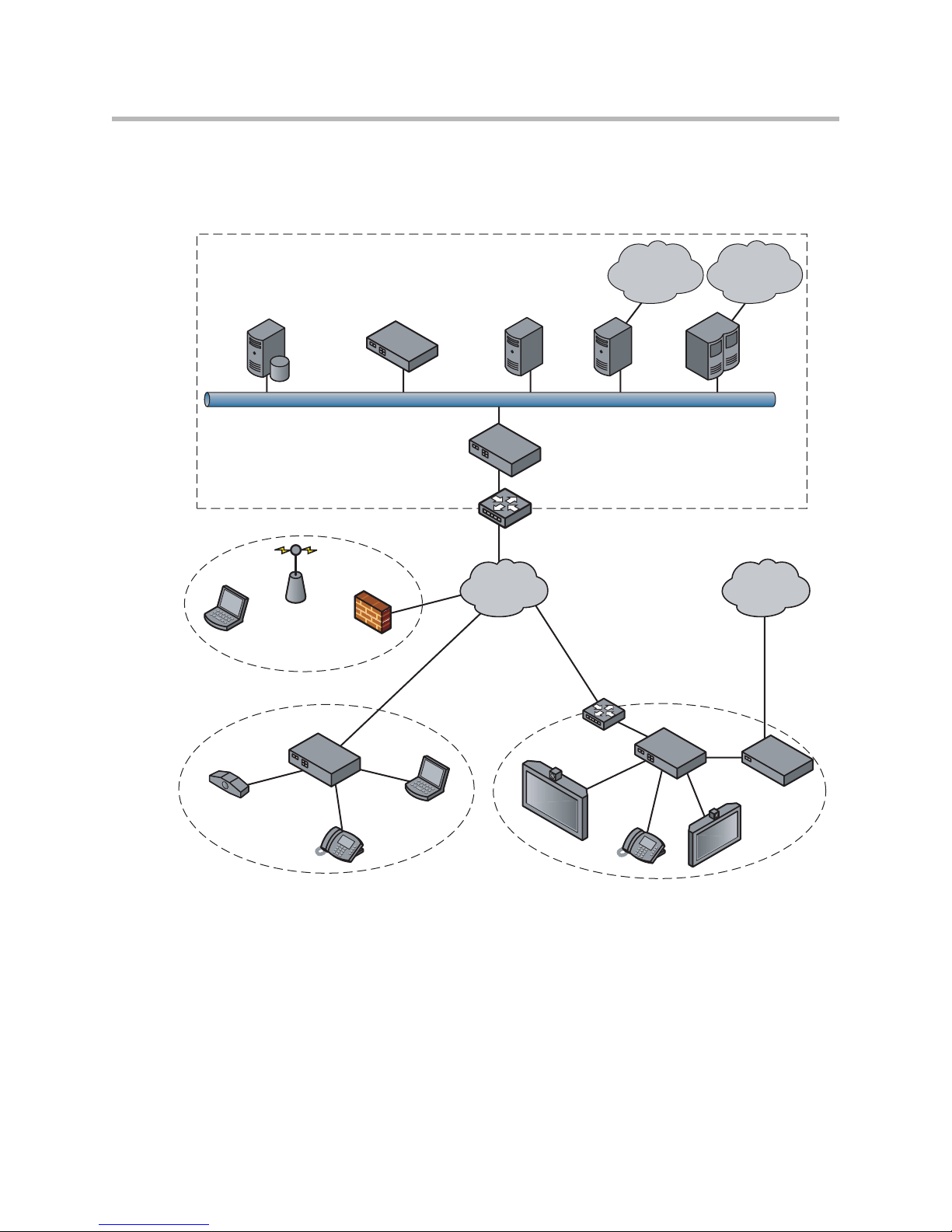

The 6400-S Series converged network appliances can be deployed in service
provider or enterprise environments as depicted below.
NMS
6400-E
H.323 Video
Endpoint
H.323 Video
Endpoint
Softswitch
6400-S
Public IP
Network PSTN
Aggregation Router
Aggregation
Router
SIP Voice
User
NAT/Firewall
4300T
V500 Laptop
IP
Phone
IP
Phone
Hotspot
Service Provider
Company A Company B
T-1/E-1 NxT-1/E-1
Gateway MCU
PSTN ISDN,
PSTN Network
H.323
Gatekeeper
Gateway
EM015A

Introduction
1 - 3
The 6400-S is designed to protect managed VoIP service providers and
enterprise customers from network-based attacks. It combines topology
hiding, dynamic session admission control and stateful packet inspection to
secure critical voice, video and data infrastructure components.This chapter
introduces the:
•Functional features
•Hardware features
•Management features
NMS PC PC
PC
IP Phone
IP PhoneIP Phone
6400-E
PC
H.323
Endpoint
6400-S 6400-E
IP
Network PSTNPSTN
Aggregation Router
Aggregation
Router
4300T
Gateway H.323
Laptop
IP Phone IP Phone
Headquarters
Branch Office Company B
T-1/E-1 NxT-1/E-1
H.323
Gatekeeper
PSTN
Gateway
Application
Server Softswitch
Gateway
EM016

User Guide V2IU 6400-S Converged Network Appliance
1 - 4
Features
•Resolves firewall traversal problems at the Network Operations Center for
VoIP by providing a VoIP application layer gateway (ALG) or voice and
video aware firewall that supports SIP, MGCP and H.323
•Resolves firewall traversal problems at customer offices for VoIP by
providing NAT-Traversal capability for SIP.
•Supports up to 10,000 concurrent VoIP calls or up to 85 Mbps of H.323
video traffic
•Protects the enterprise LAN using a stateful packet inspection (SPI)
firewall for both voice and data traffic
•Performs static IP routing
•Provides integrated test tools to facilitate problem isolation
•Performs TFTP relay for IP phone images
•Uses a simple web based GUI for configuration and management
•Supports logging to external syslog servers and interfaces to network
management systems using SNMP
Physical Connections and Specifications
Port Description
Subscriber (ETH0) Ethernet
Port 1
This port is a 10/100/1000 auto sensing
port. It is connected through an Ethernet
switch to IP phones, IADs or PCs installed
on the public network.
Provider (ETH1) Ethernet
Port 2
This port is a 10/100/1000 auto sensing
port. It is connected to the private network.
Out of Band Management
Port 3
This port can be configured to allow out of
band management sessions. It is typically
connected to a private management
network.
Console Port (COM 1) This port is used to establish a local
console session with the EdgeProtect
using a VT100 terminal or emulation
program. The baud rate is 9600. It is used
for debug or local diagnostic purposes
only.

Introduction
1 - 5
Management Features
The 6400-S is configured and managed through the Configuration Menu, a
web-based Graphical User Interface.
Access the Configuration Menu by entering a URL in a web browser such as
Internet Explorer, Netscape, or Firefox.
Using the Configuration Menu, you can set a wide range of network services,
including:
•Provider and subscriber settings and related network settings.
Dimensions Compact 2U design - 3.45"(H) x
17.11"(W) x 20"(D)
Weight 45 lbs (20411 grams)
Power Dual, redundant 500W AC supplies
Dual, redundant 470W DC supplies
Warranty 1 Year
Port Description

User Guide V2IU 6400-S Converged Network Appliance
1 - 6
•Remote system logging.
•VoIP and subnet routing.
•Firewall
•Administration, maintenance and upgrading.
The following chapters give you detailed processing steps you need to set up
the 6400-S.

2 - 1
2
Installing the 6400-S
Physical Installation1
Anchor the equipment rack that will contain the 6400.
The equipment rack must be anchored to an unmovable support to prevent it
from falling over when one or more systems are extended in front of the rack
on slides. You must also consider the weight of any other device installed in
the rack. A crush hazard exists should the rack tilt forward which could cause
serious injury.
If AC power supplies are installed
Mains AC power disconnect
The AC power cord(s) is considered the mains disconnect for the 6400-S and
must be readily accessible when installed. If the individual server power
cord(s) will not be readily accessible for disconnection then you are
responsible for installing an AC power disconnect for the entire rack unit. This
main disconnect must be readily accessible, and it must be labeled as
controlling power to the entire rack, not just to the 6400-S(s). To remove all
power, two AC cords must be removed.
Grounding the rack installation
To avoid the potential for an electrical shock hazard, you must include a third
wire safety ground conductor with the rack installation. If the 6400-S power
cord is plugged into an AC outlet that is part of the rack, then you must
provide proper grounding for the rack itself. If the 6400-S power cord is
plugged into a wall AC outlet, the safety ground conductor in the power cord
provides proper grounding only for the 6400-S. You must provide additional,
proper grounding for the rack and other devices installed in it.
1 Intel® Telco/Industrial Grade Server TIGPR2U Product Guide

User Guide V2IU 6400-S Converged Network Appliance
2 - 2
Overcurrent protection
The 6400-S is designed for an AC line voltage source with up to 20 amperes of
overcurrent protection per cord feed. If the power system for the equipment
rack is installed on a branch circuit with more than 20 amperes of protection,
you must provide supplemental protection for the 6400-S. The overall current
rating of a 6400-S configured with two power supplies is less than 4 amperes.
If DC power supplies are installed:
Connection with a DC source should only be performed by trained service
personnel. The 6400-S with DC input is to be installed in a Restricted Access
Location in accordance with articles 110-16, 110-17, and 110-18 of the National
Electric Code, ANSI/NFPA 70. The DC source must be electrically isolated by
double or reinforced insulation from any hazardous AC source. The DC
source must be capable of providing up to 650 Watts of continuous power per
feed pair.
Main DC power disconnect:
You are responsible for installing a properly rated DC power disconnect for
the 6400-S system. This mains disconnect must be readily accessible, and it
must be labeled as controlling power to the 6400-S. The circuit breaker of a
centralized DC power system may be used as a disconnect device when easily
accessible and should be rated no more than 10 amps.
Grounding the 6400-S
To avoid the potential for an electrical shock hazard, you must reliably connect
an earth grounding conductor to the 6400-S. The earth grounding conductor
must be a minimum 14AWG connected to the earth ground stud(s) on the rear
of the 6400-S. The safety ground conductor should be connected to the chassis
stud with a Listed closed two-hole crimp terminal with a maximum width of
0.25 inch. The nuts on the chassis earth ground studs should be installed with
a 10 in/lbs torque. The safety ground conductor provides proper grounding
only for the 6400-S. You must provide additional, proper grounding for the
rack and other devices installed in it.
Overcurrent protection
Overcurrent protection circuit breakers must be provided as part of each host
equipment rack and must be incorporated in the field wiring between the DC
source and the 6400-S. The branch circuit protection shall be rated minimum
75Vdc, 10 A maximum per feed pair. If the DC power system for the
equipment rack is installed with more than 10 amperes of protection, you must
provide supplemental protection for the 6400-S. The overall current rating of
a 6400-S configured with two power supplies is 8 amperes.
Do not attempt to modify or use an AC power cordset that is not the exact type
required. You must use a power cordset that meets the following criteria:

Installing the 6400-S
2 - 3
•Rating: For U.S./Canada cords must be UL Listed/CSA Certified type
SJT, 18-3 AWG. For outside U.S./Canada cords must be flexible
harmonized (<HAR>) or VDE certified cord with 3 x 0.75 mm conductors
rated 250 VAC.
•Connector, wall outlet end: Cords must be terminated in grounding-type
male plug designed for use in your region. The connector must have
certification marks showing certification by an agency acceptable in your
region and for U.S. must be Listed and rated 125% of overall current
rating of the 6400-S.
•Connector, 6400-S end: The connectors that plug into the AC receptacle
on the 6400-S must be an approved IEC 320, sheet C19, type female
connector.
•Cord length and flexibility: Cords must be less than 4.5 meters (14.76 feet)
long. CAUTION Temperature: The temperature in which the 6400-S
operates when installed in an equipment rack, must not go below 5 °C (41
°F) or rise above 40 °C (104 °F). Extreme fluctuations in temperature can
cause a variety of problems in your 6400-S.
•Ventilation: The equipment rack must provide sufficient airflow to the
front of the 6400-S to maintain proper cooling. The rack must also include
ventilation sufficient to exhaust a maximum of 1023 BTU's per hour for the
6400-S. The rack selected and the ventilation provided must be suitable to
the environment in which the 6400-S will be used.
Power Supplies1
The power supply cage shown is accessed from the rear of the chassis. The
power supply cage supports up to two hot-swap power supplies (either AC
input or DC input) in a (1+1) redundant configuration. Only the DC input
version is NEBS certified. The combined output power to the 6400-S system is
470 Watts per DC supply and 500 Watts per AC supply.
DC Power Supply Interface Requirements
The DC power source may produce hazardous voltage levels exceeding -60
VDC and high energy levels above 240VA that may cause electric shock or
burns. All DC input connections should be made only by a qualified service
person to prevent injury. All wiring terminals connected to the DC input
terminal block must be fully insulated with no exposed bare metal.
The power supply will operate within all specified limits over the input
voltage range outlined as follows:
1 Intel® Telco/Industrial Grade Server TIGPR2U Product Guide

User Guide V2IU 6400-S Converged Network Appliance
2 - 4
Voltage
•Minimum tolerance = -38VDC
•Nominal rating = -48 to -60VDC
•Maximum tolerance = -75VDS
•Maximum input current = 17.0 Amps
The power supply will power-off if the DC input is less than -34 VDC.
DC Power Supply LED Indicators
AC Power Supply Interface Requirements
The AC power supply operates within the following limits:
•AC line voltage = Auto-ranging for either 100-127 VAC or 200-240 VAC
•AC line frequency = 50/60 Hz
•AC input current = 4 Amp at 100-127 VAC, 2 Amp at 200-240 VAC
AC Power Supply LED Indicators
Power Supply condition Power Supply LED
No DC power to all PSUs Off
No DC power to this PSU only Amber
DC present/Only Standby Outputs On Blink Green
Power supply DC outputs ON and OK Green
Current limit Amber
Power supply failure Amber
Power Supply condition Power Supply LED
No AC power to all PSUs Off
No AC power to this PSU only Amber
DC present/Only Standby Outputs On Blink Green
Power supply DC outputs ON and OK Green
Power supply in Alert Condition Blink Amber
Power supply failure Amber

3 - 1
3
Configuring the V2IU 6400-S
Configure the 6400-S using a web browser such as Internet Explorer or
Netscape Navigator. The 6400-S is shipped with a pre-configured IP address
for its Subscriber (Port 1) interface.
This chapter gives you the information you need to get started. It covers:
•Connecting to the 6400-S
•Logging in and out of the 6400-S
•Navigating through the configuration pages
•Getting help
Connecting to the 6400-S
You need to connect to the 6400-S before you can configure it to work with
your network. Connect using the supplied preset IP address and subnet mask.
You are also supplied with a default user ID and password.
To connect to the 6400-S:
1. Connect a PC using an IP address of 192.168.1.2 and subnet mask of
255.255.255.0 to Port 1 of the 6400-S.
2. Launch a web browser on the PC and enter the URL string: 192.168.1.1.

User Guide V2IU 6400-S Converged Network Appliance
3 - 2
3. Press Return.
The Main Configuration Menu appears.
4. To log in, select Network from the navigation bar.
5. In the Connect to pop-up enter the following default information:
—For username: root
—For password: default
Caution To maintain your network security, be sure to change the default username and
password as described under Changing the administration password on page 7-1.

Configuring the V2IU 6400-S
3 - 3
6. Continue to configure the system using the information provided in
subsequent chapters of this guide.
Logging in and out of the 6400-S
You are prompted to log in every time you point a new browser session to the
Configuration URL.
To log out, simply close your browser.
Navigating through the configuration pages
Navigate through the configuration pages from the navigation bar.
The choices are:

User Guide V2IU 6400-S Converged Network Appliance
3 - 4
Getting help
You can get help from several sources in the Configuration Menu.
•By pressing Help in the navigation bar.
•Following the link in Info at the top of the various Configuration pages.
•From the links on the Configuration Menu home page.
Getting information about the network
You can view a variety of information about the network from Network
Information in the System menu. Networking Information displays the
low-level IP network and interface configuration of the 6400-S.
To view network information:
1. In the navigation bar, select System.
Menu Description
Network Through the Network page, you can
configure a wide range of multimedia
network services. These services can be
enabled or disabled depending on the
functionality required for a network
configuration. The device's network
settings include configuring the Subscriber
and Provider interfaces, DNS and Default
Gateway.
VoIP ALG Using the VoIP ALG page, you can
configure the connectivity and
management for Subscriber and Provider
voice and video over IP devices.
Firewall Through the Firewall page, you can
configure the 6400-S to act as a firewall
for voice, video and data traffic.
System Through the System menu you have
access to a variety of configuration
operations and status information.
