Polygroup Home Heritage TG90M3W92D00 User manual

1. Before you start to assemble your tree, choose an appropriate location near a wall outlet.
2. Assemble the tree stand and place on a level surface. (See Fig. A)
Congratulations on purchasing your new tree from Polygroup®! This tree comes with Quick Set®
technology-Set up and light up your tree in less than 10 minutes! Carefully follow the instructions below
on how to quickly and easily set up your new tree.

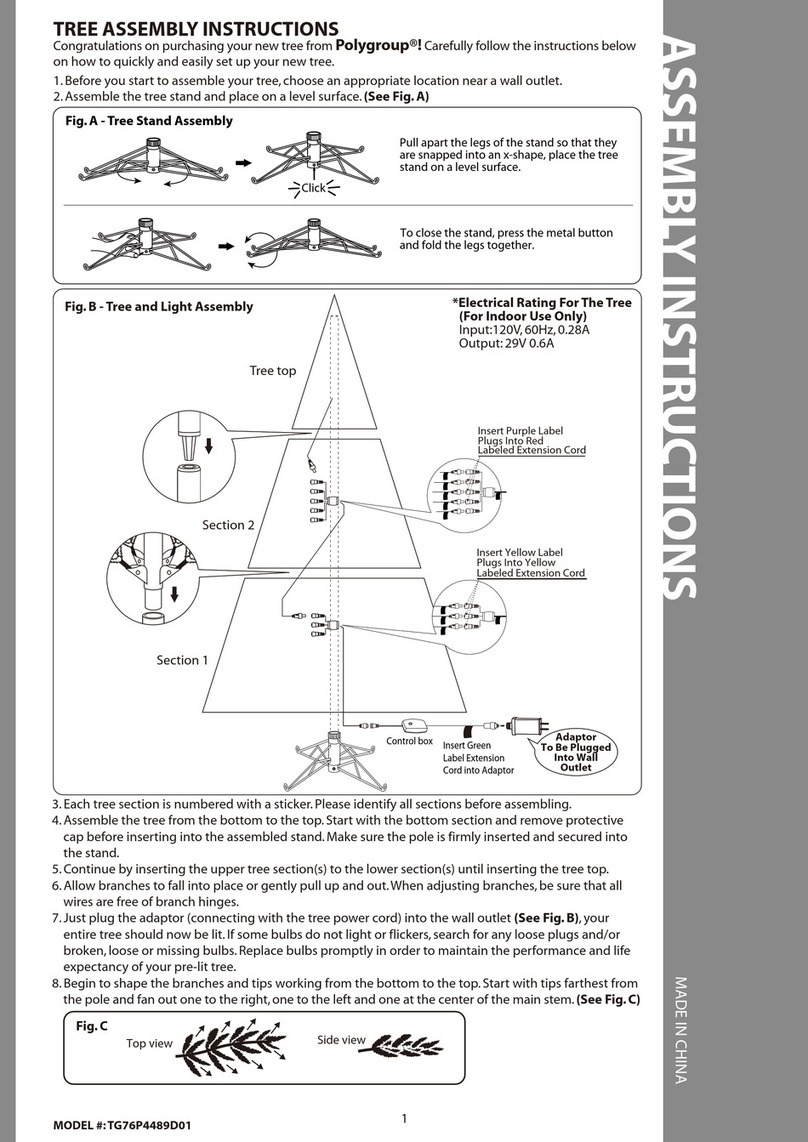

TREE ASSEMBLY INSTRUCTIONS
3. Each tree section is numbered with a sticker. Please identify all sections before assembling.
4. Assemble the tree from the bottom to the top.Start with the bottom section and remove protective cap
before inserting into the assembled stand.Make sure the pole is firmly inserted and secured into the stand.
5. Continue by inserting the upper tree section(s) to the lower section(s) until inserting the tree top.
6. Allow branches to fall into place or gently pull up and out.When adjusting branches, be sure that all
wires are free of branch hinges.
7. Just plug the adaptor (connecting with the tree power cord) into the wall outlet (See Fig. B), your
entire tree should now be lit.If some bulbs do not light or flickers, search for any loose plugs and/or
broken, loose or missing bulbs. Replace bulbs promptly in order to maintain the performance and life
expectancy of your pre-lit tree.
8. Begin to shape the branches and tips working from the bottom to the top. Start with tips farthest from
the pole and fan out one to the right,one to the left and one at the center of the main stem. (See Fig. C)
Top view Side view
Fig. C
9. After shaping the entire tree following the previous step, slightly upsweep all branch tips for a uniform
look. Shift branches to fill any gaps.Your Christmas tree is now complete and ready to be decorated.
MADE IN CHINA
1
ASSEMBLY INSTRUCTIONS
MODEL #: TG90M3W92D00,TG90M3W92D01
*Electrical Rating For The Tree
(For Indoor Use Only)
Input: 120VAC, 60Hz, 0.25A
Output: 29V DC 0.45A
Fig. B - Tree and Light Assembly
Fig. A - Tree Stand Assembly
Click
Pull apart the legs of the stand so that they
are snapped into an x-shape, place the tree
stand on a level surface.
To close the stand, press the metal button
and fold the legs together.
Adaptor
To Be Plugged
Into Wall
Outlet
Control box
Tree top
Section 2
Section 3
Section 1
Insert Green
Label Extension
Cord into Adaptor
Do Not Tamper
Internal Parts
Open the
protective
cover
Do Not Tamper
Internal Parts
Open the
protective
cover
Do Not Tamper
Internal Parts
Open the
protective
cover

3. Each tree section is numbered with a sticker. Please identify all sections before assembling.
4. Assemble the tree from the bottom to the top.Start with the bottom section and remove protective cap
before inserting into the assembled stand.Make sure the pole is firmly inserted and secured into the stand.
5. Continue by inserting the upper tree section(s) to the lower section(s) until inserting the tree top.
6. Allow branches to fall into place or gently pull up and out.When adjusting branches, be sure that all
wires are free of branch hinges.
7. Just plug the adaptor (connecting with the tree power cord) into the wall outlet (See Fig. B), your
entire tree should now be lit.If some bulbs do not light or flickers, search for any loose plugs and/or
broken, loose or missing bulbs. Replace bulbs promptly in order to maintain the performance and life
expectancy of your pre-lit tree.
8. Begin to shape the branches and tips working from the bottom to the top. Start with tips farthest from
the pole and fan out one to the right,one to the left and one at the center of the main stem. (See Fig. C)
9. After shaping the entire tree following the previous step, slightly upsweep all branch tips for a uniform
look. Shift branches to fill any gaps.Your Christmas tree is now complete and ready to be decorated.
Fig. D
1. Unplug adaptor from the wall outlet first and then remove all ornaments and decorations.
2. Disassemble the tree from the top to the bottom. Start with the tree top and gently lift straight up to
remove from section below and fold all branches toward the pole.
3. Continue by gently lifting straight up each section(s) from the section
below and fold all branches toward the pole until the bottom section
is removed from the tree stand. Cover the protective cap on the poles
to avoid damaging the internal parts. (See Fig. D)
4. Carefully place all tree sections into shipping box and tape it shut.
5.When not in use, please store your tree in a cool, dry place away from
sunlight. Exposing your tree toexcessive heat or humidity may damage your tree.
STORAGE INSTRUCTIONS
For Pre-lit Trees, If The Tree Does Not Illuminate
1. Please check to make sure that all plugs are properly connected and adaptor is plugged into the
wall outlet.
2.Turning the poles gently to make sure pole to pole are connected into place.
3. Check for loose connection between light string plugs and extension cords.
4. Please check for loose, broken or missing light bulbs and replace as needed.
Loose Hinge Pin
1. Extra hinge pins are included for repairing the hinges.
Place the branch into the slot of the bracket.
2. Insert a new hinge pin through the hole and secure
using the retainer washer. (See Fig. E)
TROUBLESHOOTING TIPS
Each tree includes hinge pins/washers, and for pre-lit trees spare bulbs are also included.If extra parts are
needed, please contact our customer service center.
SPARE PARTS
Fig. E
HOW TO USE THE DUAL COLOR LIGHT CONTROLLER :
Press the selector button on the “Dual Color Light Controller” to
select among: (1) CLEAR AND MULTI-COLOR ALTERNATING;
(2) CLEAR LIGHTS; (3) MULTI LIGHTS and (4) TURN OFF BOTH
LIGHTS.
Light
Controller
Selector
Button
IMPORTANT SAFETY INSTRUCTIONS
When using electrical products, basic precautions should always be followed including the following:
a. READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
b. Do not use seasonal products outdoors unless marked suitable for indoor and outdoor use.When
products are used in outdoor applications, connect the product to a Ground Fault Circuit Interrupting
(GFCI) outlet. If one is not provided, contact a qualified electrician for proper installation.
c.This seasonal use product is not intended for permanent installation or use.
d. Do not mount or place near gas or electric heaters, fireplaces, candles or other similar sources of heat.
e. Do not secure the wiring of the product with staples or nails, or place on sharp hooks or nails.
f. Do not let lamps rest on the supply cord or on any wire.
g. Unplug the product when leaving the house, when retiring for the night, or if left unattended.
h.This is not a toy. For decorative use only! To avoid risk of fire, burns, personal injury and electric shock it
should not be played with or placed where small children can reach it.
i. Do not use this product for other than its intended use.
j. Do not hang ornaments or other objects from cord, wire, or light string.
k. Do not close doors or windows on the product or extension cords as this may damage wire insulation.
l. Do not cover the product with cloth, paper or any material not part of the product when in use.
MADE IN CHINA
2
ASSEMBLY INSTRUCTIONS
WARNING
1. Use only the adaptor supplied with this product. Using a different adaptor will damage the lights
and cause fire, electrical shock hazards.
2. FOR INDOOR USE ONLY.
3.The external flexible cable or cord of this luminaire cannot be replaced; If the cord is damaged,
the luminaire shall be destroyed.

CUSTOMER SERVICE FOR CHRISTMAS TREES
For any questions, assistance, or missing parts, Do Not Return To Place Of Purchase. Please contact
us at 1-888-919-0070 or visit our website at www.polygroupstore.com. One of our customer service
representatives will be happy to assist you.
TREE ID# IS LOCATED ON END PANEL OF BOX. TREE ID# IS REQUIRED WHEN REQUESTING REPLACEMENT PARTS.
Customer Name:
Address(No P.O. Boxes):
City & State:
Zip Code:
Day Phone:
Date Purchased:
Tree ID#:
Tree UPC#:
Store Purchased:
Specify Problem:
MADE IN CHINA
3
ASSEMBLY INSTRUCTIONS
m.This product is equipped with push-in type lamps. Do not twist lamps.
n. Read and follow all instructions that are on the product or provided with the product.
o. SAVE THESE INSTRUCTIONS
USER SERVICING INSTRUCTIONS
Lamp Replacement
Step 1. Unplug from power source, by pulling out the adaptor itself - do not pull on the power cord.
(For reference only)
Step 3. Replace with a new spare
LED lamp (included).
Step 2. Lift up the lamp lock tab,
and pull the bulb and its
plastic base straight out
from the lampholder.
CAUTION:
1. Risk of fire. Use only the power adaptor provided with this product. Do not replace lamps with other
than the spare lamps provided with this product.
2.To reduce the risk of fire and electric shock:
a. Do not mount or support light strings in a manner that can cut or damage wire insulation, and
b. Use only the power supply cord provided with this product.
