Polygroup TG7600NVQC00 User manual

1
3. Each tree section is numbered with a sticker. Please identify all sections before assembling.
4. Assemble the tree from the bottom to the top. Start with the bottom section and insert it into the assembled stand.
Make sure the pole is firmly inserted and secured into the stand.
5. Continue by inserting the upper tree section(s) to the lower section(s) until inserting the tree top.
6. Allow branches to fall into place or gently pull up and out.When adjusting branches, be sure that all wires are free of
branch hinges.
7. Connect the plug(s) securely to the extension cord(s) as per the color labels indicated in Fig. B and insert the green label
extension cord plug into the wall outlet.Your entire tree should now be lit.If some bulbs do not light or flickers, search
for any loose plugs and/or broken, loose or missing bulbs. Replace bulbs promptly in order to maintain the performance
and life expectancy of your pre-lit tree.
1. Before you start to assemble your tree, choose an appropriate location near a wall outlet.
2. Assemble the tree stand and place on a level surface. (See Fig. A)
Congratulations on purchasing your new tree from Polygroup®! Carefully follow the instructions below on how to quickly
and easily set up your new tree.

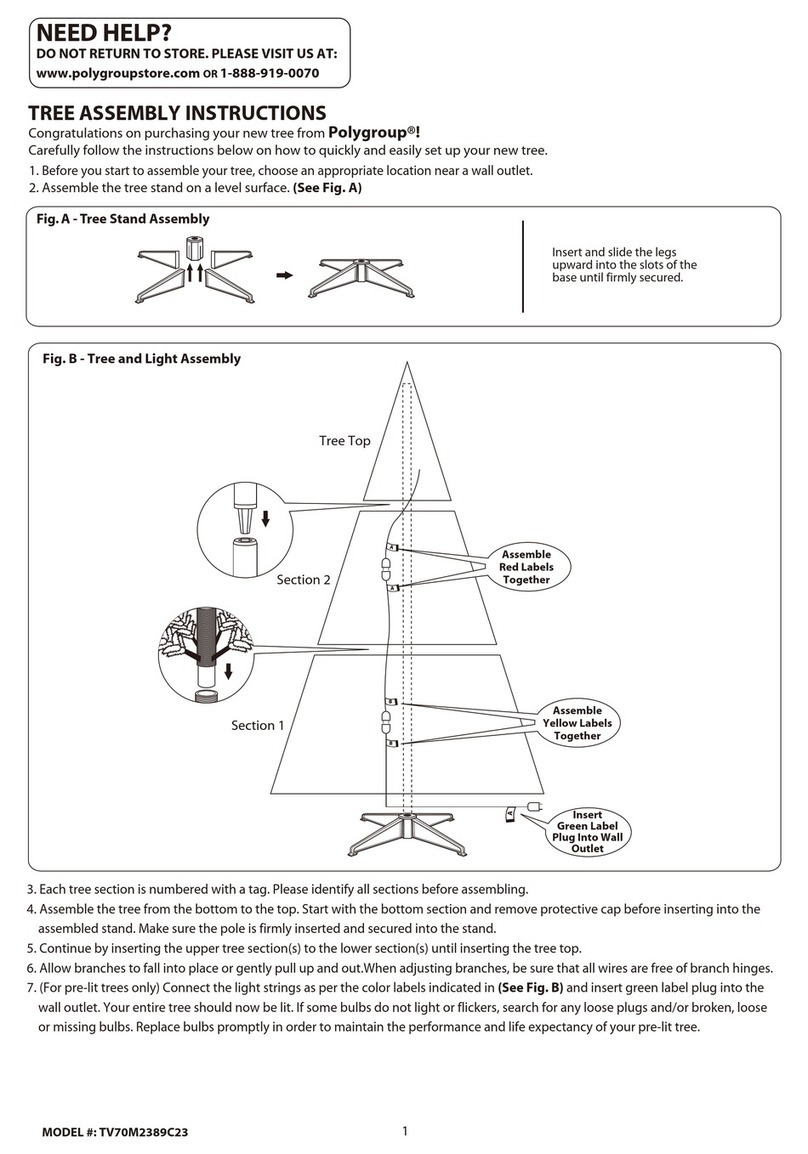

TREE ASSEMBLY INSTRUCTIONS
Tree top
Section 2
Section 1
Insert
Green Label
Plug Into Wall
Outlet
Insert Red Label
Plugs Into Red
Labeled Extension Cord
MODEL #: TG7600NVQC00 SKU: 097-512
TG7600NVQM00 SKU: 097-529
*Electrical Rating For The Tree
(For Indoor Use Only)
2.21A 120V 60Hz
Fig. B - Tree and Light Assembly
Fig. A - Tree Stand Assembly
Unfold the legs and lay the
stand in a flat area.Then slide
the locking disc downward and
snap into place.
NEED HELP?
DO NOT RETURN TO STORE. PLEASE VISIT US AT:
www.polygroupstore.com OR 1-888-919-0070

2
STORAGE INSTRUCTIONS
Each tree includes hinge pins/washers, and for pre-lit trees spare bulbs and fuses are also included.
If extra parts are needed, please contact our customer service center.
SPARE PARTS
CUSTOMER SERVICE FOR CHRISTMAS TREES
For any questions, assistance, or missing parts, Do Not Return To Place Of Purchase. Please contact us at
1-888-919-0070 or visit our website at www.polygroupstore.com. One of our customer service representatives will be
happy to assist you.
TREE ID# IS LOCATED ON END PANEL OF BOX.TREE ID# IS REQUIRED WHEN REQUESTING REPLACEMENT PARTS.
Customer Name:
Address(No P.O. Boxes):
City & State:
Zip Code:
Day Phone:
Date Purchased:
Tree ID#:
Tree UPC#:
Store Purchased:
Specify Problem:
8. Begin to shape the branches and tips working from the bottom to the top. Start with tips farthest from the pole and fan out
one to the right, one to the left and one at the center of the main stem. (See Fig. C)
9. After shaping the entire tree following the previous step, slightly upsweep all branch tips for a uniform look. Shift branches
to fill any gaps.Your Christmas tree is now complete and ready to be decorated.
Top view Side view
Fig. C
1. Remove all ornaments and decorations. For pre-lit trees, first unplug extension cord from the wall outlet and then disconnect
light extension cord between each section of the tree.
2. Disassemble the tree from the top to the bottom. Start with the tree top and gently lift straight up to remove from section
below and fold all branches toward the pole.
3. In case of difficulty separating the tree pole (trunk), apply a small amount of lubricant at the joint and rotate the upper pole in
both directions. Lift up the upper pole again.
4. Continue by gently lifting straight up each section(s) from the section below and fold all branches toward the pole until the
bottom section is removed from the tree stand.
5. Carefully place all tree sections into shipping box and tape it shut.
6.When not in use, please store your tree in a cool, dry place away from sunlight. Exposing your tree to excessive heat or
humidity may damage your tree.
7. Keep out of reach of pets and children.
For Pre-lit Trees, If The Tree Does Not Illuminate
1. Please check to make sure that all plugs are properly connected according to the color labels indicated in Fig.B and the
power cord is plugged into the wall outlet. Refer to assembly guide for instructions.
2. Please check for blown fuses at the light string plugs and power cord plug. Replace as needed.
Note: Please make sure to use appropriate replacement fuses as indicated on the light string plug and power cord plug.
3. Please check for loose, broken or missing light bulbs and replace as needed.
Loose Hinge Pin
1. Extra hinge pins are included for repairing the hinges.
Place the branch into the slot of the bracket.
2. Insert a new hinge pin through the hole and secure
using the retainer washer. (See Fig. D)
TROUBLESHOOTING TIPS
