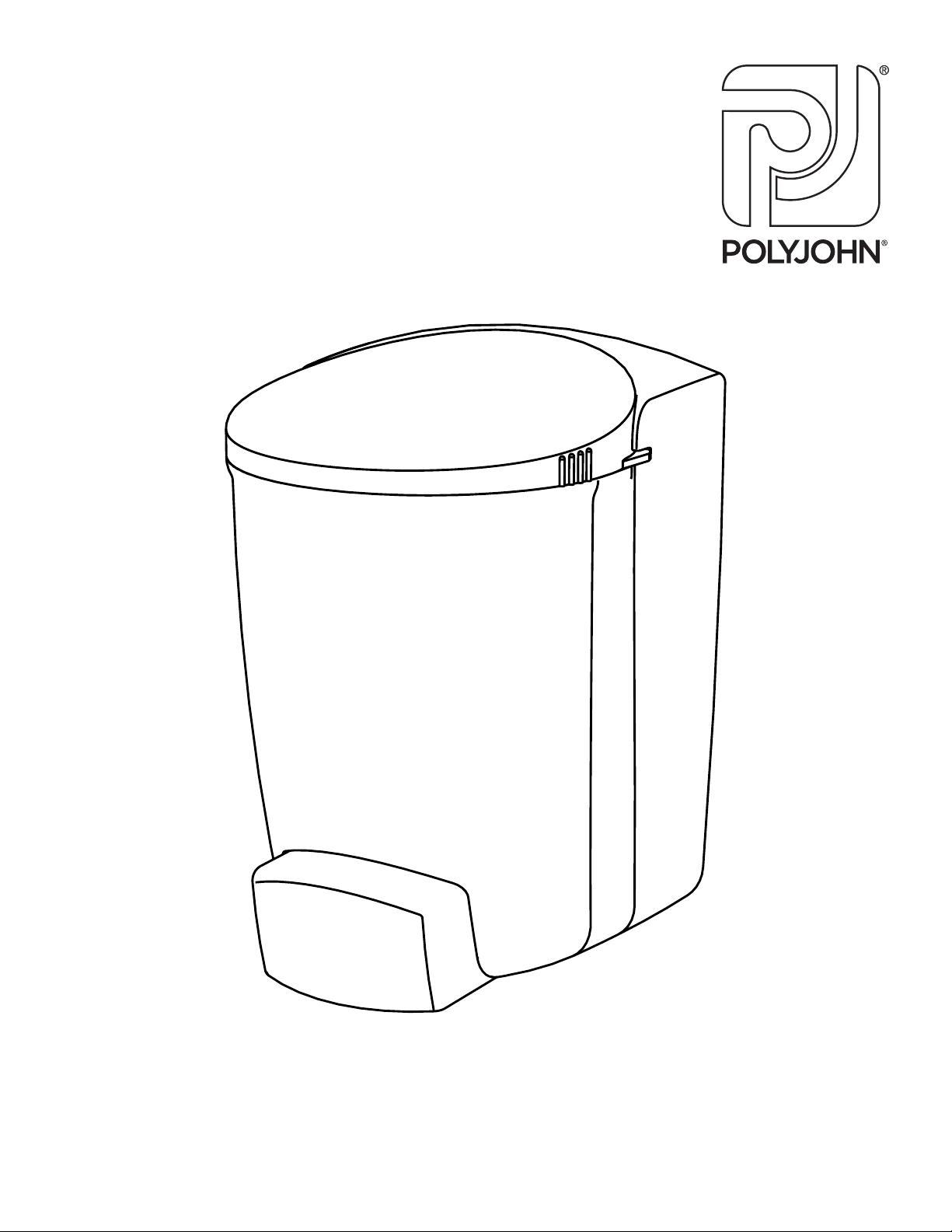

PolyJohn E SaniStand PSD1-1000 Instruction sheet

Page 1 of 9
June 2023
there when you need us
NOTE: We recommend reading through the entire information booklet prior to proceeding with installation, service and maintenance.
All references to left and right throughout the booklet are as viewed from the front of the restroom.
HAND SANITIZER/
SOAP DISPENSER
PRODUCT INSTRUCTIONS

SOAP DISPENSER
PSD1-1000
Page 2 of 9
June 2023
The PSD1-1000 PolyJohn soap dispenser is a premium soap dispenser with many valuable features.
These features include:
• Capacity: 30oz / 887ml
• Acompletelysealedsoapcontainertokeepsoapfromspillingwhenrellingthecontainer.
• A lid that secures onto the soap container after removing from the restroom for spill-less storage
• Easy to clean, smooth surfaces
• Designed for regular liquid soap only.
• One hand operation
• Clear container to see the level of soap
GENERAL OVERVIEW
FULL SIZE SCALE
FASTENER DRAWINGS
TOOLS REQUIRED FOR ASSEMBLY
Phillips Head
Screwdriver
(for fastening with
screws)
Marker Drill 13/64” Drill Bit Rivet Gun with
3/16” tip
(3) PC-000102
(3) PC-000105
(3) PC-000106
(3) PC-000148
(3) PC-000366
Capacity: 30oz / 887ml

SOAP DISPENSER
PSD1-1000
Page 3 of 9
June 2023
MAINTENANCE AND CARE
• Use only mild cleaners with no abrasives using a soft cloth to clean all surfaces.
• Some silicone grease should be applied occasionally to the o-ring at the top of the soap container to keep the lid from sticking
• Mineral oil should NEVER be used.
• If there is a chance for freezing, remove the dispenser and drain the soap. Be sure to remove the soap from the pump as well.
Step 1 Remove the lid by turning counterclockwise and lift up.
Step 2 Push the locking tab back and lift up on the soap dispenser container.
Step 3 Holding the backing plate in the place where you would like to mount the dispenser, mark the placement for the three mounting holes.
Step 4 Secure the backing plate in place using the desired fasteners.
Step 5 Slide the soap container back in place, making sure the locking tab is in place, and fill with liquid soap.
Step 6 Replace the lid and secure in place by turning clockwise.
INSTALLATION
Step 1. Step 2.
1) Push In Tab
2) Lift Up Container

SOAP DISPENSER
PSD1-1000
Page 4 of 9
June 2023
EXPLODED VIEW
PARTS DIAGRAM
PSD1-0003 - Lid
PC-000243 - O-Ring
FP1-0021 - Valve
PSD1-0002 - Soap Body
PSD1-0001 - Mounting Plate
PSD1-0012 - Check Valve
PSD1-0020 - Return Spring
PSD1-0010 - Pump Cup
PSD1-0030 - Check Ball
PSD1-0021 - Check Spring
PSD1-0011 - Pump Shaft
PSD1-0005 - Pump Retainer
PSD1-0004 - Pump Button
PC-100790S
Prop 65 Label
PSD1-0003C - Lid Complete
PSD1-0010C - Pump Assembly
http://www.polyjohn.com/psd1-0003c
http://www.polyjohn.com/psd1-0003
http://www.polyjohn.com/fp1-0021
http://www.polyjohn.com/pc-000243
http://www.polyjohn.com/psd1-0002
http://www.polyjohn.com/psd1-0012
http://www.polyjohn.com/psd1-0020
http://www.polyjohn.com/psd1-0010
http://www.polyjohn.com/psd1-0001
http://www.polyjohn.com/psd1-0030
http://www.polyjohn.com/psd1-0021
http://www.polyjohn.com/psd1-0011
http://www.polyjohn.com/psd1-0005
http://www.polyjohn.com/psd1-0004
http://www.polyjohn.com/pc-100790s
http://www.polyjohn.com/psd1-0010c

SOAP DISPENSER
PSD1-1000
Page 5 of 9
June 2023
OPTIONAL ACCESSORIES,
SUPPLIES AND CHEMICALS
Use a mild soap to clean all surfaces and component parts.
Minor scratches and abrasions can be lightly sanded or scrubbed with a mild abrasive cleaner (such as “Soft Scrub”) that contains calcium
carbonate, hypochlorate bleach, and detergents. Be sure to follow the cleaning product directions since these ingredients may cause hazardous
gases when mixed with other chemicals. Rinse the cleaned areas and buff with a conventional wax.
Some light scratches may also be hidden by using an industrial hot air gun.
For a source of cleaning, deodorizing and paper products contact:
PRO’S CHOICE
2500 GASPAR AVE.
WHITING, IN 46394-2175
800-292-1305
www.polyjohn.com/products/supplies/pros-choice.html
We highly recommend membership in the Portable Sanitation Association International (PSAI); the worldwide authority on portable sanitation
services. The PSAI, “Portable Sanitation Industry Certification Program” manual contains a wealth of information on standards and service
procedures. For more information contact the PSAI:
PORTABLE SANITATION ASSOCIATION INTERNATIONAL (PSAI)
7800 METRO PARKWAY, SUITE 104
BLOOMINGTON, MINNESOTA 55425 USA
800-822-3020 / 612-854-8300 FAX [phone]
www.psai.org
CLEANING AND MAINTENANCE
Bulk Hand Sanitizer
CKHS0004
Lotion Hand Soap
LS00-1000
PJP4

SOAP DISPENSER
PSD1-1000
Page 6 of 9
June 2023
REGULATIONS
P
rop 65
P
olyJohn Corporation would like to inform any customers or end users that some products may contain chemicals listed in California’s Safe
Drin
king Water & Toxic Enforcement Act of 1986. Commonly referred to as Proposition 65, this Act establishes a list of chemicals known by the
State of
California to present a risk of cancer, birth defects, or other reproductive harm.
C
hemical exposure typically occurs through inhalation, ingestion, or adsorption. PolyJohn products are not intended to be used in these methods.
P
olyJohn Corporation cannot foresee all uses of their products (both intended and unintended uses) and as a result has opted to provide a
gene
ral warning of known chemical presence.
T
he Proposition 65 chemical list can be found at http://www.P65Warnings.ca.gov
T
he following warnings are labels placed on affected products. If these labels are not present then they do not apply to that product.
WARNING: This product can expose you to chemicals including 4-Vinylcyclohexene which is known to the State of California to cause
cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
4
-Vinylcyclohexene label above to be used any product made with Bayblend T85
WARNING: This product can expose you to chemicals including titanium dioxide, which is known to the State of California to cause
cancer. For more information go to www.P65Warnings.ca.gov.
Confli
ct Minerals Compliance Statement
Section
1502 of the Dodd-Frank Wall Street Reform and Consumer Protection Act, and the Securities and Exchange Commission R
ules adopted in
connection t
herewith, require certain corporations to report the use of “Conflict Minerals” in the manufacture of their products. Generally, C
onflict
Mine
rals collectively refers to cassiterite, columbite-tantalite, gold, wolframite, or their derivatives, including tantalum, tin and tungsten, which
originate f
rom the Democratic Republic of the Congo or specified adjoining countries (referred to herein as “Covered Countries”).
W
hile we, as a privately held corporation, are not subject to the Conflict Minerals rules and reporting requirements, we understand that our
custome
rs may be, and we are committed to helping our customers comply with their reporting requirements. In order to determine if our
manufactured p
roducts contain Conflict Minerals, we have asked our relevant suppliers, as of September 1, 2020, to ascertain their use of any
C
onflict Minerals in the materials they supply to us. Their responses demonstrate that our relevant suppliers (i) do not use Conflict Minerals in the
materials t
hey supply to us, (ii) have no reason to believe the Conflict Minerals they use may have originated in the Covered Countries, and/
or (iii) reasonably beli
eve that the Conflict Minerals they use are from recycled or scrap sources. Consequently, we can in turn represent that, to
t
he best of our knowledge, our manufactured products either do not contain Conflict Minerals, or to the extent they may, such products are “DRC
conflict free” as defined
by paragraph (e)(4) of Section 1502.
W
e will continue to work with our key suppliers to ensure that we are able to identify the use of Conflict Minerals in our supply chain, and the
representations made in t
his compliance statement remain accurate. To that end, we reserve the right to amend this statement at any time based
on subsequent d
evelopments or information.
S
hould you have any questions or concerns regarding this statement, please do not hesitate to contact us.

SOAP DISPENSER
PSD1-1000
Page 7 of 9
June 2023
WARRANTY
Restrooms and Toilets
POLYJOHN PORTABLE RESTROOMS LIMITED 3 YEAR PRODUCT WARRANTY
PolyJohn Enterprises Corp. warrants the major plastic parts of its portable restrooms (plastic front, wall panels, roof, and tank) against any breakage
or other problems that prevent the PolyJohn portable toilet from functioning in accordance with usual practices used in the portable toilet industry
and in their intended manner. This warranty covers any damages in material or workmanship for a total period of 3 years (36 months). This warranty
extends only to the original purchaser of the PolyJohn portable restroom. Proof of purchase, serial numbers, and photos will be required.
sinks, tanks, trailers and sanistands
PolyJohn Enterprises warrants our sinks, tanks, trailers and sanistands from the date of purchase. Any misuse or abuse of our products or failure to
properly follow recommended procedures shall void this warranty. The warranty is a 1 year limited warranty and a 90 day limited warranty for
components thereof.
What is Not Covered By Warranty
This warranty does not cover damage or failure contributed to or caused by: Not following PolyJohn assembly procedures, unauthorized
modification, acts of God, mishandling, misuse, use of incompatible solvents or other damaging chemicals, vandalism or accident. In no event shall
PolyJohn be liable for labor costs or for incidental or consequential damages.
For full details on PolyJohn’s warranty policy, and to view instructions for submitting a claim please visit https://www.polyjohn.com/warranty/.
Warranty Disclaimer
PolyJohn’s terms of sale are FOB (Free on Board Shipping Point). Meaning buyer takes on responsibility once it leaves PolyJohn’s shipping dock.
The carrier is wholly responsible for any damage incurred during transit. Important notice: All concealed/non-notated damages must be reported
within 5 business days of delivery (1st day is the day of delivery) as per the National Motor Freight Classification (NMFC) – Rule 300100 - for a
damaged claim to be filed. Reporting after this time will void a claim.
In order to prevent warranty disputes follow these steps immediately when receiving your products:
Inspect the shipment immediately and insist that visible damages be indicated on your copy of the freight bill. If they are not noted on the
freight bill it is very likely a claim will be denied.
Open the shipment if necessary, and inspect for any concealed damages.
If there are any damages that you cannot operate with you may refuse shipment. After you do this contact us immediately
Filing Process for Warranty
PolyJohn reserves the right to request inspection of products for verification of defect, which may include returning some or all of the parts with
shipping paid for by the purchaser. Once the items have been returned, inspected, and PolyJohn is found at fault shipping costs will be reimbursed.
You may contact PolyJohn to arrange for return shipping if desired.
To file your warranty claim follow these steps:
1. Go to polyjohn.com/warranty/
2. Fill out necessary contact information
3. Fill in invoice number, date of purchase, product, and product serial numbers.
4. Upload an images of affected products
5. Submit and someone will be in contact with you as soon as possible.

SOAP DISPENSER
PSD1-1000
Page 8 of 9
June 2023
FREQUENTLY ASKED QUESTIONS
Soap Dispensers
Q: Can I clean my soap dispenser?
A: Yes you can. Use only mild cleaners with no abrasives using a soft cloth to clean all surfaces.
Q: My soap dispensers lid is starting to get harder to open. What should I do?
A: Some silicone grease should be applied occasionally to the O-ring at the top of the soap container to keep the lid from sticking. Mineral oil
should NEVER be used.
Q: Is there anything I should do for preparing my soap dispenser to be out in the cold?
A: If there is a chance for freezing, remove the dispenser and drain the soap. Be sure to remove the soap from the pump as well.
Q: I have an older boxier looking dispenser that I purchased from you years ago. Can I replace it with this one?
A: Yes you can. In fact the base plates mounting holes are in the same location as our old model. So there is no need to drill new holes to attach
the new base plate.
Q: Can you use hand sanitizer in this dispenser?
A: Yes you can. Our soap dispenser was extensively tested with soap and hand sanitizer and it can dispense both. Making our soap dispenser
the most versatile on the market.
