Power Arc ArcPack PA1801 User manual

ArcPack™
Portable Charger - PA1801
User Manual

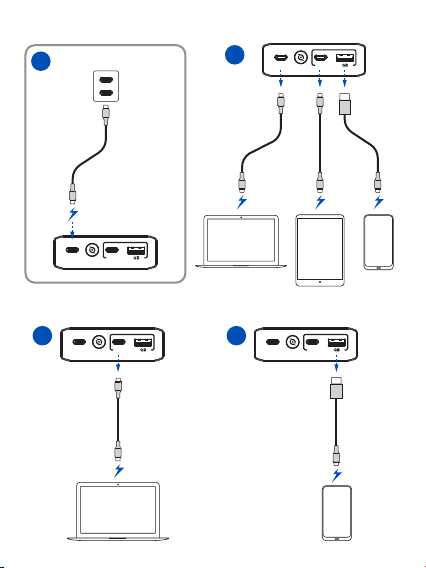

PA1801
PDPD
IN / OUT
Adapter
IN OUT
OUT OUT
PDPD
IN / OUT
PDPD
IN / OUT
PDPD
IN / OUT
30W
30W
12W
18W
30W
12W
1.
2-1. 2-2.

USB-C / USB-A
To ensure your safety, obtain maximum charging speeds, and to increase product
lifespan, please use the cable provided by PowerArc or certified.
1
1
2
2
3
3
4
4
75%~100%
LED Capacity
50%~75%
25%~50%
≤ 25%
PDPD
IN / OUT
Power ButtonUSB-C In/Output
Power Indicator
EN This product does not include a PowerDelivery charging adapter.
Please use PowerDelivery enabled charging adapter for maximum performance.

• Do not dismantle.
• Do not expose to liquids.
• Avoid dropping.
• Keep away from extreme temperatures.
Cautions
• Customer Service
Email - [email protected]
Warranty - 24-month warranty, Life-time support
• For more information
• Model: PA1801
• Capacity: 15000mAh / 3.6V (54Wh)
• Input: 5V⎓3A / 9V⎓3A / 12V = 2.5A / 15V⎓2A / 20V⎓1.5A
• Output: Total 60W
• Output
- Port 1 Output: 5V⎓3A / 9V⎓3A / 12V⎓2.5A / 15V⎓2A / 20V⎓1.5A / 3V-11V⎓3A
Specifications
- Port 2 output
: 5V⎓3A / 9V⎓3A / 12V⎓2.5A / 15V⎓2A / 20V⎓1.5A / 3V-11V⎓3A
- Port 3 output
: 3.6V-6.0V=3A / 6.0V-9.0V=2A / 9.0V-12.0V=1.5A
- Port 2 & Port 3 Simultaneous Load
: 5V / 5A (Total Power 25W)
www.power-arc.com
FB: @PowerArcOcial @PowerArcUK @PowerArcDE @PowerArcJP
TW: @PowerArc1 @PowerArcJ
Insta: @PowerArc_ocial @PowerArc_uk @PowerArc_de @PowerArc.jp

WARNING – When using this product, basic precautions
should always be followed, including the following:
a) Read all the instructions before using the product.
b) To reduce the risk of injury, close supervision is necessary
when the product is used near children.
c) Do not put fingers or hands into the product.
d) Do not expose power bank to rain or snow.
e) Use of a power supply or charger not recommended
or sold by power pack manufacturer
may result in a risk of fire or injury to persons.
f) Do not use the power bank in excess of its output rating.
Overload outputs above rating
may result in a risk of fire or injury to persons.
g) Do not use the power bank that is damaged or modified.
Damaged or modified batteries may exhibit unpredictable
behavior resulting in fire, explosion or risk of injury.
h) Do not disassemble the power bank. Take it to a qualified
service person when service or repair is required.
Incorrect reassembly may result in a risk of fire or injury to persons.
i) Do not expose a power pack to fire or excessive temperature.
Exposure to fire or temperature above 100°C may cause explosion.
The temperature of 100°C can be replaced by the temperature of 212°F.
j) Have servicing performed by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the product is maintained.
k) This product will automatically go into standby mode
after 15 seconds when not in use. Please confirm the product is in standby mode
before storage.
SAVE THESE INSTRUCTIONS
INSTRUCTIONS PERTAINING TO RISK OF FIRE
OR INJURY TO PERSONS IMPORTANT SAFETY INSTRUCTIONS

USB-C / USB-A
Für Ihre Sicherheit, die maximale Ladegeschwindigkeit und eine lange Lebensdauer
des Produkts, verwenden Sie bitte das von PowerArc gelieferte Kabel oder ein
zertifiziertes Kabel.
1
1
2
2
3
3
4
4
75%~100%
LED Capacity
50%~75%
25%~50%
≤ 25%
PDPD
IN / OUT
Power ButtonUSB-C In/Output
Leistungsanzeige
DE Dieses Produkt enthält keinen Power Delivery Ladeadapter.
Bitte verwenden Sie einen Power Delivery Ladeadapter für die maximale Geschwindigkeit.

• Nicht zerlegen.
• Nicht an Flüssigkeiten setzen.
• Nicht fallenlassen.
• Von extremen Temperaturen fernhalten.
Vorsicht
• Customer Service
Email - [email protected]
Warranty - 24-month warranty, Life-time support
• Model: PA1801
• Capacity: 15000mAh / 3.6V (54Wh)
• Input: 5V⎓3A / 9V⎓3A / 12V = 2.5A / 15V⎓2A / 20V⎓1.5A
• Output: Total 60W
• Output
- Port 1 Output: 5V⎓3A / 9V⎓3A / 12V⎓2.5A / 15V⎓2A / 20V⎓1.5A / 3V-11V⎓3A
Technische Spezifikationen
- Port 2 output
: 5V⎓3A / 9V⎓3A / 12V⎓2.5A / 15V⎓2A / 20V⎓1.5A / 3V-11V⎓3A
- Port 3 output
: 3.6V-6.0V=3A / 6.0V-9.0V=2A / 9.0V-12.0V=1.5A
- Port 2 & Port 3 Simultaneous Load
: 5V / 5A (Total Power 25W)
• For more information
www.power-arc.com
FB: @PowerArcOcial @PowerArcUK @PowerArcDE @PowerArcJP
TW: @PowerArc1 @PowerArcJ
Insta: @PowerArc_ocial @PowerArc_uk @PowerArc_de @PowerArc.jp

USB-C / USB-A
安全かつ早く充電するためには、「PowerArc」の製品又は認定されたケーブルをお使い
ください。尚、製品をより長くお使いいただけます。
1
1
2
2
3
3
4
4
75%~100%
LED Capacity
50%~75%
25%~50%
≤ 25%
PDPD
IN / OUT
Power ButtonUSB-C In/Output
LEDインジケーターの表示
JP この製品には、PowerDelivery充電アダプターは同梱されておりません。
最大のパフォーマンスを得るには、PowerDelivery対応の充電アダプターをお使いください。

・解体しないでください。
・液体に露出しないでください。
・落下しないでください。
・極限の温度に露出しないでください。
注意
• Customer Service
Email - [email protected]
Warranty - 24-month warranty, Life-time support
• Model: PA1801
• Capacity: 15000mAh / 3.6V (54Wh)
• Input: 5V⎓3A / 9V⎓3A / 12V = 2.5A / 15V⎓2A / 20V⎓1.5A
• Output: Total 60W
• Output
- Port 1 Output: 5V⎓3A / 9V⎓3A / 12V⎓2.5A / 15V⎓2A / 20V⎓1.5A / 3V-11V⎓3A
製品仕様
- Port 2 output
: 5V⎓3A / 9V⎓3A / 12V⎓2.5A / 15V⎓2A / 20V⎓1.5A / 3V-11V⎓3A
- Port 3 output
: 3.6V-6.0V=3A / 6.0V-9.0V=2A / 9.0V-12.0V=1.5A
- Port 2 & Port 3 Simultaneous Load
: 5V / 5A (Total Power 25W)
• For more information
www.power-arc.com
FB: @PowerArcOcial @PowerArcUK @PowerArcDE @PowerArcJP
TW: @PowerArc1 @PowerArcJ
Insta: @PowerArc_ocial @PowerArc_uk @PowerArc_de @PowerArc.jp

3MN015380
