Power Electronics SD750 Series User manual

SD750
ACCESORIES MANUAL
OPTICAL FIBER BOARD
LOW VOLTAGE VARIABLE SPEED DRIVE

Accessories Manual
Optical fiber board
Edition: February 2022
SD75MA07DI Rev. D

SD750
POWER ELECTRONICS
2
ABOUT THIS MANUAL
ABOUT THIS MANUAL
PURPOSE
This manual contains important instructions for the installation, configuration and use of the optical fiber
board for Power Electronics SD750 variable speed drives.
The optical fiber board is optional for the SD750 variable speed drives frame 1 to 8. In the case of the
SD750 frame 9 to 11, it is included on the standard equipment and it would be along with the module
connection kit.
TARGET AUDIENCE
This manual is intended for qualified customers who will install, operate and maintain Power Electronics
SD750 variable speed drives.
Only trained electricians may install and commission the drives.
REFERENCE MANUALS
The following reference documents are available for SD750 variable speed drives:
•Hardware and Installation Manual.
•Programming and Software Manual.
•Maintenance Manual.
•Pumps Application Manual.
POWER ELECTRONICS CONTACT INFORMATION
Power Electronics USA Inc.
1510 N. Hobson Street, Gilbert
Phoenix
AZ 85233
UNITED STATES OF AMERICA
US Sales: 602-354-4890 / [phone]
Power Electronics España, S.L.
Polígono Industrial Carrases
Ronda del Camp d’Aviació nº 4
46160, Llíria (Valencia)
SPAIN
Fax: [phone]
Website: www.power-electronics.com

POWER ELECTRONICS
SD750
REVISIONS CONTROL
3
EN
REVISIONS CONTROL
DATE (DD/MM/AAAA)
REVISION
DESCRIPTION
21 / 04 / 2020
A
First Edition.
28 / 04 / 2021
B
About this manual. Introduction. Commissioning. Faults and warnings
mapping. Misprints corrections.
20 / 08 / 2021
C
Commissioning. Faults and warnings mapping. Misprints correction.
23 / 02 / 2022
D
Commissioning.
The equipment and technical documentation are periodically updated. Power Electronics reserves the right to modify all or part of the
contents of this manual without previous notice. To consult the most updated information of this product, you may access our website
www.power-electronics.com, where the latest version of this manual can be downloaded. The reproduction or distribution of the present
manual is strictly forbidden, unless express authorization from Power Electronics.

SD750
POWER ELECTRONICS
4
TABLE OF CONTENTS
TABLE OF CONTENTS
ABOUT THIS MANUAL ...............................................................................................................................2
SAFETY SYMBOLS.....................................................................................................................................5
SAFETY INSTRUCTIONS............................................................................................................................6
INTRODUCTION.....................................................................................................................................7
Optical fiber board specifications..........................................................................................................7
LED indicator and optical fiber connectors...........................................................................................8
Module connection kit (SD750 frames 9 to 11).....................................................................................9
CONNECTIONS....................................................................................................................................11
Connection to the drive.......................................................................................................................11
Connection between modules ............................................................................................................12
Wire routing........................................................................................................................................13
COMMISSIONING ................................................................................................................................14
Parameters setting .............................................................................................................................14
List of Modbus addresses...................................................................................................................16
FAULTS AND WARNINGS MAPPING.................................................................................................18
Description of fault list ........................................................................................................................18
Troubleshooting..................................................................................................................................18

POWER ELECTRONICS
SD750
SAFETY SYMBOLS
5
EN
SAFETY SYMBOLS
Always follow safety instructions to prevent accidents and potential hazards from occurring.
In this manual, safety messages are classified as follows:
Other symbols used in this manual for safety messages are the following:
WARNING
Identifies potentially hazardous situations where dangerous voltage may be
present, which if not avoided, could result in minor personal injury, serious
injury or death.
Be extremely careful and follow the instructions to avoid the risk of electrical
shocks.
CAUTION
Identifies potentially hazardous situations, which if not avoided, could result
in product damage, or minor or moderate personal injury.
Read the message and follow the instructions carefully.
NOTICE
Identifies important measures to take in order to prevent damage equipment
and warranty lost, as well as encouraging good use and environmental
practices.
Hot surface. Be careful and follow the instructions to avoid burns and personal injuries.
Risk of fire. Be careful and follow the instructions to prevent causing an unintentional fire.
Caution, risk of electric shock. Energy storage timed discharge. Wait for the indicated
time to avoid electrical hazards.
Caution, risk of hearing damage. Wear hearing protection.

SD750
POWER ELECTRONICS
6
SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
IMPORTANT!
Read carefully this manual to maximize the performance of the product and to ensure its safe installation
and use.
In order to appropriately use the drive, please, follow all instructions described in the Hardware and
Installation Manual which refer to transportation, installation, electrical connection and commissioning of
the equipment.
For maintenance operations, follow the instructions from the Maintenance Manual.
Power Electronics accepts no responsibility for any damages resulting from incorrect use of equipment.
CAUTION
Read carefully the Hardware and Installation Manual, the Maintenance Manual and all documentation
related to the drive to guarantee its safe use and avoid the risk of personal injuries and damages to the
equipment.
Ensure compliance with local and national regulations of the installation site.

POWER ELECTRONICS
SD750
INTRODUCTION
7
EN
INTRODUCTION
SD750 drives are compatible with several optional boards:
•Communication boards (Ethernet/IP, Profinet, CANopen, Profibus…).
•Encoder board.
•Digital and analog I/O expansion boards.
•Optical fiber board
…among others. Up to three optional boards can be connected, maximum two of the same type.
This manual focuses on the optical fiber expansion board. This board is optional for the SD750
variable speed drives frame 1 to 8; in the case of the SD750 frame 9 to 11, is included on the
standard equipment.
This board allows integrating the drives in optical fiber networks in a comfortable and simple way. Its
practical design allows to know the board's operating status at all times.
Below is the front of the optical fiber expansion board:
Optical fiber board specifications
•Compatibility: SD750.
•Baud rate: Speed is fixed and not configurable.
•Type of communication: Multimode fiber optics with Dasy Chain and Ring configuration.
•Status LED.
1

SD750
POWER ELECTRONICS
8
INTRODUCTION
LED indicator and optical fiber connectors
The optical fiber expansion board has four optical fiber connectors and one led indicator (status) that
provides information about the board's power supply. It is green and its frequency changes according to
the operating state of the system.
LED
COLOR / FREQUENCY
DESCRIPTION
STATUS
On
The fiber board is supplied.
Off
The fiber board is off.
CONNECTOR
DESCRIPTION
TX
Data transmission for synchronization.
RX
Data reception for synchronization.
OUT SYNC
Pulse transmission for synchronization.
IN SYNC
Pulse reception for synchronization.

POWER ELECTRONICS
SD750
INTRODUCTION
9
EN
Module connection kit (SD750 frames 9 to 11)
As mentioned previously, the optical fiber board is sent by default with SD750 drives frames 9 to 11, and
in this case a module connection kit will be provided as well.
The module connection kit includes all cables necessary to perform the wiring between modules. Its
contents are shown in the table below:
FRAME
WIRE FUNCTION
DESCRIPTION
UNITS
LENGTH (M)
2 x T6
OPTICAL FIBER SYNCHRO
Transmission
1
4,9
Reception
1
4,9
OPTICAL FIBER COMMS
Transmission
1
4,9
Reception
1
4,9
WIRE RS232/RS485
-
2
4,9
3 x T6
OPTICAL FIBER SYNCHRO
Transmission
2
4,9
Reception
1
5,7
OPTICAL FIBER COMMS
Transmission
2
4,9
Reception
1
5,7
WIRE RS232/RS485
-
2
4,9
4 x T6
OPTICAL FIBER SYNCHRO
Transmission
3
4,9
Reception
1
6,5
OPTICAL FIBER COMMS
Transmission
3
4,9
Reception
1
6,5
WIRE RS232/RS485
-
3
4,9
2 x T7
OPTICAL FIBER SYNCHRO
Transmission
1
5,95
Reception
1
5,95
OPTICAL FIBER COMMS
Transmission
1
5,95
Reception
1
5,95
WIRE RS232/RS485
-
1
5,95
3 x T7
OPTICAL FIBER SYNCHRO
Transmission
2
5,95
Reception
1
7,1
OPTICAL FIBER COMMS
Transmission
2
5,95
Reception
1
7,1
WIRE RS232/RS485
-
2
5,95
4 x T7
OPTICAL FIBER SYNCHRO
Transmission
3
5,95
Reception
1
8,25
OPTICAL FIBER COMMS
Transmission
3
5,95
Reception
1
8,25
WIRE RS232/RS485
-
3
5,95

SD750
POWER ELECTRONICS
10
INTRODUCTION
FRAME
WIRE FUNCTION
DESCRIPTION
UNITS
LENGTH
2 x T8
OPTICAL FIBER
SYNCHRO
Transmission
1
6,3
Reception
1
6,3
OPTICAL FIBER COMMS
Transmission
1
6,3
Reception
1
6,3
WIRE RS232/RS485
1
6,3
3 x T8
OPTICAL FIBER
SYNCHRO
Transmission
2
6,3
Reception
1
7,8
OPTICAL FIBER COMMS
Transmission
2
6,3
Reception
1
7,8
WIRE RS232/RS485
2
6,3
4 x T8
OPTICAL FIBER
SYNCHRO
Transmission
3
6,3
Reception
1
9,3
OPTICAL FIBER COMMS
Transmission
3
6,3
1
9,3
WIRE RS232/RS485
3
6,3

POWER ELECTRONICS
SD750
CONNECTIONS
11
EN
CONNECTIONS
Connection to the drive
For the variable speed drives frame 1 to 8, the optical fiber must be connected directly, via the sixteen-
pin ID connector on the back, to any of the three expansion connectors on the central control board of
the SD750 drive.
In the case of the variable speed drives frame 9 to 11, the optical fiber board must be connected to the
specific connector of the expansion board shown below.
COMPONENTS OF THE CONTROL BOARD
DESCRIPTION
A
Fiber communication terminals.
B
Synchronism selector.
C
Connectors for the expansion boards.
2

SD750
POWER ELECTRONICS
12
CONNECTIONS
CAUTION
Power Electronics’ SD750 drives operate with a high electric energy.
Make sure the power has been turned off and wait at least 10 minutes to ensure that the DC bus has
been discharged, make sure with a multimeter that there is no input, output or DC bus voltage before
installing the expansion board. Otherwise, there is a risk of personal injury or accident.
For drives frame 9 to 11, the modules connection kit provided with the drive must be installed.

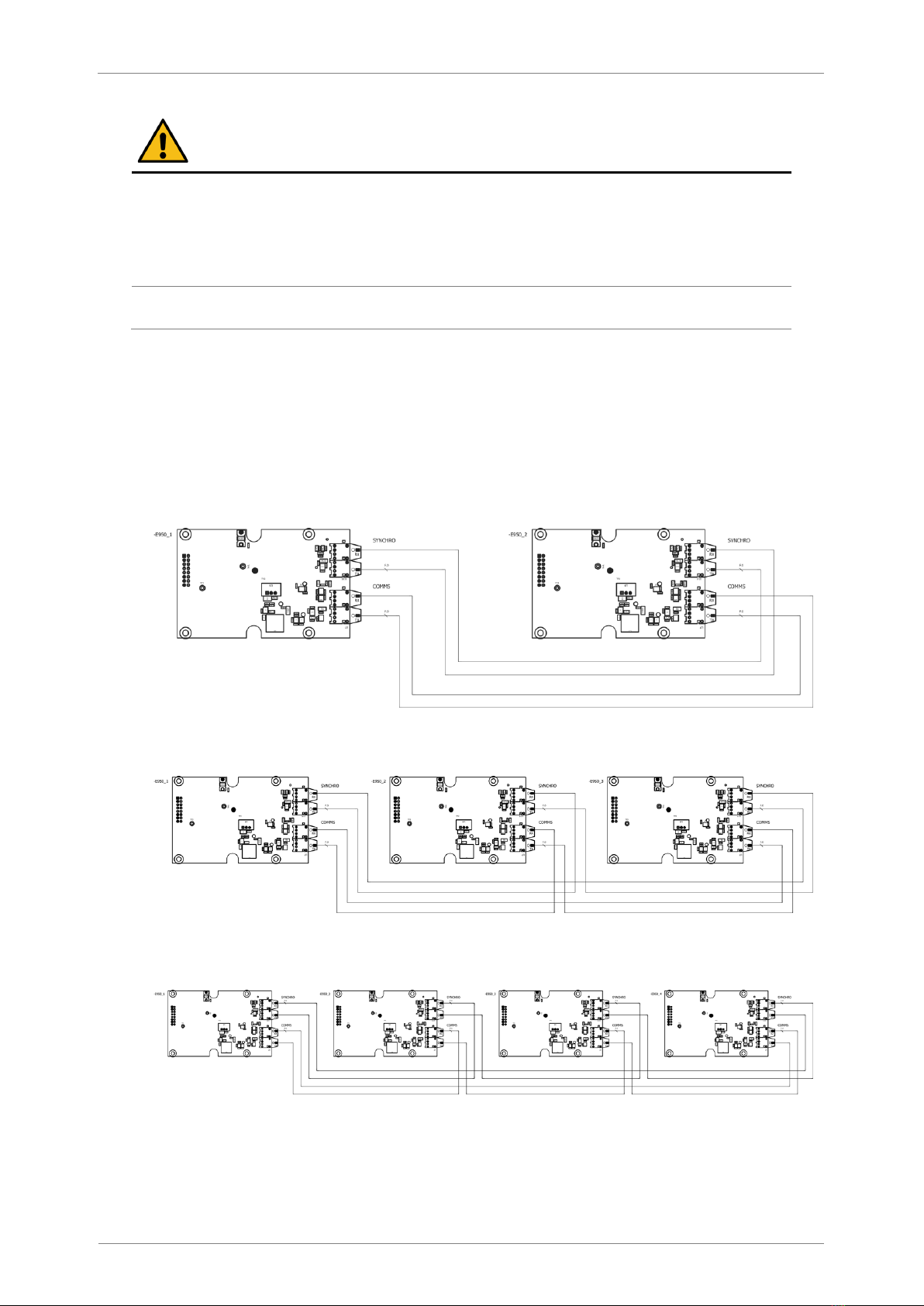

Connection between modules
Follow the next electrical schemes to connect up to 4 modules of Power Electronics SD750 variable
speed drives.
Connection of 2 modules
Connection of 3 modules
Connection of 4 modules

POWER ELECTRONICS
SD750
CONNECTIONS
13
EN
Wire routing
The image below shows how wiring should be routed for connecting the different modules.
POINTS OF REFERENCE
DESCRIPTION
A
Fix with flanges the optical fiber wires to the notches located behind the cover. Then,
lead the wires through the right pipe.
B
Pass the cables through the plastic bushing.
C
Use the right hole at the bottom to bring the optical fiber wires to the next variable
speed drive.

SD750
POWER ELECTRONICS
14
COMMISSIONING
COMMISSIONING
An example of the fiber optical board commissioning is described below.
1. Set in G1.9 Master/Slave = “Enable”, to activate this functionality.
2. Once parameter G1.9 has been configured, group G25 is activated for configuration.
3. Set in G25.1 if the team role is Master or Slave.
4. Configure the G25.2 Run fiber: Set it to YES if it is desired that the slave takes the run command
sent by the Master when it receives it. When configured as NO, the slave will also need a start
command (normally simultaneous to the one that comes to the Master to start at the same time;
only in small exceptions will not need to start at the same time).
5. Configure the G19.1.1 Type of control based on the chosen control.
Parameters setting
The parameters that are activated once the board is connected are summarized below:
NOTICE
For more details about the Modbus address and value range, see the SD750 Drive Programming
and Software Manual.
Group 1: Options
Screen
Range
Function
Set on
run
G1.9-Master/slave
config = Disable
Disable
Enable
Allows the activation (G1.9 = Enable) or the deactivation (G1.9 = Disable) of the synchronization
between different equipment in the same application. There must necessarily always be a
MASTER (there can only be one), and a SLAVE (there can be several). The connection between
the equipment by optical fiber is needed.
Note: To enable [G25.1-Role], it is necessary to enable this parameter.
NO
3

POWER ELECTRONICS
SD750
COMMISSIONING
15
EN
Group 25: Master/Slave
This group will appear when parameter [G1.9] is enabled.
Screen
Range
Function
Set on
run
G25.1-Role = Local
Slave
Local Master
Local Slave
Global Master
Global Slave
Defines the roll which the drive is going to take in the network.
FUNC.
DESCRIPTION
Local Master
The drive assumes the Master role within the local module (parallel
equipment) –a subgroup within the system that supports a motor.
Local Slave
The drive assumes the Slave role within the local module (parallel
equipment) –a subgroup within the system that supports a motor.
Global Master
The drive assumes the Master role within the global module (complete
system) –Several drives with several motors working in load sharing.
Global Slave
The drive assumes the Slave role within the global module (complete
system) –Several drives with several motors working in load sharing.
NO
G25.2-Run fiber = No
No
Yes
If the drive is configured in slave mode and fiber optics communication, equipment will be able to
start directly with command from the master or not, depending on the setting of this parameter.
FUNC.
DESCRIPTION
No
The slave needs an additional start command to the master’s command.
Yes
The slave will start with the master’s command.
YES
G25.7-Paral. Drives
Number = 1 [1]
1 to 4
Allows to select the number of drives included in the local parallel network.
YES
G25.8a-Torque slave
ID 1 = Off [1]
Off = 0
1 to 50
Sets the torque slave Modbus ID to 1.
YES
G25.8b-Torque slave
run 1 = Start [1]
Start
Run
Sets the torque slave number 1 in run mode.
YES
G25.9a-Torque slave
ID 2 = Off [1]
Off = 0
1 to 50
Sets the torque slave Modbus ID to 2.
YES
G25.9b-Torque slave
run 2 = Start [1]
Start
Run
Sets the torque slave number 2 in run mode.
YES
G25.10a-Torque
slave ID 3 = Off [1]
Off = 0
1 to 50
Sets the torque slave Modbus ID to 3.
YES
G25.10b-Torque
slave run 3 = Start [1]
Start
Run
Sets the torque slave number 3 in run mode.
YES
G25.11a-Torque
slave ID 4 = Off [1]
Off = 0
1 to 50
Sets the torque slave Modbus ID to 4.
YES
G25.11b-Torque
slave run 4 = Start [1]
Start
Run
Sets the torque slave number 4 in run mode.
YES
G25.12a-Torque
slave ID 5 = Off [1]
Off = 0
1 to 50
Sets the torque slave Modbus ID to 5.
YES
G25.12b-Torque
slave run 5 = Start [1]
Start
Run
Sets the torque slave number 5 in run mode.
YES
G25.13-Reset fiber =
Yes
No
Yes
Allows the master to reset the faults which occur in the slaves.
YES
1
Available if [G25.1 = Global Master].

SD750
POWER ELECTRONICS
16
COMMISSIONING
List of Modbus addresses
Configuration parameters
The configuration parameters for the Profibus board are summarized below:
Parameter
Screen
Address
Range
Modbus Range
Access [2]
G1.9
Master/slave config = Disable
40021
Disable
Enable
0
1
RW
G25.1
Role = Local Slave
41186
Local Master
Local Slave
Global Master
Global Slave
0
1
2
3
RW
G25.2
Run fiber = No
41187
No
Yes
0
1
RW
G25.7
Paral. Drives Number = 1
41325
1 to 4
1 to 4
RW
G25.8a
Torque slave ID 1 = Off
40822
Off = 0
1 to 50
0 to 50
RW
G25.8b
Torque slave run 1 = Start
40952
Start
Run
0
1
RW
G25.9a
Torque slave ID 2 = Off
40823
Off = 0
1 to 50
0 to 50
RW
G25.9b
Torque slave run 2 = Start
40953
Start
Run
0
1
RW
G25.10a
Torque slave ID 3 = Off
40824
Off = 0
1 to 50
0 to 50
RW
G25.10b
Torque slave run 3 = Start
40954
Start
Run
0
1
RW
G25.11a
Torque slave ID 4 = Off
40825
Off = 0
1 to 50
0 to 50
RW
G25.11b
Torque slave run 4 = Start
40955
Start
Run
0
1
RW
G25.12a
Torque slave ID 5 = Off
40826
Off = 0
1 to 50
0 to 50
RW
G25.12b
Torque slave run 5 = Start
40956
Start
Run
0
1
RW
G25.13
Reset fiber = Yes
41326
No
Yes
0
1
RW
[2] Access: RW: Read and write. RO: Read only.

POWER ELECTRONICS
SD750
COMMISSIONING
17
EN
Custom Modbus
Custom Modbus directions (G20.2.x) come by default as detailed in the tables below. For more
information on Modbus addresses, see the Software and Programming Manual for the SD750
drive.
Master input (G20.2.1)
Position
Parameter
Modbus
Address
Modbus Range
1
Status Comms
43585
Real Value = Modbus Value
2
Motor speed (%)
42003
Real Value = (Modbus Value / 100)
3
Motor current
42007
Real Value = (Modbus Value / 10)
4
Motor power
42010
Real Value = Modbus Value
5
Motor torque
42008
Real Value = (Modbus Value / 100)
6
Motor frequency
42005
Real Value = (Modbus Value / 10)
7
Motor voltage
42006
Real Value = Modbus Value
8
Motor phi cosine
42009
Real Value = (Modbus Value / 100)
9
DC bus voltage
42035
Real Value = Modbus Value
10
Speed reference
42001
Real Value = (Modbus Value / 100)
11
Drive temperature
42039
Real Value = Modbus Value
12
IGBT temperature
42040
Real Value = Modbus Value
13
L1-L2 supply voltage
42031
Real Value = Modbus Value
14
L2-L3 supply voltage
42032
Real Value = Modbus Value
15
AI1 percentage (%)
42062
Real Value = (Modbus Value / 100)
16
AI2 percentage (%)
42065
Real Value = (Modbus Value / 100)
Master output (G20.2.2)
Position
Parameter
Modbus
Address
Modbus Range
1
Host Start Control
43586
Real Value = Modbus Value
2
Host Comms Control (Ref)
43570
Real Value = Modbus Value
3
Host Reset Control
43588
Real Value = Modbus Value
4
Host Trip Control
43589
Real Value = Modbus Value
5
Acceleration rate 1
40181
Real Value = (Modbus Value / 100)
6
Deceleration rate 1
40182
Real Value = (Modbus Value / 100)
7
Main start mode
40224
Real Value = Modbus Value
8
Main stop mode
40221
Real Value = Modbus Value
9
Minimum limit speed 1min
40401
Real Value = (Modbus Value / 100)
10
Maximum limit speed 1min
40402
Real Value = (Modbus Value / 100)
11
Speed ref 1 source
40051
Real Value = Modbus Value
12
Torque ref 1 source
40054
Real Value = Modbus Value
13
Main control mode
40071
Real Value = Modbus Value
14
Current limit
40405
Real Value = (Modbus Value / 10000)
15
Torque limit
40409
Real Value = (Modbus Value / 100)
16
Regeneration I limit
40417
Real Value = (Modbus Value / 10000)

SD750
POWER ELECTRONICS
18
FAULTS AND WARNINGS MAPPING
FAULTS AND WARNINGS MAPPING
This section displays new faults that will only be available if optical fiber expansion board is connected.
Please refer to the full list of faults and warnings in the SD750 drives Software and Programming Manual.
Description of fault list
DISPLAY
DESCRIPTION
F93:Time out optical fiber
Timeout of the optical fiber has been exceeded.
F95:Slave
When working in the Master / Slave system (G1.9 = Enable), the slave reports this fault because the
master has failed.
F96:Master
When working in the Master / Slave system (G1.9 = Enable), the Master reports this fault because a
slave has failed.
Troubleshooting
DISPLAY
POSSIBLE CAUSE
ACTIONS
F93:Time out optical
fiber
The fiber has been broken.
Check the wiring.
One of the computers in the network has been
turned off.
Check the status of the equipment.
Incorrect connection
-
F95:Slave
One of the slaves has failed.
Check the fault produced in the slave.
F96:Master
The master has failed.
Check the fault produced in the master.
4
