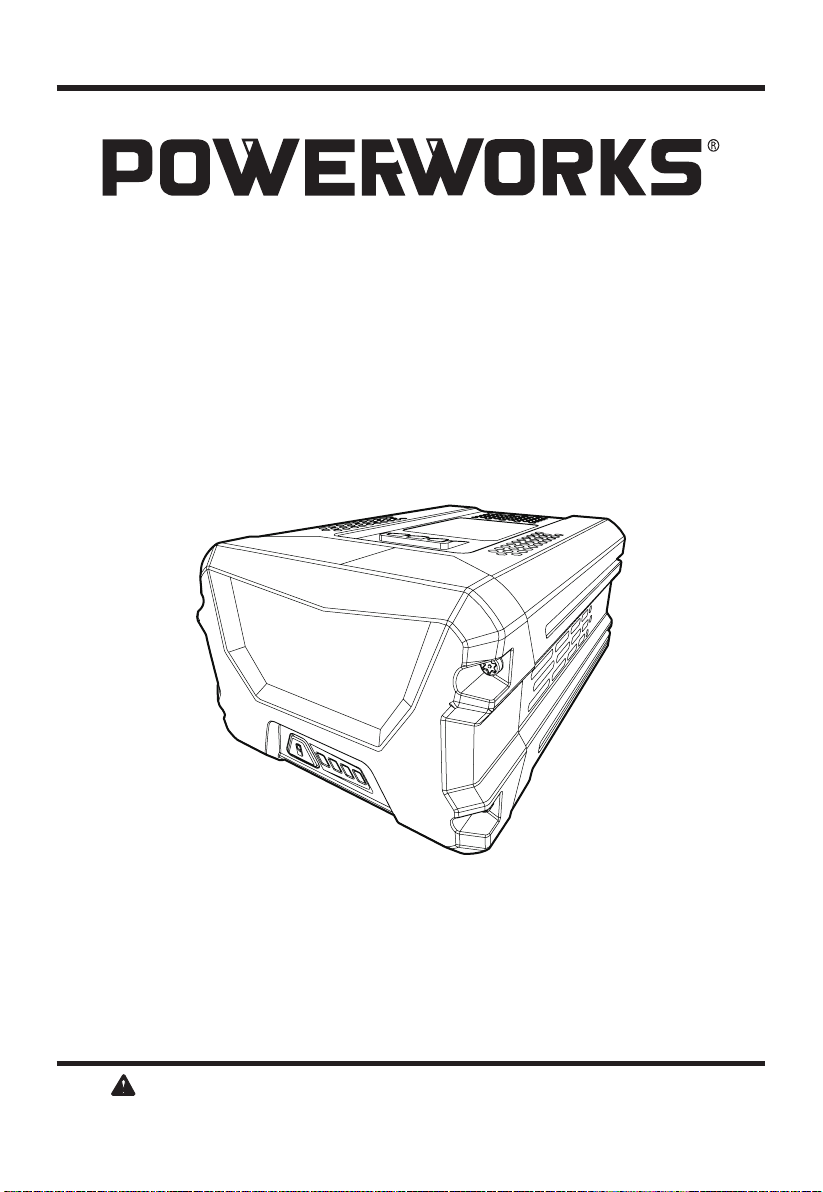

Power works LB60A00PW User manual

60V RECHARGEABLE LITHIUM-ION
BATTERY
Read all safety rules and instructions carefully before operating this tool.
Owner’s Manual
LB60A00PW/LB60A03PW/LB60A04PW/LB60A01PW/
LB60A02PW/LB60A05PW
TOLL-FREE HELPLINE: 1-855-470-2181
www.powerworkstools.com

2
CONTENTS
Contents ................................................................................................................................... 2
Product Specications .............................................................................................................. 2
Symbols ................................................................................................................................... 4
Important Safety Instructions.................................................................................................... 5
Know Your Battery.................................................................................................................... 7
Operation.................................................................................................................................. 8
Maintenance ............................................................................................................................10
Troubleshooting .......................................................................................................................11
Environmentally Safe Battery Disposal....................................................................................12
Limited Warranty..................................................................................................................... 13
PRODUCT SPECIFICATIONS
COMPONENTS SPECIFICATIONS
Battery 60V Rechargeable Lithium-ion Battery
Model LB60A00PW
Rating 54V 2.0Ah 108Wh (60V MAX)
Charge time 60 min. (use CH60A00PW charger)
30 min. (use CH60A010PW charger)
Charging voltage 63V DC Max
Standard charging current 2A
Weight 2.73 lbs (1.24 kg)
Battery 60V Rechargeable Lithium-ion Battery
Model LB60A03PW
Rating 54V 2.5Ah 135Wh (60V MAX)
Charge time 75 min. (use CH60A00PW charger)
45 min. (use CH60A010PW charger)
Charging voltage 63V DC Max
Standard charging current 2A
Weight 2.78 lbs (1.26 kg)
Battery 60V Rechargeable Lithium-ion Battery
Model LB60A04PW
Rating 54V 3Ah 162Wh (60V MAX)
Charge time 95 min. (use CH60A00PW charger)
45 min. (use CH60A010PW charger)
Charging voltage 63V DC Max
Standard charging current 3A
Weight 2.80 lbs (1.27 kg)

3
Battery 60V Rechargeable Lithium-ion Battery
Model LB60A01PW
Rating 54V 4Ah 216Wh (60V MAX)
Charge time 120 min. (use CH60A00PW charger)
60 min. (use CH60A010PW charger)
Charging voltage 63V DC Max
Standard charging current 2A
Weight 4.23 lbs (1.92 kg)
Battery 60V Rechargeable Lithium-ion Battery
Model LB60A02PW
Rating 54V 5Ah 270Wh (60V MAX)
Charge time 150 min. (use CH60A00PW charger)
75 min. (use CH60A010PW charger)
Charging voltage 63V DC Max
Standard charging current 2A
Weight 4.28 lbs (1.94 kg)
Battery 60V Rechargeable Lithium-ion Battery
Model LB60A05PW
Rating 54V 6Ah 324Wh (60V MAX)
Charge time 180 min. (use CH60A00PW charger)
90 min. (use CH60A010PW charger)
Charging voltage 63V DC Max
Standard charging current 2A
Weight 4.30 lbs (1.95 kg)
PRODUCT SPECIFICATIONS

4
SYMBOLS
Some of the following symbols may be used on this product. Please study them and learn their
meaning. Proper interpretation of these symbols will allow you to operate the product better and
safer.
SYMBOL NAME DESIGNATION/EXPLANATION
V Volts Voltage
W Watts Power
Direct Current Type or a characteristic of current
Wet Conditions Alert Do not expose to rain or use in damp locations.
Read The Operator’s Manual
To reduce the risk of injury, user must read and
understand operator’s manual before using this
product.
Safety Alert Precautions that involve your safety.
The following signal words and meanings are intended to explain the levels of risk associated with
this product.
SYMBOL SIGNAL MEANING
DANGER Indicates an imminently hazardous situation, which, if not avoided,
will result in death or serious injury.
WARNING Indicates a potentially hazardous situation, which, if not avoided,
could result in death or serious injury.
CAUTION Indicates a potentially hazardous situation, which, if not avoided, may
result in minor or moderate injury.
CAUTION (Without Safety Alert Symbol) Indicates a situation that may result in
property damage.

5
IMPORTANT SAFETY INSTRUCTIONS
WARNING
Read all safety warnings and instructions. Failure to follow the warnings and instructions may
result in electric shock, re and serious injury.
WARNING
For use only with PW Li-ion Battery Charger (CH60A00PW/ CH60A010PW).
CAUTION
The battery used in this device may present a risk of re or chemical burn if mistreated.
CAUTION
Risk of Fire and Burns. Do Not Open, Crush, Heat Above 100°C(212°F) or Incinerate. Follow
Manufacturer’s Instructions.
CAUTION
When the battery pack is not in use, keep it away from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects, that can make a connection from one terminal to
another. Shorting the battery terminals together may cause burns or a re.
CAUTION
Under abusive conditions, a liquid may be ejected from the battery; avoid contact. If contact
accidentally occurs, ush with water. If the liquid makes contact with your eyes, seek medical help.
Liquid ejected from the battery may cause irritation or burns.
CAUTION
Do not use a battery pack that is damaged or modied. Damaged or modied batteries may exhibit
unpredictable behavior resulting in re, explosion or risk of injury.
• When charging, make sure the temperature is between 6°C and 40°C (43 - 104°F), -14°C and
45°C (6.8 - 113°F) For discharge.
• Do not use a damp cloth or detergent on the battery or battery charger.
• Always remove the battery pack before cleaning, inspecting, or performing any maintenance on
the tool.
• Have services performed by a qualified repair person using only identical replacement parts.
This will ensure that the safety of the product is maintained.
• If the battery pack case is cracked or damaged, do not insert into the charger. Replace the
battery pack.

IMPORTANT SAFETY INSTRUCTIONS
6
• Battery powered tools do not have to be plugged into an electrical outlet; therefore, they are
always in operating condition. Be aware of possible hazards when not using your battery
powered tool or when changing accessories. Following this rule will reduce the risk of electric
shock, re, or serious personal injury.
• Do not place the battery in high-temperature locations, such as near a re, heater, etc.
• Do not crush, drop or damage the battery pack. Do not use a battery pack or charger that has
been dropped or received a sharp blow. A damaged battery is subject to an explosion.
• Batteries can explode in the presence of a source of ignition, such as a pilot light. To reduce the
risk of serious personal injury, never use any cordless product in the presence of open ame. An
exploded battery can propel debris and chemicals. If exposed, ush with water immediately.
• Do not charge the battery in a damp or wet location. Following this rule will reduce the risk of
electric shock.
• Under extreme usage or temperature conditions, battery leakage may occur. If liquid comes in
contact with your skin, wash immediately with soap and water. If liquid gets into your eyes, ush
them with clean water for at least 15 minutes, then seek immediate medical attention. Following
this rule will reduce the risk of serious personal injury.
• Keep battery pack dry, clean, and free from oil and grease. Always use a clean cloth when
cleaning. Never use brake uids, gasoline, petroleum-based products, or any solvents to clean
battery pack.
• Dispose of used battery promptly. Keep away from children. Do not disassemble and do not
dispose of in re.
• Store indoors, and do not expose to rain or water. Avoid direct sunshine.
CALIFORNIA PROPOSITION 65
WARNING
This product and some dust created by power sanding, sawing, grinding, drilling, and other
construction activities may contain chemicals, including lead, known to cause cancer, birth defects or
other reproductive harm. Wash hands after handling.

7
KNOW YOUR BATTERY
The safe use of this product requires an understanding of the information on the product and in
this operator’s manual as well as a knowledge of the project you are attempting. Before using this
product, familiarize yourself with all operating features and safety rules.

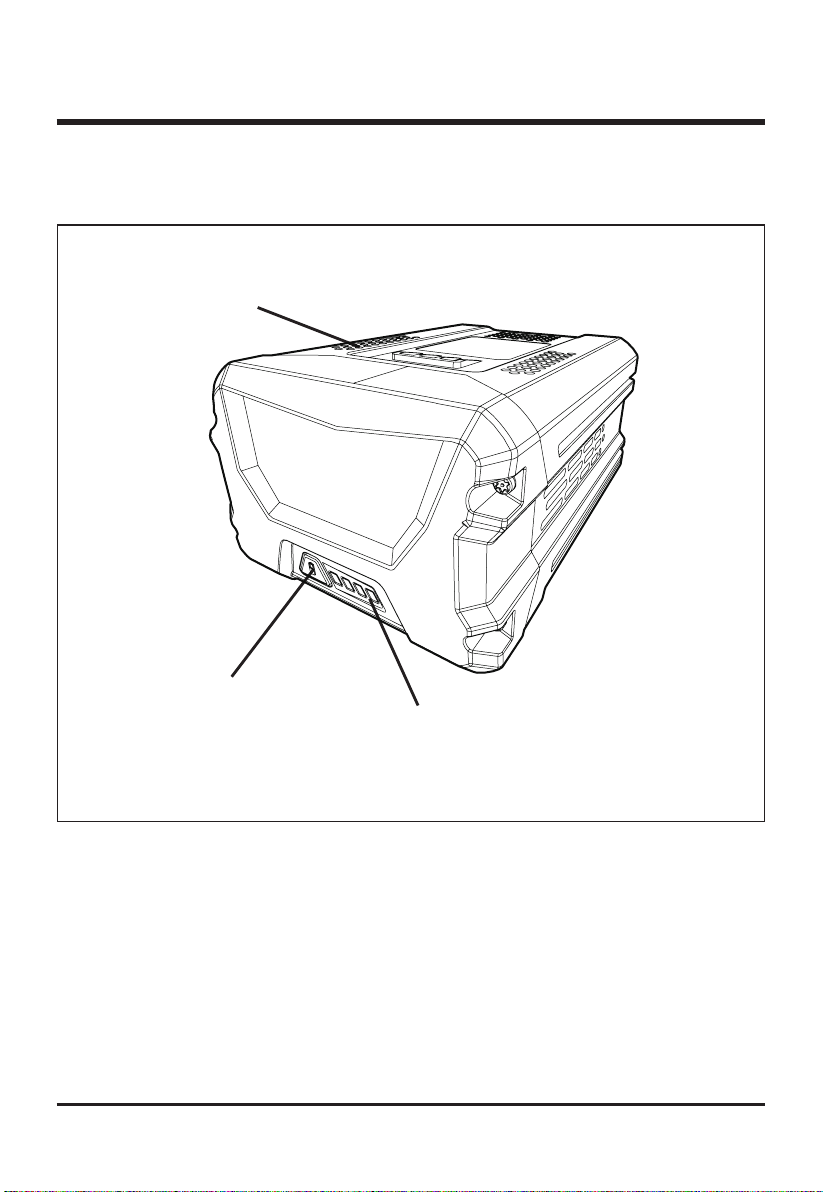

Indicator Lights
Indicator Button
Cooling Air Port

8
CHECKING BATTERY CAPACITY
Note: The battery is not shipped fully charged. It is recommended to fully charge before rst use to
ensure that maximum run time can be achieved. This lithium-ion battery will not develop a memory
and can be charged at any time.
Press the battery capacity indicator (BCI) button. The lights will illuminate according to the batteries
capacity level. See chart below:
Lights Capacity
4 Green Lights The battery is above 80% capacity
3 Green Lights The battery is between 80% and 60% capacity
2 Green Lights The battery is between 60% and 40% capacity
1 Green Light The battery is between 40% and 25% capacity
Lights go out The battery is less than 25% capacity and
requires charging immediately
BATTERY CAPACITY
INDICATOR (BCI) BUTTON LIGHT METER
BATTERY PROTECTION FEATURES
PW 60V lithium-ion battery packs are designed with features that protect the lithium-ion cells and
maximize battery life.
If the tool stops during use, release the trigger to reset and resume operation. If the tool still does
not work, the battery needs to be recharged.
COLD WEATHER OPERATION
The lithium-ion battery pack can be used in temperatures down to -14°C (6.8°F). Put the battery
pack on a tool and use the tool in a light duty application. After about a minute, the pack will warm
up and begin operating normally.
OPERATION

9
OPERATION
CHARGING THE BATTERY PACK
Battery packs are shipped in a low charge condition to prevent possible problems. Therefore,
you should charge before rst use. If the charger does not charge the battery pack under normal
circumstances, return both the battery pack and charger to your nearest Authorized Service Center
for service.
• Charge the battery pack only with the recommended charger.
• Connect the charger to a power supply. For approved power sources, refer to the operator’s
manual of the charger.
• Make sure the battery pack is secured in the charger before beginning operation.
• Press down on the battery pack to ensure the contacts on the battery pack engage properly with
the contacts in the charger.
• The battery pack may become slightly warm to the touch while charging. This is normal and does
not indicate a problem.
• Do not place the charger and battery pack in an area of extreme heat or cold. They will work best
at normal room temperature.
• When batteries become fully charged, unplug the charger from the power supply and remove the
battery pack.

10
MAINTENANCE
WARNING
To avoid serious personal injury, always remove the battery pack from the tool when cleaning or
performing any maintenance.
WARNING
When servicing, use only identical Powerworks replacement parts. Use of any other parts may create
a hazard or cause product damage.
GENERAL MAINTENANCE
• Brush or blow dust and debris out of the air vents using compressed air or a vacuum. Keep the
air vents free of obstructions, sawdust, and wood chips. Do not spray, wash, or immerse the
air vents in water. Always wear safety goggles or safety glasses with side shields when using
compressed air to clean the tool. If the operation is dusty, also wear a dust mask.
• Wipe off the housing and the plastic components using a dry, soft cloth. Do not use strong
solvents or detergents on the plastic housing or plastic components. Certain household cleaners
may cause damage and may cause a shock hazard.
STORAGE
• Always remove the battery pack before storing the charger or anytime the charger is unplugged.
• Do not place the battery pack in the sun or a warm environment. Keep at normal room
temperature.
• If the battery will not be used for 3 months or more, please store the battery in a room
temperature environment. Please fully charge before storage.
WARNING
Do not at any time let brake uids, gasoline, petroleum-based products, penetrating oils, etc. to come
in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in
serious personal injury.
