PowerCharge Energy Series User manual

Energy Series [32a]
User Manual
Revision 1.20

User Manual Rev 1.20
PowerCharge™ Energy Series [32a]
1
IMPORTANT SAFETY INSTRUCTIONS
This document contains instructions and warnings that must be followed when installing and using the
Electric Vehicle Supply Equipment (EVSE). Before installing or using the EVSE, read this entire document
as well as WARNING and CAUTION markings in this document.
Safety Instructions
The symbols used have the following meaning:
•The charging station must be installed only by licensed electricians.
•Make sure that the materials used and the installation procedures follow local building codes and
safety standards.
•The information provided in this manual in no way exempts the user of responsibility to follow all
applicable codes or safety standards.
•This document provides instructions for the charging station and should not be used for any
other product. Before installation or use of this product, review this manual carefully and
consult with a licensed contractor, licensed electrician, or trained installation expert to
make sure of compliance with local building codes and safety standards.
Repair and Maintenance Clause
WARNING: RISK OF PERSONAL INJURY
WARNING: RISK OF ELECTRIC SHOCK
WARNING: RISK OF FIRE
CAUTION: RISK OF DAMAGE TO THE EQUIPMENT
•Only licensed electricians can repair or maintain the charging station. It is forbidden for general
users to repair or maintain it.
•Turn off input power before repair or maintenance the charging station.

User Manual Rev 1.20
PowerCharge™ Energy Series [32a]
2
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Radiation Exposure Statement:
This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with greater than 20cm between the radiator & your
body.
Industry Canada statement:
This device complies with ISED’s licence-exempt RSSs. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d’ ISED applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes : (1) le dispositif ne doit pas produire de
brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage
susceptible de provoquer un fonctionnement indésirable.

User Manual Rev 1.20
PowerCharge™ Energy Series [32a]
3
Radiation Exposure Statement:
This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with greater than 20cm between the radiator & your
body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements ISED établies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé à plus de 20 cm entre le
radiateur et votre corps.
WARNING: RISK OF ELECTRIC SHOCK
When using electric products, basic precautions should always be followed, including the
following. This manual contains important instructions that shall be followed during
installation, operation and maintenance of the unit.
• Read all the instructions before using this product.
• This device should be supervised when used around children.
• Do not put fingers into the EV connector.
• Do not uses this product if the flexible power cord or EV cable is frayed, has broken
insulation, or any other signs of damage.
• Do not use this product if the enclosure or the EV connector is broken, cracked, open, or
shows any other indication of damage.
• To avoid a risk of fire or electric shock, do not use this unit with an extension cord.
WARNING: RISK OF ELECTRIC SHOCK
Improper connection of the equipment grounding conductor can result in a risk of electric
shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the
product is properly grounded.
Do not modify the plug provided with the product – if it will not fit the outlet, have a proper
outlet installed by a qualified electrician.

User Manual Rev 1.20
Basic/Smart/Intelligent Charger-32A
4
SAVE THESE INSTRUCTIONS
WARNING: RISK OF ELECTRIC SHOCK
Do not remove the cover or attempt to open the enclosure. No user serviceable parts inside.
Refer servicing to qualified service personnel.
WARNING: RISK OF ELECTRIC SHOCK
• Do not touch live electrical parts.
• Incorrect connections may cause electric shock.
• Do not Disconnect Under Load.
WARNING: This equipment is intended only for charging vehicles that do not require ventilation
during charging. Please refer to your vehicle’s owner’s manual to determine ventilation
requirements.
WARNING: Do not use extender cables to increase the length of the charging cable. Maximum
length is limited to 25 feet by the National Fire Protection Agency.
WARNING: Do not drag the charge point by input power cord.
CAUTION: Do not expose to liquid, vapor or rain.
CAUTION: If this unit is installed outdoors, the outlet must be rated for outdoor installation.
The outlet must be installed properly to maintain the proper NEMA rating of the enclosure.
• Installation work and electrical wiring must be done by qualified person(s) in accordance
with all applicable codes and standards, including fire-rated construction.
• Do not touch the terminals or other current-carrying parts.
• Take care not to drill into any pipes or power lines beneath the surface during mounting
holes preparation. Use power line / metal detector.
• Do not trample or drive over the product’s cables.
• Do not put any foreign objects into the enclosure.
• Do not start the engine when the charging connector is still connected.
CAUTION: Do not use this product if there is any damage to the unit. Send the unit back to
PowerCharge™ in the event the unit is not operational.

User Manual Rev 1.20
PowerCharge™ Energy Series [32a]
5
Contents
1 Introduction .................................................................................................................................... 8
Product view .......................................................................................................................... 8
2 Specifications................................................................................................................................. 14
Product specifications .......................................................................................................... 14
3 Installation..................................................................................................................................... 16
Before installation ................................................................................................................ 16
3.1.1 Safety check ............................................................................................................. 16
3.1.2 Grounding instructions ............................................................................................ 16
Tools & parts required for installation .................................................................................. 17

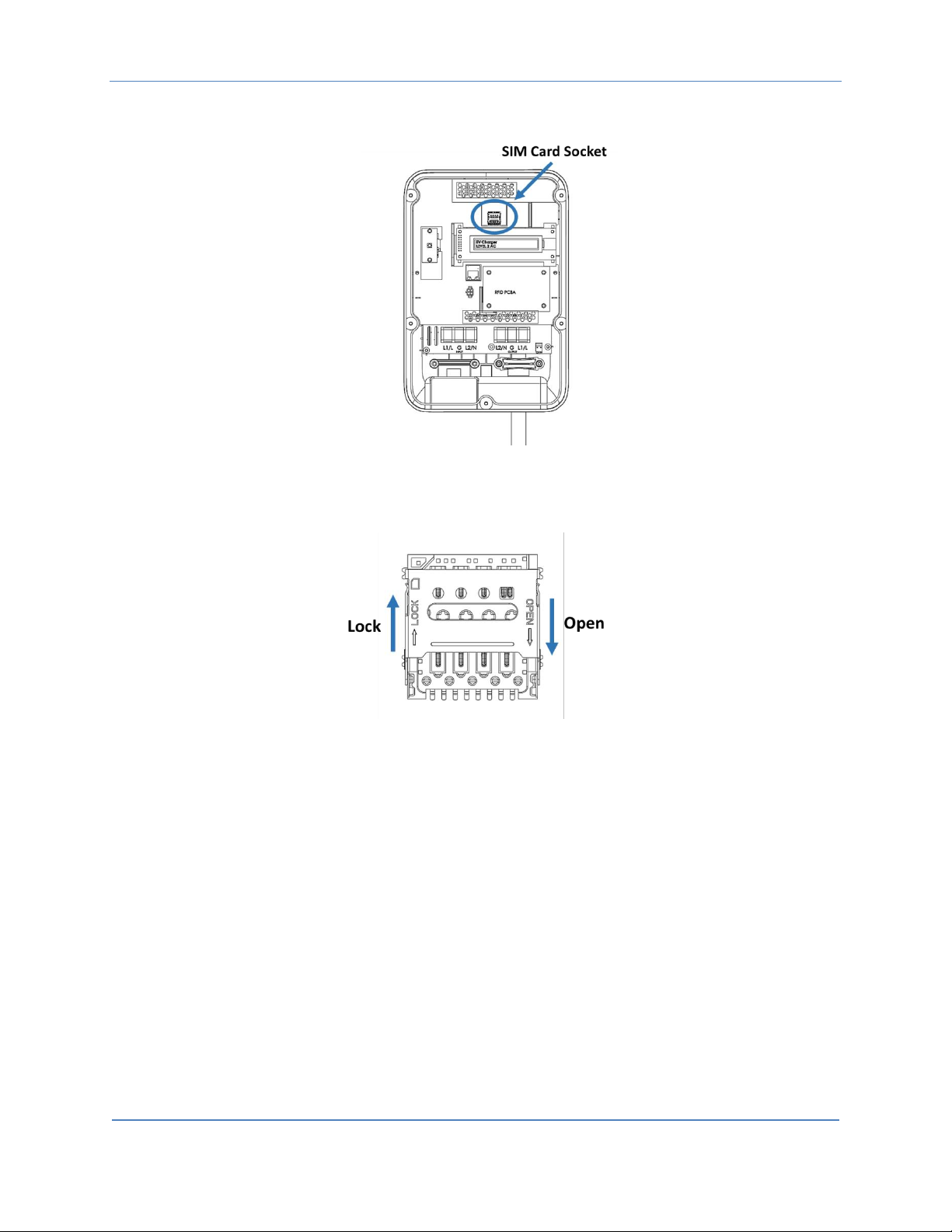

Install the SIM card (for Energy Commercial only) ............................................................... 17
Install the charging station................................................................................................... 21
Input cord connection .......................................................................................................... 25
Service wiring ....................................................................................................................... 28
Install the holster ................................................................................................................. 30
4 Operations ..................................................................................................................................... 33
Charging status indicators .................................................................................................... 33
Authorization (for Energy Commercial only)........................................................................ 34
4.2.1 Online Authorization ................................................................................................ 34
4.2.2 Local Authorization .................................................................................................. 34
Charging an Electric Vehicle (EV) .......................................................................................... 35
4.3.1 Plug and Charge ....................................................................................................... 35
4.3.2 RFID card (for Energy Commercial only) .................................................................. 35
Stop charging ....................................................................................................................... 35
4.4.1 Interrupt charging .................................................................................................... 35
4.4.2 Auto restart ............................................................................................................. 35
4.4.3 Power outage recovery ............................................................................................ 36
General care......................................................................................................................... 36
Customer support ................................................................................................................ 36

User Manual Rev 1.20
PowerCharge™ Energy Series [32a]
8
1Introduction
This user manual applies to “PowerCharge™ Energy Series Level 2 AC Charger for Plug-in Electric Vehicles
(PEVs) and Battery Electric Vehicles (BEVs)”.
The Level 2 Electric Vehicle Supply Equipment (EVSE) with 32A capabilities will be used in North America.
It can provide a shorter charging time than the traditional 16A EVSE.
!!! Any unauthorized modifications will void the manufacturer’s warranty !!!
1.1 Product view
Different models of charging stations:
Energy Residential Energy Commercial
Figure 1-1 Front view

User Manual Rev 1.20
PowerCharge™ Energy Series [32a]
9
Box Contents
See the table for content differences of three models.
Figure 1-2 Box contents
Table 1-1 Accessories in the box
Description QTY Remark
1
Energy Residential - 32A
1
Charging Plug Input Power Cord
OLED Display RFID Icon
Energy Commercial - 32A Charging Plug Input Power Cord
OLED Display RFID Icon
Energy Commercial - 32A Charging Plug Input Power Cord
OLED Display RFID Icon
2 Mounting Bracket 1 Attached to the back of the charging station
3 Holster ASSY 1 With Hook x1, Holster x1 & M4xL15 tapping screw x2
4 Screw Bag 1 With #12xL50 tapping screw x4

User Manual Rev 1.20
PowerCharge™ Energy Series [32a]
10
Box Opening Process:

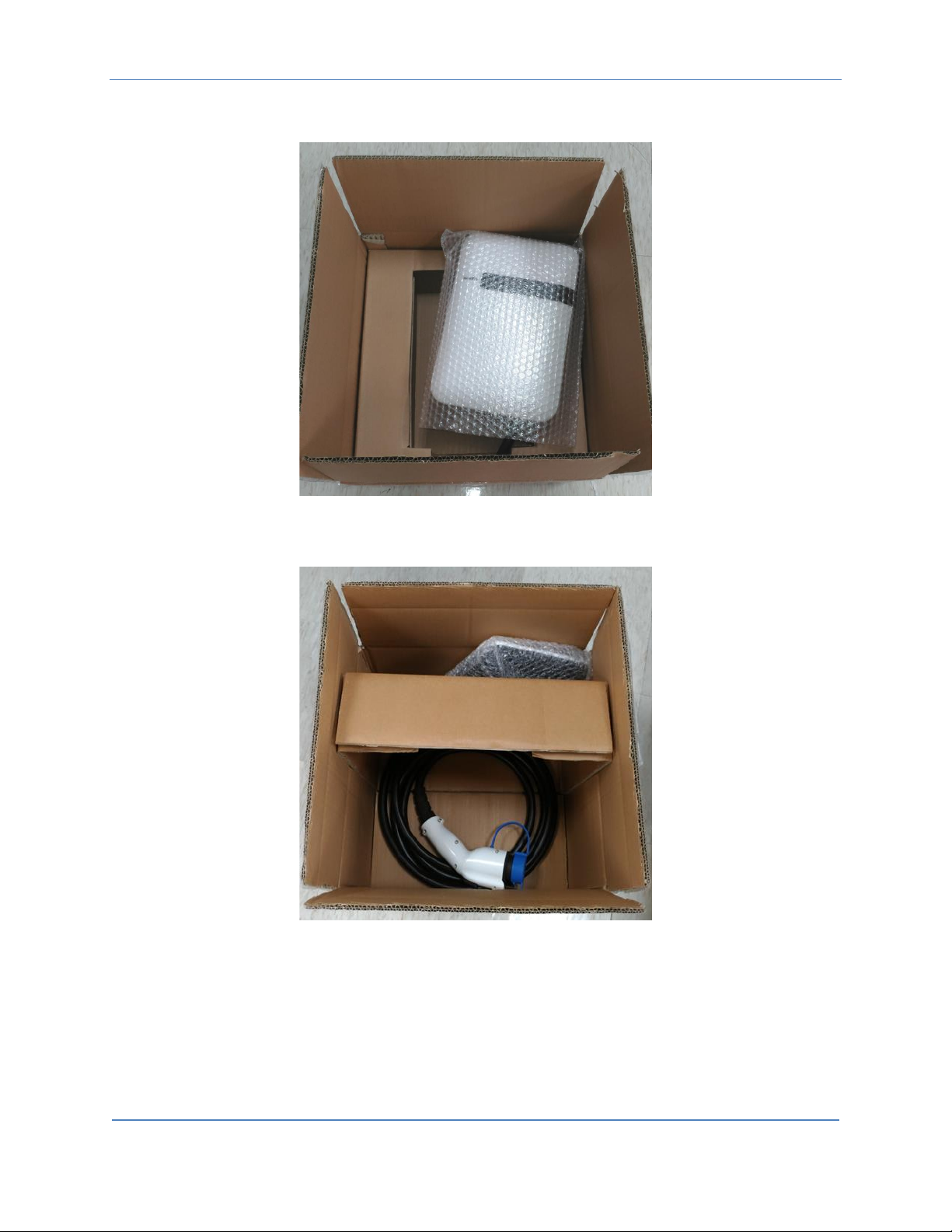

1. Open the carton and remove the upper partition.
Figure 1-3 Opening the carton
Figure 1-4 Charging Station Unit

User Manual Rev 1.20
PowerCharge™ Energy Series [32a]
11
2. Take out the charging station and upturn middle partition. The charging plug is in the bottom of the carton.
Figure 1-5 Take out the charging station
Figure 1-6 Charging plug

User Manual Rev 1.20
PowerCharge™ Energy Series [32a]
12

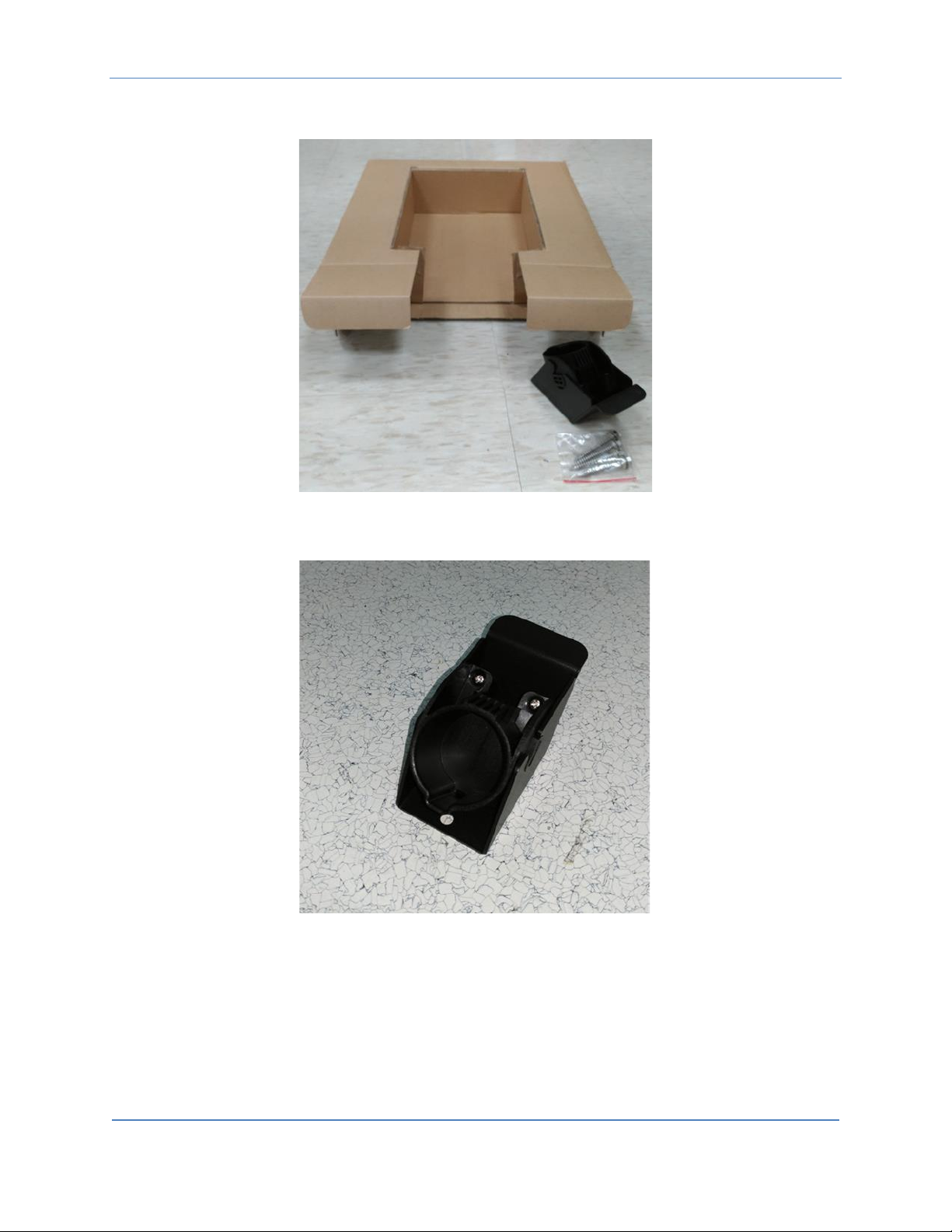

3. The hook and holster are placed inside the right of the middle partition.
Figure 1-7 Accessories inside the middle partition
Figure 1-8 Hook and holster

User Manual Rev 1.20
PowerCharge™ Energy Series [32a]
13
4. Release the bottom screw, then the wall mounting bracket can be removed.
Figure 1-9 Release the screw
Figure 1-10 Remove the mounting bracket

User Manual Rev 1.20
PowerCharge™ Energy Series [32a]
14
2Specifications
2.1 Product specifications
Table 2-1 Product specifications
Item E20-SWE E20-SWC E20-SWP
Application Residential/Light Commercial Commercial
Voltage (Vac) 208/240VAC, Single Phase
Frequency (Hz) 60 Hz
Current (Rms) 32 A
Charging Connector SAE J1772 Type 1
Charging Cable Length 25 ft. (18 ft. optional)
Metering Accuracy N/A Embedded ± 1%
Real Time Clock N/A Yes (7 days)
Protection
Over Voltage, Under Voltage, Surge Protection, GM/I, CCID20, Over Current,
Over Temperature, Under Temperature, Short Circuit,
Relay Malfunction/Welding Protection
Indication
• Green Steady: Ready
• Green Flashing (Fast): Authorized, wait for EV Connect
• Green Flashing (Slow): Suspend (Occupying)
• Blue Flashing (Slow): Charging
• Red Steady: Unrecoverable Fault
• Red Flashing (Slow): Recoverable Fault
• Yellow Steady: Out of Service
• Yellow Flashing (Slow): Booting / Firmware Upgrading
Remark
• Fast Flash: On Time 300ms, Off Time 200ms, 2Hz
• Slow Flash: On Time 1200ms, Off Time 800ms, 0.5Hz
Wi-Fi N/A 802.11 b/g/n
Cellular N/A LTE Cat. 1
(AT&T or Verizon)
RFID N/A
ISO 14443 A/B,
ISO 15693,
NFC,
NEMA interoperability
protocol
Display N/A 116(L)*8.5(W)*37(H)mm, 5.57mm CHARAXTER HEIGHT,
5*8 DOT MATRIX, OLED 20x2
Data Protocol N/A OCPP 1.6
Operation Temp. -30 ~ 50 ℃ / -22 ~ 122 ℉
Storage Temp. -40 ~ 70℃ / -40 ~ 158 ℉
Mounting Type Wall mount / Pole mount (optional)
Wiring Type NEMA 6-50 Hard-wired

User Manual Rev 1.20
PowerCharge™ Energy Series [32a]
15
Item E20-SWE E20-SWCE20-SWP
IP Performance NEMA 4
Impact Resistance IK10
Dimension (H x W x D, inch) 11.14” x 7.56” x 3.11”
Web Portal Management N/A Yes
Console Management Yes
Certification
UL 1998/2231/2594
FCC Part 15B
N/A FCC Part 15.247 (WLAN 2.4GHz)
N/A
FCC Part 27 (AT&T) or
FCC Part 27 (Verizon)
FCC Part 15.225 (RFID
13.56MHz)
Energy Star

User Manual Rev 1.20
PowerCharge™ Energy Series [32a]
16
3Installation
3.1 Before installation
3.1.1 Safety check
• Check for transport damages.
• Before connecting the product to the power supply, check that the power supply voltage and
current rating corresponds with the power supply details shown on the product rating label.
The charging station must be installed only by a licensed electrician in accordance with the provisions of
the local electrical industry construction and should comply with national electrical codes and
standards.
Before installing the charging station, make sure you have read all of these instructions in this manual
and fully understand its contents.
Appropriate protection is required when connecting to a main switchboard. The tools and parts used
as outlined in the section “Tools & parts required for installation”.
3.1.2 Grounding instructions
The charging station must be implemented equipment grounding through a permanent wiring system
or an equipment grounding conductor. Use a wire with a dedicated grounding wire and a ring
terminal and connected to the equipment ground terminal block for grounding.
CAUTION: Disconnect the power supply before installing or repairing the charging station.
Failure to do so may result in physical injury or damage to the power supply system and the
charging station.
CAUTION: Avoid touching or pressing the OLED screen all times, as this may result in
damage to the OLED screen.
DANGER: RISK OF SUFFOCATION
Keep any packing materials away from children – these materials are a potential source
of danger, e.g. suffocation.

User Manual Rev 1.20
PowerCharge™ Energy Series [32a]
17

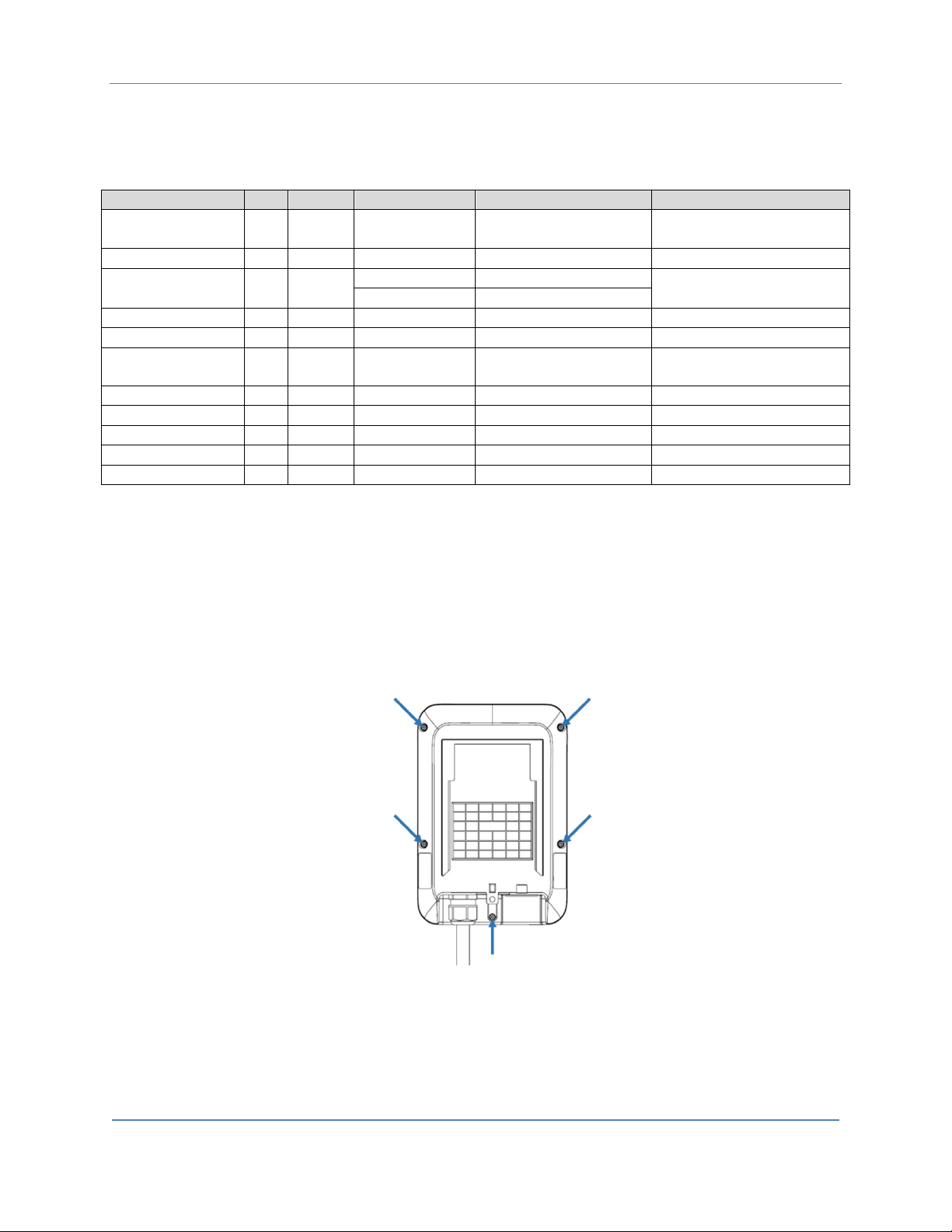

3.2 Tools & parts required for installation
Table 3-1 Tools & parts required for installation
Tool QTY Model Size Supplier Remark
Mounting Bracket 1 All 194x109x9 mm Model Accessories Fasten charge point to the
wall
Holster ASSY 1 All 58x58x70 mm Model Accessories Hold EV charging plug
Screw 4 All Tapping: #12 Model Accessories Fasten Mounting Bracket &
Hook
Mechanical: M6 Commercially Available
Wire, Copper 3 IC3 8 AWG Commercially Available UL1015 (recommended)
Heat Shrink Tube 3 IC3 For 8 AWG wire Commercially Available Protect wires & terminals
Terminal 3 IC3 For 8 AWG wire Commercially Available Connect input wires to the
terminal block
Conduit 1 IC3 1 inch Commercially Available Protect power cable
Torx Screwdriver 1 All T20 Commercially Available
Philips Screwdriver 1 All PH3 Commercially Available
Hexagon Socket 1 All 5/16 Commercially Available Tighten #12 Tapping screws
Torque Wrench 1 All 35 kgf-cm min Commercially Available
3.3 Install the SIM card (for Energy Commercial only)
1.Disassemble top cover
1-1 Loosen the star screws (x5).
Figure 3-1 Five screws in the Base Cover position

User Manual Rev 1.20
PowerCharge™ Energy Series [32a]
18
2. Find SIM card socket
Figure 3-2 Position of SIM card socket
3. Insert SIM card
Figure 3-3 SIM card socket and cover Open/Close direction

User Manual Rev 1.20
PowerCharge™ Energy Series [32a]
19
3-1. Push down the cover to open SIM card socket.
Figure 3-4 Open SIM card socket
3-2. Prepare the SIM card. (Use micro-SIM, 15mm x 12mm.)
.
Figure 3-5 Prepare the SIM card

User Manual Rev 1.20
PowerCharge™ Energy Series [32a]
20
3-3. Insert the SIM card.
Figure 3-6 Insert the SIM card
3-4. Close the SIM card socket and push the cover toward lock direction to lock the cover.
Figure 3-7 Lock SIM card socket cover
3-5. Reassemble the top cover. Please refer to the following torque. SIM card installation is
completed.
Screw Torque
M4 16 kgf.cm 13.88 lb-in

User Manual Rev 1.20
PowerCharge™ Energy Series [32a]
21
3.4 Install the charging station
1. Secure the main body mounting bracket to the wall with appropriate screw.
Follow applicable accessibility requirements for the mounting position. The unit shall be stored or
located at a sufficient height.
For indoor use: The unit shall be mounted at a sufficient height from the floor between 18 inches
(450 mm) and 4 feet (1.2m).
For outdoor use: The unit shall be mounted at a sufficient height from the floor between 24 inches
(600 mm) and 4 feet (1.2m).
The mounting bracket has ten screw holes. If only two screws be used to fasten the mounting
bracket, the screws should pass through the middle two screw holes of the mounting bracket. The
other screw holes are reserved for the user.
DANGER: Disconnect power at the circuit breaker before installation.
CAUTION: Before mounting determine the suitable mounting location. The unit must be fixed
to a wooden or masonry/concrete wall using hardware that is appropriate for the surface. Do
not install on drywalls, wall boards or thin plywoods. The fixing point must be capable of
supporting the weight of the unit.
