Powerfix Profi 292045 User manual

BEWEGUNGSMELDER
Bedienungs- und Sicherheitshinweise
BEVÆGELSESSENSOR
Brugs- og sikkerhedsanvisninger
MOTION SENSOR
Operation and Safety Notes
BEWEGINGSMELDER
Bedienings- en veiligheidsinstructies
MOTION SENSOR
IAN 292045

BEWEGUNGSMELDER
Bedienungs- und Sicherheitshinweise
BEVÆGELSESSENSOR
Brugs- og sikkerhedsanvisninger
MOTION SENSOR
GB/IE/NI Operation and Safety Notes Page 5
DK Brugs- og sikkerhedsanvisninger Side 23
NL Bedienings- en veiligheidsinstructies Pagina 39
DE/AT / CH Bedienungs- und Sicherheitshinweise Seite 57

A10385 A/B
1

B10385 A/B
3 5 52 4 6

5GB/IE/NI
List of pictograms used........................................Page 6
Introduction ..............................................................Page 7
Intended use.............................................................Page 8
Technical Data .........................................................Page 8
Scope of delivery.....................................................Page 9
Parts description.......................................................Page 10
Safety..........................................................................Page 11
Mounting....................................................................Page 13
Select a suitable place for installation....................Page 13
Installation ................................................................Page 14
Start-up.......................................................................Page 16
Setting the lighting duration of the device..............Page 16
Setting the day light level ........................................Page 17
Cleaning and Care..................................................Page 17
Disposal......................................................................Page 17
Guarantee and Service........................................Page 19
Service address........................................................Page 20
Manufacturer ...........................................................Page 21

6 GB/IE/NI

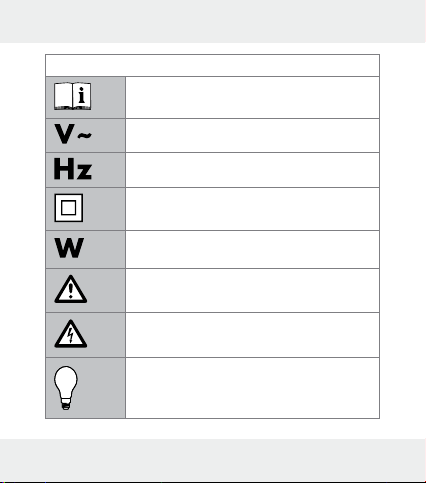

List of pictograms used
Please read the operating instructions!
Volt (AC)
Hertz (mains frequency)
Safety class II
Watt (effective power)
Observe the warnings and safety notices!
Caution!
Risk of electric shock
Incandescent, halogen and LED light bulb

7GB/IE/NI
Energy-efficient bulb
Danger to life and risk of accident for infants
and children!
b
a
Dispose of the packaging and device in an
environmentally-friendly manner!
Motion Sensor
Introduction
We congratulate you on the purchase of your new
product. You have chosen a high quality product.
The instructions for use are part of the product. They
contain important information concerning safety, use and

8 GB/IE/NI
disposal. Before using the product, please familiarise yourself
with all of the safety information and instructions for use. Only
use the unit as described and for the specified applications. If
you pass the product on to anyone else, please ensure that
you also pass on all the documentation with it.
Intended use
The motion detector is intended for the automatic control of
light sources. The product is not intended for commercial use.
Technical Data
Rated voltage: 220–240V∼ 50 Hz
Nominal load: max. 1200 watt (for LED
bulb/ halogen bulb) max.
300 watt (for energy
saving bulb)
Delay time min.: 10s - +/- 3 s
Delay time max.: 7 min +/- 2 min

9GB/IE/NI
Surrounding light: 10–2000 Lux (can be set)
Range: max. 12m
Coverage area: max. 160°
Operating temperature: -20–40°C
Operating humidity: < 93% rF
Recommended installation height: 1.8–2.5 m
Model/Type numbers: 10385A/ ES-P06 (white)
10385B/ ES-P06 (black)
Scope of delivery
1 motion sensor
2 screws
2 dowels
1 instruction manual

10 GB/IE/NI
Parts description
1Sensor
2Dowel
3Base plate
4Opening
5Screw
6Block terminal
7Control dial TIME
8Control dial LUX
9Internal wiring of the article (do not modify)
10 Clamp room of the article
11 Lamp (not included)

11GB/IE/NI
Safety
YOU SHOULD STORE ALL SAFETY INFORMATION AND
INSTRUCTIONS IN A SAFE PLACE IN CASE YOU NEED
TO REFER TO THEM AGAIN IN THE FUTURE!
When passing this product on to others please be sure to also
include all of its documentation.
Avoid the danger of death
from electric shock!
Before installation, check the motion detector, as well as
connection cords to ensure that these are intact. A defective
product and defective cords increase the risk of electrical
shock. A defective product and defective cords increase the
risk of electrical shock.
DANGER TO LIFE BY ELECTRIC SHOCK!
Before installation or performing any work on outdoor lamp

12 GB/IE/NI
with LED/ halogen/ energy-saving bulb, switch off the elec-
trical circuit at the circuit breaker box or remove the fuse
from the fuse box.
How to avoid personal injury and
damage to the product!
RISK OF FATAL INJURY
AND ACCIDENT HAZARD FOR TODDLERS
AND SMALL CHILDREN! Never leave children
unattended with the packaging material or the product.
Please keep children away from the device at all times.
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the haz-
ards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by chil-
dren without supervision.

13GB/IE/NI
Before use, ensure that the mains voltage available is the
same as the required operating voltage for the device
(220–240V∼).
Avoid extreme temperature fluctuations. Install the product
only if the ambient temperatures are acceptable.
Installation shall only be performed by an electrician who is
familiar with the regulations and risks.
The fuse in the product is not replaceable.
Mounting
Select a suitable place for installation
Ensure that
– the motion detector will not be functionally inhibited at the
desired place of installation due to obstacles or constantly
moving objects.
– the motion detector is not installed where there are strong
temperature fluctuations, e.g. due to heating devices or air
conditioners.

14 GB/IE/NI
Important warning about drilling into walls!
Before drilling, ensure there are no gas, water or electrical lines
in the area where you will be drilling. Must be installed by a
competent person. It is essential that you take note of the wall
quality, as the included fittings are not suitable for all types of
wall. Ask the retailer about screws and wall plugs suitable for
the respective wall structure. The manufacturer assumes no lia-
bility for plugs installed incorrectly in the wall and any resulting
damage.
Installation
DANGER TO LIFE BY ELECTRIC SHOCK!
Before installation, switch off the electrical circuit at the
circuit breaker box or remove the fuse from the fuse box.
Note: The recommended installation height is between
1.8 and 2.5m.
Note: Before installation, ensure an optimal direction of
motion. The motion detector reacts more sensitively to move-
ment from the side than to motion from the front (see Ill. A).

15GB/IE/NI
Therefore, we recommend installing the motion detector 1
to the side of the direction of movement.
Note: To attach the base plate 3it is necessary to drill
two holes (see Ill. B).
Ensure that you do not damage any electricity
cable!
Remove the screws 5from the front of the motion detector
(see Ill. B).
Screw the base plate 3to the desired position (see Fig. B).
Insert the cable through the respective opening 4in the
mounting bracket 3.
Connect the cable to the screw terminal 6of the motion
detector as depicted in Ill. C.
Attach the cover of the connection area back to the base
plate 3by screwing the screws 5(see Fig. B).

16 GB/IE/NI
Start-up
Turn the electricity back on. The device is now ready for
use.
Setting the lighting duration
of the device (Ill. D)
Note: the lighting duration of the device can be set from min.
10 seconds to max 7 minutes
Turn the control knob TIME 7in the direction „-” in order
to decrease the lighting duration of the device.
Turn the control knob TIME 7in the direction „+“ in order
to increase the lighting duration of the device.
Note: The lighting duration is always calculated based on
the respective last movement recorded by the sensor 1.

17GB/IE/NI
Setting the day light level (Ill. D)
Turn the control knob LUX 8in the direction „ “. The sen-
sor 1is in the night operation mode.
Turn the control knob LUX 8in the direction „ “. The sen-
sor 1is in the night and day operation mode.
Note: the intermediate range is for various light values.
Cleaning and Care
Never use cleaners or a rough cloth. These may damage
the sensor 1.
Clean the product with a dry, lint-free cloth.
Disposal
The packaging is made entirely of recyclable
materials, which you may dispose of at local
recycling facilities. The Green Dot is not valid for
Germany.

18 GB/IE/NI
b
a

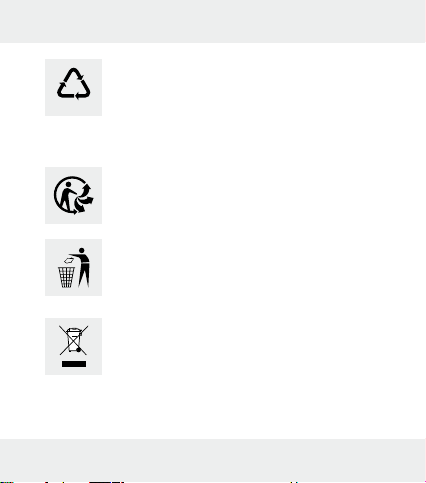

Observe the marking of the packaging materials
for waste separation, which are marked with
abbreviations (a) and numbers (b) with following
meaning: 1–7: plastics/20–22: paper and
fibreboard / 80–98: composite materials.
The product and packaging materials are recy-
clable, dispose of it separately for better waste
treatment. The Triman logo is valid in France only.
Contact your local refuse disposal authority for
more details of how to dispose of your worn-out
product.
Do not dispose of electric equipment in
the household waste!
In accordance with the European Directive 2012/19/EC on
waste electrical and electronic equipment and its translation into

19GB/IE/NI
national law, used electrical equipment must be collected sepa-
rately
and recycled in an environmentally responsible wa y.
To help protect the environment, please dispose of the product
properly when it has reached the end of its useful life and not
in the household waste. Information on collection points and
their opening hours can be obtained from your local authority.
Guarantee and Service
Note: This product includes a 36 month warranty from the
date of purchase. This product was manufactured with care
and thoroughly inspected prior to delivery. However, if defects
in manufacturing or material arise during the warranty period,
please contact your retailer immediately.
The warranty does not cover damages due to improper handling,
failure to comply with the operating instructions, or manipulation
by unauthorised persons. Most malfunctions are caused by in-
correct operation. Therefore please first refer to the operating
instructions if a malfunction occurs.

Contact the Uni-Elektra GmbH service address before returning
the product. The product can only be accepted after contacting
us. Postage due shipments will not be accepted. Warranty ser-
vices do not extend or restart the warranty period of 36 months.
Service address
Uni-Elektra GmbH
Kirchstr. 48
DE-72145 Hirrlingen/ GERMANY
Tel.: [phone]
uni-ser[email protected]
uni-ser[email protected]
uni-ser[email protected]
IAN 292045
Please have your receipt and item number (e.g. IAN 12345)
ready as your proof of purchase when enquiring about the
product.
20 GB/IE/NI
