PowerGistics TOWER Series User manual

MASTER
INSTALLATION
GUIDE
TOWER SERIES COMPLETE SETUP
For help call PowerGistics toll free [phone]
or visit www.powergistics.com/contact
Check out our YouTube videos for tips and tricks.
REV F

WARNING !This product is meant to be assembled by an adult.
In its unassembled state, small parts present a hazard.
To be used under direct supervision of an adult.
Please read the warnings below for important safety information regarding your product.
Failure to read these warnings or to follow the instructions below could result in personal
injury or damage to your product that could void its warranty.
In its unassembled state, this product contains parts that can be hazardous to small children. This
product should be assembled by an adult.
This product is to be used under the supervision of an adult.
This product is intended for indoor use only. To reduce the risk of fire or electric shock, do not
expose this product to rain or moisture. The internal components are not sealed from the
environment.
Read your power strip’s electrical specifications. Only plug in to devices that are approved for use
with this power strip. Connect the supplied power strip directly to a wall outlet. The socket-outlet
shall be installed near the equipment and shall be easily accessible. Do not connect to
another power strip or use an extension cord. Unplug when not in use.
Read the electrical specifications of any electronic equipment you are using with your PowerGistics
products. Failure to read these specifications and follow their instructions could result in damage
to your equipment or personal injury.
Ensure that any cables extending across the floor to your product are properly bundled and
marked to avoid tripping or falling which may lead to personal injury.
Do not install or use the electrical components of this unit during a lightening storm.
Do not climb on, hang from or suspend objects from any components of your product unless
otherwise specified.
Small
Parts
Power Strip
Specifications
Electronic
Equipment
Climb Hazard
Cable Trip
Hazard
Electrical Shock
Adult
Supervision
Indoor Use
Only
page 1

CABLE MANAGEMENT GUIDE
(See Figure 1.0) Run
power cable from
inside the back of the
Tower spine (a).
Continue running cable
through rear of shelf (b)
following the inside of
the shelf. Pull the power
cable through the shelf
hole (c) in the front.
(See Figure 1.1)
Use 8 inches of cable
hanging from end of
shelf for all towers and
all shelf sizes.
Finally, insert cable around the rear cable
management eyelet to lock your charging
cable into place.
(Figure 1.1)
CORD MANAGEMENT SYSTEM SIMPLIFIED
Leave 8 in of cord for all devices and Tower sizes.
8 inches
page 2
(a)
(b)
(c)
If your device’s charging port is on the left side when
placed in shelf, no door switch is necessary. If your
device’s charging port is on the right side. See Page 6
(Figure 1.0)

MOVING POWER STRIP (IPAD ONLY)
(See Figure 1.2)
Firmly pull power strip
to detach from the two
snap-in brackets.
You may need a screw
driver to gently pry the
bracket from the power
strip.
If you are using the PowerGistics Towers to charge and store
iPads, the included power strip must be moved from center
to the side of the Tower spine.
(Figure 1.3)
(See Figure 1.3)
Unscrew the UPPER
bracket (a) and reattach
inside the spine on the left
side. (b)
Unscrew the LOWER
bracket and reattach
inside the spine on the left
side same as the top.
(See Figure 1.4)
Once you have secured
the two brackets to the
left side, FIRMLY press in
the power strip until it
snaps in.
(Figure 1.4)
page 3
(Figure 1.2)
(a)
(b)

ATTACHING POWER BRICKS

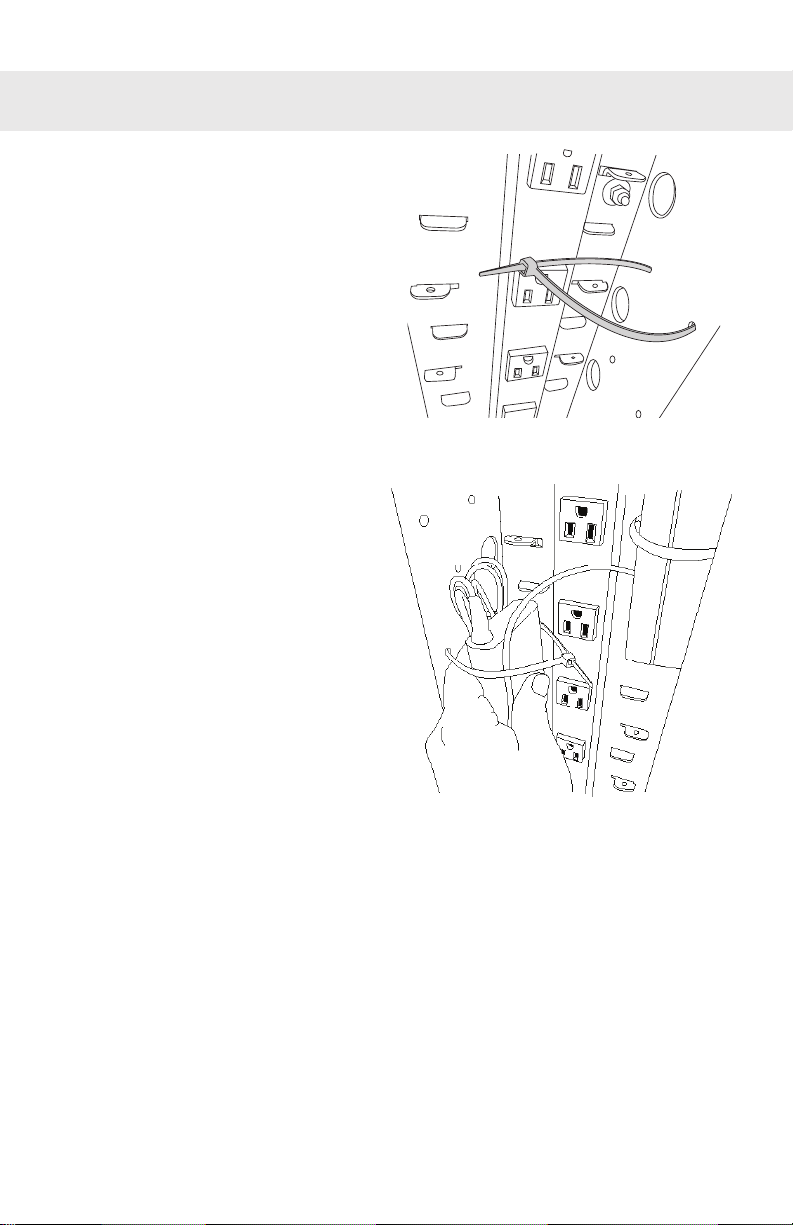

(See Figure 1.5)
Insert cable tie through
holes (a) and (b) from
inside spine through
hole (a), looping around
through hole (b).
(See Figure 1.6) Bundle
power brick and excess
cable using the provided
cable ties.
Insert bundled power
brick into loop and secure
the cable tie.
Plug power brick into
power strip.
Complete for remaining
shelves.
To utilize the space of the rear power brick storage, alternate
sides when attaching your power bricks.
page 4
(Figure 1.5)
(a)
(b)
(Figure 1.6)

WALL MOUNTING INSTRUCTIONS
(See Figure 1.7) To mount your
Tower, hold Tower to wall in desired
location with base resting on the fl oor.
Using a pencil, to mark all key holes
(a) to prepare for installation of
drywall or concrete anchors. Set Tower
aside while installing hardware.
PLASTIC COLLAR
Slide provided plastic collar over
screw (b). This will allow for easy
removal of the Tower when
securely fastened to wall.
DRYWALL INSTALLATION
Tap provided DRYWALL anchor
into wall at the top of the key hole.
Drive in screw with plastic collar
and hang Tower.
CONCRETE WALL
Drill hole in wall with masonry bit
(not provided) at the top of the key
hole. Insert concrete wall anchor
into the hole. Drive in screw with
plastic collar and hang tower.
WARNINGS
• DO NOT PLUG POWERGISTICS TOWERS INTO OTHER TOWERS.
MUST BE PLUGGED DIRECTLY INTO THE WALL OUTLET.
• TOWER MUST HAVE THE BASE RESTING ON THE FLOOR.
• SHELF WEIGHT RATING: 7LBS PER SHELF.
*Make sure the tower is fully cabled before hanging on wall.
page 5
(a)
(Figure 1.7)
(b)
The product is to be secured to a wall, Just A Stand or Roller before operation.

SWITCHING DOOR
If your device’s charging port is on the
LEFT side when placed on shelf NO
DOOR SWITCH IS NECESSARY.
If your device’s charging port is on the
RIGHT side when placed on shelf you
must fl ip the door.
REMOVING DOOR
Unscrew nuts from inside of side strip
(a)(b)(not door) with 8MM wrench or
socket from inside the Tower.
The door is designed to fl ip and fi t
on either side.
Attach hinge and hinge spacers
into side strip on opposite side (c)
(d).
Depending on your device’s charging port location, the
locking door may need to be fl ipped to the other side.
stock assembled door position
fl ipped door position
fl ipped door position
(not door) with 8MM wrench or
page 6
(Figure 1.8)
(b)
(Figure 1.9)
(a)
(d)
(c)
(See Figure 1.9)

100 Continental Drive, Columbus, Wisconsin 53925
[phone] | www.PowerGistics.com
The product complies with the Radio Equipment Directive, 2014/53/EU, and the
Restriction of the use of certain hazardous substances in electrical and electronic
equipment (RoHS) Directive, 2011/65/EU. For a copy of the ofcial Declaration of
Conformity, please send an email to [email protected] with the
marking name and model number for relevant product(s)
included in the body of the email
Patent # 9,860,317
Thank you for purchasing our product.
Check out our website for the latest videos and tips!
If you have any questions on installation, please feel free to con-
tact us, we are happy to help!
If you are doing a district wide deployment, check out our roller
stands which make it easy to cable and roll to any room.
