PRECISION DIGITAL PD6000-6R0 User manual

PD6000 Analog Input Process Meter
Instruction Manual
•0-20 mA, 4-20 mA, 0-5 V, 1-5 V, and ±10 V Inputs
•NEMA 4X, IP65 Front
•Universal 85-265 VAC or 12/24 VDC Input Power
•Large Dual-Line 6-Digit Display, 0.60" & 0.46"
•Isolated 24 VDC @ 200 mA Transmitter Power Supply
•Math Functions for Flow & Round Horizontal Tanks
•Programmable Display & Function Keys
•Sunlight Readable Display
•32-Point, Square Root, or Exponential Linearization
•Multi-Pump Alternation Control
•2 or 4 Relays + Isolated 4-20 mA Output Options
•External 4-Relay & Digital I/O Expansion Modules
•RS-232, RS-422/485 Serial Communication Options
•-40 to 65°C Operating Temperature Range
PRECISION DIGITAL CORPORATION
19 Strathmore Road • Natick MA 01760 USA
Tel [phone] • Fax [phone] www.predig.com

Model PD6000 Analog Input Process Meter Instruction Manual
Disclaimer
The information contained in this document is subject to change
without notice. Precision Digital makes no representations or war-
ranties with respect to the contents hereof and specifically disclaims
any implied warranties of merchantability or fitness for a particular
purpose.
!
CAUTION: Read complete
instructions prior to instal-
lation and operation of the
meter.
WARNING: Risk of
electric shock or
personal injury.
Warning!
This product is not recommended for life support applications or ap-
plications where malfunctioning could result in personal injury or
property loss. Anyone using this product for such applications does
so at his/her own risk. Precision Digital Corporation shall not be held
liable for damages resulting from such improper use.
Limited Warranty
Precision Digital Corporation warrants this product against defects in
material or workmanship for the specified period under “Specifica-
tions” from the date of shipment from the factory. Precision Digital’s
liability under this limited warranty shall not exceed the purchase
value, repair, or replacement of the defective unit.
Registered Trademarks
All trademarks mentioned in this document are the property of their re-
spective owners.
© 2008 Precision Digital Corporation. All rights reserved.
www.predig.com
2

Model PD6000 Analog Input Process Meter Instruction Manual
3
INTRODUCTION
The PD6000 is a multipurpose, easy to use digital process meter ideal for level,
flow rate, temperature, or pressure transmitter applications. It accepts current
and voltage signals (e.g. 4-20 mA, 0-10 V). Three of the front panel buttons can
be custom-programmed for specific operation.
The basic model includes an isolated 24 VDC transmitter power supply that can
be used to power the input transmitter or other devices. An additional isolated
24 VDC power supply is included with the 4-20 mA output option.
A fully loaded PD6000 meter has the following: four SPDT relays, 4-20 mA output,
and two 24 VDC power supplies. The PD6000 capabilities may be enhanced by
adding the following external expansion modules: four SPST relays –creating an
eight-relay process meter–, two digital I/O modules with four inputs and four outputs
each, and RS-232 or RS-485 communication adapters.
The eight relays can be used for alarm indication or process control applications,
such as pump alternation control. The 4-20 mA isolated output, serial communica-
tions, and digital I/O options make the PD6000 an excellent addition to any system.
ORDERING INFORMATION
85-265 VAC
Model 12
/
24
V
DC
Model Options Installed
PD6000-6R0 PD6000-7R0 No options
PD6000-6R2 PD6000-7R2 2 relays (PD1102*)
PD6000-6R3 PD6000-7R3 4-20 mA output (PD1103*)
PD6000-6R4 PD6000-7R4 4 relays (PD1104*)
PD6000-6R5 PD6000-7R5 2 relays & 4-20 mA output (PD1105*)
PD6000-6R7 PD6000-7R7 4 relays & 4-20 mA output (PD1107*)
*Model number for replacement option card.
Accessories
Model Description
PDA1002 DIN rail mounting kit for two expansion modules
PDA1004 4 SPST (Form A) relays
PDA1044 4 digital inputs & 4 digital outputs (2 may be connected)
PDA1200 Meter copy cable
PDA1232 RS-232 serial adapter
PDA1485 RS-422/485 serial adapter
PDA7485-I RS-232 to RS-422/485 isolated converter
PDA7485-N RS-232 to RS-422/485 non-isolated converter
PDA8232-N USB to RS-232 non-isolated converter
PDA8485-I USB to RS-422/485 isolated converter
PDA8485-N USB to RS-422/485 non-isolated converter
PDX6901 Suppressor (snubber): 0.01 µF/470 Ω, 250 VAC

Model PD6000 Analog Input Process Meter Instruction Manual
4
Table of Contents
INTRODUCTION------------------------------------------------------------ 3
ORDERING INFORMATION--------------------------------------------- 3
SPECIFICATIONS---------------------------------------------------------- 8
General-------------------------------------------------------------------------------8
Process Input----------------------------------------------------------------------9
Relays ------------------------------------------------------------------------------ 10
Isolated 4-20 mA Transmitter Output------------------------------------ 11
Serial Communications------------------------------------------------------- 11
PDA1044 Digital Input & Output Expansion Module---------------- 12
COMPLIANCE INFORMATION----------------------------------------13
Safety------------------------------------------------------------------------------- 13
Electromagnetic Compatibility--------------------------------------------- 13
SAFETY INFORMATION ------------------------------------------------14
INSTALLATION------------------------------------------------------------15
Unpacking------------------------------------------------------------------------- 15

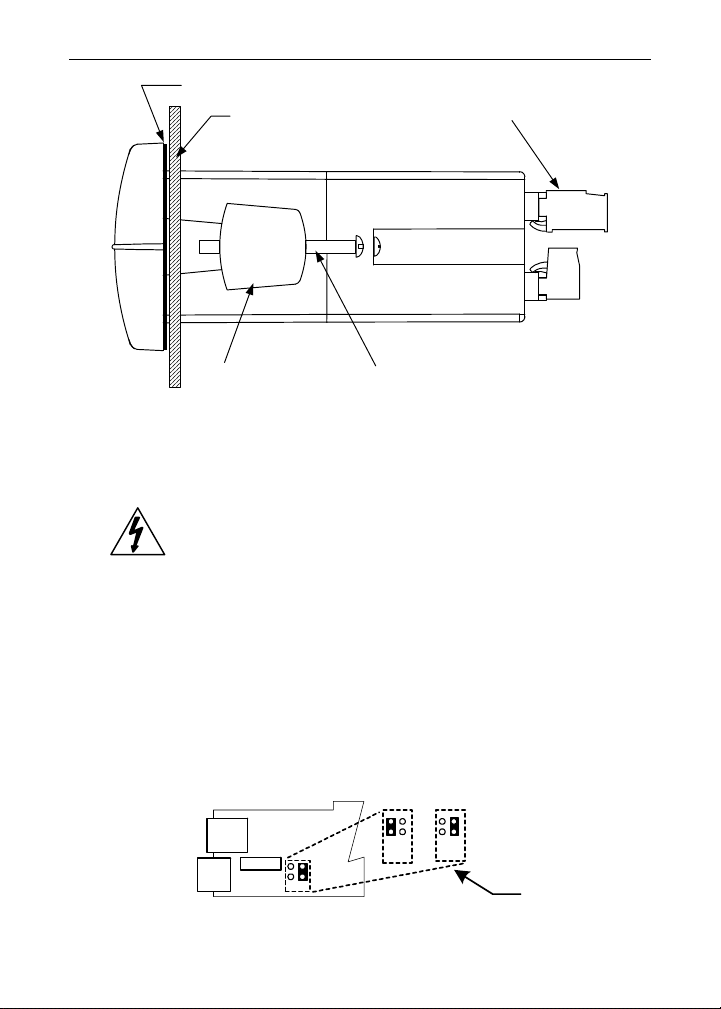

Panel Mounting Instructions------------------------------------------------ 15
Configuration for 12 or 24 VDC Power Option------------------------ 16

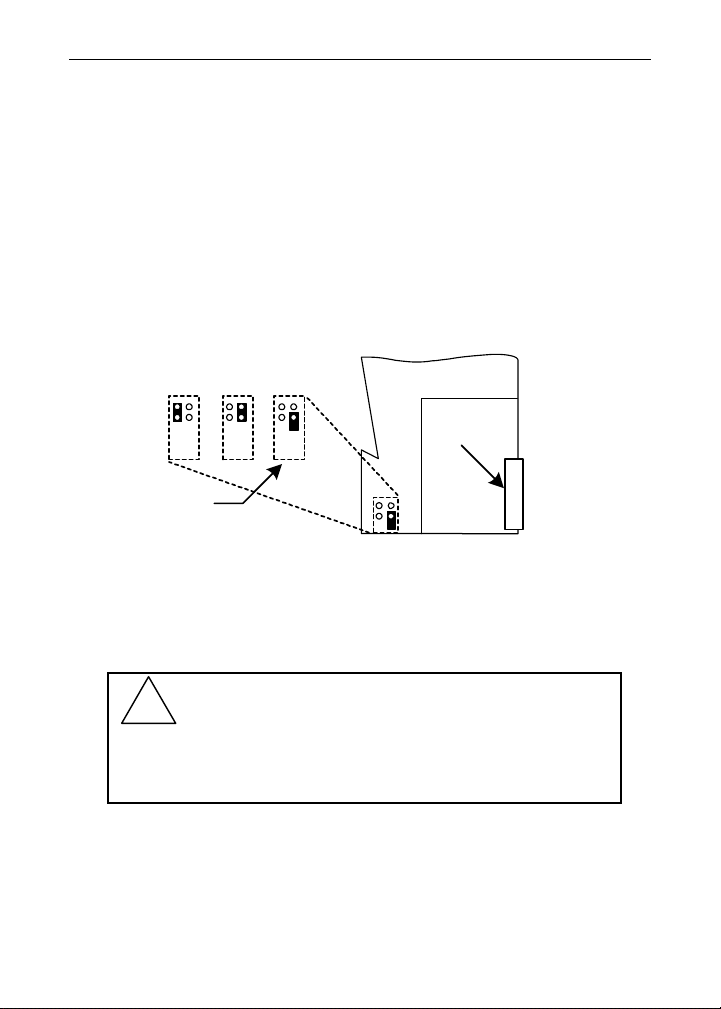

Transmitter Supply Voltage Selection (P+, P-) ----------------------- 17
Connections---------------------------------------------------------------------- 17
Connectors Labeling--------------------------------------------------------- 18
Power Connections ---------------------------------------------------------- 18
Signal Connections ---------------------------------------------------------- 19
Serial Communications ----------------------------------------------------- 20
Relay Connections ----------------------------------------------------------- 20
Switching Inductive Loads-------------------------------------------------- 21
4-20 mA Output Connections---------------------------------------------- 22
Analog Output Transmitter Power Supply------------------------------ 22
External Relays & Digital I/O Connections ----------------------------- 23
SETUP AND PROGRAMMING ----------------------------------------24
Front Panel Buttons and Status LED Indicators--------------------- 25
Display Functions & Messages-------------------------------------------- 26
Main Menu ------------------------------------------------------------------------ 29
Setting Numeric Values ------------------------------------------------------ 30
Reset Menu (reset)------------------------------------------------------------ 30

Model PD6000 Analog Input Process Meter Instruction Manual
5
Control Menu (Contrl)-------------------------------------------------------- 30
Setting Up the Meter (setup)------------------------------------------------ 31
Setting the Input Signal (input) ------------------------------------------ 32
Setting the Decimal Point (dEc pt) -------------------------------------- 32
Setting the Display Parameter & Intensity (dsplay) ----------------- 32
Programming the Meter (prog)--------------------------------------------- 35
Multi-Point Calibration & Scaling ----------------------------------------- 35
Multi-Point Linearization Utility -------------------------------------------- 35
Scaling the Meter (SCALE) -------------------------------------------------- 36
Calibrating the Meter with External Source (Cal) -------------------- 38
Setting the Relay Operation (relay) ------------------------------------- 39
Setting the Relay Action ---------------------------------------------------- 40
Programming Set and Reset Points ------------------------------------- 41
Setting Fail-Safe Operation ------------------------------------------------ 41
Programming Time Delay -------------------------------------------------- 41
Relay Action for Loss of 4-20 mA Input (Loop Break)--------------- 41
Relay and Alarm Operation Diagrams----------------------------------- 42
High Alarm Operation (Set > Reset) ------------------------------------- 42
Low Alarm Operation (Set < Reset)-------------------------------------- 43
High Alarm with Fail-Safe Operation (Set > Reset) ------------------ 44
Low Alarm with Fail-Safe Operation (Set < Reset)------------------- 45
Pump Alternation Control Operation------------------------------------- 46
Relay Sampling Operation ------------------------------------------------- 47
Signal Loss or Loop Break Relay Operation--------------------------- 48
Time Delay Operation ------------------------------------------------------- 49
Relay Operation Details ------------------------------------------------------ 50
Overview------------------------------------------------------------------------ 50
Relays Auto Initialization---------------------------------------------------- 50
Fail-Safe Operation ---------------------------------------------------------- 50
Front Panel LEDs------------------------------------------------------------- 51
Latching and Non-Latching Relay Operation -------------------------- 51
Non-Latching Relay (Auto)------------------------------------------------- 52
Non-Latching Relay (A-man) -------------------------------------------- 52
Latching Relay (LatcH) ----------------------------------------------------- 52
Latching Relay (Lt-Clr)---------------------------------------------------- 53
Acknowledging Relays ------------------------------------------------------ 53
Pump Alternation Control Applications (Altern) --------------------- 54
Scaling the 4-20 mA Analog Output (Aout) ---------------------------- 57
Setting Up the Password (pass) ------------------------------------------- 58
Protecting or Locking the Meter------------------------------------------- 58
Making Changes to a Password Protected Meter-------------------- 59

Model PD6000 Analog Input Process Meter Instruction Manual
6
Disabling Password Protection-------------------------------------------- 59
Advanced Features Menu---------------------------------------------------- 60
Advanced Features Menu & Display Messages ---------------------- 61
Noise Filter (filter) -------------------------------------------------------- 63
Noise Filter Bypass (bypass)---------------------------------------------- 63
Serial Communications (serial)----------------------------------------- 64
Select Menu (SElect) ------------------------------------------------------- 65
Math Function Selection (Functn) --------------------------------------- 65
Low-Flow Cutoff (CutofF) -------------------------------------------------- 67
Analog Output Programming (AoutPr)---------------------------------- 67
Programmable Function Keys User Menu (user) -------------------- 68
Internal Source Calibration (ICAL) --------------------------------------- 69
Meter Copy Function (Copy) ----------------------------------------------- 72
METER OPERATION-----------------------------------------------------74
Front Panel Buttons Operation -------------------------------------------- 74
Function Keys Operation ---------------------------------------------------- 74
Maximum/Minimum Readings---------------------------------------------- 75
TROUBLESHOOTING----------------------------------------------------76
Diagnostics Menu (diag)----------------------------------------------------- 76
Determining Software Version -------------------------------------------- 76
Reset Meter to Factory Defaults------------------------------------------- 77
Factory Defaults & User Settings ----------------------------------------- 78
Troubleshooting Tips --------------------------------------------------------- 81
Alphabetical List of Display Functions & Messages --------------- 82
MOUNTING DIMENSIONS----------------------------------------------87

Model PD6000 Analog Input Process Meter Instruction Manual
7
Table of Figures
Figure 1. 1/8 DIN Panel Cutout Dimensions.....................................15
Figure 2. Panel Mounting Details......................................................16
Figure 3. Jumper Configuration for 12/24 VDC Power....................16
Figure 4. Transmitter Supply Voltage Selection..............................17
Figure 5. Connector Labeling for Fully Loaded PD6000.................18
Figure 6. Power Connections............................................................18
Figure 7. Transmitters Powered by Internal Supply........................19
Figure 8. Transmitter Powered by Ext. Supply or Self-Powered....19
Figure 9. Voltage Input Connections................................................20
Figure 10. Relay Connections...........................................................20
Figure 11. AC and DC Loads Protection...........................................21
Figure 12. Low Voltage DC Loads Protection..................................21
Figure 13. 4-20 mA Output Connections..........................................22
Figure 14. Expansion Modules & DIN Rail Mounting Kit.................23
Figure 15. External Relays Module Connections.............................23
Figure 16. Digital I/O Module Connections.......................................23
Figure 17. Acknowledge Relays w/Function Key or Digital Input..53
Figure 18. Meter Copy Connection ...................................................72
Figure 19. Meter Dimensions - Side View.........................................87
Figure 20. Meter Dimensions - Top View..........................................87

Model PD6000 Analog Input Process Meter Instruction Manual
8
SPECIFICATIONS
Except where noted all specifications apply to operation at +25°C.
General
DISPLAY Main display: 0.60" (15 mm) high, red LEDs
Second display: 0.46" (12 mm) high, red LEDs
6 digits each (-99999 to 999999), with lead zero blanking
DISPLAY
INTENSITY Eight user selectable intensity levels
DISPLAY
UPDATE RATE 5/second (200 ms)
OVERRANGE Display flashes 999999
UNDERRANGE Display flashes -99999
PROGRAMMING
METHODS Four front panel buttons, digital inputs, PC and multi-point linearization utility, or cloning using Copy function.
NOISE FILTER Programmable from 2 to 199 (0 will disable filter)
FILTER BYPASS Programmable from 0.1 to 99.9% of calibrated span
RECALIBRATION All ranges are calibrated at the factory. Recalibration is
recommended at least every 12 months.
MAX/MIN
DISPLAY Max/min readings reached by the process are stored until reset by the user or until power to the meter is turned off.
PASSWORD Three programmable passwords restrict modification of
programmed settings.
Pass 1: Allows use of the F1–F3 function keys
Pass 2: Allows use of the F1–F3 function keys and chang-
ing the set/reset points
Pass 3: Restricts all programming and F1–F3 keys
Note: Digital inputs are not password protected, except programming functions.
NON-VOLATILE
MEMORY All programmed settings are stored in non-volatile memory for a minimum of ten years if power is lost.
POWER
OPTIONS 85-265 VAC 50/60 Hz, 90-265 VDC, 20 W max
or jumper selectable 12/24 VDC ±10%, 15 W max
FUSE Required external fuse: UL Recognized, 5 A max, slow
blow; up to 6 meters may share one 5 A fuse
ISOLATED
TRANSMITTER
POWER SUPPLY
Terminals P+ & P-: 24 VDC ±5% @ 200 mA max (standard),
(12/24 VDC powered models rated @ 100 mA max).
5 or 10 VDC @ 50 mA max, selectable with internal jumper J4.
NORMAL MODE
REJECTION Greater than 60 dB at 50/60 Hz

Model PD6000 Analog Input Process Meter Instruction Manual
9
ISOLATION 4 kV input/output-to-power line
500 V input-to-output or output-to-P+ supply
OVERVOLTAGE
CATEGORY Installation Overvoltage Category II: Local level with smaller transient overvoltages than Installa-
tion Overvoltage Category III.
ENVIRONMENTAL Operating temperature range: -40 to 65°C
Storage temperature range: -40 to 85°C
Relative humidity: 0 to 90% non-condensing
CONNECTIONS Removable screw terminal blocks accept 12 to 22 AWG
wire, RJ45 for external relays, digital I/O, and serial com-
munication adapters.
ENCLOSURE 1/8 DIN, high impact plastic, UL 94V-0, color: black
MOUNTING 1/8 DIN panel cutout required:
3.622" x 1.772" (92 mm x 45 mm)
Two panel mounting bracket assemblies are provided.
TIGHTENING
TORQUE Screw terminal connectors: 5 lb-in (0.56 Nm)
OVERALL
DIMENSIONS 4.68" x 2.45" x 5.64" (119 mm x 62 mm x 143 mm) (W x H x D)
WEIGHT 9.5 oz (269 g)
WARRANTY 3 years parts & labor
Process Input
INPUTS Field selectable:
0-20, 4-20 mA, ±10 V (0-5, 1-5, 0-10 V)
ACCURACY ±0.03% of calibrated span ±1 count,
square root & programmable exponent accuracy
range: 10-100% of calibrated span
TEMPERATURE
DRIFT 0.005% of calibrated span/°C max from 0 to 65°C ambient,
0.01% of calibrated span/°C max from -40 to 0°C ambient
MATH
FUNCTIONS Linear, square root, programmable exponent, or round horizontal tank volume calculation
MULTI-POINT
LINEARIZATION 2 to 32 points
PROGRAMMA-
BLE EXPONENT 1.0001 to 2.9999
LOW-FLOW
CUTOFF 0-999999 (0 disables cutoff function)
DECIMAL POINT Up to five decimal places or none:
d.ddddd, d.dddd, d.ddd, d.dd, d.d,or dddddd

Model PD6000 Analog Input Process Meter Instruction Manual
10
CALIBRATION
RANGE Input Range
Minimum Span
Input 1 & Input 2
4-20 mA 0.15 mA
±10 V 0.10 V
An Error message will appear if the input 1 and input 2
signals are too close together.
INPUT
IMPEDANCE Voltage ranges: greater than 1 MΩ
Current ranges: 50 - 100 Ω(depending on resettable fuse impedance)
INPUT
OVERLOAD Current input protected by resettable fuse, 30 VDC max. Fuse resets automatically after fault is removed.
Relays
RATING 2 or 4 SPDT (Form C) internal and/or 4 SPST (Form A)
external; rated 3 A @ 30 VDC and 125/250 VAC resistive
load; 1/14 HP @ 125/250 VAC for inductive loads
NOISE
SUPPRESSION Noise suppression is recommended for each relay contact switching inductive loads; see page 21 for details.
DEADBAND 0-100% of span, user programmable
HIGH OR LOW
ALARM User may program any alarm for high or low trip point. Unused alarm LEDs and relays may be disabled (turn off).
RELAY
OPERATION Automatic (non-latching) Latching (requires manual acknowledge)
Sampling (based on time)
Pump alternation control (2 to 8 relays)
Off (disable unused relays)
Manual control mode
RELAY RESET User selectable via front panel buttons or digital inputs
1. Automatic reset only (non-latching), when the input
passes the reset point.
2. Automatic + manual reset at any time (non-latching)
3. Manual reset only, at any time (latching)
4. Manual reset only after alarm condition has cleared (L)
Note: Front panel button or digital input may be assigned to
acknowledge relays programmed for manual reset.
TIME DELAY 0 to 999.9 seconds, on & off relay time delays
Programmable and independent for each relay
FAIL-SAFE
OPERATION Programmable and independent for each relay.
Note: Relay coil is energized in non-alarm condition.
In case of power failure, relay will go to alarm state.
AUTO
INITIALIZATION When power is applied to the meter, relays will reflect the state of the input to the meter.

Model PD6000 Analog Input Process Meter Instruction Manual
11
Isolated 4-20 mA Transmitter Output
OUTPUT
SOURCE Process variable (PV), max, min, set points 1-8, or manual control mode
SCALING RANGE 1.000 to 23.000 mA for any display range
CALIBRATION Factory calibrated: 4.000 to 20.000 = 4-20 mA output
ANALOG OUT
PROGRAMMING 23.000 mA maximum for all parameters: Overrange, underrange, max, min, and break
ACCURACY ± 0.1% of span ± 0.004 mA
TEMPERATURE
DRIFT 0.005% of calibrated span/°C max from 0 to 65°C ambient,
0.01% of calibrated span/°C max from -40 to 0°C ambient
Note: Analog output drift is separate from input drift.
ISOLATED
TRANSMITTER
POWER SUPPLY
Terminals I+ & R: 24 VDC ±5% @ 40 mA maximum; may
be used to power the 4-20 mA output or other devices.
Refer to Figure 5 on page 18 and Figure 13 on page 22.
EXTERNAL LOOP
POWER SUPPLY 35 VDC maximum
OUTPUT LOOP
RESISTANCE Power supply Minimum Maximum
24 VDC 10 Ω700 Ω
35 VDC (external) 100 Ω1200 Ω
Serial Communications
METER
ADDRESS 1 - 247
BAUD RATE 300 – 19,200 bps
TRANSMIT
TIME DELAY Programmable between 0 and 199 ms or transmitter always on for RS-422 communication
DATA 8 bit (1 start bit, 1 stop bit)
PARITY None
TURN AROUND
DELAY Less than 2 ms (fixed)
Note: Refer to the PDC Serial Communication Protocol manual located at
www.predig.com for details.

Model PD6000 Analog Input Process Meter Instruction Manual
12
PDA1044 Digital Input & Output Expansion Module
CHANNELS 4 digital inputs & 4 digital outputs per module
SYSTEM Up to 2 modules for a total of 8 inputs & 8 outputs
DIGITAL INPUT
LOGIC HIGH 3 to 5 VDC
DIGITAL INPUT
LOGIC LOW 0 to 1.25 VDC
DIGITAL OUTPUT
LOGIC HIGH 4.75 to 5 VDC
DIGITAL OUTPUT
LOGIC LOW 0 to 0.4 VDC
SOURCE
CURRENT 10 mA maximum output current
SINK
CURRENT 1.5 mA minimum input current
+5 V
TERMINAL To be used as pull-up for digital inputs only. Connect normally open pushbuttons across +5 V & DI1-4.

Model PD6000 Analog Input Process Meter Instruction Manual
13
COMPLIANCE INFORMATION
Safety
UL & c-UL LISTED USA & Canada
UL 508 Industrial Control Equipment
UL FILE NUMBER E160849
FRONT PANEL UL Type 4X, NEMA 4X, IP65; panel gasket provided
LOW VOLTAGE
DIRECTIVE EN 61010-1:2001 Safety requirements for measurement, control, and
laboratory use
Electromagnetic Compatibility
EMISSIONS EN 55022:1998/A1:2000/A2:2003
Class A ITE emissions requirements
Radiated
Emissions
Class A
AC Mains
Conducted
Emissions
Class A
IMMUNITY EN 61000-6-2:2001
EMC heavy industrial generic immunity standard
RFI - Amplitude
Modulated
80 -1000 MHz 10 V/m 80% AM (1 kHz)
Electrical Fast
Transients
±2kV AC mains, ±1kV other
Electrostatic
Discharge
±4kV contact, ±8kV air
RFI - Conducted 10V, 0.15-80 MHz, 1kHz 80% AM
AC Surge ±2kV Common, ±1kV Differential
Surge 1KV (CM)
Power-Frequency
Magnetic Field
3 A/m 70%V for 0.5 period
Voltage Dips 40%V for 5 & 50 periods
Voltage
Interruptions
<5%V for 250 periods

Model PD6000 Analog Input Process Meter Instruction Manual
Note:
Testing was conducted on PD6000 meters installed through the
covers of grounded metal enclosures with cable shields grounded at
the point of entry representing installations designed to optimize
EMC performance.
Declaration of Conformity available at www.predig.com
SAFETY INFORMATION
!
CAUTION: Read complete
instructions prior to instal-
lation and operation of the
meter.
WARNING: Risk of
electric shock or
personal injury.
WARNING!
Hazardous voltages exist within enclosure. Installation and service
should be performed only by trained service personnel.
14

Model PD6000 Analog Input Process Meter Instruction Manual
INSTALLATION
There is no need to remove the meter from its case to com-
plete the installation, wiring, and setup of the meter for most
applications. Instructions are provided for 12 VDC meter power
and for 5 or 10 V transmitter power applications, see page 16.
Unpacking
Remove the meter from box. Inspect the packaging and con-
tents for damage. Report damages, if any, to the carrier.
If any part is missing or the meter malfunctions, please contact
your supplier or the factory for assistance.
Panel Mounting Instructions
•Prepare a standard 1/8 DIN panel cutout – 3.622" x 1.772" (92 mm
x 45 mm). Refer to Figure 1 below, for more details.
•Clearance: allow at least 6.0" (152 mm) behind the panel for wiring.
•Panel thickness: 0.04" - 0.25" (1.0 mm - 6.4 mm).
Recommended minimum panel thickness to maintain Type 4X
rating: 0.06" (1.5 mm) steel panel, 0.16" (4.1 mm) plastic panel.
•Remove the two mounting brackets provided with the meter (back-off
the two screws so that there is ¼" (6.4 mm) or less through the
bracket. Slide the bracket toward the front of the case and remove).
•Insert meter into the panel cutout.
•Install mounting brackets and tighten the screws against the panel.
To achieve a proper seal, tighten the mounting bracket screws
evenly until meter is snug to the panel along its short side. DO NOT
OVER TIGHTEN, as the rear of the panel may be damaged.
3.622" (92mm)
1.772"
(45mm) Panel Cutout
to DIN 43700
Square Corners to 0.060"
(1.5mm) Max Radius
A
B
Tolerances:
A: +0.032 (+0.8mm)
-0.000 (-0.0mm)
B: +0.024 (+0.6mm)
Refer to page
87 for mounting
dimensions
-0.000 (-0.0mm)

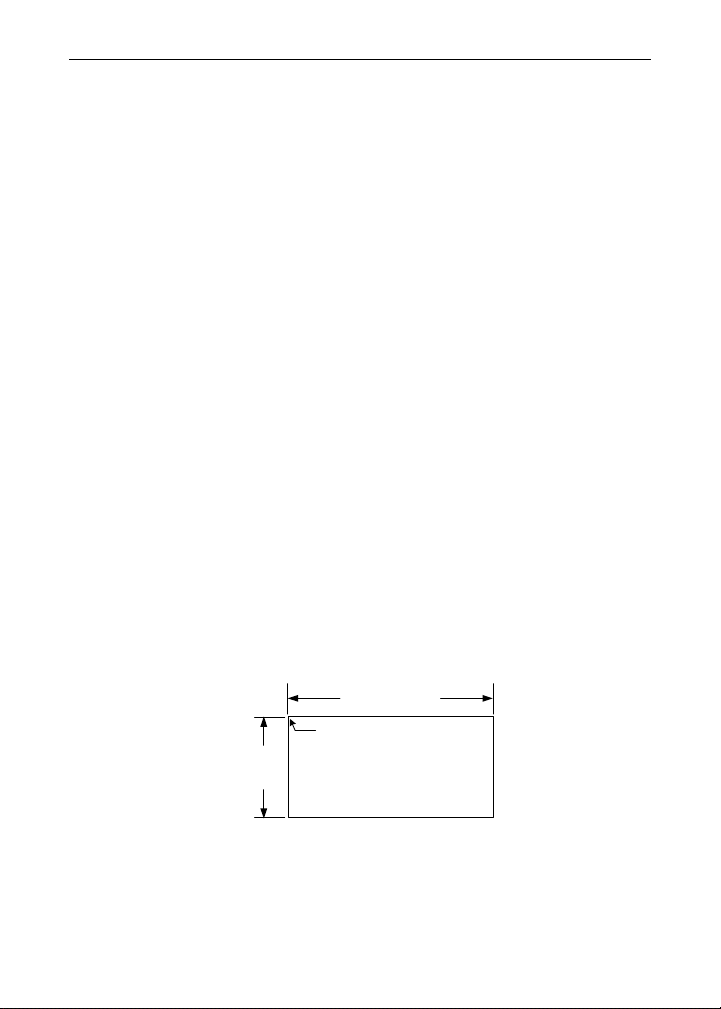

Figure 1. 1/8 DIN Panel Cutout Dimensions
15

Mod ualel PD6000 Analog Input Process Meter Instruction Man
Panel
Gasket
Mounting
Bracket
Mounting
Screw
Removable
Connectors
Figure 2. Panel Mounting Details
Configuration for 12 or 24 VDC Power Option
Do not exceed voltage rating of the selected configuration.
Meters equipped with the 12/24 VDC power option are shipped
from the factory ready to operate from 24 VDC.
To configure the meter for 12 VDC power:
1. Remove all the connectors.
2. Unscrew the back cover.
3. Slide the back cover about 1 inch.
4. Configure the J9 jumper, located behind the power con-
nector, for 12 V as shown below.
MAIN BOARD
24 VDC
12 VDC
POWER
J9
12 V 24 V
J9 CONFIGURATION
Factory
Default
M-LINK
+
_
Figure 3. Jumper Configuration for 12/24 VDC Power
16

Model PD6000 Analog Input Process Meter Instruction Manual
Transmitter Supply Voltage Selection (P+, P-)
All meters, including models equipped with the 12/24 VDC power
option, are shipped from the factory configured to provide 24 VDC
power for the transmitter or sensor.
If the transmitter requires 5 or 10 VDC excitation, the internal jum-
per J4 must be configured accordingly.
To access the voltage selection jumper:
1. Remove all the wiring connectors.
2. Unscrew the back cover.
3. Slide out the back cover by about 1 inch.
4. Configure the J4 jumper, located behind the input signal
connector, for the desired excitation voltage as shown.
MAIN BOARD
INPUT
SIGNAL
J4
5 V 10 V 24 V
J4 CONFIGURATION
Factory Default
P+
P-
mA+
COM
V+
Figure 4. Transmitter Supply Voltage Selection
Connections
All connections are made to removable screw terminal connectors
located at the rear of the meter.
!
Use copper wire with 60°C or 60/75°C insulation
for all line voltage connections. Observe all safety
regulations. Electrical wiring should be performed
in accordance with all applicable national, state,
and local codes to prevent damage to the meter
and ensure personnel safety.
17

Model PD6000 Analog Input Process Meter Instruction Manual
Connectors Labeling
The connectors’ label, affixed to the meter, shows the location of all
connectors available with requested configuration.
Warning!
Do not connect any equipment other than Precision
Digital’s expansion modules, cables, or meters to the
RJ45 M-LINK connector. Otherwise damage will occur to
the equipment and the meter.
DW1815
RI- I+
MA OUT
132
POWER
+-
SIGNAL
P- COMP+ V+ mA+
3412 5
M-LINK
CNONO NC NC C
RELAY4 RELAY3
4365 21
CNONO NC NC C
RELAY2 RELAY1
4365 21
12 3 45678
21
Figure 5. Connector Labeling for Fully Loaded PD6000
Power Connections
Power connections are made to a two-terminal connector labeled
POWER on Figure 5. The meter will operate regardless of DC polarity
connection. The + and - symbols are only a suggested wiring convention.
AC or DC
POWER
Required External Fuse:
POWER
5 A max, 250 V Slow Blow
+-
Figure 6. Power Connections
18

Model PD6000 Analog Input Process Meter Instruction Manual
Signal Connections
Signal connections are made to a five-terminal connector labeled
SIGNAL on Figure 5. The COM (common) terminal is the return for the
4-20 mA and the ±10 V input signals.
Current and Voltage Connections
The following figures show examples of current and voltage connections.
There are no switches or jumpers to set up for current and voltage inputs.
Setup and programming is performed through the front panel buttons.
-+
mA+P-
2134
P+ V+
COM
INPUT SIGNAL
3-Wire 4-20 mA
Transmitter
5
Signal
+-
2-Wire
4-20 mA
Transmitter
mA+P-
21354
P+ V+
COM
INPUT SIGNAL
Figure 7. Transmitters Powered by Internal Supply
19
+--+
External
Power
Supply
2-Wire
4-20 mA
Transmitter
mA+P-
21354
P+ V+
COM
INPUT SIGNAL
-+
mA+P-
2134
P+ V+
COM
INPUT SIGNAL
2-Wire 4-20 mA
Self-Powered
Transmitter
5
Figure 8. Transmitter Powered by Ext. Supply or Self-Powered
The current input is protected against current overload by a resettable
fuse. The display may or may not show a fault condition depending on
the nature of the overload.
The fuse limits the current to a safe level when it detects a fault condi-
tion, and automatically resets itself when the fault condition is removed.

Model PD6000 Analog Input Process Meter Instruction Manual
20
-+
+
Voltage
Signal
mA+P-
21354
P+ V+
COM
INPUT SIGNAL
mA+P-
2134
P+ V+
COM
INPUT SIGNAL
3-Wire Voltage
Transducer
5
Signal
-
Figure 9. Voltage Input Connections
The meter is capable of accepting any voltage from -10 VDC to +10 VDC.
Serial Communications
Serial communications connection is made to an RJ45 connector la-
beled M-LINK on Figure 5. Use PDA1232 for RS-232 interfacing or the
PDA1485 for RS-422/485 interfacing. The same port is used for inter-
facing with all expansion modules (e.g. external relays, digital I/O).
Use the PDA1200 meter copy cable for meter-to-meter interfacing for
cloning purposes (i.e. copying settings from one meter to other meters).
Relay Connections
Relay connections are made to two six-terminal connectors labeled
RELAY1 – RELAY4 on Figure 5. Each relay’s C terminal is common
only to the normally open (NO) and normally closed (NC) contacts of the
corresponding relay. The relays’ C terminals should not be confused
with the COM (common) terminal of the INPUT SIGNAL connector.
CNONO NC NC C
RELAY4 RELAY3
4365 21
CNONO NC NC C
RELAY2 RELAY1
4365 21
Figure 10. Relay Connections
