Precor Spinner Chrono User manual

Service Manual
SBK800-16
SPINNER®CHRONO™ POWER
&
SPINNER®CLIMB™
INDOOR CYCLES

Contents
1Introduction 1
About This Document 1
2General Information 3
Orientation Convention 3
Tools 3
Specification Summary 4
Parts 4
Lubrication 5
Cleaning 5
Safety Guidelines 6
Safety guideline you need to know and follow: 6
3Operation Verification 7
About 7
Operation Verification Checklist 7
4Adjustment Procedures 10
About 10
Available Adjustment Procedures 10
AutoCal 10
Procedure 11
Brake Pad Adjustment 12
Procedure 12
Drive Belt Tension and Tracking Adjustment 16
About 16
Procedure 16
Generator Belt Tension Adjustment 24
About 24
Specifications 24
Page ii

Procedure 24
Bike Leveling Adjustment 27
5Replacement Procedures 28
Replacement Procedures 28
Battery Replacement 30
About 30
Specifications 30
Determining the battery condition 30
Battery Fuse 31
Procedure 31
Belt Guard Cover Replacement 34
About 34
Procedure 34
Brake Pad Replacement 39
About 39
Specialized Tools 40
Procedure 40
Caliper Assembly Replacement 44
About 44
Strain gauge cable routing 44
Specialized Tools 45
Replacement Procedures 45
Replacement Procedure - (Spinner® Chrono™ Power models only) 45
Replacement Procedure - (Spinner® Climb™ models only) 52
Data COMM Cable Replacement 55
About 55
Specialized Tools 56
Procedure 56
Drive Belt, Generator Belt, and Flywheel Replacement 66
Page iii

About 66
Specifications 66
Procedure 67
Generator Assembly Replacement 78
About 78
Procedure 78
Handlebar Assembly Replacement 81
About 81
Procedure 81
Handlebar Adjustment Knob Replacement 84
About 84
Procedure 84
Handlebar Post Removal 86
About 86
Procedure - (Spinner® Chrono™ Power models only) 86
Procedure - (Spinner® Climb™ models only) 89
LPCA board Replacement 92
About 92
LPCA Interface Cable Connections 92
LPCA Status LEDs 93
Procedure 94
Pedal Replacement 100
About 100
Specifications 100
Specialized Tools 100
Procedure 100
Crank Arm Replacement 105
About 105
Specialized Tools 105
Page iv

Procedure 105
Resistance Knob Replacement 108
About 108
Procedure 108
Seat Assembly Replacement 112
About 112
Procedure 112
Stabilizer Replacement 114
About 114
Front Stabilizer Replacement 115
Rear Stabilizer Replacement 118
6Troubleshooting 121
About 121
Introduction To Troubleshooting 121
Basic Steps 121
Service and Diagnostic Menus 124
About 124
Service/Setup Mode Access 124
Menu Navigation 125
Service and Settings Menus 126
Error Log 129
Active Status Light (ASL) 130
About 130
ASL Overview 130
ASL States 131
ASL Setup and Test 132
Resetting the ASL state and Maintenance Counter 132
Clearing a Pulsing Yellow and/or Steady Yellow ASLstate 132
Error Log 134
Page v

About 134
Accessing the Error Log 134
Clearing the Error Log 134
Exporting the Error Log 134
System Troubleshooting Procedures 136
About 136
Available procedures 136
Belt Drive Issues 137
Resistance Issues 138
Eratic Power (WATTS) Measurements 139
7Preventive Maintenance 141
About 141
Maintenance Schedule 141
Precor Preventative Maintenance Plan 141
8Parts 142
About 142
Exploded View Diagram 143
Parts List 144
9Consoles 146
About 146
Spinner® Chrono™ Console 147
About 147
Powering ON the Console 148
Installation and Removal 149
Service/Setup Menu Access 150
Menu Navigation 150
Menus and Settings 151
Error Log Information 153
Spinning® Studio Console 155
Page vi

About 155
Cadence (RPM) sensor installation 156
Heart Rate Belt Bluetooth Pairing 156
Service and Maintenance 156
Appendix A : Edition Information i
Edition i
Additional Documentation i
Copyright i
Appendix B : Notices and Safety ii
Trademarks ii
Intellectual Property ii
Warranty ii
Safety Instruction ii
Safety Notices ii
Page vii

1Introduction
About This Document
If you are not a Precor certified servicer, you must not attempt to service any Precor Product.
Call your dealer for service information.
WARNING: This service documentation is for use by Precor certified servicer pro-
viders only. Personal injury can result from electrical shock and/or mechanical moving
parts.

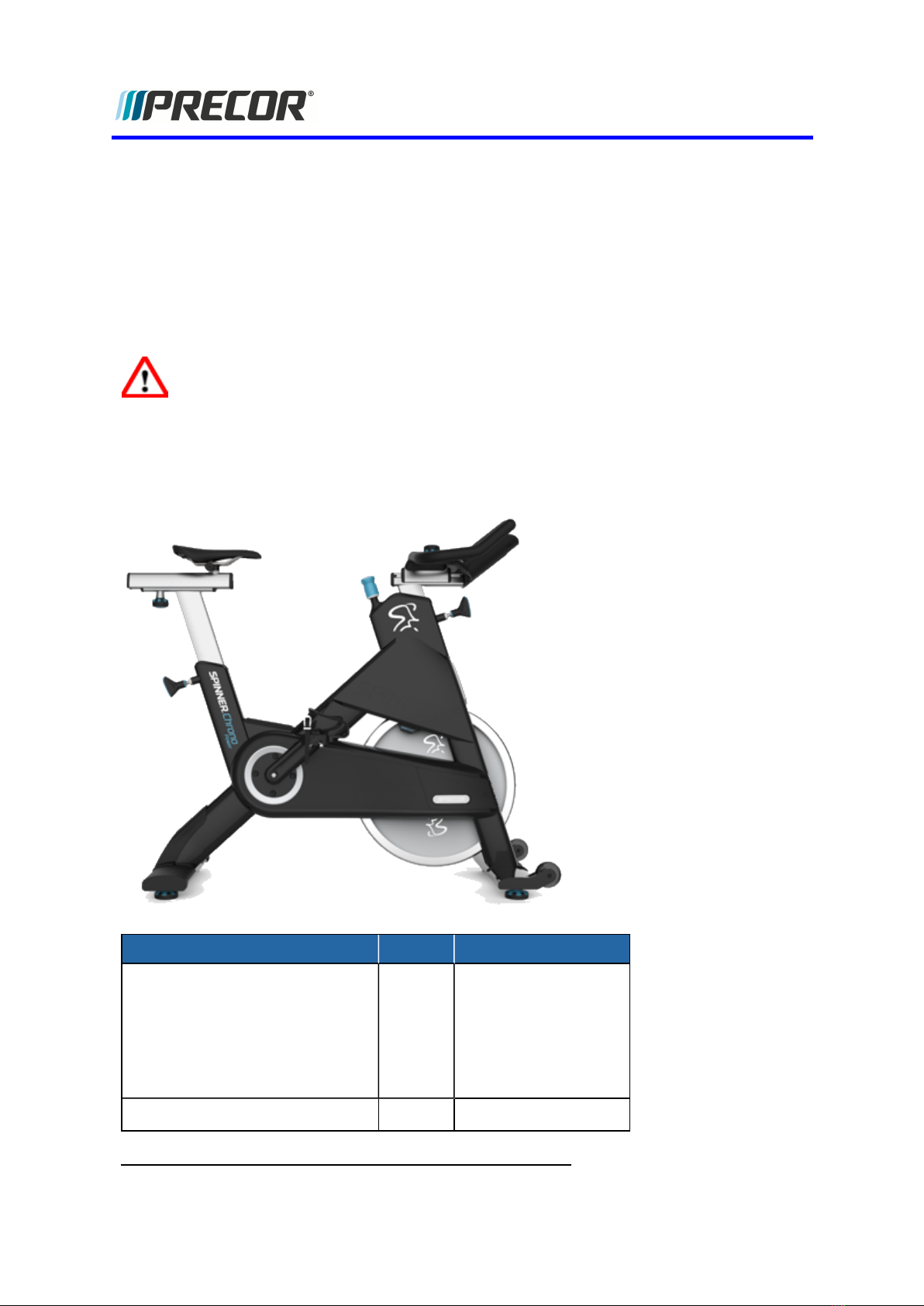

This service manual applies to the SBK800 series model Spinner®Chrono™ Power and Spin-
ner®Climb™ indoor cycles. This document contains information required to service, repair,
troubleshoot, and maintain the machines.
Indoor Cycle Model Feature Summary
Spinner® Chrono™ Power SBK869 Magnetic braking,
Self-powered, Direct
PowerMeasurements
(Watts), ASL1, & Spin-
ner® Chrono™ con-
sole
Spinner® Climb™ SBK867 Magnetic braking &
1Active Status Light: Service and maintenance status light.
1

Indoor Cycle Model Feature Summary
Spinning® Studio™
console
Additional Documentation
There is also an online web version if you have internet access at: Online Service Manuall
See Also
"General Information" on page3
"Safety Guidelines" on page6
"Operation Verification" on page7
"Adjustment Procedures" on page10
"Replacement Procedures" on page28
"Troubleshooting" on page121
"Parts" on page142
2
1 Introduction
About This Document

2General Information
The following information provides general equipment and service information that will help
you to use this manual to properly repair and maintain the bike.
Orientation Convention
The equipment orientation (front, right, left, back) used in manual is referenced to a user sitting
on the equipment facing the handlebars.
Tools
Required service and repair tools:
lMetric Hex Key set (2.5 - 6mm)[4] lSpinner Bike Tool Kit (PPPFT0000007308000)
[2]
lTorque wrench 40 ft-lbs (54 N•m lMagneticGap Fixture kit
(PPP000000058248101)[3][4]
lMetric Wrench set (10 - 21mm)[4] lCrank Extractor (X-Tools Crank Extractor)[1][4]
lScrew driver set lBelt Tension Gauge (recommended Kent-Moore
BT-33-73-F)
Notes:
[1] Required for pedal removal.
[2] The bike tool kit contains all the specialized tools to repair the bike. (Does not include the
magnetic gap fixture tool.)
[3] Required for magnetic brake pad adjustment.
[4] (Included in the Spinner Bike Tool Kit (PPPFT0000007308000)
3

Specification Summary
This table provides a summary of system component specifications.
System Component Specification
Pedal Torque 33 ft-lb (45 N•m)
Drive Belt Tension 60 +/- 5 lbs (27 */- 2 kgs)
Generator Belt Tension 1/2 in (1.3 cm) up/dwn travel
Stabilizer fastener Torque 15.6 ft-lbs (21 N•m)
Axle Nut Torque 29.5 ft-lbs (40 Nm)
.
Parts
IMPORTANT: Always purchase OEM replacement parts and hardware from Precor.
If you use parts not approved by Precor, you could void the Precor Limited Warranty.
Use of parts not approved by Precor may cause injury.
Major Assembly and Parts Location
Exploded View Diagram and Parts List
There is a copy of the parts Exploded View Diagram and Parts Identification List included in
the "Parts" on page142 chapter that you can use as a quick reference. It is recommended that
4
2 General Information
Specification Summary

you go to the servicer partners Precor Connect website to view the most current parts
information including the Exploded View Diagram and Parts Identification List .
lPrecor Connect Partner Website
Lubrication
Common metal parts Use only synthetic lubricants such as Mobile 1 Synthetic grease or
Super Lube with Teflon. Use of unapproved lubricants, cleaners, or solvents may void the bike
warranty.
Cleaning
1. Wipe down equipment with recommended cleaning solution.
lGeneral: 1 oz. mild soap to 30 oz. water.
lConsoles: a diluted solution of one part 91% Isopropyl alcohol to one part water.
CAUTION: Do not use acidic cleaners and do not spray directly onto the equipment
surfaces.
2. Rinse using a clean lint-free cloth and dampened with water only. Dry completely with
another clean lint-free cloth.
5

Safety Guidelines
Safety guideline you need to know and follow:
lRead and follow all Warning notices to protect yourself from personal injury.
lRead and follow all Caution notices to prevent damage to the equipment.
lRead the owner’s manual and follow all operating instructions.
lOperate the equipment on a solid, level surface.
lVisually check the equipment before beginning service or maintenance operations. If it
is not completely assembled or is damaged in anyway, do not attempt to operate the
equipment.
lNever place liquids on any part of the equipment while performing service.
lTo prevent electrical shock, keep all electrical components away from water and other
liquids.
lDo not use accessory attachments that are not recommended by the manufacturer-
such attachments can cause injury.
lDo not stand or climb on the handlebars, display enclosure or cover.
When servicing the equipment:
lDuring service operations you will be very close to moving machinery and voltage bear-
ing components:
oRemove jewelry (especially from ears and neck),
oTie up long hair,
oRemove neck ties, and
oDo not wear loose clothing
See Also
"Safety Instruction" on pageii
"Safety Notices" on pageii
6
2 General Information
Safety Guidelines

3Operation Verification
About
Use the Operation Verification Checklist to verify the [[[Undefined variable Pro-
ductInfo.EqptType]]] operation. Verify the [[[Undefined variable ProductInfo.EqptType]]] oper-
ation at the completion of any maintenance procedure and when it is necessary to ensure that
the [[[Undefined variable ProductInfo.EqptType]]] is operating properly.
Operation Verification Checklist
Do an overall visual inspection of the bike looking for any loose hardware and/or missing
parts. .Repair and replace as needed.
Verify that the bike sets level and is stable on the floor, see "Bike Leveling Adjustment"
on page27.
Verify that the seat position is level and does not rotate or tilt. Tighten and adjust as
needed.
Verify that the seat height and forward/back adjustment work correctly.
lMake sure that the seat post up/down movement is smooth and that the pop-pins
lock at different positions. .
lMake sure the forward/back slider movement is smooth and the adjustment knob
locks the seat in position.
Verify that the handlebar height and forward/back adjustment work correctly.
lMake sure the handlebar post up/down movement is smooth and that the pop-
pins lock at different positions.
lMake sure the forward/back slider movement is smooth and the adjustment knob
locks the handlebar in position.
Set the resistance to minimum and pedal the bike at a moderate pace (55 rpm or
greater), increase the resistance to maximum and return to zero resistance.
lVerify that the resistance knob functions normally from min to max resistance.
lVerify that there were no unusual noises from the brake pads or flywheel during
operation.
lVerify that at maximum resistance, the bike was very hard to pedal.
Pedal the bike at a moderate pace (55 rpm or greater), stop pedaling and press down on
the resistance knob. Verify that the flywheel immediately begins to slow and quickly
stops.
Power (Watts) measurement auto-cal verification:
(Spinner®Chrono™ Power only).
lSet the resistance to minimum and pedal the bike at 55 rpm or greater.
IMPORTANT: The resistance must be set to minimum to correctly perform
auto-cal.
7

lStop pedaling and wait for the pedals to completely stop. Wait 10 seconds to allow
the bike to complete the power measurement auto-cal function.
lWhile continuously pedaling the bike at 60 RPM, verify that the measured
workout WATTS at minimum and maximum resistance levels is within spe-
cification.
ResistanceLevel Power (WATTS)
minimum ≤40 Watts @ 60 rpm
maximum ≥415 Watts @ 60 rpm
Power (WATTS) specification
IMPORTANT: The bike must be auto-cal'd before making the WATTS meas-
urement. Also, the bike must be continuously pedaled between the min and max
resistance WATTS measurements. If the pedals stop, a new auto-cal may occur
invalidating the measurements.
Generator verification:
(Spinner®Chrono™ Power only).
lPedal the bike at 60 RPM.
lVerify that the measured generator voltage (service menu GEN VOLT) and cur-
rent output (service menu GEN AMP) is within specification.
Generator Spec Power (WATTS)
Generator voltage (GEN VOLT) approx: 9 Vac @ 60 rpm
Generator current (GEN AMP) approx: 0.4 amps @ 60 rpm
Generator specification
Error Log & ASL1verification:
(Spinner®Chrono™ Power only).
lVerify that there are no current active error codes, view the service menu
ERROR LOG. If there are logged error codes, resolve them and clear the error
log (service menu CLEAR ERROR
lVerify the ASL blue state (Some facilities may choose to switch the ASL function
OFF, see ASL SETUP): Ride the bike and stop. Make sure that the console ASL
state is steady blue. If not, resolve any issues and reset the ASL to blue state.
Return to service
(Spinner® Chrono™ Power models only)
lAuto-cal the bike, set the resistance level to minimum, start pedaling greater than
55 rpm and then stop pedaling. Wait for the pedals to stop and dismount the bike.
lIf verification tests were successfully completed, return to service.
1Active Status Light: Service and maintenance status light.
8
3 Operation Verification
Operation Verification Checklist

.
9

4Adjustment Procedures
About
Adjustment procedures provide you with the step-by-step adjustment instructions to bring sys-
tems and components into specification. Perform the adjustment procedures whenever a
trouble symptom points to a particular component and after a major component is removed/re-
placed.
Available Adjustment Procedures
"Brake Pad Adjustment" on page12
"Drive Belt Tension and Tracking Adjustment" on page16
"Generator Belt Tension Adjustment" on page24
"Bike Leveling Adjustment" on page27
AutoCal
(Spinner®Chrono™ Power bikes only)
AutoCal is an automatic power (WATTS) measurement calibration feature offered on
Spinner®Chrono™ Power model bikes. To insure accurate power (WATTS) results, an
AutoCal should be performed before starting a workout.
AutoCal removes strain gauge sensor and brake pad magnetic field errors from the Power
measurement (WATTS) results. Items you should know to perform a good AutoCal:
lAutoCal is performed every time the pedals stop moving for more than 3-5 seconds.
lThe resistance must be completely removed (resistance knob turned fully coun-
terclockwise) while AutoCal is being performed.
lThe brake pads must be correctly gaped to achieve a good AutoCal, see "Brake Pad
Adjustment" on page12.
Two use cases that can cause a bad AutoCal
There are two common use cases that can inadvertently cause an inaccurate AutoCal:
lExerciser momentarily stops and starts pedaling during a workout.
Momentarily stopping and starting the pedals during a workout for more than 3-5
seconds will start a new AutoCal. If the resistance was not set to minimum, the Autocal
will be bad resulting in inaccurate power WATTS measurements.
10
4 Adjustment Procedures
About

lAn exerciser quits a workout and dismounts the bike without setting the resistance level
to minimum.
In this case the bike will perform an inaccurate AutoCal because the resistance was not
set to minimum. The new exerciser will read inaccurate power WATTS results unless a
new AutoCal is performed with the resistance set to minimum.
Procedure
Review entire procedure before starting.
3. Set the resistance level to minimum (resistance knob turned fully counterclockwise):
4. Start pedaling the bike at 55 rpm or greater, then slow down and allow the pedals to
stop. When the pedals and flywheel stop, the bike will perform the power measurement
AutoCall. Wait a minimum of 10 seconds for the auto-cal to complete
IMPORTANT: The resistance knob must be set to the minimum resistance level to
correctly perform the auto-cal function. The WATTS parameter will be incorrectly com-
puted if the resistance knob is not set to minimum resistance level during auto-cal.
5. Verify the measured WATTS at minimum and maximum resistance levels:
a. Set the resistance to minimum.
b. Start pedaling and maintain the speed at 60 rpm as reported on the console RPM
indicator. While continuously pedaling, verify the measured WATTS at minimum
and maximum resistance levels. Continuously pedal between measurements.
Resistance
Level Power (WATTS)
minimum ≤40 Watts @ 60 rpm
maximum ≥415 Watts @ 60 rpm
Power (WATTS) specification
IMPORTANT: The bike must be AutoCal'd before making the WATTS meas-
urement. Also, the bike must be continuously pedaled between the min and max res-
istance WATTS measurements. If the pedals stop, a new AutoCal may occur
invalidating the measurements.
9. Verify the bike operation per and return to service.
See Also
11

Brake Pad Adjustment
This procedure provides instruction to adjust the Magnetic Brake Pads.
The brake pad-flywheel gap must be correctly set to insure proper resistance level, auto-cal,
and power measurement (watts).
Perform the brake pad adjustment any time the brake pads are replaced or any condition were
the resistance is not performing correctly or the power measurement is not being correctly
computed.
Strong magnetic force
The brake pads have a very strong magnetic force and attraction to the flywheel or any fer-
romagnetic metal object. . The brake pads can easily be ripped from your grasp and snap
against the metal object damaging the pad. Be very careful to hold the brake pads tightly when
in close proximity to the flywheel during the brake pad removal and installation procedures.
CAUTION:The magnetic force of the brake pad is very strong and when in close
proximity to the flywheel (or any metal object) will quickly snap the pad against the fly-
wheel (or other metal) object causing damage to the brake pad magnets. Firmly hold
the magnetic brake pads during removal/installation procedures to avoid damaging
the brake pads.
Specialized Tools
Tool Part Number Qty
Magnetic Gap Fixture
kit*
PPP000000058248101 1*
Note: *Each Magnetic Gap Fixture kit contains two (2x) Magnetic Gap Fix-
ture tools.
Only one kit is required to complete the brake pad adjustment.
Procedure
Review entire procedure before starting.
1. Loosen the resistance knob enough to allow the installation of the magnetic gap fixture
tool.
2. Mount a magnetic gap fixture (2x) onto both the left and right brake pads. Slip the back
of the magnetic gap fixture into the gap between the brake magnetic pad and the fly-
12
4 Adjustment Procedures
Brake Pad Adjustment

wheel surface. Continue sliding the fixture over the brake pad and press into position.
Note:It is recommended that a magnetic gap fixture (2x) be mounted on both the left
and right brake pads before starting and while performing the brake pad gap adjust-
ment procedure.
3. loosen, but do not remove, the left and right brake pad 3 mm hex key mounting bolts (2x
per pad).
13
