Prem-I-Air EH1614/EU User manual

Page 1
EH1614 / EU
2.3kW (8000 BTU/hour)
Portable Air Conditioner
Climatiseur Local

Page 2
IMPORTANT
Installer and Users please note:
These instructions should be read carefully and left with the user of the product
for future reference. BEFORE USE
Inspect the product including its cable and plug for any signs of damage. If the
product is damaged, DO NOT use it, and contact your supplier immediately. The
appliance contains a refrigerant gas, so must be kept upright at all times. After
unpacking wait 3 hours for the refrigerant gas to stabilise before use. The

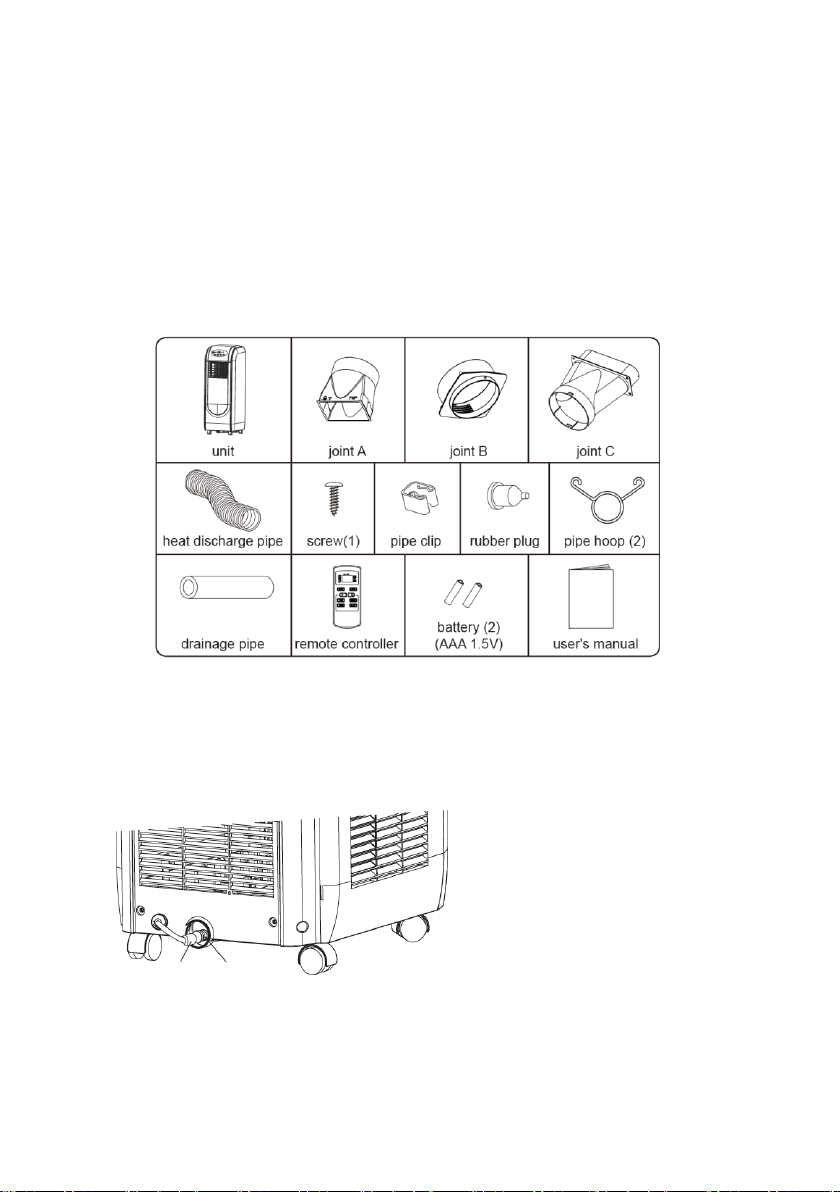

following is a list of parts that should be included in the packaging.
INSTALLATION
Stand the EH01614 on a firm, flat; level surface at least 30cm (12”) from the
nearest wall. Before use you will need to install the drainage pipe at the rear of
the unit.
Installing Drainage Pipe
First remove the rubber plug from the drain port on the rear of the air
Drain Port
Rubber
Plug

Page 3

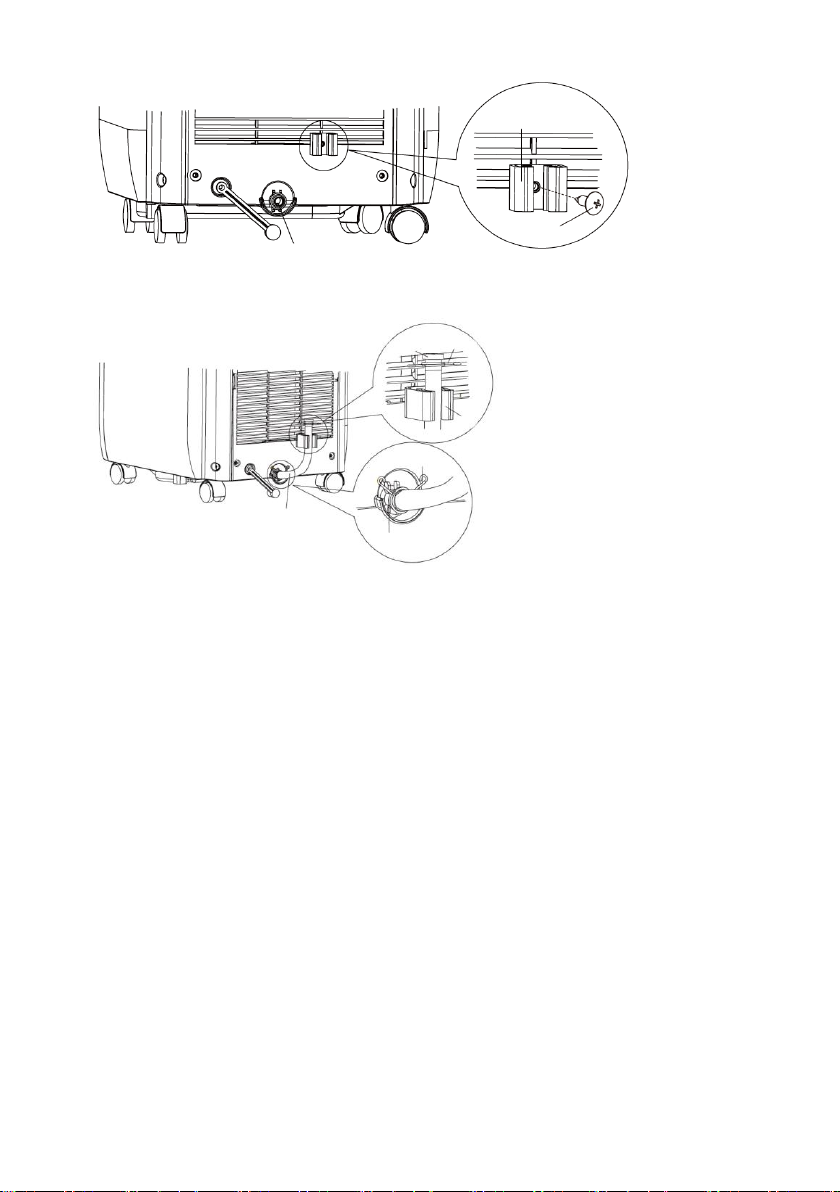

Attach the drain pipe clip to rear panel of the air conditioner using the screw
provided.
Firmly attach the drainage pipe to the drain port and secure using the pipe hoop
spring clip provided. The other end of the drainage pipe should be sealed using
the rubber plug which again should be secured using the spring clip. Attach the
drainage pipe to the unit by clipping into the drain pipe clip.
In normal operation the EH1614 tank should only gather a small amount of water
as any condensate water is usually vented off with the hot exhaust air
If you wish the condensate tank, can be permanently connected to the drain. To
do this a long drain tube may be attached to the drain port and ran to a suitable
drain.
EMPTY CONDENSATE TANK
To empty the water tank, switch the unit off by pressing the ON/OFF button, wait
for three minutes then disconnect from the mains supply. Place a drainage pan
underneath the drain pipe (at the bottom, rear of the unit in the centre).Release
the spring clip and withdraw the bung, allow the water to drain into the drainage
pan. Replace the bung and spring clip then reconnect the unit to the mains
supply
Drain Port
Drain Pipe Clip
Screw
Dran Pipe
Drain Port
Dran Pipe Clip
Spring Clip
Rubber Plug

Page 4
Installing Exhaust Hose
In normal use the EH1614 will produce hot air from the rear exhaust port, this air
can be vented through an open window or wall vent. Connect the exhaust hose
as follows: expand a small section of the end, and screw into the indoor adaptor
(Joint A) in a clockwise
direction, the side marked
TOP should be facing
upwards Expand a small
section of the other end of the
hose, and screw into joint B
again in a clockwise
direction..
Attach the indoor adaptop (Joint A) to the
rear exhaust vent by sliding the adaptor
into the grooves till you hear a click.
If the exhaust is to be vented through an
open window then the fish tail adaptor
(Joint C) should be attached to Joint B by
locating the slot in Joint C with the post on
Joint B and rotating slightly in a clockwise
direction.
Drain Pipe
Rubber
Plug
Spring Clip
Drain Port
Spring Clip
Clockwise
Joint A
Joint B
Heat
Discharge
Pipe
Clockwise
Groove
Clasp
Side with TOP should be
facing up.
Joint B
Joint C
Locating Post
Slot

Page 5
Keep the hose as straight as possible, avoid dips where the moisture from the
exhaust air can condense and fill the tube with water. Do not allow the hose to be
crushed
The hose can be expanded up to 1.5m long, but the shorter it is the more
efficiently the E1614 will operate. Do not extend the hose, or replace with
another type of hose.
If the exhaust hose is to be installed into a wall vent then the vent position should
be between 40cm (16”) and 130cm (51”) from the floor.

Page 6
Remote Control
Fit 2 x AAA batteries in to the remote control, observing the correct polarity.
Do not attempt to recharge the batteries. Do not dispose any of the batteries in a
fire, as they may explode.
Do not use any other type of battery.
GENERAL SAFETY REQUIREMENTS
Domestic wiring must be tested periodically by a qualified electrician at least
once every 10 years or at every change of occupancy.
For office and retail premises, and buildings such as village halls, the wiring must
be inspected at least once every 5 years.
It is recommended that all building be fitted with smoke alarms (it is mandatory
for new buildings). PRODUCT SAFETY
This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without
supervision.
Place the appliance on a firm flat surface. Ensure that the it is kept upright at
all times
Ensure that there is at least 300mm (1') between the sides of the appliance
and any flammable materials
Ensure that there is at least 900mm (3') from the top of the appliance and
any flammable materials.
Do not place on soft surfaces.

Page 7
Do not cover.
Do not obstruct the air intakes and exhausts.
For indoor use only
Not suitable for use in boats, caravans or similar locations.
Do not use in bathrooms, or in wet locations.
Do not place the mains lead beneath a carpet or rug.
Do not use the appliance in locations where paint, petrol or other flammable
liquids are used or stored.
Always transport and store in an upright position.
Do not allow the appliance to fall over when there is water in the bucket.
PAT TESTING.
When used in an office environment we recommend that this product should be
safety-tested yearly by a qualified electrician (PAT Tested).
We recommend that it is PAT tested regularly when used in a domestic
environment. OPERATION

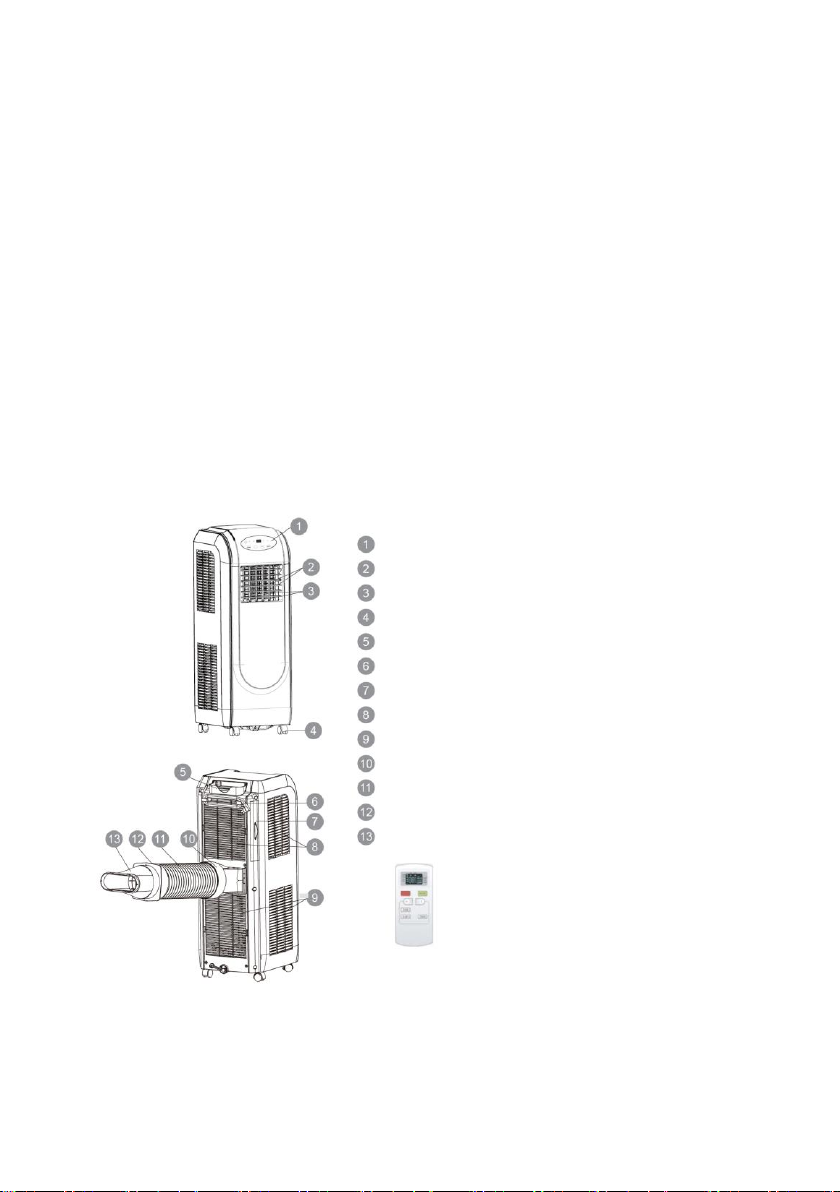

Control Panel
Horizontal Louver Control
Vertical Automatic Swing Louvers
Castors
Remote Control Storage
Power Lead
Filters
Upper Air Inlet Grille
Lower Air inlet Grille
Indoor Apator, Joint A
Heat Exhaust Pipe
Joint B
Fishtail Adaptor, Joint C
Remote Control

Page 8
Leave the appliance in an upright position for 3 hours before first use.
Plug the mains lead into a 13 Amp mains socket (unless permanently installed)
If connecting via an extension lead, make sure that the lead is rated at 13 Amps
or more, and that it is fully unwound.
Switch the unit on at the mains socket.
This unit can be operated from the front panel or via the supplied remote control.
The ON/OFF button on the control or panel will turn the unit On or Off.
The Mode button will cycle through the built in
programmes in order;
In the cool mode, the digital display on the unit and control panel will
display the desired temperature (16C - 30C) and the cool mode
indicator light will illuminate. The temperature can be adjusted using the
+/- buttons.
In dry mode the display will be blank but the dehumidifier indicator light
will illuminate.
In fan mode the display will be blank but the fan indicator light will
illuminate.
On the main display there is a Condensate Tank Full Indicator light, if this should
illuminate the unit will bleep 8 times and stop then the light will blink 8 times and
then go off for 3s and repeat. The unit will not restart till the condensate tank has
been emptied.

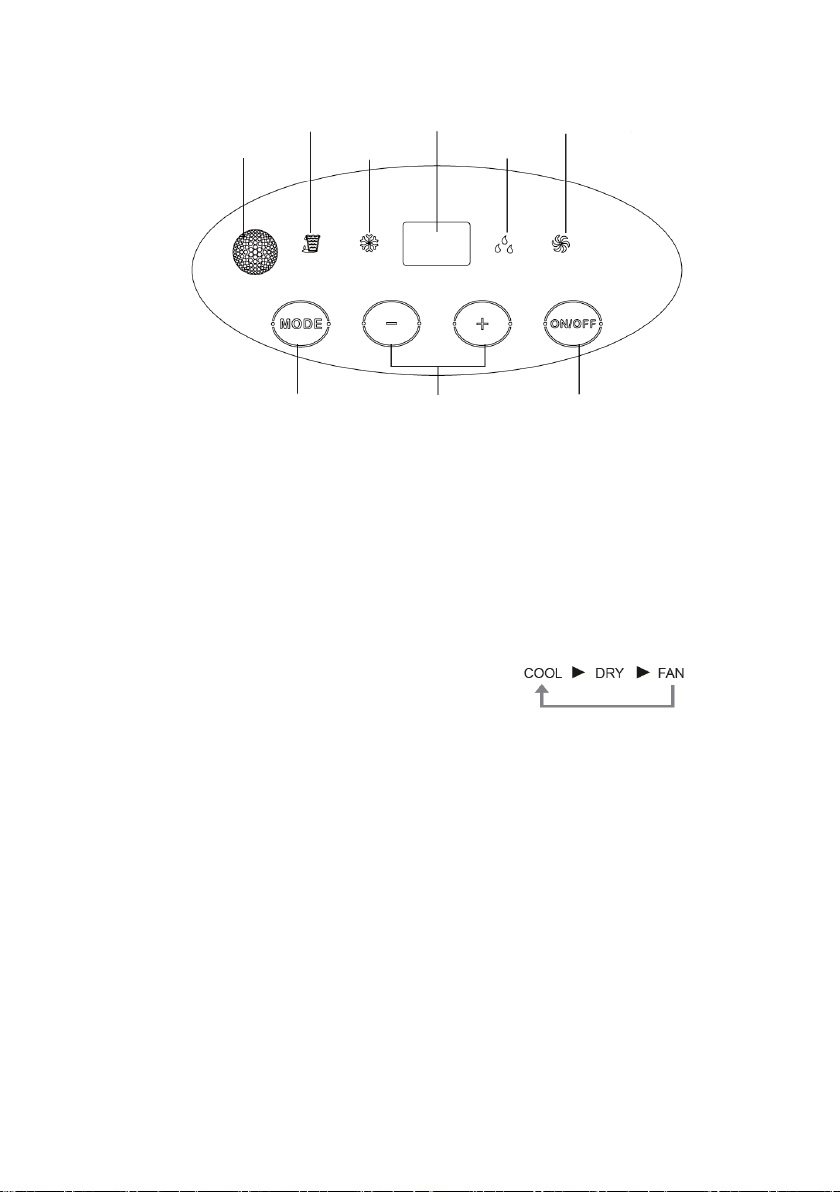

Remote Receiving
point
Conensate Tank Full
Indicator
Cool Mode
Indicator
Digital Display
Dehumidifier Mode
Indicator
Fan Mode indicator
MODE Button
+/- Buttons
ON/OFF Button

Page 9

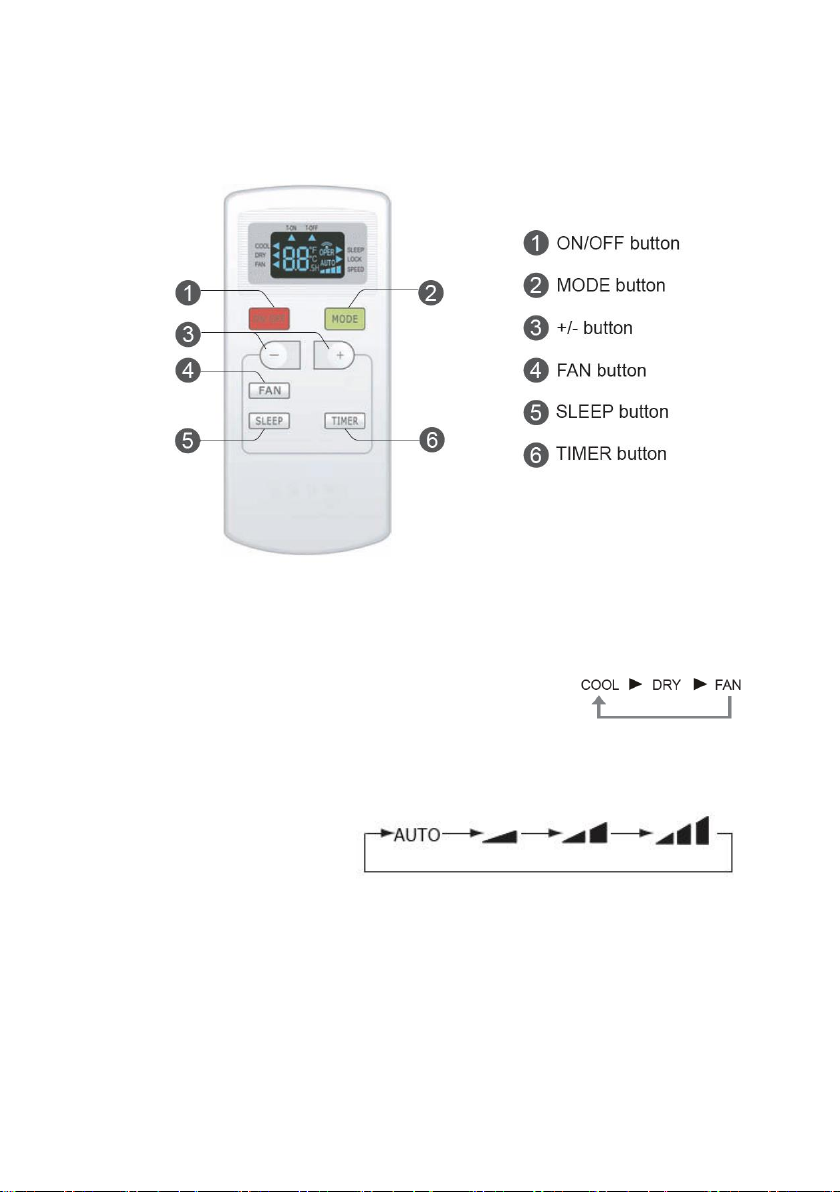

REMOTE CONTROL
When the power is connected to the unit all the functions plus some additional
operations can be completed from the remote control.
1. ON/OFF, When the unit is connected to the mains supply this button will
turn the item on or off.
2. MODE, This will allow the unit to cycle through
the 3 operating modes in order.
3. +/-, In COOL mode the pressing of the + or –
buttons will increase or decrease the set temperature (16C - 30C), In
TIMER mode this button will increase or decrease the time to start or
switch off. See TIMER section for more information.
4. FAN. This button will
adjust the fan speed
in both FAN and
COOL modes. There
are 3 fan speeds and auto, auto is only available in COOL mode and
the unit will select the appropriate speed according to the room
temperature. You cannot adjust the fan speed in DRY mode.
5. SLEEP. The SLEEP mode sets the unit to run in a progressively quiet
operation.
6. TIMER. When the unit is ON the TIMER can be used so set a time till it
switches off. To do this press the TIMER button and an arrow will
appear on the remote control below T-OFF and H will appear and flash.

Page 10
Within 5s press the + or –button to increase or decrease the time by
0.5h. Hold the + or –buttons for greater than 2s to increase the speed
of change. When the desired time is reached press the timer button to
confirm, the T-OFF and H icons will stop flashing. The unit will now
switch OFF after the selected time has elapsed. When the unit is OFF
the TIMER can be used so set a time till it switches on. To do this press
the TIMER button and an arrow will appear on the remote control below
T-ON and H will appear and flash. Within 5s press the + or –button to
increase or decrease the time by 0.5h. Hold the + or –buttons for
greater than 2s to increase the speed of change. When the desired time
is reached press the timer button to confirm, the T-ON and H icons will
stop flashing. The unit will now switch ON after the selected time has
elapsed. Switching the unit OFF or ON manually will cancel the TIMER.
7. CHILD LOCK, Press the + and –buttons simultaneously to turn on or
switch of the remote control LOCK. When on NO buttons on the remote
control will work till the CHILD LOCK is removed
8. F / C Display. To switch between C and F or the reverse press the
MODE and –buttons simultaneously whilst the unit is switched OFF.
TROUBLE SHOOTING REMOTE CONTROL
During use try to point the remote control at the receiver window on the
UNIT.
The distance between the remote control and receiver should be no
more than 8m. (26’)
The signal can suffer from interference from other electrical items.
When the unit is not going to be used for a prolonged period please
remove the batteries.
If the display looks faded or fuzzy the batteries should be replaced.

Page 11
CLEANING
The unit should be cleaned regularly to maintain the best possible operating
efficiency and performance.
Before any maintenance should be performed turn off the unit and once the fans
and compressors have stopped unplug the unit from the mains supply and leave
for 3 minutes.
Surface Cleaning
a. Clean the surface of the unit with a soft damp cloth; do not use
any chemical cleaners or solvents.
b. Clean and remove any dust and dirt from the louvers and air
outlets.

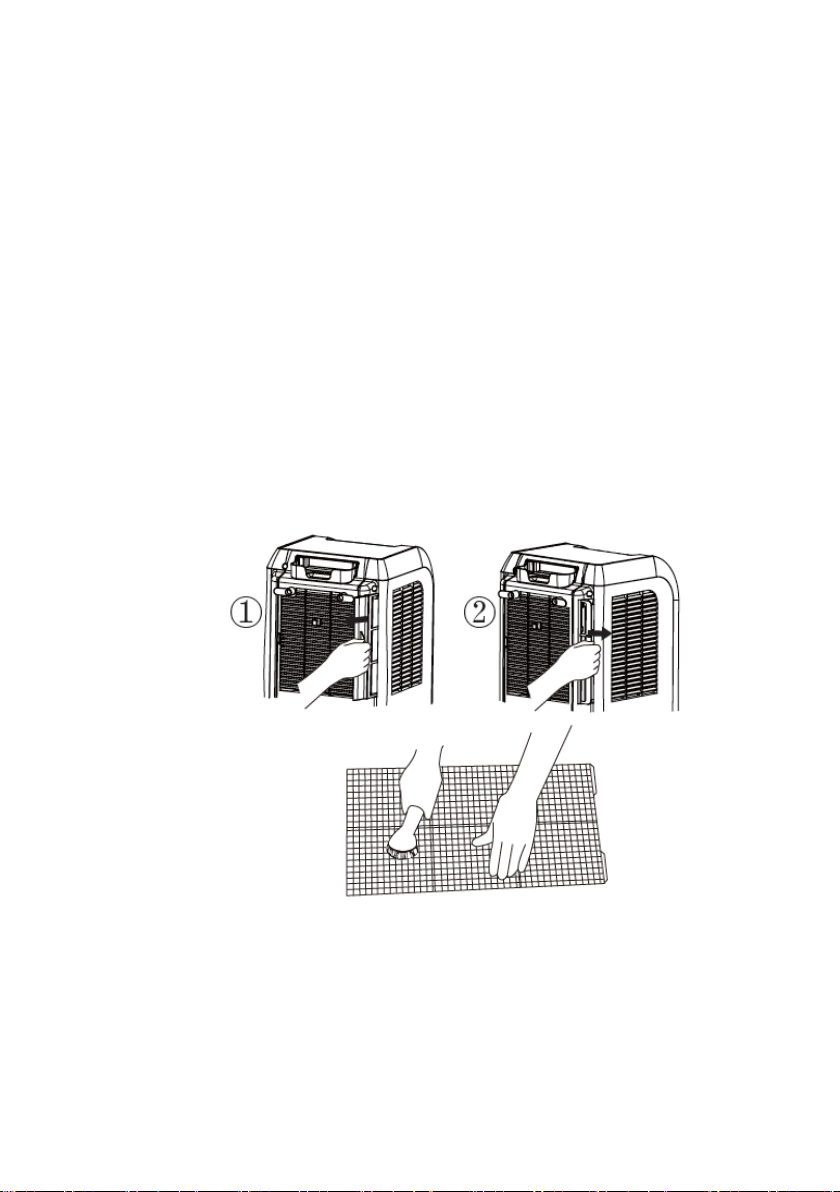

Filter Cleaning
Clean the filter every two weeks as the condition of the filters will inhibit
the efficient operation of the unit. Use warm water with a small quantity
of detergent, do not use solvents.
a. Remove the 2 filters, 1 and 2 as per the diagram below
b. Use clean water to wash the filters, if the filter is very dirty and
contains grease or other substances then they can be cleaned
using warm water (40C) with a small amount of detergent
added.
c. Allow the filters to air dry before returning them to the unit

Page 12
TROUBLESHOOTING
If you have any trouble operating this unit please see the table below for simple
instructions on how to solve many common problems. Never attempt to open or
service the unit and refer all servicing to qualified personnel.
Trouble
Cause
Remedy
The unit fails
to start up
Power supply failure
Connect the unit to a live socket
and turn it on.
Water-full and the icon lit.
Drain the water in the unit.
Ambient Temperature is too
low.
It is recommended to use this
unit between 7-40C
The unit is started
immediately after turning off.
Turn OFF, wait 3 minuites then
turn ON.
The room temperature is
lower than the set
temperature in cooling mode
or higher temperature in
heating mode
Change the set temperature
Poor cooling
performance
There is direct sunlight in the
room.
Close the window curtains /
blinds
The doors and windows are
open, the room is crowded
or there are other heat
sources
Close the door and window,
remove other heat sources, and
/ or add new air-conditioners
Dirty filters
Clean the filter mesh
Air inlet or air outlet clogged
Remove the obstruction
High noise
level
The unit has been placed on
an uneven surface.
Put the unit at a flat and firm
surface (may reduce noise)
The
compressor
does not work
Initiation of overheat
protection.
Wait until the temperature
drops, the unit will re-start
automatically
The remote
control does
not work
Too Far
Bring the remote control close
to the air-conditioner and
ensure aimed at signal receptor
on unit.
The remote control signal
not aimed at receptor on
unit.
The batteries are low
Replace the batteries

Page 13
FAULT CONDITIONS
Error Code
Meaning
Solution
E5
Overcurrent Protection
Disconnect power, wait 10min
then turn the unit on. If E5 still
displays contact an authorised
repair agent
H8
Condensate Tank is Full
Empty condensate Tank. See
Page 3,
F1
Ambient Temperature Sensor
Fault
Contact an authorised repair
agent
F2
Evaporator Temperature
Sensor Fault
Contact an authorised repair
agent
F0
1. Low Refrigirant Level
2. System os Blocked
1. Clean and check all
pipes and filters
2. Turn the units OFF and
wait 10 mins.
3. Turn the unit ON, if the
problem persists contact
an authorised repair
agent.
H3
1. Ambient Temperature
is too High.
2. The evaporator or
Condensor are
blocked.
3. Ther is a problem
with the unit.
1. Check the ambient
temperature, If above
35C the unit may not
work. Power the unit off
and wait till temperature
drops below 35C and
turn on.
2. Check the evaporator
and condesor for
blockages and remove.
Turn the unit off and
wait 3 mins then turn
on.
3. Contact an authorised
repair agent
E8
Unit Malfunction
Disconnect power, wait 10min
then turn the unit on. If E8 still
displays contact an authorised
repair agent

Page 14
MAINTENANCE
If the mains lead is damaged, it must be replaced by the manufacturer or an
authorised service centre. If the mains plug needs to be replaced, proceed as
follows:
Connect the brown wire to the terminal
labelled "L".
Connect the blue wire to the terminal
labelled "N"
Connect the green/yellow wire to the
terminal labelled with the earth symbol
or "E".
Make sure that the cord-grip is
positioned correctly (over the outer sheath of the cable) and it fully tightened.
OPERATING COSTS
At time of going to press, the average cost of electricity is £0.12 per unit
(kilowatt-hour). The amount you are being charged will be shown on your
electricity bill.
At this cost, the EH1460 will cost £0.19 per hour to run in heating, cooling or
dehumidifying modes, and £0.05 per hour to run in the fan-only mode.
To minimise the power used (and reduce operating costs):
Make sure that the filter is kept clean.
Make sure that the air intakes and exhausts are not obstructed.
Keep doors and windows closed to prevent conditioned air from escaping,
and to prevent exhaust air from re-entering the room.
Use blinds to prevent direct sunlight reaching the room.
Set the temperature higher whilst cooling, or lower whilst heating.
DISPOSAL AND RECYCLING
You must not dispose of this appliance with domestic household waste.
Most local authorities have specific collection system for appliances and disposal
is free of charge to the end-user.
When replacing an existing appliance with a similar new appliance your retailer
may take the old appliance for disposal.
This air conditioner contains R410a refrigerant gas. At the end of its life the
disposal of this product must be in accordance with local regulations.

Page 15
TECHNICAL SPECIFICATION
Unit
Cooling capacity
Btu/h
8000
W
2345
Power Supply
V
230~
Rated Input (Cooling)
W
900
Rated Current (Cooling)
A
4.2
EER for Cooling(R410A)
W/W
2.6
Moisture Removal
L/h
0.75
Air Circulation
m³/h
330
Noise
High
dB(A)
54
Middle
dB(A)
52
Low
dB(A)
50
Product
Size
W×H×D
mm
300×800×355
Packing
Size
W×H×D
mm
355×850×565
Refrigerant
Type/Charge
R410a/460g
Net Weight
Kg
24
Gross Weight
Kg
28
Application Area
㎡
10~16
