Prem-I-Air PAC1130 User manual

M
MO OB BI IL LE E A AI IR R C CO ON ND DI IT TI IO ON NE ER R
(
(w wi it th h H He ea at t p pu um mp p) )
I
IN NS ST TR RU UC CT
TI IO ON N M MA AN NU UA AL L
Model PAC1130 (10,000 BTU/HR)
Model PAC1140 (14,000 BTU/HR)
IMPORTANT
Please read these instructions carefully and retain for
future use.

- 2 -
C
Co on nt te en nt ts s
D
De es sc cr ri ip pt ti io on n P Pa ag ge e
Important Safety Instruction 3-4
BS Plug Wiring 5
Technical Specification 6-7
Energy Saving Advice 8

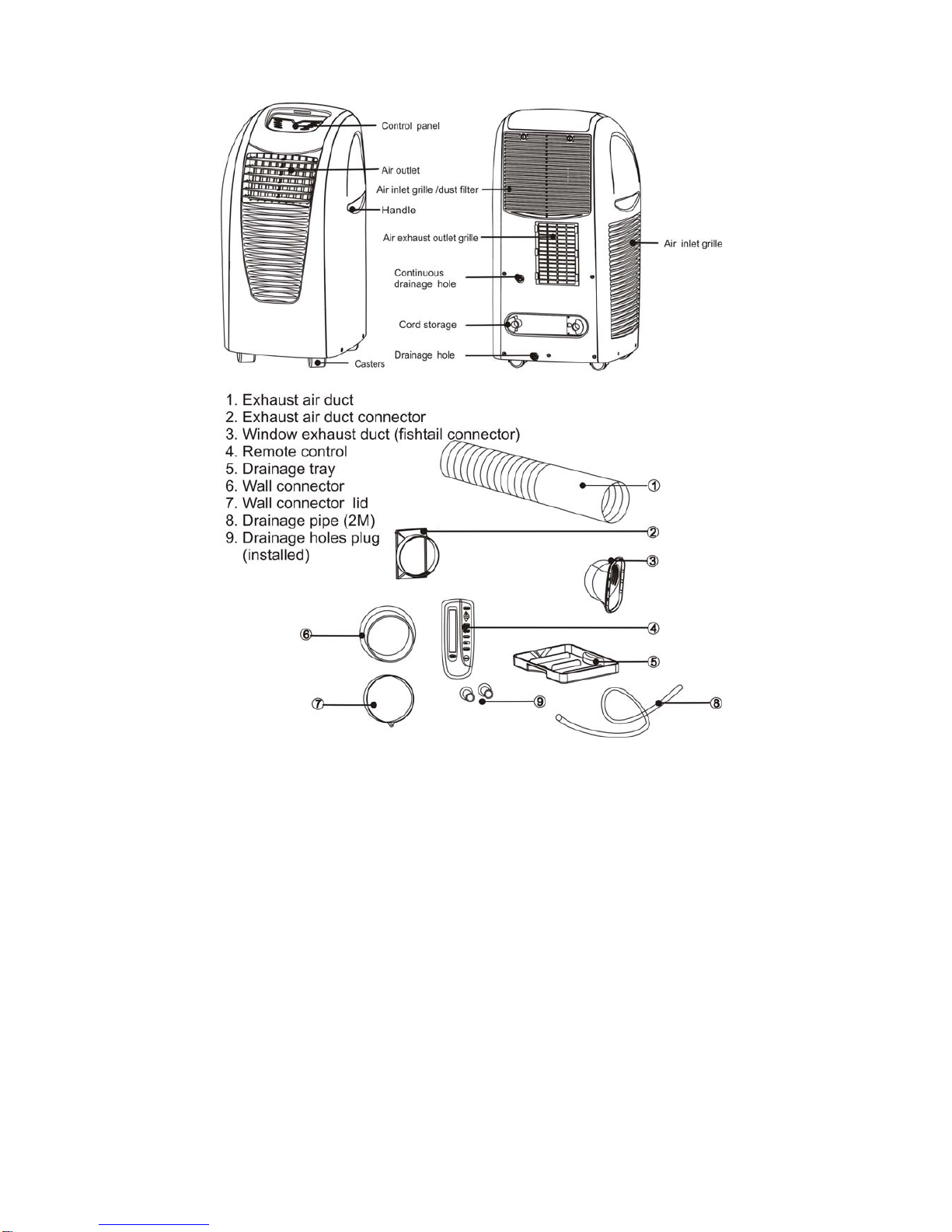

Product Description 9

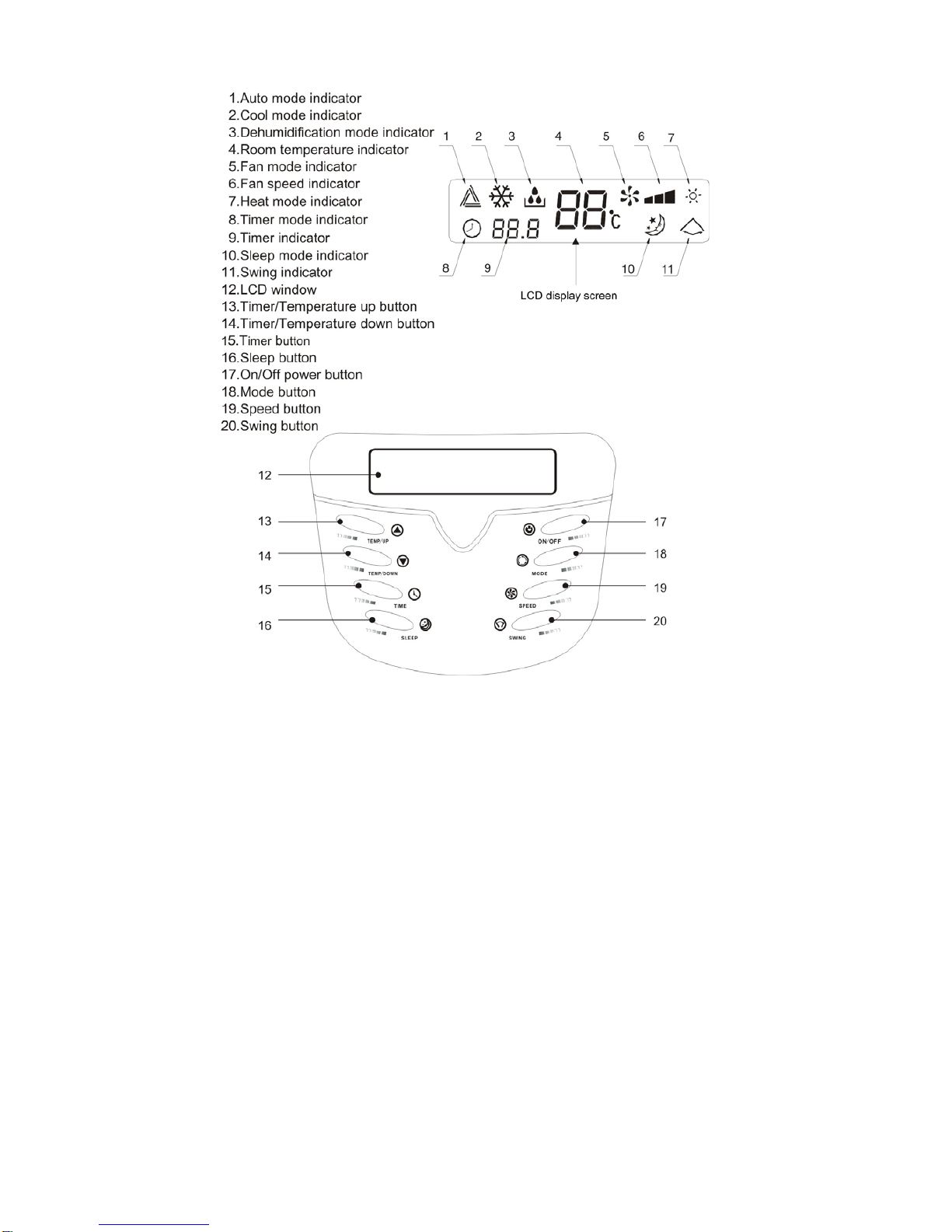

Control Panel 10

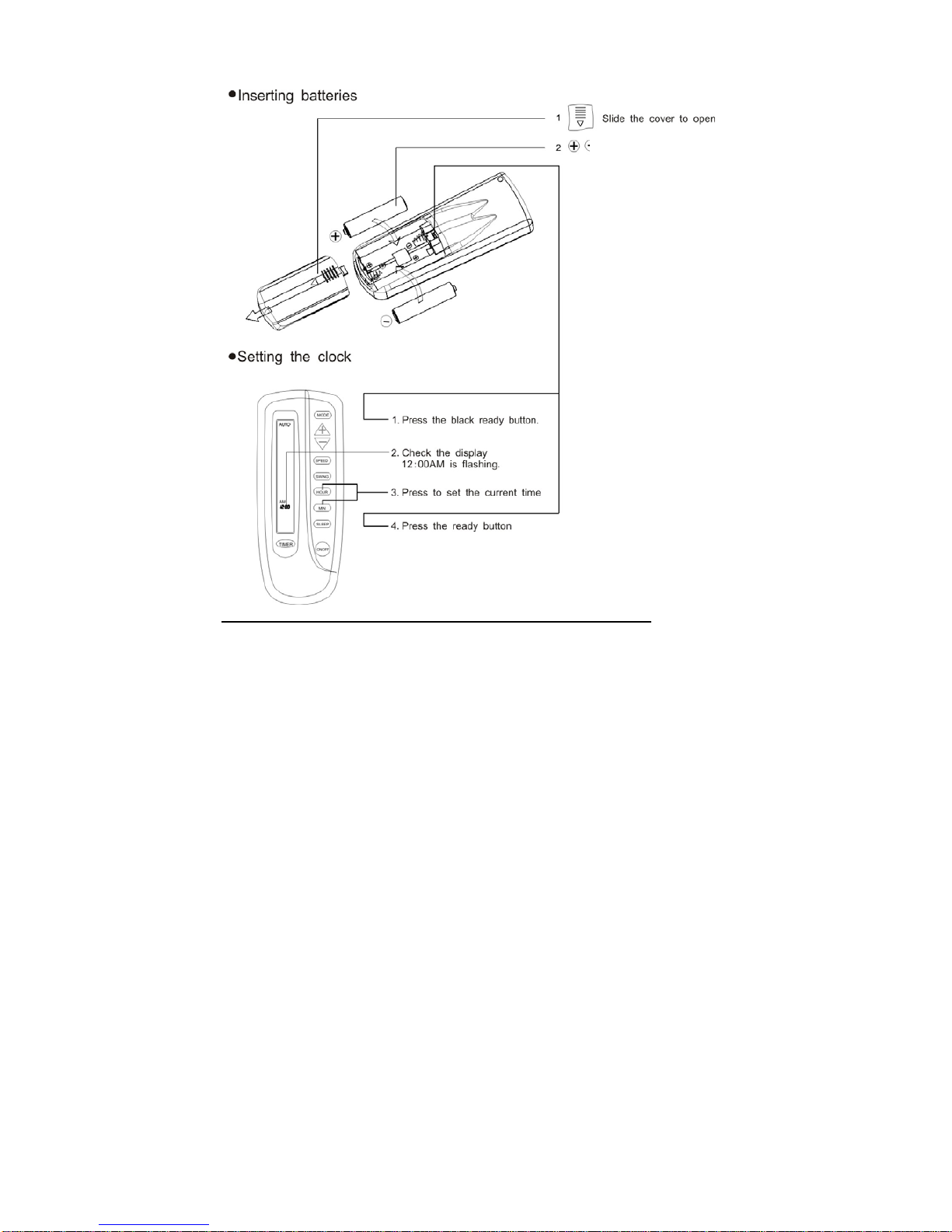

Remote Control Functions 11
Use of Control Panel 12 -14
Remote Control Operation 15

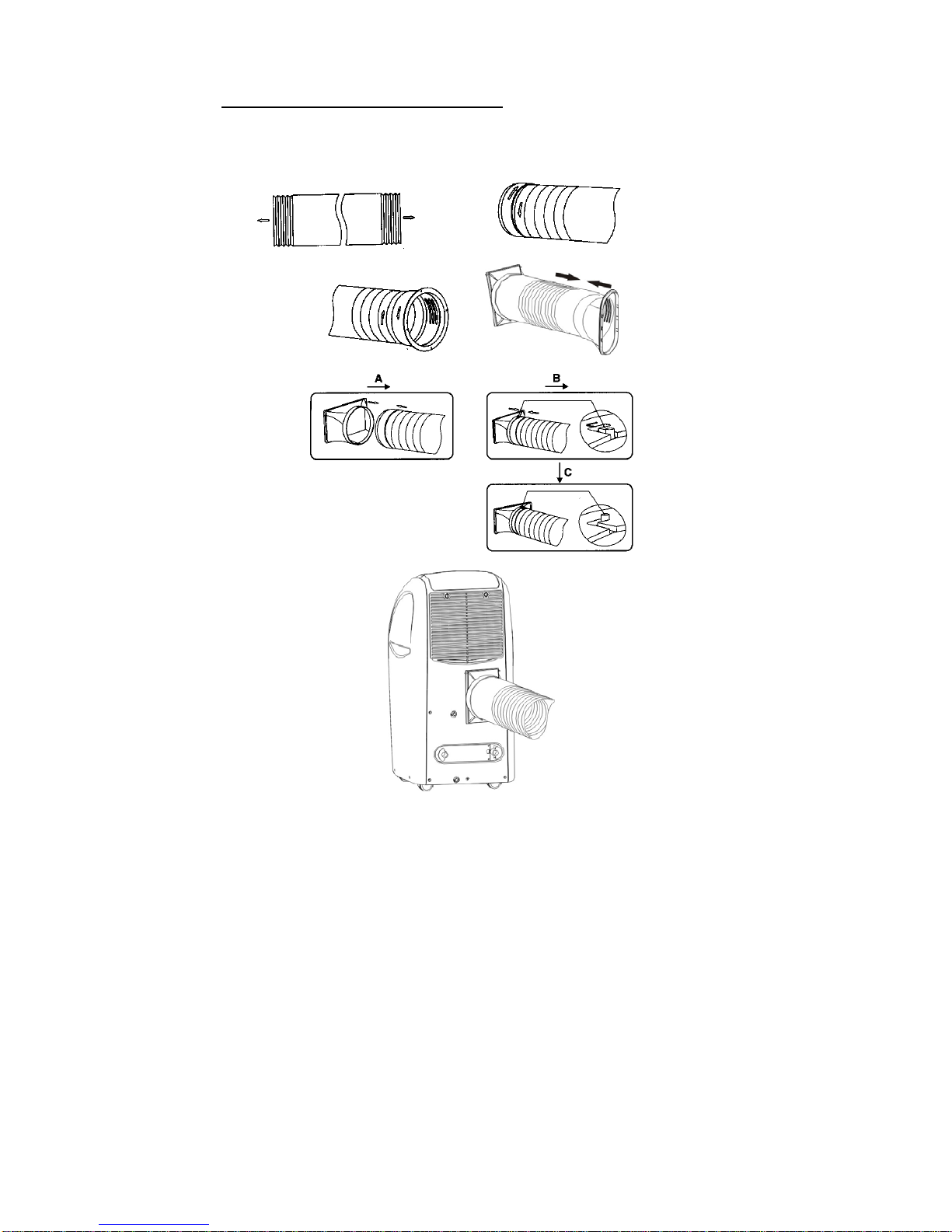

Air Exhaust Duct Installation 16 -18
Maintenance 19 – 20
Trouble Shooting 21
Services Warranty 23

- 3 -
I
Im mp po or rt ta an nt t S Sa af fe et ty y I In ns st tr ru uc ct ti io on ns s
Read and save these important safety instructions before using this
unit. When using electrical appliances, basic safety precautions should
always be followed:
1. Transport & store the unit in an upright position only. Leave it in an
upright position for at least 3 hours before first use.
2. Always place the unit on an even, level surface.
3. An opening in a window or wall is required to accommodate the exhaust
hose.
4. Ensure the unit is connected to an earthed power supply of the correct
rating. (Refer to the rating label located at the back of the unit).
5. The unit will cool when the room temperature is between 15°C~32°C
depending on the thermostat setting.
6. Operate this unit in an ambient temperature of 32°C or lower.
7. DO NOT use this unit for functions other than those described in this
instruction manual.
8. DO NOT tilt the unit.
9. DO NOT cover or obstruct the appliance’s inlet and outlet grilles.
10. Your air conditioner has been designed to be used only in the home,
office and similar conditions and should not be used for any other
purpose.
11. Never unplug the air conditioner while it is working, this could damage
the electronic circuits.
12. DO NOT use the appliance in a wet room, such as a bathroom or
laundry room to avoid the risk of electrical shocks.
13. Do not bend or crush the warm air exhaust hose.
14. DO NOT sit or place articles on the appliance.
15. DO NOT use the appliance with wet or damp hands.
16. DO NOT let chemical substances come into contact with the appliance.
17. DO NOT use the appliance in the presence of flammable substances or
vapours such as alcohol, insecticides, petrol, etc.
18. DO NOT use the plug to start and stop the appliance. ALWAYS use the
control panel to start and stop the unit.
19. ALWAYS keep an air path of at least 50cm from walls, furniture or
curtains.
20. ALWAYS turn off the appliance when it is not in use and remove the
mains plug from the socket outlet.
21. ALWAYS turn the unit off and remove the mains plug before cleaning,
carrying out maintenance or moving location.

- 4 -
22. Avoid the use of adapter plugs, multiple sockets and /or extension leads.
If their use is necessary, ensure they conform to current safety
standards.
23. Do not pull the electrical cable or place it near a source of heat: always
unroll it completely to avoid dangerous overheating.If the supply cord
becomes damaged, the service agent or a similarly qualified person
must replace it, in order to avoid a hazard.
24. The filter must be used with the product at all times, when removing it
for clearing always turn the unit off and unplug the mains plug from the
socket.
25. Do not operate the unit with a damaged power cord or plug, after it
malfunctions, has been dropped or damaged. If the power cord is
damaged it must be replaced by the manufacturer or a qualified service
engineer to avoid a hazard.
THE MANUFACTURER DISCLAIMS ANY RESPONSIBILITY, IF THE
INSTRUCTIONS ARE NOT FOLLOWED.
Please note:
Those who are not aware of the danger that might occur from using an
electrical appliance should operate under guidance and supervision.

- 5 -
B
BS S P Pl lu ug g W Wi ir ri in ng g
Wiring Instructions: Should it be necessary to change the plug please
note the wires in the mains lead are coloured in accordance with the
following code:
BLUE - NEUTRAL
BROWN - LIVE
GREEN AND YELLOW - EARTH
As the colours of the wires in the mains lead of this appliance may not
correspond with the coloured markings identifying the terminals in your plug,
proceed as follows:
1. The BLUE wire is the NEUTRAL and must be connected to the terminal
which is marked with the letter Nor coloured BLACK.
2. The BROWN wire is the LIVE and must be connected to the terminal
which is marked with the letter Lor coloured RED.
3. The GREEN/YELLOW is the EARTH and must be connected to the
terminal which is marked with the letter Eor or coloured GREEN OR
GREEN/YELLOW.
4. Always ensure that the cord grip is positioned and fastened correctly.
If a 13A (BS 1363) fused plug is used it must be fitted with a 13A fuse. If in
doubt consult a qualified electrician.

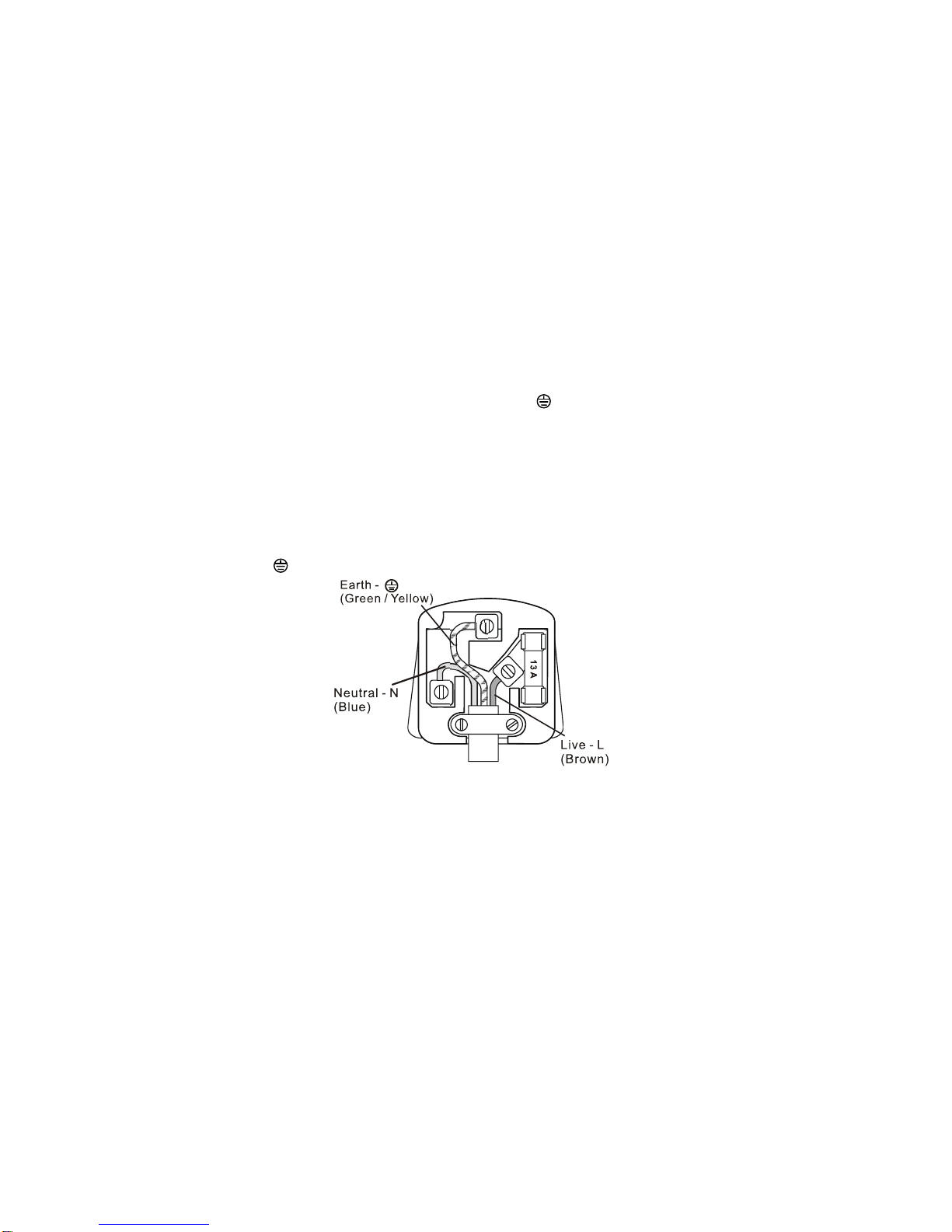

Wiring for a 13 Amp Plug (BS1363)
Please note. The Earth Terminal is marked with the letter Eor Earth
Symbol .

- 6 -
T
Te ec ch hn ni ic ca al l S Sp pe ec ci if fi ic ca at ti io on n
Model PAC1130
Cooling capacity 10,000 BRU/HR (2900W)
Heating capacity 11,000 BTU/HR (3200W)
Dehumidifying capacity 34L / Day
Input power 1100W (Cool) / 1200W (Heat)
Rated power 1500W (Cool) / 1600W (Heat)
Air flow 350 m³/h
Power source 220-240V ~ 50Hz
Sound pressure level ≤52 dB (A)
Net weight 36 kg
Unit 76 x 40.5 x 45 (cm)
Dimensions Packaged 87 x 44.5 x 48.5 (cm)
Refrigerant
R410A / 0.55 kg
NOTE:
1. The above cooling capacity is measured at ambient temperature 27°C,
Relative Humidity 60%.
2. Noise level is measured at a point one-meter away from the front of the
machine in cooling mode.
3. Fan power consumption is measured when the fan runs at high speed.
4. Specifications listed above are for reference only. Please see actual data
printed on the nameplate located on the appliance.
Please note: Due to continuous research and development the specifications
are subject to change without notice.

- 7 -
T
Te ec ch hn ni ic ca al l S Sp pe ec ci if fi ic ca at ti io on n
Model PAC1140
Cooling capacity 14,000 BTU/HR (4100W)
Heating capacity 15,000 BTU/HR (4400W)
Dehumidifying capacity 43L / Day
Input power 1450W (Cool) / 1600W (Heat)
Rated power 1900W (Cool) / 1800W (Heat)
Air flow 480 m³/h
Power source 220-240V ~ 50Hz
Sound pressure level ≤52 dB (A)
Net weight 41 kg
Unit 84.5 x 45 x 50 (cm)
Dimensions Packaged 96.5 x 49.5 x 54.5 (cm)
Refrigerant
R410A / 0.75 kg
NOTE:
5. The above cooling capacity is measured at ambient temperature 27°C,
Relative Humidity 60%.
6. Noise level is measured at a point one-meter away form the front of the
machine in cooling mode.
7. Fan power consumption is measured when the fan runs at high speed.
8. Specifications listed above are for reference only. Please see actual data
printed on the nameplate located on the appliance.
Please note: Due to continuous research and development
the specifications are subject to change without notice.

- 8 -
E
En ne er rg gy y S Sa av vi in ng g A Ad dv vi ic ce e
1. Do not locate the air conditioner where furniture or other objects
can obstruct the airflow.
2. Keep blinds/curtains closed during the warmest part of the day.
3. Close the fireplace damper, floor and/or wall grilles, so cool air
does not escape through the chimney or ductwork.
4. Keep the filters clean.
5. Avoid opening doors frequently.
6. Each person present in a room provides between 100 & 150Watts
of heat, consequently, the more people there are in the room, the
less effective the unit will be in cooling.
7. Set the unit to maximum cooling and high-speed ventilation for the
initial start up and then adjust the unit to a comfortable setting.

- 9 -
P
Pr ro od du uc ct t D De es sc cr ri ip pt ti io on n

- 10 -
C
Co on nt tr ro ol l P Pa an ne el l

- 11 -

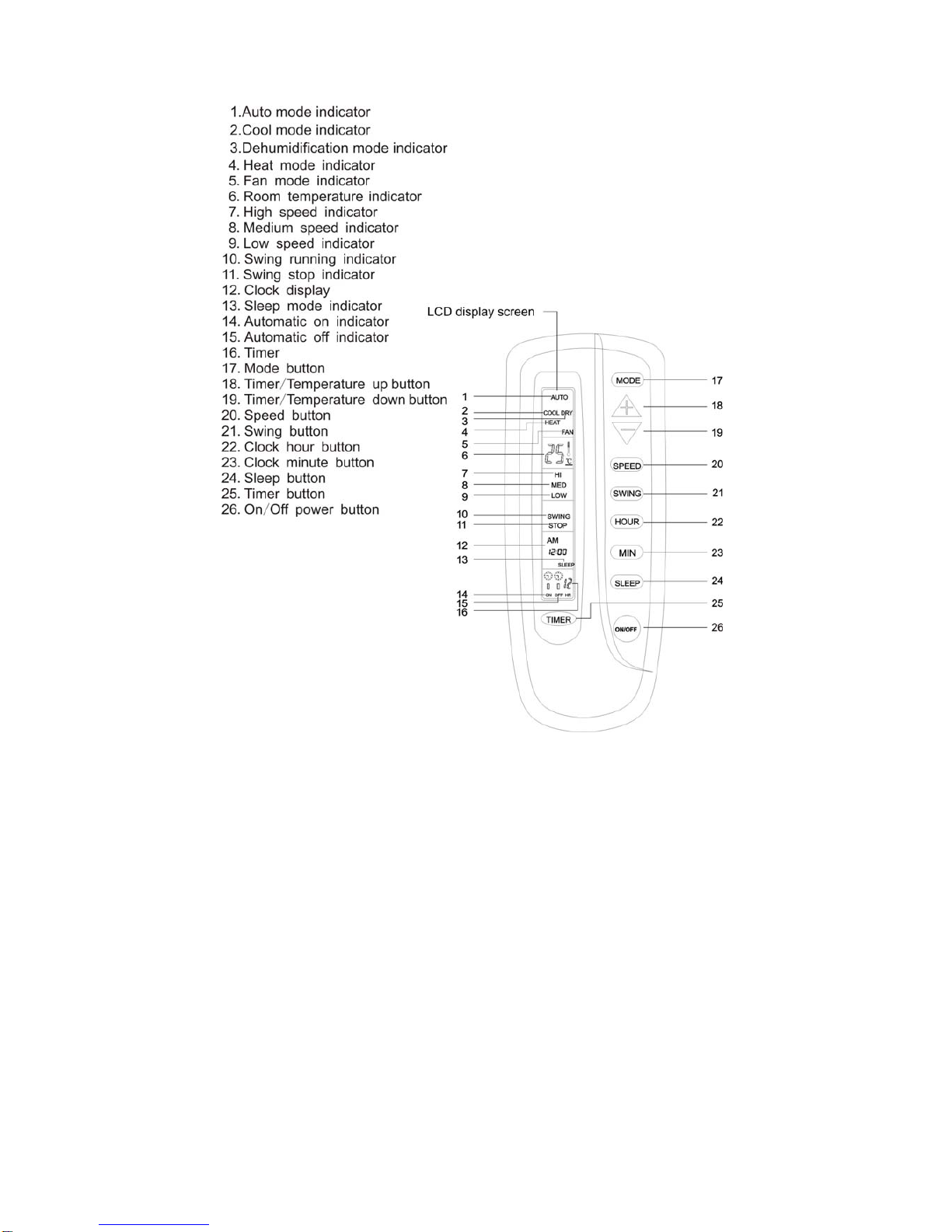

R
Re em mo ot te e C Co on nt tr ro ol l F Fu un nc ct ti io on ns s

- 12 -
U
Us se e o of f C Co on nt tr ro ol l P Pa an ne el l
Do not operate in cooling or dehumidifying mode when room temperature
exceeds DB35OC, RH70%
zAuto, Dehumidification, Cooling, Fan mode operation
1. Turning the unit on
a) Plug into the power supply and the unit will beep twice.
b) Press the “On/Off” button to turn on the unit. The LED displays the
room temperature and operates in Auto mode.

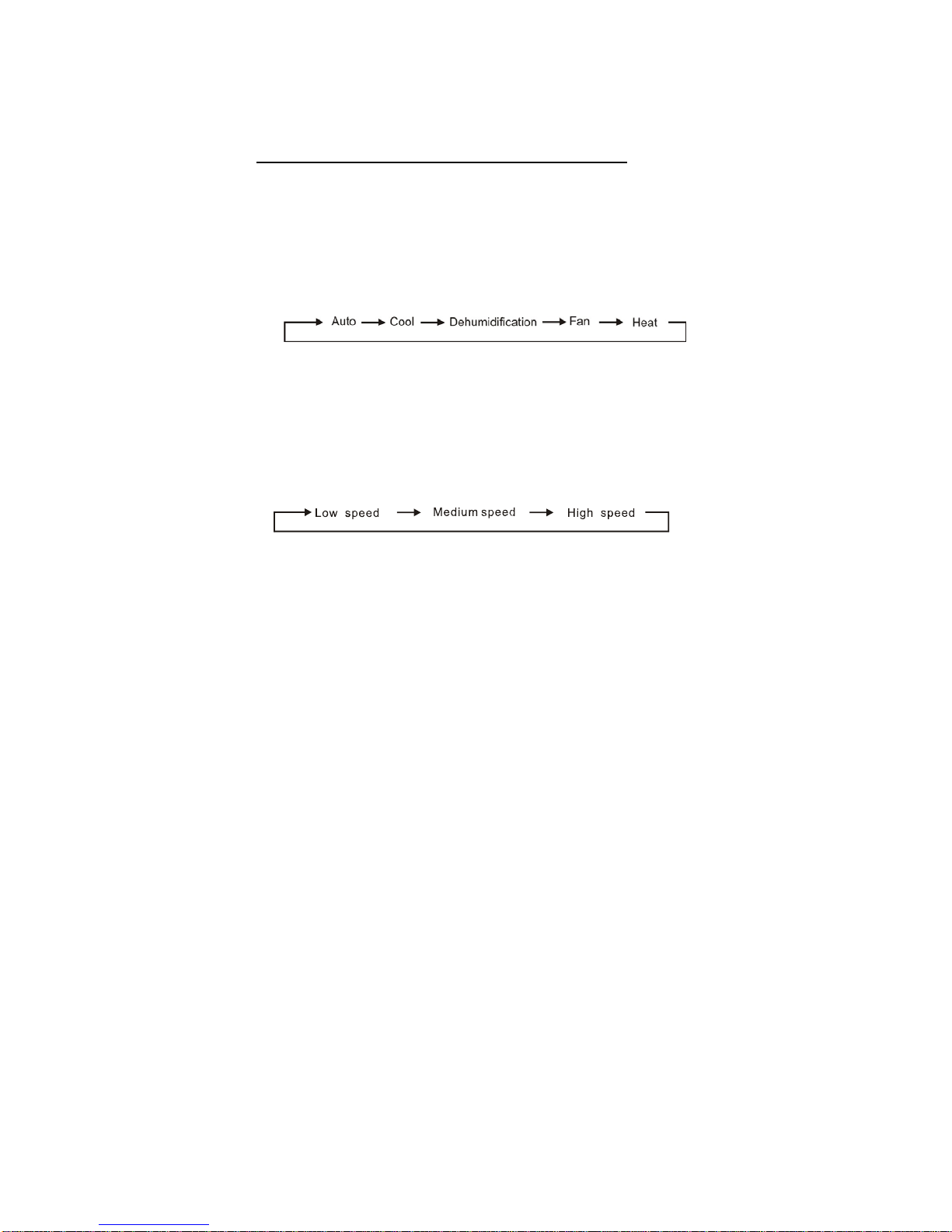

2. Selecting operating mode
Press the “Mode” button to select the desired mode as show below:
3. Adjusting temperature
The adjustable temperature range is 15-31OC. Press Δ (up) or ∇(down)
button to increase or decrease by 1OC. The unit LED shows the target
temperature for 5 seconds and then display the room temperature.
4. Adjusting the fan speed
Press the “Speed” button to select the desired fan speed as shown
below
5. Turn the unit off
Press “On/Off” button, the unit will emit “di” sound and stop working.

- 13 -
U
Us se e o of f C Co on nt tr ro ol l P Pa an ne el l
(continued)
6. Modes operation
Automatic Mode
1. When the Auto mode is selected, the indoor temperature sensor
operates automatically to select the desired mode: Cool, Fan or
Heat.
2. When the room temperature ≥24OC, the unit automatically
selects cooling mode and the upper fan turns to low speed
automatically.
3. When the room temperature >22OC and ≤23OC, the unit
automatically selects fan mode and the upper fan turns to low
speed automatically.
4. When the room temperature ≤22OC, the unit automatically
selects heat mode and the upper fan turns to low speed
automatically.
Dehumidification Mode
1. The upper fan will run at low speed, the speed is not adjustable.
2. The compressor and lower fan runs will stop running after 8
minutes, then run again after 6 minutes automatically.
3. Temperature control is inoperative in dehumidification.
Cooling Mode
1. When the room temperature is higher than set temperature. The
compressor starts to run.
2. When the room temperature is lower than set temperature, the
compressor stops and upper fan operates at original set speed.
Fan Mode
1. The upper fan runs at set speed, the compressor and lower fan
motor stop.
2. The temperature is not adjustable.
Heat Mode
1. When the room temperature is higher than the set temperature,
the unit will not function.
2. When the room temperature is lower than the set temperature,
the heat function will operate.
3. To avoid cold air blowing out, the unit is equipped with an
automatic cold air cut-out.

- 14 -
U
Us se e o of f C Co on nt tr ro ol l P Pa an ne el l
(continued)
7. Timer operation
1. Press “Timer” button to set Automatic Off time while the unit is
running.
2. Press “Timer” button to set Automatic On time while the unit is in
standby mode.
3. The time can be adjustable within a range of 1 hour to 12 hours.
Press the temp up button or temp down button to increase or
decrease the time by 1 hour per press.
8. Swing operation
1. Press “Swing” button to change airflow direction. The unit default
setting is straight airflow.
2. Press “Swing” button once, the airflow direction will change to swing
at 120Oright-left.
9. Sleep operation
1. The sleep operating is effective while the unit is in cool or heat mode.
2. Press “Sleep” button and the unit runs in Sleep mode, the upper fan
turns to low speed automatically. The set temperature increases by
1OC after 1 hour and 2 OC after 2 hours. After 6 hours the unit will
stop running
Please note
The main board has a memory function. When the unit is in standby and
switched back on it will start up in the last mode set. This feature is not
available in auto on timer mode.

- 15 -
Remote Control Operation
How to install or change batteries (batteries not include)
1. The polarity of batteries must match the indicator in the remote control.
2. Don’t mix new and old batteries.
3. If the remote control will not be used for a long period, take batteries out
to avoid corrosion.
4. The batteries must be removed from the remote control before it is
scrapped and dispose of them responsibly.
Note: Batteries contain materials, which are hazardous to the environment;
they must be removed from the appliance at the end of their life and
disposed of safely.
Ensure batteries are
in the correct
position
(for example: Adjust
from 11.00 to 14.05.
Open the back cover,
press the reset button.
If time is flashing on
the LCD, press button
MIN and adjust to 05,
then press HOUR and
adjust to 14)

- 16 -
Air Exhaust Dust Installation
How to connect the exhaust air duct:
1. Extend the exhaust air duct
by pulling out the two ends of
the duct.
2. Screw the exhaust air duct
into the mid-connector.
3. Screw the exhaust air duct into the outlet connector (wall or fish tail).
4. Screw the mid connector into the inlet connector.
5. Connect the inlet connector onto the unit.

- 17 -
Air Exhaust Dust Installation
(continuous)
For window use the fish tail fitting, rather than the square fitting.

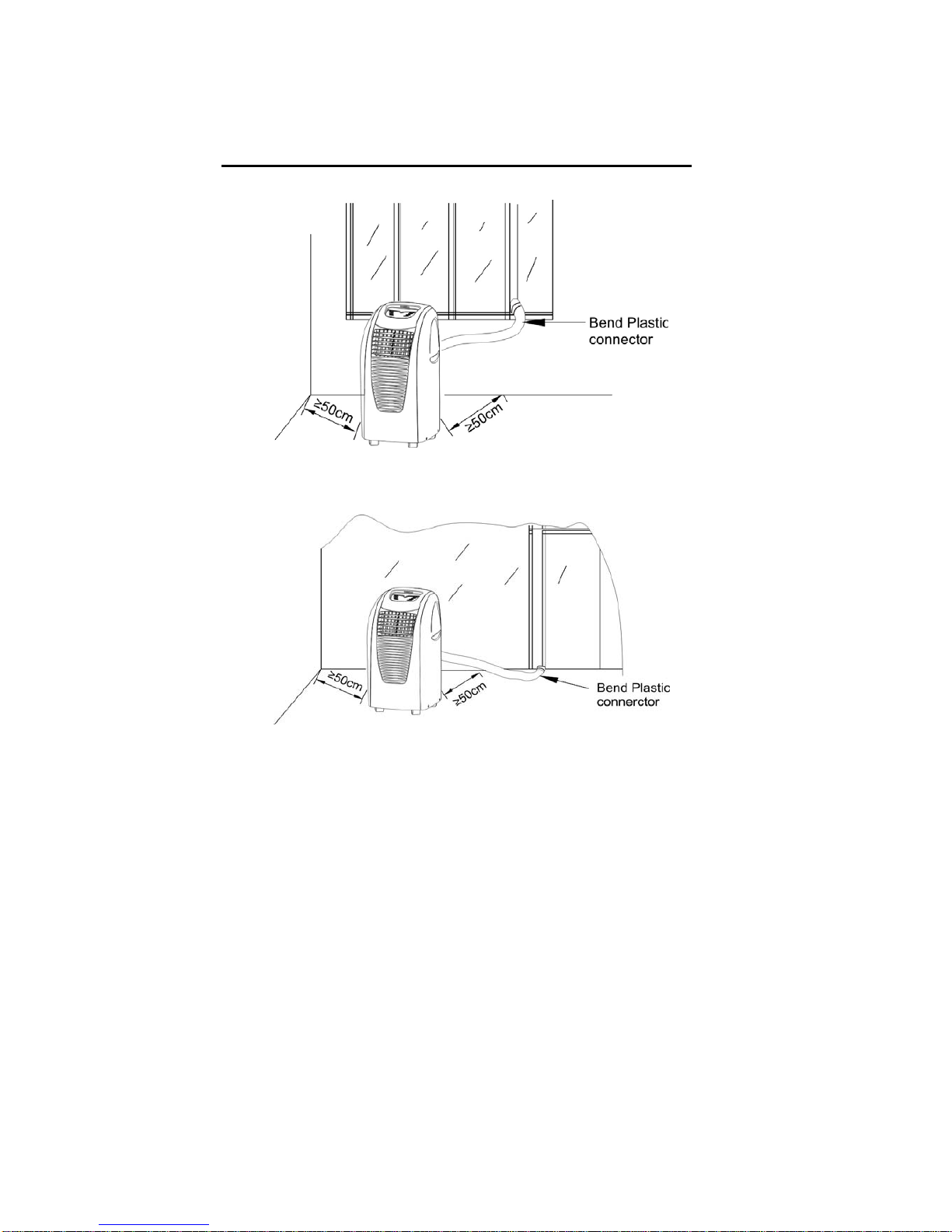

The following methods should be used to exhaust the hot air:
zExhaust hot air from window
Open window slightly and use the fishtail.
Close the window as much as possible leaving the fishtail outside.
zExhaust hot air from door
Open door to an appropriate angle to exhaust condensate hose outside.
Remove the exhaust air duct from the unit when not in use and store away
carefully.

- 18 -
Air Exhaust Dust Installation
Note
1. Air exhaust duct can
be extend from 0.55 to
1.8 meters, the unit
works more efficiently
if the duct is shorter.

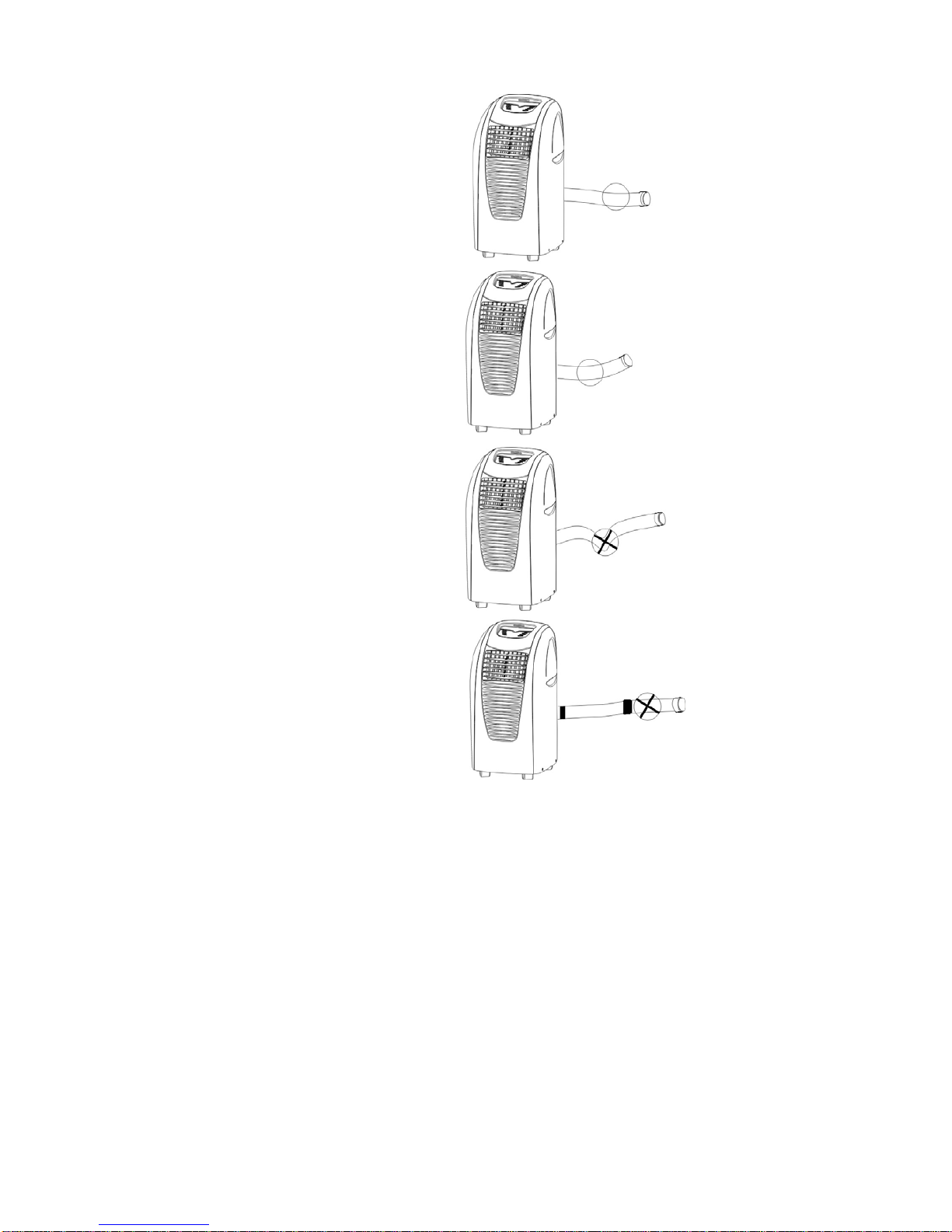

2. Ensure the air exhaust
duct is not folded or
kinked, as this impedes
the unit’s efficiency.
3. Do not extend the
exhaust duct.

- 19 -
M
Ma ai in nt te en na an nc ce e
Before carrying out ANY maintenance works ensure the
appliance is switched off and the three-pin plug is removed from
the power socket.
Filter maintenance
Remove air filter from inlet grille. Rotate the
lock to OFF position then take out air filter
cover from back air inflow vent.
Clean: Wash the air filter with warm water to remove any accumulated dust
and lint. If the filter is very dirty add mild household detergent to the water.
Allow the filter to dry naturally before returning to the air filter cover.
Note
•-If the air filter is blocked with lots of dust, the airflow volume will
decrease. Suggest cleaning the filter once every two weeks or more
frequently if necessary.
•Let the filter dry thoroughly before reinstalling it. If necessary seek
technical help.
How to draining excess condensate water
This unit produces condensate. Excess condensate not exhausted out of the
hose collects in an internal drainage pan. When the pan is full the unit will not
operate. A buzzer will sound and the LCD screen will display ‘E4’.

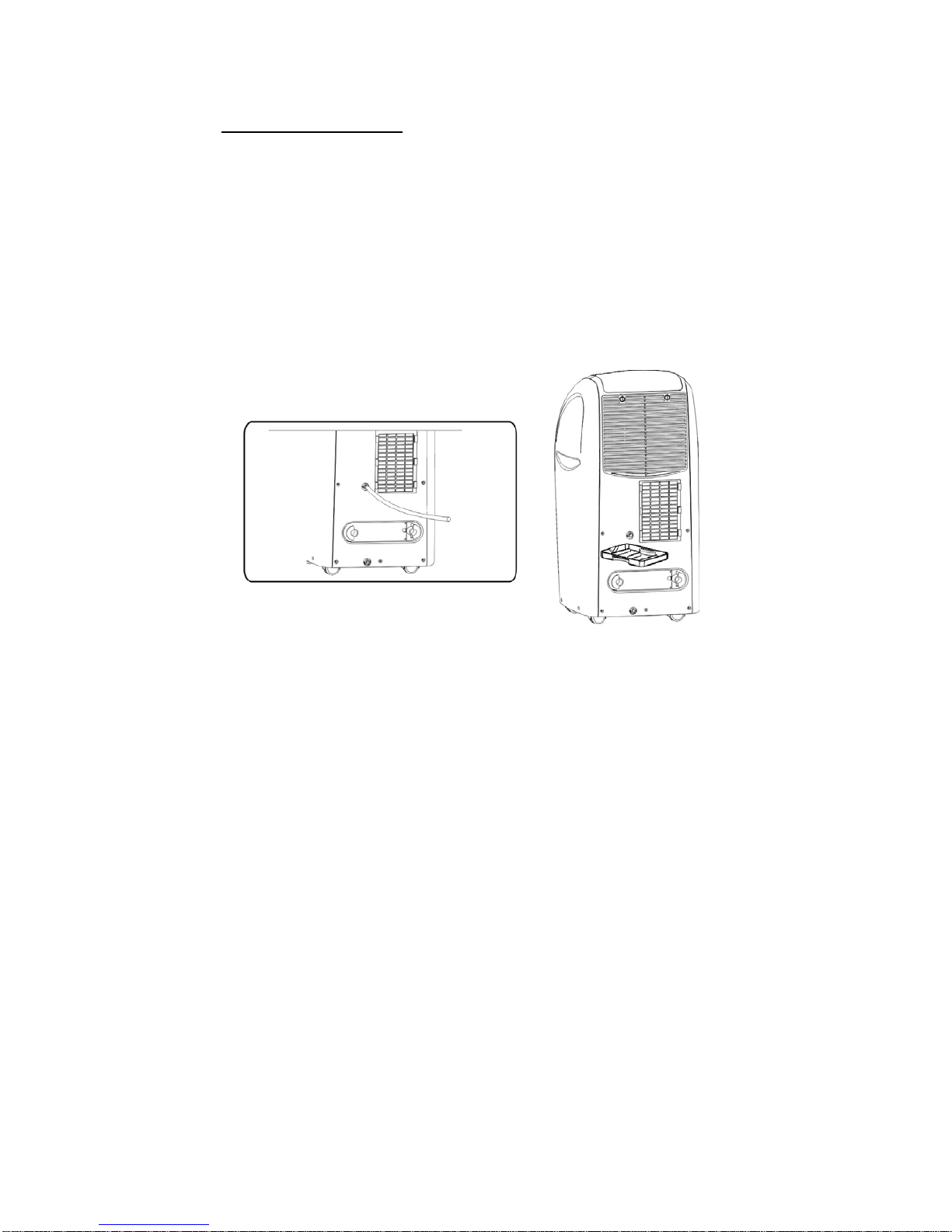

A. Drainage Tray
1. Place drainage tray under drain hole.
2. Remove the stopper and empty into the drainage tray. Repeat until
water is removed.
3. When the drainage tray is full push the stopper back into the drain
hole, and empty the drain tray.

- 20 -
M
Ma ai in nt te en na an nc ce e
(continued)
B. Continuous drainage
This unit can be used with a permanent drain connection. If you use this unit
frequently, please connect the pipe to the unit as shown below so that the
unit can drain the water continuously.
1. Disconnect the rubber plug from continuous drainage pipe. Store the
disconnected rubber plug for future use.
2. Connect supplied drainage pipe to drainage hole, condensed water will
flow out.
3. If you want to extend drainage pipe, you can use 16mm (inside diameter)
plastic pipe and connect with the supplied drainage pipe.
Note: Please ensure the unit is fully drained before storing
away for a period of time.
