Prem-I-Air PMINISW8W User manual

8000BTU AIR CONDTIONER
COOLING & HEATING
Model PMINISW8W / PMINISW8C
PLEASE READ THIS INSTRUCTION MANUAL
BEFORE OPERATING AND KEEP
SAFE FOR FUTURE REFERENCE

2
CONTENT
Title Page
A. Specification 3
B. Before use 4
C. Important safety instructions 5, 6
D. BS plug wiring 7
E. Product description 8, 9
F. Wall mounting installation instruction 10-14
G. Assembly instruction for mobile unit (only available
in combi model) 15, 16
H. Operating instructions 17-21
I. Operation using remote controller 22, 23
J. Maintenance 24
K. Trouble shooting 25
L. Service & warranty 26

3
A. SPECIFICATION
Model PMINISW8W
PMINISW8C
Capacity(W) Cooling Capacity 2300
Heating Capacity 2400
Power Cooling 920
Heating 960
Dehumidifying Capacity (L/day) 25
Air Volume (m3/h) 320
Power Supply 220-240V ~ /50Hz
Noise Level (dB) 49
Refrigerant (g) R407C / 400g
Net Weight(KG) (not includes accessories) 32
Body (mm) 465*765*235Dimension
(H*W*D) Package (mm) 536*930*315
Notes:
1. Cooling capacity is measured at ambient temperature Dry-bulb
27OC,Wet-bulb 19OC(Indoor and outdoor, the same).
2. Heating capacity is measured at ambient temperature Dry-bulb 20OC,
Wet-bulb 15OC (Indoor and outdoor, the same).

4
B. BEFORE USE
 Transport & store the unit in an upright position only. Leave it in an upright
position for at least 3 hours before first use.
 DO NOT dispose of any packaging until the installation of the air
conditioner is completed.
 After having removed the packing, check that all the content is intact and
complete. (See list of accessories). In the event of missing parts, contact
your retailer.
 This air conditioner has been designed to cool or heat the air of a room
and should only used for the purpose.
 The manufacturer cannot be held liable for damage caused to property or
injury to persons or animals due to incorrect installation, regulation and
maintenance or improper use.
 This air conditioner contains R407C refrigerant: at the end of its life, the
disposal of this air conditioner must be in accordance with the strict
regulation governing the recycling of this product, please operate with
caution during the disposal. Please contact your local authority for
regulatory advice.
 DO NOT switch on before having totally assembled the air conditioner and
before installing in its correct operating position.

5
C. IMPORTANT SAFETY INSTRUCTIONS
 Always place the unit on an even, level surface.
 An opening in a window (in portable version only) or wall is required to
accommodate the exhaust hose to expel the hot air.
 Ensure the unit is connected to an earthed power supply of the correct
rating. (Refer to the rating label located at the back of the unit).
 The unit will cool when the room temperature is between 18°C~32°C
depending on the thermostat setting.
 DO NOT use this unit for functions other than those described in this
instruction manual.
 DO NOT tilt the unit.
 DO NOT cover or obstruct the appliance’s inlet and outlet grilles.
 Your air conditioner has been designed to be used only in the home, office
and similar conditions and should not be used for any other purpose.
 This unit is for indoor use only.
 Never unplug the air conditioner while it is working, this could damage the
electronic circuits.
 DO NOT use the appliance in a wet room, such as a bathroom or laundry
room to avoid the risk of electrical shocks.
 DO NOT bend or crush the warm air exhaust hose. (in portable version
only)
 DO NOT sit or place articles on the appliance.
 DO NOT use the appliance with wet or damp hands.
 DO NOT let chemical substances come into contact with the appliance.
 DO NOT use the appliance in the presence of flammable substances or
vapours such as alcohol, insecticides, petrol, etc.
 DO NOT use the plug to start and stop the appliance. ALWAYS use the
intended control panel to start and stop the unit.
 ALWAYS turn off the appliance when it is not in use and remove the mains
plug from the socket outlet.
 ALWAYS turn the unit off and remove the mains plug before cleaning,
carrying out maintenance or moving location.
 Do not pull the electrical cable or place it near a source of heat: always
unroll it completely to avoid dangerous overheating. If the power cord
becomes damaged, the service agent or a similarly qualified person must
replace it, in order to avoid a hazard.
 The filter must be used with the product at all times, when removing it for
clearing always turn the unit off and unplug the mains plug from the
socket.
 Do not operate the unit with a damaged power cord or plug, after it
malfunctions, has been dropped or damaged. If the power cord is
damaged it must be replaced by the manufacturer or a qualified service
engineer to avoid a hazard.
 Closely supervise any children and pets when unit is in use

6
Energy Saving Tips
 Blocking of the filter reduces the efficiency of the air and increases its
power consumption by up to 6%.
 Avoid opening doors frequently.
 Each person present in a room provides between 100 Watts and 150
Watts of heat. Consequently, the more people there are in a room, the less
effective the unit will be in cooling.
 To ensure the optimal efficiency of the unit, we advise you to keep doors
and windows closed, and to take into account the surface of the walls and
windows exposed to the sun.
 Avoid the use of adapter plugs, multiple sockets and /or extension leads. If
their use is necessary, ensure they conform to current safety standards.
 Before starting the appliance, check that it is correctly earthed, according
the legislation in force in the country concerned.
READ AND SAVE THESE INSTRUCTIONS

7
D. BS PLUG WIRING
Wiring Instructions: Should it be necessary to change the plug please note the
wires in the mains lead are coloured in accordance with the following code:
BLUE - NEUTRAL
BROWN - LIVE
GREEN AND YELLOW - EARTH
As the colours of the wires in the mains lead of this appliance may not
correspond with the coloured markings identifying the terminals in your plug,
proceed as follows:
1. The BLUE wire is the NEUTRAL and must be connected to the terminal,
which is marked with the letter Nor coloured BLACK.
2. The BROWN wire is the LIVE and must be connected to the terminal, which
is marked with the letter Lor coloured RED.
3. The GREEN/YELLOW is the EARTH and must be connected to the
terminal which is marked with the letter Eor or coloured GREEN OR
GREEN/YELLOW.
4. Always ensure that the cord grip is positioned and fastened correctly.
If a 13A (BS 1363) fused plug is used it must be fitted with a 13A fuse. If in
doubt consult a qualified electrician.

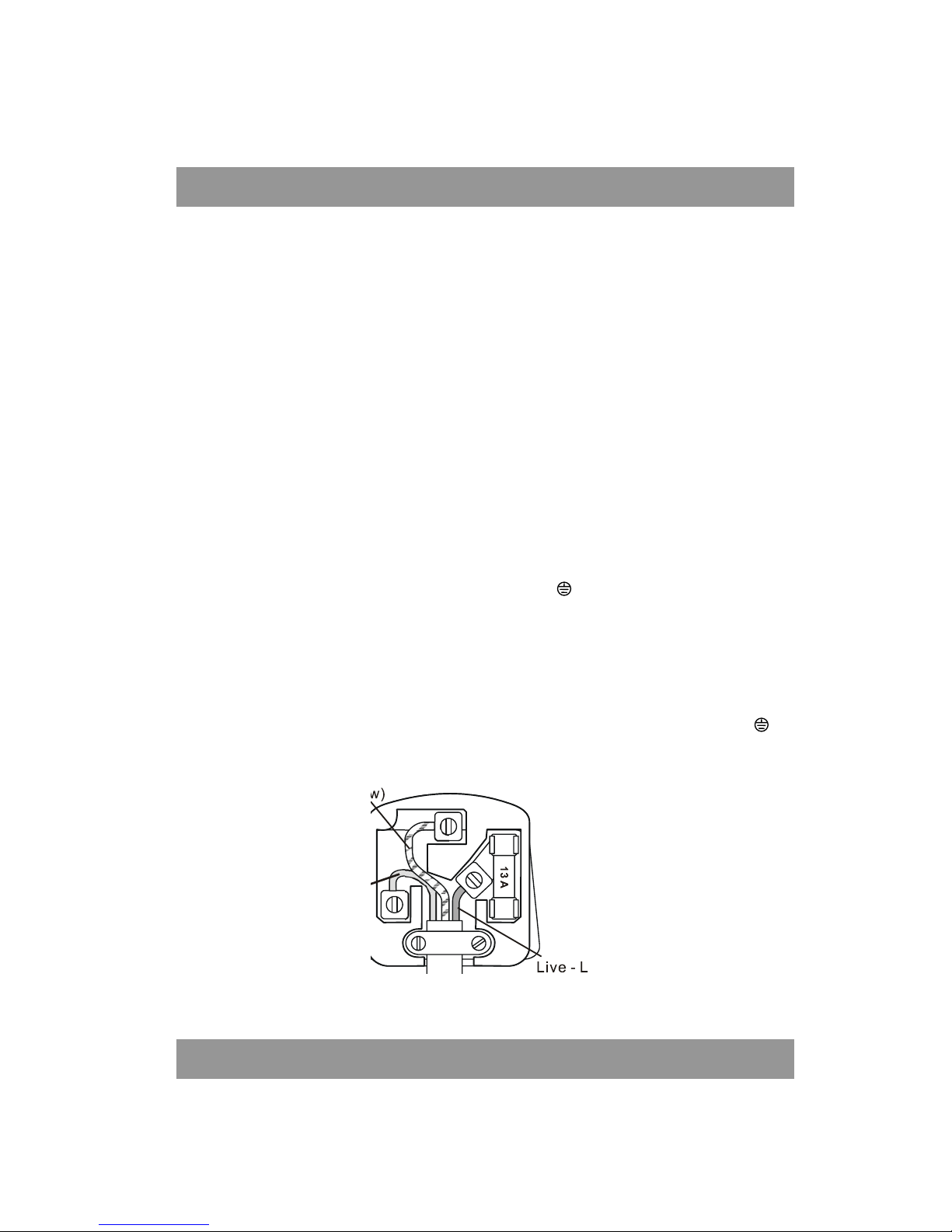

Wiring for a 13 Amp Plug (BS1363)
Please note. The Earth Terminal is marked with the letter Eor Earth Symbol

8
E. PRODUCT DESCRIPTION

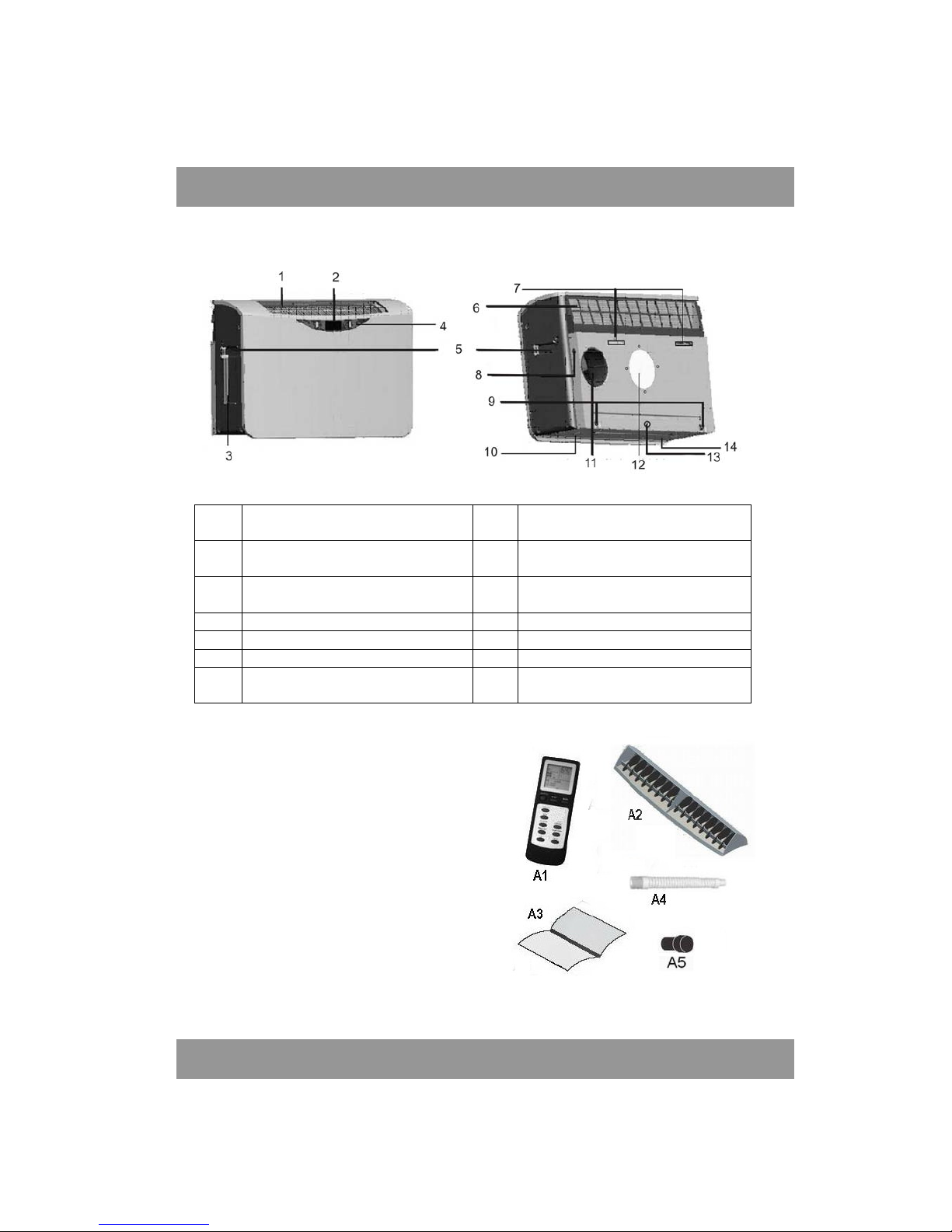

1. Air outlet 8. Wire control connection
(optional)
2. VFD display 9. Caster bracket locking holes
(using in mobile version only)
3. Remote control storage 10. Caster bracket hanging hole
(using in mobile version only)
4. Control panel 11. Air exhaust
5. Handles 12. Air inlet
6. Dust filter 13. Drainage hole
7. Hanging holes (for wall mount
brackets) 14. Caster bracket hanging hole (using in mobile version only)
Standard accessories
A1. Remote control
A2. Fix head with manual adjust louvre
(Pre-installed)
A3. User manual
A4. Drain hose
A5. Rubber plug
** Batteries not included

9

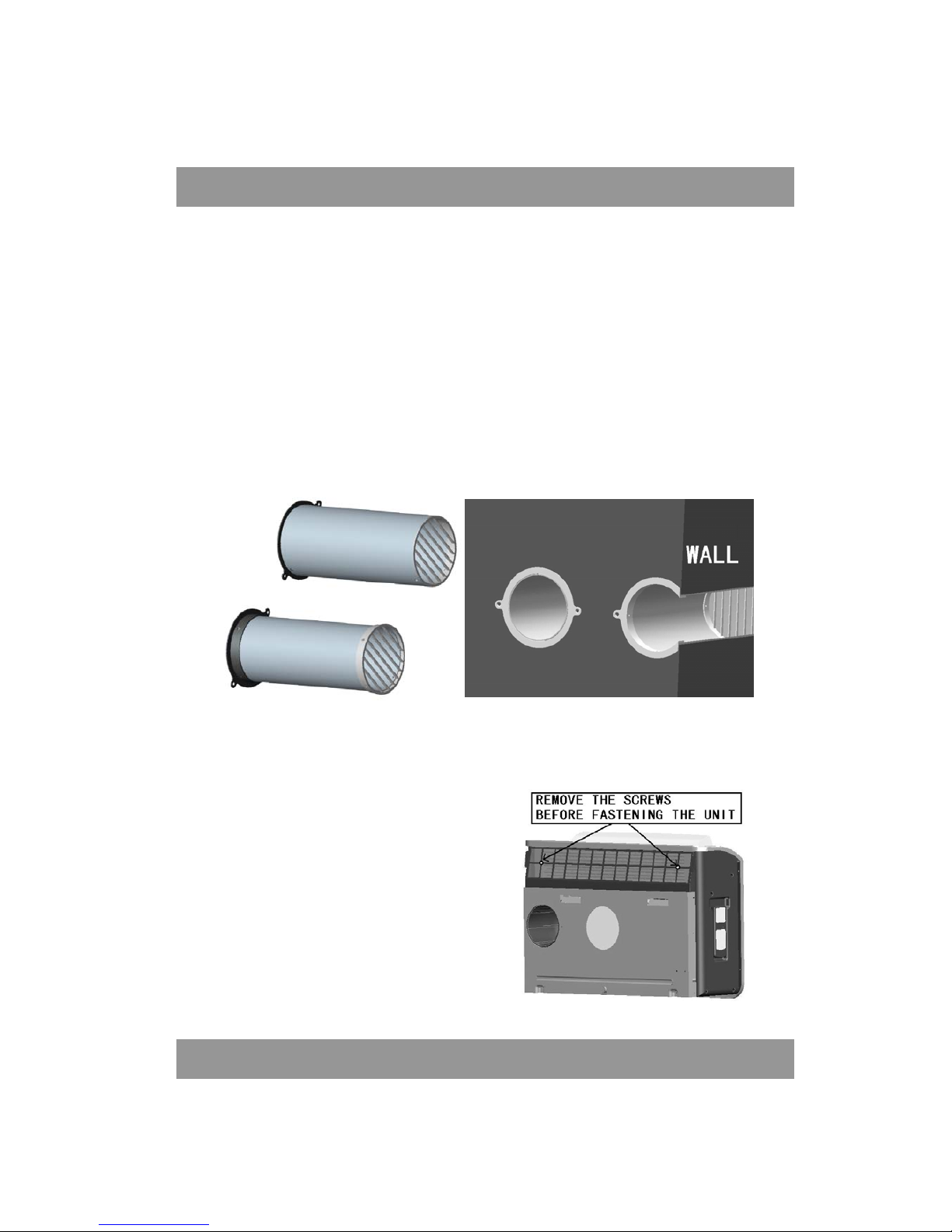

Wall mounted kit:
W1. Wall bracket
W2. Pipe flange
W3. Air intake pipe (dia.120mm)
W4. External grating
W5. Hot air discharge pipe (dia.130mm)
W6. Template for wall drilling
W7. Extension condensate hose
W8. Screwkit

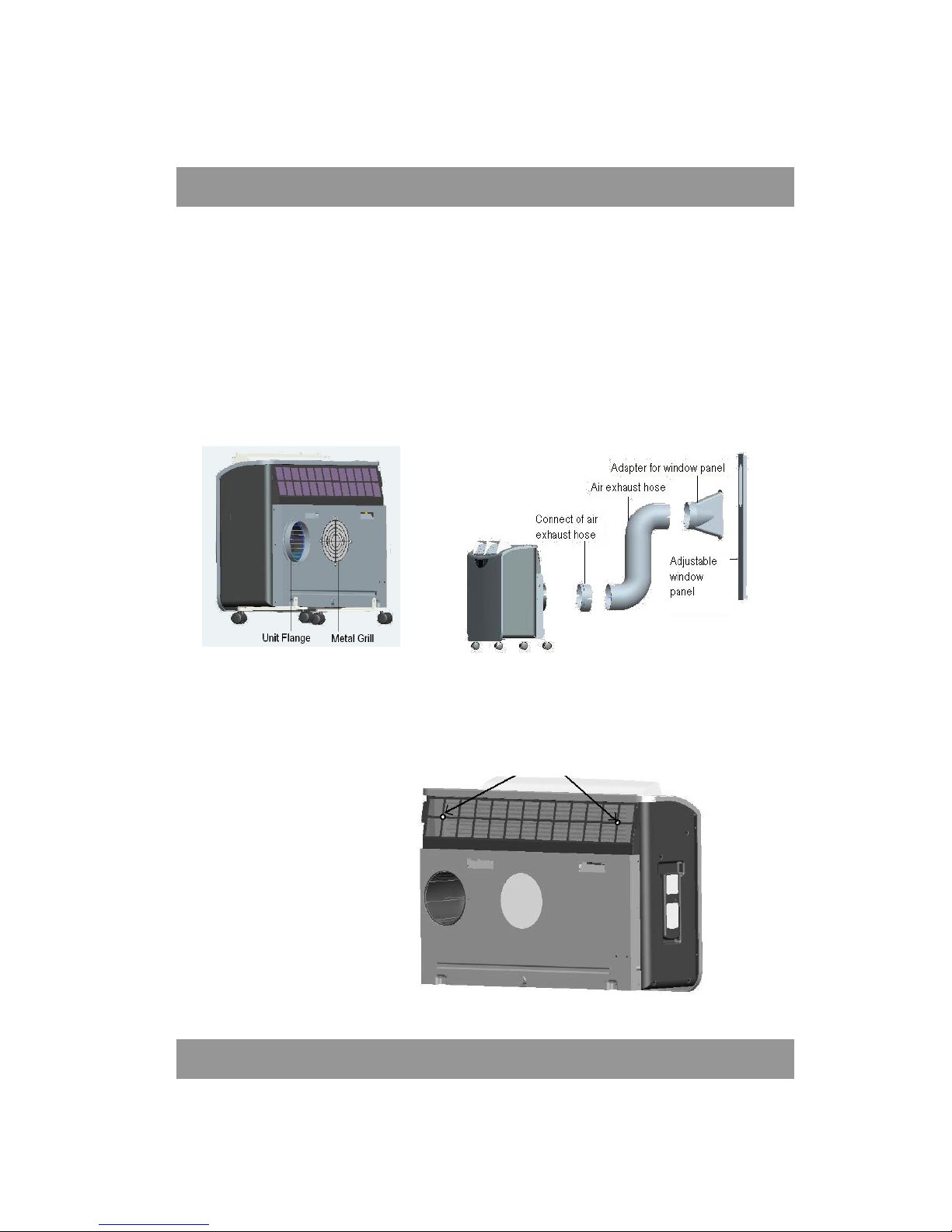

Mobile kit (optional):
P1. Castors assembly
P2. Metal grille
P3. Unit flange
P4. Air exhaust hose connector
P5. Air exhaust hose
P6. Adapter for window panel
P7. Adjustable window panel
P8. Butter-fly screw x 2
P9. Screw x 4
P10. Insulated sleeve
Schuko to UK converter plug
This Schuko to UK converter plug is used in this product. Refer to UK
plug wiring instruction section for regular UK plug wiring.

10
F. WALL MOUNTING INSTALLATION INSTRUCTIONS

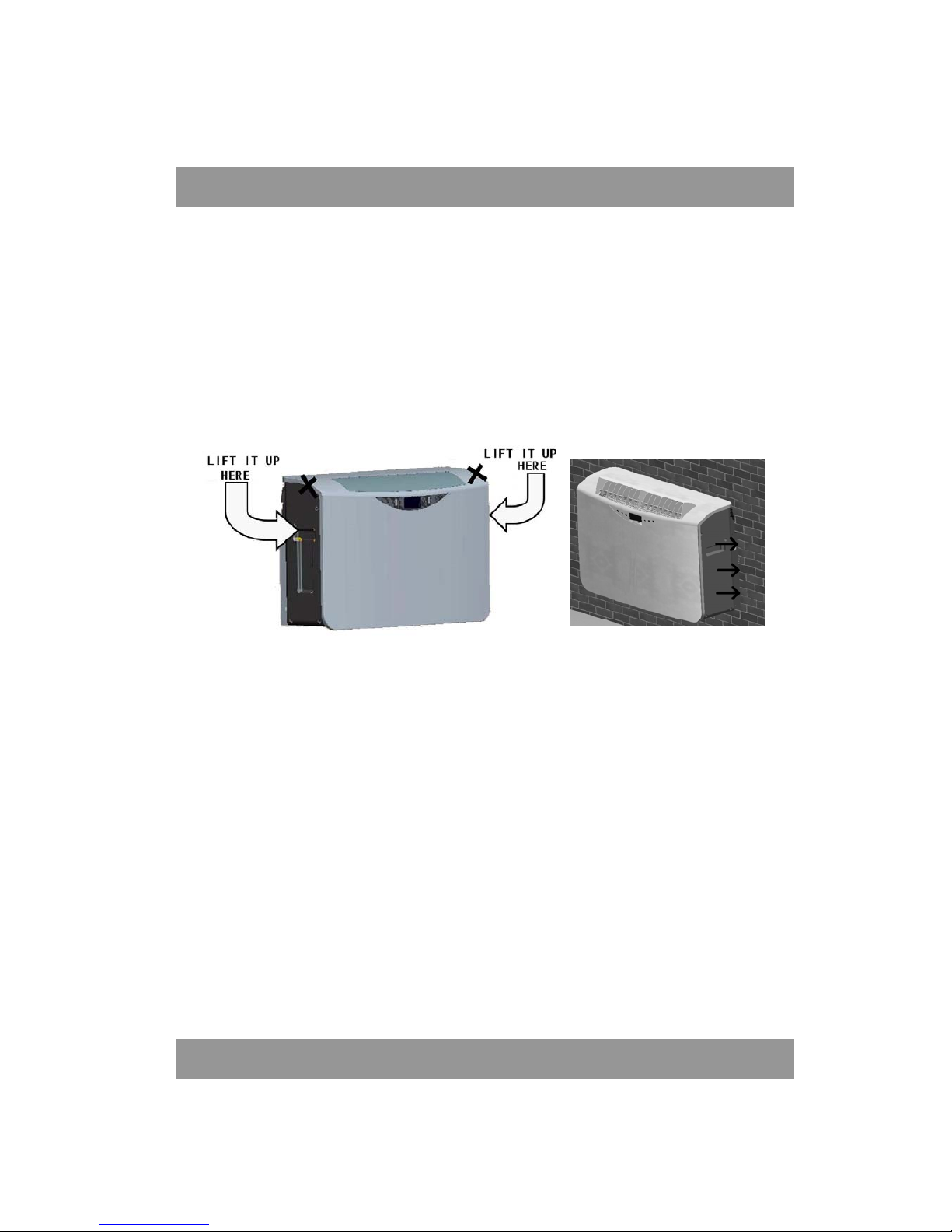

1. Positioning the air conditioner
 To obtain maximum performance
from your unit, it must be
correctly positioned. Please
following the guidelines and
instructions below in full, as
failure to do so could cause
potential installation problems:
 The air conditioner must be
installed on an exterior wall that
has access to the outside and a
minimum of 2 meters free
clearance to allow good airflow
 The unit must be fitted
following the template, with
space to the top, bottom and
sides of the unit.
 The wall on which the unit is
installed must be sturdy and able to withstand the weight of the unit.
After determining the best place for installation as described above,
please check to ensure that the wall can be drilled without causing
damage to the fabric of the building. If necessary obtain professional
advice to ensure that no damage is done to power supply or water pipes.
Please also ensure that there are no obstacles on the outside of the wall
which may interfere with the performance of the unit.

11
241
171.3188
160
4036
626262
62
6262
93
93
?30
?132
?132
160
2.6
HOT AIR
DISCHAGE
HOLE
AIR INTAKE HOLE
DRAINAGE HOLE
726
500mm 420mm
MINUMUM DISTANCE
FROM FLOOR
MINIMUM DISTANCE FROM CEILING
Drawing paper size: A1
?8
473.7
All Dimensions are in MM
Remark: 160MM TWO COMPULSORY
FIXING POINTS FOR INDOOR PIPE
ADAPTORS
COMPULSORY FIXING POINTS
EXTRA FIXING POINTS TO USE IF THE WALL IS NOT SOLID
2. Template
Fasten the template to the wall once the following guidelines have been
thoroughly checked.
 Do not drill any holes until you are 100% confident that there are no
obstacles in the area you wish to drill and there are no obstructions, which
could be hidden by the construction of the wall, for example: Electrical
wiring, water &gas pipes or supporting lintels or beams.
 Ensure that a spirit level is used, as the unit must be level.
 Follow the installation instructions & measurements in full.

12
3. Drilling the Wall
Please note: If you are drilling the hole above ground floor level, please
ensure that the outside area is supervised until drilling has been
completed.
INTAKE AND OUTLET HOLES
 This operation should be
carried out using the proper
tools (diamond tip or core bit
drills with high twisting torque
and adjustable rotation speed)
 Fasten the template to the wall
taking care to check the
distance from the floor and or
ceiling and keep horizontal by
using a spirit level.
 Use a pilot drill to mark the
centre of each core hole to be drilled. Use a core boring head having a
diameter of 135mm to drill the two holes for intake and outlet air
 It is recommended that the holes must have a slight downward inclination of
3-5 degrees to prevent any backflow of water from the pipes.
Drainage
The unit produces condensate that has to be extracted to enable the unit to
operate correctly. It is necessary to drill a hole through the wall measuring
30mm in diameter in the position shown in the template. Drainage occurs by
gravity. For this season, it is essential for the drain line to have a minimum
downward inclination of at least 3% throughout its length.
3. Fastening the bracket
 Drill the holes for
anchoring the fastening
bracket to the wall using
the 6 holes showed in
black on the template. If
the wall is not sturdy
enough it is advisable to use extra anchor bolts using the holes showed in
grey on the template
 The anchor bolts provided require 8mm holes; the wall should be inspected
to determine if provided bolts are sufficient. No liability can bee accepted by
the manufacturer or his agent in case of underestimation of the structural
consistency of the anchorage made at the time of installation.

13
4. Installation of vent tubes
 After drilling the holes, the plastic pipes supplied with the air conditioner
need to be fitted through them.
 The pipe with a diameter 130mm (hot air discharge) has to be fitted in the
right hole. The length of the pipes should be matches to the thickness of the
wall..
 Fit the plastic pipe into the hole and fasten the flange with 2* M4 screws on
the wall. Please use the same instructions to fit the left hand tube (air intake
pipe) using the supplied pipe with a diameter of 120mm.
 The tube diameter is slightly smaller than that carried out using the 135mm
nominal diameter core drill. Please centre the pipe into the hole in the wall
and insulate and seal using polyurethane foam to prevent air and humidity
penetration.
 Fit the drainage pipe into the pre-drilled hole and seal as above. A further
extension pipe can be fitted if necessary.
5. Remove the screws on the filter
Please remove the 2 screws before
fastening the unit on the bracket.

14
6. Fitting the unit on bracket
After checking again that the fastening bracket is securely fastened to the wall,
and that any necessary preparations for electric connection and condensate
drainage have been made, tilt the unit slightly towards you to aid the operation
of fastening the unit onto the bracket. Fit the drainage pipe that protrudes from
the l back of the unit, which is then inserted in the drainage hole.
The air conditioner can now be pushed firmly against the wall. Carefully inspect
the installation to ensure that the insulating back panel fits firmly against the
wall and there are no gaps at the back of the air conditioner.

15
G. ASSEMBLY INSTRUCTION FOR MOBILE ONLY (only
available in combi model)
If combi model is purchased, the mobile accessories are included.
1) Castors kit
 Two sets of castors system provided.
 Lift up the unit carefully. DO NOT TURN
THE UNIT UPSIDEDOWN
 Fit the tongue of the Castor Frame in the
square hole on the bottom of the base plate.
 Screw the castor frame on the back panel of
the unit with the butter fly screw.
2) Window Kits
Note: Your window kit has been designed to fit most standard vertical and
horizontal window applications. However, it may be necessary for you to
improvise/modify some aspects of the installation procedures for certain types
of windows. Please refer to measurements:
tikredilswodniW :muminimmc27 mc041
:mumixam
tikredilswodniW mc27:muminim :mumixammc041

16
3) Hose and grille
 Screw the Metal Grille (P2) to cover the right hole on the back of the unit.
 Screw the Unit Flange (P3) to cover the left hole on the back of the unit.
 Select a suitable location; make sure you have easy access to an electrical
socket.
 Remove the hose, window exhaust adapter, and window panel kit.
 To install the flexible hoses, insert the end of the hose with the round
connector, turn the connector clockwise on the Unit Flange.
 Screw the window exhaust adapters on hoses by turning them clockwise.
 Insert the air outlet window exhaust adapter into the hole of the window
panel kit.
4) Filter screws
Please fasten filter screws if it is removed in wall installation. Always fasten the
filter in portable.
Only remove it in cleaning.

17
H. OPERATION INSTRUCTIONS
CONTROL PANEL
VFD DISPLAY
Control Panel Functions
1) On/Off
Starts or Stops the Unit
2) Mode
Select the functions of the unit for:
Auto Mode
Cooling Mode
Dehumidifying Mode
Fan Mode
Heating Mode

18
3) Fan Speed Control
Select the fan speed for:
High / Medium / Low
The fan speed can be visually distinguished by the speed of the digital air
segments progressing out from the windmill fan image on the VFD
display.
4) Temperature
Select the desired temperature by pressing either “UP” or “DOWN” button
when using the unit in cooling or heating function. The VFD flashes to
display the desired temperature during setting, it displays the room
temperature after 5 seconds.
5) TIMER
Press “TIMER” button until the VFD display shows a flashing “ ” to
set Automatic Off time while the unit is running.
Press “Timer” button and the VFD display will show a flashing “ ” to
set Automatic On time while the unit is in ready state.
Press either “UP” or “DOWN” buttons to set the clock to the required turn
off time or turn on for1 hour by pressing once. The adjustable time range is
1 hour to 12 hours.
The light will flash for 3 seconds to activate the timer which has been
programmed programmed.
Press the TIMER button again to cancel the setting.

19
OPERATION USING CONTROL PANEL
1) Cooling Operation
a) If using in mobile mode, ensure that the exhaust duct is correctly
installed.
b) Plug the Power Cord in to the power outlet socket
c) Turn on the unit by pressing the ON/OFF Button on the control panel.
d) Press MODE Button until “ ” appears on the VFD display
e) Press …. UP or DOWN… until the desired room temperature appears
on the VFD. The temperature ranges from 16 oC-31oC.
f) Select desired fan speed by pressing the FAN Button.
NOTE: During hot days, the unit will cool off the room most efficiently by setting
the temperature at the lowest and the fan speed at the highest. Reducing the
length of the exhaust duct and insulating the exhaust duct and keeping direct
sunlight to a minimum will also improve the cooling efficiency.
2) Dehumidifying Operation
a) If using in mobile mode ensure that the exhaust duct is correctly
installed.
b) Plug the Power Cord into the power outlet socket.
c) Turn on the unit by pressing the ON/OFF Button on the control panel.
d) Press the MODE Button until the “ ” appears on the VFD display.
NOTE: The unit operates at low fan speed during dehumidifying. The unit
cools room slightly during dehumidification. Keep the windows and the doors
closed to aid the effectiveness of the unit in removing moisture from the room.
The unit will not perform dehumidification when the room temperature is lower
than 61OC.

20
3) Fan Operation
a) Plug the Power Cord into the power outlet socket.
b) Turn on the unit by pressing the ON/OFF Button on the control panel.
c) Press the MODE Button until “ ” appears on the VFD display.
d) Select the fan speed by pressing the FAN Button.
NOTE: When the unit is running in fan mode, the exhaust duct is inoperative
and is not required.
4) Heating Operation
a) Plug the Power Cord into the power outlet socket.
b) Turn on the unit by pressing the ON/OFF Button on the control panel.
c) Press the MODE Button until “ “ appears on the VFD display.
d) Press the button UP or DOWN until the desired room temperature
appears on the VFD. The temperature ranges from 16oC-31oC.
e) Select the fan speed by pressing the Fan button. It is recommended to
use the low fan
NOTE: When activating the heat pump, the unit will shut off for 3-5 minutes
before starting the heating operation.
For the portable type, when the unit is running on heating mode, stretch out the
air exhaust hose to their full length, and wrap the insulated sleeve around the
hose and secure with the Velcro. Do this before installing the exhaust hose into
the air outlet ports on the back of the unit.
5) Auto Operation.
a) Turn on the unit by pressing the ON/OFF Button on the control panel.
b) Press the MODE Button until the “ ” appears on the VFD display.
c) Select the fan speed by using FAN button.
During AUTO mode, the unit operates at heating mode when the room
temperature is below 20oC. It operates at dehumidifying mode when the
room temperature is between 20oC to 26.6oC. It operates in cooling
mode when the room temperature is above 26.6oC. You may use the
timer with the AUTO mode.
