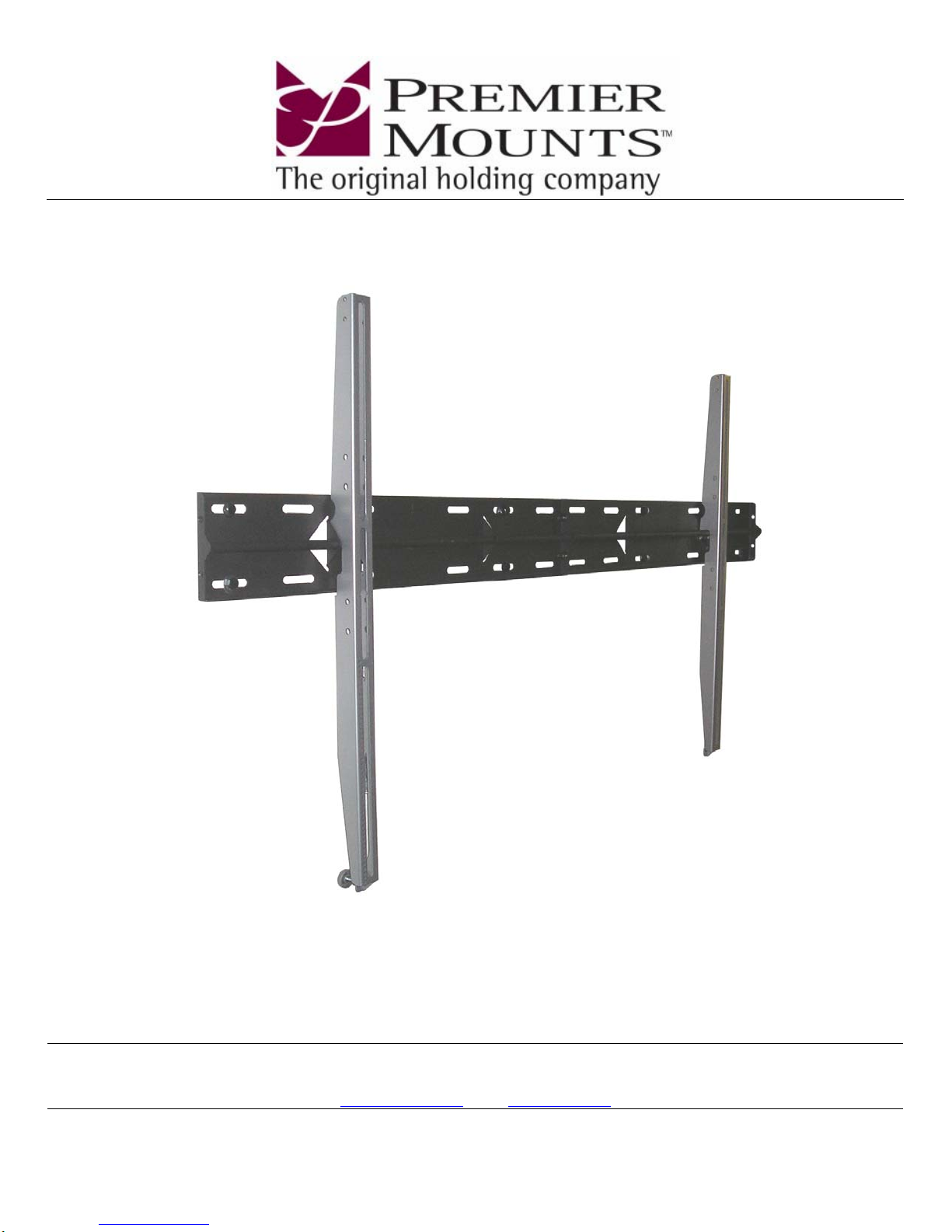

INSTALLATION MANUAL
UFM-4
Premier Mounts
3130 E. Miraloma Avenue
Anaheim, CA 92806
Phone: [phone] Fax: [phone]
[email protected] www.mounts.com Rev. 02

PBL-110 Projector Mount
Page - 2 - Installation Manual

UFM-4
Installation Manual Page - 3 -
Table of Contents
Warning Statements ...........................................................................................................................................- 4 -
Parts List ............................................................................................................................................................- 5 -
Installation Tools ...............................................................................................................................................- 5 -
Mounting Bracket Installation ...........................................................................................................................- 9 -
Wall Stud Location ..........................................................................................................................................- 12 -
Installing the Flat Panel Display ......................................................................................................................- 17 -
Technical Specifications ..................................................................................................................................- 19 -
Warranty ..........................................................................................................................................................- 20 -
Contact Premier Mounts ..................................................................................................................................- 20 -
Notes ................................................................................................................................................................- 21 -

UFM-4
Page - 4 - Installation Manual
Warning Statements
WARNING: THE WALL STRUCTURE MUST BE CAPABLE OF SUPPORTING 210 LBS. IF NOT, THE WALL
STRUCTURE MUST BE REINFORCED. PROPER INSTALLATION PROCEDURE BY A QUALIFIED
SERVICE TECHNICIAN, AS OUTLINED IN THE INSTALLATION INSTRUCTIONS, MUST BE
ADHERED TO. FAILURE TO DO SO COULD RESULT IN SERIOUS PERSONAL INJURY, OR EVEN
DEATH.
WARNING: SAFETY MEASURES MUST BE PRACTICED AT ALL TIMES DURING THE INSTALLATION OF
THIS PRODUCT. USE PROPER SAFETY GEAR AND TOOLS FOR THE INSTALLATION
PROCEDURE TO PREVENT PERSONAL INJURY.
WARNING: PRIOR TO THE INSTALLATION OF THIS PRODUCT, THE INSTALLATION INSTRUCTIONS
SHOULD BE READ AND COMPLETELY UNDERSTOOD. THE INSTALLATION INSTRUCTIONS
MUST BE READ TO PREVENT PERSONAL INJURY AND PROPERTY DAMAGE. KEEP THESE
INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION FOR FUTURE
REFERENCE.
Indicates that the power plug is to be
disconnected from the power outlet.
Contact Premier Mounts with any
questions.
Safety precautions must be taken at all
times.
Warning and Caution statements.
Do not install on a structure that is prone to vibration, movement or chance of impact. Failure to
do so could result in damage to the flat panel display and/or damage to the mounting surface.
Do not install near heater, fireplace, direct sunlight, air conditioning or any other source of direct
heat energy. Failure to do so may result in damage to the flat panel display and could increase the
risk of fire.
At least two qualified people should perform the installation procedure. Injury and/or damage can
result from dropping or mishandling the flat panel display.

UFM-4
Installation Manual Page - 5 -
Parts List
NOTE: This wall mount is shipped with all proper installation hardware and components. Make sure that
none of these parts are missing and/or damaged before beginning installation. If there are parts
missing and/or damaged, please stop the installation and contact Premier Mounts
(800-368-9700).
Wall Plate
(2ea)
5/16” Flat
Washers
(8ea)
Griplates™
(8ea)
Mounting
Brackets
(left and
right)
5/16” x 3”
Lag Bolts
(wooden
studs only)
– (8ea)
Wall
Bumpers
(2ea)
M8 x 16mm
Hex Head
Bolt (2ea)
Thread
Depth
Indicator
M8 Hex Nut
(2ea)
Installation Tools
Phillips Head Screw Driver Soft Material/ Blanket Drill Gun
Pencil Tape Measure 5/16” Socket and Wrench
Level

UFM-4
Page - 6 - Installation Manual
M5 x 25 (Qty 8) M8 x 20 (Qty 8)
M5 x 30 (Qty 8) M8 x 25 (Qty 8)
M6 x 20 (Qty 8) M8 x 30 (Qty 8)
M6 x 25 (Qty 8) M8 x 35 (Qty 8)
M6 x 30 (Qty 8) M8 x 70 (Qty 4)
M6 x 35 (Qty 8)

UFM-4
Installation Manual Page - 7 -
Nylon spacers and flat washers actual size
NOTE: The nylon spacers may be staked to achieve proper spacing.
M8 Nylon
Spacers
(Qty 8) M5 Nylon
Spacers
(Qty 8)
442 Nylon
Spacers
(Qty 12) M6 Nylon
Spacers
(Qty 8)
5/16” Flat
Washers (Zinc)
(Qty 8) Nylon
Sleeves (Qty 8)
1” Nylon
Spacers (Qty 8)

UFM-4
Page - 8 - Installation Manual

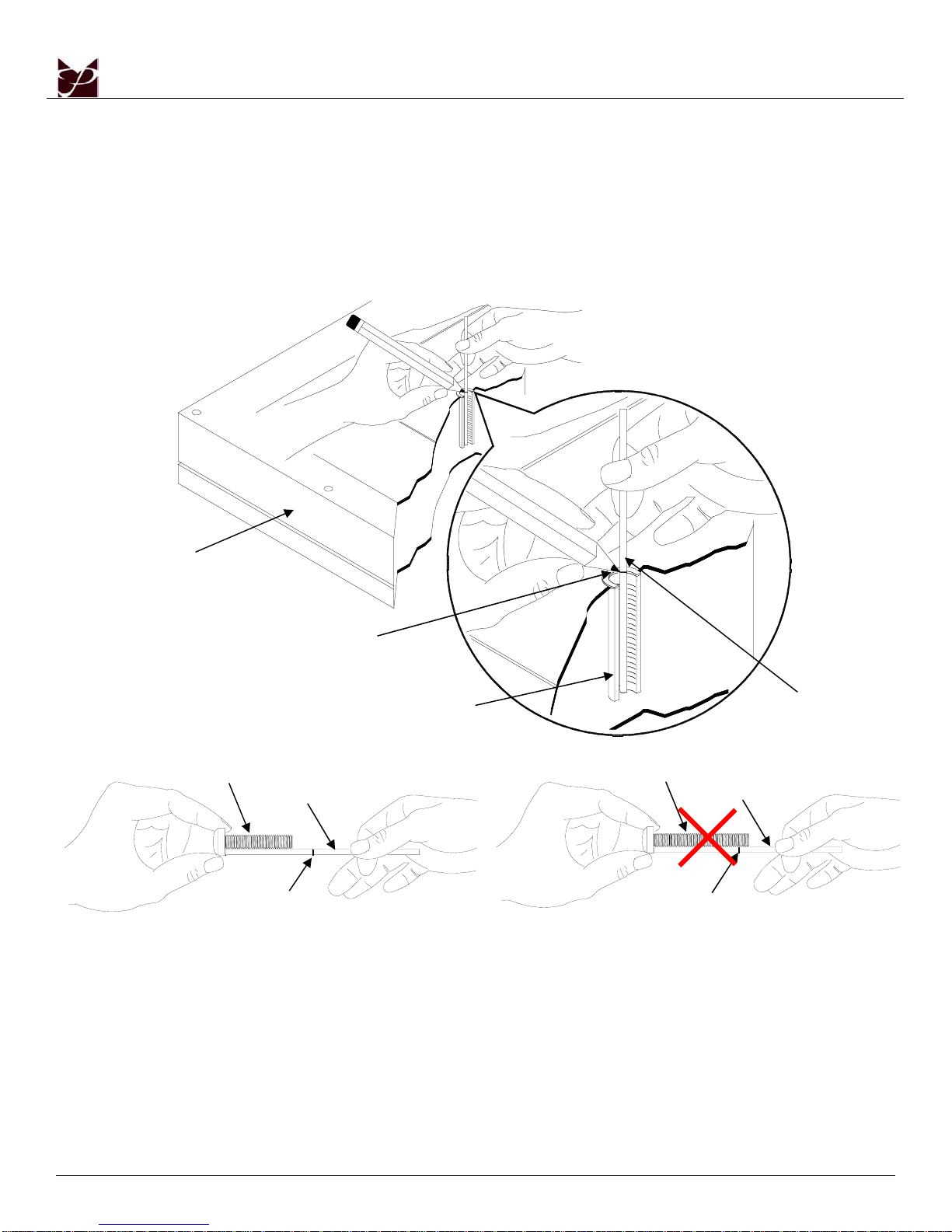

Thread Depth Indicator
1. Insert the thread depth indicator (supplied) through the thread inserts found on the back of the flat
panel to make sure the inserts measure the same full depth and mark it (Figure 1).
2. Locate the correct diameter screw for the thread insert. Compare your marking to the screws (supplied).
3. If your selected screw is longer than the marking on the thread depth indicator, DO NOT USE this screw.
4. The screw length must not bypass the marking. Select another screw size (Figure 2 and 3). Until you
find one that comes closest to your mark without going past.
Figure 1
Figure 2 Figure 3
Marking the depth
Thread depth
indicator
Thread insert
Inverted flat panel
display
Screw
Marking
Thread depth
indicator
Screw Thread depth
indicator
Marking

UFM-4
Installation Manual Page - 9 -
Mounting Bracket Installation
NOTE: Proper installation procedure by qualified personnel as outlined in the installation instructions must
be adhered to. Failure to do so could result in serious personal injury and possible damage to the
flat panel.
WARNING: INVERT THE FLAT PANEL AND PLACE IT ON A SOFT, FLAT SUFRACE TO PREVENT DAMAGE
TO THE FLAT PANEL. USE A BLANKET, FOAM, ETC. FAILURE TO DO SO WILL RESULT IN
DAMAGING THE FLAT PANEL. DO NOT LAY THE FLAT PANEL ON THE FLOOR WITHOUT ANY
PROTECTION TO THE GLASS. THE FLAT PANEL IS HEAVY AND FRAGILE. AT LEAST (2)
QUALIFIED PERSONNEL ARE STRONGLY RECOMMENDED FOR INSTALLATION OF THIS
PRODUCT. FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY AND POSSIBLE DAMAGE
TO THE FLAT PANEL.
1. Once the flat panel is inverted, use a measuring tape to find the center of your flat panel measuring
from outside to outside of the chassis (Figure 4).
2. Using a pencil lightly mark the center of your flat panel (Figure 5).
C
L
L
C
Figure 4 Figure 5
Top of flat panel
Measuring tape
Inverted flat panelBottom of flat panel
Inverted flat panel
Mark the center
of the flat
p
anel

UFM-4
Page - 10 - Installation Manual
3. If needed, install the nylon spacers to the mounting points on the flat panel (Figure 6).
4. Lay the left and right mounting brackets (stamped arrows facing out) - (Figure 7).
Figure 6 Figure 7
5. Match the center of viewing guide with the centerline you marked in Step 1 (Figure 8).
6. The mounting brackets are designed with a center of viewing guide on the side of them (Figure 9).
Nylon Spacers, If Applicable
Inverted Flat Panel
Center Mark
Mounting Brackets
Bottom of Flat Panel
Arrows Facing Out

UFM-4
Installation Manual Page - 11 -
C
L
Figure 8 Figure 9
7. The Griplates™ have M4, M5, M6 and M8 hole patterns to fit the hardware that your flat panel requires.
EXAMPLE: If your flat panel uses M8 x 20 Phillip screws, use the M8 mounting points (Figure 10).
8. Once the mounting brackets are aligned, secure the Griplate™ to the flat panel. Use (1) Griplate™ per
mounting point (Figure 11).
NOTE: The dimples of the top plates have to be facing up and the bottom dimples must be facing down.
DIMPLES
FACINGUP
3/4"
DIMPLES
FACING UP
DIMPLES
FACING DOWN
DIMPLES
FACING DOWN
Figure 10 Figure 11
Bottom of the
F
lat Panel
Align the Mounting
Brackets
Mounting Bracket
Bottom of Flat
P
anel
Center of
Viewin
g
Guide
Center of Flat
P
anel
Bottom of Flat
P
anel
Dimples Facing
U
p
M4 M5 M8M6
Screw Driver

UFM-4
Page - 12 - Installation Manual

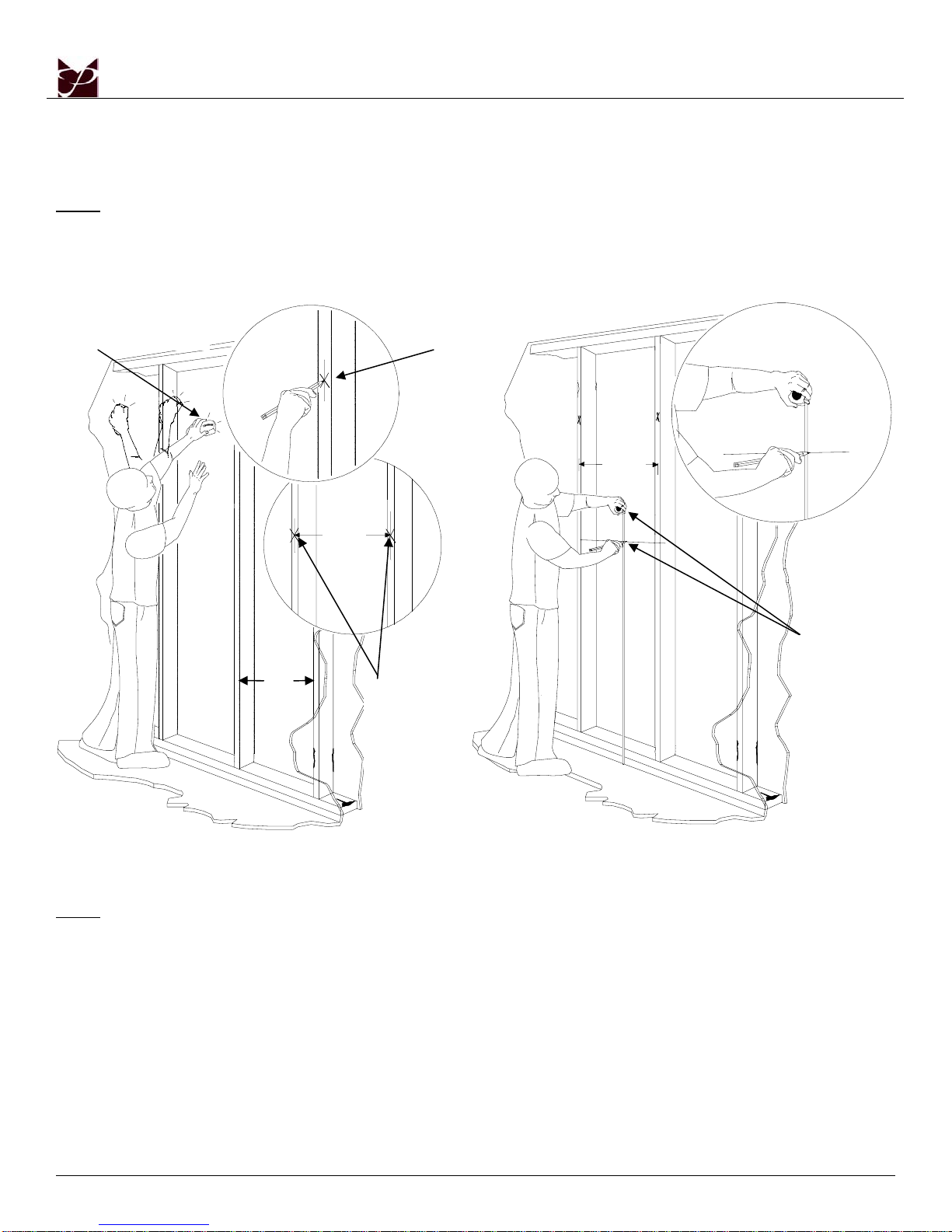

Wall Stud Location
1. Using a (commercially available) wood stud finder, locate four 16" or 24" stud centers behind the wall.
Once found, make a pencil marking on the center of the wood studs (Figure 12).
NOTE: The wall plates have (3) 16" and (1) 24" mounting slot positions (see Technical Specifications on
Page 17)
2. Measure from the floor to the desired viewing height and mark the wall.
NOTE: This marking will reference the center of your flat panel display once mounted on the wall
(Figure 13).
16"
16"
Figure 12 Figure 13
NOTE: Although not depicted in the illustrations shown above, the width of this wall mount will
encompass four wall studs (three wall studs if 24” apart).
W
ood studs
behind the
wall
structure.
Mark the wall and
the center of the
wood
studs.
Wood Stud Finder
(Commerciall
y
available)
Measure and
mark the
viewing height
desired on the
w
all.
16”
16”
16”

UFM-4
Installation Manual Page - 13 -

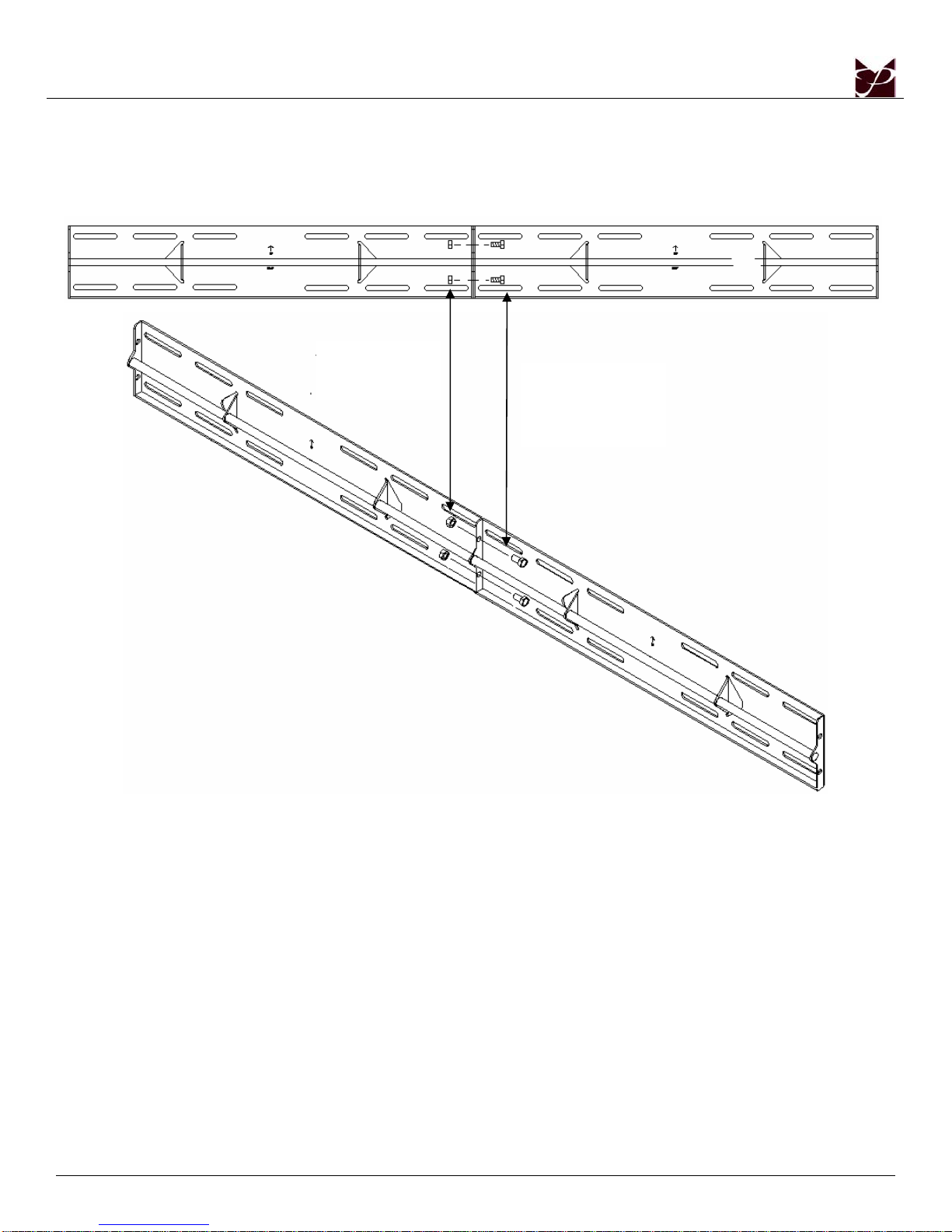

3. To connect the two wall plates, lay them on a flat surface, end to end. Make sure that the holes line up
(Figure 14).
4. Insert two (2) M8 x 16mm Hex Head bolts through the two holes and secure with two (2) M8 Hex nuts
(Figure 14).
Figure 14
M
8 x 16mm
Hex Head Bolts
(2ea)
M
8 Hex Nuts
(2ea)

UFM-4
Page - 14 - Installation Manual

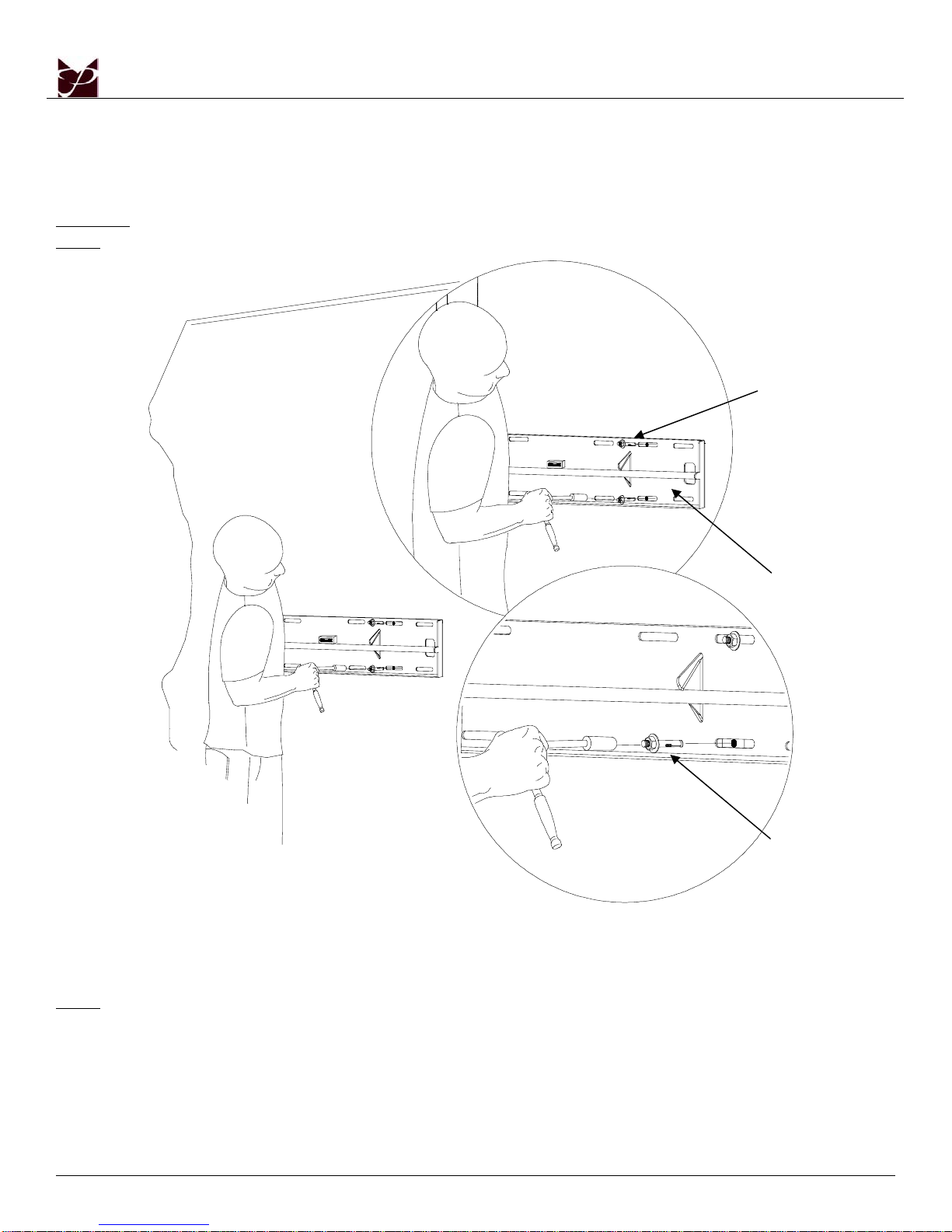

5. Place the bottom portion of the wall plate to the reference line and mark the eight (8) lag bolt
mounting points through the wall plate slots on the wall.
6. Level the wall plate with the reference arrow pointing up to the ceiling (Figure 14).
Mounting Surfaces (Figure 15)
Wood studs: Drill eight (8) ¼" pilot holes to the marked wall (16”studs, on center – Figure 16).
Concrete wall: Drill eight (8) 3/8” pilot holes to the marked wall (Figure 18).
16"
Figure 15 Figure 16
NOTE: Although not depicted in the illustrations shown above, the width of this wall mount will
encompass four wall studs (three wall studs if 24” apart).
Wood Studs
Level
Mounting
Slots
Wall Plate
Drill Gun Pilot
H
oles

UFM-4
Installation Manual Page - 15 -
7. Level and secure the plate to the wall with the reference arrow facing up to the ceiling.
8. Secure the plate using the eight (8) 5/16" lag bolts and flat washers (supplied) – (Figure 17).
CAUTION: Do not over tighten the lag bolts.
NOTE: Use a minimum diameter of 5/16” x 3” long wood screws.
Figure 17
NOTE: Although not depicted in the illustrations shown above, the width of this wall mount will encompass
four wall studs (three wall studs if 24” apart).
5/16" x 3" lag
bolts and (4) flat
washers (4ea)
Wall Plates
Level

UFM-4
Page - 16 - Installation Manual
9. Level and secure the plate to the wall with the reference arrow facing up to the ceiling.
10. Use a minimum diameter of 5/16” x 2 ¼” large concrete wedge anchors (commercially available) –
(Figure 18).
CAUTION: Do not over tighten the wedge anchors bolts.
NOTE: Use a minimum diameter of 5/16” x 2 ¼” long wedge anchors (commercially available).
Figure 18
NOTE: Although not depicted in the illustrations shown above, the width of this wall mount will encompass
four wall studs (three wall studs if 24” apart).
(4) 5/16" x 2 ¼”
wedge anchors
(commercially
available)
Wall Plate
(4) 5/16" x 2 ¼”
wedge anchors
(commercially
available)

UFM-4
Installation Manual Page - 17 -
Installing the Flat Panel Display
WARNING: AT LEAST (2) QUALIFIED PERSONNEL ARE STRONGLY RECOMMENDED FOR INSTALLATION
OF THIS PRODUCT. FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY AND POSSIBLE
DAMAGE TO THE FLAT PANEL.

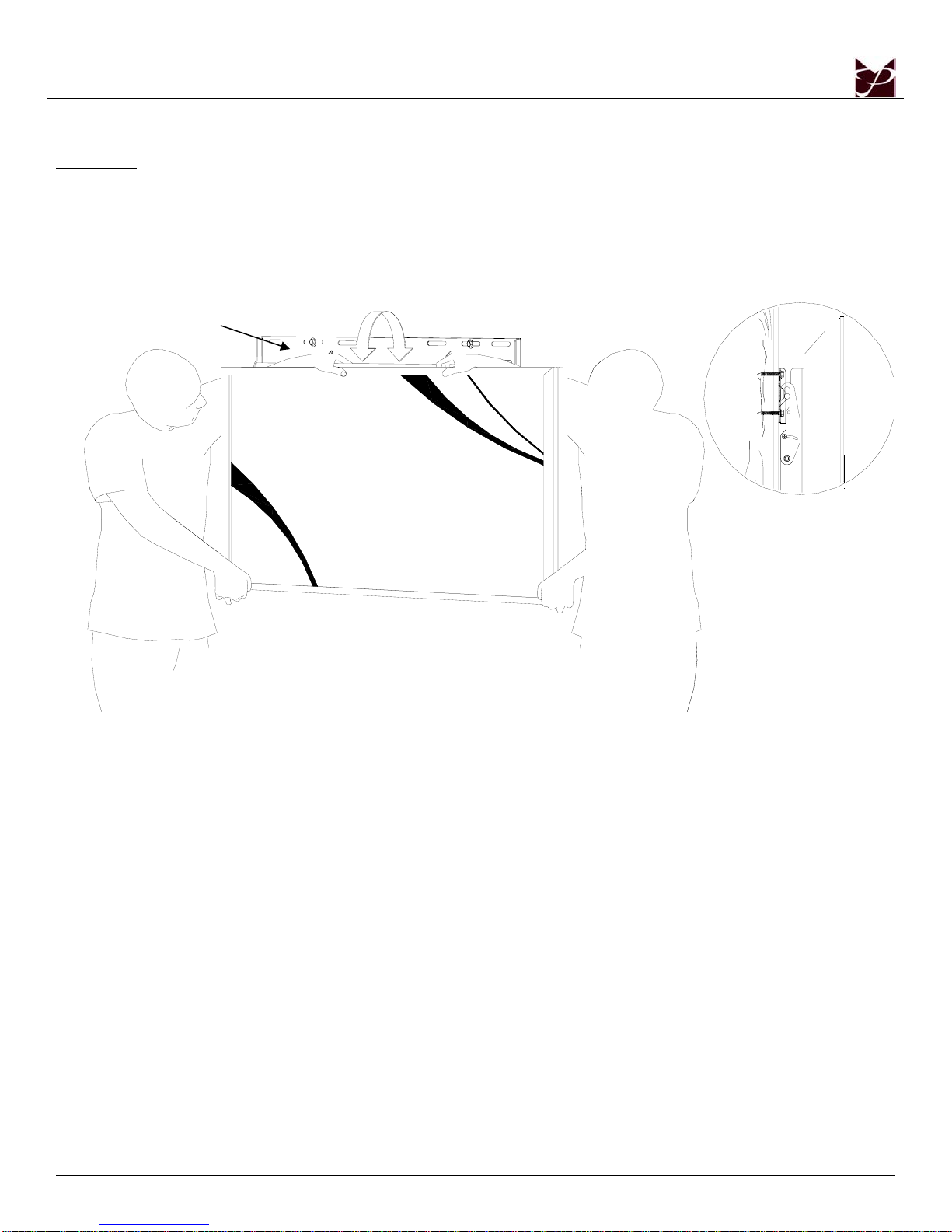

1. Raise the flat panel with the LEFT and RIGHT mounting brackets secured to the flat panel and insert
the top hooks from each bracket to the rod from the wall plates (Figure 19).
Figure 19
Top
Wall Plate

UFM-4
Page - 18 - Installation Manual
2. Make any lateral shift adjustment and lock it by tightening the two (2) ¼”-20 Phillips screws found on
the bottom of the mounting brackets. Use the wall bumper to adjust your flat panel.
CAUTION: Do not over tighten the ¼”-20 screws to the rods (Figure 20).
NOTE: To remove the flat panel from the wall, simply back off the ¼”-20 screws using a Phillips
screwdriver and lift the unit of the wall carefully.
Figure 20
W
all Plate
W
all
Bum
p
er

UFM-4
Installation Manual Page 19
Technical Specifications
Figure 21

UFM-4
Page 20 Installation Manual
Warranty
Limited Lifetime Warranty
All Premier Mounts products carry a limited lifetime warranty from ship date against defects in materials and
workmanship. Premier Mounts is not liable for improper installation that results in damage to mounts,
adapters, display equipment or personal injury.
Contact Premier Mounts
In the event of missing and/or damage equipment, or technical questions, the following information can help
in the completion of the installation.
Customer Service – [phone]
Technical Support – [email protected]
