PRESIDENT HR2510 User manual

<:::c:: ~- ==-~
AE5~cm~TM~ I
HR2510
10 Meter Amateur
Mobile Transceiver
:[ '---, r
1 ,
------
_.---- -

.Contents.
Welcome. ....................................................................2
Controls and Functions 3, 4, 5
Front Panel Connector. ..................................................... 6
Rear Panel Connectors. ................................................." 7, 8
Installation. ................................................................. 9
Operation. ................................................. 10, ", 12, '3, 14
Specifications. .............................................................. 15
Troubleshooting. .......................................................... 16
Amateur Radio Operation. ... ... . .. ... . .. . ........ . ..... . .. . ..... . .. ... 17, 18
-r-
1,
----
'"

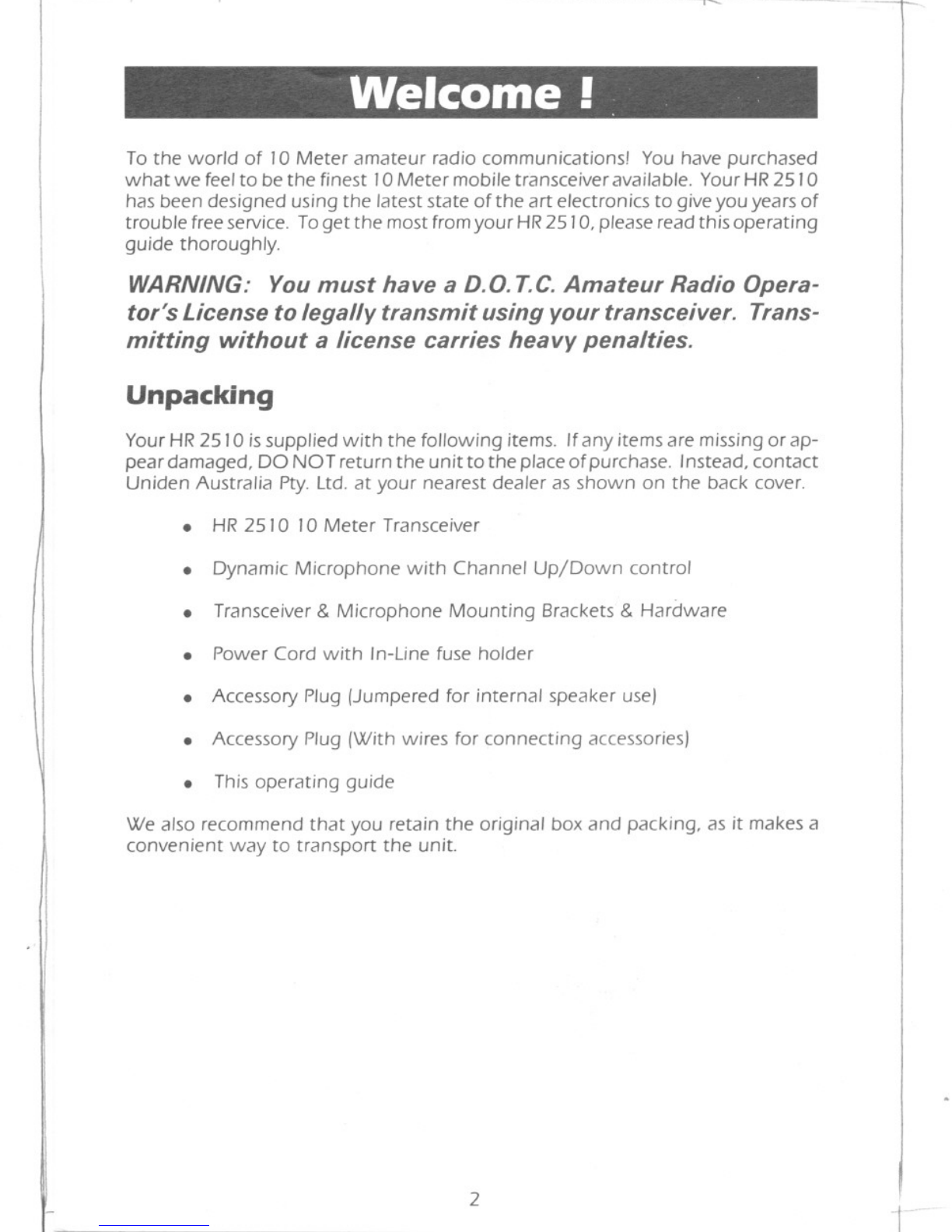

'Welcome! - .
To the world of 10 Meter amateur radio communications! You have purchased
what we feelto bethe finest10Metermobiletransceiveravailable.YourHR2510
has been designed using the latest state ofthe art electronics to giveyou years of
trouble freeseNice. Toget the most fromyour HR2510, please read this operating
guide thoroughly.
WARNING: You must have a 0.0. T.C.Amateur Radio Opera-
tor's License to legally transmit using your transceiver. Trans-
mitting without a license carries heavy penalties.
Unpacking
YourHR2510 issupplied with the following items. Ifany items are missing or ap-
pear damaged, DO NOT return the unittothe place of purchase. Instead, contact
Uniden Australia Pty. Ltd. at your nearest dealer as shown on the back cover.
.HR2510 10 Meter Transceiver
.Dynamic Microphone with Channel Up/Down control
.Transceiver & Microphone Mounting Brackets & Hardware
.Power Cord with In-Line fuse holder
.Accessory Plug (Jumpered for internal speaker use)
.Accessory Plug (With wires for connecting accessories)
.This operating guide
We also recommend that you retain the original box and packing, as it makes a
convenient way to transport the unit.
2-r-
-f J
-------

~

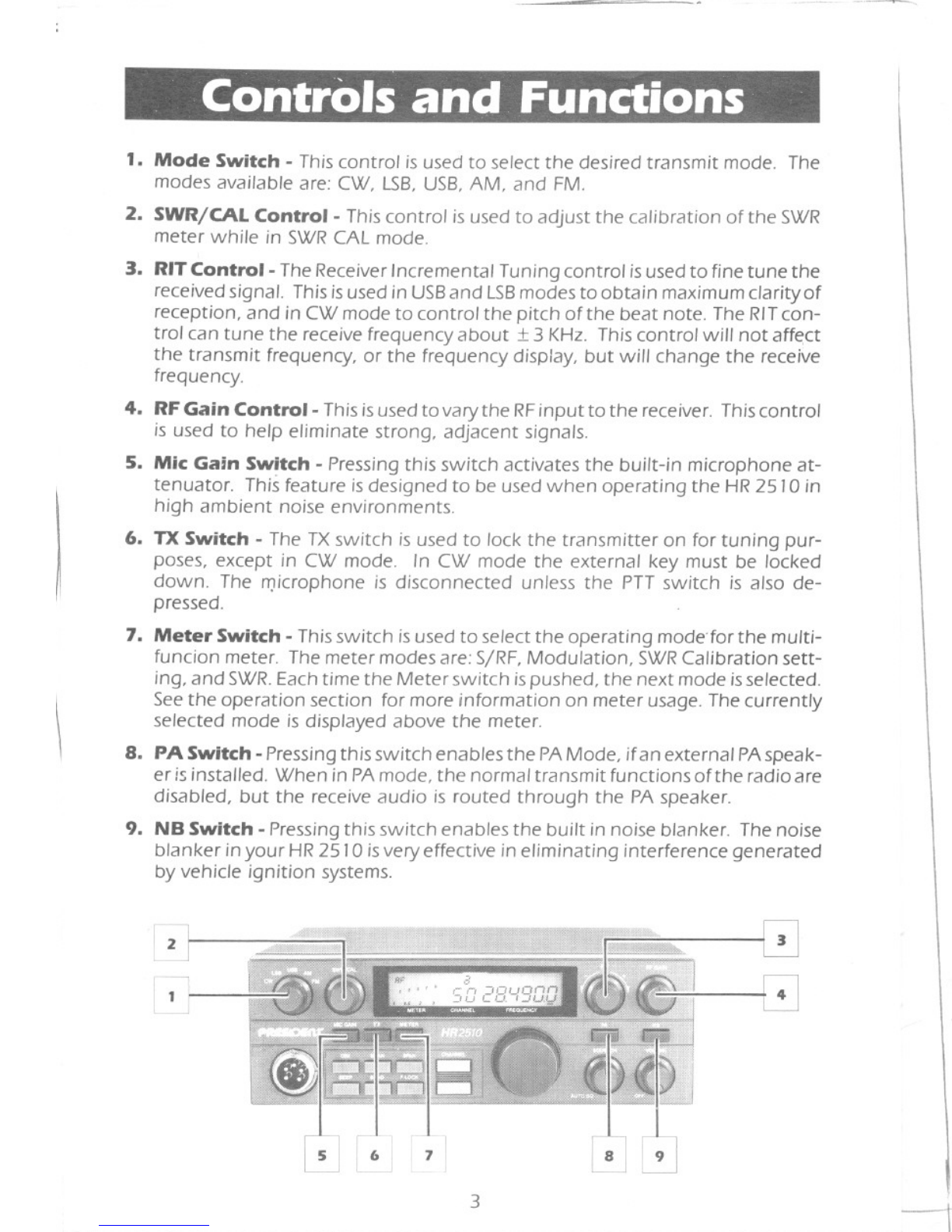

1. Mode Switch -Thiscontrol is used to select the desired transmit mode. The
modes available are: CW, LSB,USB,AM, and FM.
2. SWRjCAL Control -Thiscontrol is used to adjust the calibration of the SWR
meter while in SWRCALmode.
3. RITControl- The Receiver Incremental Tuning control isused to fine tune the
received signal. This isused in USBand LSBmodes to obtain maximum clarityof
reception, and in CWmode to control the pitch ofthe beat note. The R/Tcon-
trol can tune the receive frequency about :t 3 KHz. This control will not aff~ct
the transmit frequency, or the frequency display, but will change the receive
frequency.
4. RFGain Control- Thisisused to vary the RFinput to the receiver. Thiscontrol
is used to help eliminate strong, adjacent signals.
5. Mic Gain Switch -Pressing this switch activates the built-in microphone at-
tenuator. This feature isdesigned to be used when operating the HR2510 in
high ambient noise environments.
6. TX Switch -The TXswitch is used to lock the transmitter on for tuning pur-
poses, except in CW mode. In CW mode the external key must be locked
down. The rT)icrophone is disconnected unless the PTT switch is also de-
pressed.
7. Meter Switch -Thisswitch isused to select the operating mode"forthe multi-
funcion meter. The meter modes are: S/RF, Modulation, SWRCalibration sett-
ing, and SWR.Each time the Meter switch ispushed, the next mode isselected.
See the operation section formore information on meter usage. The currently
selected mode is displayed above the meter.
8. PA Switch -Pressing this switch enables the PA Mode, ifan external PAspeak-
er isinstalled. When in PAmode, the normal transmit functions ofthe radioare
disabled, but the receive audio is routed through the PAspeaker.
9. NB Switch -Pressing this switch enables the built in noise blanker. The noise
blanker in your HR2510 isvery effective in eliminating interference generated
by vehicle ignition systems.
3
4-.
=]---
----
=t
1--'--

~
-'<"-c>.-. -' '--"'":c--',.,--",,-',/ ' -
Controls and',Functions -'continued
10. Dim Switch -Pressing the Dimswitch dims the display backlighting. Press
again to return- backlighting to its normal (high) level.
11. Scan Switch -The Scan control is used to scan up to 50 channels in each
band segment. See the section on operation for more information on using
the Scan Control.
12. Span Switch -This control is used to select either 10KHz, 1 KHz, or 100 Hz
steps forthe VFO. The currently selected step isindicated bya line under the
relevant digit on the Frequency Display.
13. Channel /\ and V - Pressing these controls will step up or down to
the next 10KHzchannel in the currently selected band segment. The current-
lyselected channel is displayed next to the frequency display.
14. Band Switch -Pressing this control will select one of the four band seg-
ments. Band segments are: a:28.0000 - 28.4999, b:28.5000-28.9999,
c:29.0000-29.4999, and d:29.5000-29.6999 MHz. The currently sel,ected
band segment is displayed above the channel display.
15. F. Lock Switch - Pressing the Frequency Lockbutton willdisable allfrequen-
cydetermining controls on the front panel, to prevent accidental changes of
frequency.
16. VFO Control -The Variable Frequency Oscillator-control is used to select
the desired transmit and receive frequency. Tuning iscontinous throughout
the entire range of the HR 2510, with no need to select band segments.
17. Squelch Control -The Squelch control is used to adjust the squelch func-
tion, which eliminates the "rushing" sound between transmissions. Turning
the squelch control CCW until it clicksenables the auto squelch, eliminating
the need to manually adjust the squelch.
18. On/Off/Volume Control -This control is used to turn the unit on or off
and to adjust the volume.
19. Beep Switch -Pressing this control willcause a short beep tone to be trans-
mitted whenever you release the PTTswitch on the microphone.
4
r
---
-- ~

-. --.,=--= - ==-,.
Contro;! and functions -continued
20. Multifuction Meter -Thismeter can display S/RF, Modulation, SWRCal, or
SWR.See item (7),Meter Switch and the operation section for more informa-
tion.
21. Frequency Display -The Frequency Displaydisplays the currently selected
transmit and receive frequency.
22. Meter Mode Display - Displays the currently selected meter operating
mode.
23. Band Segment Display -Shows the currently selected band segment.
24. Channel Display - Gives the selected channel number.
25. TX Indicator -Illuminates when PTTor TXSwitch is pressed, or CW key is
down.
26. VFO Step Indicator -Displaysthe currently selected VFO step. (The photo
shows 100Hz step selected).
27. Remote Control Channel 1\ and V switches -You can step up or
down by one 10KHz channel within the current band segment using these
controls. See the section on operation for more information.
28. PTTSwitch -The Push to Talkswitch isused to control the transmit and re-
ceive of your HR 2510. Press to transmit, and release to receive.
,~
5
_. 1r

~
- .
.Front Panel Connector
0
4-- Transmit (PHI
0
Microphone Connector
The microphone included with the HR2510 isa 500Q dynamic microphone, with
channel up and down switches. The view of the connector isfacing the HR2510
front panel. The pin connections are as follows:
6
~
--- r
1
-
Pin Connection
1&2 Microphone
3&2 PTTSwitch
4&2 Channel Up Switch
5&2 Channel Down Switch
2 Common Ground

h . ...- r
Rear Panel.Connectors
There are two plugs forthe accessoryconnector included with your HR251O.One
plug contains only ajumper between pins 1and 7, which is used only to enable
the internal speaker. The other plug iswired sothat you can convenientlyconnect
accessoriesto your HR2510. The view of the connector isfacing the rearpanel of
the unit. The pin connections and wiring color codes are as follows:
Power Connector
-1001' +
Thepower cord included with the HR2510 iscolor coded. The red wire goes to +
13.8V DC nominal and the black wire goes to ground. The HR25 J0 is designed
for operation with a negative ground system only. The view of the power connec-
tor is facing the rear panel of the HR 2510.
7
-------
_.
r--
~
----
0 0 0
1 2 3
0 0 0
4 5 6
0 0 0
78 9
Accessory Connector
Pin Wire Color Connection
1&2 Red/Black External Speaker
4&5 Blue/Black PA Speaker
8&9 Black/Yellow CW Key
1&7 Red/Wh ite Internal Speaker (Jumper to use internal
speaker, open if external speaker is con-
nected.)
3&6 n.c.

~
Rear Panel Connectors -continued

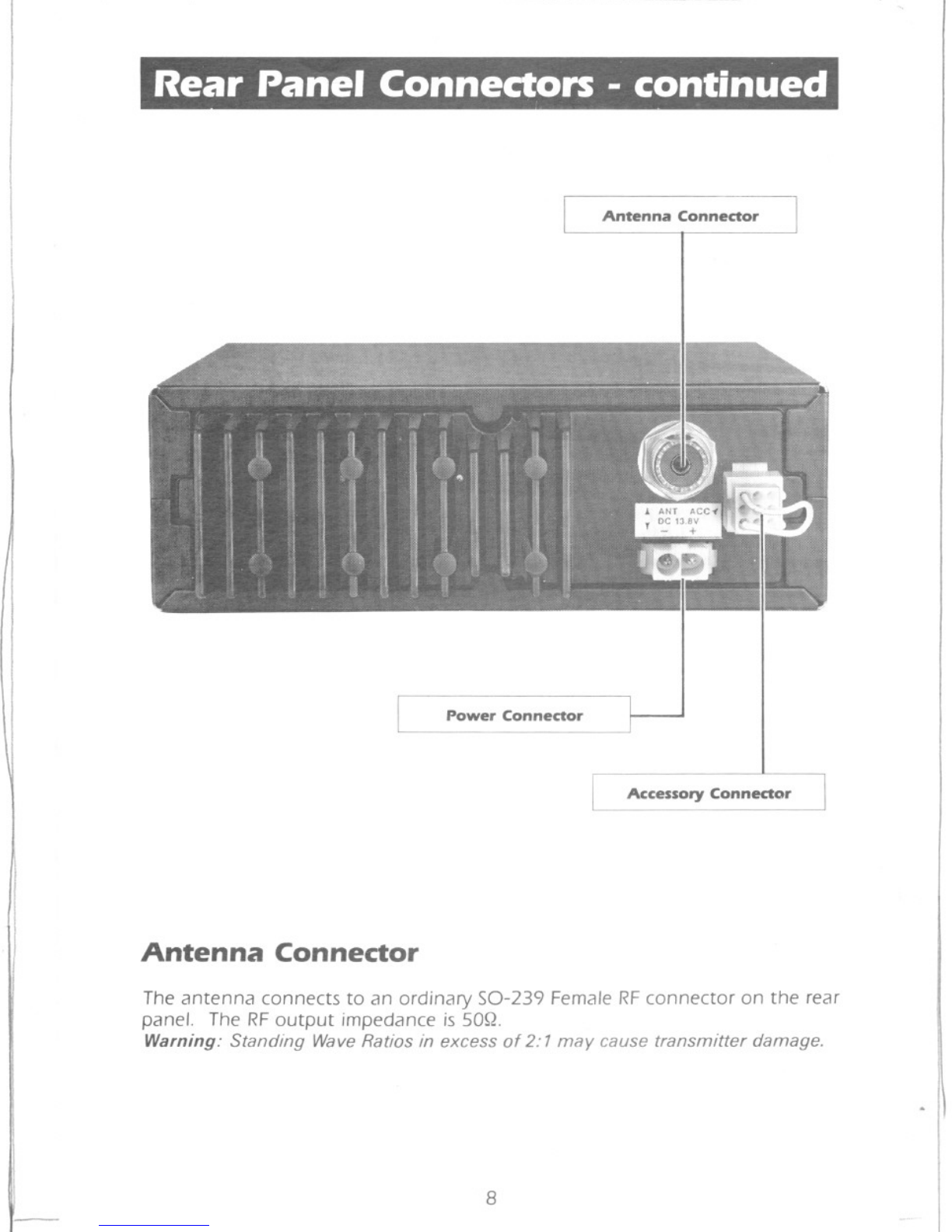

Antenna Connector
Power Connector
Accessory Connector
Antenna Connedor
The antenna connects to an ordinary 50-239 Female RFconnector on the rear
panel. The RFoutput impedance is 50Q.
Warning: Standing WaveRatios in excess of 2:1may cause transmitter damage.
8
y:::: r
1

--~=

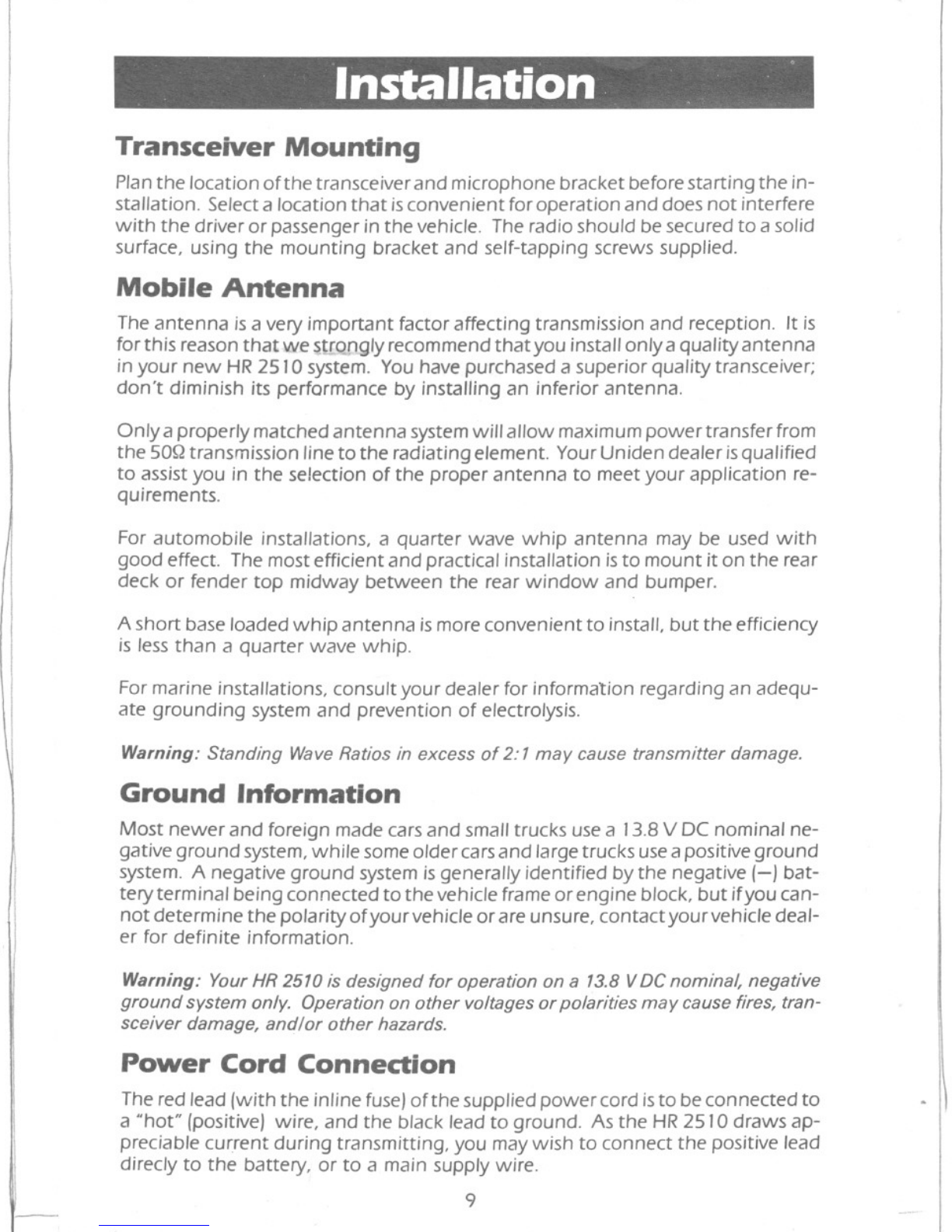

'Installation.
Transceiver Mounting
Plan the location ofthe transceiver and microphone bracket before starting the in-
stallation. Select a location that isconvenient for operation and does not interfere
with the driver or passenger inthe vehicle. The radio should be secured to a solid
surface, using the mounting bracket and self-tapping screws supplied.
Mobile Antenna
The antenna isa very important factor affecting transmission and reception. It is
for this reason that we ~trQnglyrecommend that you install only a quality antenna
inyour new HR2510 system. Youhave purchased a superior quality transceiver;
don't diminish its performance by installing an inferior antenna.
Only aproperly matched antenna system will allow maximum power transfer from
the 50Q transmission line to the radiating element. YourUniden dealer isqualified
to assist you in the selection of the proper antenna to meet your application re-
quirements.
For automobile installations, a quarter wave whip antenna may be used with
good effect. The most efficient and practical installation isto mount it on the rear
deck or fender top midway between the rear window and bumper.
Ashort base loaded whip antenna ismore convenient to install, but the efficiency
is less than a quarter wave whip.
For marine installations, consult your dealer for information regarding an adequ-
ate grounding system and prevention of electrolysis.
Warning: Standing WaveRatios in excess of 2: 1may cause transmitter damage.
Ground Information
Most newer and foreign made cars and small trucks use a 13.8 V DC nominal ne-
gative ground system, while some older cars and large trucks use apositive ground
system. A negative ground system isgenerally identified by the negative (-) bat-
teryterminal being connected to the vehicle frame or engine block, but ifyou can-
not determine the polarity ofyour vehicle or are unsure, contact your vehicle deal-
er for definite information.
Warning: Your HR 2510 is designed for operation on a 13.8 VDC nomina/, negative
ground system only. Operationon other vo/tages orpo/arities may cause fires, tran-
sceiver damage, and/or other hazards.
Power Cord Connection
The red lead (with the inline fuse)ofthe supplied power cord isto be connected to
a "hot" (positive) wire, and the black lead to ground. As the HR2510 draws ap-
preciable current during transmitting, you may wish to connect the positive lead
direcly to the battery, or to a main supply wire.
9
-- r
fJ
-----

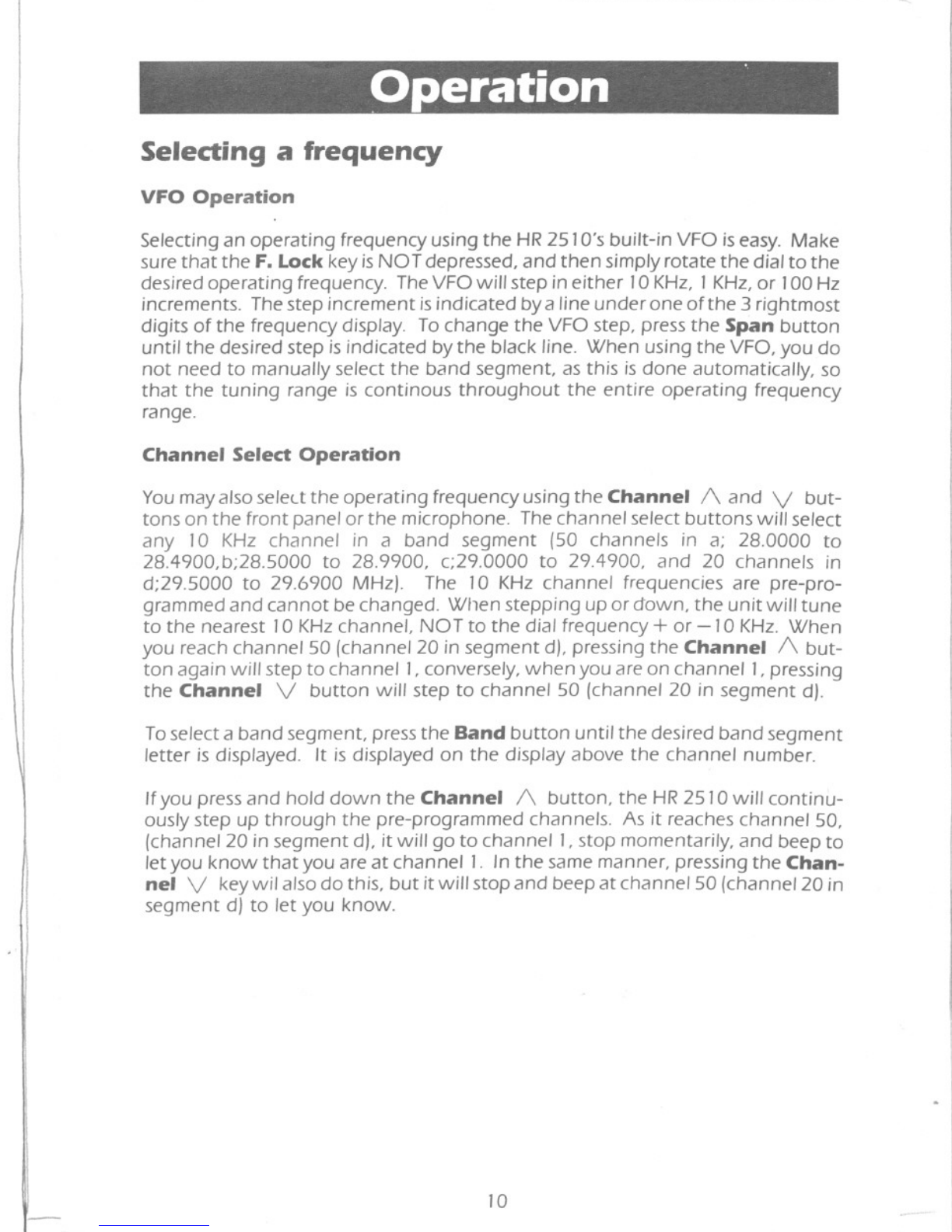

Operation
Selecting a frequency
VFO Operation
Selecting an operating frequency using the HR2510's built-in VFO iseasy. Make
sure that the F. Lock key isNOT depressed, and then simplyrotate the dial to the
desired operating frequency. TheVFOwill step in either 10KHz, 1KHz,or 100Hz
increments. Thestep increment isindicated bya line under one ofthe 3 rightmost
digits of the frequency display. To change the VFO step, press the Span button
until the desired step isindicated by the black line. When using the VFO, you do
not need to manually select the band segment, as this is done automatically, so
that the tuning range is continous throughout the entire operating frequency
range.
Channel Select Operation
Youmayalso select the operating frequency using the Channel 1\ and V but-
tons on the front panel or the microphone. The channel select buttons will select
any 10KHz channel in a band segment (50 channels in a; 28.0000 to
28.4900,b;28.5000 to 28.9900, c;29.0000 to 29.4900, and 20 channels in
d;29.5000 to 29.6900 MHz). The 10KHz channel frequencies are pre-pro-
grammed and cannot be changed. When stepping up or down, the unit will tune
to the nearest 10KHz channel. NOT to the dial frequency + or - 10KHz. When
you reach channel 50 (channel 20 insegment d), pressing the Channel 1\ but-
ton again willstep to channel 1,conversely, when you are on channel 1,pressing
the Channel Vbutton will step to channel 50 (channel 20 in segment d).
Toselect a band segment, press the Band button until the desired band segment
letter is displayed. It is displayed on the display above the channel number.
Ifyou press and hold down the Channel 1\ button, the HR2510 will continu-
ously step up through the pre-programmed channels. As it reaches channel 50,
(channel 20 insegment d), itwill go to channel 1,stop momentarily, and beep to
letyou know that you are at channel 1. Inthe same manner, pressing the Chan-
nel V key wilalso do this, but itwillstop and beep at channel 50 (channel 20 in
segment d) to let you know.
10
"f::
L
-------

I
-'-==
Operatigrl..continued -

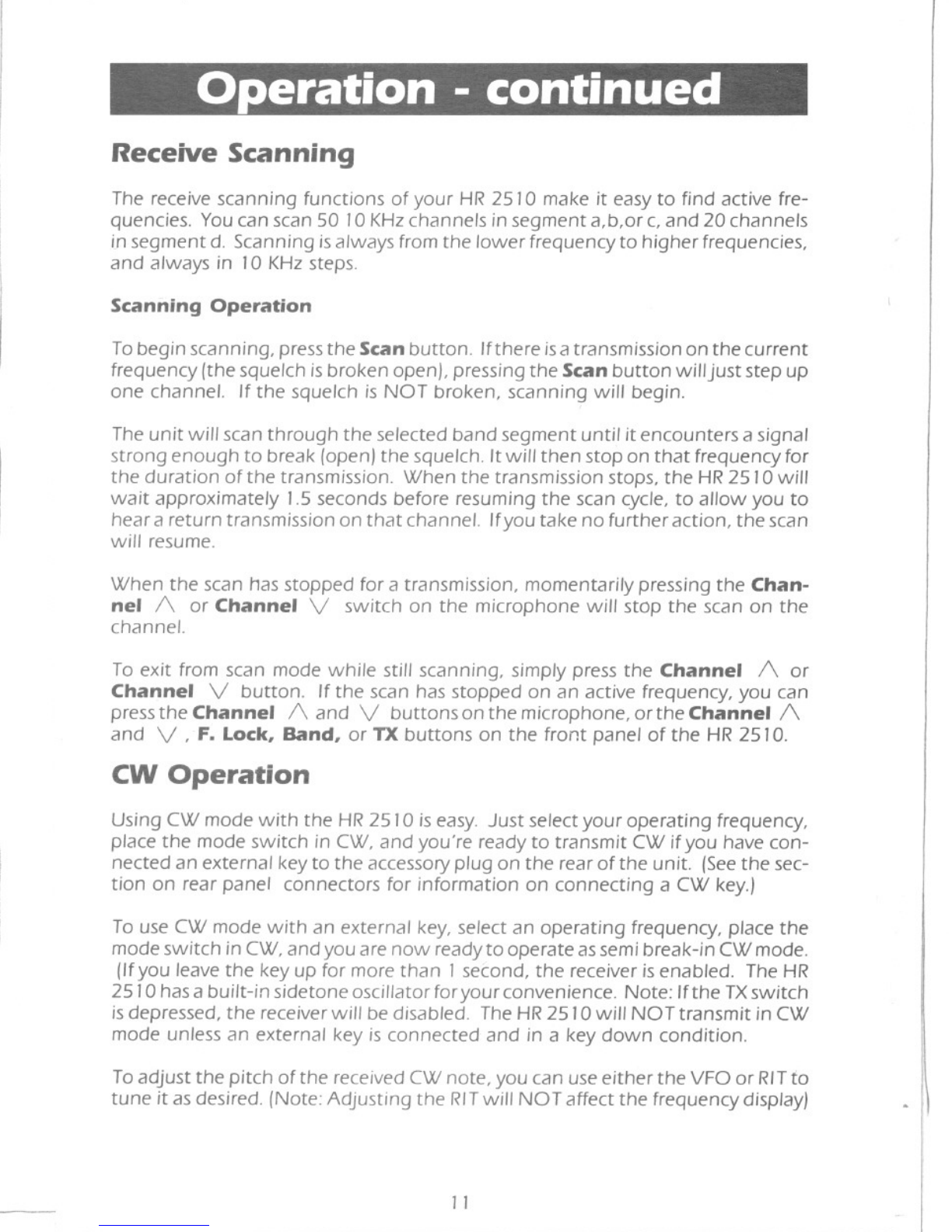

Receive Scanning
The receive scanning functions of your HR 2510 make it easy to find active fre-
quencies. Youcan scan 50 10KHzchannels insegment a,b,or C.and 20 channels
insegment d. Scanning isalways from the lower frequency to higher frequencies,
and always in 10KHz steps.
Scanning Operation
Tobegin scanning, press the Scan button. Ifthere isa transmission on the current
frequency (the squelch isbroken open). pressing the Scan button willjust step up
one channel. Ifthe squelch is NOT broken, scanning will begin.
The unit willscan through the selected band segment until itencounters a signal
strong enough to break (open) the squelch. Itwill then stop on that frequency for
the duration ofthe transmission. When the transmission stops, the HR2510 will
wait approximately 1.5 seconds before resuming the scan cycle, to allow you to
hear a return transmission on that channel. Ifyou take no further action, the scan
will resume.
When the scan has stopped fora transmission, momentarily pressing the Chan-
nel /\ or Channel V switch on the microphone will stop the scan on the
channel.
To exit from scan mode while still scanning, simply press the Channel /\ or
Channel V button. Ifthe scan has stopped on an active frequency, you can
press the Channel /\ and V buttons on the microphone, orthe Channel /\
and V " F. Lock, Band, or TX buttons on the front panel of the HR2510.
CW Operation
Using CW mode with the HR2510 iseasy. Just select your operating frequency,
place the mode switch in CW, and you're ready to transmit CW ifyou have con-
nected an external key to the accessory plug on the rear of the unit. (Seethe sec-
tion on rearpanel connectors for informationon connecting a CWkey.)
To use CW mode with an external key, select an operating frequency, place the
mode switch in CW,and you are now ready to operate as semi break-in CWmode.
(Ifyou leave the key up for more than 1second, the receiver isenabled. The HR
2510 has a built-in sidetone oscillator foryour convenience. Note: Ifthe TXswitch
isdepressed, the receiver will be disabled. The HR2510 will NOT transmit in CW
mode unless an external key is connected and in a key down condition.
Toadjust the pitch of the received CWnote, you can use either the VFO or RITto
tune itas desired. (Note: Adjusting the RITwill NOT affect the frequency display)
11
-- I
iI
--------

~_.
Operation -con'inued
USB/LSB/AM/FM Operation
Using the HR2S10 forvoice communications as either USB,LSB,AMor FMmodes
issimple. Simplyselect your desired operating frequency, turn the mode switch to
the desired type of operation, and the P1T switch controls the transmit and re-
ceive. To fine tune the receive signal in USBor LSB,you can use either the VFO or
RITcontrols. (Note: Using the RITcontrol to fine tune the receive frequency will
NOT affect the frequency display.)
The MicGain control can (and should) be used when you are transmitting from a
high ambient noise environment. Pressing the Mic Gain control reduces the out-
put fromthe microphone. Pressthe Mic Gain control again to restore itto normal
operating condition.
Noise Blanker
The noise blanker has been designed specificallyto remove the interference gen-
erated by vehicle ignition systems. To use the noise blanker, simplypress the NB
switch. To disable the noise blanker, just press the NB switch again.
F. Lock
The Frequency Lockfunction is used to lock the frequency determining controls
against accidental changes. Tolockthe frequency controls, press the F. Lock but-
ton. To unlock the frequency controls, press F. Lock again.
Beep Control
The Beep control enables and disables a short "beep" tone that is transmitted
whenever you release the PTTswitch (except in CWmode). Thisisespecially use-
fulwhen transmitting is USBor LSBmode, as it lets the station that you are work-
ing know that you have stopped transmitting. Press the Beep button to enable
the beep tone, and press it again to disable it.
12
--
r
1
-
-

Operation> -continued

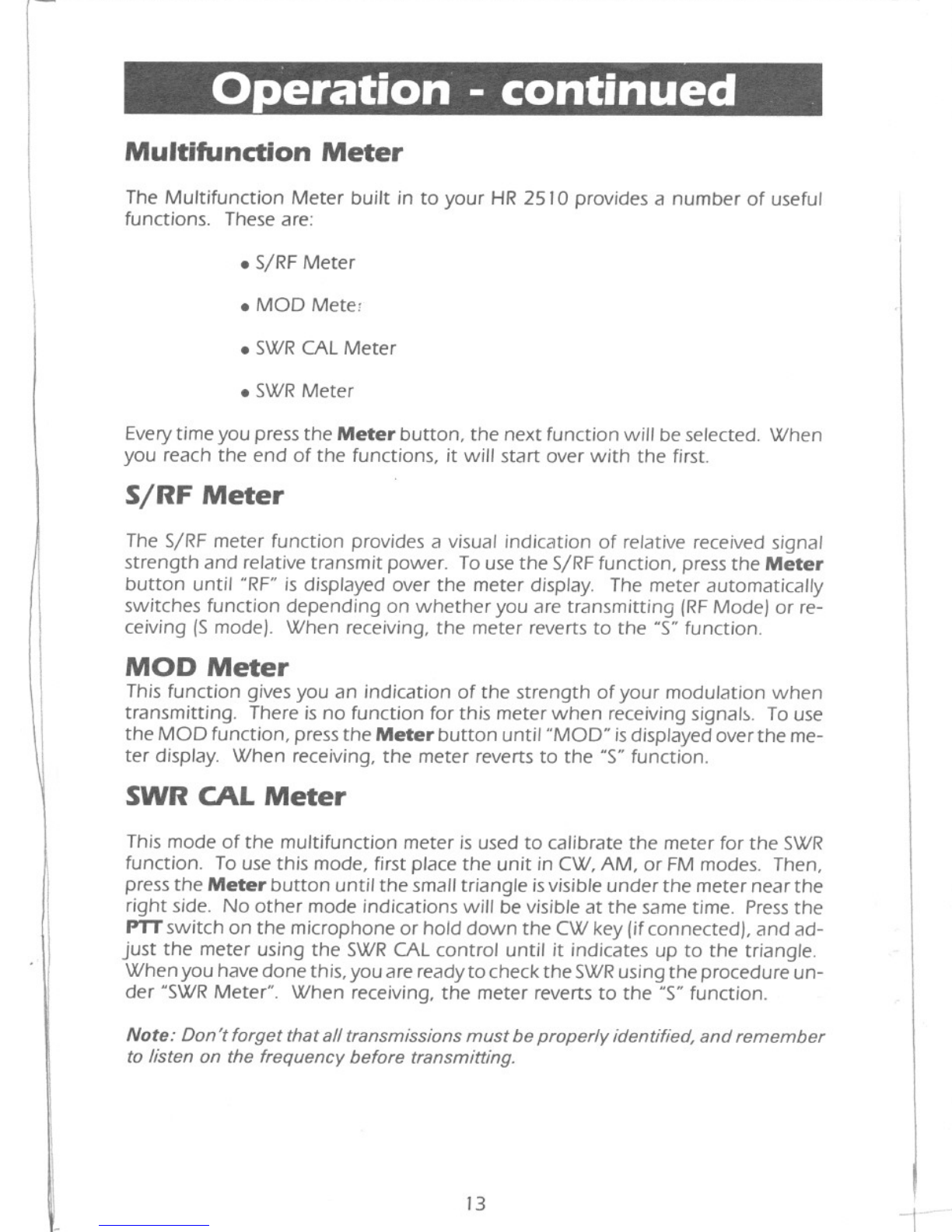

Multifundion Meter
The Multifunction Meter built in to your HR 2510 provides a number of useful
functions. These are:
.SjRF Meter
.MOD Meter
. SWR CAL Meter
. SWRMeter
Everytime you press the Meter button, the next function will be selected. When
you reach the end of the functions, it will start over with the first.
S/RF Meter
The SjRF meter function provides a visual indication of relative received signal
strength and relative transmit power. Touse the SjRFfunction, press the Meter
button until "RF"is displayed over the meter display. The meter automatically
switches function depending on whether you are transmitting (RFMode) or re-
ceiving (Smode). When receiving, the meter reverts to the "S"function.
MOD Meter
This function gives you an indication of the strength of your modulation when
transmitting. There is no function for this meter when receiving signal~. To use
the MOD function, press the Meter button until "MOD" isdisplayed over the me-
ter display. When receiving, the meter reverts to the "S"function.
SWR CAL Meter
This mode of the multifunction meter is used to calibrate the meter for the SWR
function. To use this mode, first place the unit in CW,AM, or FMmodes. Then,
press the Meter button until the small triangle isvisibleunder the meter near the
right side. No other mode indications will be visible at the same time. Press the
PTT switch on the microphone or hold down the CW key (ifconnected), and ad-
just the meter using the SWRCALcontrol until it indicates up to the triangle.
When you have done this, you are ready to check the SWRusing the procedure un-
der "SWRMeter". When receiving,the meter revertsto the "S"function.
Note: Don't forget that a/ltransmissions must be properly identified, and remember
to listen on the frequency before transmitting.
13 r-
q:: -- ----

(
F-= --==--
=--.,..
Qperation -.continued

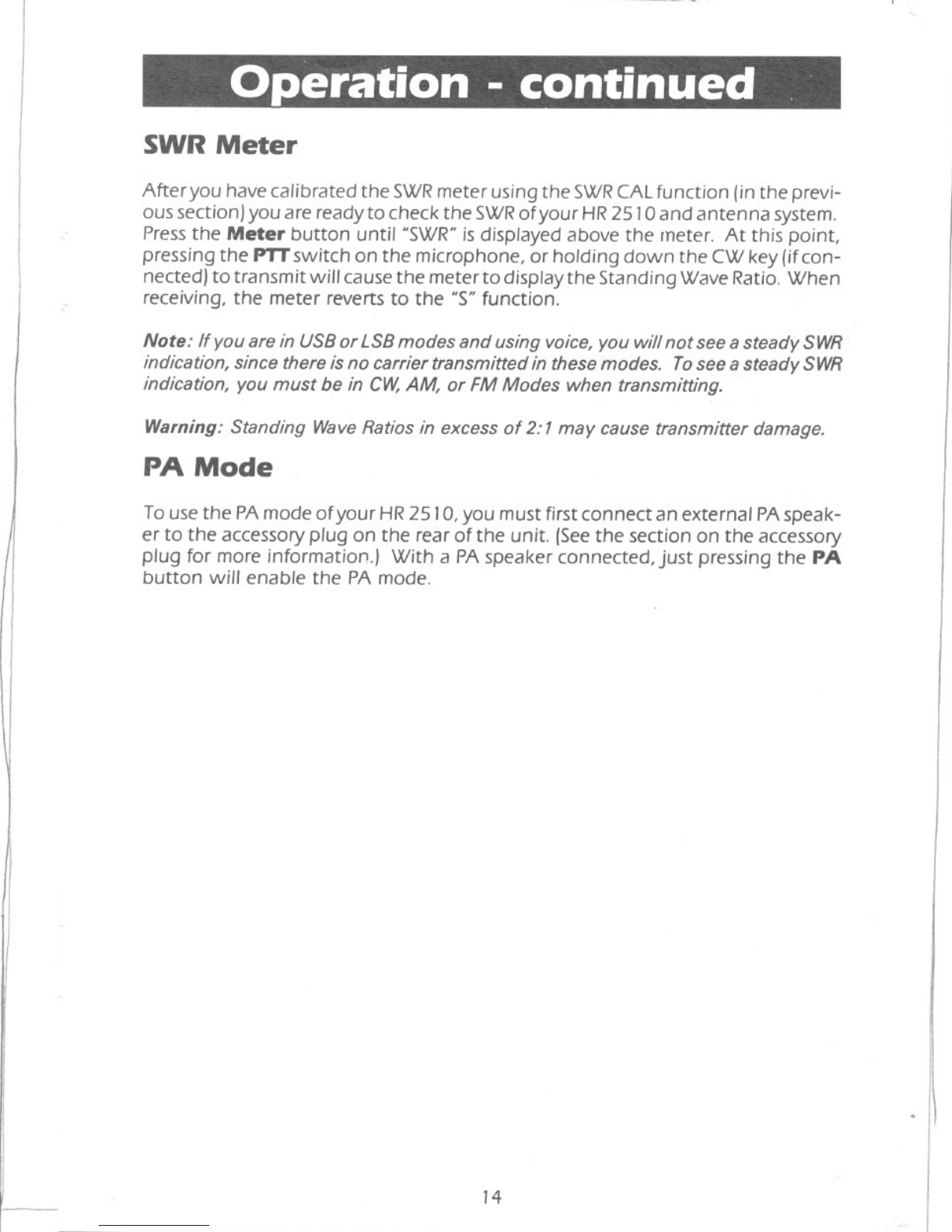

SWR Meter
Afteryou have calibrated the SWRmeter using the SWRCALfunction (inthe previ-
ous section' you are ready to check the SWRofyour HR2510 and antenna system.
Press the Meter button until "SWR"isdisplayed above the meter. At this point,
pressing the PTTswitch on the microphone, or holding down the CW key (ifcon-
nected) to transmit will cause the meterto display the Standing Wave Ratio. When
receiving, the meter reverts to the "S" function.
Note: If you are in USB or LSB modes and using voice, you will not see a steady SWR
indication, since there is no carrier transmitted in these modes. Tosee a steady SWR
indication, you must be in C~ AM, or FM Modes when transmitting.
Warning: Standing WaveRatios in excess of 2:1may cause transmitter damage.
PA Mode
Touse the PAmode ofyour HR2510, you must firstconnect an external PAspeak-
er to the accessory plug on the rear of the unit. (See the section on the accessory
plug for more information.' With a PAspeaker connected, just pressing the PA
button will enable the PAmode.
14
r

r
""- -- -
,-,,--
. Specifications'
General
Frequency Range
Microphone
Speaker
Operating Modes
Display
Display Items
Size
Weight
Transmitter
Frequency Stability
Output Power
Spurious Harmonic Emissions
Carrier Suppression
Unwanted Sideband
Suppression
Power Consumption
(No Modulation,
PTTDepressed)
(Max Modulation)
Microphone Input
CW KeyVoltage/Current
Receiver
Sensitivity for 10 dB SIN
Band A 28.0000-28.4999 MHz
Band B 28.5000-28.9999 MHz
Band C 29.0000-29.4999 MHz
Band 0 29.5000-29.6999 MHz
500Q Dynamic. w/PTT and Channel
/\&V
8Q,3W
CW, USB,LSB,AM, FM
Backlit LCD
Frequency, Channel #,Meter, Meter Mode,
TX,Band, VFO Span
7.32" x 10.35" x 2.44"
4 Ibs 3 oz
:t 300 Hz Nominal, (@25°C, 5 Minutes after
Power on)
CW 25 W Nominal
USB/LSB25W PEPNominal
AM/FM IOW Nominal
-50dB Nominal, all modes
-55 dB Nominal, USB/LSBModes
-45 dB Nominal, USB/LSBModes
AM/FM 3A Nominal
USB/LSBO.8ANominal
CW SA Nominal (KeyDown)
AM/FM/USB/LSB 3A Nominal
1 mV Nominal for 50% AM Modulation
8V DC, 10 mA
AM .5J1VNominal
CW/USB/LSB.25J1VNominal
Sensitivity for 20 dB SIN FM .5J1VNominal
Adjacent Channel Selectivity 70dB Nominal (10KHz Spacing)
Max.Audio Output 4W Nominal
RFGain Range 55 dB Nominal
RITRange :t 3KHzNominal
"s" Meter Sensitivity @S9 100J1VNominal
Image Rejection Ratio 65 dB Nominal
Power Consumption, No Signal 500 mA Nominal
Power Consumption, Max Audio 1000 mA Nominal
15
"- r
f-
------
--

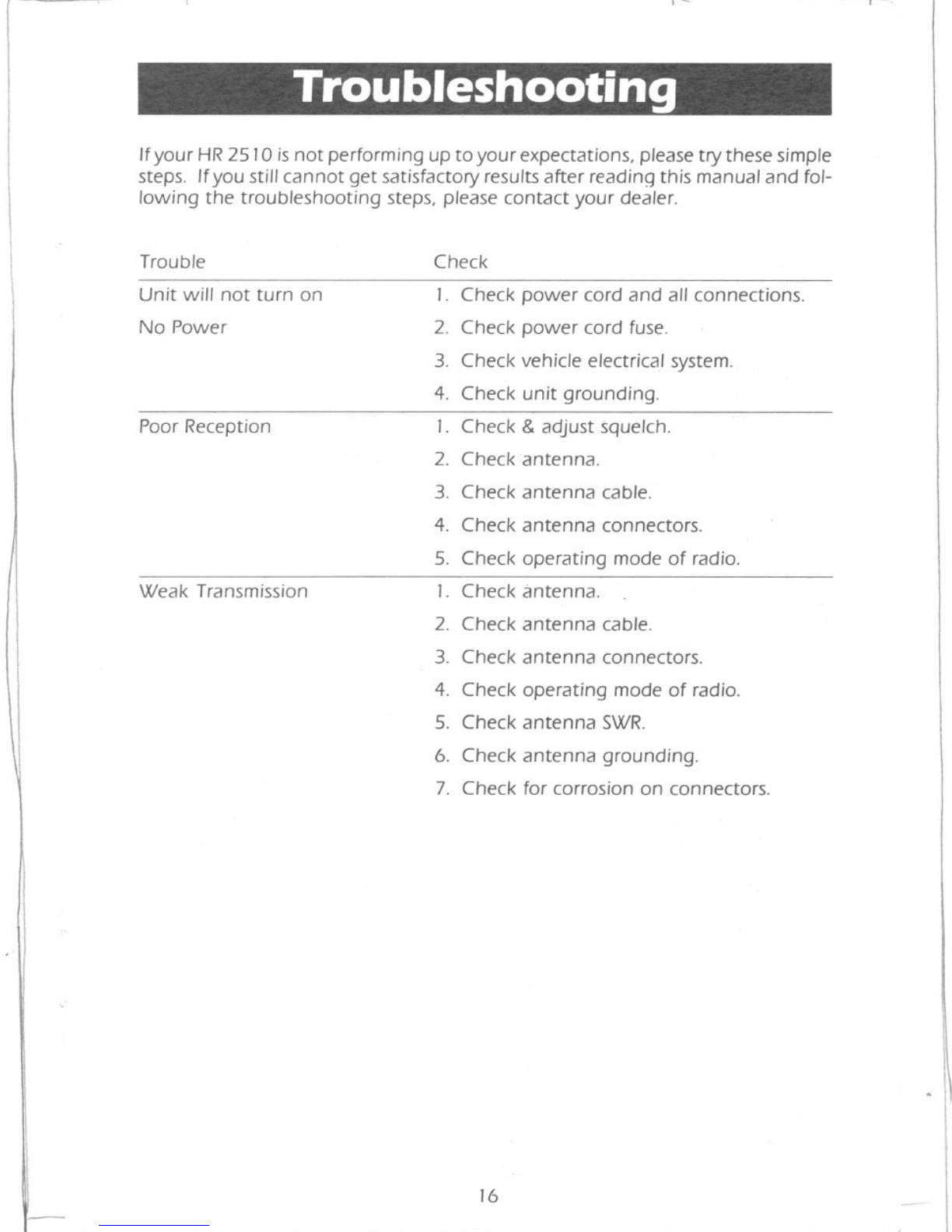

Troubleshooting
Ifyour HR2510 ;snot performing up to your expectations, please try these simple
steps. Ifyou stillcannot get satisfactory results after reading this manual and fol-
lowing the troubleshooting steps, please contact your dealer.
Trouble
Unit will not turn on
Check
1. Check power cord and all connections.
2. Check power cord fuse.
3. Check vehicle electrical system.
4. Check unit grounding.
1. Check & adjust squelch.
2. Check antenna.
3. Check antenna cable.
4. Check antenna connectors.
5. Check operating mode of radio.
1. Check antenna.
2. Check antenna cable.
3. Check antenna connectors.
No Power
Poor Reception
Weak Transmission
4. Check operating mode of radio.
5. Check antenna SWR.
6. Check antenna grounding.
7. Check for corrosion on connectors.
16 r
j,
-----
r::::

r
-"~~ ~<- ~
< ,- -<
We designed your HR2510 transceiver to be the perfect first radio for anyone en-
tering the exciting world of amateur radio. Fromyour home, car, or boat, you will
find that your transceiver opens a door to the world -literallylAllyou need is a
source of electricity, a suitable antenna, and, most important of all, an Amateur
Radio Operator's License issued by the Department of Transport and Communic-
ations (0.0. T.C).
Possiplyyou are already a licensed operator. In fact, you may have been an ama-
teur radio operator for some time. But, ifyou do not have a license, you wW dis-
cover that it iseasy to get one, and that there ishelp available. Here are a few tips
to help you get started.
First,go ahead and connect your transceiver as described inthe "Installation" sec-
tion ofthis manual. Use the receiver to tune around on the band to see what isgo-
ing on. Do not even think of transmitting ...ntllyou get your license! Thisis
extremely important. Transmitting without a license isbreaking the law and can
lead to severe penalties. Also amateur radio operators take their hobby very seri-
ouslyand want nothing to do with "pirates" -their term for people who operate
without a license.
Second, find out ifthere is an amateur radio club in your area. There are many
clubs around the country, so there is probably at least one in or near your own
community. Thepeople at the store where you bought your equipment might be
able to tellyou. Ifnot, and you do not hear anyone talking about a localclub in
your area asyou tune<around the band with your receiver, write to the Wireless In-
stitute of Australia (WIA)for information on how to contact a local club. Most
clubs welcome newcomers and are glad to giveadvice on how to get your license.
Next, start studying foryour licence. Do not let the word study scare you, because
most people can go from knowing absolutely nothing about amateur radio to
passing the basic (Novice)class licence examination in approximately sixmonths.
The examination tests your knowledge of basic radio regulations, elementary ra-
dio theory, and slow speed (5words per minute) morse code. Some clubs teach lic-
ence classes (afun and easy way to learnabout amateur radio), and there are good
books, cassette tapes, and many other study aids available.
17
-- r
1I
-------

-
- -.
- -.
AmateurR~dioOpera~ion-contin_u~d
The Novice Classlicence allows you to useyour HR25 J0 transceiver between 28. J
MHz and 28.6 MHz. You can transmit CW (Morse Code) on your allocated fre-
quencies, but you are only permitted to transmit voice on the Ja-meter band fre-
quencies from28.3 MHzto 28.6 MHz.YourHR25 J0 can tune up to 29.6999 MHz,
but these higher frequencies are reseNed for the advanced licencees. Keep on
practising and learning, and soon you will have legal access to allthe frequencies
accessible with your transceiver.
Eventually,you willwant to get a higher class of amateur licence, with more privi-
leges. Examinations for Fullcall, Limited and Novice licences are conducted ap-
proximately every three months at present by the Department of Transport and
Communications in your Capital City and some provincial centres.
We have mentioned the W/Apreviously. Theyare the national organisation which
represents the amateur radio operators in Australia. The W/A has approximately
8,000 members; most of them radio amateurs, but some are short wave listeners.
Here is the address of the W/A Executive office.
Wireless Institute of Australia
P.O. Box300
South Cau/field
Victoria 3 J62
Telephone [phone]
The W/Astaff helped us prepare this section of the owner's manual. Ifyou need
more information, or you would like to join the W/A please phone or write.
Amateur radio isa great hobby that has enriched the livesof millionsofpeople the
world over. Tandytakes pride inbringing toyou the HR25 J0transceiver which no
doubt will bring you many hours of enjoyment.
J8
-- r
-.--
~

~--=
Warranty
WARRANTOR: UNIDEN Australia Pty. Ltd. ("UN/DEN".)
ELEMENTSOF WARRANTY:UNIDEN warrants to the original retail owner for
the duration ofthis warranty, UNIDEN CS Product (hereinafter referred to as the
Product) to be free from defects in materials and craftsmanship with only the limit-
ations or exclusions set out below.
WARRANTYDURATION: Thiswarranty to the original user shall terminate and
be of no further effect One (1)Yearafter the date of original retail sale. The war-
ranty is invalid ifthe Product is (A)damaged or not maintained as reasonable or
necessary, (S)modified, altered, or used as a part ofany conversion kits,subassem-
blies, or any configurations not sold by UN/DEN. (e) improperly installed, (D)re-
paired by someone other than an authorized seNice center for a defect or mal-
function covered by this warranty, (E)used inany conjunction with equipment or
parts or as part of any system not manufactured by UNIDEN (F)installed, pro-
grammed or seNiced byanyone other than an authorized UNIDENseNice center.
STATEMENTOF REMEDY:In the event that the product does not conform to
this warranty at any time while this warranty is ineffect warrantor will repair the
defect and return it to you without charge for parts, seNice, or any other cost in-
curred by warrantor or its representatives in connection with the performance of
this warranty. THISWARRANTYDOES NOT COVER OR PROVIDEFOR THE
REIMBURSEMENTOR PAYMENTOF INCIDENTAL OR CONSEOUENT/ALDA-
MAGES.Some states do not allow this exclusion or limitation of incidental orcon-
sequential damages so the above limitation or exclusion may not apply to you.
PROCEDUREFOR OBTAINING PERFORMANCEOF WARRANTY: Inthe
event that the Product does not conform to this warranty, the Product should be
shipped or delivered, freight prepaid, to warrantor at 345 Princes Highway, Rock-
dale, NSW. 2216 with evidence of original purchase.
LEGALREMEDIES:Thiswarranty givesyou specific legal rights, and you mayal-
so have other rights which vary from state to state.
19
""
-- r
~
