Prestigio GRAPHENE PD User manual

PRESTIGIO®
GRAPHENE PD
Portable charger
User Manual

GRAPHENE PD
2
©2020 Prestigio | All rights reserved | version 1.0
EN
Contents:
Read Before Using
3
Benefits of Prestigio Graphene PD portable
charger
5
Product Bundle
6
Components and Interface Elements
7
Technical Specifications
9
Operation Guide
10
Safety Guidelines
13
LED Indicators
15
Troubleshooting
16
Care Recommendations
20
Transportation and Storage Rules
21
Waste Disposal
22

GRAPHENE PD
©2020 Prestigio | All rights reserved | version 1.0
3
EN
Read Before Using
Thank you for choosing the Prestigio Graphene PD wireless
charger. To ensure that you are using the charger correctly
and safely, please read this manual before you start. Do
not discard the manual, as you may have to refer to it in
the future.
Please note that the design and position of certain
elements may differ from the images and descriptions you
will find below because, as part of its commitment to
continuous improvement, the manufacturer reserves the
right to alter the charger's specifications without prior
notice.
The company will not be held liable for damage caused by
improper use of the charger.
The purpose of this manual is to provide information, and
it does not constitute any overt or covert warranty.
For the latest updates, go to www.prestigio.com.

GRAPHENE PD
4
©2020 Prestigio | All rights reserved | version 1.0
EN
Benefits of Prestigio Graphene PD Charger
The Prestigio Graphene PD portable charger is designed
for your comfort. It brings together all the features of a
modern high-tech device in a stylish body.
By using the included power adapter, you can fully charge
your device in just 40 minutes.
The combination of a portable charging device and a
wireless charging interface for smartphones provides the
easiest, most flexible use possible.
All of Prestigio Graphene PD's ports support the modern
QC3.0/PD quick charge protocols.

GRAPHENE PD
©2020 Prestigio | All rights reserved | version 1.0
5
EN
Product Bundle
Prestigio Graphene PD wireless charger
1 pc.
Power adapter 12V/5A
1 pc.
USB-C 1m cable
1 pc.
Quick user guide
1 pc.
Warranty card
1 pc.

GRAPHENE PD
6
©2020 Prestigio | All rights reserved | version 1.0
EN

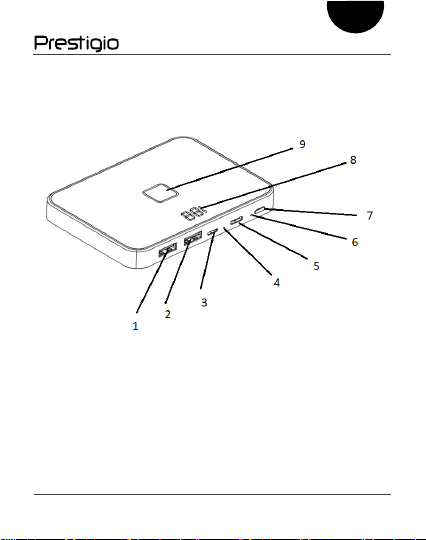

Components and Interface Elements
1, 2. USB-A
3. Micro-USB
4. Port use indicator
5. USB-С
6. Wireless charging indicator
7. On button

GRAPHENE PD
©2020 Prestigio | All rights reserved | version 1.0
7
EN
8. Battery level indicator
9. Spot where you should align with the center of your
smartphone for wireless charging.

GRAPHENE PD
8
©2020 Prestigio | All rights reserved | version 1.0
EN
Technical Specifications
Weight
0.29 kg
Dimensions
110*80*17 mm (l*w*h)
Body material
Aluminum, tempered glass
Capacity
10,000 mA per hour (37 W per
hour)
USB-А1 (output)
QC3.0 (5V3A/9V2A/12V1.5A)
USB-А2 (output)
QC3.0 (5V3A/9V2A/12V1.5A)
USB-B (input)
QC3.0 (5V3A/9V2A/12V1.5A)
USB-C (output)
QC3.0/PD (5V3A/9V2A/12V1.5A)
USB-C (input)
When used with the
original charger
12V/5A
USB-C (input)
QC3.0/PD (5V3A/9V2A/12V1.5A)
Wireless interface
5W/7.5W/10W
Operating temperature
-10 to 45 ºC

GRAPHENE PD
©2020 Prestigio | All rights reserved | version 1.0
9
EN
Operation Guide
Fully charge the device before the first use. Use the power
adapter included.
Wired charging
Connect the device that you would like to charge to the
respective port by using an appropriate cable.
Attention!
You should only use cables of sufficient quality. Cable
quality is one of the key factors impacting charging speed.
Wireless charging
1. Press the portable charger's On button.
2. Wait for the wireless charging indicator to light up blue
and blink 3 times, then go out for 2 seconds, then light up
again.
3. The indicator will remain active for 7 seconds, giving you
time to place your smartphone on the specially designated
spot. Note that the smartphone must support wireless
charging.

GRAPHENE PD
10
©2020 Prestigio | All rights reserved | version 1.0
EN
4. The indicator will continue to blink regularly throughout
the wireless charging process to indicate that the charger
is in use.
Attention
While charging, do not place any metal objects (including
paper clips, coins, keys, etc.) or plastic bank cards between
the smartphone and the charging pad. This may damage
your smartphone or its case, the charging pad, or the
object within the charger's active range.
Charging multiple devices
The Graphene PD portable charger can be connected to
several devices at the same time for wired charging, or a
combination of wired and wireless charging. To charge
multiple devices, simply connect them to the charger using
any available method.

GRAPHENE PD
©2020 Prestigio | All rights reserved | version 1.0
11
EN
Safety Guidelines
1. Do not open the portable charger or take it apart.
2. Do not attempt to replace the built-in batteries.
3. Do not break or pierce the charger or the included
batteries.
4. Keep away from ignition sources.
5. Do not use the charger inside a case, bag, or other
enclosed container or space. The charger must always have
free access to air.
6. Keep away from direct sunlight: do not store the charger
and especially do not use it in direct sunlight. Avoid any
risk of the device overheating.
7. Use the charger only for its intended purpose.
8. If you have run into an issue, or if any part of the charger
has been damaged, stop using it immediately, unplug it,
and contact a service center.
9. The charger cannot come into contact with moisture, oil,
chemicals, or any organic fluids. We do not recommend
using the charger in areas with high humidity.
10. Do not use the charger in very dusty places.

GRAPHENE PD
12
©2020 Prestigio | All rights reserved | version 1.0
EN
11. Keep the charger and its accessories out of the reach
of children.

GRAPHENE PD
©2020 Prestigio | All rights reserved | version 1.0
13
EN
LED Indicators
The port use indicator
shows a solid green
light.
One or several Prestigio
Graphene PD ports are in use.
The wireless charging
indicator shows a
blinking blue light.
Prestigio Graphene PD is in
wireless charging mode.
The battery level
indicator blinks
periodically. The port
use and wireless
charging indicators
are dark.
Prestigio Graphene PD is
charging

GRAPHENE PD
14
©2020 Prestigio | All rights reserved | version 1.0
EN
Troubleshooting
General issues
- If you run into any issues,
always start troubleshooting by
ensuring that the charger is not
damaged or covered in any
foreign substances and that it
does not have an unpleasant
odor. If you discover any of the
above, stop using the charger
immediately and contact the
service center.
- Ensure that the charger has
not been subjected to excessive
cold or heat. Leave it at room
temperature for at least 30
minutes. To ensure normal
operation, the ambient
temperature around the charger
must be between -10 ºC and 45
ºC.

GRAPHENE PD
©2020 Prestigio | All rights reserved | version 1.0
15
EN
The charger is not
working. The battery
level indicator is dark
- Ensure that the charger has
not simply lost its charge.
Connect it to the included
power adapter for at least 10
minutes
- Ensure that the socket you
have plugged the adapter into
is receiving power
The device is not
charging. The battery
level indicator is stuck
at 0
- Ensure that the socket you
have plugged the adapter into
is receiving power
- Connect the charger to the
included power adapter for at
least 10 minutes
Wired charging is not
working
- Ensure that the portable
charger has not simply lost its
charge.
- Check the integrity of the
cable that you are using.
- Try using another cable.

GRAPHENE PD
16
©2020 Prestigio | All rights reserved | version 1.0
EN
Wireless charging is
not working
- Ensure that the portable
charger has not simply lost its
charge.
- Ensure that your smartphone
supports wireless charging
- Ensure that no other objects
were placed between the
charger and the smartphone
- Take the smartphone out of its
case
- Ensure that your smartphone
is properly aligned with the
charging pad Try repositioning
your smartphone by moving it a
little in different directions
The problem isn't
solved
If this didn't solve your problem
or if you have additional
questions, please contact
customer support. The contact
information is provided in the
warranty card.

GRAPHENE PD
©2020 Prestigio | All rights reserved | version 1.0
17
EN
Care Recommendations
Clean the charger with a soft, dry cloth or with alcohol-free
wipes for cleaning office equipment.

GRAPHENE PD
18
©2020 Prestigio | All rights reserved | version 1.0
EN
Transportation and Storage Rules
1. The charger is not intended for use in residential,
business, or industrial zones with a hazard risk.
2. We recommend storing and using the charger in
environments where temperatures range from 0 °C to +45
°C and the relative humidity is 10~80%.
3. Long-term storage is permitted only in the charger's
original packaging in dark, dry, clean, well-ventilated
enclosed spaces.
4. The charger may be shipped by any means of transport
across any distance, but it must be shipped in its original
packaging.

GRAPHENE PD
©2020 Prestigio | All rights reserved | version 1.0
19
EN
Waste Disposal
Do not dispose of the charger and its accessories with
regular household waste. At the end of their service life,
take them to an electronics recycling facility.
