Prestigio Nobile 1570 User manual

1
PRESTIGIO NOBILE 1570
ENG
Prestigio Nobile 1570
Notebook Computer
User’s guide
Copyright © 2005
All Rights Reserved
Notebook Computer User’s guide
Original Issue: March 2005
Changes may be made periodically to the information in this publication without obligation to notify any person of such revision
or changes. Such changes will be incorporated in new editions of this manual or supplementary documents and publications. This
company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically
disclaims the implied warranties of merchantability or fitness for a particular purpose.
Record the model number,serial number,purchase date, and place of purchase information in the space provided below.The serial
number and model number are recorded on the label affixed to your computer.All correspondence concerning your unit should
include the serial number, model number,and purchase information.
NotebookComputer
ModelNumber :
SerialNumber:
PurchaseDate:
Placeof Purchase:
All trademarks and registered trademarks are the properties of their respective companies.

2PRESTIGIO NOBILE 1570
ENG
Preface
Thisnotebook computer incorporatesthe latestmobile technologiesin a slimand portablepackage. Thismanual should
answermost ofthe questions youhaveabout the day-to-dayoperation ofyour notebook computer.Youshould also take
advantageof the onlinehelp files thatare availablewith almost allof the programsshipped with yourcomputer.
We hope you enjoy your notebook computer.With proper care,your computer will provide you with years of productive
service.
Connecting the computer
Connectingthe computeris as easyas 1-2-3.
1. Insert the battery atan angle (1); press gently onthe battery (2) until it clicksinto place. Then slide thebattery lock to
thelock position(3).
Note: When using a battery pack for the first time, fully recharge the battery, then disconnect the
adapter to use up the battery before recharging again. Perform this action twice to condition the
battery pack.
2.Connect one endof theAC adapterto the DC-inport
onthecomputer’srearpanel(1);connectthe powercord
to the AC adapter (2) and the other end to a properly
groundedpower outlet(3).
3.Press thedisplay coverreleaselatch (1)and openthe
display (2) to a comfortable viewing angle. Press the
powerswitch(3)toturn onthepower.ThePOST(power-
onself-test)routineexecutes andWindowsbeginsload-
ing.
Note: To turn off the power, use the Windows Turn
Off command to shut down the computer. If you are
unable to shut down your computer normally, press
and hold the power switch for more than four
seconds to turn off the computer. If you turn off the
computer and want to turn it on again, wait at least
two seconds before powering up.

3
PRESTIGIO NOBILE 1570
ENG
Care and maintenance
Taking care of your computer
Your computer will serve you well if you take care of it.
• Do not expose the computerto direct sunlight.Do not place itnear sources of heat,such as a radiator.
•Do not exposethe computer totemperatures below 0.C(32.F) or above50.C (122.F).
•Do not subjectthe computerto magnetic fields.
•Do not expose thecomputer to rainor moisture.
•Donot spill wateror anyliquid on thecomputer.
•Do not subjectthe computerto heavyshock and vibration.
•Do not exposethe computer todust anddirt.
•Never placeobjectson topof thecomputer toavoiddamaging thecomputer.
•Never placethe computer onuneven surfaces.
Taking care of your AC adapter
Here are some ways to take care of your AC adapter:
•Do not connectthe adapter to any otherdevice.
•Do notstepon thepower cordor place heavyobjects ontop ofit.Carefully routethe powercordand anycables away
from all potential traffic.
•When unpluggingthe powercord, donot pullon thecord itselfbutpull onthe plug.
•The total ampere ratingsof the equipmentplugged in shouldnot exceed theampere rating ofthe cord ifyou are
usingan extension cord.Also, the totalcurrent ratingof all equipmentplugged into asingle wall outletshould not
exceedthe fuserating.
Taking care of your battery pack
Here are some ways to take care of your battery pack:
• Use only batteries of the same kind as replacements.Turn the power off before removing or replacing batteries.
•Do not tamperwith batteries. Keepthem awayfrom children.
•Dispose ofused batteries accordingto localregulations. Recycleif at allpossible.
Cleaning and servicing
Whencleaning thecomputer,follow thesesteps:
1.Power off thecomputer and removethe batterypack.
2.Disconnect theACadapter.
3.Usea soft clothmoistened with water.Do not use liquidor aerosol cleaners.
Contactyour dealer orsee your servicetechnician ifany of thefollowing occurs:
•The computerhas beendropped orthe bodyhas beendamaged.
•Liquid hasbeen spilledinto theproduct.
•Thecomputerdoes notoperatenormally.

4PRESTIGIO NOBILE 1570
ENG
Getting familiar with your computer
Thiscomputercombines high-performance,versatility,powermanagement features and multimediacapabilities witha
uniquestyleand ergonomicdesign.
Workwith unmatchedproductivity andreliability withyour new powercomputingpartner.
Thischapter givesan in-depth“tour”of thecomputer’s manyfeatures.
A tour of your computer
Letusshow youaround yournewnotebookcomputer.
Note: Computer housing design might differ from the illustrations.
Front view
# Item Description
1 Display cover latch Press to unlatch the display cover.
2 Optical drive Accepts a CD or DVD
3 LED indicator Lights up when the optical is active
4 Eject button Press to eject the drive tray
5 Emergency eject hole Insert a pin to eject the drive tray when power is off
Note: Optical drive may be DVD-ROM, DVD/CD-RW, DVD-Dual, or DVD Super Multi drive.
Top view

5
PRESTIGIO NOBILE 1570
ENG
# Item Icon Description
1 Display screen Also called LCD (liquid-crystal display),displays computer output.
2 Status indicators LEDs (light-emitting diodes) that turn on and offto show the status
of the computer and its functions and components
3 Power button Turns on the computer power
4 Launch keys Buttons for launching frequently-used programs
5 Touchpad Touch-sensitive pointing device which functions like
a computer mouse
6 Microphone Inputs sounds and voices into your computer
7 Click buttons The left and right buttons function like the left and right mouse
(left and right) buttons
8 Palm rest Comfortable support area for your hands when you use the computer
9 Keyboard Inputs data into your computer
10 Speakers Outputs sound.
11 Audio DJ control panel Control buttons for playing audio.
Left view
# Item Icon Description
1 Volume control Adjusts the volume.
2 4-in1 card slot Accepts a Secure Digital (SD), Memory Stick (MS), xD-Picture Card (xD)
or MultiMediaCard (MMC) memory card.
3 ExpressCard slot Accepts one ExpressCard/34 or one Express/54 module.
4 PC Card slot Accepts one Type II 16-bit PC Card or 32-bit CardBus PC Card.
5 PC Card eject button Ejects the PC Card from its slot.
Right view
# Item Icon Description
1 Security keylock Connects to a Kensington-compatible computer security lock.

6PRESTIGIO NOBILE 1570
ENG
Rear view
# Item Icon Description
1 DC-in jack Connects to an AC adapter.
2 S-video out port Connects to a television or display device with S-video input
3 External monitor port Connects to a display monitor (up to 2048x1536 resolution).
4 Modem jack Connects a phone line (only for models with an internal fax/data
modem).
5 Network jack Connects to an Ethernet-based network.
6 IEEE 1394 port Connects to a IEEE 1394-compatible (4-pin) device
(e.g., digital video camera).
7 USB ports Connect to USB devices (e.g., USB digital camera
8 Line-in jack Accepts audio line-in devices (e.g., audio CD player, stereo walkman).
9 S/PDIF line-out jack Connects to audio line-out devices (e.g., speakers, headphones);
supports S/PDIF connections.
Bottom view

7
PRESTIGIO NOBILE 1570
ENG
# Item Icon Description
1 MXM Graphic Module™ slot Accepts a Mobile PCI Express (MXM) Module daughterboard.
Available only for model Nobile 1570 with Intel 915PM chipset.
2 Name card slot Accepts a calling card-sized name card.
3 Memory module slots Accepts DDR2 memory modules.
4 Hard disk bay Houses the computer’s hard disk.
5 Battery bay Houses the computer’s battery pack.
6 Battery release latch Unlatches the battery to remove it.
7 Battery lock Locks/unlocks the battery pack.
Features
Thiscomputer was designed withthe user inmind. Here arejust a fewof its many features:
Performance
•Intel® Pentium® MProcessor (up to745/1.8 GHz)
•15.0-inch TFT(ThinFilmTransistor) LCD at1400x1050 SXGA+(Super eXtendedGraphics Array+)resolution displaying
in32-bit colordepth with Intel®915PM chipset.Supports MXM(Mobile PCIExpress) graphic card
•Memory upgradeable to2 GBwith 2 PC2-3200/PC2-4200(400/533 MHzDDR2) soDIMM slots
• SATA hard disk
•Lithium-Ion battery pack
•Power management system
•Dual view capability
•Simultaneous LCDand CRT display
•External display support up to1024x768 (85Hzor higher) resolution
Multimedia
•Audio DJ panelfor playing music CDs withoutpowering on thesystem
•AC’97 2.2-compliantstereo audio
•S/PDIF line-out jack
•Built-in microphone
• DVD/CD-RW combo drive, DVD-ROM drive, DVD Dual drive (option) or DVD Super Multi drive (option)
•S-video output port
Connectivity
•High-speed fax/data softwaremodem
•Ethernet LAN(10/100/1000 Mbps)
•802.11b,802.11b+gor802.11a+b+g wirelessLAN(option)
Human-centricdesign andergonomics
•Sleek, smooth,slim andstylish design
•Full-sized keyboard
•Ergonomically-centered touchpadpointing device(can beenabled ordisabled thruthe hotkeyFn-F6)
•Launch keys
•Audio DJ panel
Expansion
•Upgradeable memory andhard disk

8PRESTIGIO NOBILE 1570
ENG
•CardBus (PCMCIA type-II socket)
•ExpressCard (ExpressCard/34 orExpressCard/54 module)
• USB 2.0
•IEEE 1394 (6-pin)
• 4-in-1 card slot (Secure Digital (SD), Memory Stick (MS), xD-Picture Card (xD) or MultiMediaCard (MMC)
Display
Thegraphics displayoffers excellentviewing, displayquality anddesktopperformance graphics.The computersupports a
largeThin-FilmTransistor(TFT)liquidcrystaldisplay(LCD)displayingupto16.7million colorsat 1024x768 XGAor 1400x1050
SXGA+resolution, dependingonthe computermodel.
Simultaneous display
Thecomputer’s crispdisplay andmultimedia capabilitiesaregreatforviewing moviesorgiving presentations.If youprefer,
youcanalso connectanexternalmonitor whengivingpresentations. Thiscomputersupportssimultaneous LCDandexternal
display output via the external display port or the S-video output port. Simultaneous display allows you to control the
presentationfromyourcomputerandatthesame timefaceyouraudience.Youcan alsoconnect otheroutputdisplaydevices
suchas LCDprojection panelsfor large-audiencepresentations.
Power management
Thepowermanagementsystemincorporatesan“automaticLCDdim”featurethatautomaticallydimstheLCDwhenthecomputeris
poweredbyabatterypacktoconservebatterypower.See“Powermanagement”formoreinformationonpowermanagementfeatures.
Opening and closing the display
To open the display,press the display cover latch and lift up the cover,then tilt it to a comfortable viewing position.See
“Connectingthecomputer” onpage vii.Thecomputer employsamicroswitch thatturnsoff thedisplay(e.g., entersstandby
mode)to conserve powerwhen youclose thedisplay cover,andturns itback onwhen youopen the displaycover.
To closethe displaycover,fold it downgently untilthe displaycoverlatchclicks intoplace.
Caution:To avoid damaging the display, do not slam it when you close it.Also,do not place any
object on top of the computer when the display is closed.
Indicators
Thecomputer has seveneasy-to-read statusindicators (LEDs)under the displayscreen.

9
PRESTIGIO NOBILE 1570
ENG
ThePowerand Standbyindicatorsare visibleevenwhenyou closethedisplay coversoyou can seethestatus ofthecomputer
whilethe cover isclosed.
# Item Icon Description
1 Wireless communication Lights when the wireless LAN (optional) capabilities are enabled.
2 Power Lights when the computer is on. Blinks when a battery-low condition
occurs.
3 Standby Blinks when computer enters Hibernation mode
4 Media activity Lights when the hard disk, or CD or DVD drive is active
5 Battery charge Lights when the battery is being charged
6 Caps lock Lights when Caps Lock is activated.
7 Num lock (Fn-F11) Lights when Numeric Lock is activated.
Keyboard
Thekeyboard hasfull-sized keyswith anembedded keypad,separate cursorkeys,two Windowskeys andtwelve function
keys.
Special keys
Lock keys
Thekeyboard has threelock keyswhich youcan toggle onand off.
Lock Key Description
Caps Lock When Caps Lock is on, all alphabetic characters typed are in uppercase.
Num Lock When Num Lock is on, the embedded keypad is in numeric mode. The (Fn-F11)
keys function as a calculator (complete with the arithmetic operators +, -, *, and /).
Use this mode when you need to do a lot of numeric data entry. A better
solution would be to connect an external keypad. See “External keyboard”.
Scroll Lock When Scroll Lock is on, the screen moves one line up or down when (Fn-F12) you
press /\ or \/ respectively. Scroll Lock does not work with some applications.

10 PRESTIGIO NOBILE 1570
ENG
Embedded numeric keypad
Theembedded numerickeypad functionslike adesktop numerickeypad. Itis indicatedby smallcharacters locatedon the
upperright cornerof the keycaps.Tosimplify thekeyboardlegend,cursor-controlkeysymbols arenot printedonthe keys.
Desired Access Num Lock On Num Lock Off
Number keys on embedded keypad Type numbers in a normal manner.
Cursor-control keys Hold Shift while using cursor-control keys. Hold Fn while using cursor-control
on embedded keypad keys.
Main keyboard keys Hold Fn while typing letters on Type the letters in a embedded
keypad.normal manner.
Windows keys
Thekeyboard hastwo keysthat performWindows-specific functions.
Key Description
Windows logo key Start button. Combinations with this key perform special functions.
Below are a few examples:
Windows logo key + Tab (Activates next Taskbar button)
Windows logo key + E (Explores My Computer)
Windows logo key+ F (Finds Document)
Windows logo key + M (Minimizes All)
Windows logo key + Shift + M (Undoes Minimize All)
Windows logo key + R (Displays Run dialog box)
Application key Opens the application’s context menu (same as right-click).

11
PRESTIGIO NOBILE 1570
ENG
Hotkeys
Thecomputeruses hotkeysorkeycombinations toaccesscontrolssuch asscreencontrastand brightness,volumeoutput and
theBIOS setup utility.
Hotkey Function Icon Description
Fn-F1 Hotkey help Displays a list of the hotkeys and their functions
Fn-F2 Sleep Puts the computer in Sleep mode, which can be defined via
the advanced section of the Power Management Properties in the
Windows Control Panel.
Fn-F3 Display toggle Switches display output between the display screen, external monitor
(if connected) and both the display screen and external monitor
Fn-F4 Screen blank Turns the display screen backlight off to save power. Press any key
to return
Fn-F5 Speaker on/off Turns the speakers on and off; mutes the sound
Fn-F6 Touchpad toggle Enables or disables the touchpad.
Fn-PgUp Home Functions as the “Home” key
Fn-PgDn End Functions as the “End” key
Fn-–› Brightness up Increases the screen brightness
Fn-‹– Brightness down Decreases the screen brightness
Activating hotkeys
Whenactivating hotkeys, pressand holdthe Fnkey before pressingthe otherkey in thehotkey combination.

12 PRESTIGIO NOBILE 1570
ENG
Keyboard ergonomics
Locatedbelow thekeyboard, thewideand curvedpalm restis ergonomicallydesigned toprovideyou witha verycomfort-
ableplace to restyour hands whileyou type.
Touchpad
Thebuilt-in touchpadis a pointingdevice thatsenses movementon its surface.
Thismeans the cursorresponds asyou move yourfinger onthe surfaceof the touchpad.The centrallocation on thepalm
restprovides optimum comfortand support.
Touchpad basics
Thefollowing teachesyou howto usethe touchpad:
Note: Computer housing design might differ from the illustration.
• Move your finger across the touchpad to move the cursor.
• Presstheleft(1) andright(2)buttonslocated ontheedgeofthe touchpadtodoselection and executionfunctions.These
two buttonsaresimilar tothe leftand right buttonson amouse.Tapping onthe touchpadproducessimilar results.

13
PRESTIGIO NOBILE 1570
ENG
Function Left Button Right Button Tap
Execute Click twice quickly Tap twice (at the same speed
as double-clicking the mouse
button)
Select Click once Tap once
Drag Click and hold, then use Tap twice (at the same speed as
finger to drag the cursor double-clicking the mouse
on the touchpad. button) and hold finger to the
touchpad on the second tap to
drag the cursor
Access context menu Click once
Note: Keep your fingers dry and clean when using the touchpad. Also keep the touchpad dry and
clean. The touchpad is sensitive to finger movements. Hence, the lighter the touch, the better the
response.Tapping too hard will not increase the touchpad’s responsiveness.
Launch keys
Locatedat the topof the keyboardare fivelaunch keys usedto launch frequentlyused applications.
# Item Icon Description
1 Wireless communication This button is used to enable or disable the wireless LAN (optional)
function
2 Email The mail button is used to launch the email application
3 Internet browser By default, is used to launch your internet browser
4 P1 This button is user-programmable
5 P2 This button is user-programmable

14 PRESTIGIO NOBILE 1570
ENG
Storage
Thiscomputer suppliesyou withthe following media storage:
•High-capacitySATA harddisk
• Internal DVD,DVD/CD-RW,DVD Dual or DVD Super Multi drive
•4-in-1 card slot
•External USB 3.5-inchfloppy drive (option)
Hard disk
Thehigh-capacity hard diskis whereyour programs anddata arestored.
Optical drive
Ahigh-speed DVD,DVD/CD-RW,DVDDualor DVDSuper Multidrive givesyouportable multimediaaccess.Thedriveallows
you to watch DVDmovies, and the combodrive, in addition, letsyou burn your dataonto a CD recordabledisc.
INSERTING THE DISC
To insert a disc into the optical drive,press the eject button to eject the drive tray.
Pullout the drivetray andplace a discsecurely onthe spindle;then close thedrivetray.
REMOVING ADISC
Beforeejecting a disc,make surethat no programsor applicationsare using thedisc. Thenpress the ejectbutton toeject
the drive tray.Pull out the drive tray and remove the disc from the spindle.Close the drive tray.

15
PRESTIGIO NOBILE 1570
ENG
PLAYING DVD MOVIES
To playDVDmoviesin yourcomputer,justinserta DVDmoviedisc intothedrive andthe DVDmoviewill automaticallyplay
after a few seconds.
Important! When you launch the DVD player for the first time, the program asks you to input the
region code. DVD discs are divided into 6 regions. Once your DVD drive is set to a region code, it will
play DVD discs of that region only.You can set the region code a maximum of five times (including
the first time), after which the last region code set will remain permanent.
Recovering your hard disk does not reset the number of times the region code has been set. Refer
to the table below for DVD movie region code information.
Region code Country or region
1 U.S.A., Canada
2 Europe, Middle East, South Africa, Japan
3 Southeast Asia, Taiwan, Korea (South)
4 Latin America, Australia, New Zealand
5 Former U.S.S.R., parts of Africa, India
6 People’s Republic of China
Note:To change the region code, insert a DVD movie of a different region into the DVD drive.
Please refer to the online help for more information.
Youcan usethe AudioDJ paneltocontrolmusic playback. See“AudioDJcontrolpanel”.
BURNING CDSAND DVDS
Depending onthe optical driveinstalledin your computer,youcan burnDVDs orCDs on your computer.The CD-RW drive
acceptsa CD-R(CD-Recordable) or CD-RW(CD-ReWritable) forwriting data.The DVDDual drive acceptsa DVD+/-RWfor
writingdata.The SuperMulti drive accepts a DVD+/-RWor DVD-RAMdisc forwriting data.Please referto the onlinehelp
of the CD/DVD recording software on your hard disk for more information.
Note: The DVD-ROM drive is not capable of burning CDs or DVDs.

16 PRESTIGIO NOBILE 1570
ENG
4-in-1 memory slot
Thecomputer comes witha 4-in-1 cardslot. The cardslot acceptsa MemoryStick, SD,xD-Picture Card orMMC. For more
information,see“4-in-1 cardslot”
Connectivity options
Thecomputer hasbuilt-in features forconnecting toa networkand communicatingwith othercomputers.

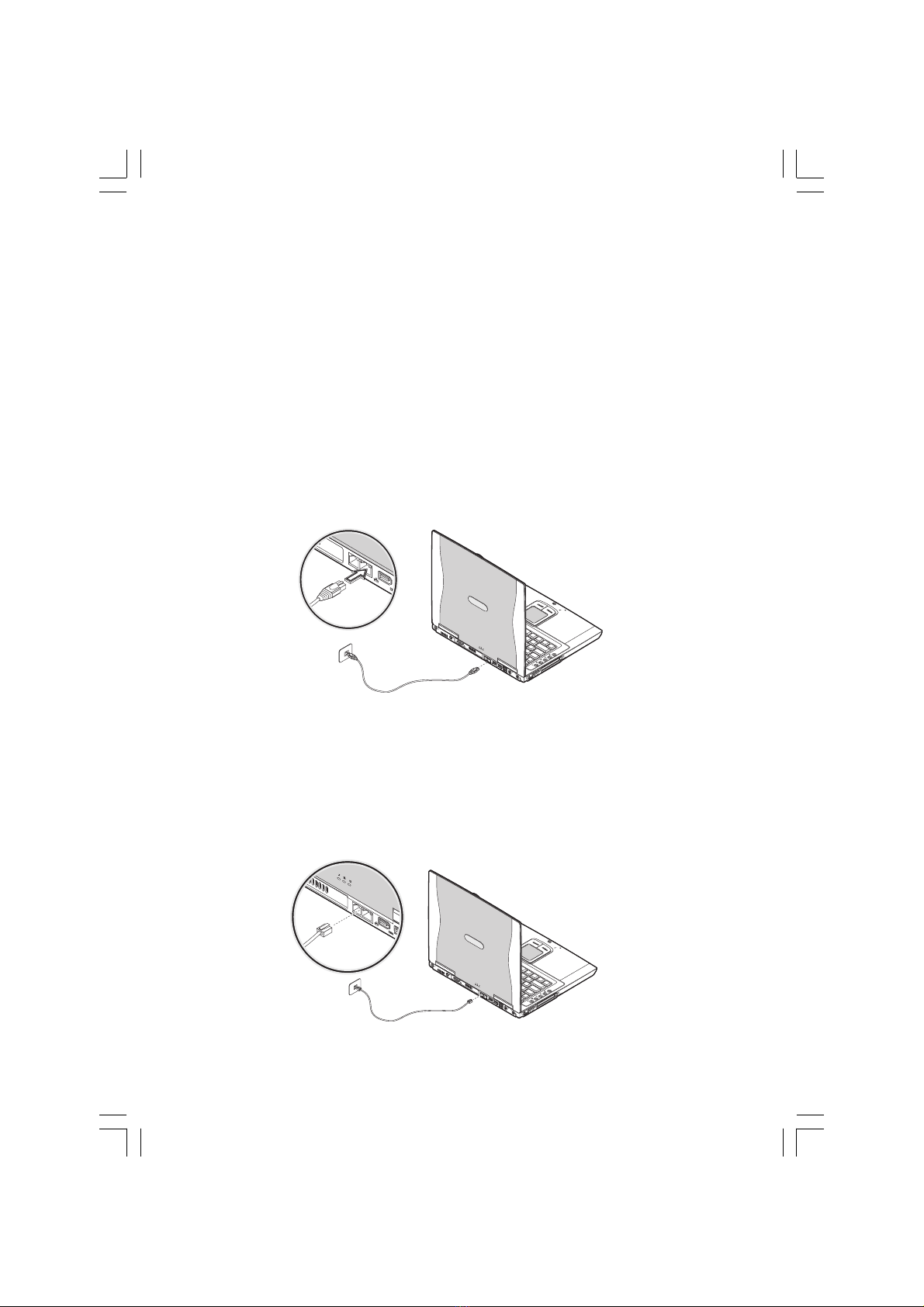

Ethernet (LAN)
The built-in network feature allows you to connect your computer to an Ethernet-based (10/100/1000 Mbps)
network.
To use the network feature, connect an Ethernet cable from the network jack on the rear of the computer to a
network jack or hub on your network.
Note: Computer housing design might differ from the illustration.
Fax/data modem
Thecomputer has abuilt-in fax/data modem (available inselect countries).
Warning: This modem port is not compatible with digital phone lines. Plugging this modem into a
digital phone line will damage the modem.
To usethe fax/datamodem port,connect a phonecable fromthe modem port toa telephonejack.
Note: Computer housing design might differ from the illustration.

17
PRESTIGIO NOBILE 1570
ENG

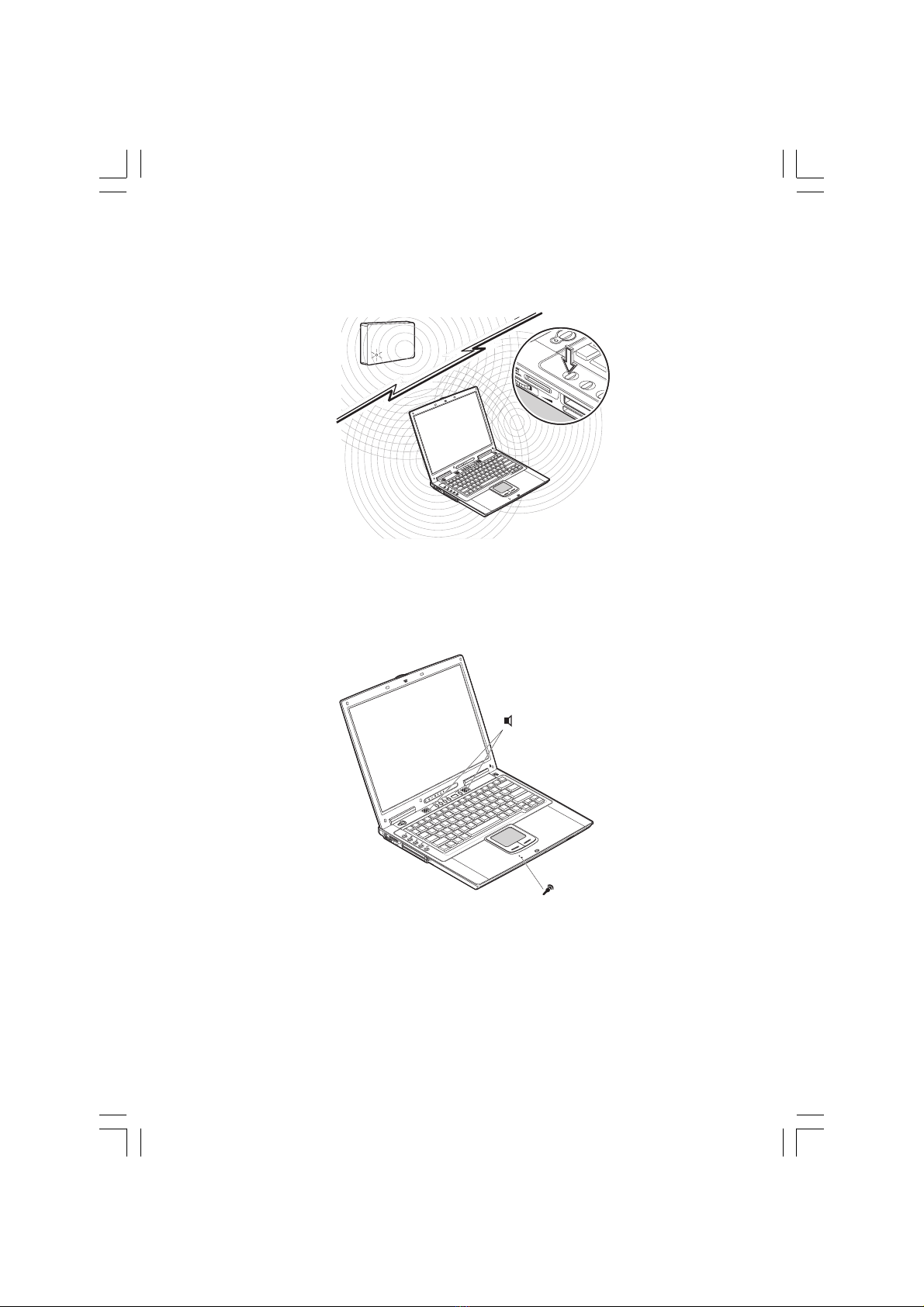

Wireless communication
Thiscomputer canbe equipped witha wirelesscommunication feature(option). Thisfeature allows youto connectto an
Ethernet-basednetwork wirelesslyand communicatewith otherwireless communicationdevices.
Youcan manually turnoff yourwirelesscommunication feature.
Audio
Your computerincludes 16-bithigh-fidelitystereoaudio.Thespeakerlocatednear thekeyboard,direct soundtowardsyou
tofurther enhancesoundoutput.
There are audio ports on the rear panel of the computer. See“Rear view”for the location of these ports.Also see“Audio
devices”for moreinformation onconnecting externalaudio devices.

18 PRESTIGIO NOBILE 1570
ENG
Audio DJ control panel
TheAudio DJcontrolpanelis aspecial featureof thiscomputer.AudioDJ allowsyoutoplay musicCDs withoutturning your
computeron.
Note: Computer housing design might differ from the illustration.
Whencomputer ison, you canalso controlthe playbackof musicCDs.
# Item Description
1 Previous track Jumps to the previous track.
2 Next track Jumps to the next track.
3 Play/pause Plays and pauses the media playback.
4 Stop/eject Stops playback; ejects the drive tray.
5 Status LCD Displays current media status.
6 Power Turns the Audio DJ feature on and off.
Adjusting the volume
A rotary knob located near the left rear side of the computer allows you to adjust the volume.Turn it towards the rear of
the computer to decrease the volume;turn it towards the front to increasethe volume.

19
PRESTIGIO NOBILE 1570
ENG
Securing your computer
Securityfeatures include hardwareand softwarelocks -a security notchand password.

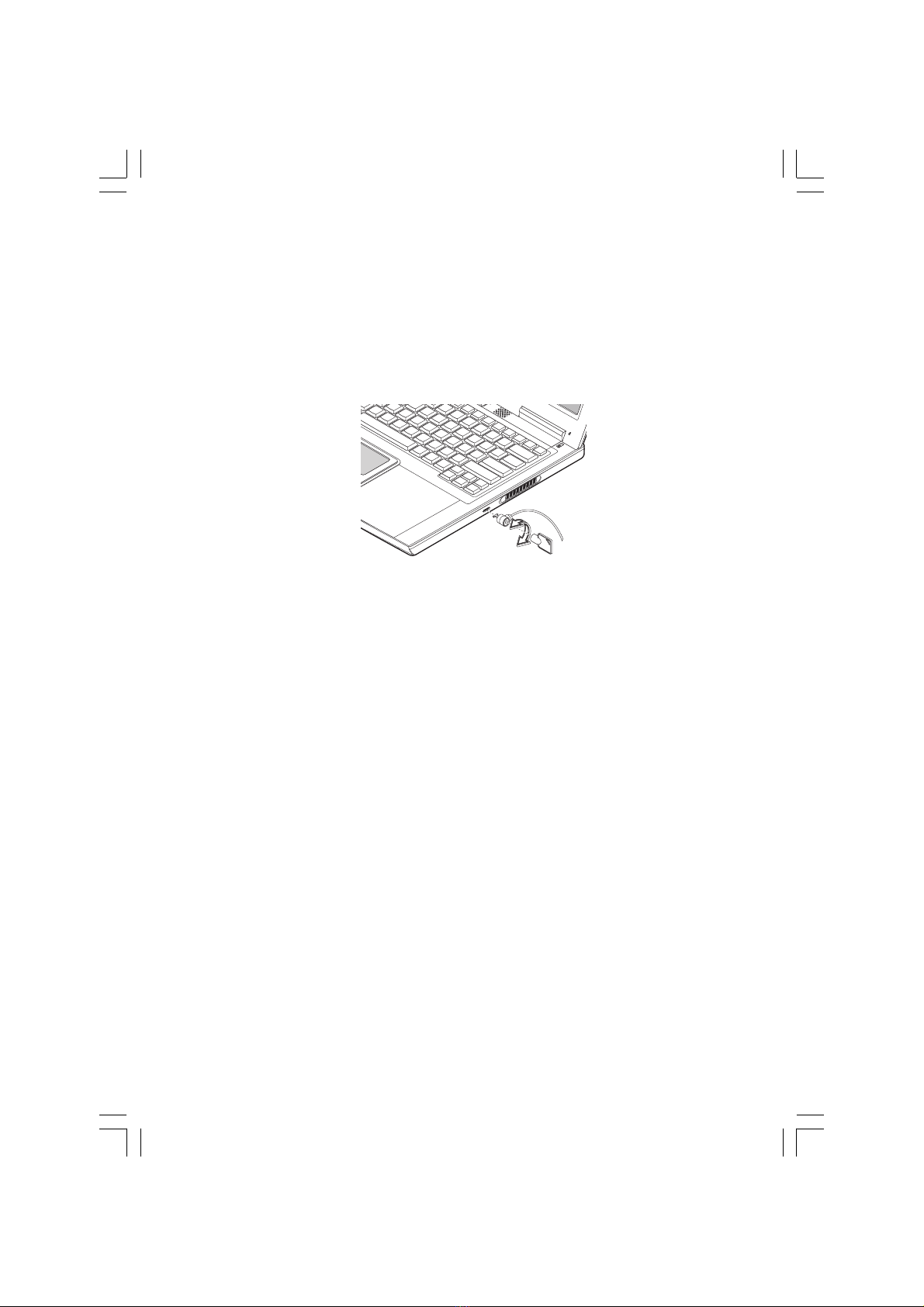

Security notch
Asecuritynotch locatedontheright panelofthecomputer letsyouconnecta Kensington-compatiblecomputersecuritylock.
Wrapa computer securitylock cablearound animmovable object suchas atable orlocked drawer handle.Insert thelock
intothe notch andturn the keyto securethe lock. Somekeyless models arealso available.
Passwords
Passwordsprotectyour computerfromunauthorizedaccess. Whenset,noone canaccessthe computerwithoutenteringthe
correctpassword.
Thereare three typesof passwords youcan set:
•Supervisor Passwordsecuresyour computeragainst unauthorizedentrytocritical parametersin the BIOSUtility.
•User Password securesyour computeragainst unauthorizeduse,and allows limitedaccess totheBIOS Utility.
See“Aboutpasswords”fordetails.
Important: Do not forget your Setup and Hard Disk password! If you forget your password, please
get in touch with your dealer or an authorized service center.

20 PRESTIGIO NOBILE 1570
ENG
Operating on battery power
Optimizing battery life
Thissection helpsyouget themostout ofbattery operation.Optimizingbattery lifeprolongs thecharge/rechargecycle and
improvesrechargeefficiency.Followthese suggestionsto optimize and maximizebattery power:
•Purchase an extrabattery pack.
•Use the ACadapter whenever possibleso thatthe battery isreserved for on-the-gocomputing.
•Keep thebattery packinthe computerpoweredby theACadapter.Theconstanttrickle chargemaintainsthe battery
levelto eliminate thebattery self-dischargeeffect. The charge-in-use function alsocharges thebattery pack.
•Ejectthe PC cardfrom thecardslot when itis not inuse,since the PCcarddrawsextrapower.See“Ejecting a card”
onpage50.
•Store the batterypack in acool, dry place.The recommended storagetemperature for batterypacks ranges from
10to 30 degreesCelsius. Thehigher thestorage temperature, thefaster thebattery pack self-discharges.
•The batteriescan berecharged about400 timeswhen usedas directed.Excessive rechargingdecreases batterylife.
•Take care of your battery pack and AC adapter.See“Care and maintenance”chapter of the preface.
Peripherals and options
Yourcomputeroffersexcellentexpansioncapabilitieswith itsbuilt-inports,connectorsandbays.Thischapterdescribeshow
toconnectperipherals andhardwareoptions thathelpyouuse yourcomputerwith ease.Whenconnectingperipherals, read
themanualincluded withtheperipheralfor operatinginstructions.Youcanpurchasemostof theseandother options directly
fromauthorized dealers.
Thischapter also includessections on howto upgradekey components. Keycomponent upgradeability helpskeep your
computerinstep withthe latesttechnology.
External monitor
Youcanconnectanexternalmonitortothe externalmonitorportonthe rearpanel.Readthe monitormanualforadditional
instructions.
Note: If an external monitor is not connected, closing the display cover puts the computer into
Standby mode.
Note: Computer housing design might differ from the illustration.
