Prestigio Nobile 1440W User manual

Nobile 1440W

Prestigio Nobile 1440W 1
ENG
Prestigio Nobile 1440W
User’s Manual
Notice
The information in this user’s manual is subject to change without notice.
THE MANUFACTURER OR RESELLER SHALL NOT BE LIABLE FOR ERRORS OR OMISSIONS CONTAINED IN THIS MANUAL
AND SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL DAMAGES, WHICH MAY RESULT FROM THE PERFORMANCE OR
USE OF THIS MANUAL.
The information in this user’s manual is protected by copyright laws. No part of this manual may be photocopied or
reproduced in any form without prior written authorization from the copyright owners.
Copyright 4/2006
All rights reserved.
Microsoft and Windows are registered trademarks of Microsoft Corporation. DOS, Windows 95/98/ME/2000/NT/XP
are trademarks of Microsoft Corporation.
Product names mentioned herein may be trademarks and/or registered trademarks of their respective
owners/companies.
The software described in this manual is delivered under a license agreement. The software may be used or copied
only in accordance with the terms of the agreement.
This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual
property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for
home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or
disassembly is prohibited.
Rev 1.0

2 Prestigio Nobile 1440W
ENG
Preface
Using This Manual
This User’s Manual contains general information about the hardware and software setup, troubleshooting, and
technical specifications of the notebook computer.
Symbols and Conventions
The following conventions and symbols are used in this manual:
When keys are to be pressed at the same time, a plus (+) symbol is used. For instance, Fn+F7 means holding Fn
and F7 keys at the same time.
When a series of clicking actions is needed in Windows O/S, [ ] and > symbols are used. For instance, [Start >
Settings > Control Panel > Display] means clicking the Start icon first, then the Settings, then the Control Panel,
then the Display icon.
When you need to make a selection with the touch pad (or mouse), you will be asked to ’select’ or ‘click’ or
‘double-click’, ‘right-click’ the item.
Note: Text in this format and symbol means specific instructions, commentary, sidelights, or any additional
information or notes that you should be aware of.
Warning: Text in this format and symbol means that failures to comply with the given instructions or
information could result in damage to your computer or could cause bodily harm or loss of life.
Protecting Your Computer - Avoid Abusive Handling and Adverse
Environment
Follow the advice below will help ensure that you get the most out of your Investment.
Your computer will serve you well if you take good care of it.
Do not expose the computer to direct sunlight or place it near sources of heat.
Do not subject it to temperatures below 0°C (32°F) or above 35°C (95°F).
Do not expose the computer to magnetic fields.
Do not expose the computer to moisture or rain.
Do not spill water or liquid on the computer.
Do not subject the computer to adverse shock and vibration.
Do not expose the computer to dust and dirt.
Do not place objects on top of the computer to avoid damaging the computer.
Do not place the computer on rocky surfaces.

Prestigio Nobile 1440W 3
ENG
Here are some ways of taking care of your AC adapter.
Do not connect the adapter to any devices other than your computer.
Do not let water get into the adapter.
Do not block the ventilation airway of the adapter.
Keep the adapter in a cool and ventilated place.
Do not step on the power cord or place heavy objects on top of it.
Carefully tuck away the power cord and any cables away from pedestrian traffic.
When unplugging the power cord, do not pull on the cord itself but pull on the plug.
Keep the adapter away from children.
The total ampere ratings of the equipment plugged in should not exceed the ampere rating of the cord if you
are using an extension cord.
The total current rating of all equipment plugged into a single wall outlet should not exceed the fuse rating.
Do not connect other AC adapter to your notebook. This Notebook uses exclusively the AC adapter: Lishin
0335A2065 (65W), Lishin 0335C2065 (65W), Liteon PA-1650-01 (65W), Liteon PA-1650-02(65W), EPS
F10653-A(65W)
When cleaning the computer, observe these steps:
1. Power off the computer and remove the battery pack.
2. Disconnect the AC adapter.
3. Use a soft cloth dampened with water. Do not use liquid or aerosol cleaners.
Contact your dealer or see your service technician if any of the following occurs:
Computer has been dropped or the body has been damaged.
Liquid has been spilled into the product.
The computer does not operate normally.
Cleaning the Ventilation Grills:
It is suggested that you clean the ventilation grills regularly to maintain optimal thermal regulation of the notebook.
To do this, you may use a soft brush or a vacuum cleaner (with appropriate head adapter) to remove the dust buildup
on the ventilation grills.

4 Prestigio Nobile 1440W
ENG
GETTING TO KNOW THE BASICS
This chapter introduces the features and components of the computer.
Performance Features
High Performance Processor with Napa Chipset
The notebook PC is equipped with a powerful Mobile Intel Pentium M Yonah dual-core (Core Duo) or Mobile Intel
Pentium M Yonah single-core (Core Solo). Together with the latest Intel Napa chipset and integrated graphic
technologies, the system offers very advanced PC performances.
Advanced Graphic Engine
The Intel 945GM Express chipset is integrated with the next-generation Intel Graphics Media Accelerator GMA950.
Wide-Screen LCD Display
The computer is equipped with a wide-screen 14.1-inch TFT high-resolution display panel for the best cinematic
viewing experience.
Digital TV Receiver (Optional DVB-T module)
The optional DVB-T (Digital Video Broadcast – Terrestrial) module allows you to watch high-quality digital broadcast
TV on your notebook computer.
Instant-On Multimedia Player (Optional)
With a touch of the button, you can quickly launch the unique Instant-On multimedia player that allows you to play
video, view pictures, and listen to music without having to boot to Windows.
Mobile 3G Telecom Module (Optional Device)
The optional 3G communication module allows you to receive digital entertainment services on your notebook
computer via the 3G telecom networks.
ExpressCard Technology
ExpressCard (type I, 34mm) is the next-generation of the PC Card standard. The bus interface is based on the two
standards: PCI Express for high-performance I/O and USB2.0 for variety of devices.
Expandability
The system offers upgradeable hard disk drive and 2 DDRII SDRAM sockets for expansion, allowing the user to easily
increase the storage and system capacities as the need arises.
Built-in Multiple Card Reader
There is built-in 4-in-1 card reader to access many of the portable media formats (SD Card, MS Card, MMC Card, and
MS-Pro Card).

Prestigio Nobile 1440W 5
ENG
Gigabit Ethernet Port
The system provides built-in 10/100/1000Mbps Ethernet network adapter for high bandwidth network connection.
Firewire (IEEE1394 / 1394a) and USB2.0 ports
In addition to a full array of built-in I/O ports, the computer offers IEEE1394 for ultra high-speed connection to high
bandwidth digital video devices and USB2.0 ports to connect to any USB-based peripheral devices.
Wireless LAN
The internal Wireless LAN module allows your notebook to connect wirelessly to other 802.11-enabled systems,
devices, or network.

6 Prestigio Nobile 1440W
ENG
System At A Glance
Top View
1. LCD Display
The panel is where the system content is displayed.

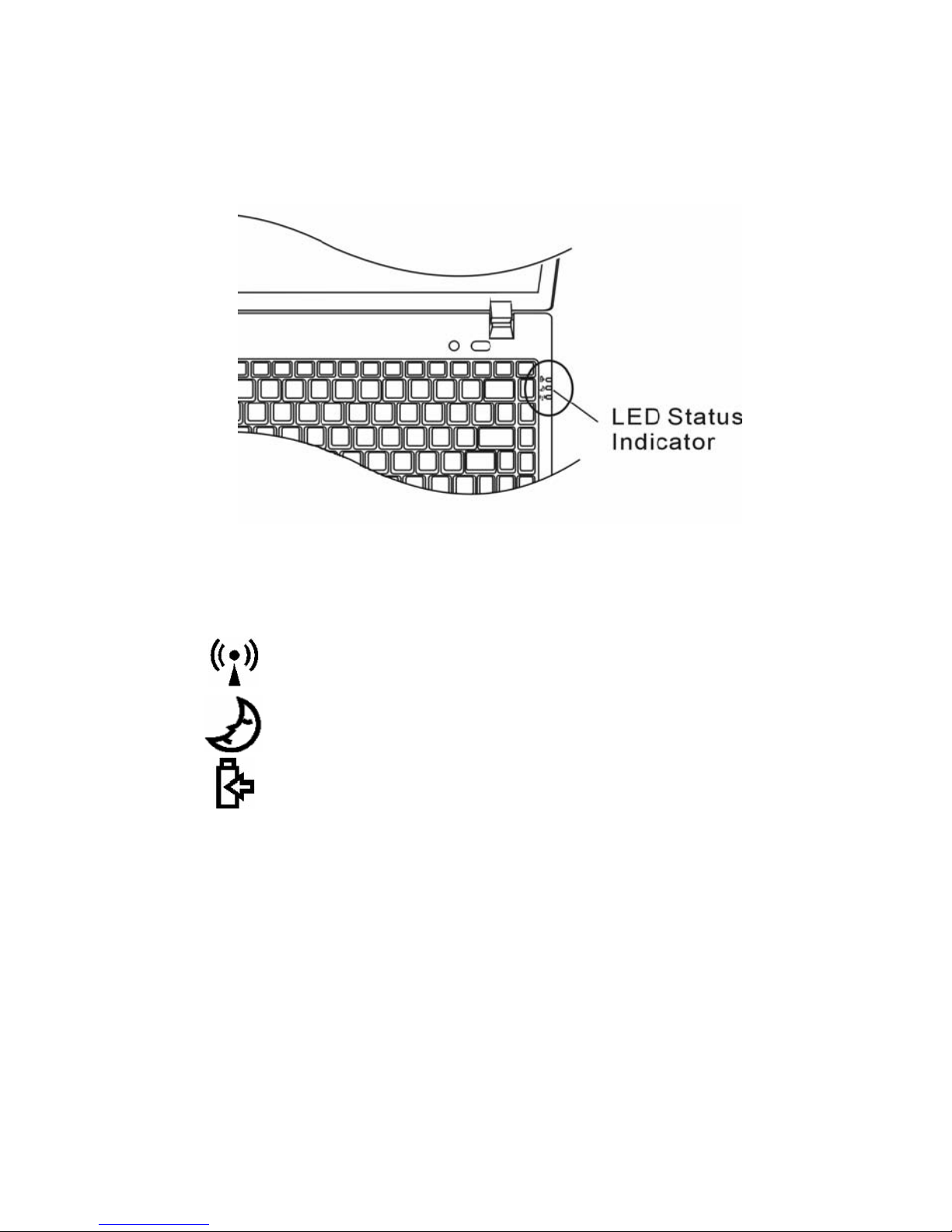

2. LED Status Indicator
The LED Status indicators reveal the status of the system power state, battery-charging state, Instant-On/Suspend
state, and the WLAN switch enabling and disabling. See the LED Status Indicator Section for details.
3. Keyboard
The keyboard is used to enter data. (See Keyboard Section for details.)
4. Touch Pad
The touch pad is a built-in pointing device with functions similar to a mouse.
5. Built-in Microphone
The built-in microphone records sound.

Prestigio Nobile 1440W 7
ENG
6. Instant-On Multimedia Player Launch Button (Optional) /
Silent Mode Button
When the system is powered off, pressing the key launches Instant-On multimedia application that allows you to
watch movies files, listen to music, or view photos in the optical drive, hard disk drive, or external storage without
having to boot to Windows. Press the key again to turn off the notebook. Please go to Instant-On Multimedia Player
Application section in this chapter for more information.
When the system is in Windows, pressing the key enables the system to lower its power usage; therefore the fan
speed is reduced to achieve lowest operating noise.
When Silent Mode is enabled, the LED status indicator shows steady green light.
7. Power / Suspend Button
The power/suspend button turns the notebook on and off and it also acts as a system suspend key. Press
momentarily to turn on the system. Press and hold for at least 4 seconds to turn off the system. How this key behaves
can be defined in [Start > Settings > Control Panel > Power Options > Advanced] menu. Press the power / suspend
button again to return from the suspend mode. When the system is in Suspend Mode, the LED status indicator
shows blinking green light.

8 Prestigio Nobile 1440W
ENG
Front View
Warning: Do not place any heavy objects on the top of notebook. This may damage the display
1. Wireless On/Off Switch
Use the Switch to disable or enable the Wireless function.
When Wireless LAN function is enabled, the LED status indicator shows steady green light.
2. Ventilation Grill
The fan grill is where air is exchanged to dissipate the internal heat. Do not block this airway completely.

Prestigio Nobile 1440W 9
ENG
Side Views
Warning: Do not place any heavy objects on the top of notebook. This may damage the display
1. Optical Drive and Disk Eject Button and Manual Eject Key Hole
If your computer comes with the Combo drive, DVD-Dual, or Super-Multi drive, you may save data onto a CD-R /
CD-RW or DVD RW disc. Press the eject button to eject the disk tray. The manual eject keyhole allows you to manually
eject a jammed disk.
2. External VGA Port
The VGA video output port is for connecting the external LCD monitor or projector.
3. Power Jack (DC-in)
The DC-out jack of the AC Adapter connects here and powers the computer.

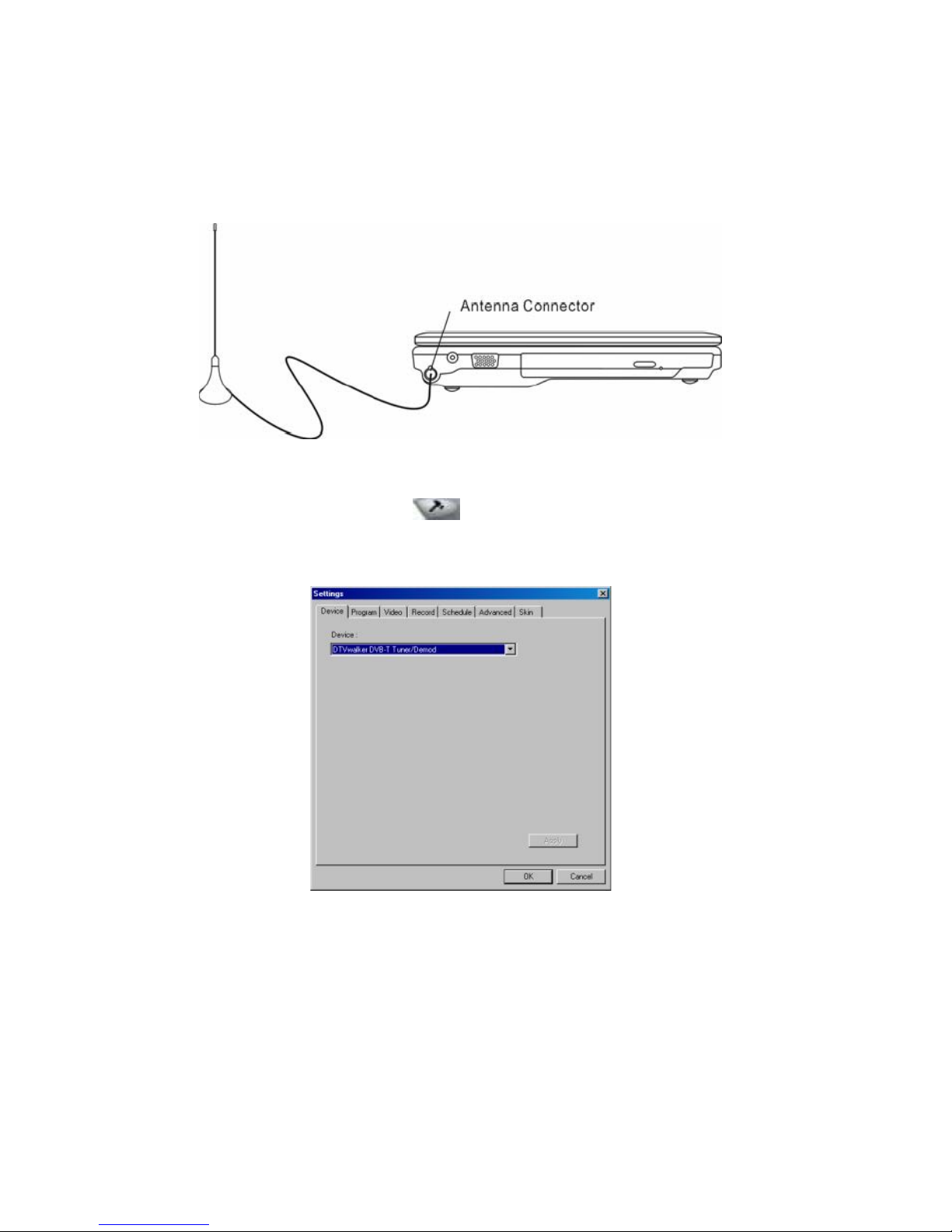

4. Modem Port / Port or Antenna Connector for DVB-T Digital
Broadcast TV (Optional Device)
This is where you plug the phone jack (RJ-11) for fax/modem functions. For certain configuration, your computer
may be installed with the optional DVB-T module. In stead of the Modem Port, this is an antenna connector. If your
system has the DVB-T option, you should plug the antenna into the connector. Please see DVB-T Digital Video
Broadcast TV section later in this chapter for more information. Please see the corresponding chapter of this manual
if you are installing the DVB-T module by yourself.
5. Kensington Lock Key Hole
A Kensington-type security lock latches to this keyhole for anti-theft purpose.

10 Prestigio Nobile 1440W
ENG
6. USB2.0 Port (x3)
The Universal Serial Bus (USB2.0-compliant) port allows you to connect a wide variety of devices to your computer at
a rate of up to 480 Mbps. This port conforms to the latest USB2.0 plug-and-play standards.
7. Firewire / IEEE1394 / 1394a Port
This is a high-speed serial data port. You may connect any Fire-wire-ready device to this port.
8. 4-in-1 Card Reader
The 4-in-1 Card Reader supports SD Card, MS Card, MMC Card, and MS-Pro Card.
9. ExpressCard Slot
The slot is where Express Card (Type I, 34mm) is inserted. ExpressCard integrates both the PCI-Express bus
technology and USB2.0 interface.
Press the card into the slot to insert. Press the card again to eject.
10. Stereo Headphone / SPDIF-out Jack
The stereo headphone jack (3.5-mm diameter) is where you connect the headphones or external speakers.
Alternatively, you may connect the S/PDIF output to an external DTS, AC3, or PCM sound processor / decoder in your
home stereo system.
11. Microphone/Audio Line-in Jack
The microphone/Audio Line-in jack (3.5-mm diameter) is where you connect a microphone or an external audio
input source such as a CD Player.
12. Ethernet / LAN Port
The port connects to a network hub via the RJ-45 cable and also conforms to 10/100Base-TX transmission protocol.
13. Ventilation Grill
The fan grill is where air is exchanged to dissipate the internal heat. Do not block this airway completely.
14. TV (S-Video) Port
The S-Video port permits you to redirect the screen output to a television set or any analog video playback device.
This TV Port is copyright protected; when DVD movie is played, the output is scrambled to prevent analog recording.
For certain configuration, this port does not exist or does not function.

Prestigio Nobile 1440W 11
ENG
Bottom View

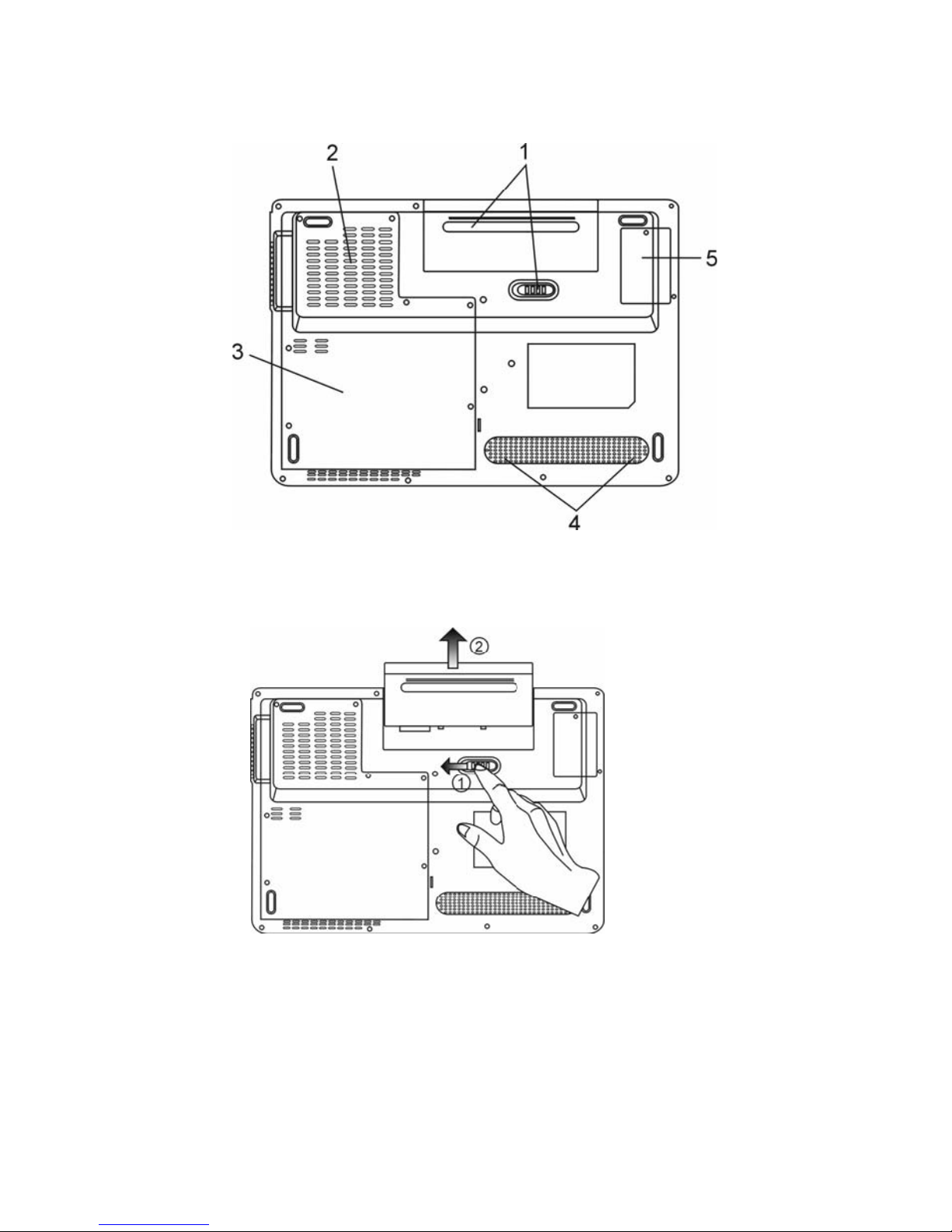

1. Battery Pack and Battery Latch
The battery pack is a built-in power source for the notebook. Slide the battery latch to release the battery pack.
2. Ventilation Grill
The fan grill is where air is exchanged to dissipate the internal heat. Do not block this airway completely.
Warning: Do not block the Fan Grill outlet. Place the machine on hard surface only. The bottom case may
get very hot.

12 Prestigio Nobile 1440W
ENG
3. System Device Cover
The system’s processor with cooler assembly, Wireless LAN module, HDD, and DDR memory module are located
under the case cover. The system memory can be upgraded to a larger capacity.
4. Built-in Stereo Speakers
The built-in speakers output the sound in stereo.
5. DVB-T Receiver Module Cover
The optional DVB-T Receiver module is installed under the cover. Please see the corresponding chapter if you are
installing the DVB-T module by yourself.
AC Adapter
1. DC-out Connector
The DC-out connector docks to the power jack (DC-in) on the computer.
2. Adapter
The adapter converts alternating current into constant DC voltage for the computer.
3. AC Plug
The AC plug plugs to the AC wall outlet.

Prestigio Nobile 1440W 13
ENG
LED Status Indicator
The LED Status Indicator displays the operating status of your notebook. When a certain function is enabled, an LED
will light up. The following section describes its indication.
System & Power Status Indicators
LED Graphic Symbol Indication
Blue light indicates the WLAN module is active.
Persistent green light indicates the Silent Mode is enabled.
Blinking green light indicates the notebook is in the suspend mode.
Blinking orange light indicates the battery is being charged.
Blinking green light indicates the battery power is low when the system is turned ON.
Persistent green light indicates the system is ON.

14 Prestigio Nobile 1440W
ENG
OSD Status Indicator
The On-screen Status Display Indicator displays the operating status of your notebook. When a certain function is
enabled, the symbol will show up on windows. The following section describes its indication.
OSD Status Indicators
Action Graphic Symbol
Fn + F3: Audio Mute
Fn + F5: Audio Volume Up
Fn + F6: Audio Volume Down
Fn + F7: Display Brightness Up
Fn+ F8: Display Brightness Down
Fn + Num Lock:
Numeric Keypad Is On
Caps Lock:
Capitalization is On
Scroll Lock:
Scroll Lock is On
Keyboard Features
Function Keys (Quick Keys)
Graphic Symbol Action System Control
Fn + F1 Enters Suspend Mode.
Fn + F3 Turns the battery warning beep off or on.
Fn + F4 Changes Display Mode: LCD-only, CRT-only and LCD&CRT.
Fn + F5 Turns Speaker Volume up.
Fn + F6 Turns Speaker Volume down.
Fn + F7 Increases Display Brightness.
Fn + F8 Decreases Display Brightness.

Prestigio Nobile 1440W 15
ENG
Fn+Num Lock Enables the embedded keypad to work in numeric mode. The
keys act like numeric keypads in a calculator. Use this mode
when you need to do a lot of numeric data entry. An alternative
would be to connect an external numeric keypad.
Caps Lock When Caps lock is enabled, all the characters you enter become
capitalized.
Scroll Lock Press the Scroll Lock key and then press •or •to move oneline up
or down.
For various system controls, press the Fn (Function) key and the Fx key simultaneously.
Windows Keys
Your keyboard also has two Windows keys:
1. Start Key
This key allows you to pull up the Windows Start Menu at the bottom of the taskbar.
2. Application Menu Key
This key brings up the popup menu for the application, similar to a click of the right mouse button.
Embedded Numeric Keypad
Press Fn+Num Lock to enable the embedded numeric keypad. The numbers are printed in upper right corner of a key,
in a color different from the alphabets. This key pad is complete with arithmetic operators (+, -, * , /).
Press Fn+Num Lock to revert to normal character keys.

16 Prestigio Nobile 1440W
ENG
Touch Pad
The built-in touch pad, which is a PS/2-compatible pointing device, senses movement on its surface. As you move
your fingertip on the surface of the pad, the cursor responds accordingly.
The following items teach you how to use the touch pad:
1. Move your finger across the touch pad to move the cursor.
2. Press buttons to select or execute functions. These two buttons are similar to the left and right buttons on a mouse.
Tapping on the touch pad twice produces is similar to clicking the left button of a mouse.
Function Left Button Right Button Equivalent Tapping Action
Execution Click twice quickly Tap twice (at the same speed as
double-clicking the mouse
button)
Selection Click once Tap once
Drag Click and hold to drag the
cursor
Tap twice quickly and on the
second tap hold finger to the
touchpad to drag the cursor
Access Context Menu Click once
Move One Page Up or Down
Tips on Using the Touch Pad:
1. The double-click speed is timed. If you double-click too slowly, your notebook responds as if you single-clicked
twice.
2. Keep your fingers dry and clean when using the touch pad. Also keep the surface of touch pad clean and dry to
prolong its life.
3. The touch pad is sensitive to finger movements. Hence, the lighter the touch, the better the response. Heavy touch
does not produce better response.

Prestigio Nobile 1440W 17
ENG
Graphic Subsystem
Your computer uses a high performance 14.1-inch active matrix TFT panel with high resolution and multi-million
colors for comfortable viewing. The Intel integrated GMA950 video graphics accelerator, which is Microsoft DirectX 9
compatible, performs graphic rendering at a lighting-fast speed.
Adjusting the Display Brightness
The notebook uses special key combinations, called hot keys, to control brightness.
Press Fn+F7 to increase the brightness.
Press Fn+F8 to decrease the brightness.
Note: To maximize your battery operating time, set the brightness to the lowest comfortable setting, so
that the internal backlight uses less power.
Extending the Life of the TFT Display Device
Observe the following guidelines to maximize the life of the backlight in the display.
1. Set the brightness to the lowest comfortable setting (Fn+F8).
2. When working at your desk, connect your notebook to an external monitor and disable the internal display Fn+ F4.
3. Do not disable the suspend time-outs.
4. If you are using AC power and have no external monitor attached, change to suspend mode when not in use.
Opening and Closing the Display Panel

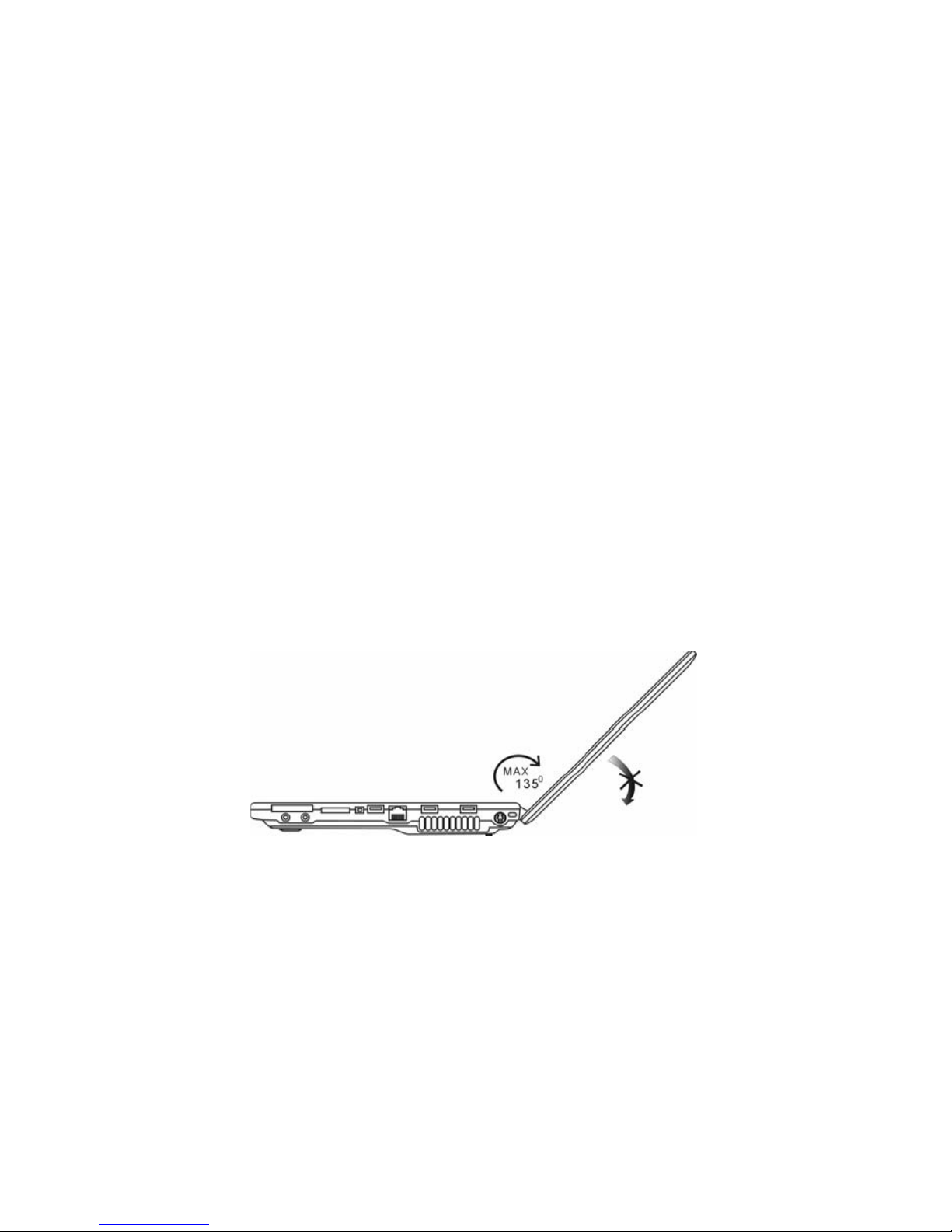

To open the display, push the LCD latch to the right and lift up the lid. Then tilt it to a comfortable viewing position.
The LCD panel has a maximum opening of 135 degrees. Do not push it down forcibly.
To close the display cover, fold it down gently.
Warning: To avoid damaging the display, do not slam it when closing. Do not place any object on top of the
computer when the display is closed

18 Prestigio Nobile 1440W
ENG
DVB-T Digital Video Broadcast TV (Optional Device)
The optional DVB-T (Digital Video Broadcast – Terrestrial) module allows you to watch high-quality digital video
broadcast TV on your notebook computer.
If your system has the DVB-T option, you should plug the antenna into the connector.
You may have to move the antenna close to the window and away from the building for best reception.
If this is the first time you use the DVB-T module to watch TV, you need to scan the available channels first. Follow
the steps below to scan the channels.
1. Launch NewSoft Presto!PVR application. Click to open the Settings dialog box, and then click the Device
tab.
2. Choose the DVB-T tuner on the Device list.
3. Click the Program tab on the Settings dialog box and click Scan to scan for available channels. If a program
(channel) is found, it will be included in the program list. When finished, you can choose a program and edit its
name.

Prestigio Nobile 1440W 19
ENG
4. Press Ok and close the Settings dialog box.
5. You are ready to watch TV.
If you system comes with the DVB-T Module already installed, you may use NewSoft Presto!PVR to watch and record
the TV programs.
Please see the corresponding chapter if you are installing the DVB-T module by yourself. You also need to install the
NewSoft Presto!PVR application from the CD to watch and record TV programs.
Audio Subsystem
Your computer’s audio subsystem is Sound Blaster Pro-compatible.
Adjusting the Volume Manually
To increase the volume, press Fn+F5.
To decrease the volume, press Fn+F6.
Adjusting the Audio Volume in Windows
1. Click the speaker symbol in the task tray in Windows.
2. Drag the volume control bar up or down to adjust the volume.
3. To temporarily silence the speaker without changing the volume setting, click Mute.
Voice Recording
A built-in microphone allows you to record sound. You will need to use audio processing software to enable the
built-in microphone. For example, you may use Microsoft Sound Recorder.
