Owner’s Manual
Unit 106, Heyford Park Camp Road
Upper Heyford, Oxfordshire OX25 5HA
www.pridemobility.com
The Ultimate In Style & Performance
®

SAFETY GUIDELINES
Copyright©2005
PrideMobilityProductsLtd.
INFMANU2367/RevD/November2005
Thesymbolsbelowareusedthroughoutthisowner'smanualandonthescootertoidentifywarningsandimportant
information.It isveryimportantfor youtoread themandunderstandthem completely.
WARNING! Failure to follow designated procedures can cause either personal injury,
component damage, or malfunction (black symbol on yellow triangle with black border).
MANDATORY! These actions should be performed as specified. Failure to perform
mandatory actions can cause injury to personnel and/or damage to equipment (white
symbol on blue dot with white border).
PROHIBITED! These actions should be prohibited. These actions should not be performed
at any time or in any circumstances. Performing a prohibited action can cause injury to
personnel and/or damage to equipment (black symbol with red circle and red slash).
www.pridemobility.com Legend Classic XL-8
NOTE: This owner’s manual is compiled from the latest specifications and product information avail-
able at the time of publication. We reserve the right to make changes as they become necessary. Any
changes to our products may cause slight variations between the illustrations and explanations in this
manual and the product you have purchased.
PrideDealer:___________________________________ Purchase Date:_______________________
Address:___________________________________________________________________________
PhoneNumber:_______________________________________________________________________
SerialNumber:_______________________________________________________________________
Pleasefilloutthefollowinginformationforquickreference:

3
Legend Classic XL-8 www.pridemobility.com
CONTENTS
I. INTRODUCTION......................................................................................................................... 4
II. SAFETY......................................................................................................................................... 5

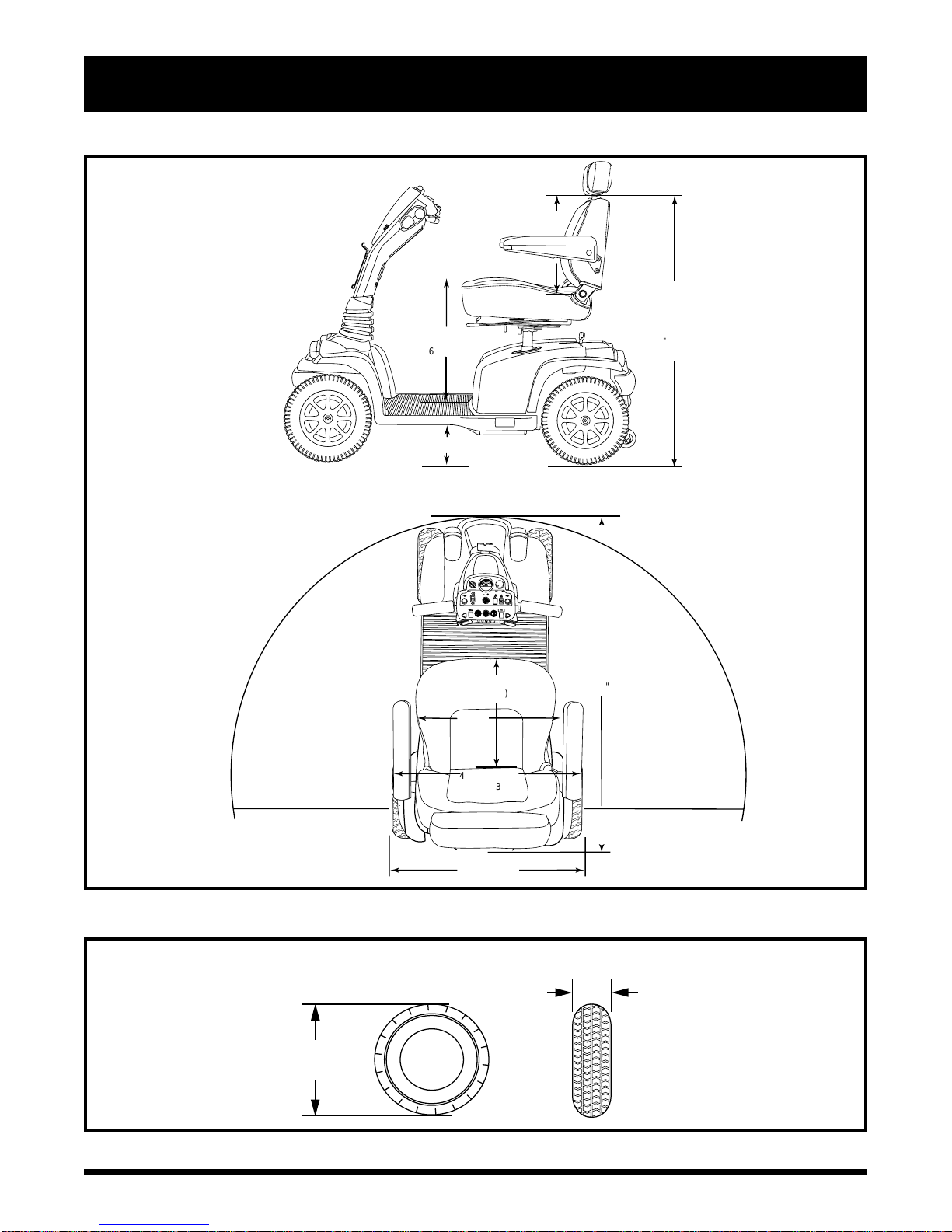

III. SPECIFICATIONS ................................................................................................................... 16
IV. YOUR SCOOTER...................................................................................................................... 18
V. BATTERIES AND CHARGING ............................................................................................ 22
VI. OPERATION............................................................................................................................... 26
VII. COMFORT ADJUSTMENTS................................................................................................ 28
VIII.DISASSEMBLY AND ASSEMBLY ..................................................................................... 31
IX. BASIC TROUBLESHOOTING ............................................................................................. 33
X. CARE AND MAINTENANCE ................................................................................................ 35
XI. WARRANTY................................................................................................................................37

4 www.pridemobility.com Legend Classic XL-8
I. INTRODUCTION
SAFETY
WELCOMEto Pride MobilityProductsCorporation(Pride). Theproductyouhave purchasedcombinesstateof
theartcomponentswithsafety,comfort,andstylinginmind.Weareconfidentthedesignfeatureswillprovideyou
withtheconveniences you expectduringyourdailyactivities. Understanding how to safelyoperateandcarefor
thisproductshould bring youyearsoftroublefree operations and service.
Readandfollowallinstructions,warnings,andnotesinthismanualandall otheraccompanyingliterature before
attemptingtooperate this product for thefirsttime. In addition, your safetydepends upon you, as well asyour
dealer,caretaker, or healthcareprofessionalinusing goodjudgement.
Ifthereis anyinformationinthismanual which youdonotunderstand, or ifyourequireadditional assistance for
setuporoperation,pleasecontactyourauthorisedPrideDealer. Failureto follow the instructions, warnings,
andnotesinthismanualandthoselocatedonyourPrideproductcanresultinpersonalinjuryorproduct
damageandvoidPride’sproductwarranty.
PURCHASER’S AGREEMENT
Byacceptingdeliveryofthisproduct,youpromisethatyouwillnotchange,alter,ormodifythisproductorremove
orrenderinoperableorunsafeanyguards,shields,or othersafetyfeaturesofthis product;fail,refuse,orneglect to
installanyretrofitkits from time totimeprovidedbyPridetoenhance or preserve thesafeuseofthisproduct.
INFORMATION EXCHANGE
We want tohearyourquestions, comments, andsuggestionsaboutthismanual.We would alsoliketohear about
thesafetyandreliabilityofyournewPrideproduct,andabouttheservice youreceivedfromyourauthorizedPride
Provider.Pleasenotify us ofanychangeofaddress, so wecankeepyou apprised ofimportantinformationabout
safety,new products, and new options that can increase yourabilitytouseandenjoyyourPrideproduct.Please
feelfreetocontact us at the address below:
PrideMobilityProducts Ltd.
Unit106, Heyford Park Camp Road
UpperHeyford,OxfordshireOX255HA
NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact
us and we will be glad to send you a new one immediately.

5
Legend Classic XL-8 www.pridemobility.com
II. SAFETY

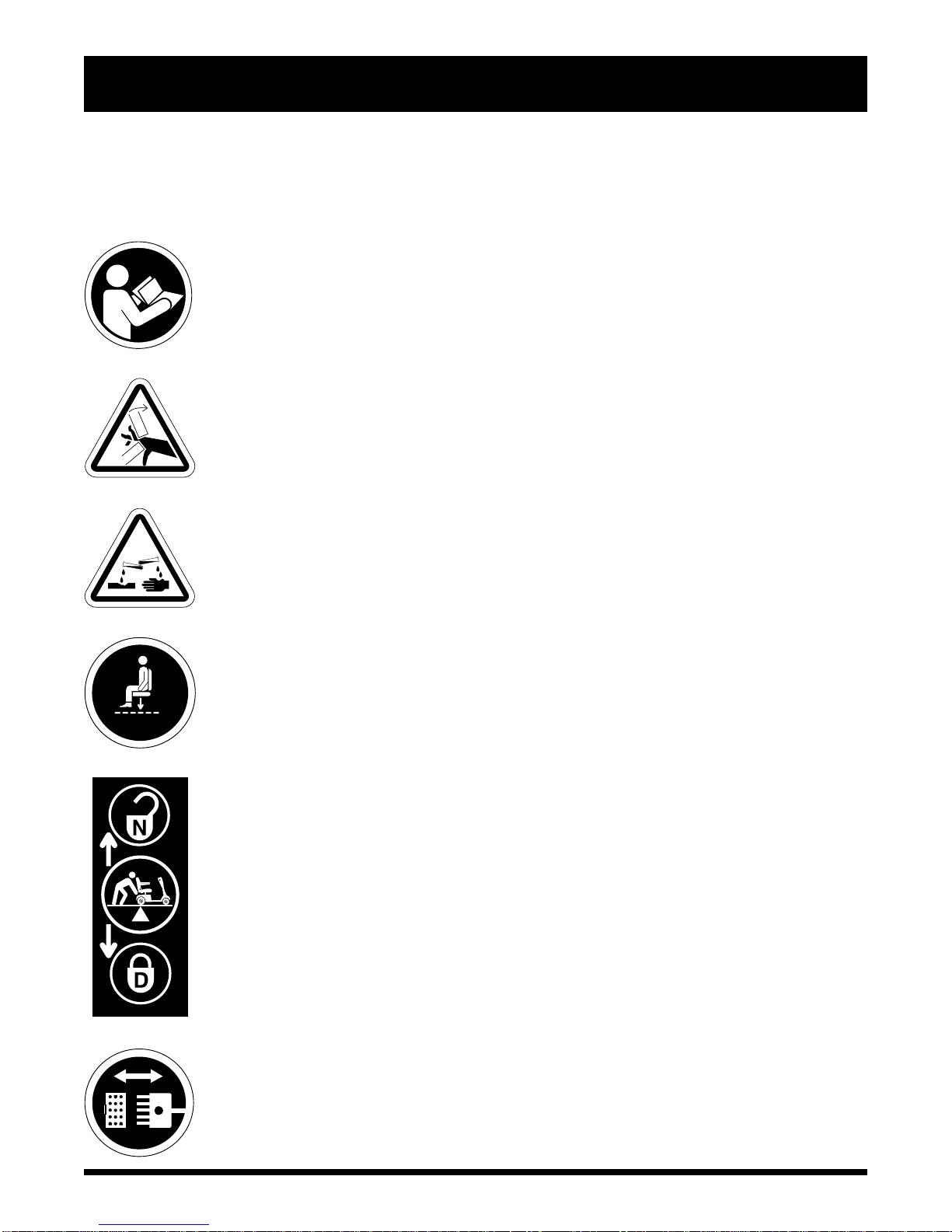

PRODUCT SAFETY SYMBOLS
Thesymbolsbelow are used on thescootertoidentifywarnings,mandatory actions, and prohibitedactions.Itis
veryimportantfor youtoreadandunderstand themcompletely.
Pinch/Crush points created during assembly.
Corrosive chemicals contained in battery.Use only AGM or Gel-Cell batteries to reduce
the risk of leakage or explosive conditions.
Read and follow the information in the owner’s manual.
Maximum seating weight.
Place unit on level ground and stand behind or to one side when changing from drive
mode to freewheel mode or freewheel mode to drive mode.
Locked and in drive mode.
Unlocked and in freewheel mode.
Front-to-rear plug orientation.

6 www.pridemobility.com Legend Classic XL-8
Do not raise or lower the power seat while the scooter is in motion.
Do not remove anti-tip wheels.
Do not use a cell phone, walkie/talkie, laptop, or other radio transmitter while
operating.
Avoid exposure to rain, snow, ice, salt, or standing water whenever possible.
Maintain and store in a clean and dry condition.
Removal of grounding prong can create electrical hazard. If necessary, properly
install an approved 3-pronged adapter to an electrical outlet having 2-pronged
plug access. Failure to heed could result in personal injury and/or property damage.
Prevent personal injury and equipment damage. Do not connect an extension lead
to the AC/DC converter or the battery charger.
II. SAFETY

7
Legend Classic XL-8 www.pridemobility.com
II. SAFETY
SAFETY
MANDATORY! Do not operate your new scooter for the first time without completely reading
and understanding this owner’s manual.
Yourscooterisastate-of-the-artlife-enhancementdevicedesignedtoincreasemobility.Prideprovidesanextensive
varietyofproducts to best fittheindividualneedsofthe scooter user. Please beawarethatthefinalselection and
purchasingdecisionregardingthetypeofscootertobeusedistheresponsibilityofthescooteruserwhoiscapable
ofmaking such adecisionandhis/her healthcareprofessional(i.e.,medical doctor,physical therapist,etc.).
The contents of this manual are based on the expectation that a mobility device expert has properly fitted the
scootertotheuser and has assisted the prescribing healthcareprofessionaland/ortheauthorisedPrideDealerin
theinstructionprocessforthe use of the product.
There are certain situations, including some medical conditions, where the scooter user will need to practice
operatingthe scooterinthe presenceofa trainedattendant.Atrained attendantcanbe definedasa familymember
orcareprofessionalspecially trainedinassistingascooteruserinvariousdailylivingactivities.
Asyoubegin usingyourscooterduring daily activities,youwillprobably encounter situationsinwhichyou will
needsomepractice. Simply take your timeand you will soon be infull and confident control as youmaneuver
throughdoorways,onandoff lifts, up and down ramps, and over moderateterrain.
Belowaresomeprecautions,tips,andothersafetyconsiderationsthatwillhelpthe user become accustomed to
operatingthescooter safely.
Modifications
Pridehasdesignedandengineeredyourscootertoprovidemaximummobilityandutility.Awiderangeofaccessories
isavailablefromyourauthorisedPride Dealer to further customise your scooter to better suit yourneedsand/or
preferences.However,undernocircumstancesshouldyoumodify,add, remove, or disable any feature, part, or
functionof yourscooter.
WARNING! Do not modify your scooter in any way not authorised by Pride. Unauthorised
modifications may result in personal injury and/or damage to your scooter.
Removable Parts
WARNING! Do not attempt to lift or move your scooter by any of its removable parts.
Personal injury and damage to the scooter may result.
Pre-Ride Safety Check
Gettoknowthefeelofyourscooteranditscapabilities.Priderecommendsthatyouperforma safetycheckbefore
eachusetomakesure your scooter operates smoothly and safely.For details onhowtoperformthesenecessary
inspections,seeX. “Care andMaintenance.”

8 www.pridemobility.com Legend Classic XL-8
II. SAFETY
Performthefollowinginspections priortousingyourscooter:
!Checkfor propertyreinflationifequippedwithpneumatic tyres.
!Checkallelectricalconnections.Makesure they are tight and not corroded.
!Checkallharnessconnections.Makesuretheyaresecuredproperly.
!Check the brakes.
!Checkbatterycharge.
Weight Limitations
Yourscooterisratedfor amaximumweightcapacity. Refertothespecifications tableforinformation.
WARNING! Exceeding the weight capacity voids your warranty and may result in personal
injury and damage to your scooter. Pride will not be held responsible for injuries and/or
property damage resulting from failure to observe weight limitations.
WARNING! Do not carry passengers on your scooter. Carrying passengers may result in
personal injury and/or property damage.
Tyre Inflation
Ifyourscooter isequippedwithpneumatictyres, you shouldcheckorhavethe airpressurecheckedatleast once
aweek. Properinflationpressureswillprolongthelife ofyourtyres andhelpensurethesmoothoperationof your
scooter.
WARNING! It is critically important that 2-2.4 bar (30-35 psi) tyre pressure be maintained
in pneumatic tyres at all times. Do not underinflate or overinflate your tyres. Low pressure
may result in loss of control, and overinflated tyres may burst. Failure to maintain 2-2.4
bar (30-35 psi) tyre pressure in pneumatic tyres at all times may result in tyre and/or wheel
failure, causing serious personal injury and/or damage to your scooter.
WARNING! Inflate your scooter tyres from a regulated air source with an available pressure
gauge. Inflating your tyres from an unregulated air source could overinflate them, resulting
in a burst tyre and/or personal injury.
Incline Information
Moreand more buildings have rampswith specified degrees of inclination, designed for easy andsafe access.
Somerampsmay have turning switchbacks(180-degreeturns)thatrequireyou to have good corneringskillson
yourscooter.
!Proceedwithextremecautionasyouapproachthedowngrade of a ramp or other incline.
!Takewide swings withyour scooter around any tightcorners. If you do that,the scooter’s rearwheels will
followawidearc,notcut the corner short, and not bump into orgethunguponanyrailingcorners.
!Whendrivingdownaramp,keepthescooter’sspeedadjustmentsettotheslowestspeedsettingtoensurea
safelycontrolleddescent.
!Avoid sudden stops andstarts.
When climbing an incline, try to keep your scooter moving. If you must stop, start up again slowly, and then
acceleratecautiously.When driving down anincline, do so bysetting the speed adjustment dial to the slowest
settinganddrivingintheforwarddirectiononly.If your scooterstartstomovedowntheinclinefasterthan you
anticipatedordesired, allow it to come toacomplete stop by releasing the throttlecontrollever.Thenpushthe
throttlecontrol leverforwardslightlytoensureasafely controlleddescent.

9
Legend Classic XL-8 www.pridemobility.com
II. SAFETY

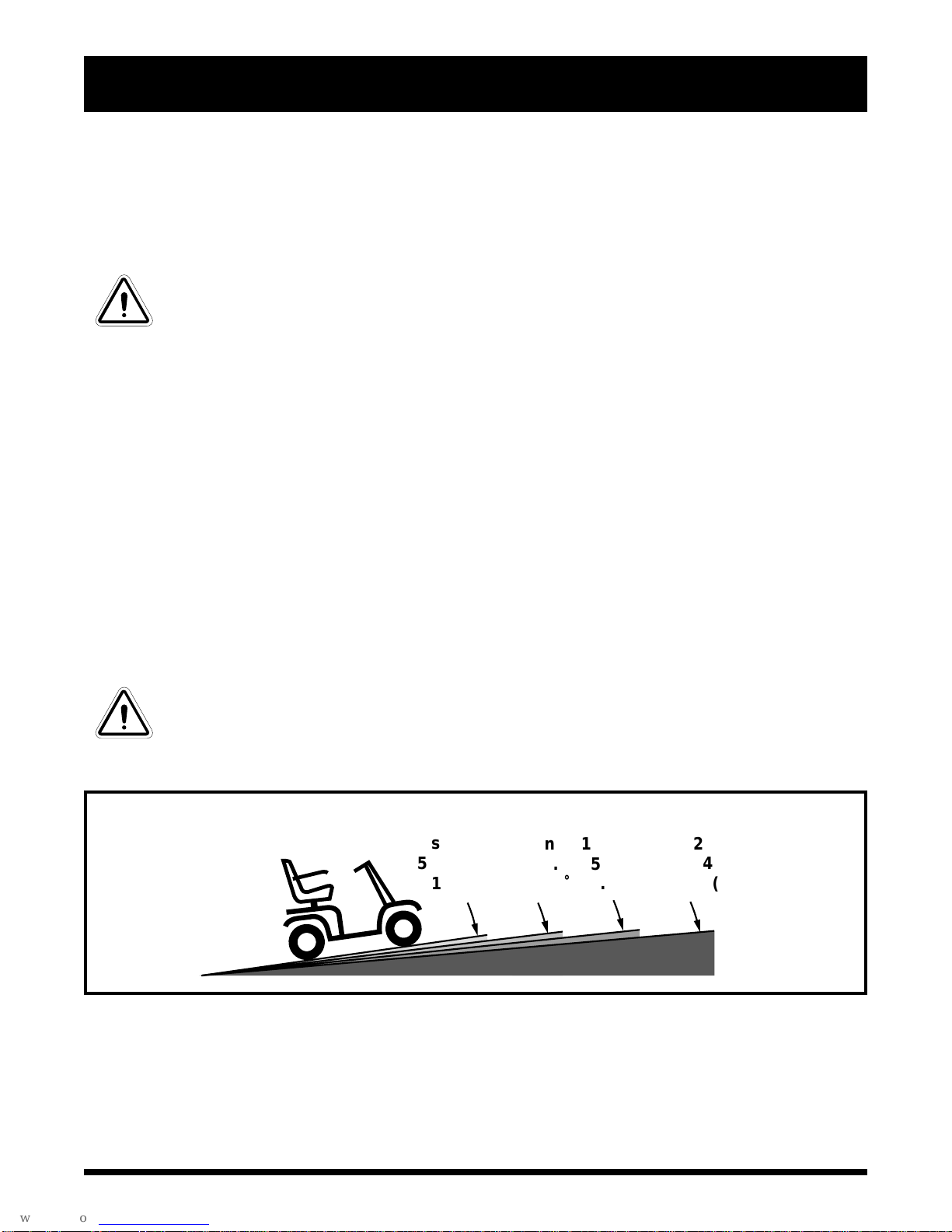

Figure 1. Maximum Recommended Incline Angles

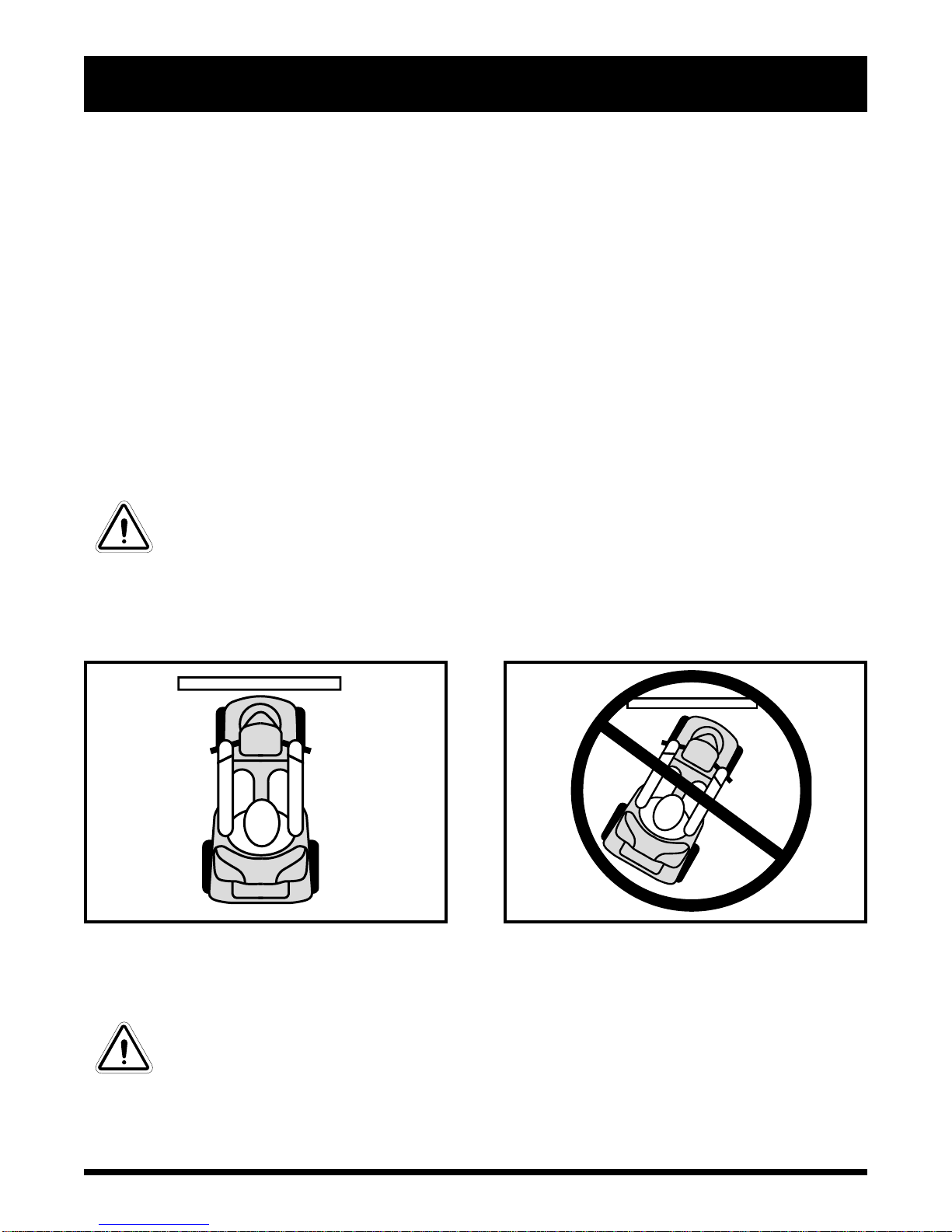

WARNING! When climbing an incline, do not zigzag or drive at an angle up the face of the
incline. Drive your scooter straight up the incline. This greatly reduces the possibility of a
tip or a fall. Always exercise extreme caution when negotiating an incline.
WARNING! Do not drive your scooter across the side of an incline or diagonally up or down
an incline; do not stop, if possible, while driving up or down an incline.
WARNING! You should not travel up or down a potentially hazardous incline (i.e., areas
covered with snow, ice, cut grass, or wet leaves).
WARNING! When on any sort of an incline or decline, never place the scooter in freewheel
mode while seated on it or standing next to it.
WARNING! Even though your scooter is capable of climbing slopes greater than those
illustrated in figure 1, do not, under any circumstances, exceed the incline guidelines or
any other specifications presented in this manual. Doing so could cause instability in your
scooter, resulting in personal injury and/or damage to your scooter.
Handicap public access ramps are not subject to government regulation in all countries, and therefore do not
necessarilyshare thesamestandardpercentofslope.Otherinclines maybenatural or,ifman-made, notdesigned
specificallyforscooters.Figure 1 illustrates your scooter’s stability and itsabilitytoclimbgradesundervarious
weightloadsandundercontrolledtestingconditions.
Thesetestswereconducted with the scooter’s seat in the highestpositionandadjustedrearwardonthe seat base
toitsfarthest rearward position.Usethisinformationas a guideline.Yourscooter’sabilitytotravelup inclines is
affectedby your weight, your scooter’s speed, your angle of approach to the incline, and your scooter setup.
WARNING! Any attempt to climb or descend a slope steeper than what is shown in figure
1 may put your scooter in an unstable position and cause it to tip, resulting in personal
injury.
WARNING! Never carry an oxygen tank weighing more than 7 kg (15 lbs.). Never fill the
rear basket with contents exceeding 7 kg (15 lbs.).
113 kg/ 
18 stone/ 
250 lbs. 
10.5% (6˚)
136-181 kg/ 
21-28 stone/

300-400 lbs.

8.7% (5˚)
90 kg/ 
14 stone/ 
200 lbs. 
12.3% (7˚)

68 kg/ 
11 stone/ 
150 lbs. 
14.1% (8˚)


10 www.pridemobility.com Legend Classic XL-8
II. SAFETY

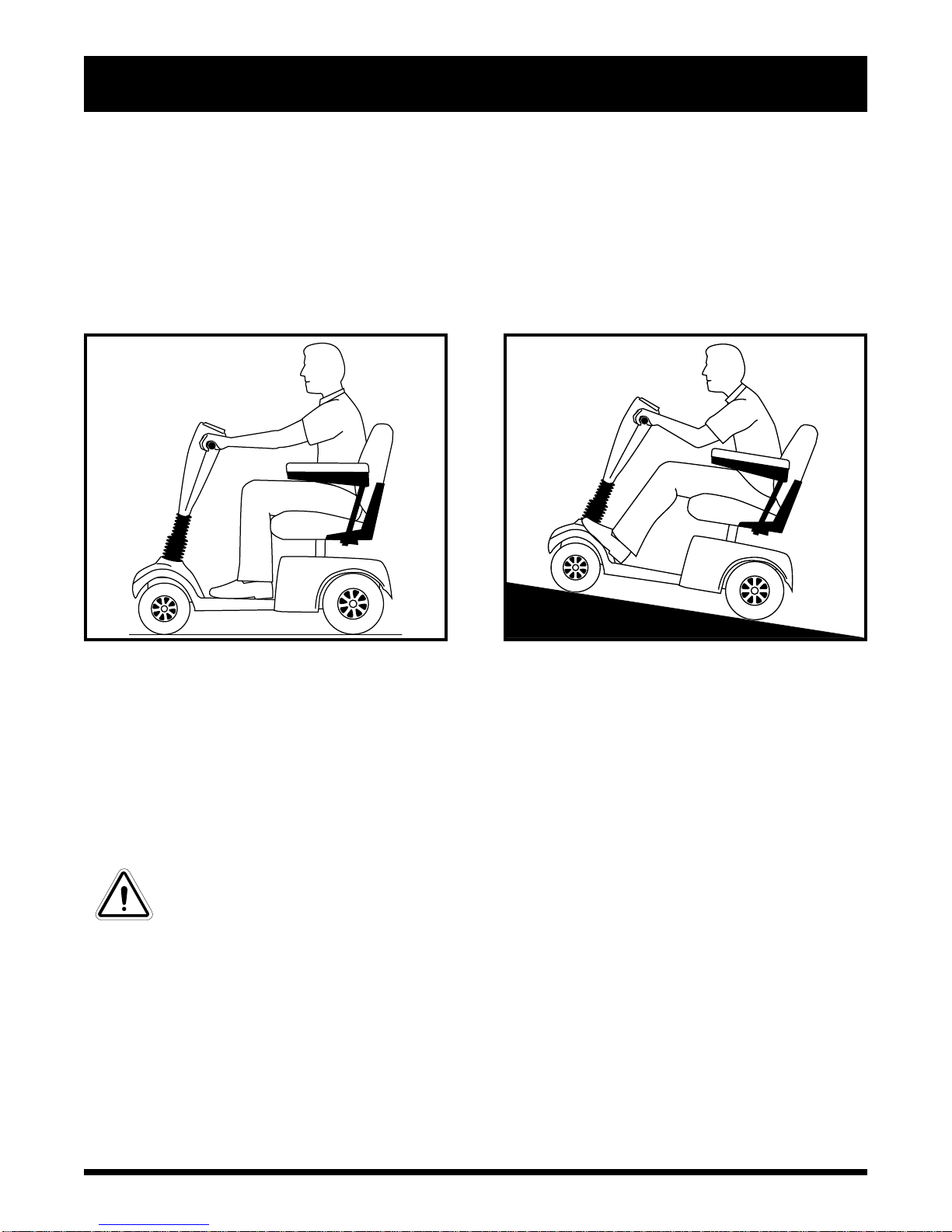

Figure 3. Increased Stability Driving PositionFigure 2. Normal Driving Position
Whenyouapproachanincline,itisbesttoleanforward.Seefigures2and3.Thisshiftsthecenterofgravityofyou
andyourscootertowardthe front of the scooter for improved stability.
NOTE: When negotiating ramps, if the throttle control lever is released while moving forward, the
scooter may “rollback” approximately 30.5 cm (1 foot) before the brake engages. If the throttle control
lever is released while moving in reverse, the scooter may “rollback” approximately 1 meter (3 feet)
before the brake engages.
Cornering Information
Excessivelyhigh cornering speeds can create the possibility of tipping. Factors which affect the possibility of
tippinginclude, butarenot limitedto,corneringspeed,steeringangle(howsharplyyouare turning),unevenroad
surfaces,inclinedroadsurfaces,ridingfromanareaoflowtractiontoanareaofhightraction(suchaspassingfrom
a grassy area to a paved area – especially at high speed while turning), and abrupt directional changes. High
cornering speeds are not recommended. If you feel that you may tip over in a corner, reduce your speed and
steeringangle(i.e., lessen thesharpnessoftheturn) to preventyourscooterfrom tipping.
WARNING! When cornering sharply, reduce your speed. When using your scooter at higher
speeds, do not corner sharply. This greatly reduces the possibility of a tip or fall. To avoid
personal injury or property damage, always exercise common sense when cornering.
Braking Information
Yourscooteris equipped with thesepowerfulbrakesystems:
!Regenerative:Uses electricitytorapidlyslow thevehiclewhenthe throttlecontrolleverreturns tothecenter/
stopposition.
!DiscParkBrake:Activatesmechanicallyafterregenerativebrakingslowsthevehicletonearstop,orwhen
powerisremovedfrom the system for any reason.
!Handbrake:Gives you additionalstoppingpowerwhen yousqueezeit.

11
Legend Classic XL-8 www.pridemobility.com
II. SAFETY
Outdoor Driving Surfaces
Yourscooterisdesignedtoprovideoptimumstability undernormaldriving conditions—dry,levelsurfacescom-
posedof concrete,blacktop,or asphalt.However,Priderecognises thattherewill betimeswhen youwillencoun-
terothersurfacetypes. For this reason, your scooterisdesignedtoperformadmirablyonpacked soil, grass, and
gravel.Feelfreetouseyourscooter safely on lawns and in park areas.
!Reduceyourscooter’sspeedwhen driving on uneventerrainand/orsoftsurfaces.
!Avoidtallgrassthat canbecometangledintherunninggear.
!Avoid loosely packed gravel andsand.
!Ifyou feelunsureabouta driving surface,avoidthatsurface.
Stationary Obstacles (Steps, Kerbs, etc.)
WARNING! Do not drive near raised surfaces, unprotected ledges, and/or drop-offs (kerbs,
porches, stairs, etc.).
WARNING! Do not attempt to have your scooter climb or descend an obstacle that is
inordinately high. Serious personal injury and/or damage may result.
WARNING! Do not attempt to have your scooter proceed rearward down any step, kerb, or
other obstacle. This may cause the scooter to tip and cause personal injury.
WARNING! Be sure your scooter is traveling perpendicular to any kerb you may be required
to ascend or descend. See figures 4 and 5.
WARNING! Do not attempt to negotiate a kerb that has a height greater than 5 cm (2 in.).
KERB
Figure 4. Correct Kerb Approach Figure 5. Incorrect Kerb Approach
KERB
Public Streets and Roadways
WARNING! Exercise extreme caution when operating the scooter on footpaths, pavements,
bridleways, pedestrian areas and roads. Obey the Code of Practice for Class 3 vehicle
users. Failure to heed could result in serious injury and/or damage to your scooter.
NOTE: Acopy of the Department of Transportation, Code of Practice for Class 3 vehicle users, may be
obtained by contacting your local Pride Dealer.

12 www.pridemobility.com Legend Classic XL-8
II. SAFETY
Inclement Weather Precautions
Exposure of your scooter to inclement weather conditions should be avoided whenever possible. If suddenly
caughtupinrain,snow,severecoldorheatwhileoperatingyourscooterproceedtoshelterattheearliestoppurtunity.
Thoroughlydryyour scooterbeforestoring,charging,oroperatingyour scooter.
WARNING! Operating in rain, snow, salt, mist/spray conditions, and on icy/slippery surfaces
can cause personal injury and/or damage to the scooter and electrical system. Maintain
and store your scooter in a dry and clean condition.
Freewheel Mode
Your scooter is equipped with a manual freewheel lever that, when pushed forward, allows the scooter to be
pushed. For more information abouthow to place your scooter into andout of freewheel mode, see IV. “Your
Scooter.”
WARNING! When your scooter is in freewheel mode, the braking system is disengaged.
!Disengage the drive motors only on a level surface.
!Ensure the key is removed from the key switch.
!Stand behind the scooter to engage or disengage freewheel mode. Never sit on a
scooter to do this.
!After you have finished pushing your scooter, always return it to the drive mode to lock
the brakes.
Failure to heed the above could result in personal injury and/or damage to your scooter.
An added feature built into your scooter is “push-too-fast” protection which safeguards the scooter against
gainingexcessivespeedwhileinfreewheelmode.
“Push-too-fast”operatesdifferentlydependingonwhichof twoconditionsexists:
!Ifthekeyisswitched“off”while in freewheel mode, the scooter’s controller activates regenerative braking
whenthescooterispushedfasterthan amaximumthresholdwhichhasbeenpreprogrammed.In thiscase,the
controllerisactingas a speed governor.
!Ifthe keyisswitched“on”whileinfreewheel mode,youwill encounterconsiderableresistanceatanyspeed.
Thispreventsthescooterfromgainingunwantedmomentumshouldthemanualfreewheelleverinadvertently
bereleased while drivingthescooter.
Stairs and Escalators
Scootersarenotdesignedto travel up or down stairs or escalators.Alwaysusealift.
WARNING! Do not use your scooter to negotiate steps or escalators. You may cause injury
to yourself and to others and/or damage your scooter.
Doors
!Determineifthedooropenstowardor away from you.
!Useyourhand to turn the knob orpushthe handle or push-bar.
!Driveyourscooter gently andslowlyforwardtopush the door open,ordriveyourscooter gently andslowly
rearwardsto pull the door open.

13
Legend Classic XL-8 www.pridemobility.com
II. SAFETY
Lifts
Modernliftshaveadooredge safety mechanism that, when pushed, reopens the door(s).
!Ifyouareinthedoorwayofaliftwhenthedoor(s)begin to close, push on the rubber door edge or allow the
rubberdoor edge to contact the scooter and the door will reopen.
!Usecarethat handbags, packages, or scooter accessoriesdo not become caught in liftdoors.
NOTE: If your scooter’s turning radius is greater than 1500 mm (60 in), it may be difficult to maneuver
in lifts and building entrances. Use caution when attempting to turn or maneuver your scooter in small
spaces, and avoid areas that might pose a problem.
Lift/Elevation Products
Ifyouwillbetravelingwithyourscooter,youmayfinditnecessarytousealift/elevationproducttoaidintranspor-
tation.Pride recommendsthatyou closelyreviewthe instructions,specifications,andsafetyinformationsetforth
bythe manufacturerofthe lift/elevationproductbefore usingthatproduct.
Batteries
Inadditiontofollowingthewarnings below,besuretocomplywith allotherbatteryhandlinginformation.
WARNING! Scooter batteries are heavy (refer to specifications table). Lifting weight beyond
your capacity could result in personal injury. If necessary, get someone physically able to
lift the scooter batteries for you.
WARNING! Battery posts, terminals, and related accessories contain lead and lead
compounds. Wash hands after handling.
WARNING! Always protect the batteries from freezing and never charge a frozen battery.
Charging a frozen battery may result in personal injury and/or damage to the battery.
WARNING! RED (+) cables must be connected to positive (+) battery terminals/posts. BLACK
(-) cables must be connected to negative (-) battery terminals/posts. Failure to connect
your battery harnesses in the proper manner may result in personal injury and/or damage
to your scooter. REPLACE cables immediately if damaged.
Battery Disposal and Recycling
Ifyouencountera damaged or cracked battery, immediately enclose it in a plasticbagand call your authorised
PrideDealerforinstructionsondisposal.YourauthorisedPrideDealerwillalsohave thenecessaryinformationon
batteryrecycling, whichisourrecommended courseofaction.
Preventing Unintended Movement
WARNING! If you anticipate being seated in a stationary position for an extended period
of time, turn off the power. This will prevent unexpected motion from inadvertent throttle
control lever contact. Failure to do so may result in personal injury.

14 www.pridemobility.com Legend Classic XL-8
II. SAFETY
Motor Vehicle Transport
Currently,there are nostandards approved for tie-down systemsin a moving vehicle ofany type to transport a
personwhileseatedinascooter.
Althoughyourscootermaybeequipped withapositioningbelt,thisbeltisnotdesigned toprovideproperrestraint
duringmotorvehicletransport.Anyonetravelinginamotorvehicleshouldbeproperlysecuredinthemotorvehicle
seatwith safetybeltsfastenedsecurely.
WARNING! Do not sit on your scooter while it is in a moving vehicle. Personal injury and/or
property damage may result.
WARNING! Always be sure your scooter and its batteries are properly secured when it is
being transported. Failure to do so may result in personal injury and/or damage to your
scooter.
Getting Onto and Off of Your Scooter
Gettingonto and off of yourscooter requires a good sense of balance. Please observethe following safety tips
whengetting onto andoffofyour scooter:
!Removethekey from thekeyswitch.
!Ensurethatyourscooterisnotinfreewheelmode.See IV. “Your Scooter.”
!Makecertainthattheseatislockedintoplaceandthekeyis removed from the key switch.
!Flipupthearmreststomakegettingontoandoffof the scooter easier.
WARNING! Position yourself as far back as possible in the scooter seat to prevent the
scooter from tipping and causing injury.
WARNING! Avoid using your armrests for weight bearing purposes. Such use may cause
the scooter to tip and cause personal injury.
WARNING! Avoid putting all of your weight on the floorboard. Such use may cause the
scooter to tip and cause personal injury.
Reaching and Bending
Avoidreachingorbending while driving yourscooter.When reaching,bending,orleaningwhileseated on your
scooter,itisimportant tomaintaina stablecenterof gravityandkeep thescooterfrom tipping.Priderecommends
thatthe scooteruserdeterminehis/herpersonallimitationsand practicebendingand reachinginthepresence ofa
qualifiedhealthcareprofessional.
WARNING! Do not bend, lean, or reach for objects if you have to pick them up from the
floor by reaching down between your knees. Movements such as these may change your
center of gravity and the weight distribution of the scooter and cause your scooter to tip,
possibly resulting in personal injury. Keep your hands away from the tyres when driving.
Positioning Belts
YourauthorisedPrideDealer,therapist(s),andotherhealthcareprofessionals areresponsiblefordeterminingyour
requirementfora positioning belt inordertooperateyour scooter safely.
WARNING! If you require a positioning belt to safely operate your scooter, make sure it is
fastened securely. Serious personal injury may result if you fall from the scooter.

15
Legend Classic XL-8 www.pridemobility.com
II. SAFETY
Prescription Drugs/Physical Limitations
Thescooteruser mustexercisecareandcommon sense whenoperatinghis/herscooter.Thisincludesawareness
ofsafetyissueswhentakingprescribedorover-the-counterdrugsorwhentheuserhasspecificphysicallimitations.
WARNING! Consult your physician if you are taking prescribed or over-the-counter
medication or if you have certain physical limitations. Some medications and limitations
may impair your ability to operate your scooter in a safe manner.
Alcohol
Thescooteruser must exercisecareandcommon sense whenoperatinghis/herscooter.Thisincludes awareness
ofsafetyissueswhileundertheinfluenceof alcohol.
WARNING! Do not operate your scooter while you are under the influence of alcohol, as
this may impair your ability to drive safely.
Electromagnetic and Radio Frequency Interference (EMI/RFI)
WARNING! Laboratory tests have shown that electromagnetic and radio frequency waves
can have an adverse affect on the performance of electrically-powered mobility vehicles.
ElectromagneticandRadio FrequencyInterferencecancomefrom sourcessuchascellularphones, mobiletwo-
way radios (such as walkie-talkies), radio stations, TV stations, amateur radio (HAM) transmitters, wireless
computerlinks,microwavesignals,pagingtransmitters,andmedium-rangemobiletransceiversusedbyemergency
vehicles.In some cases, these wavescan cause unintended movement or damage to the controlsystem. Every
electrically-poweredmobility vehiclehasan immunity(orresistance) toEMI.Thehighertheimmunitylevel,the
greatertheprotection against EMI. This producthasbeentestedandhas passed at an immunitylevelof20V/m.
PROHIBITED! To prevent unintended movement, turn off the power to the electrically-
powered mobility vehicle before using a cell phone, two-way radio, lap-top, or any other
type of radio transmitter. Avoid coming into close proximity of radio or TV stations.
WARNING! The addition of accessories or components to the electrically-powered mobility
vehicle can increase the susceptibility of the vehicle to EMI. Do not modify your scooter in
any way not authorized by Pride.
WARNING! The electrically-powered mobility vehicle itself can disturb the performance
of other electrical devices located nearby, such as alarm systems.
NOTE: For further information on EMI/RFI, visit the Resource Center on www.pridemobility.com. If
unintended motion or brake release occurs, turn your scooter off as soon as it is safe to do so. Contact
your authorized Pride Dealer to report the incident.

16 www.pridemobility.com Legend Classic XL-8
III. SPECIFICATIONS
Figure 7. Tyre Dimensions (Front And Rear)
3
3 cm
(13")
10 cm
(4")


REVERSE
FOR
FOR
WARD
ARD
42 cm - 49.5 cm 
(16.5"-19.5")
10 cm (4")
132 cm 
(52")
45 cm 
(18")
45 cm 
(18")
45 cm-58.5cm 
(18"-23") 165 cm

(65")
61 cm (24")
TURNING RADIUS
38 cm 
(15")
104 cm - 113 cm

(41"-44.5")

Figure 6. Legend Classic XL-8 Dimensions

17
Legend Classic XL-8 www.pridemobility.com
III. SPECIFICATIONS
SPECIFICATIONS
Model Number SCUK3450
Class of Use C
Maximum Safe Slope See figure 1.
MaximumClimbingAbility See figure 1.
MaximumObstacle ClimbingAbility 5 cm (2 in.)
Colours Red, Blue, Champagne, Green, Onyx Black
OverallLength 132 cm (52 in.)
OverallWidth 61 cm (24 in.)
TotalWeight 128 kg (283 lbs.)
TotalWeightWithoutBatteries 94 kg (207 lbs.)
Battery Weight (NF-22) 17 kg (38 lbs.) each
Heaviest Piece When Disassembled Rear Section: 37 kg (82 lbs.)
Turning Radius 165 cm (65 in.)
Speed (Maximum) Class 2: Up to 6.5 km/h (4 mph)
Class 3: Up to 13 km/h (8 mph)
Range Per Charge Up to 48 km (30 miles)* (with NF-22 batteries)
Ground Clearance 10 cm (4 in.)
Weight Capacity 181 kg (400 lbs.)
Standard Seating Type: Foldable
Weight: 19 kg (42 lbs.)
Material:GreyVinyl
Dimensions: 45 cm (18 in.) width
45 cm (18 in.) depth (usable)
38 cm (15 in.) height (usable), 56-66 cm (22-26 in.) with headrest
Drive System Rear-wheel drive, sealed mini transaxle, 24-volt DC motor
Dual Braking System Electronic, regenerative, and electromechanical
Tyres Type: Pneumatic
Dimensions: (front and rear) 10 cm x 33 cm (4 in. x 13 in.)
Battery Requirements Two 12 volt, deep-cycle, AGM or Gel-Cell (type recommended)
Size: 55AH, NF-22
Battery Charger Off-board
* Varies with user weight, terrain type, battery charge, battery condition, and tyre condition.

18 www.pridemobility.com Legend Classic XL-8
IV. YOUR SCOOTER
TILLER CONSOLE
The tiller console housesall of the controls needed todrive your scooter, including thespeed adjustment dial,
throttlecontrollever,batteryconditionmeter,lightsswitch,hazardlightsswitch,turnindicatorbuttons,statusLED,
andhornbuttons.Seefigure8.
WARNING! Do not expose the tiller console to moisture. In the event that the tiller console
does become exposed to moisture, do not attempt to operate your scooter until the tiller
console has dried thoroughly.
Figure 8.Tiller Console
Key Switch
!Insertthekeyintothekeyswitch and turn it clockwisetopowerup(turnon)yourscooter.
!Turn the key anticlockwisetopowerdown(turnoff)yourscooter.
Battery Condition Meter
Whenthekeyisfullyinsertedandturnedclockwiseto powerupyourscooter,thismeterindicatesthe approximate
batteryvoltage strength.Forfurtherinformationonbatterycharging,seeV.“BatteriesandCharging.”
Turn Indicator Buttons
!Presstheappropriateturn indicatorbuttononcetoactivateit.
!Theturnindicatorsaretimedtoshutoffautomatically.
Hazard Lights Switch
Thisswitchactivates the 4-wayflashersonyourscooter.
!Toggletheswitch forwardtoturnon the flashers.
!Toggletheswitch rearwardtoturnofftheflashers.
400/181
HAZARD LIGHTS SWITCH
HORN BUTTON
KEY SWITCH
LIGHTS SWITCH
HORN BUTTON
SPEED ADJUSTMENT DIAL
THROTTLE CONTROL LEVER
TURN INDICATOR BUTTON TURN INDICATOR BUTTON
BATTERY CONDITION METER
POWER SEAT SWITCH (OPTIONAL)
STATUS LED
HI-LOW SWITCH (CLASS 3 ONLY)
PUSH TO GO FORWARD
PUSH TO GO BACKWARD
PULL TO GO FORWARD
PULL TO GO BACKWARD

19
Legend Classic XL-8 www.pridemobility.com
Horn Button
This button activates a warning horn. The scooter must be powered up for the horn to be operational. Do not
hesitatetouse thewarninghornwhen doing somaypreventaccident or injury.
Hi-Low Switch (Class 3 Only)
!Toggletheswitch forward foramaximumspeedof 13 km/h(8mph).
!Toggletheswitch rearward for a maximumspeedof6.5km/h(4 mph).
Status LED
The statusLED alertsyoutoelectrical problemsthatmay occurwiththescooter.TheLEDremainsconstantlylit
whileyourscooter ison.Ifyourscooter developsanelectricalproblem,the statusLEDwillflasha code.SeeIX.
“BasicTroubleshooting”forflashcodes.
Lights Switch
Thisswitchcontrolsyourscooter’s lights.
!Toggletheswitch forwardtoturnon yourscooter’srearrunninglights andfront(upper)light.
!Toggletheswitch tothemiddleto turn offthe scooter’slights.
!Toggletheswitchrearwardtoturnonyour scooter’srearrunninglights,front(upper)and front(lower)lights.
WARNING! Scooter users are required to use their lights when visibility is restricted—day
or night. Failure to use the lighting system in periods of poor visibility may result in personal
injury.
SpeedAdjustment Dial
This dial allows you to preselect and limit your scooter’s top speed. The image of the tortoise represents the
slowestspeedsetting,andtheimageof the hare represents the fastest speed setting.
Throttle Control Lever
Thisleverallowsyou tocontroltheforwardspeed andthereversespeedofyourscooteruptothemaximumspeed
youpresetwith the speed adjustmentdial.
Useeitherofthefollowingtomoveforward:
!Useyourleftthumbtopushtheleftsideofthethrottlecontrollever.
!Useyourrighthandfingerstopullbackontherightsideofthethrottlecontrollever.
Useeither ofthefollowing tomoverearward:
!Useyour right thumbtopushthe rightsideofthe throttlecontrollever.
!Useyourlefthand fingerstopullbackontheleftsideofthethrottlecontrollever.
Releasethethrottlecontrolleverandallow yourscootertocometoacompletestop beforeengagingtheotherside
ofthelever.When the throttle control lever is completelyreleased,it automatically returns to the center “stop”
positionandengagesthescooterbrakes.
IV. YOUR SCOOTER

20 www.pridemobility.com Legend Classic XL-8
IV. YOUR SCOOTER
Tiller Console Fuses
Thesefuseshelpprotectyourscooter’sfrontlighting,turn
indicators,andkeyswitchconsolesystemsfromreceiving
anoverloadofelectricalcurrent.Thefusesused in your
scooterarethesametypeusedinautomobiles.Seefigure
9.See X. “CareandMaintenance”for fusereplacement.
Handbrake Lever (Not Shown)
Your scooter may be equipped with a handbrake lever
locatedon thetillerhandle.This lever providesyouwith
additionalstoppingpower.Releasethethrottlecontrollever
and squeeze the handbrake lever to come to a complete
stop.
NOTE: If you do not release the throttle control
lever before using the handbrake, your scooter may
not come to a complete stop.
NOTE: The handbrake lever may require periodic
adjustment to maintain proper operation. Contact
your authorised Pride Dealer for more information.
REAR SECTION
Thebatteries (notshown),the maincircuitbreaker (reset
button),themanual freewheel lever,the anti-tip wheels,
andthemotor/transaxleassembly (notshown)arelocated
ontherearsectionofyourscooter.Seefigure 10.

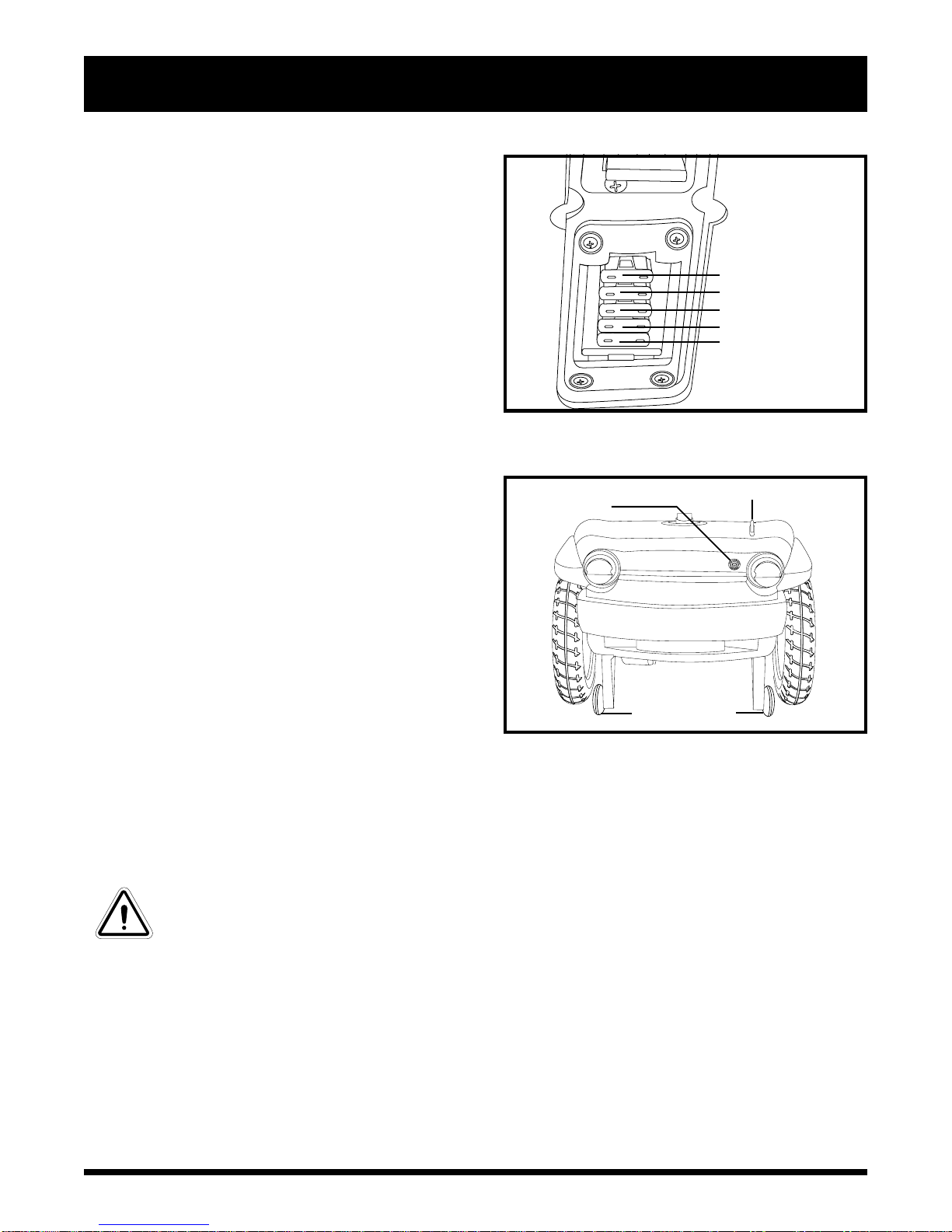

Figure 9.Tiller Console Fuses
1
1
1
1
5
B+
RIGHTRUNNINGLIGHT
LEFTRUNNINGLIGHT
RIGHT TURN INDICATOR
LEFT TURN INDICATOR
MAINCIRCUITBREAKER
(RESET BUTTON)
ANTI-TIP WHEELS
MANUALFREEWHEELLEVER
Figure 10. Rear Section
Anti-Tip Wheels
Theanti-tipwheelsareanintegralandimportantsafety featuredesignedtohelpprevent yourscooterfromtipping
rearwardonanincline.They are bolted to the frameattherearmost part of your scooter.
WARNING! Do not remove the anti-tip wheels or modify your scooter in any way that is not
authorized by Pride.
WARNING! The anti-tip wheels may interfere with the smooth transition of your scooter
when negotiating obstacles.
Batteries (Not Shown)
Thebatteries storeelectricalenergythatpowers yourscooter.SeeV.“BatteriesandCharging”for informationon
howtochargeyourscooter batteries.
