Pride Mobility OUTBACK User manual

OUTBACK

SAFETY GUIDELINES
Copyright © 2008
Pride Mobility Products Australia Pty. Ltd.
INFMANU1289/Rev G/October 2008
NOTE: This owner’s manual is compiled from the latest specifications and product information avail-
able at the time of publication. We reserve the right to make changes as they become necessary. Any
changes to our products may cause slight variations between the illustrations and explanations in this
manual and the product you have purchased. The latest/current version of this manual is available on
our website.
This product is manufactured by:
Pride Mobility Products Corporation
182 Susquehanna Avenue
Exeter, PA 18643-2694
USA
Please fill out the following information for quick reference:
WARNING! An authorised Pride Provider or qualified technician must perform the initial
setup of this scooter and must perform all of the procedures in this manual.
The symbols below are used throughout this owner's manual and on the scooter to identify warnings and
important information. It is very important for you to read them and understand them completely.
WARNING! Indicates a potentially hazardous condition/situation. Failure to follow
designated procedures can cause either personal injury, component damage, or
malfunction. On the product, this icon is represented as a black symbol on a yellow
triangle with a black border.
MANDATORY! These actions should be performed as specified. Failure to perform
mandatory actions can cause personal injury and/or equipment damage. On the product,
this icon is represented as a white symbol on a blue dot.
PROHIBITED! These actions are prohibited. These actions should not be performed at
any time or in any circumstances. Performing a prohibited action can cause personal
injury and/or equipment damage. On the product, this icon is represented as a black
symbol with a red circle and a red slash.
Pride Provider:_____________________________________________________________________
Address:__________________________________________________________________________
Phone Number:__________________________
Purchase Date:__________________________ Serial Number:____________________________
088 609 661

3
Outback www.pridemobility.com
CONTENTS
I. INTRODUCTION ................................................................................................ 4
II. SAFETY ................................................................................................................. 5
III. YOUR SCOOTER .............................................................................................. 19
IV. BATTERIES AND CHARGING ................................................................... 23
V. O P E R A T I O N ...................................................................................................... 28
VI. COMFORT ADJUSTMENTS ....................................................................... 30
VII. DISASSEMBLY AND ASSEMBLY ........................................................... 33
VIII. BASIC TROUBLESHOOTING .................................................................. 34
IX. CARE AND MAINTENANCE ...................................................................... 35
X. WARRANTY ....................................................................................................... 38
APPENDIX I - SPECIFICATIONS ......................................................................39

4www.pridemobility.com Outback
I. INTRODUCTION
SAFETY
Welcome to Pride Mobility Products Australia Pty. Ltd. (Pride). The scooter you have purchased combines
state-of the-art components with safety, comfort, and styling in mind. We are confident the design features
will provide you with the conveniences you expect during your daily activities. Understanding how to
safely operate and care for this scooter should bring you years of trouble-free operation and service.
Read and follow all instructions, warnings, and notes in this manual and all other accompanying literature
before attempting to operate this product for the first time. In addition, your safety depends upon you, as
well as your dealer, carer, or healthcare professional in using good judgement.
If there is any information in this manual which you do not understand, or if you require additional assis-
tance for setup or operation, please contact your authorised Pride Provider. Failure to follow the instruc-
tions, warnings, and notes in this manual and those located on your scooter can result in personal
injury or product damage and will void Pride’s product warranty.
PURCHASER’S AGREEMENT
By accepting delivery of this product, you promise that you will not change, alter, or modify this product
or remove or render inoperable or unsafe any guards, shields, or other safety features of this product; fail,
refuse, or neglect to install any retrofit kits from time to time provided by Pride to enhance or preserve the
safe use of this product.
SHIPPING AND DELIVERY
Before using your scooter, make sure your delivery is complete as some components may be individually
packaged. If you do not receive a complete delivery, please contact your authorised Pride Provider imme-
diately. Where damage has occurred during transport, either to the packaging or content, please contact
the delivery company responsible.
INFORMATION EXCHANGE
We want to hear your questions, comments, and suggestions about this manual. We would also like to hear
about the safety and reliability of your new scooter, and about the service you received from your autho-
rised Pride Provider. Please notify us of any change of address, so we can keep you apprised of important
information about safety, new products, and new options that can increase your ability to use and enjoy
your scooter. Please feel free to contact us at the address below:
Pride Mobility Products Australia Pty. Ltd.
21 Healey Road
Dandenong, 3175
Victoria, Australia
NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact
us and we will be glad to send you a new one immediately.

5
Outback www.pridemobility.com
II. SAFETY
PRODUCT SAFETY SYMBOLS
The symbols below are used on the scooter to identify warnings, mandatory actions, and prohibited
actions. It is very important for you to read and understand them completely.
Pinch/Crush points created during assembly.
Corrosive chemicals contained in battery.
EMI-RFI- This product has been tested and passed at an immunity level of 20 V/m.
Do not lift the mobility vehicle while seated in it.
Do not lift the mobility vehicle while seated in it.
Explosive conditions exist!
Read and follow the information in the owner’s manual.

6www.pridemobility.com Outback
II. SAFETY
Maximum seating weight.
Do not remove anti-tip wheels.
Wear safety goggles.
Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive
conditions.
Do not use a cell phone, walkie/talkie, laptop, or other radio transmitter while
operating.
Do not place scooter in freewheel mode on a decline.
Do not place scooter in freewheel mode on an incline.

7
Outback www.pridemobility.com
II. SAFETY
Avoid exposure to rain, snow, ice, salt, or standing water whenever possible.
Maintain and store in a clean and dry condition.
Removal of grounding prong can create electrical hazard. If necessary, properly
install an approved 3-pronged adapter to an electrical outlet having 2-pronged
plug access.
Do not connect an extension lead to the AC/DC converter or the battery charger.
Keep tools and other metal objects away from battery terminals. Contact with
tools can cause electrical shock.
Do not allow unsupervised children to play near the scooter while the batteries
are charging.
Do not use batteries with different amp-hour (Ah) capacities. Do not mix old and
new batteries. Always replace both batteries at the same time.
Keep your hands away from the tyres when driving. Be aware that loose fitting
clothing can become caught in drive tyres.

8www.pridemobility.com Outback
Battery charger for indoor use only.
Disposal and recycling - Contact your authorised Pride Provider for information on
proper disposal and recycling of your Pride product and its packaging.
Contains Lead.
II. SAFETY

9
Outback www.pridemobility.com
II. SAFETY
GENERAL
Your scooter is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides
an extensive variety of products to best fit the individual needs of the scooter user. Please be aware that
the final selection and purchasing decision regarding the type of scooter to be used is the responsibility of
the scooter user, who is capable of making such a decision, and his/her healthcare professional (i.e., med-
ical doctor, physical therapist, etc.).
The contents of this manual are based on the expectation that a mobility device expert has properly fitted
the scooter to the user and has assisted the prescribing healthcare professional and/or the authorised Pride
Provider in the instruction process for the use of the product.
There are certain situations, including some medical conditions, where the scooter user will need to prac-
tice operating the scooter in the presence of a trained attendant. A trained attendant can be defined as a
family member or care professional specially trained in assisting a scooter user in various daily-living
activities.
As you begin using your scooter during daily activities, you will probably encounter situations in which
you will need some practice. Simply take your time and you will soon be in full and confident control as
you manoeuvre through doorways, on and off lifts, up and down ramps, and over moderate terrain.
Below are some precautions, tips, and other safety considerations that will help you become accustomed
to operating the scooter safely.
MODIFICATIONS
Pride has designed and engineered your scooter to provide maximum mobility and utility. A wide range
of accessories are available from your authorised Pride Provider to further customise your scooter to better
suit your needs and/or preferences. However, under no circumstances should you modify, add, remove,
or disable any feature, part, or function of your scooter.
MANDATORY! Do not operate your new scooter for the first time without completely
reading and understanding this owner’s manual.
WARNING! Do not modify your scooter in any way not authorised by Pride. Do not use
accessories if they have not been tested or approved for Pride Products.
REMOVABLE PARTS
WARNING! Do not attempt to lift or move your scooter by any of its removable parts,
including the armrests, seat, or shroud.
PRE-RIDE SAFETY CHECK
Get to know the feel of your scooter and its capabilities. Pride recommends that you perform a safety
check before each use to make sure your scooter operates smoothly and safely.

10 www.pridemobility.com Outback
II. SAFETY
Perform the following inspections prior to using your scooter:
Check for proper tyre inflation. Maintain but do not exceed the psi/bar/kPa air pressure rating indicated
on each tyre if equipped with pneumatic tyres.
Check all electrical connections. Make sure they are tight and not corroded.
Check all harness connections. Make sure they are secured properly.
Check the brakes.
Check battery charge.
If you discover a problem, contact your authorised Pride Provider for assistance.
WEIGHT LIMITATIONS
Your scooter is rated for a maximum weight capacity. Refer to the specifications table for information.
WARNING! It is critically important that the psi/bar/kPa air pressure rating indicated on
the tyre be maintained in pneumatic tyres at all times. Do not underinflate or overinflate
your tyres. Low pressure may result in loss of control, and overinflated tyres may burst.
Failure to maintain the psi/bar/kPa air pressure rating indicated on pneumatic tyres at all
times may result in tyre and/or wheel failure.
WARNING! Inflate your scooter tyres from a regulated air source with an available
pressure gauge. Inflating your tyres from an unregulated air source could overinflate
them, resulting in a burst tyre.
MANDATORY! Stay within the specified weight capacity for your scooter. Exceeding the
weight capacity voids your warranty. Pride will not be held responsible for injuries and/or
property damage resulting from failure to observe weight limitations.
WARNING! Do not carry passengers on your scooter. Carrying passengers on your scooter
may affect the centre of gravity, resulting in a tip or fall.
NOTE: If the tyres on your scooter list the psi rating only, use the following conversion formulas to find
the bar or kPa rating: bar = psi x 0.06895; kPa = psi x 6.89476.
TYRE INFLATION
If your scooter is equipped with pneumatic tyres, you should check or have the air pressure checked at least
once a week. Proper inflation pressures will prolong the life of your tyres and help ensure the smooth
operation of your scooter.
INCLINE INFORMATION
More and more buildings have ramps with specified degrees of inclination, designed for easy and safe
access. Some ramps may have turning switchbacks (180-degree turns) that require you to have good cor-
nering skills on your scooter.
Proceed with extreme caution as you approach the downgrade of a ramp or other incline.
Take wide swings with your scooter around any tight corners. If you do that, the scooter’s rear wheels
will follow a wide arc, not cut the corner short, and not bump into or get hung up on any railing corners.
When driving down a ramp, keep the scooter’s speed adjustment set to the slowest speed setting to
ensure a safely controlled descent.
Avoid sudden stops and starts.

11
Outback www.pridemobility.com
II. SAFETY
When climbing an incline, try to keep your scooter moving. If you must stop, start up again slowly, and
then accelerate cautiously. When driving down an incline, do so by setting the speed adjustment dial to the
slowest setting and driving in the forward direction only. If your scooter starts to move down the incline
faster than you anticipated or desired, allow it to come to a complete stop by releasing the throttle control
lever. Then push the throttle control lever forward slightly to ensure a safely controlled descent.
WARNING! Any attempt to climb or descend a slope steeper than what is shown in figure
1 may put your scooter in an unstable position and cause it to tip.
WARNING! When on any sort of an incline or decline, never place the scooter in
freewheel mode, especially while seated on it or standing next to it.
WARNING! When climbing an incline, do not zigzag or drive at an angle up the face
of the incline. Drive your scooter straight up the incline. This greatly reduces the
possibility of a tip or a fall. Always exercise extreme caution when negotiating an
incline.
WARNING! Do not drive your scooter across the side of an incline or diagonally
up or down an incline; do not stop, if possible, while driving up or down an incline.
WARNING! You should not travel up or down a potentially hazardous incline (i.e.,
areas covered with snow, ice, cut grass, or wet leaves).
WARNING! Even though your scooter is capable of climbing slopes greater than
those illustrated in figure 1, do not, under any circumstances, exceed the incline
guidelines or any other specifications presented in this manual. Doing so could
cause instability in your scooter.
WARNING! Never carry an oxygen tank weighing more than 6.8 kg (15 lbs.). Never fill the
rear basket with contents exceeding 6.8 kg (15 lbs.).
Handicap public access ramps are not subject to government regulation in all countries, and therefore do
not necessarily share the same standard percent of slope. Other inclines may be natural or, if man-made,
not designed specifically for scooters. Figure 1 illustrates your scooter’s stability and its ability to climb
grades under various weight loads and under controlled testing conditions.
These tests were conducted with the scooter’s seat in the highest position and adjusted rearward on the seat
base to its farthest rearward position. Use this information as a guideline. Your scooter’s ability to travel
up inclines is affected by your weight, your scooter’s speed, your angle of approach to the incline, and your
scooter setup.

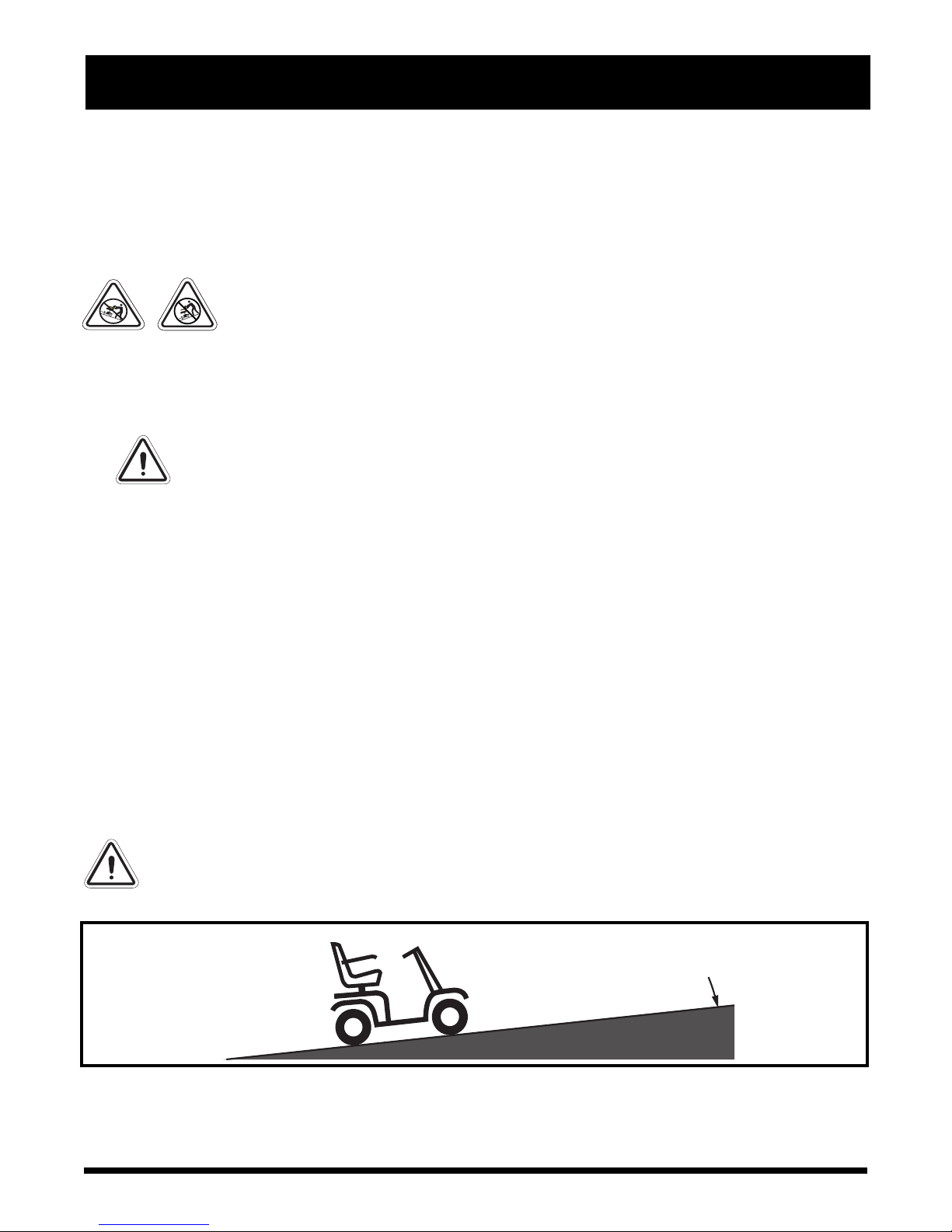

Figure 1. Maximum Recommended Incline Angle
181.4 kg
(400 lbs.)
8.7% (5°)

12 www.pridemobility.com Outback
CORNERING INFORMATION
Excessively high cornering speeds can create the possibility of tipping. Factors which affect the possibility
of tipping include, but are not limited to, cornering speed, steering angle (how sharply you are turning),
uneven road surfaces, inclined road surfaces, riding from an area of low traction to an area of high traction
(such as passing from a grassy area to a paved area - especially at high speed while turning), and abrupt
directional changes. High cornering speeds are not recommended. If you feel that you may tip over in a
corner, reduce your speed and steering angle (i.e., lessen the sharpness of the turn) to prevent your scooter
from tipping.
WARNING! When cornering sharply, reduce your speed and maintain a stable centre of
gravity. When using your scooter at higher speeds, do not corner sharply. This greatly
reduces the possibility of a tip or fall. Always exercise extreme caution when cornering.
When you approach an incline, it is best to lean forward. See figures 2 and 2A. This shifts the centre of
gravity of you and your scooter toward the front of the scooter for improved stability.
NOTE: When negotiating ramps, if the throttle control lever is released while moving forward, the
powered scooter may "roll back" approximately 30.48 cm (1 foot) before the brake engages. If the
throttle control lever is released while moving in reverse, the powered scooter may "roll back" approx-
imately 1 metre (3 feet) before the brake engages.
BRAKING INFORMATION
Your scooter is equipped with two powerful brake systems:
Regenerative: Uses electricity to rapidly slow the vehicle when the throttle control lever returns to the
centre/stop position.
Disc Park Brake: Activates mechanically after regenerative braking slows the vehicle to near stop, or
when power is removed from the system for any reason.
Figure 2A. Increased Stability Driving Position
Figure 2. Normal Driving Position
II. SAFETY

13
Outback www.pridemobility.com
KERB
II. SAFETY
OUTDOOR DRIVING SURFACES
Your scooter is designed to provide optimum stability under normal driving conditions - dry, level surfaces
composed of concrete, blacktop, or tarmac. However, Pride recognises that there will be times when you
will encounter other surface types. For this reason, your scooter is designed to perform admirably on
packed soil, grass, and gravel. Feel free to use your scooter safely on lawns and in park areas.
Reduce your scooter’s speed when driving on uneven terrain and/or soft surfaces.
Avoid tall grass that can become tangled in the running gear.
Avoid loosely packed gravel and sand.
If you feel unsure about a driving surface, avoid that surface.
WARNING! You should not operate your scooter on public streets and roadways. Be
aware that it may be difficult for traffic to see you when you are seated on your scooter.
Obey all local pedestrian traffic rules. Wait until your path is clear of traffic, and then
proceed with extreme caution.
STREETS AND ROADWAYS

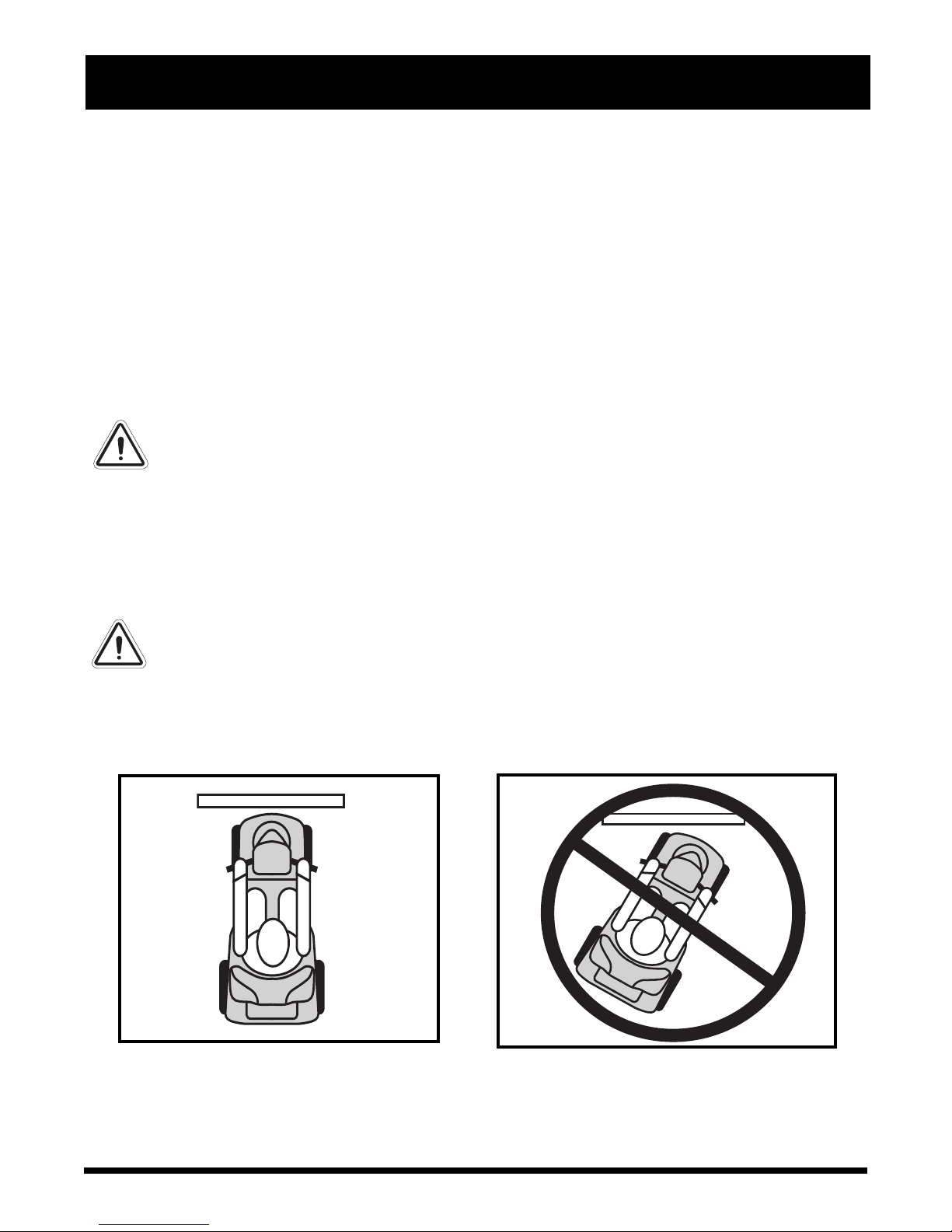

Figure 3. Correct Kerb Approach
STATIONARY OBSTACLES (STEPS, KERBS, ETC.)
WARNING! Do not drive near raised surfaces, unprotected ledges, and/or drop-offs (kerbs,
porches, stairs, etc.).
WARNING! Do not attempt to have your scooter climb or descend an obstacle that is
inordinately high.
WARNING! Do not attempt to have your scooter proceed rearward down any step, kerb,
or other obstacle. This may cause the scooter to tip.
WARNING! Be sure your scooter is traveling perpendicular to any kerb you may be
required to ascend or descend. See figures 3 and 4.
WARNING! Do not attempt to negotiate a kerb that has a height greater than 5 cm (2 in.).
Figure 4. Incorrect Kerb Approach
KERB

14 www.pridemobility.com Outback
FREEWHEEL MODE
Your scooter is equipped with manual freewheel levers that, when pushed down, allow the scooter to be
pushed. For more information about how to place your scooter into and out of freewheel mode, see III.
“Your Scooter.”
WARNING! When your scooter is in freewheel mode, the braking system is disengaged.
Disengage the drive motors only on a level surface.
Ensure the key is removed from the key switch.
Stand to the side of the scooter to engage or disengage freewheel mode. Never sit on
a scooter to do this.
After you have finished pushing your scooter, always return it to the drive mode to
lock the brakes.
An added feature built into the scooter is “push-too-fast” protection, which safeguards the scooter against
gaining excessive speed while in freewheel mode.
“Push-too-fast” operates differently depending on which of two conditions exists:
If the key is switched “off” while in freewheel mode, the scooter’s controller activates regenerative
braking when the scooter is pushed faster than a maximum threshold which has been preprogrammed.
In this case, the controller is acting as a speed governor.
If the key is switched “on” while in freewheel mode, you will encounter considerable resistance at any
speed. This prevents the scooter from gaining unwanted momentum should the manual freewheel lever
inadvertently be released while driving the scooter.
STAIRS AND ESCALATORS
Scooters are not designed to travel up or down stairs or escalators. Always use a lift.
DOORS
Determine if the door opens toward or away from you.
Use your hand to turn the knob or push the handle or push-bar.
Drive your scooter gently and slowly forward to push the door open. Or drive your scooter gently and
slowly rearwards to pull the door open.
INCLEMENT WEATHER PRECAUTIONS
PROHIBITED! Operating in rain, snow, salt, mist/spray conditions, and on icy/slippery
surfaces can cause damage to the scooter and electrical system. Maintain and store
your scooter in a dry and clean condition.
WARNING! Prolonged exposure to hot or cold conditions may affect the temperature of
upholstered and non-upholstered items on the scooter, possibly resulting in skin
irritation. Exercise caution when using your scooter in extremely hot or cold conditions
or when exposing your scooter to direct sunlight for prolonged periods of time.
II. SAFETY
WARNING! Do not use your scooter to negotiate steps or escalators.
Exposure of your scooter to inclement weather conditions should be avoided whenever possible. If sud-
denly caught up in rain, snow, severe cold or heat while operating your scooter, proceed to shelter at the
earliest opportunity. Thoroughly dry your scooter before storing, charging, or operating your scooter.

15
Outback www.pridemobility.com
LIFTS
Modern lifts have a door edge safety mechanism that, when pushed, reopens the door(s).
If you are in the doorway of a lift when the door(s) begin to close, push on the rubber door edge or
allow the rubber door edge to contact the scooter and the door will reopen.
Use care that handbags, packages, or scooter accessories do not become caught in lift doors.
NOTE: If your scooter’s turning radius is greater than 152.4 cm (60 in.), it may be difficult to manoeu-
vre in lifts and building entrances. Use caution when attempting to turn or manoeuvre your scooter in
small spaces, and avoid areas that might pose a problem.
LIFT/ELEVATION PRODUCTS
If you will be traveling with your scooter, you may find it necessary to use a lift/elevation product to aid
in transportation. Pride recommends that you closely review the instructions, specifications, and safety
information set forth by the manufacturer of the lift/elevation product before using that product.
BATTERIES
In addition to following the warnings below, be sure to comply with all other battery handling information.
MANDATORY! Battery posts, terminals, and related accessories contain lead and
lead compounds. Wear goggles and gloves when handling batteries and wash
hands after handling.
WARNING! Scooter batteries are heavy. See specifications table. If you are unable
to lift that much weight, be sure to get help. Use proper lifting techniques and
avoid lifting beyond your capacity.
WARNING! Never sit on your scooter when it is being used in connection with any
type of lift/elevation product. Your scooter was not designed with such use in
mind, and any damage or injury incurred from such use is not the responsibility of
Pride.
WARNING! Always protect the batteries from freezing and never charge a frozen
battery. Charging a frozen battery may result in damage to the battery.
WARNING! Connect the battery harnesses in the proper manner. RED (+) cables
must be connected to positive (+) battery terminals/posts. BLACK (-) cables must
be connected to negative (-) battery terminals/posts. Protective caps should be
installed over all battery terminals. REPLACE cables immediately if damaged.
BATTERY DISPOSAL AND RECYCLING
If you encounter a damaged or cracked battery, immediately enclose it in a plastic bag. Contact your local
waste disposal agency or your authorised Pride Provider for instructions on disposal and battery recycling,
which is our recommended course of action.
PREVENTING UNINTENDED MOVEMENT
WARNING! If you anticipate being seated in a stationary position for an extended period
of time, turn off the power. This will prevent unexpected motion from inadvertent throttle
control lever contact.
II. SAFETY

16 www.pridemobility.com Outback
GETTING ONTO AND OFF OF YOUR SCOOTER
Getting onto and off of your scooter requires a good sense of balance. Please observe the following safety
tips when getting onto and off of your scooter:
Remove the key from the key switch.
Ensure that your scooter is not in freewheel mode. See III. “Your Scooter.”
Make certain that the seat is secured into place.
Pivot the armrests up to make getting onto and off of the scooter easier.
WARNING! Position yourself as far back as possible in the scooter seat to prevent the
scooter from tipping.
WARNING! Avoid putting all your weight on the scooter armrests and do not use the
armrests for weight bearing purposes, such as transfers. Such use may cause the
scooter to tip, resulting in a fall from the scooter and personal injury.
WARNING! Avoid putting all of your weight on the floorboard. Such use may cause the
scooter to tip.
MOTOR VEHICLE TRANSPORT
Pride recommends that you do not remain seated in your scooter while traveling in a motor vehicle. The
scooter should be stowed in the boot of a car or in the back of a truck or van with batteries removed and
properly secured. In addition, all removable scooter parts, including the armrests, seat, and shroud should
be removed and/or properly secured during motor vehicle transport.
WARNING! Although your scooter may be equipped with a positioning belt, this belt is not
designed to provide proper restraint during motor vehicle transport. Anyone traveling in
a motor vehicle should be properly secured in the motor vehicle seat with safety belts
fastened securely.
WARNING! Do not sit on your scooter while it is in a moving vehicle.
WARNING! Always be sure your scooter and its batteries are properly secured when it is
being transported. Batteries should be secured in an upright position and protective caps
should be installed on the battery terminals. Batteries should not be transported with any
flammable or combustible items.
REACHING AND BENDING
Avoid reaching or bending while driving your scooter. When reaching, bending, or leaning while seated
on your scooter, it is important to maintain a stable centre of gravity and keep the scooter from tipping.
Pride recommends that the scooter user determine his/her personal limitations and practice bending and
reaching in the presence of a qualified healthcare professional.
WARNING! Do not bend, lean, or reach for objects if you have to pick them up from the
scooter deck or from either side of the scooter. Movements such as these may change
your centre of gravity and the weight distribution of the scooter and cause your scooter
to tip.
PROHIBITED! Keep your hands away from the drive tyres when driving. Be aware that
loose fitting clothing can become caught in drive tyres.
II. SAFETY

17
Outback www.pridemobility.com
PRESCRIPTION DRUGS/PHYSICAL LIMITATIONS
The scooter user must exercise care and common sense when operating his/her scooter. This includes
awareness of safety issues when taking prescribed or over-the-counter drugs or when the user has specific
physical limitations.
WARNING! Consult your physician if you are taking prescribed or over-the-counter
medication or if you have certain physical limitations. Some medications and limitations
may impair your ability to operate your scooter in a safe manner.
ALCOHOL/SMOKING
The scooter user must exercise care and common sense when operating his/her scooter. This includes
awareness of safety issues while under the influence of alcohol or while smoking.
WARNING! Do not operate your scooter while you are under the influence of alcohol, as
this may impair your ability to drive safely.
WARNING! Pride strongly recommends that you do not smoke cigarettes while seated in
your scooter, although the scooter has passed the necessary testing requirements for
cigarette smoking. You must adhere to the following safety guidelines if you decide to
smoke cigarettes while seated in your scooter.
Do not leave lit cigarettes unattended.
Keep ashtrays a safe distance from the seat cushions.
Always make sure cigarettes are completely extinguished before disposal.
ELECTROMAGNETIC AND RADIO FREQUENCY INTERFERENCE (EMI/RFI)
WARNING! Laboratory tests have shown that electromagnetic and radio frequency
waves can have an adverse affect on the performance of electrically-powered mobility
vehicles.
Electromagnetic and Radio Frequency Interference can come from sources such as cellular phones, mobile
two-way radios (such as walkie-talkies), radio stations, TV stations, amateur radio (HAM) transmitters,
wireless computer links, microwave signals, paging transmitters, and medium-range mobile transceivers
used by emergency vehicles. In some cases, these waves can cause unintended movement or damage to
the control system. Every electrically-powered mobility vehicle has an immunity (or resistance) to EMI.
The higher the immunity level, the greater the protection against EMI. This product has been tested and
has passed at an immunity level of 20 V/M.
POSITIONING BELTS
Your authorised Pride Provider, therapist(s), and other healthcare professionals are responsible for deter-
mining your requirement for a positioning belt in order to operate your scooter safely.
WARNING! If you require a positioning belt to safely operate your scooter, make sure it
is fastened securely.
II. SAFETY

18 www.pridemobility.com Outback
II. SAFETY
WARNING! Be aware that cell phones, two-way radios, laptops, and other types of radio
transmitters may cause unintended movement of your electrically-powered mobility
vehicle due to EMI. Exercise caution when using any of these items while operating your
mobility vehicle and avoid coming into close proximity of radio and TV stations.
WARNING! The addition of accessories or components to the electrically-powered
mobility vehicle can increase the susceptibility of the vehicle to EMI. Do not modify your
scooter in any way not authorised by Pride.
WARNING! The electrically-powered mobility vehicle itself can disturb the performance
of other electrical devices located nearby, such as alarm systems.
NOTE: For further information on EMI/RFI, visit the Resource Center on www.pridemobility.com. If
unintended motion or brake release occurs, turn your scooter off as soon as it is safe to do so. Contact
your authorised Pride Provider to report the incident.

19
Outback www.pridemobility.com
III. YOUR SCOOTER
Figure 5. Control Console Assembly
BATTERY CONDITION METER
KEY SWITCH
HORN BUTTON
LIGHT SWITCH
SPEED ADJUSTMENT DIAL
TILLER ADJUSTMENT LEVER
8-16 KM/H SWITCH
KEY
The control console assembly, located on the front section, houses all of the controls you need to operate
your scooter, including the speed adjustment dial, throttle control lever, battery condition meter, horn
button, and key switch. See figure 5.
PROHIBITED! Do not expose the control console assembly to moisture. In the event that
the control console assembly does become exposed to moisture, do not attempt to
operate your scooter until the control console assembly has dried thoroughly.
CONTROL CONSOLE ASSEMBLY
Key Switch
Fully insert the key into the key switch to power up your scooter.
Pull the key out to power down your scooter.
WARNING! If the key is removed from the key switch while your scooter is in motion,
the electronic brakes will engage and your scooter will come to an abrupt stop!
Tiller Adjustment Lever
This lever allows you to adjust the tiller between four different positions. For tiller adjustment instruc-
tions, see VI. “Comfort Adjustments.”
Horn Button
This button activates a warning horn. Your scooter must be powered up for the horn to be operational.
Do not hesitate to use the warning horn when doing so may prevent accident or injury.
Hazard Light Switch
This switch enables you to control your scooter’s front and rear (amber) hazard lights. Toggle this
switch to turn the hazard lights on and off.
THROTTLE CONTROL
LEVER (FORWARD)
THROTTLE CONTROL
LEVER (REVERSE)
HAZARD LIGHT
SWITCH
RIGHT TURN
INDICATOR
LEFT TURN
INDICATOR

20 www.pridemobility.com Outback
Battery Condition Meter
When the key is fully inserted into the key switch, this meter indicates the approximate battery voltage
strength. For further information on battery charging, see IV. “Batteries and Charging.”
8-16 KM/H Switch
This switch limits the top speed of your scooter to either 8 km/h (5 mph) or 16 km/h (10 mph). Toggle this
switch to either 8 or 16 km/h.
NOTE: When driving indoors, it is recommended you set the switch to 8 km/h (5 mph).
Light Switch
This switch turns your scooter’s headlight on and off.
Toggle this switch to the right to turn the light on.
Toggle this switch to the left to turn the light off.
Throttle Control Lever
This lever allows you to control the forward speed and the reverse speed of your scooter up to the maxi-
mum speed you preset with the speed adjustment dial.
Place your right hand on the right handgrip and your left hand on the left handgrip.
Use your right thumb to push the right side of the lever to disengage the scooter brakes and move
forward.
Release the lever and allow your scooter to come to a complete stop before pushing the left side of the
lever to move in reverse.
When the throttle control lever is completely released, it automatically returns to the centre “stop”
position and engages the scooter brake.
Handbrake Lever (Not Shown)
Your scooter is equipped with a handbrake lever, located on the tiller handle. This lever provides you with
additional stopping power. Release the throttle control lever and gently squeeze the handbrake lever to
come to a stop.
NOTE: If you do not release the throttle before using the handbrake, your scooter may not come to a
complete stop.
NOTE: The handbrake lever may require periodic adjustment to maintain proper operation. Contact
your authorised Pride Provider for more information.
REAR SECTION
The electronic controller module, batteries, main circuit breaker, power charger lead, freewheel levers,
and the motor assemblies are located on the rear section of your scooter. See figures 6 and 6A.
Batteries
The batteries store the electrical energy that powers your scooter. See IV. “Batteries and Charging” for
information on how to charge your scooter’s batteries.
III. YOUR SCOOTER
