Pride Mobility Front Riggings Quantum Assembly instructions

USA
401 York Avenue
Duryea, PA 18642
www.quantumrehab.com
Canada
5096 South Service Road
Beamsville, Ontario L0R 1B3
www.quantumrehab.com
Australia
20-24 Apollo Drive
Hallam, Victoria 3803
www.quantumrehab.com.au
New Zealand
38 Lansford Crescent
Avondale
Auckland, New Zealand 1007
www.pridemobility.co.nz
UK
32 Wedgwood Road
Bicester, Oxfordshire OX26 4UL
www.quantumrehab.co.uk
B.V.
(Authorised EU Representative)
De Zwaan 3
1601 MS Enkhuizen
The Netherlands
www.quantumrehab.eu
Italy
Via del Progresso, ang. Via del Lavoro
Loc. Prato della Corte
00065 Fiano Romano (RM)
www.quantumrehab-italia.it
France
26 rue Monseigneur Ancel
69800 Saint-Priest
www.quantumrehab.fr
Spain
Avda de las Flores 19
Parque Empresarial El Molino
28970 Humanes (Madrid)
basic operations instructions

Copyright ©2020
INFMANU3613/Rev I/February 2020
A Pride/Quantum Rehab Provider or a qualified technician
must perform the initial setup of this power chair and
must perform all of the procedures in this manual.
The symbols below are used throughout this owner’s manual
and on the power chair to identify warnings and important
information. It is very important for you to read them and
understand them completely.
Indicates a potentially hazardous condition/situation.
Failure to follow designated procedures can cause either
personal injury, component damage, or malfunction. On
the product, this icon is represented as a black symbol
on a yellow triangle with a black border.
These actions should be performed as specified. Failure
to perform mandatory actions can cause personal injury
and/or equipment damage. On the product, this icon is
represented as a white symbol on a blue dot with a white
border.
These actions are prohibited. These actions should
not be performed at any time or in any circumstances.
Performing a prohibited action can cause personal
injury and/or equipment damage. On the product, this
icon is represented as a black symbol with a red circle
and red slash.
Intended Use
A wheelchair component is a device intended for medical
purposes that is generally sold as an integral part of a
wheelchair, but may also be sold separately as a replacement
part.
Regarding Devices for Prescription Use
CAUTION! Federal law restricts this device to sale by or
on the order of a physician or other certified personnel
licensed by the law of the State (US only) or region in
which this personnel practices to use or order the use
of the device.
NOTE: This owner’s manual is compiled from the latest
specifications and product information available at
the time of publication. We reserve the right to make
changes as they become necessary. Any changes to
our products may cause slight variations between the
illustrations and explanations in this manual and the
product you have purchased. The latest/current version
of this manual is available on our website.
NOTE: This product is compliant with WEEE, RoHS, and
REACH directives and requirements.
NOTE: This product meets IPX4 classification
(IEC 60529).
NOTE: This product and its components are not made
with natural rubber latex. Consult with the manufacturer
regarding any after-market accessories.
SECURITY GUIDELINES
MANDATORY!
PROHIBITED!
WARNING!
WARNING!
WARNING!

3
BASIC OPERATION INSTRUCTIONS
Table of Contents
Introduction.............................................................. 4
Safety........................................................................ 5
Front Riggings ......................................................... 6
Swing-away Footrests............................................. 7
Drop-in Leg Rests.................................................... 8
Elevating Leg Rests ................................................ 8
Multi-Axis Foot Plates........................................... 10
Adjustable Center-Mount Foot Platform.............. 11
Power Elevating Leg Rests................................... 12
Power Articulating Leg Rests............................... 13
Swing-away Power Articulating Leg Rests ......... 13
Center-Mount Articulating Foot Platform............ 14
Swing-away Calf Pads........................................... 14
Language Usage
This owner’s manual is intended for distribution in all English-
speaking countries where our Power Chairs are sold. We
have chosen to compose this manual using language and
spellings common to the USA. Since we recognize that not all
English-speaking countries use the same words or spellings,
please refer to the following chart for some common word
variations that may be encountered throughout this manual.
USA Variation
asphalt tarmac
authorized authorised
backward(s) rearward(s)
caster castor
center centre
color colour
cord lead
counterclockwise anticlockwise
curb kerb
elevator lift
labor labour
meter metre
path bridleway; footpath
pocketbook handbag
provider dealer; agent
sidewalk pavement
tire tyre
trunk boot
turn signal turn indicator
wrench spanner
yard grounds

4BASIC OPERATION INSTRUCTIONS
Introduction
WELCOME to Pride Mobility Products (Pride). The product
you have purchased combines state-of-the-art components
with safety, comfort, and styling in mind.We are confident that
the design features will provide you with the conveniences
you expect during your daily activities. Understanding how
to safely operate and care for this product should bring you
years of trouble-free operations and service.
Read and follow all instructions, warnings, and notes in this
manual before attempting to operate your product for the
first time. You must also read all instructions, warnings, and
notes contained in any supplemental instructional booklets
for the controller, front riggings, and/or seating system that
accompanied your power chair before initial operation. Your
safety depends upon you, as well as your provider, caretaker,
or healthcare professional, in using good judgment.
This manual is to be used in addition to the power base
owner’s manual that came with your power chair. If there is
any information in this manual which you do not understand,
or if you require additional assistance for setup or operation,
please contact your Pride/Quantum Rehab Provider. Failure
to follow the instructions, warnings, and notes in this
manual and those located on your Pride product can
result in personal injury and/or product damage and will
void Pride’s product warranty.
Purchaser’s Agreement
By accepting delivery of this product, you promise that you
will not change, alter, or modify this product or remove or
render inoperable or unsafe any guards, shields, or other
safety features of this product; fail, refuse, or neglect to
install any retrofit kits from time to time provided by Pride to
enhance or preserve the safe use of this product.

5
Safety
The symbols below are used on the product to identify
warnings, mandatory actions, and prohibited actions. It
is very important for you to read and understand them
completely.
Read and follow the information in the
owner's manual.
Avoid exposure to rain, snow, ice, salt,
or standing water whenever possible.
Maintain and store in a clean and dry
condition.
EMI/RFI–This product has been tested
and passed at an immunity level of
20 V/m.
Electromagnetic and Radio Frequency Interference
(EMI/RFI)
Laboratory tests have shown that electromagnetic and
radio frequency waves can have an adverse effect on the
performance of electrically powered mobility vehicles.
Electromagnetic and Radio Frequency Interference can
come from sources such as cellular phones, mobile two-way
radios (such as walkie-talkies), radio stations, TV stations,
amateur radio (HAM) transmitters, wireless computer links,
microwave signals, paging transmitters, and medium-range
mobile transceivers used by emergency vehicles. In some
cases, these waves can cause unintended movement or
damage to the control system. Every electrically powered
mobility vehicle has an immunity (or resistance) to EMI. The
higher the immunity level, the greater the protection against
EMI. This product has been tested and has passed at an
immunity level of 20 V/m.
Be aware that cell phones, two-way radios, laptops,
electricity gernerators or high power sources and other
types of radio transmitters may cause unintended
movement of your electrically powered mobility
vehicle due to EMI. Do not turn ON hand-held personal
communication devices, such as citizens band (CB)
radios and cellular phones,while the powered wheelchair
is turned on. Be aware of nearby transmitters, such
as radio or TV stations, and avoid coming into close
proximity to them.
The addition of accessories or components to the
electrically powered mobility vehicle can increase the
susceptibility of the vehicle to EMI. Do not modify your
power chair in any way not authorized by Pride.
The electrically powered mobility vehicle itself can
disturb the performance of other electrical devices
located nearby, such as alarm systems.
NOTE: For further information on EMI/RFI, go to
the Resource Center on www.pridemobility.com. If
unintended motion or brake release occurs, turn your
power chair off as soon as it is safe to do so. Call Pride
or contact your Pride/Quantum Rehab Provider to report
the incident.
WARNING!
WARNING!
WARNING!
BASIC OPERATION INSTRUCTIONS

6
Front Riggings

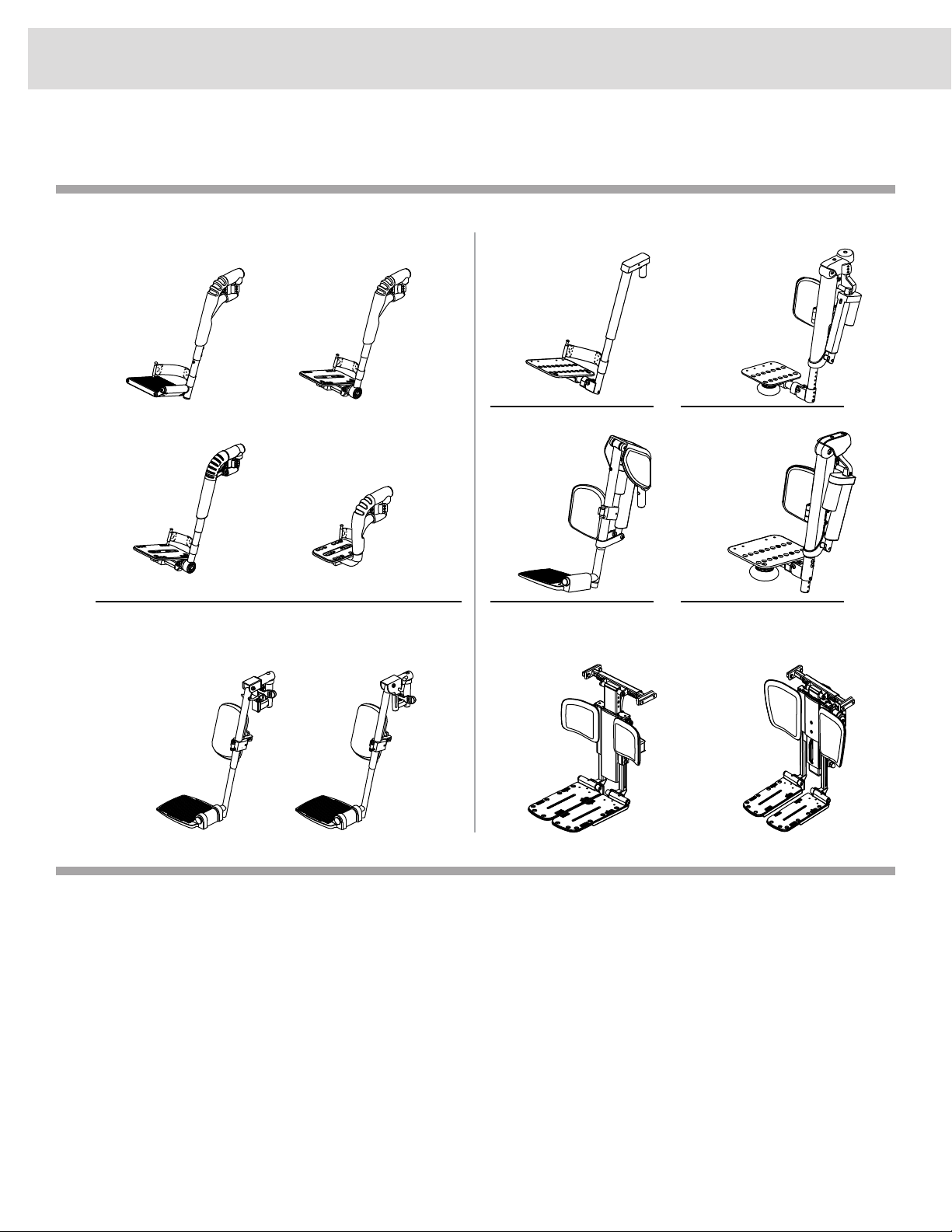

Figure 1 provides information on available front riggings’ components. Use this diagram to familiarize yourself with the
function of each component before using the front riggings.
SWING-AWAY FOOTRESTS
Enable user to rotate the footrests to the side before transferring onto or off
the power chair.
Swing-away Footrest
DROP-IN LEG RESTS
Heavy Duty
with Multi-axis
Foot Plate
ELEVATING LEG RESTS
Offer an infinite range of adjustment for the leg angle.
Standard ELR
Swing-away Footrest with
Multi-axis Foot Plate
SWING-AWAY POWER
ARTICULATING LEG
RESTS (ALR)
Maintain correct knee-
to-heel measurements
when user's legs are
raised or lowered.
Pediatric
60°–90°
HD ELR
ADJUSTABLE
CENTER-MOUNT
FOOT PLATFORM
Installed directly on
the seating system
to accommodate
users who
require a
positioning
system and
prefer a foot platform.
HIGH PIVOT POWER
ELEVATING LEG
RESTS (ELR)
Mimic the motion of the
knee during leg
elevation.
CENTER-MOUNT
ARTICULATING
FOOT PLATFORM (AFP)
Maintains correct
knee-to-heel
measurements
when user's
legs are raised
or lowered.
POWER ARTICULATING
LEG RESTS (ALR)
Maintain correct knee-to-
heel measurements
when user's legs
are raised or
lowered.
Figure 1. Front Riggings
BASIC OPERATION INSTRUCTIONS

7
Swing-away Footrests

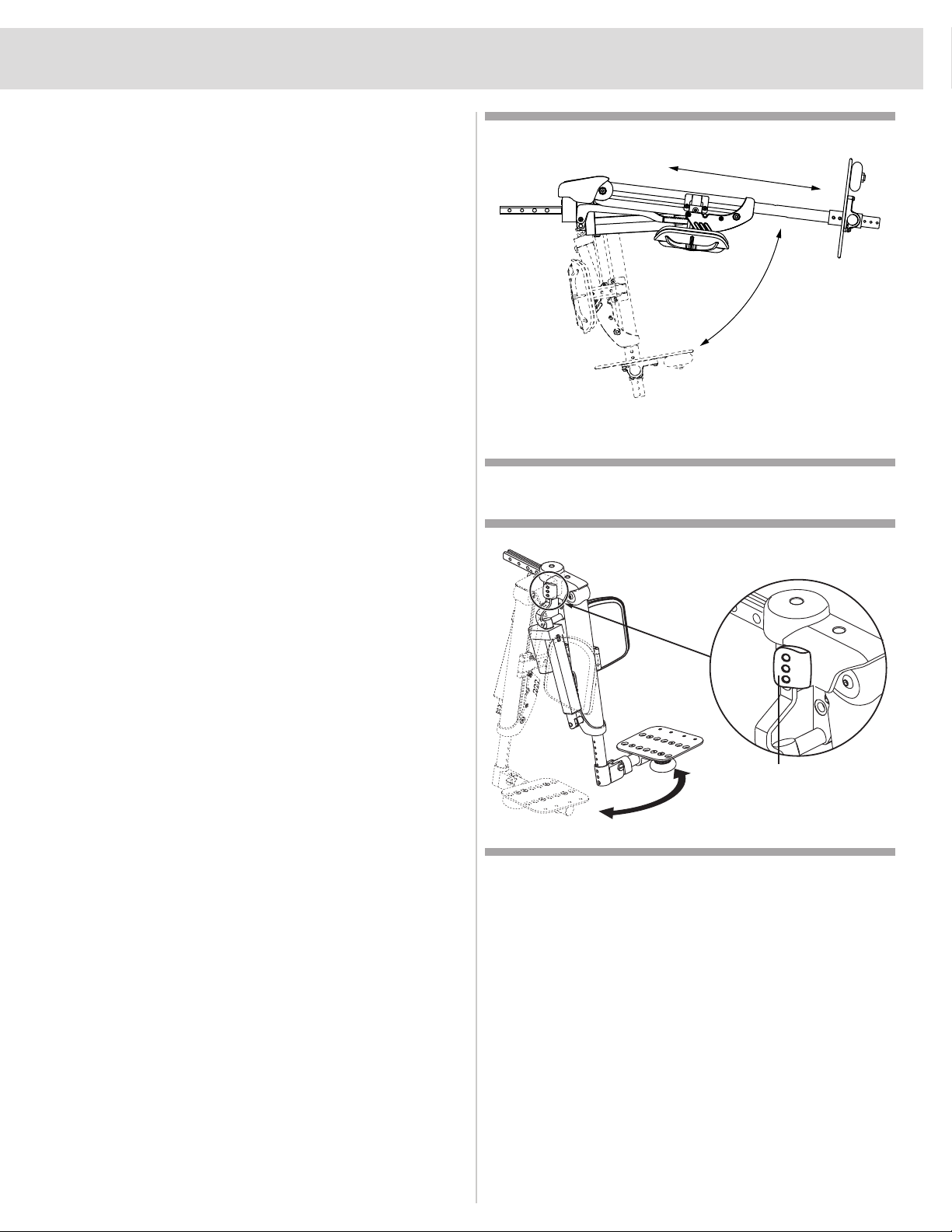

Swing-away footrests (SFRs) enable you to rotate the
footrests to the side before you transfer onto or off of your
power chair.
To rotate the SFRs:
1. Push in the release lever.
2. Rotate the SFRs.
To adjust the SFR length:
1. Remove the adjustment screw(s) from the footrest
extension. See figure 2 or 3.
2. Slide the footrest up or down to the desired length.
3. Reinstall the adjustment screw(s).
To change foot plate angle:
1. Loosen the hardware on the bottom of the foot plate.
See figure 4.
2. Adjust the foot plate to the desired position. See figure 4.
3. Tighten the hardware on the bottom of the foot plate.
To adjust the SFR angle when equipped with 60°–90°
SFRs:
1. Remove protective foam cover. See figure 5.
2. Remove shoulder bolt. See figure 5.
3. Adjust the SFR to the desired angle.
4. Reinstall the shoulder bolt. See figure 5.
5. Reinstall the protective foam cover.
Figure 2. Swing-away Footrest Adjustment
Figure 3. Pediatric Footrest Adjustment
Figure 4. Foot Plate Angle Adjustment
SFR Release Lever
Adjustment Screws
Footrest Extension
SFR Release Lever
Adjustment Screw
area (Located on Rear
of Footrest Extension)
Footrest
Extension
Hardware Location
BASIC OPERATION INSTRUCTIONS

8
Drop-in Leg Rests
Drop-in leg rests are easily installed into leg rest hangers.
You can adjust the forward/back position, as well as the
length of the drop-in leg rests. See figure 6.
To adjust the forward/back position:
1. Remove the adjustment bolt from each side rail.
2. Move the leg rest hanger in or out to the desired position.
3. Align the adjustment holes in the leg rest hanger with
those in the side rail.
4. Reinstall the adjustment bolts to secure the leg rest
hangers.
To adjust the leg rest length:
1. Remove the adjustment screws from the leg rest
extension.
2. Slide the leg rest up or down to the desired length.
3. Align the adjustment holes in the leg rest extension and
reinstall the adjustment screws.
Figure 5. Swing-away 60°–90° Leg Rests
Figure 6. Heavy Duty Drop-in Leg Rests
Elevating Leg Rests
Elevating Leg Rests (ELRs) offer an infinite range of
adjustment for the leg angle.
To rotate the ELRs:
1. Push in release lever A.
2. Rotate the ELRs.
To adjust the angle on standard or heavy duty ELRs:
1. Push down release lever B. See figure 7.
2. Move the leg rest to the desired angle.
To adjust the angle on international style #14 ELRs:
1. Pull up on release lever B. See figure 8.
2. Move the leg rest to the desired angle.
3. Push down on release lever B.
To adjust the ELR length:
1. Remove the two adjustment screws from the side of
each leg rest extension. See figure 7 or 8.
2. Slide the leg rest up or down to the desired length.
3. Reinstall the two adjustment screws.
Shoulder Bolt
Protective Foam Cover
Leg Rest
Leg Rest Hanger
Adjustment Bolt
Adjustment
Screws
BASIC OPERATION INSTRUCTIONS

9
Figure 7. Standard Elevating Leg Rests
Figure 8. International Style #14 Elevating Leg Rests
Release Lever A
Release Lever B
Adjustment Screws
Leg Rest Extension
Release Lever A
Release Lever B
Adjustment Screws
Leg Rest Extension
BASIC OPERATION INSTRUCTIONS

10

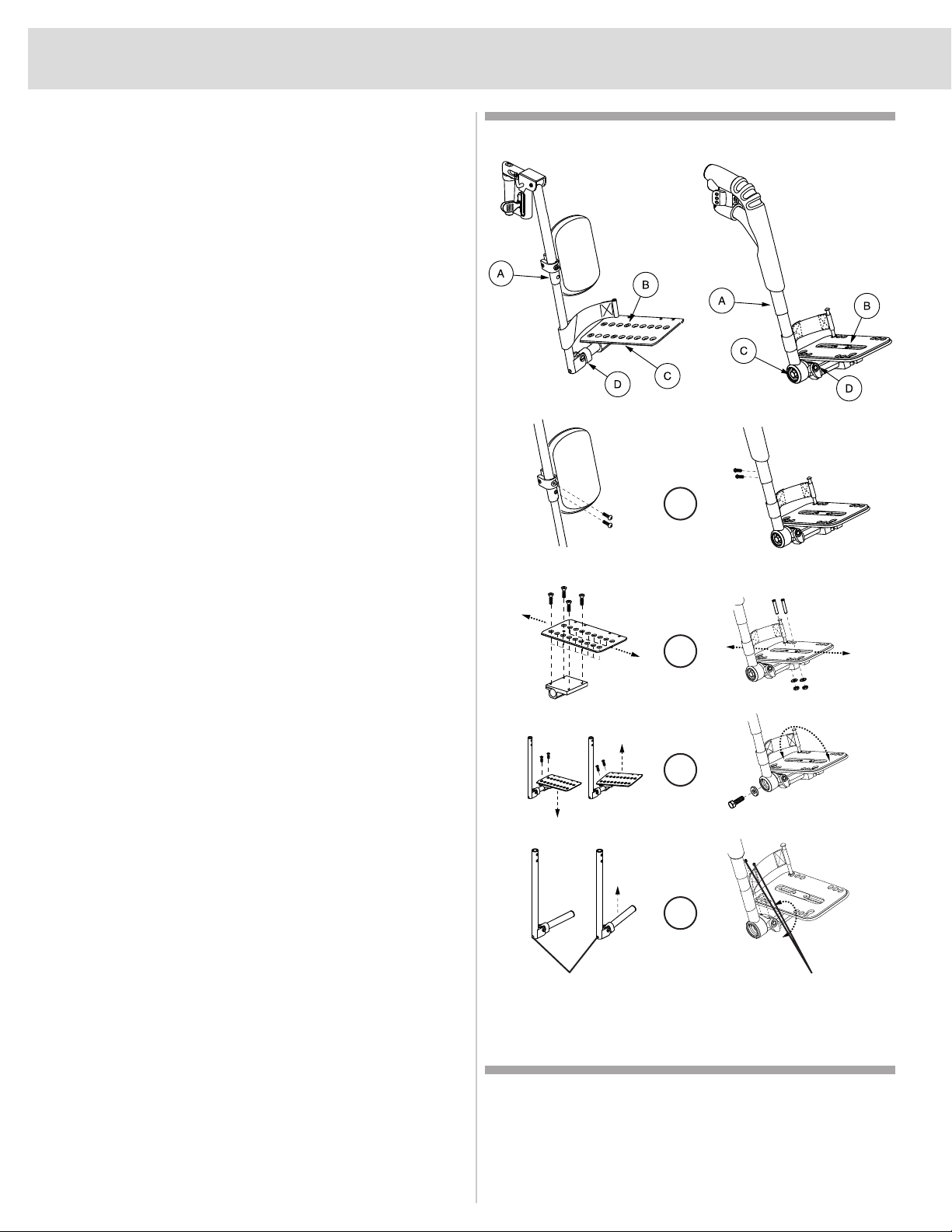

Multi-Axis Foot Plates
Multi-axis foot plates can be installed on a standard elevating
leg rest (ELR) or a swing-away footrest. The multi-axis foot
plates have four adjustments: leg rest length (A), position
(B), tilt (C), and angle (D). See figure 9.
To change leg rest length (A):
1. Remove (loosen on swing-aways) the hardware.
2. Move the leg rest to the desired position.
3. Reinstall (tighten on swing-aways) the hardware.
To change foot plate position (B):
1. Remove (loosen on swing-aways) the hardware.
2. Move the foot plate to the desired position.
3. Reinstall (tighten on swing-aways) the hardware.
To change foot plate tilt and angle on swing-aways (C):
1. Loosen the hardware.
2. Tilt (rotate on swing-aways) the foot plate to the desired
position.
3. Tighten the hardware.
To change foot plate angle on ELRs (D):
1. Turn the setscrew(s) clockwise to decrease the angle.
2. Turn the setscrew(s) counterclockwise to increase the
angle.
Figure 9. Multi-axis Foot Plate for ELR (Left) and for
Swing-away Footrest (Right)
BASIC OPERATION INSTRUCTIONS
Setscrew Setscrews
A
B
C
D

11
Adjustable Center-Mount Foot Platform
The adjustable center-mount foot platform is installed directly
on the seating system to accommodate users who require a
positioning system but prefer a foot platform. The adjustable
center-mount foot platform is height and angle adjustable
and is operated using an angle adjustment bracket or a lever.
The angle of each foot plate can be individually adjusted.
To adjust the foot platform angle using the angle
adjustment bracket:
1. Remove the angle adjustment hardware from the angle
adjustment bracket. See figure 11.
2. Adjust the foot platform to the desired angle. See
figure 11.
3. Reinstall the angle adjustment hardware into the angle
adjustment bracket and tighten.
To adjust the foot platform angle using the lever:
1. Pull down on the lever. See figure 11.
2. Adjust the foot platform to the desired angle. See
figure 11.
To return the foot platform to a neutral position:
1. Pull down on the lever and press against the foot platform
to lower it.
To adjust the foot platform height:
1. Loosen the height adjustment screws. See figure 11.
2. Slide the foot platform up or down to the desired height.
3. Tighten the height adjustment screws.
4. Repeat on the other side if necessary.
To adjust the angle of each foot plate:
1. Flip up the foot plate and locate the screw. See figure 10.
2. Turn the screw to raise or lower the front of the foot plate.
-5° 0° 5° 10°
Figure 11. Adjustable Center-mount Foot Platform
Angle Adjustment Hardware
Angle
Adjustment
Bracket
Height
Adjustment
Screws
BASIC OPERATION INSTRUCTIONS
Figure 10. Angle Adjustment for Foot Plate
Setscrews
Lever

12
Power Elevating Leg Rests
The high-pivot power elevating leg rests use a high pivot
point to more closely mimic the motion of the knee during
leg rest elevation. They can be adjusted either as a pair or
individually. See figure 12. The high-pivot power elevating
leg rests provide 70° of movement, have standard calf pads,
accept all foot plates, and have a maximum weight capacity
of 300 lbs. (136 kg). They are available with all power bases
that support upgraded electronics and with the Synergy
Seating System. The high-pivot power elevating leg rests
operate through the power chair controller or toggle switch.
NOTE: Operation instructions using the joystick 4-way
toggles are discussed below. If you are using a different
toggle, the Attendant Control Module, or a different
operating device, please refer to the operation manual
supplied with that device and/or your power chair
owner’s manual.
To operate the combined leg rests:
1. Push the toggle switch to the right to elevate both leg
rests.
2. Push the toggle switch to the right, release, then push to
the right again to lower both leg rests.
NOTE: For information on operating individual power
elevating leg rests, please refer to the operation manual
that refers to the operating device you are using, or
contact your Pride/Quantum Rehab Provider.
Figure 12. Power Elevating Leg Rests
BASIC OPERATION INSTRUCTIONS

13
Power Articulating Leg Rests
The power articulating leg rests maintain the correct knee-
to-heel measurements when the user’s legs are being
elevated and can be adjusted either as a pair or individually.
See figure 13. The power articulating leg rests provide 70°
or 80° of movement, have standard swing-away/height and
depth adjustable calf pads (see figure 17), accept all foot
plates, and have a maximum weight capacity of 300 lbs.
(136 kg).They are available with all power bases that support
upgraded electronics and with the Synergy Seating System.
The power articulating leg rests operate through the power
chair controller or toggle switch.
NOTE: Operation instructions using the joystick 4-way
toggles are discussed below. If you are using a different
toggle, the Attendant Control Module, or a different
operating device, please refer to the operation manual
supplied with that device and/or your power chair
owner’s manual.
To operate the combined leg rests:
1. Push the toggle switch to the right to elevate both leg
rests.
2. Push the toggle switch to the right, release, then push to
the right again to lower both leg rests.
NOTE: For information on operating individual power
articulating leg rests, please refer to the operation
manual that refers to the operating device you are using,
or contact your Pride/Quantum Rehab Provider.
Figure 13. Power Articulating Leg Rests
Swing-away Power Articulating Leg Rests
The swing-away power articulating leg rests are operated
the same way and have the same features as the power
articulating leg rests but have an added swing-away feature
which enables you to rotate the leg rests to the side before
you transfer onto or off of your power chair.
To rotate the swing-away power articulating leg rests:
1. Push in the release lever. See figure 14.
2. Rotate the leg rest. Figure 14. Swing-away Power Articulating Leg Rests
Release Lever
BASIC OPERATION INSTRUCTIONS

14
Center-Mount Articulating Foot Platform
The center-mount articulating foot platform maintains the
correct knee-to-heel measurements when the user’s legs are
being elevated. See figure 15. The center-mount articulating
foot platform elevates to 170°, has standard calf pads that are
depth and height adjustable (see figure 17), has a maximum
weight capacity of 450 lbs. (204 kg), and has an operating
temperature of 40°F (4°C) to 105°F (40°C). It is available
with all TRU-Balance Power Positioning Systems and with
the Synergy Seating System. The articulating foot platform
operates through the power chair controller or toggle switch.
NOTE: Operation instructions using the joystick 4-way
toggles are discussed below. If you are using a different
toggle, the Attendant Control Module, or a different
operating device, please refer to the operation manual
supplied with that device and/or your power chair
owner’s manual.
To operate the center-mount articulating foot platform:
1. Push the toggle switch to the right to elevate the center-
mount articulating foot platform.
2. Push the toggle switch to the right, release, then push
to the right again to lower the center-mount articulating
foot platform.
To adjust the angle of each foot plate:
1. Flip up the foot plate and locate the screw. See figure 16.
2. Turn the screw to raise or lower the front of the foot plate.
Figure 15. Center-mount Articulating Foot Platform
Swing-away Calf Pads
Several of the front riggings are equipped with swing-away
calf pads that are height and depth adjustable.
To adjust the swing-away calf pad height:
1. Remove the height adjustment screws. See figure 17.
2. Adjust the calf pad up or down to the desired height.
3. Reinstall the height adjustment screws and tighten.
To adjust the swing-away calf pad depth:
1. Remove the depth adjustment screw. See figure 17.
2. Adjust the calf pad in or out to the desired depth.
3. Reinstall the depth adjustment screw and tighten.
Figure 17. Swing-away Calf Pad Adjustment (ALR Shown)
Height
Adjustment
Screws
Depth
Adjustment
Screw
BASIC OPERATION INSTRUCTIONS
Figure 16. Angle Adjustment for Foot Plate
Setscrews
