Pride Mobility Jazzy Select Series User manual

Owner’s Manual
Including Models: Jazzy Select, Jazzy Select 6, and Jazzy Select 6 with Power Seat

SAFETY GUIDELINES
WARNING! An authorized Pride Provider or a qualied technician must perform the initial setup
of this power chair and must perform all of the procedures in this manual.
The symbols below are used throughout this owner’s manual and on the power chair to identify warnings and
important information. It is very important for you to read them and understand them completely.
WARNING! Indicates a potentially hazardous condition/situation. Failure to follow designated
procedures can cause either personal injury, component damage, or malfunction. On the
product, this icon is represented as a black symbol on a yellow triangle with a black border.
MANDATORY! These actions should be performed as specied. Failure to perform mandatory
actions can cause personal injury and/or equipment damage. On the product, this icon is
represented as a white symbol on a blue dot with a white border.
PROHIBITED! These actions are prohibited. These actions should not be performed at any
time or in any circumstances. Performing a prohibited action can cause personal injury and/or
equipment damage. On the product, this icon is represented as a black symbol with a red circle
and red slash.

The intended use of the Pride Mobility Products device is to provide mobility to persons limited to a seated
position that have the capacity of operating a powered wheelchair.

CAUTION! Federal law restricts this device to sale by or on the order of a physician or other
certied personnel licensed by the law of the State (US only) or region in which this personnel
practices to use or order the use of the device.

Copyright © 2018
INFMANU3351/Rev I/October 2018
NOTE: This owner’s manual is compiled from the latest specications and product information available at
the time of publication. We reserve the right to make changes as they become necessary. Any changes to our
products may cause slight variations between the illustrations and explanations in this manual and the product
you have purchased. The latest/current version of this manual is available on our website.
NOTE: This product is compliant with WEEE, RoHS, and REACH directives and requirements.
NOTE: This product meets IPX4 classication (IEC 60529).
NOTE: This product and its components are not made with natural rubber latex. Consult with the manufacturer
regarding any after-market accessories.
Authorized Pride Provider:
Address:
Telephone:
Purchase Date:

Jazzy Select Series www.pridemobility.com 3
USA Variation USA Variation USA Variation
asphalt tarmac backward(s) rearward(s) center centre
color colour cord lead curb kerb
elevator lift meter metre provider dealer; agent
sidewalk pavement tire tyre trunk boot
turn signal turn indicator yard grounds wrench spanner
caster castor pocketbook handbag counterclockwise anticlockwise
authorized authorised path footpath path bridleway
labor labour
CONTENTS
I. INTRODUCTION .................................................................................................................................4
II. SAFETY ...................................................................................................................................................5
III. YOUR POWER CHAIR ......................................................................................................................7
IV. ASSEMBLY...........................................................................................................................................14
V. COMFORT ADJUSTMENTS........................................................................................................17
VI. BATTERIES AND CHARGING....................................................................................................25
VII. CARE AND MAINTENANCE........................................................................................................30
LANGUAGE USAGE
This owner’s manual is intended for distribution in all English-speaking countries where our Power Chairs are
sold. We have chosen to compose this manual using language and spellings common to the USA. Since we
recognize that not all English-speaking countries use the same words or spellings, please refer to the following
chart for some common word variations that may be encountered throughout this manual.

4 www.pridemobility.com Jazzy Select Series
I. INTRODUCTION
SAFETY
WELCOME to Pride Mobility Products (Pride). The power chair you have purchased combines state-of-the-art
components with safety, comfort, and styling in mind. We are condent that these design features will provide
you with the conveniences you expect during your daily activities. Once you understand how to safely operate
and care for your power chair, it should give you years of trouble-free operation and service.
Read and follow all instructions, warnings, and notes in this manual before attempting to operate your power
chair for the rst time. You must also read all instructions, warnings, and notes contained in any supplemental
instructional booklets for the controller, front riggings, and/or seating system that accompanied your power
chair before initial operation. Your safety depends upon you, as well as your provider, caretaker, or healthcare
professional in using good judgement.
If there is any information in this manual which you do not understand, or if you require additional assistance
for setup or operation, please contact your authorized Pride Provider. Failure to follow the instructions in this
manual and those located on your power chair can lead to personal injury and/or damage to the power
chair, and may void the warranty.
PURCHASER’S AGREEMENT
By accepting delivery of this product, you promise that you will not change, alter, or modify this product or remove
or render inoperable or unsafe any guards, shields, or other safety features of this product; fail, refuse, or neglect to
install any retrot kits from time to time provided by Pride to enhance or preserve the safe use of this product.
SHIPPING AND DELIVERY
Before using your power chair, make sure your delivery is complete as some components may be individually packaged.
If you do not receive a complete delivery, please contact your authorized Pride Provider immediately. Where damage
has occurred during transport, either to the packaging or content, please contact the delivery company responsible.
NOTE: If you ever lose or misplace your copy of this manual, contact us and we will be glad to send you a new
one immediately.

Jazzy Select Series www.pridemobility.com 5
Read and follow the information in the owner’s manual.
II. SAFETY

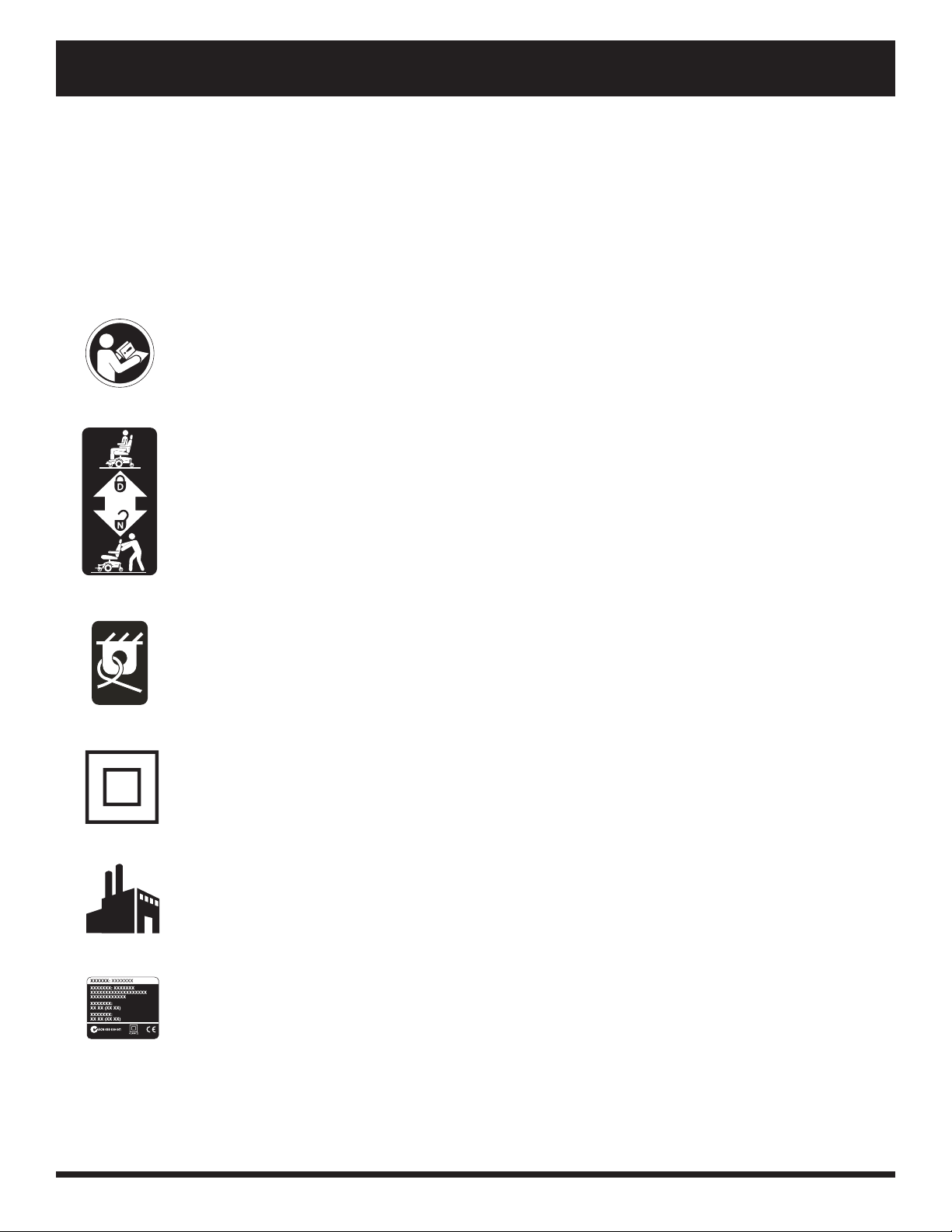

PRODUCT SAFETY SYMBOLS
The symbols below are used on the power chair to identify warnings, mandatory actions, and prohibited actions.
It is very important for you to read and understand them completely.
NOTE: There are more warnings identied and explained in the Consumer Safety Guide that is included with
your power chair. Please become familiar with all the warnings and safety information found in the Consumer
Safety Guide and refer to this resource often.
Locked and in drive mode
Unlocked and in freewheel mode
Place unit on level ground and stand to one side when changing from drive mode to
freewheel mode or freewheel mode to drive mode.
Power Chair information label
Manufactured in
Class II Equipment
Indicates UNOCCUPIED power chair securement points.

6 www.pridemobility.com Jazzy Select Series
II. SAFETY
GENERAL GUIDELINES
MANDATORY! Do not operate your new power chair for the rst time without completely reading
and understanding this owner’s manual.
Your power chair is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an
extensive variety of products to best t the individual needs of the power chair user. Please be aware that the nal
selection and purchasing decision regarding the type of power chair to be used is the responsibility of the power
chair user, who is capable of making such a decision, and his/her healthcare professional (i.e., medical doctor,
physical therapist, etc.).
The contents of this manual are based on the expectation that a mobility device expert has properly tted the power
chair to the user and has assisted the prescribing healthcare professional and/or the authorized Pride Provider in
the instruction process for the use of the product.
There are certain situations, including some medical conditions, where the power chair user will need to practice
operating the power chair in the presence of a trained attendant. A trained attendant can be dened as a family
member or care professional specially trained in assisting a power chair user in various daily living activities.
As you begin using your power chair during daily activities, you will probably encounter situations in which you
will need some practice. Simply take your time and you will soon be in full and condent control as you maneuver
through doorways, on and o of elevators, up and down ramps, and over moderate terrain.
Below are some precautions, tips, and other safety considerations that will help you become accustomed to
operating your power chair safely.
Pre-Ride Safety Check
Get to know the feel of your power chair and its capabilities. Pride recommends that you perform a safety check
before each use to make sure your power chair operates smoothly and safely.
Perform the following inspections prior to using your power chair:
Check for proper tire ination. Maintain but do not exceed the psi/bar/kPa air pressure rating indicated on
each tire if equipped with pneumatic tires.
Check all electrical connections. Make sure they are tight and not corroded.
Check all controller connections to the power base. Make sure they are secured properly.
Check the brakes. See VII. “Care and Maintenance.”
Check battery charge. See VI. “Batteries and Charging.”
Ensure the manual freewheel levers are in drive mode before sitting on the power chair.
NOTE: If you discover a problem, contact your authorized Pride Provider for assistance.

Jazzy Select Series www.pridemobility.com 7
III. YOUR POWER CHAIR
THE JAZZY SELECT®SERIES POWER CHAIR
The Jazzy Select®Series Power Chair has two main assemblies: the seat assembly (A) and the power base
assembly (B). See gure 1. Typically, the seat assembly includes the armrests, seatback, and seat base. The power
base assembly includes two motor/brake assemblies, two drive wheels, two batteries, and wiring harnesses. The
Select power base is equipped with two rear caster wheels and two front anti-tip wheels, while the Select 6 and
Select 6 with Power Seat is also equipped with four caster wheels. See gures 1, 2, and 3.
A
B
1
2
3
5
7
8
9
11
4
6
10
Figure 1. The Jazzy Select Series Power Chair (Jazzy Select 6 Shown)
1. Seatback
2. Armrest
3. Seat Base
4. Controller
5. Top Shroud
6. Main Circuit Breaker
7. Front Caster Wheels
8. Front Riggings (Foot Platform Shown)
9. Drive Wheel
10. Seat Release Lever
11. Rear Caster Wheels
Identification Key

8 www.pridemobility.com Jazzy Select Series
III. YOUR POWER CHAIR
3
1
7
5
2
4
6
Figure 2. The Jazzy Select Power Base
1. Rear Shroud
2. Seat Post
3. Front Cover
4. Main Circuit Breaker
5. Front Anti-Tip Wheels
6. Controller Connector
7. Rear Caster Wheels
Identification Key

Jazzy Select Series www.pridemobility.com 9
III. YOUR POWER CHAIR
3
1
7
5
2
4
6
Figure 3. The Jazzy Select 6 Power Base
1. Rear Shroud
2. Seat Post
3. Front Cover
4. Main Circuit Breaker
5. Front Anti-Tip Wheels
6. Controller Connector
7. Rear Caster Wheels
Identification Key

10 www.pridemobility.com Jazzy Select Series
III. YOUR POWER CHAIR
3
1
7
2
4
6
5
Figure 4. The Jazzy Select 6 with Power Seat Power Base
1. Rear Shroud
2. Power Seat Actuator
3. Front Cover
4. Main Circuit Breaker
5. Front Caster Wheels
6. Controller Connector
7. Rear Caster Wheels
Identification Key

Jazzy Select Series www.pridemobility.com 11
III. YOUR POWER CHAIR
3
2
5
4
1

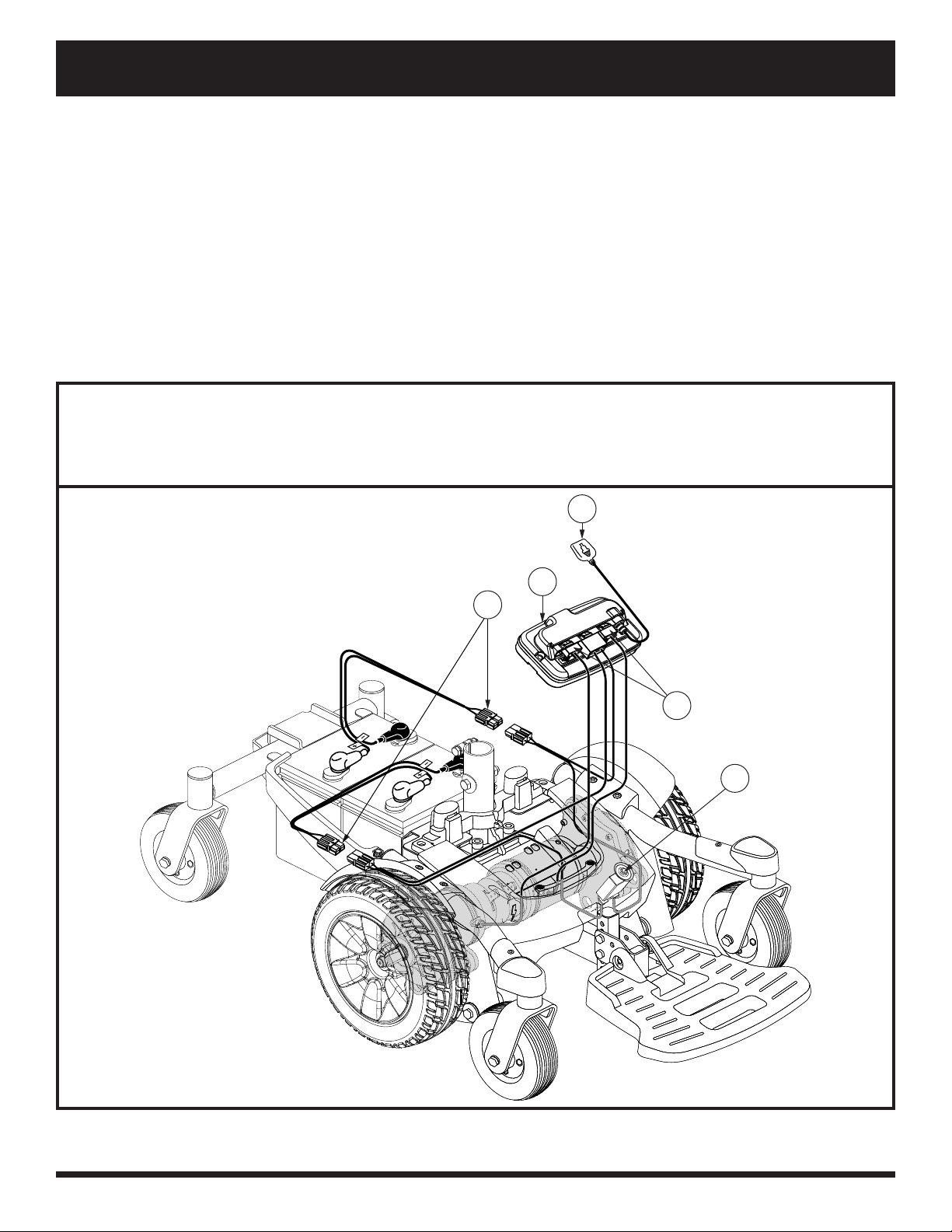

Figure 5. Jazzy Select Series Electrical Components (Jazzy Select 6 Shown)
1. Battery Connectors
2. Controller Power Module
3. Controller Connector
4. Motor Connectors
5. Main Circuit Breaker
Identification Key
Electrical Components
The electrical components are located either on or inside the power base. The main circuit breaker is located on
the front of the power base. The power module is located under the front cover. See gures 5 and 6.
Main Circuit Breaker: The main circuit breaker is a safety feature built into your power chair. When the batteries
and the motors are heavily strained (e.g., from excessive loads), the main circuit breaker trips to prevent damage
to the motors and the electronics. If the circuit trips, allow your power chair to “rest” for approximately one
minute. Next, push in the circuit breaker button, turn on the controller, and continue normal operation. If the main
circuit breaker continues to trip repeatedly, contact your authorized Pride Provider.
Power Module: Provides connection between the joystick module and the motors, batteries, and o-board charger.

12 www.pridemobility.com Jazzy Select Series
III. YOUR POWER CHAIR
3
2
5
4
1

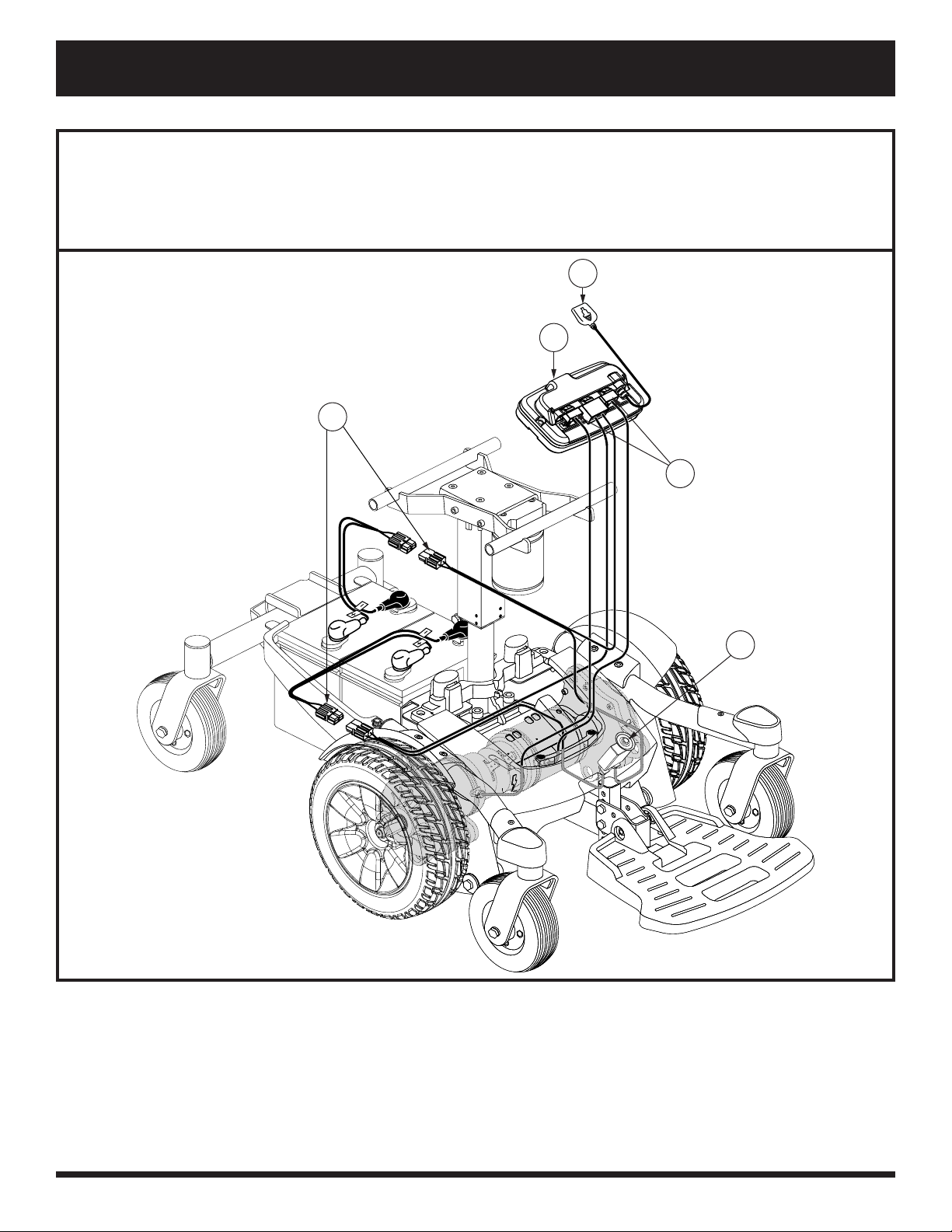

Figure 6. Jazzy Select 6 with Power Seat Electrical Components
1. Battery Connectors
2. Controller Power Module
3. Controller Connector
4. Motor Connectors
5. Main Circuit Breaker
Identification Key

Jazzy Select Series www.pridemobility.com 13
III. YOUR POWER CHAIR

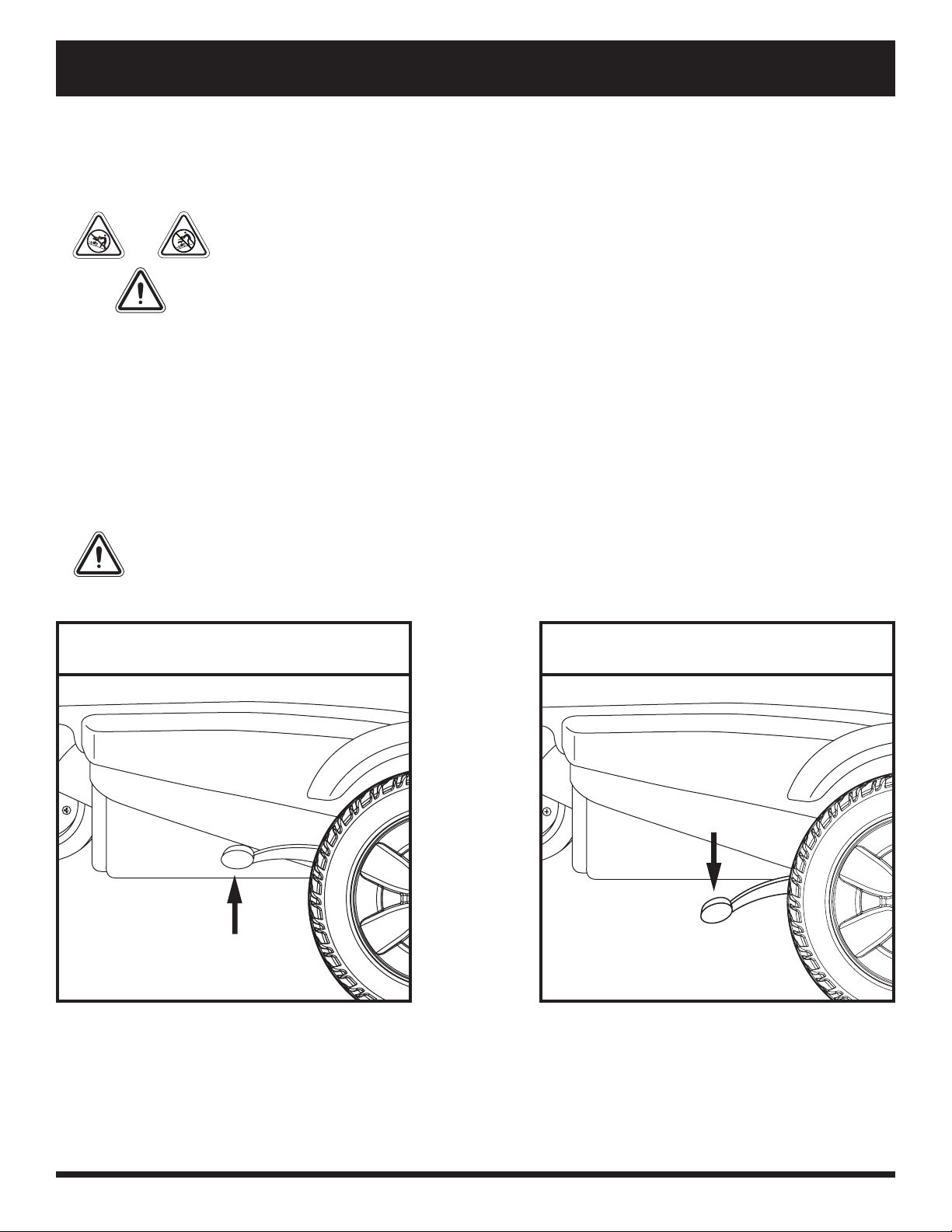

Manual Freewheel Levers
Your power chair has a manual freewheel lever on each motor. Manual freewheel levers enable you to disengage
the drive motors from the gearboxes and maneuver the chair manually.
WARNING! Do not use the power chair while the drive motors are disengaged! Do not
disengage the drive motors when the power chair is on an incline or decline, as the
unit could roll on its own. Only engage the freewheel mode when on a level surface.
WARNING! It is important to remember that when your power chair is in freewheel
mode, the braking system is disengaged.
To engage or disengage the drive motors:
1. Locate the lever on each side of the power base.
2. Pull both levers upward to engage the drive motors (drive mode). See gure 7.
3. Push both levers downward to disengage the drive motors (freewheel mode). See gure 8.
If a lever is dicult to move in either direction, slightly rock the power chair back and forth. The lever should
then move to the desired position.
WARNING! Avoid applying excessive force to the manual freewheel levers.
WARNING! Do not use your foot to operate the manual freewheel levers. Do not stand on the
manual freewheel levers. Applying excessive force to the manual freewheel levers may result in
damage to the freewheel levers, motors, and brakes.
WARNING! Do not use the freewheel lever handles as tie-down points to secure this product.
Figure 7. Drive Mode (Drive Engaged) Figure 8. Freewheel Mode (Drive Disengaged)
1. Freewheel Lever
Identification Key
1. Freewheel Lever
Identification Key
FREEWHEEL LEVER
FREEWHEEL LEVER

14 www.pridemobility.com Jazzy Select Series
IV. ASSEMBLY
INITIAL ASSEMBLY
Your power chair may require some assembly either before initial use or after transportation.
NOTE: Any nylon insert lock nut removed during the disassembly or adjustment of the power chair must be
replaced with a new nylon insert lock nut. Nylon insert lock nuts should not be reused as it may cause damage
to the nylon insert, resulting in a less secure t. Replacement nylon insert lock nuts are available at local
hardware stores or through your authorized Pride Provider.
4
2
3
1
Figure 9. Seat and Controller Assembly
Seat Installation (Select and Select 6 only)
It may be necessary to install the seat either prior
to initial operation or after transporting your power
chair.
WARNING! Do not pick up the seat
frame by the armrests. They are free
to pivot, and you may lose control of
the seat if they do so.
To install the seat:
1. Slide the seat down onto the power base. See
gure 9.
2. Install the controller into one of the armrests.
Tighten the setscrew with the supplied hex key.
3. Lift the armrest straight up, then route the
controller harness and secure with wire ties as
shown in gure 9.
NOTE: It is important that the armrest be lifted
straight up prior to securing the controller harness
with wire ties.
MANDATORY! Prevent controller
harness damage! Avoid routing the
controller harness on the outside of
the armrest pad. Route the harness
under the armrest or toward the inside
of the armrest pad. Use correct tie-
down points for the controller harness
to prevent the harness from getting
caught in the drive tires, pinched in
the seat frame, or damaged when
passing through doorways.
4. Plug the controller harness into the connector on
the power base. See gure 2, 3 or 4.
1. Wire Ties
2. Seat
3. Controller
4. Power Base
Identification Key

Jazzy Select Series www.pridemobility.com 15
IV. ASSEMBLY
1
2
3
4

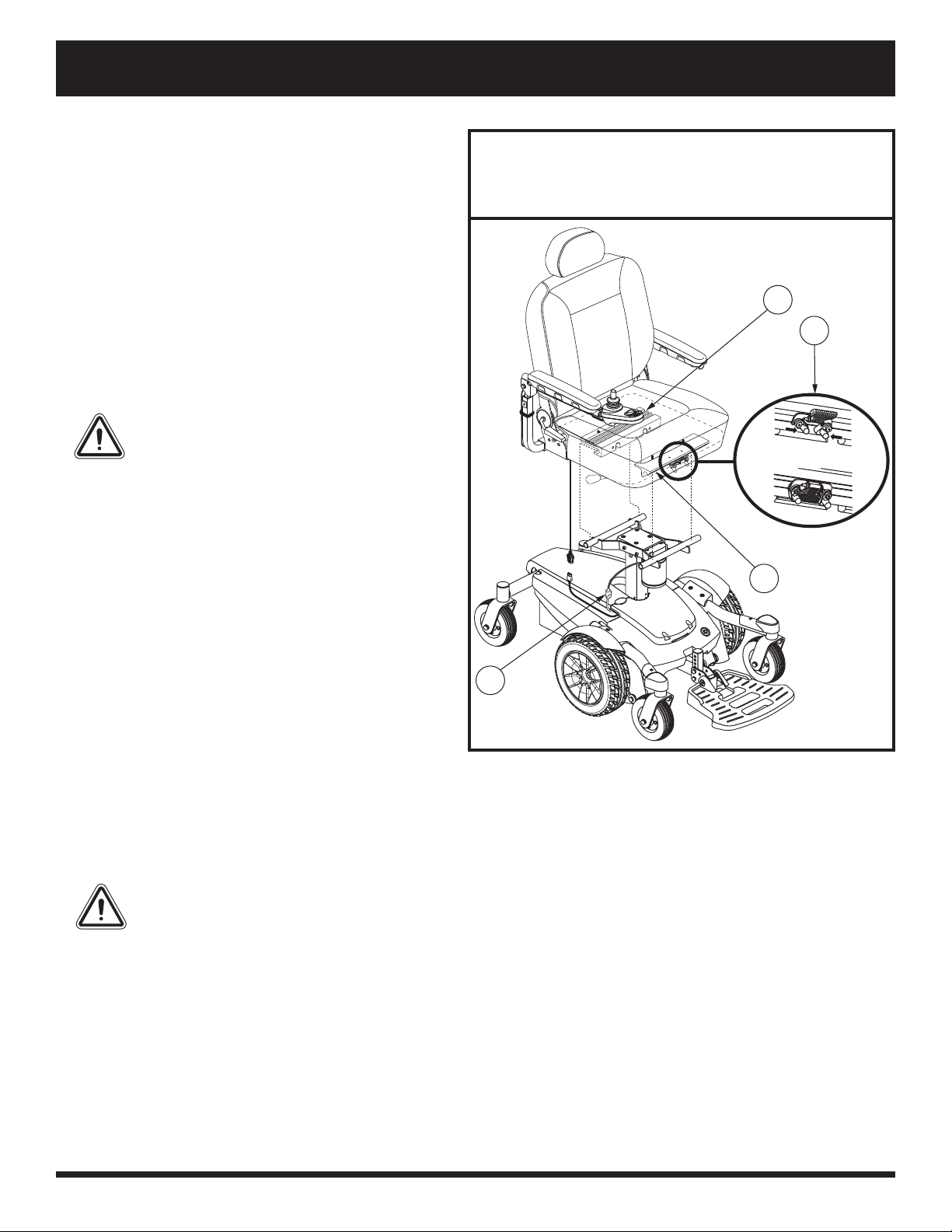

Figure 10. Universal Mounting System on Select 6 with
Power Seat
Seat Installation (Select 6 with Power Seat
only)
It may be necessary to install the seat either prior
to initial operation or after transporting your power
chair. Most seats are attached to the power base with
the Universal Mounting System (UMS). The UMS
consists of universal parts that may be attached to
any medium-back or high-back seat, regardless of
seat width or seat depth. The two main components
are aluminum extrusions mounted to the seat base.
These extrusions attach to a pair of trapeze bars that
are mounted to the power base. See gure 10.
WARNING! Do not pick up the seat
frame by the armrests. They are free
to pivot, and you may lose control of
the seat if they do.
To install the power seat:
1. Tilt the seat back and slide the rear extrusion onto
the power base.
2. Lower the front extrusion onto the power base
until the seat latches into place.
3. Flip down the seat latch safety. See gure 11.
4. Connect the power seat connector to the power
base. See gure 10.
5. Lift the armrest straight up, then route the
controller harness and secure with wire ties as
shown in gure 12.
NOTE: It is important that the armrest be lifted
straight up prior to securing the controller harness
with wire ties.
1. Rear Extrusion
2. Seat Latch Safety
3. Front Extrusion
4. Power Seat Connector
Identification Key
MANDATORY! Prevent controller
harness damage! Avoid routing the
controller harness on the outside of
the armrest pad. Route the harness
under the armrest or toward the inside
of the armrest pad. Use correct tie-
down points for the controller harness
to prevent the harness from getting
caught in the drive tires, pinched in
the seat frame, or damaged when
passing through doorways.
6. Plug the controller harness into the connector on
the power base. See gure 4.
NOTE: Refer to V. “Comfort Adjustments” for
more information on controller installation and
adjustment.

16 www.pridemobility.com Jazzy Select Series
IV. ASSEMBLY
1
2
Figure 12. Jazzy Select 6 with Power Seat Controller
Routing
Figure 11. Seat Latch Safety
1. Wire Ties
2. Seatback Release Lever
Identification Key
DISENGAGED
ENGAGED

Jazzy Select Series www.pridemobility.com 17
V. COMFORT ADJUSTMENTS
COMFORT ADJUSTMENTS
After becoming familiar with your power chair’s operation, you may nd the need to make some adjustments to
increase your comfort, such as seat height, armrest angle, foot platform height and angle, and controller position.
Refer to the following information before making comfort adjustments.
NOTE: If your power chair is equipped with an optional seating system, please refer to the information provided
in separate manuals.
WARNING! The center of gravity of your power chair was factory set to a position that meets
the needs of the demographic majority of users. Your authorized Pride Provider has evaluated
your power chair and made any necessary adjustments to suit your specic requirements. Do
not change your seating conguration without rst contacting Pride Mobility Products or your
authorized Pride Provider.
WARNING! Some power chair components are heavy. You may need assistance to lift or carry
them. Please refer to the specications table for specic component weights before you
disassemble the power chair.
WARNING! Remove the occupant from the power chair before making any adjustments.
Seat Height Adjustment (Select and Select
6 only)
You can change the seat height to one of three
positions in 1-in. (2.5-cm) increments.
To change the seat height:
1. Turn o the power to the controller.
2. Ensure the power chair is in drive mode. See
gure 7.
3. Disconnect the controller connector from the
power base. See gure 13.
4. Disengage the seat release lever. See gure 13.
5. While holding the lever, swivel the seat left or
right and then pull it up and o of the power
base.
6. Loosen the hardware at the rear of the seat post.
See gure 13.
7. Remove the seat height adjustment bolt, washers,
and nut from the seat post. See gure 13.
8. Raise or lower the seat post to the desired
position.
9. Reinstall the seat height adjustment hardware to
the seat post.
10. Tighten the hardware at the rear of the seat post.
11. Reinstall the seat.
12. Reconnect the controller to the power base.
NOTE: To rotate the seat, use the seat release lever
located under the seat.
1
5
3
4
2

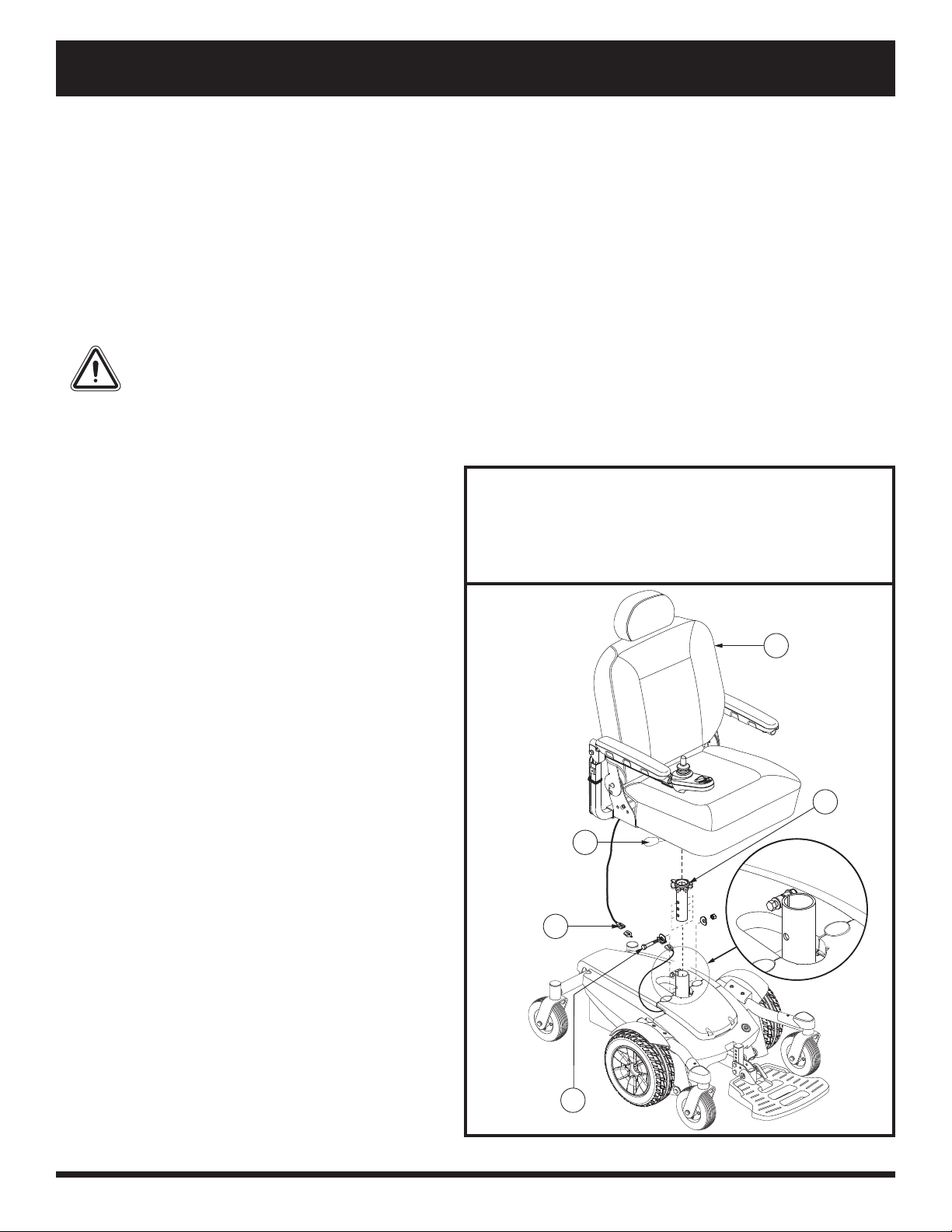

Figure 13. Seat Height Adjustment
1. Seat
2. Seat Post
3. Seat Height
Adjustment Bolt
4. Controller Connector
5. Seat Release Lever
Identification Key

18 www.pridemobility.com Jazzy Select Series
V. COMFORT ADJUSTMENTS
Seat Height Adjustment (Select 6 with Power Seat Only)
Your power chair is equipped with a power elevating seat. You can change the seat height through the controller.
To change the seat height:
1. Push the on/o key to power on the chair and the controller. See gure 14.
2. Push the desired actuator key to select actuator mode. See gure 14.
3. Push the joystick forward to raise the seat to the desired position.
4. Pull the joystick backward to lower the seat to the desired position.
5. Push the on/o key to return to drive mode. See gure 14.
WARNING! Do not allow the motor to run more than a few seconds after the mechanism reaches
the top or bottom limit.
NOTE: For more information on operating the power elevating seat, contact your authorized Pride Provider.
WARNING! The power elevating seat option is intended for use on a level surface only. Never
raise the seat from its lowest position on an inclined surface. Failure to heed this warning can
result in the power chair tipping over.
WARNING! Never raise the seat from its lowest position when operating your power chair on
bumpy or uneven surfaces. Failure to heed this warning can result in the power chair tipping
over.
WARNING! Never raise the power elevating seat while your power chair is in the freewheel
mode.
WARNING! Always fasten the positioning belt when operating the power elevating seat.
WARNING! Pinch Point Hazard! Keep area around actuator clear when lowering power seat.
NOTE: The power elevating seat option is equipped with a system that reduces the speed of the power chair by
two-thirds when the seat is elevated more than approximately 0.75 in. (19 mm). Always check to be sure this
system is operating properly before using your power chair.
2
5
4
5
4
3
1
Figure 14. VR2 6-key Controller and Keypad
1. Joystick
2. On/O Key
3. Horn Key
4. Actuator Light
5. Actuator Key
Identification Key

Jazzy Select Series www.pridemobility.com 19
V. COMFORT ADJUSTMENTS
NOTE: The most common conguration of the
seat adjustment hardware is shown in gure 15.
Your product may be equipped with a dierent
conguration. All congurations operate in a
similar manner.
Manual Recline Seatback Adjustment
If your power chair is equipped with a manual recline
seatback, you can adjust the seatback angle with the
seatback release lever. The lever is located on the
right side of the seat base. See gure 12.
To adjust the recline angle:
1. Pull up on the seatback release lever.
2. Lean forward or backward to the desired position.
3. Release the lever.
Seatback Angle Adjustment
If your power chair is equipped with a limited-recline
seatback, you can adjust it to four (4) dierent angles:
90°, 102°, 105°, or 107°.
To adjust the seatback angle:
1. Remove the adjusting screws from each seat
hinge. See gure 15.
2. Set the seatback at the desired angle.
3. Reinstall the adjusting screws to each seat hinge
and tighten.
1
3
2
4
5
7
6
Figure 15. Armrest and Seatback Adjustments
Armrest Width Adjustment
You can change each armrest’s width independently of the other.
NOTE: Changing the armrest width may increase the overall width of your power chair.
To change the armrest width:
1. Locate the adjustment hardware on each side of the armrest receiver bracket. See gure 15.
2. Loosen the adjustment hardware.
3. Slide the armrests in or out to the desired width.
4. Tighten the adjustment hardware.
Armrest Angle Adjustment
To change the armrest angle:
1. Lift the armrest straight up so that it is perpendicular to the oor.
2. Loosen the jam nut. See gure 15.
3. Turn the adjusting screw to raise or lower the front of the armrest.
4. Tighten the jam nut to lock the adjusting screw into place.
1. Jam Nut
2. Armrest Angle Adjusting Screw
3. Armrest Height Adjusting Setscrews
4. Seat Back Angle Adjusting Screw
5. Armrest Knob
6. Setscrew
7. Controller Bracket Receiver
Identification Key

20 www.pridemobility.com Jazzy Select Series
V. COMFORT ADJUSTMENTS
Armrest Height Adjustment
To change the armrest height:
1. Loosen the setscrews on the armrest. See gure 15.
2. Raise or lower the armrest to the desired height.
3. Tighten the setscrews to secure the armrest.
Controller Position
You can move the controller in toward or out away from the armrest, or change the position of the controller for
either left-hand or right-hand use.
WARNING! Do not place the controller harness so that it can be pinched in the seat frame or the
power base frame.
To extend the controller:
1. Flip up the armrest so it is perpendicular to the oor.
2. Loosen the setscrew on the controller bracket. See gure 15.
3. Slide the controller into or out of the armrest to the desired position.
4. Tighten the setscrew to secure the controller.
To change the controller position:
1. Turn o the power to the controller.
2. Unplug the controller harness from the power base.
3. Cut the wire tie(s) that secure the controller harness to the armrest and seat.
4. Flip up the armrests.
5. Loosen the setscrew on the underside of each armrest. See gure 15.
6. Slide the controller out of the armrest.
7. Place the controller into the other armrest.
8. Tighten the setscrew to secure the controller.
9. Route the controller harness along the seat frame and secure with wire ties. See gure 9 or 12.
10. Plug the controller into the power base. See gure 2, 3 or 4.
