Pride Mobility Jazzy 1110 User manual

Unit 106, Heyford Park Camp Road
Upper Heyford, Oxfordshire OX25 5HA
www.pridemobility.com
Owner’s Manual
ATTENTION:
Please read the content
of your owners manual
before operating your
power chair.

SAFETY GUIDELINES
Copyright ©2003
Pride Mobility Products Ltd.
INFMANU1456
Please read and follow all instructions in this owners manual before attempting to operate your power chair for the
first time. f there is anything in this manual you do not understand, or if you require additional assistance for set-up,
contact your authorised Pride Dealer.
Using your Pride product safely depends upon your diligence in following the warnings, cautions, and instructions
in this owners manual. Using your Pride product safely also depends upon your own good judgement and/or
common sense, as well as that of your Dealer, carer, and/or healthcare professional. Pride is not responsible for
injuries and/or damage resulting from any persons failure to follow the warnings, cautions, and instructions in this
owners manual. Pride is not responsible for injuries and/or damage resulting from any persons failure to exercise
good judgement and/or common sense.
The symbols below are used throughout this owners manual to identify warnings and cautions. t is very important
for you to read and understand them completely.
WARNING! Failure to heed the warnings in this owners manual may result in personal injury.
CAU ION! Failure to heed the cautions in this owners manual may result in damage to your power
chair.

UKJazzy1113/RevF/Apr03 www.pridemobility.com 3
CONTENTS
I. INT ODUCTION......................................................................................................................... 4
II. SAFETY ......................................................................................................................................... 6
III. YOU POWE CHAI ............................................................................................................ 13
IV. DISASSEMBLY ......................................................................................................................... 18
V. COMFO T ADJUSTMENTS................................................................................................ 21
VI. ASSEMBLY................................................................................................................................. 25
VII. OPE ATION ............................................................................................................................... 28
VIII. BATTE IES AND CHA GING ............................................................................................ 40
IX. CA E AND MAINTENANCE ................................................................................................ 44
X. OPTIONAL ACCESSO IES ................................................................................................. 50
XI. WA ANTY ................................................................................................................................. 52

4 www.pridemobility.com UK Jazzy 1113/RevF/Apr03
I. INTRODUCTION
INT ODUCTION
Welcome to Pride Mobility Products Ltd. (Pride). Congratulations on the purchase of your new Pride Power
Chair. The Pride Power Chair design combines the most advanced state-of-the-art components with modern,
attractive styling. We are certain that the design features and trouble-free operation of your new power chair will
add convenience to your daily living.
At Pride, your safety is important to us. Please read and follow all of the instructions in this manual before you
attempt to operate your power chair for the first time. These instructions were produced for your benefit. Your
understanding of these instructions is essential for the safe operation of your new power chair.
Pride is not liable for damage to property or personal injury arising out of unsafe use of a power chair. Pride is also
not liable for any property damage or personal injury arising out of the failure of any person and/or user to following
the instructions and recommendations set forth in this manual or any other instructions or recommendations contained
in other power chair related literature issued by Pride or contained on the power chair itself.
This owners manual is compiled from the latest specifications and product information available at the time of
publication. We reserve the right to make changes as they become necessary. Any changes to our products may
cause slight variations between the illustrations and explanations in this manual and the product you have purchased.
f you experience any problems with your power chair that you are unable to solve, or if you do not feel capable of
safely following any of the instructions and/or recommendations as contained in this manual, please contact your
authorised Pride Dealer for assistance.
Once you understand how to operate and take care of your power chair, we are certain that it will give you years
of trouble-free service and enjoyment.
Information Exchange
We want to hear your questions, comments, and suggestions about this manual. We would also like to hear about
the safety and reliability of your new power chair, and about the service you received from your authorised Pride
Dealer.
Please notify us of any change of address, so we can keep you apprised of important information about safety, new
products, and new options that can increase your ability to use and enjoy your power chair. Please feel free to
contact us at the address below:
Pride Mobility Products Ltd.
Unit 106, Heyford Park Camp Road
Upper Heyford, Oxfordshire OX25 5HA

UKJazzy1113/RevF/Apr03 www.pridemobility.com 5
I. INTRODUCTION
My Authorised Pride Dealer Is:
Name:_______________________________________________________________________________
Address:_____________________________________________________________________________
Phone Number:________________________________________________________________________
Purchase Date:________________________________________________________________________
NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact
us and we will be glad to send you a new one immediately.

6 www.pridemobility.com UK Jazzy 1113/RevF/Apr03
II. SAFETY
SAFETY
WARNING! Do not operate your new power chair for the first time without completely
reading and understanding this owners manual.
Your power chair is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an
extensive variety of products to best fit the individual needs of the power chair user. Please be aware that the final
selection and purchasing decision regarding the type of power chair to be used is the responsibility of the power
chair user, who is capable of making such a decision, and his/her healthcare professional (i.e., medical doctor,
physical therapist, etc.).
The contents of this manual are based on the expectation that a mobility device expert has properly fitted the power
chair to the user and has assisted the prescribing healthcare professional and/or the authorised Pride Dealer in the
instruction process for the use of the product.
There are certain situations, including some medical conditions, where the power chair user will need to practice
operating the power chair in the presence of a trained attendant. A trained attendant can be defined as a family
member or care professional specially trained in assisting a power chair user in various daily living activities.
As you begin using your power chair during daily activities, you will probably encounter situations in which you will
need some practice. Simply take your time and you will soon be in full and confident control as you maneuver
through doorways, on and off of lifts, up and down ramps, and over moderate terrain.
Below are some precautions, tips, and other safety considerations that will help the user become accustomed to
operating the power chair safely.
Modifications
Pride has designed and engineered your power chair to provide maximum mobility and utility. A wide range of
accessories is available from your authorised Pride Dealer to further customise your power chair to better suit your
needs and/or preferences. However, under no circumstances should you modify, add, remove, or disable any
feature, part, or function of your power chair.
WARNING! Do not modify your power chair in any way not authorised by Pride. Unauthorised
modifications may result in personal injury and/or damage to your power chair.
Pre-Ride Safety Check
Get to know the feel of your power chair and its capabilities. Pride recommends that you perform a safety check
before each use to make sure your power chair operates smoothly and safely. See X. Care and Maintenance.
Perform the following inspections prior to using your power chair:
nCheck for proper tyre inflation. Maintain 2-2.4 bar (30-35 psi) in each tyre (if equipped with pneumatic tyres).
nCheck all electrical connections. Make sure they are tight and not corroded.
nCheck all controller connections to the electronics tray. Make sure they are secured properly.
nCheck the brakes. See X. Care and Maintenance.
nCheck battery charge. See V . Batteries and Charging.

UKJazzy1113/RevF/Apr03 www.pridemobility.com 7
II. SAFETY
NOTE: If you discover a problem, contact your authorised Pride ealer for assistance.
Weight Limitations
Your power chair is rated for a maximum weight capacity. Please refer to the specifications table for this limit.
WARNING! Exceeding the weight capacity voids your warranty and may result in personal
injury and/or damage to your power chair. Pride will not be held responsible for injuries
and/or property damage resulting from failure to observe weight limitations.
WARNING! Do not carry passengers on your power chair. Carrying passengers on your
power chair may result in personal injury and/or property damage.
Tyre Inflation
f your power chair is equipped with pneumatic tyres, you should check or have the air pressure checked at least
once a week. Proper inflation pressures will prolong the life of your tyres and help ensure the smooth operation of
your power chair.
WARNING! It is important that 2-2.4 bar (30-35 psi) tyre pressure be maintained in pneu-
matic tyres at all times. Do not underinflate or overinflate your tyres. Low pressure may
result in loss of control, and overinflated tyres may burst. Failure to maintain 2-2.4 bar (30-
35 psi) tyre pressure in pneumatic tyres at all times may result in tyre and/or wheel failure,
causing serious personal injury and/or damage to your power chair.
WARNING! Inflate your power chair drive tyres from a regulated air source with an avail-
able pressure gauge. Inflating your tyres from an unregulated air source could overinflate
them, resulting in a burst tyre and/or personal injury.
Incline Information
More and more buildings have ramps with specified degrees of inclination, designed for easy and safe access.
Some ramps may have turning switchbacks (180-degree turns) that require you to have good cornering skills on
your power chair.
nProceed with extreme caution as you approach the downgrade of a ramp or other incline.
nTake wide swings with your power chairs front wheels around any tight corners. f you do that, the power
chairs rear wheels will follow a wide arc, not cut the corner short, and not bump into or get hung up on any
railing corners.
nWhen driving down a ramp, keep the power chairs speed adjustment set to the slowest speed setting to
ensure a safely controlled descent. See V . Operation.
nAvoid sudden stops and starts.
When climbing an incline, try to keep your power chair moving. f you must stop, start up again slowly and then
accelerate cautiously. When driving down an incline, set your power chair to the slowest setting and drive in the
forward direction only. f your power chair starts to move down the incline faster than you anticipated or desired,
allow it to come to a complete stop by releasing the joystick, then push the joystick forward slightly to ensure a
safely controlled descent.

8 www.pridemobility.com UK Jazzy 1113/RevF/Apr03
II. SAFETY
WARNING! When climbing an incline, do not zigzag or drive at an angle up the face of the
incline. Drive your power chair straight up the incline. his greatly reduces the possibility
of a tip or a fall. Always exercise extreme caution when negotiating an incline.
WARNING! You should not travel up or down a potentially hazardous incline (i.e., areas
covered with snow, ice, cut grass, or wet leaves).
WARNING! When on any sort of an incline or decline, never place the power chair in
freewheel mode while seated on it or standing next to it. Doing so may result in personal
injury and/or damage to your power chair.
WARNING! Never travel down an incline rearwards. his may result in personal injury.
WARNING! Even though your power chair is capable of climbing slopes greater than those
illustrated in figure 1, do not, under any circumstances, exceed the incline guidelines or any other
specifications presented in this manual. Doing so could cause instability in your power chair,
resulting in personal injury and/or damage to your power chair.
Pride recommends that the maximum slope of an incline you attempt to safely ascend or descend on your power
chair does not exceed 8.7%. See figure 1.
WARNING! Any attempt to climb or descend a slope steeper than 8.7% may put your
power chair in an unstable position and cause it to flip, resulting in personal injury.
Braking Information
Your power chair is equipped with two powerful brake systems:
1. Regenerative  uses electricity to rapidly slow the vehicle when the joystick returns to the center/stop position.
2. Disc Park Brake  activates mechanically after regenerative braking slows the vehicle to near stop, or when
power is removed from the system for any reason.
Cornering Information
While your power chair is equipped with rear caster wheels in back and anti-tip wheels in front, excessively high
cornering speeds can still create the possibility of tipping. Factors which affect the possibility of tipping include, but
are not limited to: cornering speed, steering angle (how sharply you are turning), uneven road surfaces, inclined
road surfaces, riding from an area of low traction to an area of high traction (such as passing from a grassy area to
a paved area  especially at high speed while turning), and abrupt directional changes. High cornering speeds are
not recommended. f you feel that you may tip over in a corner, reduce your speed and steering angle (i.e., lessen
the sharpness of the turn) to prevent your power chair from tipping.

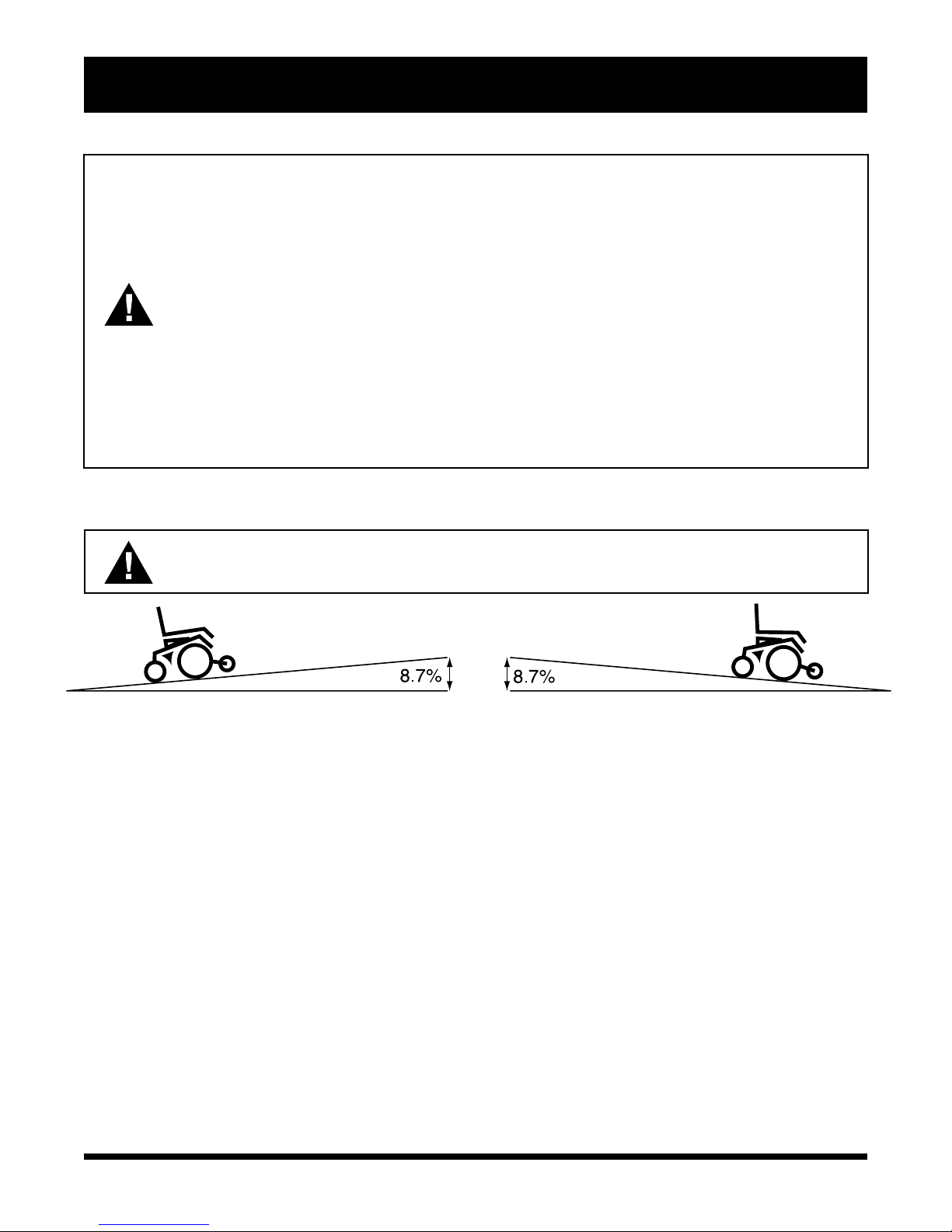

Figure 1. Maximum Safe Angle (Ascending and Descending)

UKJazzy1113/RevF/Apr03 www.pridemobility.com 9
II. SAFETY
WARNING! When cornering sharply, reduce your speed. his greatly reduces the possibil-
ity of a tip or fall. o avoid personal injury and/or property damage, always exercise com-
mon sense when cornering.
utdoor Driving Surfaces
Your power chair is designed to provide optimum stability under normal driving conditionsdry, level surfaces
composed of concrete, blacktop, or tarmac. However, Pride recognises that there will be times when you will
encounter other surface types. For this reason, your power chair is designed to perform admirably on packed soil,
grass, and gravel. Feel free to use your power chair safely on lawns and in park areas.
nReduce your power chairs speed when driving on uneven terrain and/or soft surfaces.
nAvoid tall grass that can entangle the running gear.
nAvoid loosely packed gravel and sand.
nf you feel unsure about a driving surface, avoid that surface.
WARNING! Exercise extreme caution when operating your power chair on pavements,
bridleways, pedestrian areas, and roads. Obey the Code of practice for Class 3 vehicle
users. Failure to heed this warning may result in serious injury and/or damage to your
power chair.
NOTE: A copy of the epartment of Transportation, Code of practice for Class 3 vehicle users, may be
obtained by contacting your authorised Pride dealer.
Freewheel Mode
Your power chair is equipped with a manual freewheel lever to allow for manual maneuverability by a trained
attendant. For more information about how to place your power chair into and out of freewheel mode, see .
Your Power Chair.
WARNING! Do not use your power chair in freewheel mode without an attendant present.
Personal injury may result.
WARNING! Do not attempt to personally place your power chair in freewheel mode while
seated on it. Personal injury may result. Ask an attendant for assistance if necessary.
WARNING! Do not place your power chair in freewheel mode while on an incline. he
chair could roll uncontrollably on its own, causing personal injury.
Stationary bstacles (Steps, Kerbs, etc.)
Proceed with extreme caution when driving near raised surfaces, unprotected ledges and/or drop-offs (kerbs,
porches, stairs, etc.). The correct method for approaching a kerb is illustrated in figure 1a.
Figure 1a. Kerb Approach (Correct and Incorrect)

10 www.pridemobility.com UK Jazzy 1113/RevF/Apr03
II. SAFETY
WARNING! Do not attempt to have your power chair climb or descend an obstacle that is
higher than 2.54 cm (1 in.) unless you have the assistance of an attendant.
WARNING! Do not attempt to have your power chair proceed rearward down any step,
kerb, or other obstacle. his may cause the power chair to tip and cause personal injury.
Public Streets and Roadways
WARNING! You should not operate your power chair on public streets and roadways. Be
aware that it may be difficult for traffic to see you when you are seated on your power
chair. Obey all local pedestrian traffic rules. Wait until your path is clear of traffic, and
then proceed with extreme caution.
Stairs and Escalators
Power chairs are not designed to travel up or down stairs or escalators. Always use a lift.
WARNING! Never use your power chair to negotiate steps or escalators. You may cause
injury to yourself and to others and/or damage your power chair.
Doors
nDetermine if the door opens toward or away from you.
nDrive your power chair gently and slowly forward to push the door open. Or drive your power chair gently
and slowly rearward to pull the door open.
Lifts
Modern lifts have a door edge safety mechanism that, when pushed, reopens the lift door(s).
nf you are in the doorway of an lift when the door(s) begin to close, push on the rubber door edge or
allow the rubber door edge to contact the power chair and the door will reopen.
nUse care that handbags, packages, or power chair accessories do not become caught in lift doors.
EMI & RFI
Laboratory tests performed have shown that radio waves can cause unintended motion of electric mobility vehicles.
Radio waves are a form of electromagnetic energy (EM). When EM adversely affects the operation of an electronic
device, it is called Electromagnetic nterference (EM ) or Radio Frequency nterference (RF ).
Lift/Elevation Products
f you will be traveling with your power chair, you may find it necessary to use a lift/elevation product to aid in
transportation. Pride recommends that you closely review the instructions, specifications, and safety information
set forth by the manufacturer of the lift/elevation product before using that product.
Motor Vehicle Transport
Currently, there are no standards approved for tie-down systems in a moving vehicle of any type to transport a
person while seated in a power chair.

UKJazzy1113/RevF/Apr03 www.pridemobility.com 11
II. SAFETY
Transfers
Transferring onto and off of your power chair requires a good sense of balance. Always have an attendant or
healthcare professional present while learning to properly transfer yourself.
To eliminate the possibility of injury, Pride recommends that you or a trained attendant perform the following tasks
before attempting a transfer:
nTurn the power off. See V . Operation.
nEnsure your power chair is not in freewheel mode. See . Your Power Chair.
nTurn both caster wheels toward the transfer destination to improve power chair stability during transfer.
nMake sure both armrests are flipped up or removed from your power chair.
nFlip the footrest up, or move the leg rests aside; this will help to keep your feet from getting caught on the
footrest or the leg rests during the transfer.
nReduce the distance between your power chair and the object you are transferring onto.
WARNING! Before transferring, position yourself as far back as possible in the power
chair seat to prevent the power chair from tipping forward during transfer and causing
injury.
WARNING! Avoid using your armrests for weight bearing purposes. Such use may cause
the power chair to tip and cause personal injury.
WARNING! Avoid putting all of your weight on the footrest. Such use may cause the power
chair to tip and cause personal injury.
Positioning Belts
Your authorised Pride Dealer, therapist(s), and other healthcare professionals are responsible for determining your
requirement for a positioning belt in order to operate your power chair safely.
WARNING! If you require a positioning belt to safely operate your power chair, make sure
it is fastened securely. Serious personal injury may result if you fall from the power chair.
WARNING! he positioning belt is not designed for use as a seat belt in a motor vehicle.
Nor is your power chair suitable for use as a seat in any vehicle. Anyone traveling in a
vehicle should be properly belted into seats approved by the vehicle manufacturer.
WARNING! Do not sit on your power chair while it is in a moving vehicle. Personal injury
and/or property damage may result.
WARNING! Always be sure your power chair and its batteries are properly secured when it
is being transported. Failure to do so may result in personal injury and/or damage to your
power chair.
Inclement Weather Precautions
WARNING! Rain, snow, salt, mist/spray, or icy/slippery conditions could cause serious in-
jury and/or damage to your power chairand the electronic system. Exposure to these weather
elements should be avoided whenever possible. Use extreme care when driving at all
times. Maintain and store your power chair in a dry and clean condition.

12 www.pridemobility.com UK Jazzy 1113/RevF/Apr03
II. SAFETY
Reaching and Bending
Never reach, lean, or bend while driving your power chair. f it is absolutely necessary to reach, lean, or bend while
seated on your power chair, it is important to maintain a stable center of gravity and keep the power chair from
tipping. Pride recommends that the power chair user determine his/her personal limitations and practice bending
and reaching in the presence of a qualified healthcare professional.
WARNING! Do not bend, lean, or reach for objects if you have to pick them up from the floor by
reaching down between your knees. Movements such as these may change your center of gravity
and the weight distribution of the power chair. his may cause your power chair to tip, possibly
resulting in personal injury. Keep your hands away from the tyres when driving.
Batteries
n addition to following the warnings below, be sure to comply with all other battery handling information. For
more information about your power chairs batteries, see V . Batteries and Charging.
WARNING! Power chair batteries are heavy. See specifications table. If you are unable to lift that
much weight, be sure to get help. Lifting beyond your capacity can result in personal injury.
WARNING! Battery posts, terminals, and related accessories contain lead and lead compounds.
Wash hands after handling.
WARNING! Always protect the batteries from freezing and never charge a frozen battery. Charging
a frozen battery may result in personal injury and/or damage to the battery.
Preventing Unintended Movement
WARNING! If you anticipate being seated in a stationary position for an extended period of time,
turn off the power. his will prevent unexpected motion from inadvertent joystick contact. his will
also eliminate the possibility of unintended chair movement from electromagnetic (EM) sources.
Failure to do so may result in personal injury.
Prescription Drugs/Physical Limitations
Users must exercise care and common sense when operating a power chair. This includes awareness of safety
issues when taking prescribed or over-the-counter drugs or when the user has specific physical limitations.
WARNING! Consult your physician if you are taking prescribed or over-the-counter medication or if
you have certain physical limitations. Some medications and limitations may impair your ability to
operate your power chair in a safe manner.
Alcohol
The power chair user must exercise care and common sense when operating his/her power chair. This includes
awareness of safety issues while under the influence of alcohol.
WARNING! Do not operate your power chair while you are under the influence of alcohol, as this
may impair your ability to operate your power chair in a safe manner.
Removable Parts
WARNING! Do not attempt to lift or move a power chair by any of its removable parts. Personal
injury and/or damage to the power chair may result.

UKJazzy1113/RevF/Apr03 www.pridemobility.com 13
III. YOUR POWER CHAIR

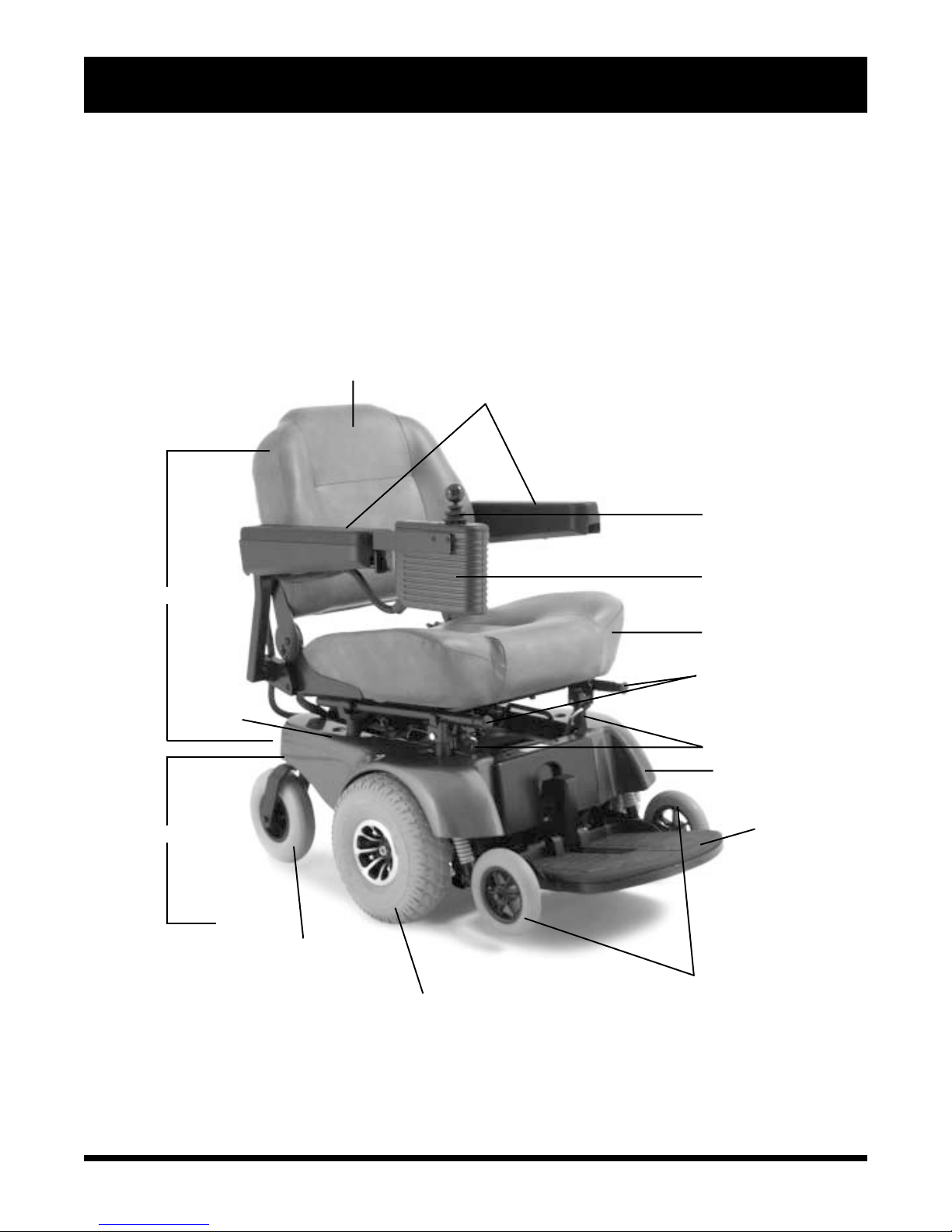

Figure 1b. The Jazzy 1113
Your Jazzy has two main assemblies: the seat and the power base. See figure 1b. There are a variety of seating
options that are designed to accommodate most users. Typically, the seating system includes the armrests, the
seatback, the seat base, and the controller. Your Jazzy seat may also have some optional accessories attached to
it such as a basket, a cane and crutch holder, or a cup holder. See X. Optional Accessories in this manual.
The power base is the heart of the Jazzy 1113. The power base assembly includes two drive wheels, two anti-tip
wheels, two rear caster wheels and harness connectors. See figures 1b, 2, and 3.
SEATBACK
CONTROLLER
ANTI-TIP WHEELS
ARMRESTS
BODY SHROUD
FOOTREST
CASTER WHEEL
DRIVE WHEEL
SEAT
FRAME
SEAT FRAME LATCH
RELEASE BUTTONS
JOYSTICK
POWER BASE ASSEMBLY
SEAT ASSEMBLY
FREEWHEEL LEVERS
SEAT BASE

14 www.pridemobility.com UK Jazzy 1113/RevF/Apr03
III. YOUR POWER CHAIR
Specifications
Suspension: Limited suspension
Drive Wheels: 25 cm (10 in.), pneumatic, center mounted (solid tyres are optional)
Rear Caster Wheels: 20 cm (8 in.), solid, rear articulating
Anti-Tip Wheels: 15 cm (6 in.), solid, front mounted
Max. Speed: Up to 6 km/h (4 mph)
Brakes:  ntelligent Braking electronic regenerative, disc park brake
Ground Clearance: 5 cm (2 in.)
Turning Radius: 43 cm (17 in.)
Overall Size: Length: 82 cm (32 in.)
Width: 59 cm (23 in.)
Seating Options: Medium-Back (standard)
Recliner
High-Back with headrest
Drivetrain: Two motor, mid-wheel
Batteries: Two 12-volt, U-1 batteries
Range: Up to 40 km (25 miles)
Battery Charger: 3-amp Onboard
3-amp Off-board (optional)
Electronics: 50-amp P&G VS Controller
70 -amp Dynamic DX Controller
70-amp P&G Remote Plus Controller
Weight Capacity: 113 kg/18 stone/250 lbs.
Component Weights: Seat: 15 kg (33 lbs.)
Footrest: 4 kg (9 lbs.)
Front battery and case: 11 kg (24.5 lbs.) (U-1) (Battery: 11 kg)
Rear battery and case: 11 kg (24.5 lbs.) (U-1) (Battery: 11 kg)
Battery well frame: 6 kg (13 lbs.)
Front frame: 1 kg (2 lbs.)
Right frame assembly: 15 kg (33 lbs.)
Left frame assembly: 15 kg (33 lbs.)
Warranty: Lifetime limited warranty on frame
2-year limited warranty on drivetrain
1-year limited warranty on electronics

UKJazzy1113/RevF/Apr03 www.pridemobility.com 15
III. YOUR POWER CHAIR
Figure 2. Electronics Tray
FRONT BATTERY BOX
REAR BATTERY BOX
BATTERY CONNECTORS
SEAT POSTS
MOTOR CONNECTORS
Figure 3. Power Base Top View
CHARGER INHIBIT CONNECTOR
9-PIN CONTROLLER CONNECTOR AMMETER MAIN CIRCUIT BREAKER
ONBOARD CHARGER AC POWER LEAD RECEPTACLE
SEAT POSTS

16 www.pridemobility.com UK Jazzy 1113/RevF/Apr03
Manual Freewheel Levers
For your convenience, your power chair is equipped with two
manual freewheel levers - one for each motor/brake assembly.
See figures 3a and 3b. These levers allow you to disengage the
drive motors and maneuver the chair manually.
WARNING! Do not use your power chair
while the drive motors are disengaged un-
less you are in the presence of an atten-
dant! Do not disengage the drive motors
when your power chair is on an incline. he
chair could roll down on its own, causing
injury!
III. YOUR POWER CHAIR
The Power Base Assembly
The power base assembly consists of the right and left frame assemblies, the front and rear battery boxes, and the
electronics tray. See figures 2, 3, and 4.
Ammeter: The ammeter displays the chargers current output in amps. See V . Batteries and Charging.
nboard Charger AC Power Lead Receptacle: This is where the AC power lead plugs into the onboard
charger. The AC power lead plugs into a standard wall outlet.
Charger Fuse(s): The charger fuse protects the ammeter from overload during charging. The charger fuse is
located under the electronics tray. A spare fuse is included.
Main Circuit Breaker: The main circuit breaker is a safety feature built into your power chair. When the batteries
and the motors are heavily strained (e.g., from excessive loads), the main circuit breaker trips to prevent damage
to the motors and the electronics. f the circuit breaker trips, allow your power chair to rest for approximately
one minute. Then push in the circuit breaker reset button, turn on the controller, and continue normal operation. f
the main circuit breaker trips repeatedly, contact your authorised Pride Dealer.
Controller Connector: This is where the controller connects to the battery, the motors, and the motor brakes.
The VS controller connector is shown.
Charger Inhibit Connector (VSI only): The VS controller is equipped with a charger inhibit. The charger
inhibit enables the onboard battery charger to disable the controller during charging. The charger inhibit connector
is coded with coloured dots. The dots are positioned so that you can align the flat side of the male connector with
the flat side of the female connector before making the connection.
CAU ION! Failure to properly align the connectors can result in damage to the controller,
the onboard charger, and the connectors.
Figure 3a. Drive Motor Disengaged
FREEWHEEL LEVERS

UKJazzy1113/RevF/Apr03 www.pridemobility.com 17
III. YOUR POWER CHAIR
Figure 3b. Drive Motors Engaged
To engage or disengage the drive motors:
1. Turn the freewheel levers outward to disengage the drive
motors.
2. Turn the freewheel levers toward the front of the Jazzy to engage
the drive motors.
CAU ION! It is important to remember that
when your power chair is in freewheel mode,
the electronic braking system is disengaged.
f a lever is difficult to move in either direction, rock the Jazzy
1113 back and forth slightly. The lever should then move to the
desired position.
FREEWHEEL LEVERS

18 www.pridemobility.com UK Jazzy 1113/RevF/Apr03
IV. DISASSEMBLY
The Jazzy 1113 disassembles into eight easily transportable component assemblieswith no tools required. See
figure 4.
WARNING! Even though no tools are required to disassemble or assemble the Jazzy 1113, you
should take care not to place your hands or fingers on the areas of the component assemblies
where they may be pinched, as the assemblies snap together or snap apart.
WARNING! Some power chair components are heavy. You may need assistance to lift or carry
them. Please refer to III. Your Power Chair for specific components weights.
NOTE: uring both the disassembly and the assembly of the Jazzy 1113, you may find it helpful to engage
the Jazzy drive motors so that it does not roll while you are disassembling or assembling it. See III. Your
Power Chair.
To disassemble the Jazzy 1113:
Position the Jazzy in a location where there is ample working room on all four sides of the Jazzy. We recommend
1 meter or more of clearance on all sides. There are eight component assemblies, some of which take up a great
deal of space when disassembled from the chair. Also, make certain that the Jazzy is turned off.
LEFT FRAME
ASSEMBLY
FOOTREST
SEAT
RIGHT FRAME
ASSEMBLY
BATTERY WELL FRAME
FRONT FRAME
Figure 4. The Jazzy 1113 Component Assemblies
BATTERY
BOXES (2)

UKJazzy1113/RevF/Apr03 www.pridemobility.com 19
IV. DISASSEMBLY
Figure 5. Footrest Removal
DISCONNECT JOYSTICK CONTROLLER
SEAT FRAME LATCH RELEASE BUTTONS
Figure 6. Joystick Controller Harness
Figure 7. Remove the Seat
To remove the footrest:
Remove the footrest by sliding the mounting bracket up the vertical
bar of the front frame until the tabs on the mounting bracket can be
pulled forward through the matching slots in the front frame. See
figure 5.
To disconnect the controller:
At the rear of the Jazzy, disconnect the controller (and charger inhibit
if equipped) from the electronics tray located at the well frame. You
may need to pull firmly and gently wiggle the connector to remove it
from the socket. For the smaller connector, you must squeeze the
connector latch release levers to disconnect the connector from the
socket. See figure 6.
To remove the seat:
1. Disconnect the controller as previously described.
2. Push in the black spring-loaded seat frame latch release buttons
(one on the front of each seat frame side tube). See figure 7.
3. While you are pushing both buttons or levers simultaneously, lift
up on the front end of the seat frame.
4. Pull forward on the seat frame to release the locating pins from
their slots in the rear seat post tower mounts. You may find it
necessary to wiggle the frame gently from side to side to free the
locating pins from their slots.
WARNING! Do not pick up the seat frame by the
armrests. hey are free to pivot, and you may lose
control of the seat if they do so, resulting in
personal injury or damage to the chair.
To remove the battery well frame:
1. Remove the seat as previously described.
2. Disconnect the battery case connectors (2) from the utility tray.
See figure 8.
3. Next, disconnect and remove the battery cases (with the batteries
in them) from the battery well frame.
4. Disconnect the left motor connector from its matching socket
located on the left frame assembly. Squeeze the connector latch
release levers to disconnect.
5. Disconnect the right motor connector from its matching socket
located on the right frame assembly. Squeeze the connector latch
release levers to disconnect.

20 www.pridemobility.com UK Jazzy 1113/RevF/Apr03
IV. DISASSEMBLY
Figure 10. Front Frame
Figure 9. Front Frame
Figure8.Disconnect Battery Cases
6. Squeeze together the latch release levers that hang vertically
down from the crossbar at the rear of the battery well frame.
See figure 9. Lift up the rear end of the battery well frame. Pull
it to the rear of the chair to release the front slots from the
locating pins on the bottom bar of the front frame.
To disassemble the right frame assembly from the
front frame:
1. Remove the battery well frame as previously described.
2. Stand behind the Jazzy and grasp the right frame assembly
handle (located next to the front seat post tower) with your
right hand.
3. Use your left hand and thumb to hold the front frame and press
and hold (toward the center of the front frame) the silver-
coloured latch release lever. See figure 10.
4. Push the right frame assembly outward (toward the right) with
your right hand holding the right frame assembly handle.
5. Pull up with your left hand on the front frame until the latching
mechanism releases.
6. Keep pulling upward with your left hand until the locating pin
on the bottom of that side of the front frame releases from its
slot in the right frame assembly.
7. Carefully let the right frame assembly tilt to a resting position.
To disassemble the left frame assembly fromthefront
frame:
1. Remove the battery well frame as previously described.
2. Stand behind the Jazzy and grasp the left frame assembly handle
(located next to the front seat post tower) with your left hand.
3. Use your right hand and thumb to hold the front frame and
press and hold (toward the center of the front frame) the silver-
coloured latch release lever.See figure 10.
4. Push the left frame assembly outward (toward the left) with
your left hand holding the left frame assembly handle.
5. Pull up with your right hand on the front frame until the latching
mechanism releases.
6. Keep pulling upward with your right hand until the locating pin
on the bottom of that side of the front frame releases from its
slot in the left frame assembly.
7. Carefully let the left frame assembly tilt to a resting position.
