Pride Celebrity Deluxe User manual

The Ultimate In Style & Performance
®
Owner’s Manual
21 Healey Road
Dandenong, 3175
Victoria, Australia ACN # 088 609 661
www.pridemobility.com

SAFETY GUIDELINES
Copyright©2006
PrideMobilityProductsAustraliaPty.Ltd.
INFMANU3287/RevA/April2006
088 609 661
NOTE: This owner’s manual is compiled from the latest specifications and product information avail-
able at the time of publication. We reserve the right to make changes as they become necessary. Any
changes to our products may cause slight variations between the illustrations and explanations in this
manual and the product you have purchased.
Pleasefilloutthefollowinginformationforquickreference:
Pride Provider:______________________________________________________________________
Purchase Date:______________________________________________________________________
Address:___________________________________________________________________________
Phone Number:______________________________________________________________________
Serial Number:_______________________________________________________________________
Thesymbolsbelowareusedthroughoutthisowner'smanualandonthescootertoidentifywarningsandimportant
information.Itis veryimportantforyou toreadthemandunderstandthemcompletely.
WARNING! Indicates a potentially hazardous condition/situation that can cause personal
injury, equipment and/or property damage (black symbol on yellow triangle with black
border).
MANDATORY! These actions should be performed as specified. Failure to perform
mandatory actions can cause injury to personnel and/or damage to equipment (white
symbol on blue dot).
PROHIBITED! These actions are prohibited; do not perform at any time or in any situation.
Performing a prohibited action can cause personal injury and/or equipment damage (black
symbol with red circle and red slash).
Thisproductismanufacturedby:
PrideMobilityProductsCorporation
182SusquehannaAvenue
Exeter, PA18643-2694
USA

3
Celebrity Deluxe www.pridemobility.com
CONTENTS
I. INTRODUCTION ......................................................................................................................... 4
II. SAFETY ......................................................................................................................................... 5
III. SPECIFICATIONS ................................................................................................................... 16
IV. YOUR SCOOTER ...................................................................................................................... 18
V. BATTERIES AND CHARGING ............................................................................................ 23
VI. OPERATION ............................................................................................................................... 28
VII. COMFORT ADJUSTMENTS................................................................................................ 30
VIII. DISASSEMBLY AND ASSEMBLY ..................................................................................... 33
IX. BASIC TROUBLESHOOTING ............................................................................................. 35
X. CARE AND MAINTENANCE ................................................................................................ 37
XI. WARRANTY................................................................................................................................40

4www.pridemobility.com Celebrity Deluxe
I. INTRODUCTION
SAFETY
Welcome to PrideMobilityProductsAustraliaPty.Ltd. (Pride). The productyouhavepurchasedcombinesstate-
of-the-artcomponentswithsafety,comfort,andstylinginmind.Weareconfidentthedesignfeatureswillprovide
you withthe conveniencesyou expectduring your dailyactivities. Understanding howto safelyoperateandcare
forthisproductshouldbring you yearsoftroublefreeoperationsandservice.
Readandfollowallinstructions,warnings, andnotesinthismanualandall otheraccompanyingliteraturebefore
attempting to operatethis product for the firsttime. In addition, your safetydepends uponyou,as well as your
provider,caretaker,or healthcareprofessionalinusinggood judgement.
Ifthereisany information inthismanualwhichyou do notunderstand,orifyourequire additionalassistancefor
setuporoperation,please contactyourauthorisedPrideProvider.Failuretofollowtheinstructions,warnings,
andnotesinthismanualandthoselocatedonyourPrideproductcanresultinpersonalinjuryorproduct
damageandwillvoidPride’sproductwarranty.
PURCHASER’S AGREEMENT
Byacceptingdeliveryofthisproduct,youpromisethatyouwillnotchange,alter,ormodifythisproductorremove
orrenderinoperableorunsafeanyguards,shields,orothersafetyfeaturesofthisproduct;fail,refuse,orneglectto
installanyretrofitkitsfromtime to time providedbyPridetoenhanceorpreservethesafe use of this product.
INFORMATION EXCHANGE
Wewanttohearyourquestions, comments, andsuggestionsaboutthismanual.We wouldalsoliketohearabout
the safety and reliability of your new scooter, and about the service you received from your authorised Pride
Provider.Pleasenotifyusof any changeofaddress,sowecan keepyouapprisedofimportantinformation about
safety,newproducts,andnewoptionsthatcanincreaseyourabilitytouseandenjoyyourscooter.Pleasefeelfree
tocontact us at the addressbelow:
PrideMobilityProductsAustraliaPty.Ltd.
21HealeyRoad
Dandenong,3175
Victoria,Australia
NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact
us and we will be glad to send you a new one immediately.

5
Celebrity Deluxe www.pridemobility.com
II. SAFETY
PRODUCT SAFETY SYMBOLS
Thesymbolsbelowareused on the scootertoidentifywarnings,mandatoryactions,and prohibited actions. Itis
veryimportantforyou toreadandunderstandthemcompletely.
Pinch/Crush points created during assembly.
Corrosive chemicals contained in battery. Use only AGM or Gel-Cell batteries to
reduce the risk of leakage or explosive conditions.
EMI-RFI- This product has been tested and passed at an immunity level of 20 V/m.
Read and follow the information in the owner’s manual.
Maximum seating weight.
Place unit on level ground and stand behind or to one side when changing from
drive mode to freewheel mode or freewheel mode to drive mode.
Locked and in drive mode.
Unlocked and in freewheel mode.
Front-to-rear plug orientation.

6www.pridemobility.com Celebrity Deluxe
II. SAFETY
Use only AGM or Gel-Cell batteries.
Do not raise or lower the power seat while the scooter is in motion.
Do not remove anti-tip wheels.
Do not use a cell phone, walkie/talkie, laptop, or other radio transmitter while
operating.
Avoid exposure to rain, snow, ice, salt or standing water whenever possible. Maintain
and store in a clean and dry condition.
Removal of grounding prong can create electrical hazard. If necessary, properly
install an approved 3-pronged adapter to an electrical outlet having 2-pronged plug
access. Failure to heed could result in personal injury and/or property damage.
Prevent personal injury and equipment damage. Do not connect an extension lead
to the AC/DC converter or the battery charger.
Contact with tools can cause electrical shock.

7
Celebrity Deluxe www.pridemobility.com
II. SAFETY
MANDATORY! Do not operate your new scooter for the first time without completely reading
and understanding this owner’s manual.
GENERAL
Yourscooterisastate-of-the-artlife-enhancement devicedesignedtoincrease mobility.Prideprovides anexten-
sivevarietyofproducts to bestfittheindividualneedsof the scooteruser.Please be awarethatthefinalselection
andpurchasingdecision regarding the type of scooter tobeused is the responsibility of the scooteruserwho is
capableofmakingsuchadecisionandhis/herhealthcareprofessional(i.e.,medicaldoctor,physicaltherapist,etc.).
The contents of this manual are based on the expectation that a mobility device expert has properly fitted the
scootertothe userandhasassistedtheprescribinghealthcareprofessionaland/ortheauthorised PrideProviderin
theinstructionprocessfortheuseoftheproduct.
There are certain situations, including some medical conditions, where the scooter user will need to practice
operatingthescooterinthepresence ofatrainedattendant.Atrainedattendant canbedefinedasafamilymember
orcareprofessionalspeciallytrained inassistinga scooteruserinvariousdailylivingactivities.
Asyoubeginusing yourscooterduringdailyactivities, you willprobablyencountersituationsin which youwill
needsomepractice.Simplytakeyourtimeandyouwillsoonbeinfulland confident control as you manoeuvre
throughdoorways,onandofflifts,upanddown ramps, and over moderate terrain.
Below are some precautions, tips, and other safety considerations that will help you become accustomed to
operatingthescootersafely.
MODIFICATIONS
Pridehas designed and engineered your scooter to provide maximummobility and utility. However, under no
circumstancesshouldyoumodify,add,remove, or disableanyfeature,part,orfunctionofyour scooter.
WARNING! Do not modify your scooter in any way not authorised by Pride. Unauthorised
modifications may result in personal injury and/or damage to your scooter.
REMOVABLE PARTS
WARNING! Do not attempt to lift or move your scooter by any of its removable parts.
Personal injury and damage to the scooter may result.

8www.pridemobility.com Celebrity Deluxe
II. SAFETY
PRE-RIDE SAFETY CHECK
Gettoknowthefeelofyourscooteranditscapabilities.Priderecommendsthatyouperformasafetycheckbefore
eachusetomakesureyourscooteroperatessmoothlyand safely.
Performthefollowinginspectionsprior tousingyour scooter:
Checkforproper tyreinflation(ifequipped withpneumatictyres).
Checkallelectricalconnections.Makesuretheyaretightand not corroded.
Checkallharnessconnections.Makesuretheyaresecuredproperly.
Check the brakes.
Checkbatterycharge.
Ifyoudiscoveraproblem,contactyour authorised Pride Provider for assistance.
TYRE INFLATION
Ifyourscooteris equipped withpneumatictyres,youshouldcheck orhavetheairpressurechecked at leastonce
aweek.Proper inflationpressureswillprolong thelifeofyour tyresandhelpensure thesmoothoperationof your
scooter.
WARNING! It is critically important that 2-2.4 bar (30-35 psi) tyre pressure be maintained
in pneumatic tyres at all times. Do not underinflate or overinflate your tyres. Low pressure
may result in loss of control and overinflated tyres may burst. Failure to maintain 2-2.4 bar
(30-35 psi) tyre pressure in pneumatic tyres at all times may result in tyre and/or wheel
failure, causing serious personal injury and/or damage to your scooter.
WARNING! Inflate your scooter tyres from a regulated air source with an available pressure
gauge. Inflating your tyres from an unregulated air source could overinflate them, resulting
in a burst tyre and/or personal injury.
WEIGHT LIMITATIONS
Yourscooterisratedfor amaximumweightcapacity.Referto thespecificationstablefor information.
WARNING! Exceeding the weight capacity voids your warranty and may result in personal
injury and damage to your scooter. Pride will not be held responsible for injuries and/or
property damage resulting from failure to observe weight limitations.
WARNING! Do not carry passengers on your scooter. Carrying passengers may result in
personal injury and/or property damage.
INCLINE INFORMATION
Moreand more buildings have rampswith specified degrees of inclination,designed for easy and safeaccess.
Somerampsmayhaveturning switchbacks (180-degree turns)thatrequireyoutohavegoodcornering skills on
yourscooter.
Proceedwithextremecautionasyouapproachthedowngradeofaramporotherincline.
Takewideswingswithyour scooter around any tight corners. If you do that,the scooter’srearwheels will
followawidearc,notcutthecornershort and not bump into or get hunguponanyrailingcorners.
Whendrivingdownaramp,keepthescooter’sspeedadjustmentsettotheslowestspeedsettingtoensurea
safelycontrolleddescent.
Avoid sudden stops andstarts.

9
Celebrity Deluxe www.pridemobility.com
136-159 kg
8.7% (5˚)
68 kg
14.1% (8˚) 90 kg 12.3% (7˚) 113 kg 10.5% (6˚)
II. SAFETY
When climbing an incline, try to keep your scooter moving. If you must stop, start up again slowly and then
acceleratecautiously.When driving down an incline,do so by settingthe speed adjustment dialto the slowest
settinganddrivingintheforwarddirectiononly.If your scooter startstomovedowntheinclinefasterthanyou
anticipatedordesired, allow it to come toacomplete stop by releasing the throttle controllever.Thenpushthe
throttlecontrollever forwardslightlytoensure asafelycontrolleddescent.
WARNING! When climbing an incline, do not zigzag or drive at an angle up the face of the
incline. Drive your scooter straight up the incline. This greatly reduces the possibility of a
tip or a fall. Always exercise extreme caution when negotiating an incline.
WARNING! Do not drive your scooter across the side of an incline or diagonally up or down
an incline; do not stop, if possible, while driving up or down an incline.
WARNING! You should not travel up or down a potentially hazardous incline (i.e., areas
covered with snow, ice, cut grass, or wet leaves).
WARNING! When on any sort of an incline or decline, never place the scooter in freewheel
mode while seated on it or standing next to it.
WARNING! Even though your scooter is capable of climbing slopes greater than those
illustrated in figures 1 and 1A, do not, under any circumstances, exceed the incline
guidelines or any other specifications presented in this manual. Doing so could cause
instability in your scooter, resulting in personal injury and/or damage to your scooter.
Handicap public access ramps are not subject to government regulation in all countries and therefore do not
necessarilysharethesamestandardpercent ofslope.Otherinclinesmaybenaturalor,if man-made, notdesigned
specificallyforscooters.Figures1and1Aillustrate your scooter’sstabilityanditsabilitytoclimbgradesunder
variousweightloadsandundercontrolledtestingconditions.
Thesetestswereconductedwiththe scooter’sseat in the highestpositionandadjustedrearwardontheseatbase
toitsfarthestrearward position. Use thisinformationasaguideline.Yourscooter’sability to travelupinclinesis
affected by your weight, your scooter’sspeed,yourangleofapproachtotheinclineandyourscootersetup.
WARNING! Any attempt to climb or descend a slope steeper than what is shown in figures
1 and 1A may put your scooter in an unstable position and cause it to tip, resulting in
personal injury.
Figure 1. Maximum Recommended Incline
Angles (3-wheel) Figure 1A. Maximum Recommended Incline Angles (4-wheel)
WARNING! Never carry an oxygen tank weighing more than 6 kg. Never fill the front or
rear basket with contents exceeding 6 kg.
68 kg
15.8% (9˚) 90 kg 14.1% (8˚) 113 kg 12.3% (7˚)
136-159 kg
10.5% (6˚)

10 www.pridemobility.com Celebrity Deluxe
II. SAFETY
CORNERING INFORMATION
Excessivelyhigh cornering speeds can create the possibility of tipping. Factors which affect the possibility of
tippinginclude,but arenotlimitedto,corneringspeed,steeringangle(howsharplyyouareturning),unevenroad
surfaces,inclinedroadsurfaces,ridingfromanareaoflowtractiontoanareaofhightraction(suchaspassingfrom
a grassy area to a paved area – especially at high speed while turning) and abrupt directional changes. High
cornering speeds are not recommended. If you feel that you may tip over in a corner, reduce your speed and
steeringangle(i.e.,lessen the sharpnessoftheturn)toprevent your scooterfromtipping.
WARNING! When cornering sharply, reduce your speed. When using your scooter at higher
speeds, do not corner sharply. This greatly reduces the possibility of a tip or fall. To avoid
personal injury or property damage, always exercise common sense when cornering.
BRAKING INFORMATION
Your scooter isequippedwiththesepowerfulbrakesystems:
Regenerative:Useselectricity torapidlyslowthevehicle whenthethrottlecontrol leverreturnstothecentre/
stopposition.
DiscParkBrake:Activates mechanically afterregenerativebraking slows the vehicle to near stop orwhen
powerisremovedfromthesystemfor any reason.
Whenyouapproachan incline,itisbesttolean forward. Seefigures2and2A. This shiftsthecentreofgravity of
youandyourscootertowardthefrontofthe scooter for improved stability.
NOTE: When negotiating ramps, if the throttle control lever is released while moving forward, the
powered scooter may "rollback" approximately 30.5 cm before the brake engages. If the throttle con-
trol lever is released while moving in reverse, the powered scooter may "rollback" approximately one
metre before the brake engages.
Figure 2A. Increased Stability Driving Position
Figure 2. Normal Driving Position

11
Celebrity Deluxe www.pridemobility.com
II. SAFETY
OUTDOOR DRIVING SURFACES
Yourscooterisdesignedto provideoptimumstabilityunder normaldrivingconditions—dry, levelsurfacescom-
posedofconcreteor tarmac. However,Pride recognises thattherewillbe times when you will encounter other
surfacetypes. For this reason, yourscooter is designed to performadmirably on packed soil, grassand gravel.
Feelfreeto use your scooter safely on lawns andinpark areas.
Reduceyourscooter’s speed whendrivingonuneventerrainand/orsoftsurfaces.
Avoidtallgrassthat canbecometangledin therunninggear.
Avoidlooselypackedgravelandsand.
Ifyoufeel unsureaboutadrivingsurface, avoidthatsurface.
PUBLIC STREETS AND ROADWAYS
WARNING! Exercise extreme caution when operating the scooter on footpaths, pavements,
bridleways, pedestrian areas and roads. Obey the Code of Practice for Class 3 vehicle
users. Failure to heed could result in serious injury and/or damage to your scooter.
NOTE: Acopy of the Department of Transportation, Code of Practice for Class 3 vehicle users, may be
obtained by contacting your authorised Pride Provider.
STATIONARY OBSTACLES (STEPS, KERBS, ETC.)
WARNING! Do not drive near raised surfaces, unprotected ledges and/or drop-offs (kerbs,
porches, stairs, etc.).
WARNING! Do not attempt to have your scooter climb or descend an obstacle that is
inordinately high. Serious personal injury and/or damage may result.
WARNING! Do not attempt to have your scooter proceed rearward down any step, kerb or
other obstacle. This may cause the scooter to tip and cause personal injury.
WARNING! Be sure your scooter is traveling perpendicular to any kerb you may be required
to ascend or descend. See figures 3 and 3A.
WARNING! Do not attempt to negotiate a kerb that has a height greater than 5 cm.
KERB
Figure 3. Correct Kerb Approach Figure 3A. Incorrect Kerb Approach
KERB

12 www.pridemobility.com Celebrity Deluxe
INCLEMENT WEATHER PRECAUTIONS
Exposure of your scooter to inclement weather conditions should be avoided whenever possible. If suddenly
caughtupinrain,snow, severe cold orheatwhileoperatingyourscooterproceedtoshelteratthe earliest oppor-
tunity.Thoroughly dryyourscooterbeforestoring, charging,or operatingyourscooter.
WARNING! Operating in rain, snow, salt, mist/spray conditions, and on icy/slippery surfaces
can cause personal injury and/or damage to the scooter and electrical system. Maintain
and store your scooter in a dry and clean condition.
FREEWHEEL MODE
Yourscooterisequippedwithamanual freewheelleverthat,whenengaged, allows the scootertobepushed. For
moreinformationabouthowto placeyourscooterintoandoutoffreewheelmode,seeIV.“Your Scooter.”
WARNING! When your scooter is in freewheel mode, the braking system is disengaged.
 Disengage the drive motors only on a level surface.
 Ensure the key is removed from the key switch.
 Stand behind the scooter to engage or disengage freewheel mode. Never sit on a
scooter to do this.
 After you have finished pushing your scooter, always return it to the drive mode to lock
the brakes.
Failure to heed the above could result in personal injury and/or damage to your scooter.
Anaddedfeaturebuiltintothescooteris“push-too-fast”protectionwhichsafeguardsthescooteragainstgaining
excessivespeedwhileinfreewheelmode.
“Push-too-fast”operatesdifferentlydependingonwhichoftwoconditions exists:
Ifthekeyisswitched“off” while in freewheel mode, thescooter’scontrolleractivatesregenerativebraking
whenthescooterispushedfasterthanamaximumthresholdwhichhas beenpreprogrammed.Inthiscase,the
controllerisactingasaspeed governor.
Ifthekey isswitched“on”while infreewheelmode,you willencounterconsiderableresistance atanyspeed.
Thispreventsthescooterfromgainingunwantedmomentumshouldthemanualfreewheelleverinadvertently
bereleasedwhile driving thescooter.
STAIRS AND ESCALATORS
Scootersarenotdesignedto travel up or down stairs or escalators.Alwaysusea lift.
WARNING! Do not use your scooter to negotiate steps or escalators. You may cause injury
to yourself and to others and/or damage your scooter.
DOORS
Determineifthedooropenstowardorawayfromyou.
Useyourhand to turn the knob orpushthe handle or push-bar.
Driveyourscooter gently andslowlyforwardtopush thedooropen.Ordrive yourscootergentlyandslowly
rearwardstopull the door open.
II. SAFETY

13
Celebrity Deluxe www.pridemobility.com
II. SAFETY
LIFTS
Modernliftshaveadooredgesafetymechanismthat,whenpushed, reopens the door(s).
Ifyouareinthedoorwayofaliftwhenthedoor(s)begintoclose,pushontherubberdooredgeorallowthe
rubberdoor edge to contactthe scooter and thedoor will reopen.
Usecarethat handbags, packages, or scooter accessoriesdo not become caught in liftdoors.
NOTE: If your scooter’s turning radius is greater than 1500 mm, it may be difficult to manoeuvre in
lifts and building entrances. Use caution when attempting to turn or manoeuvre your scooter in small
spaces and avoid areas that might pose a problem.
LIFT/ELEVATION PRODUCTS
Ifyouwillbetravelingwithyourscooter,youmayfinditnecessarytousealift/elevationproducttoaidintranspor-
tation.Priderecommendsthatyoucloselyreviewtheinstructions,specifications,andsafetyinformationset forth
bythemanufacturerofthelift/elevationproductbeforeusingthat product.
WARNING! Never sit on your scooter when it is being used in connection with any type of
lift/elevation product. Your scooter was not designed with such use in mind and any damage
or injury incurred from such use is not the responsibility of Pride.
BATTERIES
Inadditiontofollowingthewarningsbelow,besuretocomplywithallotherbatteryhandlinginformation.
WARNING! Scooter batteries are heavy (refer to specifications table). Lifting weight beyond
your capacity could result in personal injury. If necessary, get someone physically able to
lift the scooter batteries for you.
WARNING! Battery posts, terminals, and related accessories contain lead and lead
compounds. Wash hands after handling.
WARNING! Always protect the batteries from freezing and never charge a frozen battery.
Charging a frozen battery may result in personal injury and/or damage to the battery.
WARNING! RED (+) cables must be connected to positive (+) battery terminals/posts. BLACK
(-) cables must be connected to negative (-) battery terminals/posts. Failure to connect
your battery harnesses in the proper manner may result in personal injury and/or damage
to your scooter. REPLACE cables immediately if damaged.
BATTERY DISPOSAL AND RECYCLING
Ifyouencountera damaged or cracked battery,immediatelyencloseitina plastic bag and call your authorised
PrideProviderforinstructionsondisposal.YourauthorisedPrideProviderwillalsohavethenecessaryinformation
onbatteryrecycling, which isourrecommendedcourseof action.
PREVENTING UNINTENDED MOVEMENT
WARNING! If you anticipate being seated in a stationary position for an extended period
of time, turn off the power. This will prevent unexpected motion from inadvertent throttle
control lever contact. Failure to do so may result in personal injury.

14 www.pridemobility.com Celebrity Deluxe
II. SAFETY
MOTOR VEHICLE TRANSPORT
Pride recommends that you do not remain seated in your scooter while traveling in a motor vehicle. The
scooter should be stowed in the boot of a car or in the back of a truck or van with the batteries removed and
properly secured.
WARNING! Although your scooter may be equipped with a positioning belt, this belt is not
designed to provide restraint during motor vehicle transport. Anyone travelling in a motor
vehicle should be properly secured in the motor vehicle seat with safety belts fastened
securely.
WARNING! Do not sit on your scooter while it is in a moving vehicle. Personal injury and/or
property damage may result.
WARNING! Always be sure your scooter and its batteries are properly secured when it is
being transported. Failure to do so may result in personal injury and/or damage to your
scooter.
GETTING ONTO AND OFFYOUR SCOOTER
Getting ontoandoff of your scooter requires agoodsense of balance. Please observe the followingsafety tips
whengettingonto andoffyourscooter:
Removethekeyfrom the keyswitch.
Ensurethatyourscooterisnotinfreewheelmode.SeeIV.“YourScooter.”
Makecertainthattheseat is locked into place.
Pivotthearmrestsuptomakegettingontoandoffofthescootereasier.
WARNING! Position yourself as far back as possible in the scooter seat to prevent the
scooter from tipping and causing injury.
WARNING! Avoid using your armrests for weight bearing purposes. Such use may cause
the scooter to tip and cause personal injury.
WARNING! Avoid putting all of your weight on the floorboard. Such use may cause the
scooter to tip and cause personal injury.
REACHING AND BENDING
Avoid reachingorbendingwhile driving yourscooter.Whenreaching,bending, orleaningwhileseatedonyour
scooter,itisimportanttomaintainastablecentreofgravity andkeepthescooter fromtipping.Priderecommends
thatthescooter userdeterminehis/herpersonal limitationsandpracticebending andreachinginthe presenceofa
qualifiedhealthcareprofessional.
WARNING! Do not bend, lean, or reach for objects if you have to pick them up from the
floor by reaching down between your knees. Movements such as these may change your
centre of gravity and the weight distribution of the scooter and cause your scooter to tip,
possibly resulting in personal injury.
WARNING! Prevent personal injury! Keep your hands away from the tyres when driving. Be
aware that loose fitting clothing can become caught in drive tyres.

15
Celebrity Deluxe www.pridemobility.com
II. SAFETY
POSITIONING BELTS
Your authorised Pride Provider,therapist(s)andotherhealthcareprofessionalsareresponsiblefordetermining
yourrequirementforapositioning belt inordertooperateyourscootersafely.
WARNING! If you require a positioning belt to safely operate your scooter, make sure it is
fastened securely. Serious personal injury may result if you fall from the scooter.
PRESCRIPTION DRUGS/PHYSICAL LIMITATIONS
Thescooterusermustexercisecareandcommonsensewhenoperatinghis/her scooter.Thisincludesawarenessof
safetyissueswhentakingprescribedorover-the-counterdrugsorwhen theuserhasspecificphysicallimitations.
WARNING! Consult your physician if you are taking prescribed or over-the-counter
medication or if you have certain physical limitations. Some medications and limitations
may impair your ability to operate your scooter in a safe manner.
ALCOHOL
Thescooterusermust exercise careandcommonsensewhenoperating his/her scooter.Thisincludesawareness
ofsafety issueswhileundertheinfluenceofalcohol.
WARNING! Do not operate your scooter while you are under the influence of alcohol, as
this may impair your ability to drive safely.
ELECTROMAGNETIC AND RADIO FREQUENCY INTERFERENCE (EMI/RFI)
WARNING! Laboratory tests have shown that electromagnetic and radio frequency waves
can have an adverse affect on the performance of electrically-powered mobility vehicles.
ElectromagneticandRadioFrequencyInterferencecancomefromsourcessuchascellularphones,mobiletwo-way
radios(suchaswalkie-talkies),radiostations, TVstations,amateurradio(HAM)transmitters,wireless computer
links,microwavesignals,pagingtransmitters,andmedium-rangemobiletransceiversusedbyemergencyvehicles.In
somecases,thesewavescan cause unintended movement or damage to the control system. Everyelectrically-
poweredmobilityvehicle hasanimmunity(orresistance) toEMI.Thehigherthe immunity level,thegreaterthe
protectionagainstEMI.Thisproducthasbeentestedandhaspassedatanimmunitylevelof 20V/M.
WARNING! Be aware that cell phones, two-way radios, laptops, and other types of radio
transmitters may cause unintended movement of your electrically-powered mobility vehicle
due to EMI. Exercise caution when using any of these items while operating your mobility
vehicle and avoid coming into close proximity of radio and TV stations.
WARNING! The addition of accessories or components to the electrically-powered mobility
vehicle can increase the susceptibility of the vehicle to EMI. Do not modify your scooter
in any way not authorised by Pride.
WARNING! The electrically-powered mobility vehicle itself can disturb the performance
of other electrical devices located nearby, such as alarm systems.
NOTE: For further information on EMI/RFI, visit the Resource Center on www.pridemobility.com. If
unintended motion or brake release occurs, turn your scooter off as soon as it is safe to do so. Contact
your authorised Pride Provider to report the incident.

16 www.pridemobility.com Celebrity Deluxe
III. SPECIFICATIONS
Figure 4. Scooter Dimensions
Figure 4A. FrontTyre Dimensions Figure 4B. Rear Tyre Dimensions
25.40 cm
8.89 cm 10.16 cm
25.40 cm
3-WheelTurning Radius 4-WheelTurning Radius
61 cm
3-Wheel 116.84 cm
4-Wheel 118.75 cm
149.86 cm
105.41 cm
43.18 cm - 53.34 cm
8.26 cm
50 cm
16" 45.72 cm
45.72 cm

17
Celebrity Deluxe www.pridemobility.com
III. SPECIFICATIONS
(1) Varies with user weight, terrain type, battery amp-hour (AH), battery charge, battery condition and tyre condition.
(2) Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of (+ or – ) 3 %.
NOTE: All specifications subject to change without notice.
Model Numbers 3-wheel: SC4001DXAUS
4-wheel: SC4401DXAUS
Class Of Use B
Maximum Safe Slope See figures 1 and 1A.
Maximum Climbing Ability See figures 1 and 1A.
Maximum Obstacle Climbing Ability 5 cm
Overall Length23-wheel: 116.84 cm
4-wheel: 118.75 cm
Overall Width23-wheel: 61 cm
4-wheel: 61 cm
Total Weight 3-wheel: 93 kg
4-wheel: 97 kg
Total Weight Without Batteries 3-wheel: 70.76 kg
4-wheel: 75 kg
Heaviest Piece When Disassembled Front section:
3-wheel: 27.5 kg
4-wheel: 32 kg
Turning Radius23-wheel: 105.41cm
4-wheel: 149.86 cm
Speed (Maximum)1 Up to 9.65 km/h
Range Per Charge1(With 31-36 AH batteries) Up to 40.23 km
Ground Clearance28.26 cm
Weight Capacity 159 kg
Standard Seating Type: CRS Deluxe high-back with headrest
Weight: 20.41 kg
Material: Vinyl
Dimensions: 45.72 cm width
45.72 cm depth
50 cm) height(plus adjustable headrest
Drive System Rear-wheel drive, sealed transaxle, 24-volt DC motor
Dual Braking System Electronic, regenerative, and electromechanical
Tires Type: pneumatic:
Front: 8.89 cm x 25.40 cm
Rear: 10.16 cm x 25.40 cm
Battery Requirements Two 12-volt, deep-cycle (AGM or Gel-Cell type recommended)
Size: U-1;31-36 AH (40 AH optional)
Weight: 11.11 kg each
Battery Charger Off-board

18 www.pridemobility.com Celebrity Deluxe
LEFT TURN INDICATOR
IV. YOUR SCOOTER
TILLER CONSOLE
Thetiller consolehouses all of the controlsneeded todriveyourscooter,including thespeed adjustmentdial, throttle
controllever,batteryconditionmeter, lightsswitch,hazardlights switch,andhornbuttons.Seefigure5.
WARNING! Do not expose the tiller console to moisture. In the event that the tiller console
does become exposed to moisture, do not attempt to operate your scooter until the tiller
console has dried thoroughly.
Horn Buttons
Thesebuttonsactivatea warning horn.Yourscootermustbepoweredupfor the horn to be operational. Do not
hesitatetousethe warninghornwhendoingso may preventaccidentorinjury.
Key Switch
Insertthekeyintothekeyswitchandturnitclockwisetopowerup(turnon)yourscooter.
Turn thekeyanticlockwisetopowerdown(turnoff)yourscooter.
WARNING! If the key is moved to the “off” position while your scooter is in motion, the
electronic brakes will engage and your scooter will come to an abrupt stop!
Battery Condition Meter
Whenthe keyisfullyinsertedandturnedclockwisetopowerupyourscooter,thismeter indicatestheapproximate
batteryvoltagestrength.Forfurtherinformationonbatterycharging,seeVI.“BatteriesandCharging.”
Turn Indicator Buttons
Usethesebuttonsto turn ontheleftandrightturn indicator(amber)lights.Seefigure5.
Pushtheleftbuttontoactivate theleftturnindicatorlight.
Pushtherightbuttontoactivatetherightturnindicatorlight.
Thesignalsaretimedtoshutoffautomaticaly.
Figure 5.Tiller Console
HORN BUTTON
SPEED
ADJUSTMENT
DIAL
THROTTLE
CONTROL
LEVER
HORN BUTTON
BATTERY CONDITION METER
LIGHTS SWITCH
KEY SWITCH
THROTTLE
CONTROL
LEVER
HAZARD LIGHTS SWITCH
RIGHT TURN INDICATOR

19
Celebrity Deluxe www.pridemobility.com
IV. YOUR SCOOTER
Lights Switch
Thisswitchcontrolsyourscooter’slights.
Toggle theswitchforwardto turnonyourscooter’sfronttoplight andrunninglights.
Toggle theswitchtothemiddle toturnoffthescooter’slights.
Toggle theswitchrearwardtoturn onallthescooterslights (upperandlowerfront andrunninglights).
WARNING! Scooter users are required to use their lights when visibility is restricted—day or
night. Failure to use the lighting system in periods of poor visibility may result in personal injury.
Hazard Lights Switch
Thisswitchactivatesthe 4-way flashersonyourscooter.
Toggle thehazardlightsswitch forwardtoturnon theflashers.
Toggle thehazardlightsswitch rearwardtoturnofftheflashers.
Throttle Control Lever
Thisleverallowsyoutocontroltheforwardspeedandthereversespeedofyourscooterup tothemaximum speed
youpresetwiththe speed adjustment dial.
To MoveForwarduseeither ofthefollowing:
Useyourleftthumbtopushtheleftsideofthethrottlecontrollever.
Useyourrighthandfingerstopullbackontherightsideofthethrottlecontrollever.
To MoveRearwarduseeither ofthefollowing:
Useyourrightthumbtopushtherightsideofthethrottlecontrollever.
Useyourlefthandfingerstopullbackontheleftsideofthethrottlecontrollever.
Releasethethrottlecontrolleverandallowyourscootertocometo acompletestopbeforeengagingtheotherside
ofthelever.Whenthethrottle control lever is completely released, itautomaticallyreturnsto the centre “stop”
positionandengagesyourscooter’sbrakes.
Speed Adjustment Dial
Thisdialallowsyoutopreselect and limit your scooter’s top speed.
Theimageofthetortoise represents the slowest speedsetting.
Theimageoftheharerepresentsthe fastest speed setting.
Off-board Charger Port
Theoff-boardchargerpower lead plugsintothisportwhencharg-
ingthebatteries.See figure 6.

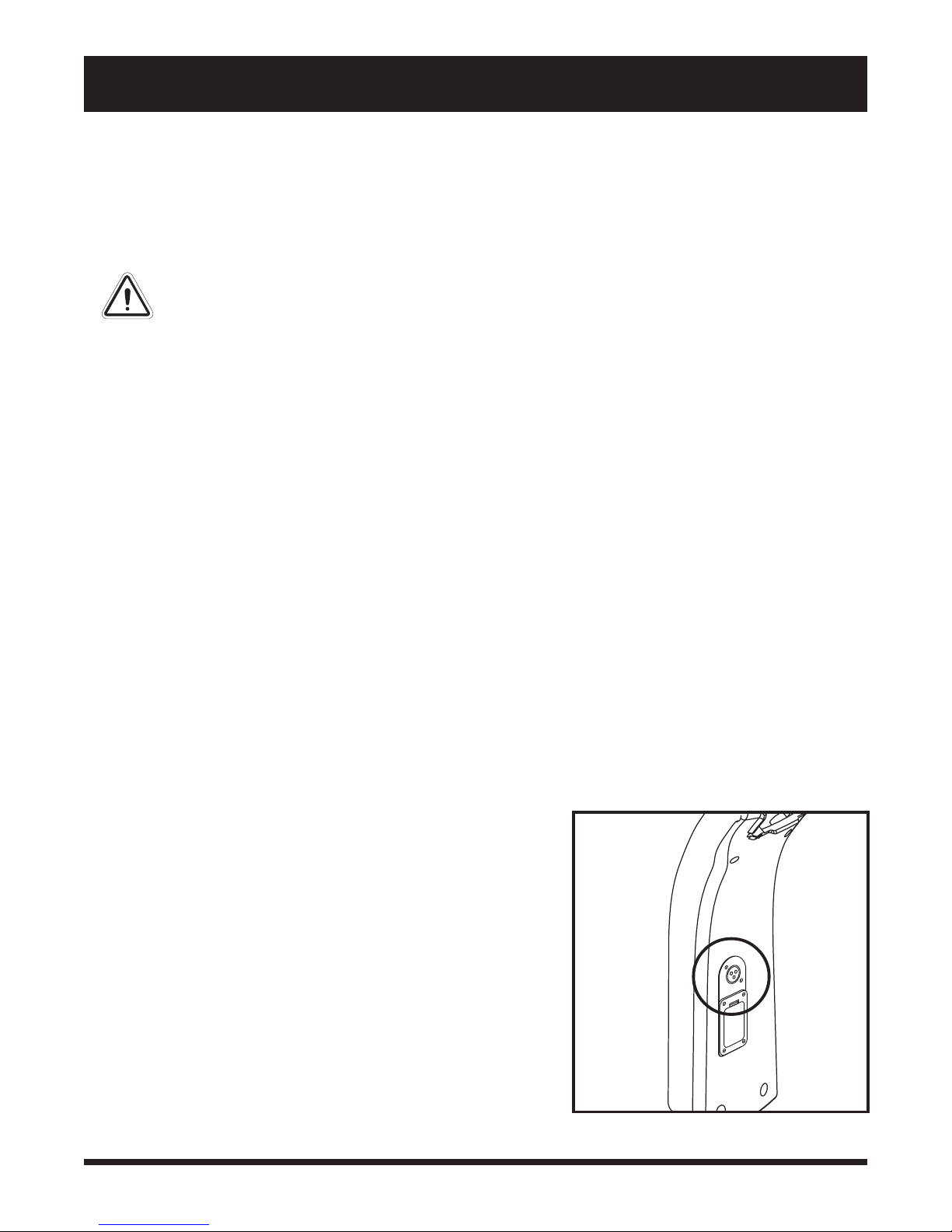

Figure 6. Off-board Charger Port

20 www.pridemobility.com Celebrity Deluxe
IV. YOUR SCOOTER
Tiller Console Fuses
Thesefuseshelpprotectyourscooter’s frontlighting,turn
indicators, andkeyswitchconsolesystemsfromreceivingan
overloadofelectricalcurrent.Thefusesusedinyourscooter
arethesame typeusedinautomobiles.See figure7.SeeX.
“CareandMaintenance”forfusereplacement.
REARSECTION
The batteries, the main circuit breaker (reset button), the
manualfreewheellever,theanti-tip wheels,andthemotor/
transaxleassemblyare located on the rear section ofyour
scooter.Seefigure8.
Anti-TipWheels
Theanti-tipwheelsareanintegralandimportantsafetyfea-
tureofyourscooter.Donot,under any circumstances, re-
movetheanti-tipwheels fromyourscooter.
Figure 7.Tiller Console Fuses
SPARE
RUNNING LIGHTS
LOWER HEAD LIGHT
RIGHT TURN INDICATOR
LEFT TURN INDICATOR
PROHIBITED! Do not remove the anti-tip wheels or modify your scooter in any way that is
not authorised by Pride.
Batteries
Thebatteriesstoretheelectrical energythatpowersyourscooter.SeeV.“BatteriesandCharging”forinformation
on howto charge your scooter batteries.
Motor/Transaxle Assembly
The motor/transaxleassemblyisanelectromechanicalunitthat converts electrical energyfromyourscooter’s
batteriesintothe controlled mechanicalenergythatdrivesthescooter’swheels.
Figure 8. Rear Section
BATTERY BATTERY
MANUAL FREEWHEEL LEVER
ANTI-TIP WHEELS
MOTOR/TRANSAXLE ASSEMBLY
