Pride Hurricane PMV User manual

www.pridemobility.com
1-800-800-8586
Exeter,PA
St.Catharines,ON

SAFETY GUIDELINES
Readandfollowallof theinstructionsin thismanualbefore youattemptto operateyourPMV forthefirst time.
Ifyouare unabletounderstand any ofthisinformationor requireadditionalassistance forset-up,contactyour
localPrideProviderorcall the PrideTech Service Department at1-800-800-8586.
Thefollowingsymbolsare usedthroughout thisOwner’sManual toidentifywarningsandcautions.Itisvery
importantforyoutoreadandunderstandthemcompletely.
WARNING! Failure to heed the warnings in this owner’s manual may result in personal
injury.
CAUTION! Failure to heed the cautions in this owner’s manual may result in damage to
your mobility vehicle.
Pleasebesureto fill out andreturnyourwarrantycard.Also,notify us ofanychangeofaddress so that wecan
keepyouapprised ofimportantinformationabout safety,newproducts, andnewoptionsthat canincreaseyour
abilitytouse andenjoyyourPMV.
YourHurricane:
Body Color _______________________________ Serial#
Purchase Date _____________________________ Options
Your authorizedPrideMobilityProductsCorporation provider:
Name___________________________________________________________________________
Address_________________________________________________________________________
Phone___________________________________________________________________________

3HurricanePMV
I. INTRODUCTION......................................................................................................................... 5
II. SAFETY......................................................................................................................................... 6
III. EMI/RFI .......................................................................................................................................... 9
IV. SPECIFICATIONS ................................................................................................................... 11
V. DESCRIPTION .......................................................................................................................... 13
VI. BATTERIES AND CHARGING ............................................................................................ 16
VII. OPERATION............................................................................................................................... 20
VIII.COMFORT ADJUSTMENTS................................................................................................ 22
IX. DISASSEMBLY AND ASSEMBLY ..................................................................................... 24
X. OPTIONAL ACCESSORIES................................................................................................. 27
XI. BASIC TROUBLESHOOTING ............................................................................................. 28
XII. CARE AND MAINTENANCE ................................................................................................ 29
XIII.WARRANTY................................................................................................................................31
CONTENTS
HURRICANEPMV

4HurricanePMV
COPYRIGHT
Copyright©2000
PrideMobilityProducts Corp.
Pridecannotbe heldresponsibleforany damageorinjury incurred duetoimproper orunsafeuseof aHurricane
PMV.Nor can Pride beheldresponsibleforanydamage or injury incurredduringorresultingfromattempts to
followtheinstructionsandrecommendationssetforthinthisowner'smanualorinanyoftheinstructionsdisplayed
onoraccompanying the product itself.Ifyoudo not feel capableofsafelyfollowing any of theinstructionsand
recommendationspertaining toyourHurricane PMV,pleasecontactyourauthorizedPrideprovider.

5HurricanePMV
WelcometoPrideMobilityProductsCorporation(Pride).Congratulations onthepurchaseofyournewHurricane
PMV.TheHurricanePMVdesigncombinesthemostadvancedstate-of-the-art componentswithmodern,attrac-
tivestyling.Wearecertainthatthedesignfeaturesandtrouble-freeoperationof yournew HurricanPMVwilladd
conveniencetoyourdailyliving.
AtPride,yoursafetyisimportanttous. Please readandfollowalloftheinstructionsinthismanualbefore
youattempttooperateyourHurricanePMVforthefirsttime.These instructions were produced for your
benefit.Yourunderstandingoftheseinstructions isessentialforthesafe operationofyournewHurricane PMV.
Thisowner’smanualis compiled from thelatestspecificationsand product informationavailableatthetime of
publication.We reserve the righttomakechangesas they become necessary.Any changes toourproductsmay
causeslightvariationsbetween theillustrationsandexplanationsinthismanualandtheproductyoupurchased.
Asan ownerofaPrideproduct,youare invitedtoregisteryourproduct’swarrantyandenrollinthe PrideOwners
Club.Youmaydoso byfillingout andreturningyour enclosedregistrationcardor byvisitingPride’sweb siteat
www.pridemobility.com. Asaregistered member,each timeyouvisit oursite,you willhaveaccesstothemost
interactiveandhonesteducationalvenueavailabletodayforpeoplewithmobilityneeds,theirfamilies,andfriends.
Fromthe coverpageof oursite,click onthebutton thatreads“Owners Club”toenter apagededicated tocurrent
andpotentialPrideproductowners.Youwillgain accesstointerviews, stories,recreationideas, dailylivingtips,
productandfundinginformation,andinteractivemessageboards.On these message boards you are invited to
speakwithother Pride customersaswellasPride representatives whoareavailableto assist youwithanyques-
tionsor concernsyoumayhave.Youwillreceiveafree giftsimplyforregisteringwith thePrideOwnersClub.
We wanttohear yourquestions,comments, andsuggestionsabout thismanual.Wewouldalso liketohearabout
thesafetyand reliability ofyournewHurricane PMV,as well asabouttheservice you receivedfromyourPride
provider.Also,notify usofanychangeof address, so wecankeepyou apprised of importantinformationabout
safety,newproducts,andnewoptionsthat canincreaseyourabilitytouseand enjoyyourHurricanePMV.Please
feelfreetowrite us at the addressbelow:
PrideMobility ProductsCorporation
Attn:TechnicalServiceDepartment
182SusquehannaAvenue
Exeter, PA18643-2694
If you experience any problems with your Hurricane PMV that you are not able to solve, or if you do not feel
confidentinyourabilitytoperformanyoftheinstructionscontainedinthismanual,pleasecontactyourlocalPride
provider. Once you understand how to operateandtakecareofyourHurricanePMV, we are certain that it will
giveyou yearsoftrouble-free serviceandenjoyment.
ThePrideTeam
I. INTRODUCTION

6HurricanePMV
5˚ 
6˚ 

150-200 lbs. 250-300 lbs.
FIGURE 1. INCLINE SPECIFICATIONS
DRIVING GUIDELINES
AfterbeginningtouseyourHurricanePMVonadailybasis,youmayencountersituationsthat,atfirst,mayrequire
somepractice tonegotiateonyourPMV.Withalittlebitofpatience andpractice, youwillsoonbeabletoachieve
totalcontrolthrough doorways, elevators, upanddownramps, and overgrassandgravel.
Doors
Determineif thedooropenstowardorawayfromyou.Use yourhandtoturntheknobor pushthehandleorpush-
bar. Drive your HurricanePMVgently andslowlyforwardtopushthe door open; or driveourHurricanePMV
gentlyandslowly backwards topullthedoor open.
Elevators
Modernelevators haveadoor-edge safetymechanismthat,whenpushed, willreopenthe elevatordoor(s).Ifyou
are in the doorway of an elevator when the door(s) begin to close, push on the rubber door edge or allow the
rubber door edge to contact the PMV and the door will reopen. Use care that pocketbooks, packages, or
HurricanePMVaccessoriesdo not become caughtintheelevatordoors.
Ramps and Other Inclines
Anincreasingnumberof buildingshaverampsforPMVaccess.Theremaybeaturningswitchbackin themiddle
oftherampwhichmayrequireproficientcorneringskills.Takewideswingswithyourfrontwheelsaroundanytight
corners,sothe back wheelswilltracea wide arcandnotshortcutthe corner.Whengoing down aramp,itisbest
tokeepyour speed dialsettothe slowestspeedsettingto ensure asafelycontrolleddescent.Avoidsuddenstops
onanyincline.
Rough Terrain
Your HurricanePMVisdesigned tooperateongrass,gravel,andhills. However, youmustnotexceedtherecom-
mendationsinthismanual.Safetymust alwayscome first.If youareuncertainaboutasituation,avoidit.Feelfree
touse yourHurricanePMV onlawnsorinparkareas,butavoid tallgrass.Packed gravel,suchasindriveways or
onroads willnotpresent aproblem,but avoidlooselypacked gravelorsand. Thepowerof yourHurricanePMV
willenable youtoclimb hills,butto ensureproperstability, donotexceed thespecificationslistedbelow.
II. SAFETY

7HurricanePMV
FIGURE 3. INCREASED STABILITY DRIVING POSITIONFIGURE 2. NORMAL DRIVING POSITION
Thecontrolledtests showthat,when youapproachanincline, itisbest toleanforward.See figures2and 3.This
shifts thecenterof gravityofyou andyourHurricanePMVtowardthe frontofthe PMV forimprovedstability.
Your HurricanePMVwasdesignedtoprovideoptimumstability undernormaldrivingconditions;dry,levelsur-
facescomposed ofconcreteor asphalt.However, Priderecognizesthat therewillbetimeswhen youwilloperate
yourscooteron surfaces other thanconcreteorasphalt. For thatreason,wealsodesigned your HurricanePMV
toperformadmirably onpackedsoil,grass, andgravel.
!Feelfreetouse your Hurricane PMVsafelyonlawnsand in park areas.
!Avoidtallgrassthatcanentangletherunninggear.
!Packedsoil,gravel, driveways, or roadswillnotpresent a problem foryourHurricanePMV.
!Avoid looselypackedgraveland sand.
!Ifyou feelunsureabout adrivingsurface,avoidthatsurface.
WARNING! Do not exceed the incline guidelines or any other specifications presented
in this manual.
SAFETY PRECAUTIONS
WARNING! Failure to follow these safety precautions may result in serious personal in-
jury! You may also put others around you at risk!
!Donot operateyourHurricanePMVwithoutcompletelyreadingandunderstanding thismanual.
!Donot insertthekey intothecontrol consoleunlessyou areontheseatand readytouse thevehicle.Remem-
bertoremovethekeywhenyougetoffthevehicle.Thiseliminatesthepossibilityofaccidentallydepressingthe
throttlecontrol leverandcausinganaccident.
!DonotoperateyourHurricanePMV whileyouare undertheinfluence ofalcohol.
II. SAFETY

8HurricanePMV
!NeveruseyourHurricane PMVasa seatin amovingvehicle.YourHurricane PMVisnot designedtobeused
assuchandcannot protect you in theeventofanautomobile accident or an abruptstop.
!Donotcarry passengersonyourHurricane PMVunderanycircumstances.
!Never drive your Hurricane PMV across the side of a hill or diagonally up or down a hill; do not stop, if
possible,whiledrivingupordownanincline.
!Donot exceedthe specificationsinthismanual.
!Always protect batteries from freezing temperatures and never charge a frozen battery; this damages the
batteryand maycausepersonalinjury. Attempting tochargeabatteryinfreezingconditionsdoes notprevent
thebatteryfromfreezing.
!KeepbothhandsonthetillerandyourfeetonthefloorboardatalltimeswhileoperatingyourHurricane PMV.
Thisrecommendeddrivingpositiongivesyouthemostcontroloveryourvehicle.
!Makecertain thattheseatislockedintoplaceandthe keyisremovedfromthekeyswitch beforegetting onor
offofyourHurricanePMV; make certain that the seat is in a locked position when you are operatingyour
HurricanePMV.
!Useextreme cautionwhendrivingonbusy streets,in parkinglots,orinshopping malls.
!Proceedwithextremecautionwhen driving near raised surfaces orunprotectedledgesordrop-offs(curbs,
porches,stairs,etc.).
!Disconnectthebatteries if youarenotgoing to operateyourHurricanePMV for morethan48hours.
!Consultyourphysicianorpharmacistifyouaretakinganymedication(s)thatmay affectyourabilitytocoher-
entlyoperateyourHurricane PMV.Your HurricanePMVis amotorizedvehiclethatrequirescoherentmental
judgmentandunimpaired reflexes.
!Check the tire pressure frequently and make sure they are inflated to 30 psi. Your Hurricane PMV was
designedfor optimumperformanceandstabilityatthistire pressure.
!Securethebatteries beforeloadingyour HurricanePMVinto anothervehiclefor transport.
!Batteryposts,terminalsandrelatedaccessoriescontainleadandleadcompounds. Washhandsafterhandling.
WARNING! Do not expose the electronics to any type of moisture at any time (rain, snow,
mist, or washing the Hurricane PMV). Such exposure can damage the electronics. Never
attempt to ride a Hurricane PMV that has been exposed to moisture until it has dried
thoroughly.
WARNING! Do not operate or store the Hurricane PMV where it may be exposed to inclem-
ent weather conditions such as rain, snow, mist, and below-freezing temperatures (such
as storage on an outside car/van lift). Attempting to operate the Hurricane PMV in such
conditions can damage the electronics and potentially result in loss of control.
WARNING! Do not operate a Hurricane PMV in icy or slippery conditions or on salted
surfaces (i.e., walks or roads). Such use may result in an accident, personal injury, or
adversely affect the performance and/or safety of your Hurricane PMV.
WARNING! Always protect batteries from freezing temperatures and never charge a fro-
zen battery. This damages the battery and may cause personal injury. Attempting to
charge a battery in freezing conditions does not prevent a battery from freezing.
II. SAFETY

9HurricanePMV
WARNING! Radio waves may interfere with the control of your Hurricane PMV.
Radio waves can cause unintended motion of Hurricane PMVs. Radio waves are a form of electromagnetic
energy(EM).Whenthisenergyunintentionallyaffectstheoperationofanelectronicdevice,itiscalledElectromag-
netic Interference (EMI) or Radio Frequency Interference (RFI).
EMI/RFI—FREQUENTLY ASKED QUESTIONS (FAQs)
ThefollowingFAQssummarizewhatyoushouldknowaboutEMI/RFI.Youmayusethisinformationtominimize
therisk thatEMI/RFIwill affectyourHurricanePMV.
Wheredoradiowavescomefrom?
Radiowaves areemittedfromtheantennasofcellularphones,mobile two-wayradios(likewalkie-talkies),radio
stations,TVstations,amateurradio(HAM)transmitters,wirelesscomputerlinks,microwavesources,andpaging
transmitters.Radiowaves areaform ofelectromagneticenergy.Because EMismoreintense closertothe trans-
mittingantenna (sourceofemission), theEMfields fromtwo-wayradiosareof specialconcern.
IfmyHurricane PMV is affectedbyEMI/RFI, what kind ofmotionshould I expect?
Thisis difficulttopredict.Itwoulddependonanumber offactors,including:
!Strengthofthe radiowaves.
!Constructionof theHurricanePMV.
!Positionofthe HurricanePMV(whetherit is onlevelground or onaslope).
!Whetherornot theHurricanePMV isinmotion.
AnaffectedHurricane PMV’s movementcanbe erratic.Itmay movebyitselforcometoasudden stop.Further-
more,itis possible forEMI/RFItounexpectedly release thebrakesonaHurricane PMV.Someintense sources
ofEMI/RFIcan evendamagethecontrol system.
Isthereanyway toknowforsurewhetherradiowavesare responsiblefortheunintendedmotionofmy
HurricanePMV?
Unfortunately,interferencefrom radio wavesourcesmaybedifficulttorecognize,since the signalsfromthese
sourcesareinvisible andmaybeintermittent. However,you shouldreportallincidents ofunintendedmotionor
brakereleasetothe Hurricane PMV manufacturerand,ifpossible,note whether there wasaradiowavesource
nearbyat thetimeof theincident.
Hasanyonebeenhurtfromerratic,unintendedmotionofpersonalmobilityvehicles?
TherearereportsofinjuriesthatresultedfromtheuncontrolledmotionofPMVs.However,itisunclearhowmany
ofthese incidentswereactually causedbyradio waveinterference.
Areall personal mobility vehiclessusceptible to EMI/RFI?
Eachmakeandmodeldiffersinitsabilitytoresistelectromagneticinterference.Thatis,eachhasaparticularlevel
of“immunity”tointerference,measuredinvoltspermeter(V/m).Ahigherimmunityleveloffersgreaterprotection.
Inotherwords,aPMVwithahighimmunitylevelislesslikelytobeaffectedbyastrongradiosourcethanonewith
alowimmunitylevel.
III. EMI/RFI

10 HurricanePMV
Whatcan I doto find outif my HurricanePMVislikely to beAffectedbyEMI/RFI?
Ifyou’ve hadyourHurricanePMVforalongtimeandhaven’texperiencedany unintendedmotion,it’snotlikely
thatyou’llhaveproblemsinthefuture.Butit’salwayspossiblethatproblemscouldariseifyouareclosetoasource
ofradiowaves.Therefore,it isveryimportantto bealerttothis possibility.If you wanttofind outhowwellyour
HurricanePMVisprotectedagainstEMI/RFI,youcancontactthemanufacturerandaskaboutitsimmunitylevel.
WhatcanI do toreducetheriskthatmy Hurricane PMVcouldbeAffectedbyEMI/RFI?
Herearesomeprecautions you can take:
!Do not turn on or use hand-held personal communications devices, such as citizens band (CB) radios and
cellularphones whilethe HurricanePMVison.
!Beawareofnearby transmitters, such asradioorTVstations and hand-held or mobiletwo-wayradios,and
trynot tocomeclosetothem.Forexample,if youareinaHurricane PMVwithanimmunitylevelof20V/m,
you should remain at least three feet from a hand-held two-way radio and ten feet from a mobile two-way
radio.
!Beawarethataddingaccessoriesand/orcomponents, or modifying the Hurricane PMV may make it more
susceptibletointerferencefromradiowavesources.Thereisnoeasywaytoevaluatetheireffectuponthe
overallimmunityoftheHurricanePMV.
WhatshouldIdoif my Hurricane PMV moves unexpectedly?
Ifunintendedmotionorbrake release occurs, turn the Hurricane PMVoffassoonasit is safe to do so.
IfmyHurricanePMVmovesunexpectedly,whereshouldIreportthis?
CallPrideMobilityProductsCorporationat 1-800-800-8586 to report the incident.
III. EMI/RFI

11HurricanePMV
Model Numbers PMV-500: (Candy Apple Red), PMV-501 (Forest Green), PMV-502 (Viper Blue),
PMV-503 (Mercury Silver), PMV-505 (Onyx Black)
Length 55.5in.
Width 25in.
Tires Type: Pneumatic
Front: 4in. x 13in.
Rear: 4in. x 13in.
Weight capacity 300 lbs. Maximum
Battery Type (Batteries not
included) Choice of: Two 12 volt, 32 AH, U-1 type, SLA (Sealed Lead-Acid) or
Two 12 volt, 40 AH, U-1 type, SLA (Sealed Lead-Acid)
Horsepower 2.0 hp (peak)
Charger Onboard 5-amp charger
Speed (max) Variable up to 8 mph
Maximum grade Please refer to figure 1.
Range 20-25 miles per charge with 32 AH batteries
25-30 miles per charge with 40 AH batteries
Turning radius 43in.
Body colors Painted: Candy Apple Red, Forest Green, Viper Blue, Mercury Silver, or Onyx Black
Seating Style: High back w/headrest and sliders
Dimensions: 19.5in. width (usable) x 25in. to 28in. height (usable) x 18.5in. depth
Seat Cover Material: Vinyl; Gray, Brown, or Beige
Armrests: Match
User Adjustable seat height from ground: 25.5 in. to 28.5 in.
User Adjustable seat height from scooter deck: 18 in. to 21 in.
Included Features Sliding seat, Slimetire sealant, energy-saving auto shutoff feature, height adjustable
armrests, front and rear suspension, front basket, rearview mirror, full light package,
front and rear bumpers
Brakes Electronic regenerative braking and electromechanical disc brake
Rear Wheel Drive Sealed transaxle, 24 VDC motor
Wheels Pride Micro-Mag aluminum alloy wheels in black, red, or gold
Tiller Type Infinitely adjustable between forward stop and scooter deck
Free Wheel mechanism Freewheel release lever located on transaxle
Weight of Scooter Weight of Hurricane (with two 12V 40AH batteries = 234.5 lbs.)
Weight of Hurricane (with two 12V 32AH batteries = 219.5 lbs.)
Weight of Hurricane (without batteries = 169.5 lbs.)
Component breakdown:
Front section: 61.5 lbs.
Rear section (without batteries or rear shroud): 68.5 lbs.
Rear plastic shroud: 3.5 lbs.
Seat: 36.0 lbs.
Batteries: (two batteries are required per scooter):
12 volt, 40 AH 32.5 lbs. each.
12 volt, 32 AH 25.0 lbs. each.
Lock pin and lever system
Ground Clearance 6 in.
Optional Accessories Cup holder, rear basket, rear bumper, dust cover, flag
IV. SPECIFICATIONS

12 HurricanePMV
19
25 "
"
12
18 "
1
2
24"- 28 "
12
"
12
55
43"
Turning Radius
6"
1"
34
"
12
47 "
34
55
-
21" 17"-
12" 8"-
80˚ 
1
28" 25"-


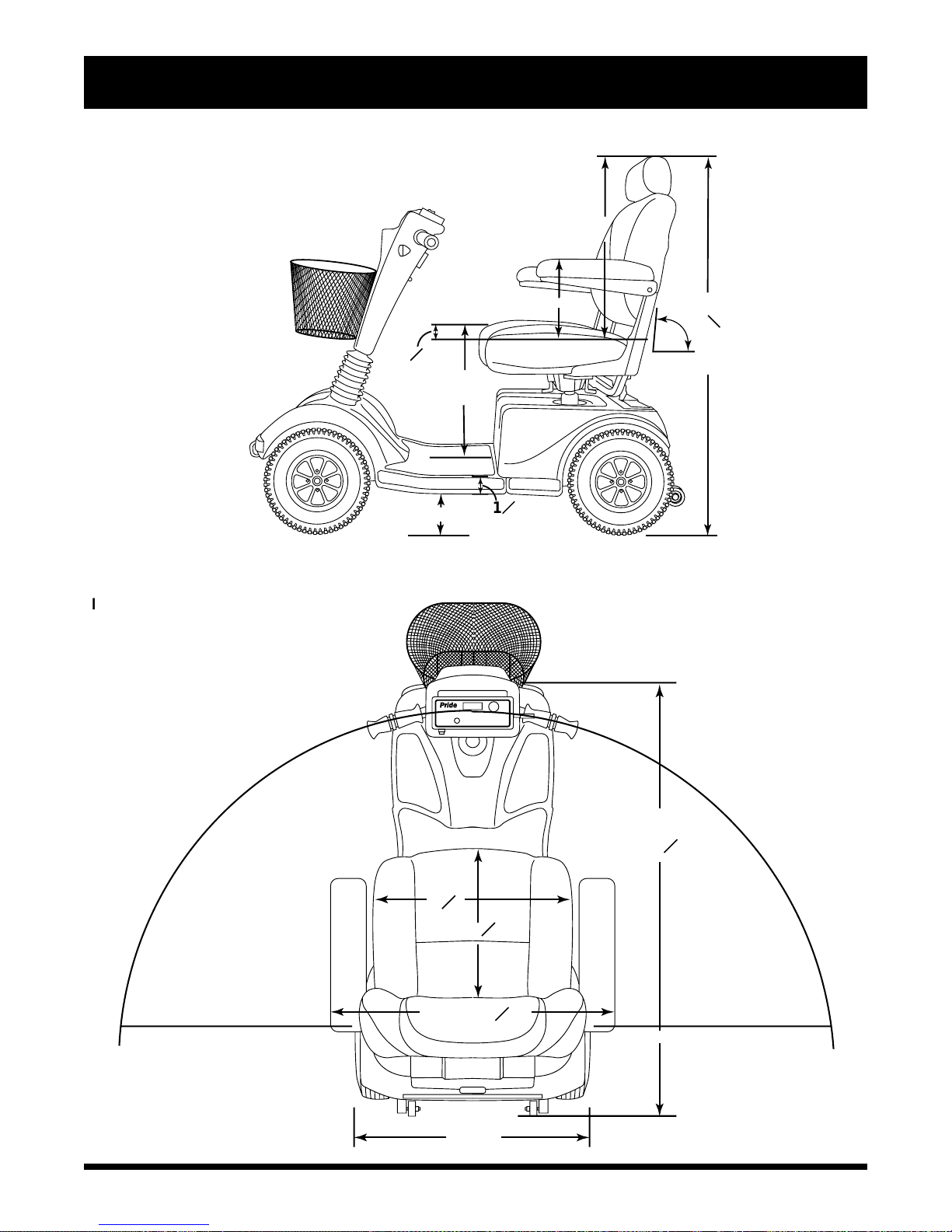

FIGURE 5. HURRICANE DIMENSIONS
IV. SPECIFICATIONS

13HurricanePMV
V. DESCRIPTION
FIGURE 6. CONTROL CONSOLE ASSEMBLY
4-8MPHSWITCH
SPEEDCONTROLDIAL
KEYSWITCH
HAZARDLIGHTSWITCH
LIGHTSWITCH
THROTTLE CONTROL
LEVER
HORN BUTTON
TURN SIGNAL BUTTON
CONTROL CONSOLE ASSEMBLY
Thisassemblyhouses allofthe controlsyouneed todriveyour HurricanePMV.
WARNING! Keep the console free from moisture. In the event that the console becomes
exposed to moisture, do not attempt to operate the Hurricane PMV until it has been dried
thoroughly.
Battery Condition Meter
Wheneveryouhavethe key fully inserted, this meter gives an approximate reading of your Hurricane PMV’s
batteryvoltage. Seefigure 6.
Horn Button
Thekeymust befullyinsertedinto thekeyswitchfor thehorntobe operational.Thisbuttonactivates awarning
horn.Donot hesitate tousethewarning horn whenitsusecouldprevent accident orinjury. See figure6.
Throttle Control Lever
ThisleverallowsyoutocontroltheforwardspeedandthereversespeedofyourHurricanePMVuptothemaximum
speedyoupresetwith thespeedadjustmentdial.Placeyourrighthandontherighthandgripandyourlefthandonthe
lefthandgrip.UseyourrightthumbtopushtherightsideofthelevertodisengageyourHurricanePMV’sbrakeand
moveforward.ReleasetheleverandallowyourHurricanePMVtocometoacompletestopbeforepushingtheother
sideof thelevertomoveinreverse.When thethrottleiscompletelyreleased,itautomaticallyreturnstothe center
(stop)position andengagesyourHurricanePMV’sbrake. Seefigure6.
BATTERYCONDITIONMETER
TURN SIGNAL BUTTON
KEY
THROTTLE CONTROL
LEVER

14 HurricanePMV
ONBOARDBATTERY
CHARGER
ELECTRONIC
CONTROLLER
MODULE
AMMETER
Speed Adjustment Dial
Thiscontroldial allows you to preselect and limit your Hurricane PMV’s top speed.Theimageof the tortoise
representstheslowestspeed setting. Theimageofthehare represents the fastestspeedsetting. Seefigure 6.
Key Switch
ToturntheHurricanePMVon,fullyinsertthekey.ToturntheHurricanePMVoff,pullthekeyout.Seefigure6.
4 mph - 8 mph Switch
Thisswitchlimits the HurricanePMV’s topspeedtoeither 4 or8mph.See figure 6.
Light Switch
Thisswitch operatestheheadlight, andalsooperates theoperationaltaillights.Seefigure6.
Hazard Light Switch
Thehazardlightswitch operates theamberhazardlightson both thefrontandbackof the HurricanePMV. See
figure6.
REAR SECTION
Theutilitytrayislocatedintherearof theHurricanePMV undertherear shroud.Seefigure 7.Therear shroudis
securedinplacebysmallreusablefastenerstrips.
FIGURE 7. UTILITY TRAY
V. DESCRIPTION
MAINCIRCUIT BREAKER
(RESET BUTTON)
ANTI-TIPWHEEL
ANTI-TIPWHEEL
MANUALFREEWHEEL
LEVER

15HurricanePMV
V. DESCRIPTION
OnBoard Battery Charger
The batterychargeris locatedintheleft corner of theutilitytray. See figure7.This isagraycolored plastic box
witha greenLEDindicatoronthe exteriorofthe case.Themainpowercord extendsfromthechargerand should
becoiledtothesideofthetrunk.Usethereusablefastenerstrapto coil the power cord.
To ensure that the chargeranditspowercorddonotbecomedamaged, exercise caution when storing personal
itemsinthe electronicsmodule.Also beawarethat thebatterychargercouldwarm upduringbattery charging.
Electronic Controller Module
Theelectronic controllermoduleis ontherightsideof theutilitytray. Seefigure7.Thiscontrollerreceives direc-
tionsfromthe control consoleassemblyandsends power tothemotor,thebrakes,and thelightingsystem.
WARNING! Keep the electronic controller module free from moisture. In the event that
the electronics become exposed to moisture, do not attempt to operate the Hurricane
PMV until it has been dried thoroughly.
Main Circuit Breaker
Whenthevoltage inyourHurricanePMV’sbatteries becomes lowandyourHurricane PMVisheavilystrained
becauseofexcessive loads or steepinclines,themain circuit breakermaytripto protect your HurricanePMV’s
motorandelectronics from damage.The main circuitbreakerismounted on theelectroniccontrollerassembly.
Seefigure7.Themaincircuit breaker reset button pops out when thebreakertrips.Whenthebreakertrips,the
entireelectricalsystemofyourHurricanePMVis shut down.Allow a minute or so for your Hurricane PMV’s
electronicsto“rest.” Push inthereset button toresetthebreaker.If thebreakertripsfrequently, you mayneedto
chargeyour batteriesmoreoften.Youmayalso need tohaveyourHurricanePMVdealerperform a loadteston
yourHurricanePMV’sbatteries. Ifthemaincircuitbreakertripsrepeatedly,seeyourauthorizedPrideproviderfor
service.
Ammeter
The ammeter is located on the utility tray. See figure 7.You can check the charge level of the batteries by the
ammeter.Thebatterychargermustbe pluggedintoapoweroutlettoobtainareading.Whentheamperagereading
isatornear zero (0)amps,thebatterycharging is complete.
Anti-Tip Wheels
Theanti-tip wheels are a vital safety feature of your HurricanePMV.Never remove the anti-tip wheels. They
preventtheHurricanePMVfromtippingbackwardsonanincline.Seefigure7.
Handbrake (Optional)
The handbrake lever is located on the tiller handle. It offers additional stopping power.You must release the
throttlewhenusing thisbrake,otherwisetheHurricanePMVmaynotcometoacompletestop.
Manual Freewheel Lever
WhenyouneedtopushyourHurricanePMVforshortdistances,youcanplace itin manualfreewheel mode. The
manualfreewheellever is locatedontheend of themotorassembly(right rearofthePMV). Pull thisleverupto
disablethedrivesystem.Themotorisalsoelectricallydisengagedfromthecontrolboxandwillnotrunwhenyou
press the throttle lever. See figure 7.

16 HurricanePMV
BATTERIES AND BATTERY CHARGING—FREQUENTLY ASKED QUESTIONS (FAQs)
Howdoesthechargerwork?
WhenyourHurricanePMV’s batteryvoltageis low,thechargerworks extraandsends moreelectricalcurrent to
thebatteriestobring up their charge.As the voltage of thebatteriesapproachesafullcharge,thechargerworks
lesstocomplete thechargingcycleby sendinglessand less electricalcurrentto the batteries.Whenthe batteries
arefully charged,thecurrent beingsenttothemfrom thechargerisatnearly zeroamperage.Therefore, whenthe
chargerispluggedin,it maintainsthechargeonyourHurricanePMV’sbatteries, butit doesnotoverchargethem.
We do notrecommendthatyou chargeyourHurricane PMV’s batteriesformorethan 24 consecutivehours.
Whatdoesthe LED onthe charger indicate?
ThegreenLEDturnsonafterthebatterieshavebeen fullycharged. Insome instances,the greenLED maystayon
afterthe chargerhasbeen unpluggedfromthewalloutlet.Althoughusersmay perceivethisasachargermalfunc-
tion,itisanormalcondition. The green LED goes off when the batteriesreach26VDC,whichmaytakea few
minutes.
CanI use a differentcharger?
Forthesafest,mostefficient,and balanced charging of your Hurricane PMV’sbatteries,wepreferandhighly
recommendthesimultaneous chargingofbothbatteries byuseof theonboardbatterycharger.
Howoften must I chargethe batteries?
Twomajorfactors mustbeconsideredwhen decidinghowoftento chargeyour HurricanePMV’sbatteries.
!AlldayPMV use on adailybasis.
!InfrequentorsporadicPMV use.
With these considerations in mind, you candeterminejusthowoftenandfor how long you should chargeyour
HurricanePMV’sbatteries.We designedtheonboardchargersothatit does notoverchargeyourPMV’sbatter-
ies(do notchargethemformorethan 24consecutivehours).However,youmayencounter someproblemsifyou
do not charge your batteries often enough and if you do not charge them on a regular basis. Follow the five
guidelinesbelow toprovidesafe andreliablebatteryoperationand charging.
!If you use your Hurricane PMV daily, charge its batteries as soon as you finish using it for the day.Your
HurricanePMVwillbereadyeachmorningtogiveyoua“fullday”ofservice.Werecommendthatyoucharge
yourHurricanePMV’sbatteriesfor8to 14 hours afterdailyuse.
!If you use your Hurricane PMV once a week or less, charge its batteries at least once a week for 12 to 14
hoursata time.
!KeepyourHurricanePMV’sbatteriesfullycharged.
!Avoid deeplydischargingyourHurricanePMV’sbatteries.
!DonotchargeyourHurricane PMV’sbatteries formorethan24 consecutive hours.
VI. BATTERIES AND CHARGING

17HurricanePMV
HowcanIgetmaximumrange or distance per charge?
Rarelywillyouhave idealdriving conditions;smooth,flat,harddrivingsurfaceswithnowindorcurves.Youwill
often face hills, sidewalk cracks, uneven and loosely packed surfaces, curves, and wind.All of these driving
conditionsaffectthedistanceorrunningtimeperbatterycharge.Thefollowingareafewsuggestionsforobtaining
themaximum rangeper batterycharge.
!Alwaysfully chargeyour HurricanePMV’sbatteries priortoyourdailyuse.
!Maintain30psi (poundspersquare inch)inall ofyourHurricanePMV’stires.
!Planyourrouteahead to avoid as manyhills,cracked,broken,or soft surfaces as possible.
!Limityourbaggageweighttoessentialitems.
!Tryto maintainanevenspeedwhile yourHurricanePMVisinmotion.
!Avoidstop-and-godriving.
Whattype and sizeof battery should I use?
We recommend deep-cycle batteries that are sealed and maintenance free. Both Sealed Lead-Acid (SLA) and
Gel Cell are deep-cycle batteries that offer similar performance in your Hurricane PMV. Do not use wet-cell
batteries,which haveremovablecaps.
NOTE: Do not remove the caps from sealed batteries. Water cannot be added to sealed batteries. Cap
removal voids the battery warranty and may cause damage to the batteries and to your Hurricane PMV.
Use these specifications to reorder deep-cycle batteries:
Type: Deep-cycle (sealed lead-acidorgelcell)
Size: U-1
Voltage: 12 voltseach
Amperage: 32AH (amp hours) or 40AH(amphours)
TochangeabatteryinyourHurricanePMV:
1. Remove theseatandthe rear shroud.SeeIX.“Disassembly andAssembly.”
2. Disconnect thebatterytie-downstrap.
3. Disconnect thebatterycablesfromthe electroniccontrollermodule.
4. Disconnect thebatterycables fromthebatteryterminals.
5. Remove theoldbattery.
6. Place anewbatteryin the batterywell.
7. Connect theredbatterycableto the positive(+)batteryterminal.
8. Connect theblackbatterycable to thenegative(-)battery terminal.
9. Reconnect thebatterycables totheelectroniccontroller module.
10. Reconnectthe battery tie-down strap.
11. Reinstalltherear shroud andtheseat.
VI. BATTERIES AND CHARGING
WARNING! Battery posts, terminals and related accessories contain lead and lead com-
pounds. Wash hands after handling.

18 HurricanePMV
Why do my new batteries seem weak?
Deep-cyclebatteriesemployadifferentchemicaltechnologythanisusedincarbatteries,nickel-cadmiumbatteries
(nicads),orinothercommonbatterytypes. Deep-cyclebatteriesarespecificallydesignedtoprovidepower,draindown
theircharge,andthenacceptarelativelyquickrecharge.
We workcloselywithourbatterymanufacturersto providebatteriesthatbestsuityourHurricane PMV’sspecific
electricaldemands.Freshbatteries arrive daily at Prideandareshippedfully charged to ourcustomers.During
shipping,thebatteriesmayencountertemperature extremes that may influence their initial performance. Heat
diminishesthechargeonthebattery; coldslowsthe availablepowerand extendsthetime neededtorecharge the
battery.
Itmaytake afewdaysfor thetemperatureof your HurricanePMV’sbatteriesto stabilize andadjustto their new
roomorambient temperature.Moreimportantly, ittakesafew chargingcycles (apartialdrain followedbyafull
recharge)toestablishthecriticalchemicalbalancethatisessentialtoadeep-cyclebattery’speakperformanceand
longlife.
Pleasefollowthese stepstoproperly break inyourHurricane PMV’s newbatteriesformaximum efficiencyand
servicelife.
1. Fullyrechargeany newbatterypriortoitsinitialuse.Thischargingcyclebringsthebatteryuptoabout88%of
itspeak performancelevel.
2. Operate your new HurricanePMVinfamiliarandsafeareas. Drive slowly at first, and donottraveltoofar
fromyourhomeorfamiliarsurroundingsuntilyouhave becomeaccustomedto yourHurricanePMV’s con-
trolsandhave properly brokeninyourPMV’sbatteries.
3. Fully rechargethebatteries.They should nowbeat over 90%oftheirpeak performancelevel.
4. Operate yourHurricanePMVagain.
5. Fullyrechargethebatteriesagain.
6. Afterfourorfivechargingcycles,thebatteriesareabletoreceiveachargeof100%of their peakperformance
levelandareable to last foranextendedperiodof time.
HowcanIensuremaximumbatterylife?
Fullychargeddeep-cycle batteriesprovidereliable performanceandextended batterylife.Keep yourHurricane
PMV’sbatteriesfully chargedwheneverpossible. Batteriesthat areregularlyanddeeplydischarged,infrequently
charged,orstoredwithoutafullchargemaybepermanentlydamaged,causingunreliableperformanceandlimited
servicelife.
HowshouldIstore my Hurricane PMVandits batteries?
Ifyouplan onnotusingyour Hurricane PMVforan extended periodoftime,it isbestto:
!Fullychargeits batteriespriorto storage.
!Disconnectthe batteryharnessesfromtheelectronic controllermodule.
!Storeyour HurricanePMVin awarmdry environment.
!Avoid storingyourHurricane PMVwhereitwillbe exposedtotemperature extremes.
WARNING! If your Hurricane PMV’s batteries do become frozen, do not attempt to charge
them. Cold or frozen batteries should be allowed to warm up for several days prior to
recharging.
VI. BATTERIES AND CHARGING

19HurricanePMV
Forprolonged storage,youmaywishto placeseveralboards undertheframeofyour HurricanePMVtoraisethe
PMV off of the ground. This takes the weight off of the tires and minimizes the possibility of flat spots from
developingontheareasofthetirescontactingthe ground.
Whataboutpublictransportation?
Ifyouintend tousepublictransportation whileusingyourPMV, youmustcontact in advancethetransportation
providertodeterminetheirspecificrequirements.
VI. BATTERIES AND CHARGING

20 HurricanePMV
PRE-RIDE ADJUSTMENTS AND CHECKS
!Haveyou fullychargedthe batteries?SeeVI. “BatteriesandCharging.”
!Arethe manualfreewheelleversinthedrive(up) mode?SeeV.“Description.”Never leavethefreewheel
leverpusheddownunless youare manuallypushingyourHurricanePMV.
!Isyour proposed path clear of people, pets, and obstacles?
!Haveyouplanned yourroutetoavoid adverseterrainand as manyinclinesas possible?
!Areyoupositioned comfortablyinthe seat?See“Getting OnYourHurricanePMV,” below.
!Istheseatatthe proper height? See VIII.“ComfortAdjustments.”
!Istheseatlocked securely in place? See VIII. “ComfortAdjustments.”
!Isthetillerhandleatacomfortablesettingand lockedsecurelyinplace? See VIII.“ComfortAdjustments.”
!Isthekey fullyinsertedintothe keyswitch? See V.“Description.”
!Isthespeedadjustment dial set toaslowsetting? V. “Description.”
!Areyougraspingthehandgripswithathumbrestingoneachofthethrottlelevers? SeeV.“Description.”
!DoesyourHurricane PMV’s horn workproperly?
GETTING ON YOUR HURRICANE PMV
1. Make certainthatthekey is removedfromthekey switch.
2. Standattheside of your Hurricane PMV.
3. Push down on the seatrotationlevertounlocktheseatandrotatetheseat until it faces you; release the seat
rotationleverto lock theseatsecurely in place.
4. Positionyourselfcomfortablyandsecurelyintheseat.
5. Push downontheseat rotationleverandrotate theseatuntilyou face forward;releasethe seat rotationlever
tolocktheseat securely inplace.
6. Make certainthatyourfeetare safely onthefloorboard.
OPERATING YOUR HURRICANE PMV
Afterplanningyourroute:
!Setthe4 - 8mphswitch to yourdesiredmaximumspeed of4or8 mph; thensetthespeed adjustmentdialto
yourdesiredspeed. Werecommendyou initiallysetthe 4-8mph switchto4 mphandthespeed adjustment
dialtothe tortoise(slowestspeedsetting).
!Insertthekey intothekeyswitch.
!Withyourhandsonthehandgrips,useyourthumb to gently push the right throttle lever to disengage your
Hurricane PMV’sbrakesandmove forward; theelectricbrake automatically disengagesandtheHurricane
PMVacceleratessmoothly to the speedyousetwith the speedadjustmentdial.
!Pullonthe lefthandgripto steeryourHurricanePMV totheleft.
PullontherighthandgriptosteeryourHurricanePMVtotheright.
!Movethetiller tothecenter positiontodrivestraight ahead.
!Gentlyreleasethe throttle levertodecelerateand come toacompletestop. The electricbrakeautomatically
engageswhenyour Hurricane PMVcomestoastop.
!Tomovein reverse,useyour thumbtogently pushtheleftthrottle levertodisengage yourHurricanePMV’s
brakesandmoverearward.
VII. OPERATION
