Pride Sonic User manual

Sonic
Pride Mobility Products
UK
ACN# 088 609 661

Page 2 www.pridemobility.com Rev. S/072706
Jazzy 1100Sonic
Copyright © 2006
Pride Mobility Products
INFMANU2527/Rev.S/072706
Introduction
Your new Pride Illustrated Parts Breakdown (IPB) Manual has been compiled from the latest product information available
at the time of publication. Pride Mobility Products reserves the right to make changes and updates to this manual and to the
product(s) it represents. Any changes, updates, or improvements to the product(s) may result in slight differences between
this manual and the product you purchased.
An IPB is an illustrated parts listing of all product components which have maintenance significance. IPB’s utilize “ex-
ploded” drawings to detail the individual components for each assembly and an itemized list of reference numbers, part
numbers, descriptions, and quantities per assembly. Some parts may be included in an assembly but may not be available for
purchase separately. Refer to the parts list to locate the part numbers for assemblies and components for ordering what you
need.
To achieve proper identification and relationship of detail parts and next higher assemblies, parts listings are presented in a
convenient alphanumeric reference system. Reference numbers for parent assemblies identify one part number that can be
used to order all of the components listed within it. Components of an assembly will have the same alpha character as its
parent assembly.
For example, the parent assembly part number using reference number of A1 — A4 is the only number you need to place
an order for parts with references of A1, A2, A3, and A4. Instead of ordering 4 separate parts, use the parent assembly
part number to get the complete assembly.
Master assembly part numbers have reference numbers that include several subassemblies. By ordering parts using master
assembly part numbers, you can save a lot of time and reduce the chance for error.
For example, A1 — G10, a master assembly reference number, includes all components of assemblies A, B, C, D, E, F,
and G. Use caution when ordering assemblies. Check to see if a master assembly part number exists for the components
that you need. If an entire master assembly is not needed, then the individual assembly part number (i.e. for reference
number G1 — G10) will be sufficient to use for ordering.
Asterisks (*) and NOTES are used throughout this service manual to point out important information regarding assembly
structure and contents.
For example, in some illustrations, only the left OR right side is shown. In other drawings, only the front OR back is
depicted. The part numbers for ALL components are listed. An asterisk will also be used to indicate which components
are not illustrated.
Thank you for choosing products from Pride Mobility Products.

Jazzy 1100
Rev. S/072706 www.pridemobility.com Page 3
Sonic Table Of Contents
SECTION I.
Frame Assembly .......................................................................................................................................................................................... 4
Tiller ..................................................................................................................................................................................................... 4
Front ..................................................................................................................................................................................................... 6
Fork ...................................................................................................................................................................................................... 8
Rear .................................................................................................................................................................................................... 10
Seat ..................................................................................................................................................................................................... 12
Basket ................................................................................................................................................................................................. 14
SECTION II.
Drive Assembly ......................................................................................................................................................................................... 16
SECTION III.
Electronics Assembly ................................................................................................................................................................................. 18

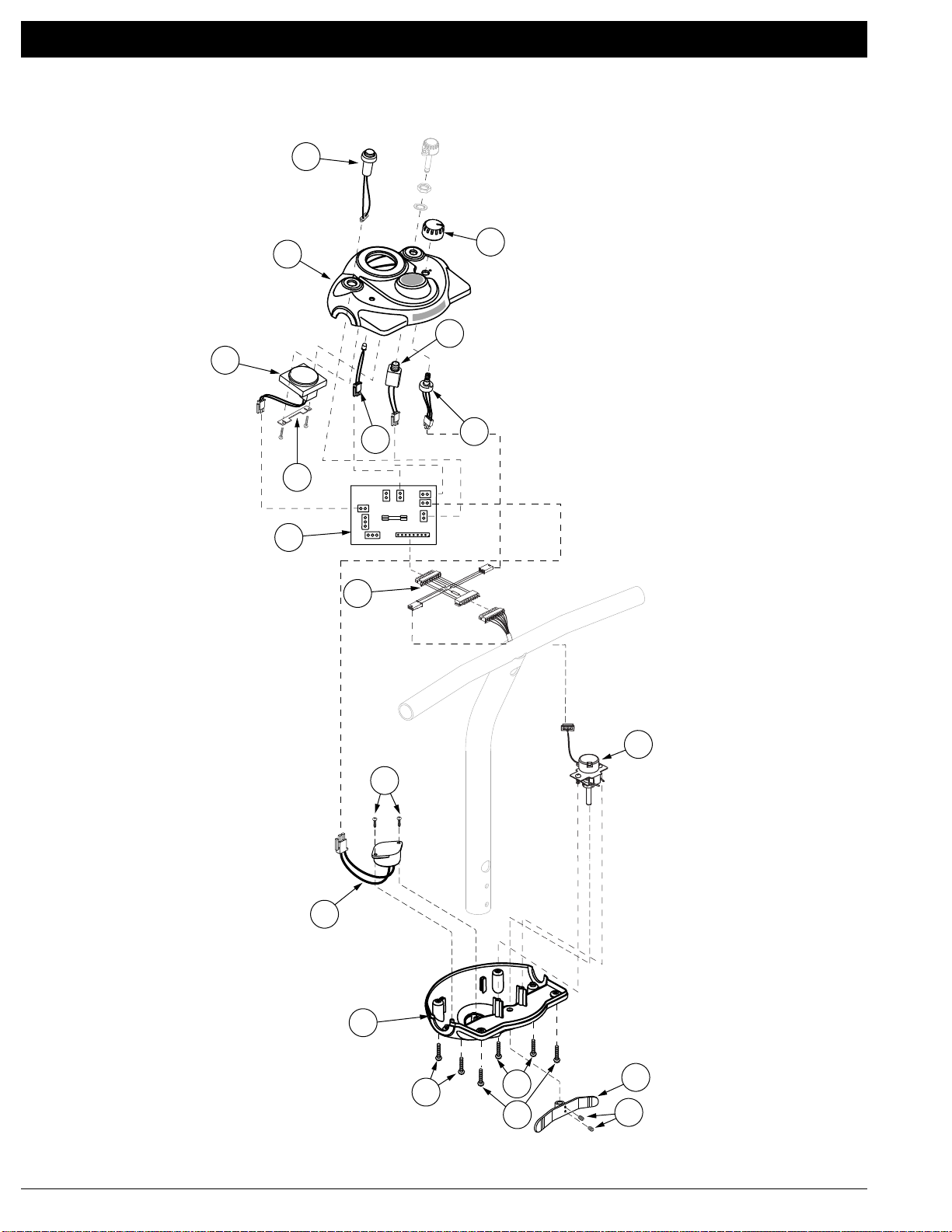

Console ............................................................................................................................................................................................... 18
SECTION IV.

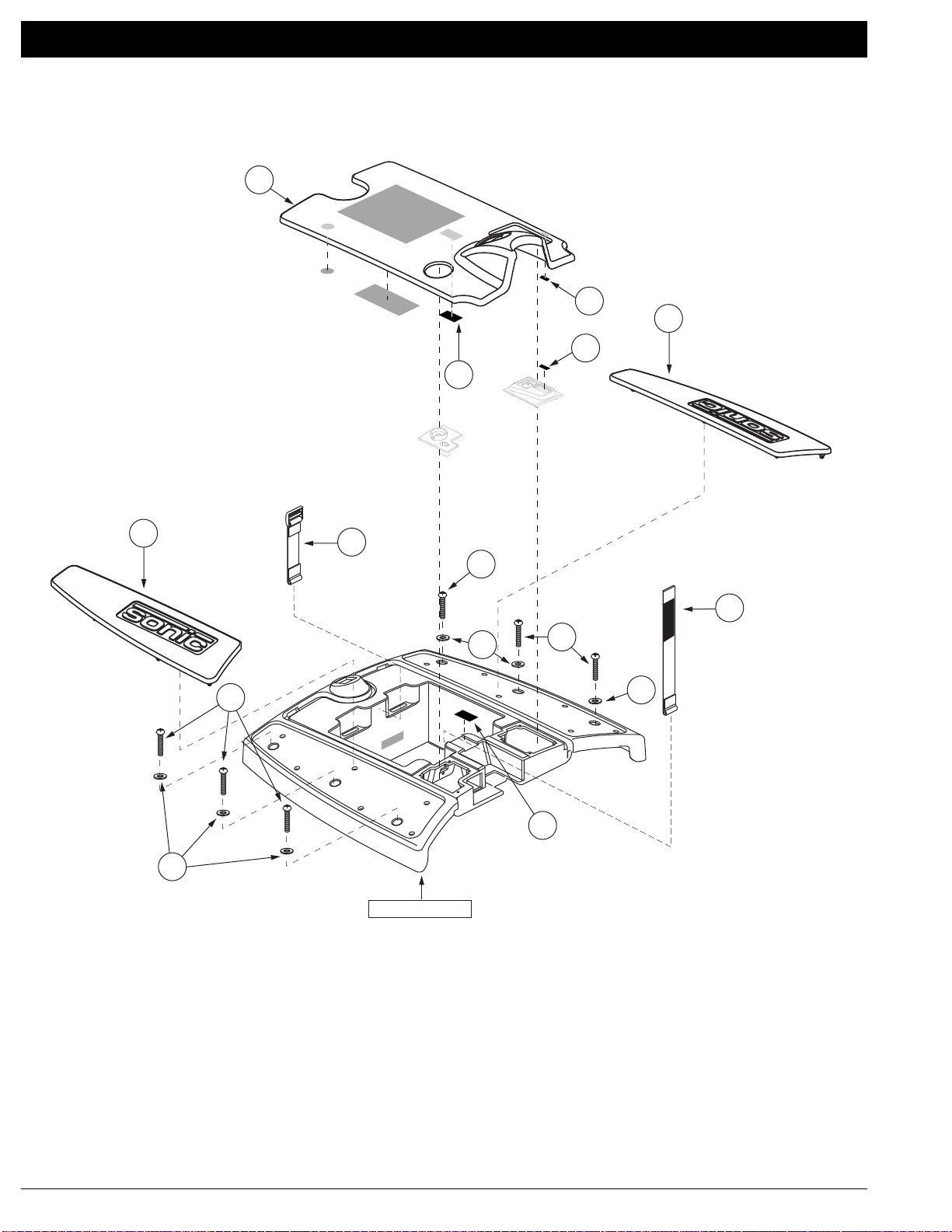

Shroud Assembly ....................................................................................................................................................................................... 20
Front ................................................................................................................................................................................................... 20
Rear .................................................................................................................................................................................................... 24
SECTION V.
Wheel Assembly ........................................................................................................................................................................................ 26
Front ................................................................................................................................................................................................... 26
Rear .................................................................................................................................................................................................... 27
SECTION VI.
Owner’s Package ....................................................................................................................................................................................... 28
SECTION VII.
Decal Package ........................................................................................................................................................................................... 29
APPENDIX A.
Electrical System Diagram ........................................................................................................................................................................ 30

Page 4 www.pridemobility.com Rev. S/072706
Jazzy 1100SonicI. Frame Assembly — Tiller
A2
A3
A5
A7
A6
A4
A1
A4
B1
B7
B3
B2 B5
B6
B8
B4

Jazzy 1100
Rev. S/072706 www.pridemobility.com Page 5
Sonic I. Frame Assembly — Tiller
A1 — A7
A1
A2
A3
A4
A5
A6
A7
B1 — B8
B1
B2
B3
B4
B5
B6
B7
B8
REF #
FRMASMB3745
DWR9905E030
DWR9905H010
DWR1020H001
DWR9905C015
PROHDLC1042
SCRSHCS1069
NUTNYLK1019
FRMASMB3749
DWR9905C003
SCRSHCS1111
NUTNYLK1019
DWR9905C004
SPGRAW1004
DWR9998A016
SCRHHCS1364
DWR9998B010
PART #
TILLER,ASSY,SC50, SONIC, VERSION 2
TILLER,WELDMENT,SC50, SONIC, VERSION 2,E-9905-030
ELECTRONIC,HARNESS,TILLER, FRONT TO REAR,SONIC,H-9550-010
TILLER,BOOT,RUBBER, FRONT TO REAR,H-1020-001
GRIP,5.25"L,HAND,BLACK,FOAM,C-9905-015
HAND GRIP,RUBBER,TRANSPORTATION, SC50
SCREW, SHCS,BZ,M6-1.0 X 35 MM
NUT,NYLOCK,BLACK ZINC,M6-1.0
TILLER,ASSY,PIVOT, UPPER AND LOWER,SC50 SONIC
TILLER,KNUCKLE,ADJUST, BOTTOM, SONIC,C-9905-003
SCREW,SHCS,BLACK ZINC,M6-1.0 X 40MM,GRADE 12.9
NUT,NYLOCK,BLACK ZINC,M6-1.0
TILLER,KNUCKLE,ADJUST,TOP,C-9905-004
SPRING,MUSIC WIRE,3/8" X 1 1/2",TILLER,REVO,13.72MM OD X 25.4MM FREE LENGTH,A-
9998-023
SPACER, NYLON,11MM ID X 20MM OD X 1.5MM THK
SCREW,HHCS,BLACK ZINC,M10-1.5 X 60MM,GRADE 8.8
TILLER,KNOB,ADJUSTMENT, REVO,B-9998-010
DESCRIPTION
1
1
1
1
2
1
2
2
1
1
2
2
1
1
1
1
1
QTY

Page 6 www.pridemobility.com Rev. S/072706

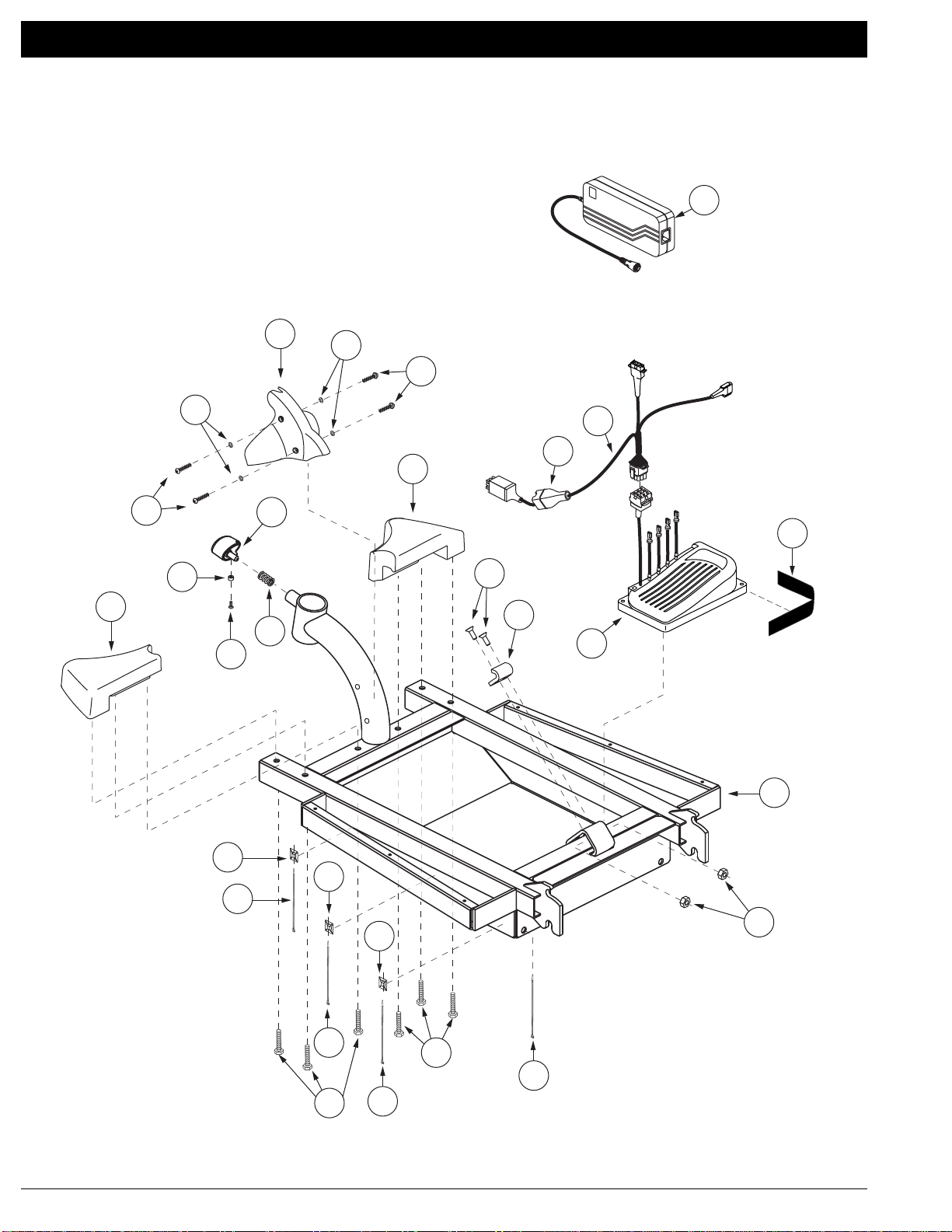

Jazzy 1100SonicI. Frame Assembly — Front
A10
A16
A17
A14
A15
A15
A19
A9
A8
A4
A5
A5
A5
A5
A4
A4
A11
A18
A18
A20
A20
A12
A2
A7
A6
A1
A13
A3
B1

Jazzy 1100
Rev. S/072706 www.pridemobility.com Page 7
Sonic I. Frame Assembly — Front
A1 — A20
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
B1
REF #
FRMASMB4087
DWR9905E001
CTLDC1248
VELDBLS1001
PLSTIE1006
PLSTIE1003
DWR9905H002
DWR1020H002
SPGRAW1064
DWR9905A013
DWR9905C016
SCRPPH1050
SCRSHFH1025
NUTNYLK1019
DWR9905E027
SCRPPH1044
DWR9905D020
DWR9905D023
SCRHHCS1173
DWR9905A008
WASSTND1026
ELEASMB4754
PART #
FRAME,ASSY,FRONT,SC50INT, SONIC INTERNATIONAL, OFFBOARD CHARGER READY
FRAME,FRONT WELDMENT,SONIC
CONTROLLER,CURTIS,40AMP,SONIC
REUSABLE FASTENER,1/2"W X 8"L,HOOK & LOOP
TIE WRAP,BLACK,3/4" X 3/4",CANAMOUNT, HOLDER
TIE WRAP,BLACK,7"
ELECTRONIC,HARNESS, BATTERY BOX,FRONT-TO-REAR, SONIC
BOOT,RUBBER, FRONT-TO-REAR, BATTERY BOX SECTION,H-1020-002
SPRING,15.5MM FL X 0.90MM WIRE DIA X 10.80MM OD X RATE: 2.46N/MM,(LEE SPRING: LCM-
090F-3)
BUSHING,BLACK,ZINC,4MM ID X 6MM OD X 3.81MM TH,SONIC
KNOB,STEERING LOCK, SONIC,C-9905-016
SCREW,PPH,BLACK ZINC,M4-.7 X 10MM
SCREW, SHFH,BLACK,M6-1.0 X 10MM
NUT,NYLOCK,BLACK ZINC,M6-1.0
GUARD,TOE, BLACK, PLASTIC, SONIC,E-9905-027
SCREW,PPH,BLACK ZINC,M4-.7 X 12MM
BUMPER,FRONT,LEFT, BLACK, SELF SKINNING FOAM, SONIC,D-9905-020
BUMPER,FRONT,RIGHT, BLACK, SELF SKINNING FOAM, SONIC,D-9905-023
SCREW, HHCS,ZINC,M6 x 1 x 15MM
LATCH,BRACKET,CATCH, SC50,A-9905-008
WASHER, FLAT,ZINC,M4
ELECTRONIC,ASSY,CHARGER,OFFBOARD,LOW INHIBIT,100V-240V,2 AMP,W/XLR HARNESS,
CE/CUL/UL/TUV APPROVED,(UNIVERSAL:24BC2000T-4),W/UNITED KINGDOM POWERCORD
DESCRIPTION
1
1
1
1
3
4
1
1
1
1
1
1
2
2
1
4
1
1
6
1
4
1
QTY

Page 8 www.pridemobility.com Rev. S/072706
Jazzy 1100SonicI. Frame Assembly — Fork
A8
A7
A6
A4
A4
A4
A4
A2
A3 A3
A5
A5
A1
B1
B4
B3
B2
B6
B4
B5
A7
*Note: If an item has no callout, it is being shown for assembly purposes.

Jazzy 1100
Rev. S/072706 www.pridemobility.com Page 9
Sonic I. Frame Assembly — Fork
A1 — B6
A1
A2
A3
A4
A5
A6
A7
A8
B1 — B6
B1
B2
B3
B4
B5
B6
REF #
FRMASMB3746
DWR9905D006
DWR9905D005
DWR9905D004
SCRPPH1128
DWR9905A011
SCRHHCS1146
DWR9998A008
NUTNYLK1011
HDWASMB1000
WASLOCK1021
INDPART1820
INDPART1804
INDPART1821
INDPART1803
INDPART1819
PART #
FORK,ASSY,SONIC
FORK,WELDMENT,SONIC,D-9905-006
PLASTIC,FENDER,MAIN,SONIC
FRAME,FENDER,PLASTIC, SIDE, SONIC,D-9905-004
SCREW, PPH,BLACK,M3.5-.6 X 10MM
DAMPER,BLACK,RUBBER,MOLDED, SONIC
SCREW,HHCS,BLACK ZINC,M8-1.25 X 95MM,GRADE 10.9
SPACER,0.43 OD X 0.34 ID,1.25MM THK,BEARING,FRONT TIRE,A-9998-008
NUT,NYLOCK,BLACK ZINC,M8-1.25
KIT,BEARING/RACE,KEMCO
WASHER, LOCK,1 ",FRONT FORK,B-1020-037
HEAD CUP, UPPER,CHROME,B-1020-036
CONE HEAD, UPPER,CHROME,C-1020-029
RETAINER,BALL
CONE HEAD,LOWER,CHROME,B-1020-034
HEAD CUP, LOWER,CHROME,B-1020-035
DESCRIPTION
1
1
1
2
4
2
1
2
1
1
2
1
1
2
1
1
QTY

Page 10 www.pridemobility.com Rev. S/072706

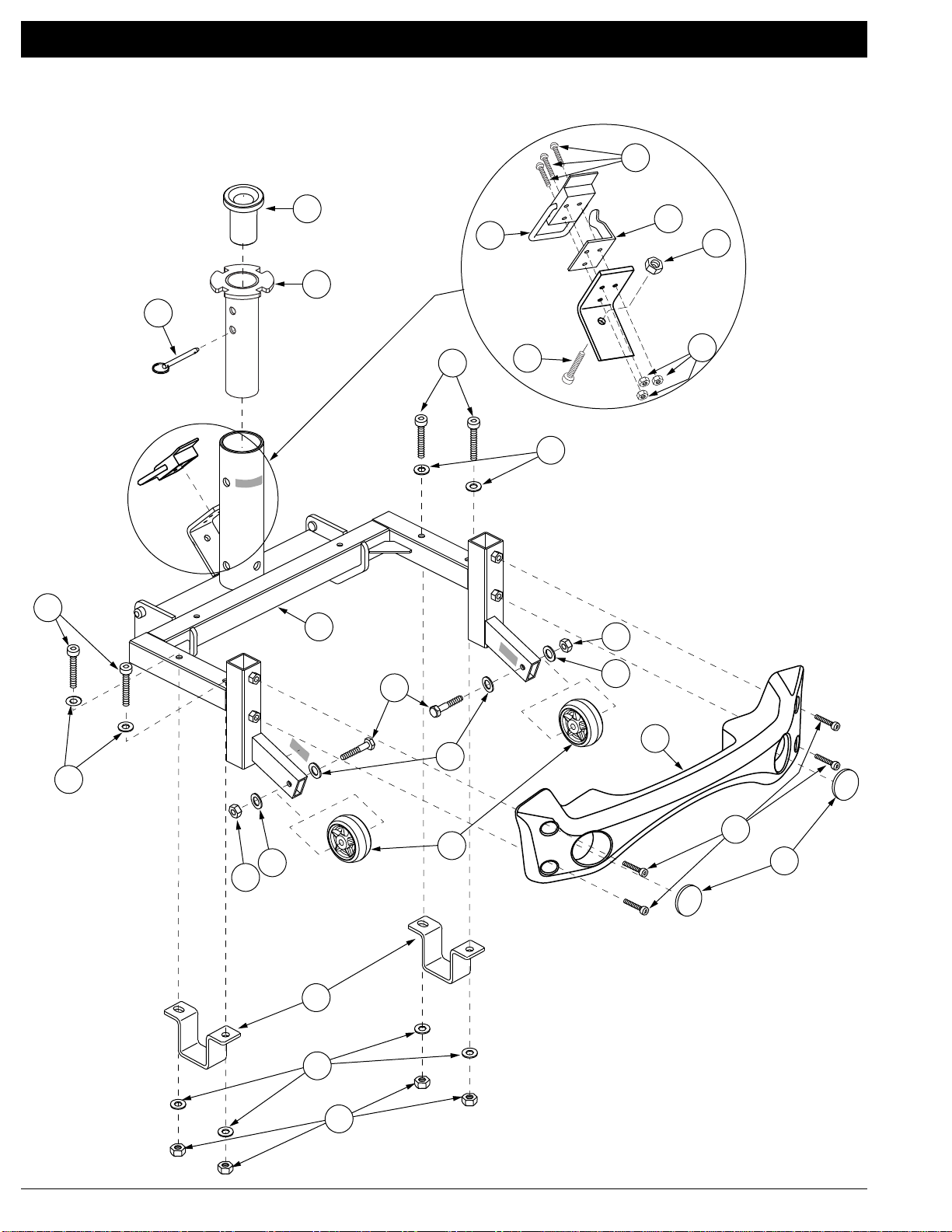

Jazzy 1100SonicI. Frame Assembly — Rear
A5
A6
A7
A8
A9
A4
B3
B1
A1
C3
C2
C1
B4
B2
B4
B3
B4
D3
D2
D4
D3
D2
D1
D3
F3
F1
F2

Jazzy 1100
Rev. S/072706 www.pridemobility.com Page 11
Sonic I. Frame Assembly — Rear
A1 — E1
A1
*A2
*A3
A4
A5
A6
A7
A8
A9
B1 — B4
B1
B2
B3
B4
C1 — C3
C1
C2
C3
D1 — D4
D1
D2
D3
D4
*E1
F1 — F3
F1
F2
F3
REF #
FRMASMB3904
DWR9905E013
DWR9930B016
SCRSETS1057
DWR9905B022
SCRPPH1113
NUTNYLK1020
SCRSHCS1065
NUTNJAM1020
DWR9905B034
WHLASMB1435
WHLATIP1000
SCRHHCS1061
NUTNYLK1045
WASMETR1026
FRMASMB3905
SCRSHCS1015
REFRED1004
DWR9905E005
HDWASMB1026
DWR9998A005
SCRSHCS1066
WASSTND1091
NUTNYLK1011
DRVASMB1425
FRMASMB4082
DWR5000A043
DWR9905C010
PINCOTD1006
PART #
FRAME,ASSY,REAR,SONIC
FRAME,WELDMENT,REAR, SONIC,E-9905-013
FREEWHEEL,HANDLE,YELLOW,SUNDANCER 2001,B-9930-016
SCREW, SET,BLACK,M4-.7 X 12MM
FRAME,MECHANISM,HOOK LOCK UP, SC50, SONIC,B-9905-022
SCREW, PPH,M4 X .7T X 13MM
NUT,NYLOCK,ZINC,M4-.7
SCREW, SHCS,BLACK ZINC,M8-1.25 X 25MM
NUT,NYLOCK JAM,BLACK ZINC,M8-1.25
LATCH,RETAINER,CATCH, SC50/3000,B-9905-034
WHEEL,ASSY,ANTI-TIP,SONIC
WHEEL,ANTI-TIP,LEGEND/CELEBRITY
SCREW, HHCS,M6-1.0 X 45MM,G2
NUT,NYLOCK,ZINC,M6-1.0
WASHER, FLAT,6MM ID X 13MM OD X 1MM TH
BUMPER,ASSY,REAR,SONIC
SCREW,SHCS,BLACK ZINC,M6-1.0 X 30MM,GRADE 12.9
REFLECTOR,RED,1",CCL
BUMPER,MOLDED,REAR, SONIC,E-9905-005
TRANSAXLE,ASSY,HARDWARE,MOUNTING, SONIC
BRACKET,AXLE MOUNT,BLACK,POWDER COAT,REVO,A-9998-005
SCREW, SHCS,BLACK ZINC,M8-1.25X40MM
WASHER, FLAT,M8
NUT,NYLOCK,BLACK ZINC,M8-1.25
MOTOR,ASSY,MAIN TRANSAXLE/MOTOR/BRAKE,CCL, (PM802-T02)
SEAT POST,ASSY,UPPER,2 HOLE, SC50
SEAT POST,BUSHING,1.000" ID X 1.310" OD X 2.112" TH X 2.00" FOD X 0.312"FTH,UPPER,A-
5000-043
SEAT POST,UPPER, WELDMENT,2 HOLE,CHROME,SONIC,C-9905-010
PIN,COTTERLESS DETENT W/RING,.375" DIA X 2.00" GRIP LENGTH,B-1005-169
DESCRIPTION
1
1
1
1
1
3
3
1
1
1
2
1
1
1
2
1
4
2
1
1
2
4
8
4
1
1
1
1
1
QTY
Refer to SECTION II. — Drive Assembly for the illustration.
Refer to SECTION II. — Drive Assembly for the illustration.
Refer to SECTION II. — Drive Assembly for the illustration and the parts list.
Notes :
*A2
*A3
*E1

Page 12 www.pridemobility.com Rev. S/072706
Jazzy 1100SonicI. Frame Assembly — Seat
D11
D10
D10
D9
D6
D13
D7
D8
C1
C8
C9
C9
C1
C4
C3
B1
B3
B2
C2
C5
C10
C11
C6
C7
C3
C2
C6
C7
D5
D4
D12
D12
D4
A2 A1
B3
D1
D1
D3
D3
C5
C4
C8
C10
C11
C8
C8
D2

Jazzy 1100
Rev. S/072706 www.pridemobility.com Page 13
Sonic I. Frame Assembly — Seat
A1 — E1
A1 — B3
A1
A2
*A3
*A4
B1 — B3
B1
B2
B3
C1 — D13
*C1 — C11
*C1 — C11
C1
C2
C3
C4
C5
C6
C7
C8
C9
C10
C11
D1 — D13
D1
D2
D3
D4
D5
D6
D7
D8
D9
D10
D11
D12
D13
*E1
REF #
SETASMB5273
SETASMB5164
SETBACK2248
SETBASE2544
FOMINDV1049
FOMINDV1048
PLSASMB1900
DWR1010E420
DWR1010E419
NUTNYLK1012
FRMASMB7927
FRMASMB7929
FRMASMB7928
DWR9998D026
ARM5543C000
DWR9995D015
SCRHHCS1302
NUTNYLK1012
WASSTND1053
SCRPRH1020
WASSTND1102
WASNYLN1083
SCRSHCS1141
NUTJAM1010
FRMASMB4063
SCRHHCS1287
DWR1030B028
WASMETR1055
DWR1000B152
SCRSHCS1111
NUTNYLK1019
DWR9998C016
PROHDLC1007
SPGRAW1010
SPCNYLN1058
DWR9998E022
PINCOTD1000
WASMETR1002
PINCLEV1005
PART #
SEAT,ASSY,MOLDED
PLASTIC,BLACK/GRAY(CHARCOAL),VINYL/FABRIC,18"W,16"D,14"H,LIMITED DUMP,VSCT
SEAT,ASSY,MOLDED PLASTIC,BLACK/GRAY(CHARCOAL),VINYL/FABRIC,18"W,16"D
SEAT BACK,COVER,BLACK/GRAY (CHARCOAL),VINYL/FABRIC,18"W,VSCT
SEAT BASE,COVER,BLACK/GRAY (CHARCOAL),VINYL/FABRIC,18"W,16"D,VSCT
CUSHION,FOAM BACK,18"W
CUSHION,FOAM BASE,18"W,16"D
PLASTIC,ASSY,18"W,16"D,MOLDED,SEAT BACK/SEAT BASE,VSCT
SEAT BACK,MOLDED,BLACK,PLASTIC,17"W,E-1010-420
SEAT BASE,MOLDED,BLACK,PLASTIC,17"W,16"D,E-1010-419
NUT, NYLOCK,ZINC,M8-1.25
SEAT FRAME,ASSY,MOLDED PLASTIC,LIMITED DUMP,STANDARD SEAT PARTS,VSCT
ARMREST,ASSY,BLACK,RIGHT,MOLDED PLASTIC SEAT,VISCOUNT
ARMREST,ASSY,BLACK,LEFT,MOLDED PLASTIC SEAT,VISCOUNT
ARMREST,WELDMENT,UPRIGHT TUBE W/SLOT,W/REINFORCEMENT BLOCK,D-9998-026
ARMREST,WELDMENT,SCOOTER,C-5500-043
ARMREST,LONG,PAD,BLACK,VISCOUNT,D-9995-015
SCREW, HHCS,BLACK ZINC,M8-1.25 X 45 MM,GRADE 8.8
NUT, NYLOCK,ZINC,M8-1.25
WASHER,FLAT,6MM ID X 13MM OD X 1MM TH
SCREW, PRH,M6 X 10MM X 1.0T,G2
WASHER, FLAT,BLACK,ZINC,M8
WASHER,NYLON,M8 ID X 20 OD X 1.5 THK
SCREW, SHCS,BLACK ZINC,5/16-18 X 1 3/4,GRADE 8
NUT,JAM,BLACK ZINC,5/16-18
SEAT FRAME,ASSY,PLATFORM,MOLDED PLASTIC SEAT
SCREW,HHCS,BLACK ZINC,M8-1.25 X 35MM,GRADE 10.9
BRACKET,SEAT PLATE LEVELING,B-1030-028
WASHER, FLAT,BLACK ZINC,8.2MM ID X 16MM OD X 1.0 MM TH,(MTS: 53108008)
HANDLE,LOCK KNOB,B-1000-152
SCREW, SHCS,BLACK ZINC,M6-1.0 X 40MM,GRADE 12.9
NUT,NYLOCK,BLACK ZINC,M6-1.0
LEVER,SEAT RELEASE,ZINC PLATED,REVO,C-9998-016
HANDLE,COVER,SEAT LOCK, SC150
SPRING, RAW,LEVER LOCKING SC150
SPACER, NYLON,13MM OD X 6.5MM ID X 1.0MM TH
SEAT BASE,WELDMENT,5°,REAR PITCH,REVO,E-9998-022
PIN,COTTERLESS DETENT W/RING,.250" DIA X 1.50" GRIP LENGTH,B-1005-168
WASHER, FLAT,M6 X 1MM THICK
CLEVIS PIN,ZINC PLATED,3/8" X 2"
DESCRIPTION
1
1
1
1
1
1
1
1
1
12
1
1
1
1
1
1
1
1
2
2
2
2
1
1
1
4
1
4
2
1
1
1
1
1
2
1
2
1
1
QTY
Not shown.
Not shown.
Both assemblies contain identical parts. There are left and right sides for assembly purposes.
Not shown.
Notes :
*A3
*A4
*C1 — C11
*E1

Page 14 www.pridemobility.com Rev. S/072706
Jazzy 1100SonicI. Frame Assembly — Basket
A1
A2
A2
A3
A3
*Note: If an item has no callout, it is being shown for assembly purposes.

Jazzy 1100
Rev. S/072706 www.pridemobility.com Page 15
Sonic I. Frame Assembly — Basket
A1 — A4
A1
A2
A3
*A4
REF #
FRMASMB4051
DWR9998E018
DWR9905C017
SCRSHCS1192
HDWINDV1024
PART #
BASKET,ASSY,12" X 8.50",FRONT, SONIC
BASKET,12" X 8.50",TILLER, OVAL,E-9998-018
BASKET, BRACKET,COMPLETE, FRONT, SONIC
SCREW,SHCS,BLACK ZINC,M6-1.0 X 20MM,GRADE 12.9
ALLEN KEY,5MM
DESCRIPTION
1
1
1
4
1
QTY
Not shown.
Notes :
*A4

Page 16 www.pridemobility.com Rev. S/072706
Jazzy 1100SonicII. Drive Assembly
B2
C5
A3
E1
C2
C3
A2
B1
B3 A1
C4
C7
C6
C2
C3
A2
A1
C1
D1
*Note: If an item has no callout, it is being shown for assembly purposes.

Jazzy 1100
Rev. S/072706 www.pridemobility.com Page 17
Sonic II. Drive Assembly
A1 — C7
A1
A2
A3
B1 — C7
B1 — B3
B1
B2
B3
C1 — C7
C1
C2
C3
C4
C5
C6
C7
D1
E1
REF #
DRVASMB1425
NUTNJAM1012
WASSTND1051
BRKINDV1086
DRVASMB1426
DRVASMB1427
DRVASMB1428
DRVMOTR1170
SCRSHCS1024
DRVASMB1429
DRVTAXL1014
KEYSTL1003
RNGRTAN1002
INDPART2228
INDPART2229
SCRSHCS1059
HDWINDV1049
DWR9930B016
SCRSETS1057
PART #
MOTOR,ASSY,MAIN TRANSAXLE/MOTOR/BRAKE,CCL, (PM802-T02)
NUT,NYLOCK JAM,ZINC,1/2-20,GRADE 5
WASHER,FLAT,0.50" ID X 1.0625" OD X 0.0625" TH
BRACKET,STRAIN RELIEF, REVO (A9998-026)
MOTOR,ASSY,TRANSAXLE/MOTOR/BRAKE,PM802-T02
MOTOR,ASSY,BRAKE, CCL,(CM80B-003)
BRAKE,ASSY,WARNER,4NM,STANDARD LOGIC,(WR198A203P1)
MOTOR,CCL,(CM808-007)
SCREW,SHCS,BLACK ZINC,8-32 X 0.375"
TRANSAXLE,ASSY,SHORT SHAFT,W/HARDWARE AND MOTOR,CCL,(CM80T-M01)
TRANSAXLE,SHORT SHAFT,20.5" SHAFT,CCL,(CM80T-005)
KEY,SHAFT,ASI-140/142 TRANSAXLE
RING, RETAINING,3/4"
SHAFT,COUPLER, CCL, PM (802-T02)
KEY,0.375" X 0.672" X 0.109",SHAFT COUPLER
SCREW, SHCS,BLACK,1/4-20 X 2.25"
O-RING,5/16" OD X 3/16" ID X 1/16" TH,BLACK, RUBBER
FREEWHEEL,HANDLE,YELLOW,SUNDANCER 2001,B-9930-016
SCREW, SET,BLACK,M4-.7 X 12MM
DESCRIPTION
1
2
2
1
1
1
1
1
4
1
1
2
2
1
1
2
2
1
1
QTY

Page 18 www.pridemobility.com Rev. S/072706
Jazzy 1100SonicIII. Electronics Assembly — Console
*Note: If an item has no callout, it is being shown for assembly purposes.
C10
C2
C9
C5
C7
C6 C8
C1
C3
C4
B2
B3
B2
E1
E2
A1
C11
B1
D1

Jazzy 1100
Rev. S/072706 www.pridemobility.com Page 19
Sonic III. Electronics Assembly — Console
A1
B1 — B3
B1
B2
B3
C1 — C11
C1
C2
C3
C4
C5
C6
C7
C8
C9
C10
C11
D1
E1 — E2
E1
E2
REF #
SHDASMB3274
SHDASMB3275
SHDRAWM2165
SCRPPH1110
SCRPPH1021
ELEASMB2867
CTLDC1283
HARUSHD2337
DWR9998H014
SCRPPH1096
HARUSHD2328
DWR9905H001
HARUSHD2329
DWR9905H009
DWR9905B029
DWR9905B035
DWR9905H020
ELEASMB2663
FRMASMB2821
DWR9998B017
SCRSETS1007
PART #
SHROUD,ASSY,CONSOLE TOP,BLACK TEXTURED,SONIC
SHROUD,ASSY,CONSOLE BOTTOM,BLACK TEXTURED,SONIC
SHROUD, REAR CONSOLE,RAW,SC50, SONIC
SCREW,PPH,BLACK ZINC,M3.5 X .35 X 13MM
SCREW,PPH,BLACK ZINC,M3-.5 X 10MM
ELECTRONIC,ASSY,CONSOLE,SC50, SONIC
ELECTRONIC,PCB BOARD,H-9955-015
ELECTRONIC,HARNESS,MOMENTART SWITCH,6",2 PIN,MOLEX CONNECTOR,H-9998-011
ELECTRONIC,HARNESS, HORN,REVO 2 PIN
SCREW, PPH,M2 X 5MM
ELECTRONIC,HARNESS,PHONO JACK,6",2 PIN,MOLEX CONNECTOR,H-9998-002
ELECTRONIC,HARNESS, STATUS LED,GREEN,SONIC
ELECTRONIC,HARNESS,VOLT METER,6",2 PIN,MOLEX CONNECTOR,H-9998-003
ELECTRONIC,SPEED POT W/HARNESS,100K,SPLIT SHAFT, KNURLED, SONIC
KNOB,GRAY,PLASTIC,SPEED POT,B-9905-029
ELECTRONIC,VOLTMETER,RETAINER, SONIC, SC50,B-9905-035
ELECTRONIC,HARNESS, TILLER INTERMEDIATE,SC50/60,H-9905-020
ELECTRONIC,ASSY,THROTTLE POT,REVO
STANDARD PARTS,ASSY,LEVER,THROTTLE CONTROL
WIG WAG,REVO,B-9998-017
SCREW, SET,M4-.7 X 6MM
DESCRIPTION
1
1
1
4
2
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
2
QTY
Notes :
Raw shrouds are not available individually. The assembly must be purchased.

Page 20 www.pridemobility.com Rev. S/072706
Jazzy 1100SonicIV. Shroud Assembly — Front
A5
H1
G1
F1
A4
F1
A4
F1
A4
A2
J1
A3
A6
A7
I1
A1a/A1b/A1c/A1d
*Note: If an item has no callout, it is being shown for assembly purposes.
