Illustrated Parts Breakdown
Go-Go ES8
UK

Go-Go ES8
2Rev.F/020617
®
Copyright © 2017
Pride®Mobility Products Corporation
www.pridemobility.com
INFMANU4248/Rev.F/020617
Your new Pride Illustrated Parts Breakdown (IPB) Manual has been compiled from the latest product information available
at the time of publication. Pride®Mobility Products Corporation reserves the right to make changes and updates to this
manual and to the product(s) it represents. Any changes, updates, or improvements to the product(s) may result in slight
differences between this manual and the product you purchased.
An IPB is an illustrated parts listing of all product components which have maintenance significance. IPB’s utilize
“exploded” drawings to detail the individual components for each assembly and an itemized list of reference numbers, part
numbers, descriptions, and quantities per assembly. Some parts may be included in an assembly but may not be available
for purchase separately. Refer to the parts list to locate the part numbers for assemblies and components for ordering what
you need.
To achieve proper identification and relationship of detail parts and next higher assemblies, parts listings are presented in a
convenient alphanumeric reference system. Reference numbers for parent assemblies identify one part number that can
be used to order all of the components listed within it. Components of an assembly will have the same alpha character as
its parent assembly.
For example, the parent assembly part number using reference number of A1 — A4 is the only number you need to
place an order for parts with references of A1, A2, A3, and A4. Instead of ordering 4 separate parts, use the parent
assembly part number to get the complete assembly.
Master assembly part numbers have reference numbers that include several subassemblies. By ordering parts using mas-
ter assembly part numbers, you can save a lot of time and reduce the chance for error.
For example, A1 — G10, a master assembly reference number, includes all components of assemblies A, B, C, D, E,
F, and G. Use caution when ordering assemblies. Check to see if a master assembly part number exists for the com-
ponents that you need. If an entire master assembly is not needed, then the individual assembly part number (i.e. for
reference number G1 — G10) will be sufficient to use for ordering.
Asterisks (*) and NOTES are used throughout this service manual to point out important information regarding assembly
structure and contents.
For example, in some illustrations, only the left OR right side is shown. In other drawings, only the front OR back is
depicted. The part numbers for ALL components are listed. An asterisk will also be used to indicate which components
are not illustrated. Illustrated Items without callouts are shown for assembly purposes.
Updates to the contents of this IPB will be made on a regular basis. Providers may retrieve updates immediately upon their
release by going to the Pride Service Website. The web address is www.pridemobility.com. We welcome any questions or
comments regarding the new Pride IPB Manual that you may have.
Please note that all pricing that is included with this manual is subject to change without any prior notice from Pride.
Thank you for choosing products from Pride®Mobility Products Corporation.
Introduction

Go-Go ES8 3Rev.F/020617
®
Table Of Contents
SECTION I.
Frame Assembly
Tiller..........................................................................................................................................................................4
Front.........................................................................................................................................................................5
Rear..........................................................................................................................................................................6
SECTION II.
Drive Assembly...............................................................................................................................................................7
SECTION III.
Electronics Assembly
Console....................................................................................................................................................................8
Controller..................................................................................................................................................................9
Battery Bag ..............................................................................................................................................................10
SECTION IV.
Shroud Assembly
Front.........................................................................................................................................................................11
Battery Cover ...........................................................................................................................................................12
Rear..........................................................................................................................................................................13
SECTION V.
Wheel Assembly
Front.........................................................................................................................................................................14
Rear..........................................................................................................................................................................15
SECTION VI.
Seat Assembly
Seat..........................................................................................................................................................................16
Under Seat Storage..................................................................................................................................................17
SECTION VII.
Decal Package................................................................................................................................................................18
SECTION VIII.
Owner’s Package............................................................................................................................................................20
APPENDIX A.
Electrical System Diagram..............................................................................................................................................21

Go-Go ES8
4Rev.F/020617
®
When applicable, assemblies are grouped
by color. All components with that color
are included in the assembly.
A1
B1
C1
D1
3-Wheel Upper Tiller
4-Wheel Upper Tiller
Pivot Assembly
Basket Assembly
A1
B1
3-Wheel
4-Wheel
Upper Tiller
I. Frame Assembly — Tiller
A1
B1
C1
D1
REF #
FRMASMB17084
FRMASMB16951
FRMASMB16178
ACCASMB2606
PART #
TILLER,ASSY,STANDARD,GO-GO ES,3 WHEEL
TILLER,ASSY,STANDARD,GO-GO ES,4 WHEEL
TILLER,ASSY,PIVOT,UPPER AND LOWER,S36
BASKET,ASSY,BLACK,PLASTIC,FRONT,S36
DESCRIPTION
1
1
1
1
QTY

Go-Go ES8 5Rev.F/020617
®
Steering Stem Assy
(Includes B1)
Bearing/Race kit
Main Frame Assy
(Includes D1)
Axle Assy
Bumper Assy
Seat Post Assy
When applicable, assemblies are grouped
by color. All components with that color
are included in the assembly.
A1
B1
C1
D1
E1
F1
I. Frame Assembly — Front
A1
B1
C1
D1
E1
F1
REF #
FRMASMB9238
HDWASMB1000
FRMASMB16953
FRMASMB9239
FRMASMB9240
FRMASMB16214
PART #
STEERING STEM,ASSY,4 WHEEL,SC44E
KIT,BEARING/RACE,KEMCO
FRAME,ASSY,FRONT,GO-GO ES,4 WHEEL
AXLE,ASSY,FRONT,4 WHEEL,SC44E
BUMPER,ASSY,FRONT,BLACK,SC44E
SEAT POST,ASSY,UPPER,2 HOLE,ADJUSTABLE W/PIN,S36
DESCRIPTION
1
1
1
1
1
1
QTY

Go-Go ES8
6Rev.F/020617
®
Motor Brake
Rear Frame Assy
(Includes B1)
Brake Lever
Anti-tip Wheel Assy
Transaxle Mounting
Hardware
When applicable, assemblies are grouped
by color. All components with that color
are included in the assembly.
A1
B1
C1
D1
A1
B1
C1
D1
REF #
FRMASMB16930
FRMASMB16338
WHLASMB1547
HDWASMB1045
PART #
FRAME,ASSY,REAR,GO-GO ES
FRAME,ASSY,BRAKE LEVER
WHEEL,ASSY,ANTI-TIP,SC40/44, VERSION 2
TRANSAXLE,ASSY,HARDWARE,MOUNTING,TRAVEL SCOOTERS
DESCRIPTION
1
1
2
1
QTY
$79.38
$42.09
$7.44
$3.78
Dealer $
$202.42
$107.33
$18.98
$9.65
MSRP
11i
I. Frame Assembly — Rear

Go-Go ES8 7Rev.F/020617
®

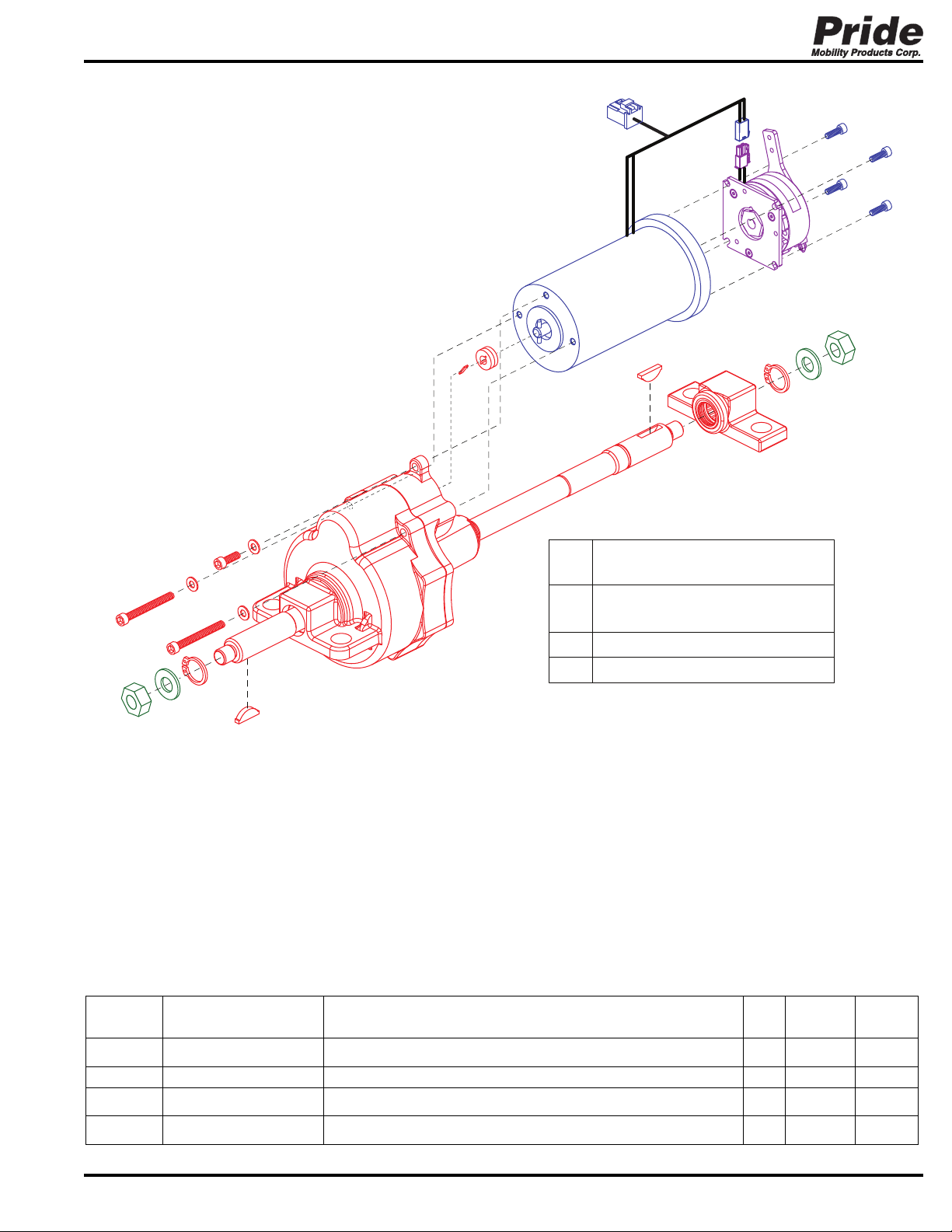

Transaxle/Motor/Brake Assy
(Includes B1, C1, & D1)
Motor/Brake Assy
(Includes C1)
Brake
Transaxle Assy
When applicable, assemblies are grouped
by color. All components with that color
are included in the assembly.
A1
B1
C1
D1
II. Drive Assembly
A1
B1
C1
D1
REF #
DRVASMB2322
DRVASMB2323
DRV1099
DRVASMB2023
PART #
MOTOR,ASSY,MAIN TRANSAXLE/MOTOR/BRAKE,T1 W/LIHOO 6
CONNECTOR,E-1211-030,(FSN: FS180-00-19)
MOTOR,ASSY,MOTOR/BRAKE,FSN,(FSN: FST1-180-01-19)
BRAKE,3NM,24VDC,CLOCKWISE,4.5" WIRE LENGTH W/MOLEX
CONNECTOR,H-1215-001,(WARNER: WR225A48P1)
TRANSAXLE,ASSY,FSN STD LINK SHAFT,W/HARDWARE,TRAVEL
PAL,(FS180)
DESCRIPTION
1
1
1
1
QTY
$269
$264.6
$36.84
$102.14
Dealer $
$685.95
$674.73
$93.95
$260.45
MSRP
11i

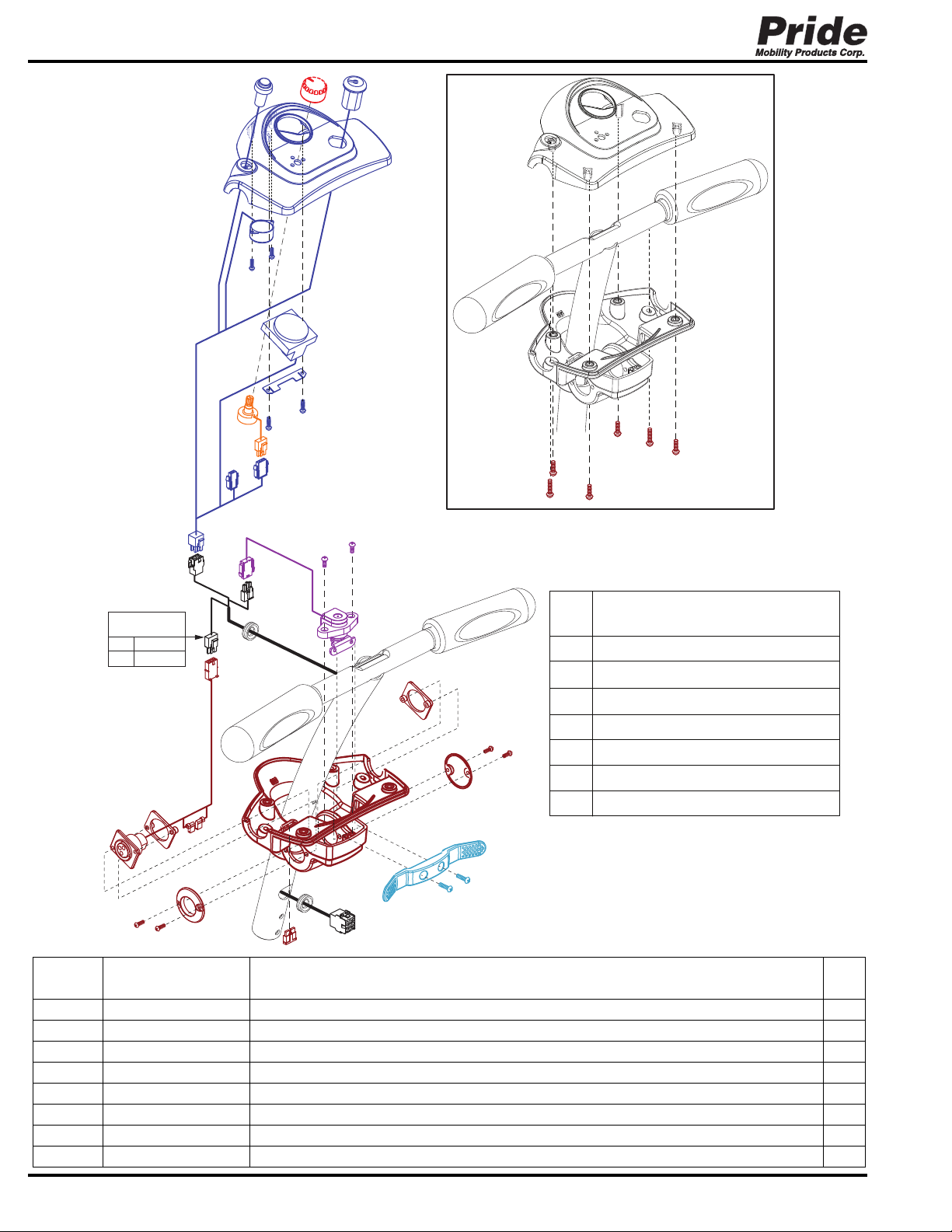

Go-Go ES8
8Rev.F/020617
®
G1
H1
3-Wheel
4-Wheel
Top Console Assy
(Includes B1 & C1)
Speed Pot Knob
Speed Pot Harness
Bottom Console Shroud
Throttle Pot
Throttle Control Lever
3-Whl Front to Rear Harness
4-Whl Front to Rear Harness
A1
B1
C1
D1
E1
F1
G1
H1
Front to Rear
Harness
When applicable, assemblies are grouped
by color. All components with that color
are included in the assembly.
III. Electronics Assembly — Console
A1
B1
C1
D1
E1
F1
G1
H1
REF #
ELEASMB7136
DWR9983B030
DWR1020H161
SHDASMB6193
ELEASMB7342
FRMASMB17085
DWR9983H028
DWR9983H043
PART #
ELECTRONIC,ASSY,TOP CONSOLE,GO-GO ES,H-9983-036
KNOB,GRAY,PLASTIC,SPEED POT,B-9983-030
ELECTRONIC,SPEED POT W/HARNESS,CTS,100K,H-1020-161
SHROUD,ASSY,CONSOLE BOTTOM,BLACK,GO-GO ES
ELECTRONIC,ASSY,THROTTLE POT,GO-GO ES
LEVER,ASSY,THROTTLE CONTROL,GO-GO ES
ELECTRONIC,HARNESS,FRONT-TO-REAR,TRAVEL PRO 8
ELECTRONIC,HARNESS,FRONT-TO-REAR,ES-8,4 WHEEL,H-9983-043
DESCRIPTION
1
1
1
1
1
1
1
1
QTY

Go-Go ES8 9Rev.F/020617
®
Controller Assy
(Includes all Harnesses and
mounting Hardware)
Horn Harness
A1
B1
When applicable, assemblies are grouped
by color. All components with that color
are included in the assembly.
III. Electronics Assembly — Controller
A1
B1
REF #
ELEASMB7206
DWR9555H018
PART #
ELECTRONIC,ASSY,CONTROLLER ELECTRONICS,GO-GO ES
ELECTRONIC,HARNESS, HORN,H-9555-018
DESCRIPTION
1
1
QTY

Go-Go ES8
10 Rev.F/020617
®

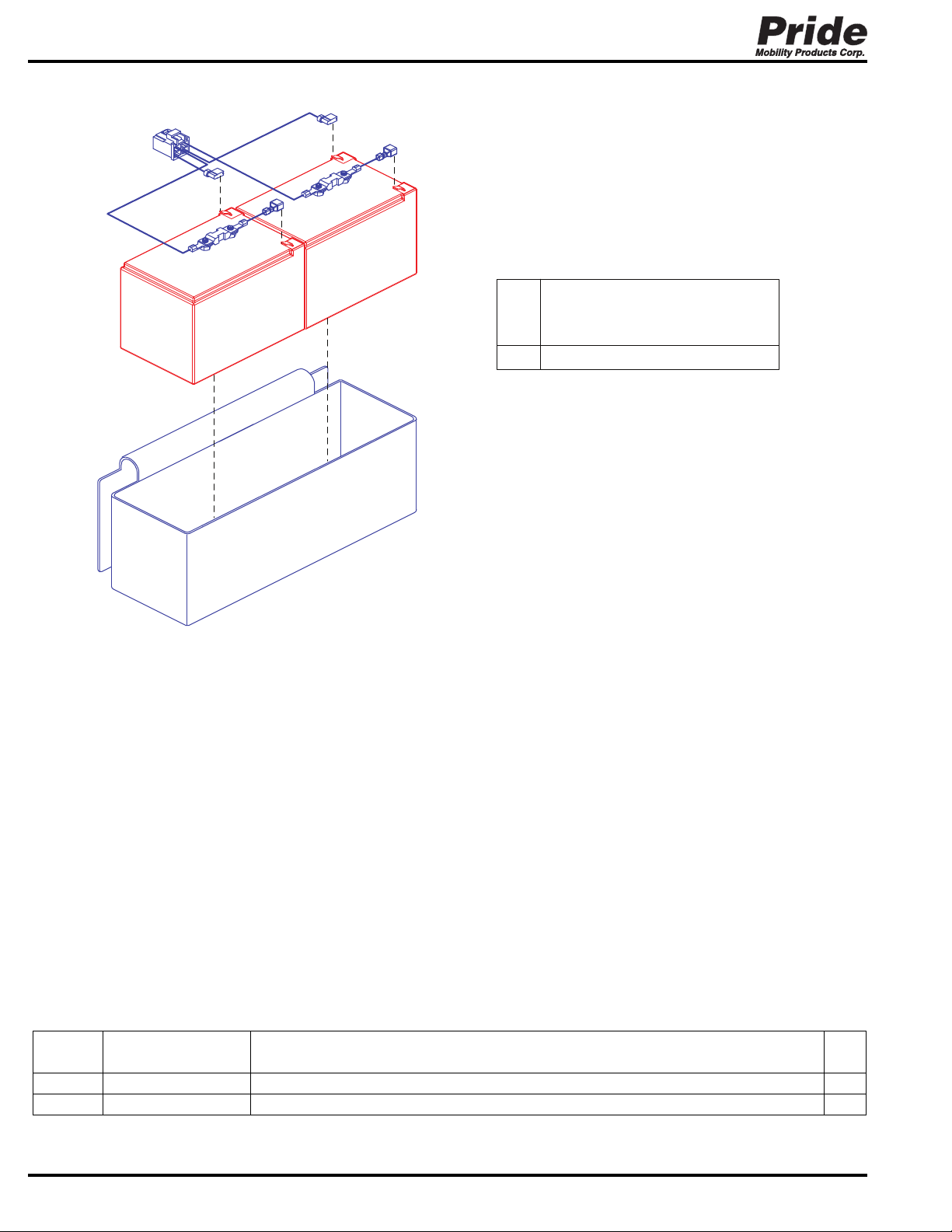

Complete Battery Bag Assy
(Includes the Bag, Batteries
and Harness
12AH Battery
A1
B1
When applicable, assemblies are grouped
by color. All components with that color
are included in the assembly.
III. Electronics Assembly — Battery Bag
A1
B1
REF #
BATASMB1098
BATLIQ1013
PART #
BATTERY,ASSY,BAG,12 AMP,W/ELECTRONICS,GO-GO ES
BATTERY,AGM,12AH,W/ 0.250 FAST-ON,H-1000-134
DESCRIPTION
1
2
QTY

Go-Go ES8 11Rev.F/020617
®

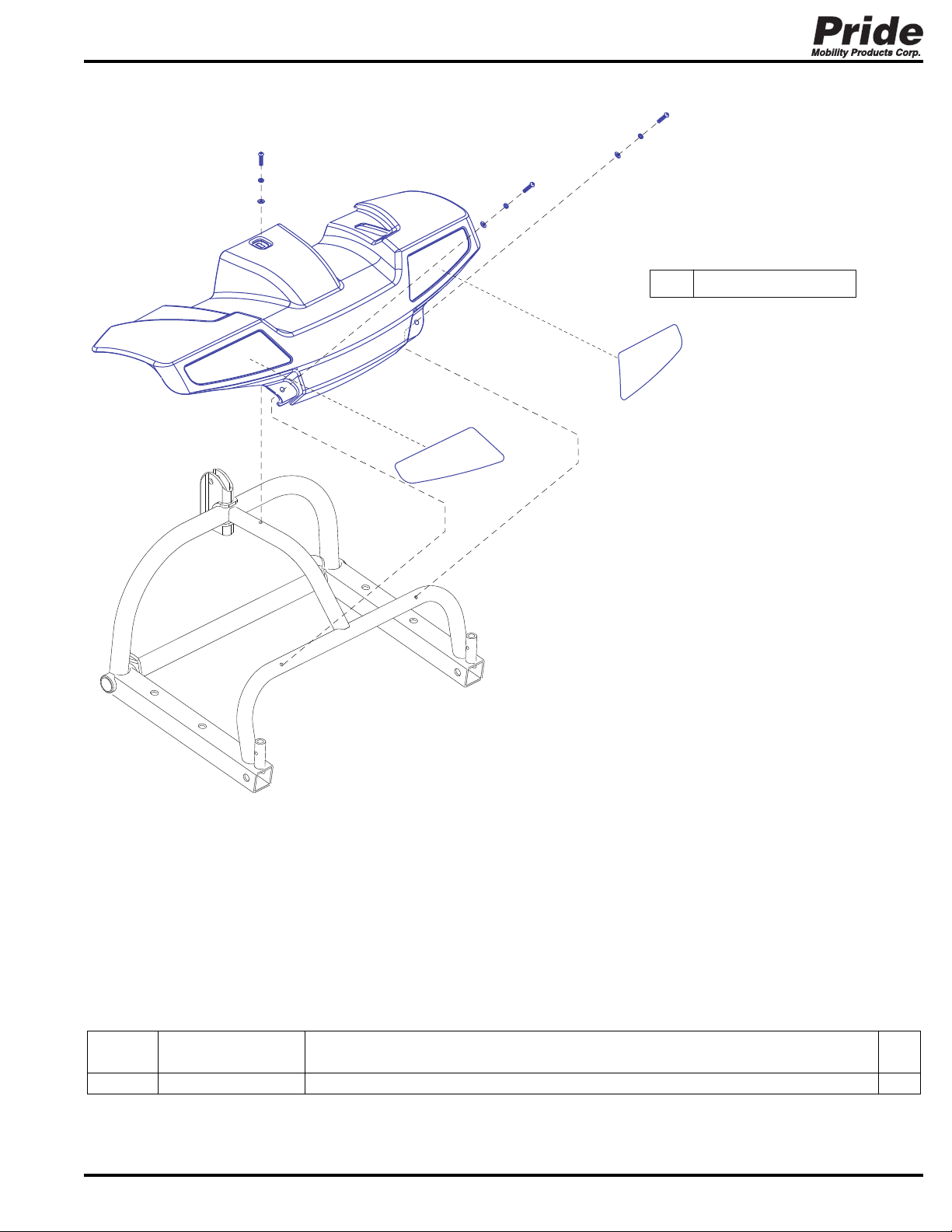

Front Body Shroud Assy
(Includes B1)
Circuit Breaker
Power Harness
A1
B1
C1
When applicable, assemblies are grouped
by color. All components with that color
are included in the assembly.
IV. Shroud Assembly — Front
A1
B1
C1
REF #
SHDASMB6196
ELECBRK1013
DWR9983H031
PART #
SHROUD,ASSY,FRONT BODY,GO-GO ES,4 WHEEL
ELECTRONIC,CIRCUIT BREAKER,15 AMP
ELECTRONIC,HARNESS,CONTROLLER,POWER,TRAVEL PRO 8,H-9983-031
DESCRIPTION
1
1
1
QTY

Go-Go ES8
12 Rev.F/020617
®

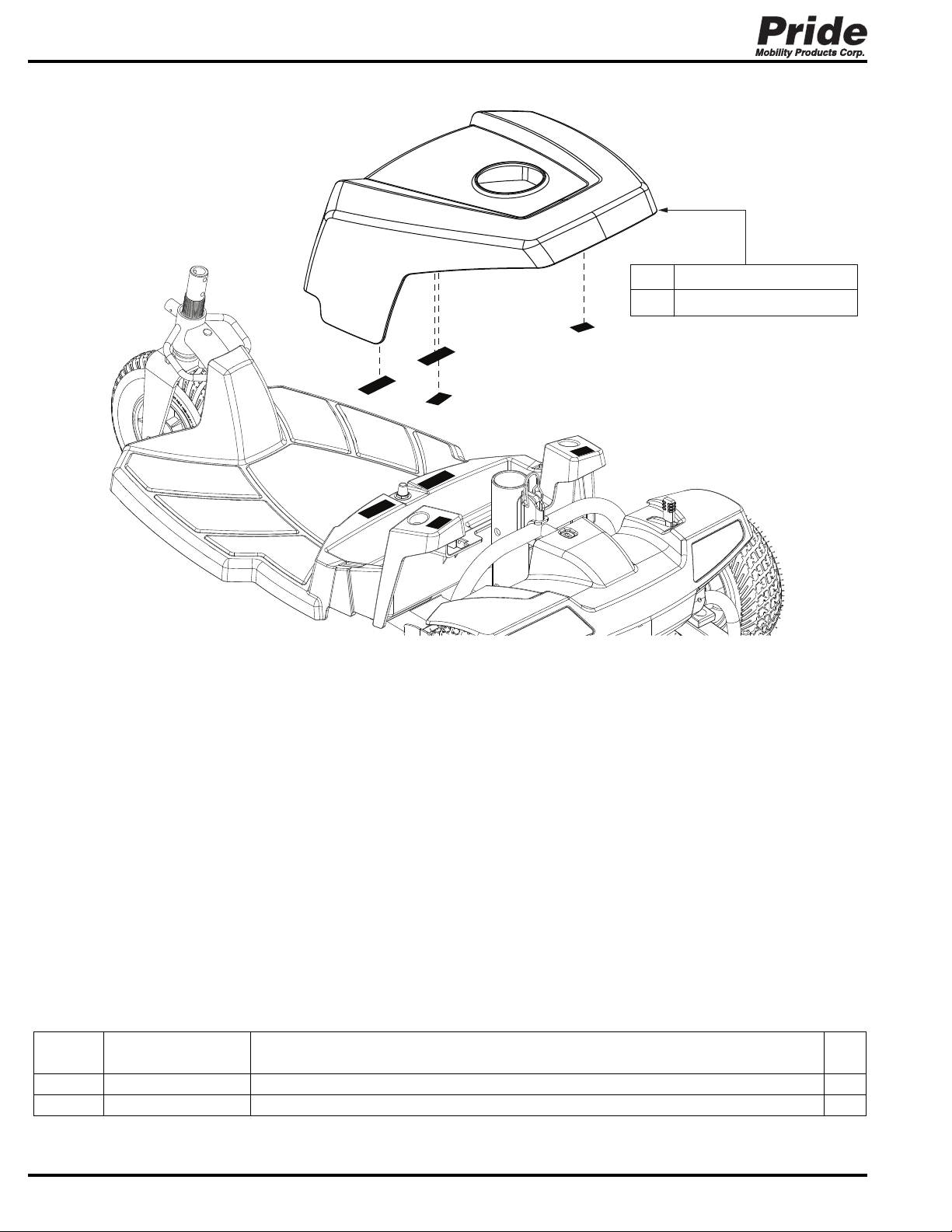

Red Battery Cover
Blue Battery Cover
A1
B1
IV. Shroud Assembly — Battery Cover
A1
B1
REF #
SHDASMB6191
SHDASMB6192
PART #
SHROUD,ASSY,BATTERY COVER,RED,GO-GO ES
SHROUD,ASSY,BATTERY COVER,BLUE,GO-GO ES
DESCRIPTION
1
1
QTY

Go-Go ES8 13Rev.F/020617
®
Rear Shroud Assy
A1
When applicable, assemblies are grouped
by color. All components with that color
are included in the assembly.
IV. Shroud Assembly — Rear
A1
REF #
SHDASMB6189
PART #
SHROUD,ASSY,REAR BODY,GO-GO ES
DESCRIPTION
1
QTY

Go-Go ES8
14 Rev.F/020617
®
V. Wheel Assembly — Front
4-Wheel Front Wheel Assy
A1
A1
REF #
WHLASMB1704
PART #
WHEEL,ASSY,FLAT FREE,BLACK RIM/GRAY TIRE,4 WHEEL,2 X 7",FRONT,COMPLETE,D-9983-
036
DESCRIPTION
2
QTY

Go-Go ES8 15Rev.F/020617
®
Complete Wheel Assembly
A1
When applicable, assemblies are grouped
by color. All components with that color
are included in the assembly.
V. Wheel Assembly — Rear
A1
REF #
WHLASMB1705
PART #
WHEEL,ASSY,FLAT FREE,BLACK RIM/GRAY TIRE,2.5 X 8",REAR,COMPLETE,D-9983-037
DESCRIPTION
2
QTY

Go-Go ES8
16 Rev.F/020617
®
A1

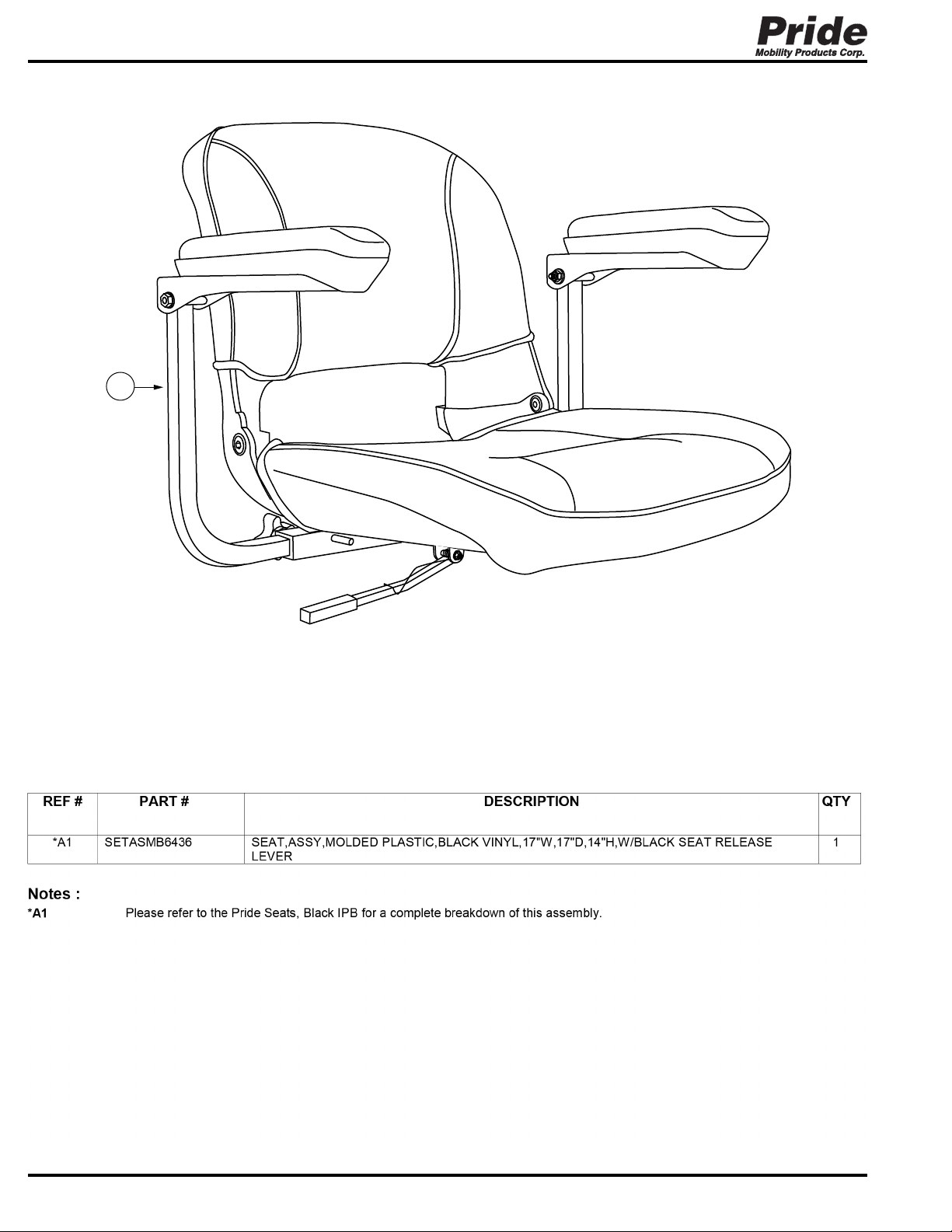

VI. Seat Assembly — Seat

Go-Go ES8 17Rev.F/020617
®
Under Seat Storage Assembly
A1
When applicable, assemblies are
grouped by color. All components
with that color are included
in the assembly.
w/Seat Plate (Includes B1)
B1 Under Seat Storage Assembly
***Seat Plate Replacement***
**Please note: Existing seat assemblies
may require replacement of the seat plate.
The seat plate is included in A1. Use this
reference to select the correct assembly.**
Manufactured on or
after 1/7/2016
Manufactured prior
to 1/7/2016
A1 - ACC160128 B1 - ACC160129
Manufactured prior
to 12/12/2015
Manufactured on or
after 12/12/2015
A1 - ACC160128 B1 - ACC160129
SET151005
SETASMB5827
VI. Seat Assembly — Under Seat Storage
A1
B1
REF #
ACC160128
ACC160129
PART #
UNDERSEAT STORAGE ASSEMBLY,GOGO,SEAT PLATE INCLUDED
UNDERSEAT STORAGE ASSEMBLY,GOGO,
DESCRIPTION
1
1
QTY

Go-Go ES8
18 Rev.F/020617
®
*N/A
*N/A
*N/A
*N/A
*N/A
*N/A
*N/A
*N/A
*N/A
*N/A
*N/A
*N/A
*N/A
*N/A
*N/A
*N/A
*N/A
REF #
DECASMB2341
DWR1234L108
DWR1235L511
DWR1235L520
DWR1234L336
DECSERN1035
DWR1234L811
DWR1234L923
DWR1235L551
DWR1234L424
DWR1235L797
DWR1235L798
DWR1235L799
DWR1235L515
DWR1235L874
LAB120038
LAB120015
PART #
DECAL,ASSY,GO-GO ES,4 WHEEL,UNITED KINGDOM
DECAL,ICON,CHARGE BATTERY BEFORE START,L-1234-108
DECAL,PATENT PENDING,L-1235-511
DECAL,CAUTION,EXTENSION CORD/GROUNDING PRONG,L-1235-520
DECAL,ICON,SCOOTER SEAT POST SETUP INSTRUCTIONS,L-1234-336
DECAL,SERIAL NUMBER,2" X 1.25",BARCODE,MADE IN CHINA,W/PRIDE LOGO
DECAL,ICON,DO NOT ADJUST ANTI-TIP,1.25" X 0.75",JAZZYSELECT,L-1234-811
DECAL,PINCH POINT,READ OWNERS MANUAL,L-1234-923
DECAL,ISO,"AGM/GEL CELL/DOT CERTIFIED",L-1235-551
DECAL,PRIDE MOBILITY PRODUCTS,WEBSITE,L-1234-424
DECAL,ICON,BATTERY CONNECTION DIAGRAM,GO-GO ES,L-1235-797
DECAL,ICON,FREEWHEEL OPERATION,L-1235-798
DECAL,ICON,WEATHER/MANUAL/LOOSE GARMENTS/WEIGHT CAPACITY,L-1235-799
DECAL,WARNING,BATTERY WARNINGS,L-1235-515
DECAL,LOGO,GO-GO ES8,L-1235-874
DECAL,DATA PLATE,GOGO ES (S84)
DECAL,NOT RATED FOR OCCUPIED TRANSPORT,SCOOTER
DESCRIPTION
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
QTY
VII. Decal Package

Go-Go ES8 19Rev.F/020617
®
(This page is intentionally left blank.)

Go-Go ES8
20 Rev.F/020617
®
A1
B1
C1
D1
REF #
INDASMB2105
KEYSCO1007
DWR1020C034
PINCOTD1006
PART #
OWNER'S PACKAGE,ASSY,GO-GO ES,UNITED KINGDOM
KEY,COATED, A126
KEY,DELUXE,W/MOLDED PLASTIC KNOB,EASY PULL,C-1020-034
PIN,COTTERLESS DETENT W/RING,.375" DIA X 2.00" GRIP LENGTH,B-1005-169
DESCRIPTION
1
2
1
1
QTY

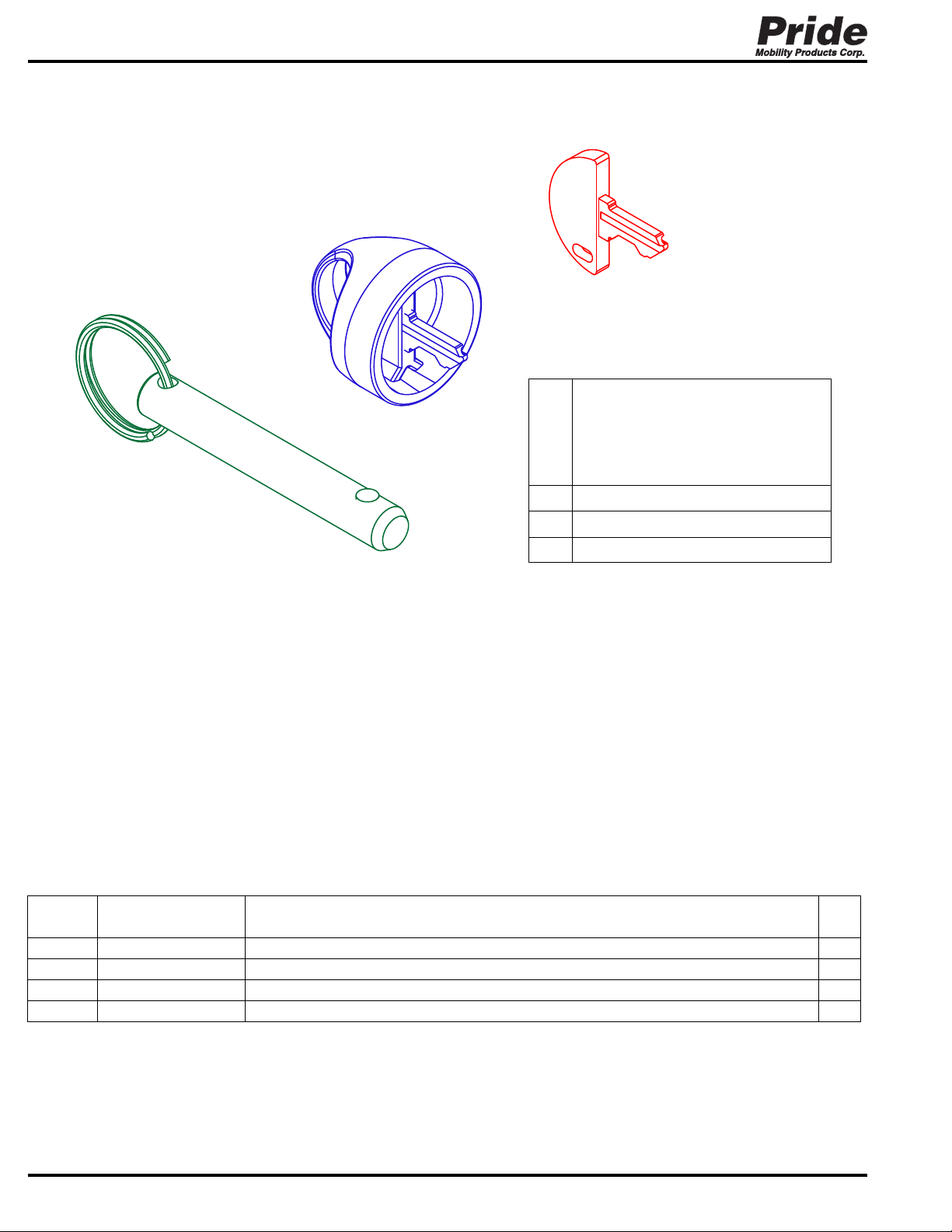

VIII. Owner’s Package
Complete Owner’s Package
(Includes the Owner’s Manual,
Warranty Card, Hang Tags,
Hardware, Tools, & Product
Inserts)
Key
Molded Key
Detent Pin
A1
B1
C1
D1
