1Hurricane
The Ultimate In Style & Performance
®
Owner’s Manual
Alber Technologies Limited,
Chantry Court, Sovereign Way,
Chester, England. CH1 4QN
Tel: [phone] Fax: [phone]
Email: [email protected] www.alber.co.uk
All manuals and user guides at all-guides.com
all-guides.com

2Hurricane
Read and follow all of the instructions in this manual before you attempt to operate your Scooter for the
first time.
The following symbols will be used throughout this Owners Manual to identify warnings and
cautions. It is very important for you to read and understand them completely.
WARNING! Failure to heed the warnings in this owners manual may result in personal
injury.
CAU ION! Failure to heed the cautions in this owners manual may result in damage to
your Scooter.
Please be sure to fill out and return your warranty card. Also, notify us of any change of address so that we can
keep you apprised of important information about safety, new products, and new options that can increase your
ability to use and enjoy your Scooter.
our Hurricane:
Body Colour _______________________________ Serial # _____________________________
Purchase Date _____________________________ Options______________________________
our authorized Pride Mobility Products Ltd., provider:
Name ______________________________________________________________________________
Address _____________________________________________________________________________
Phone ______________________________________________________________________________
SAFETY GUIDELINES
All manuals and user guides at all-guides.com

3Hurricane

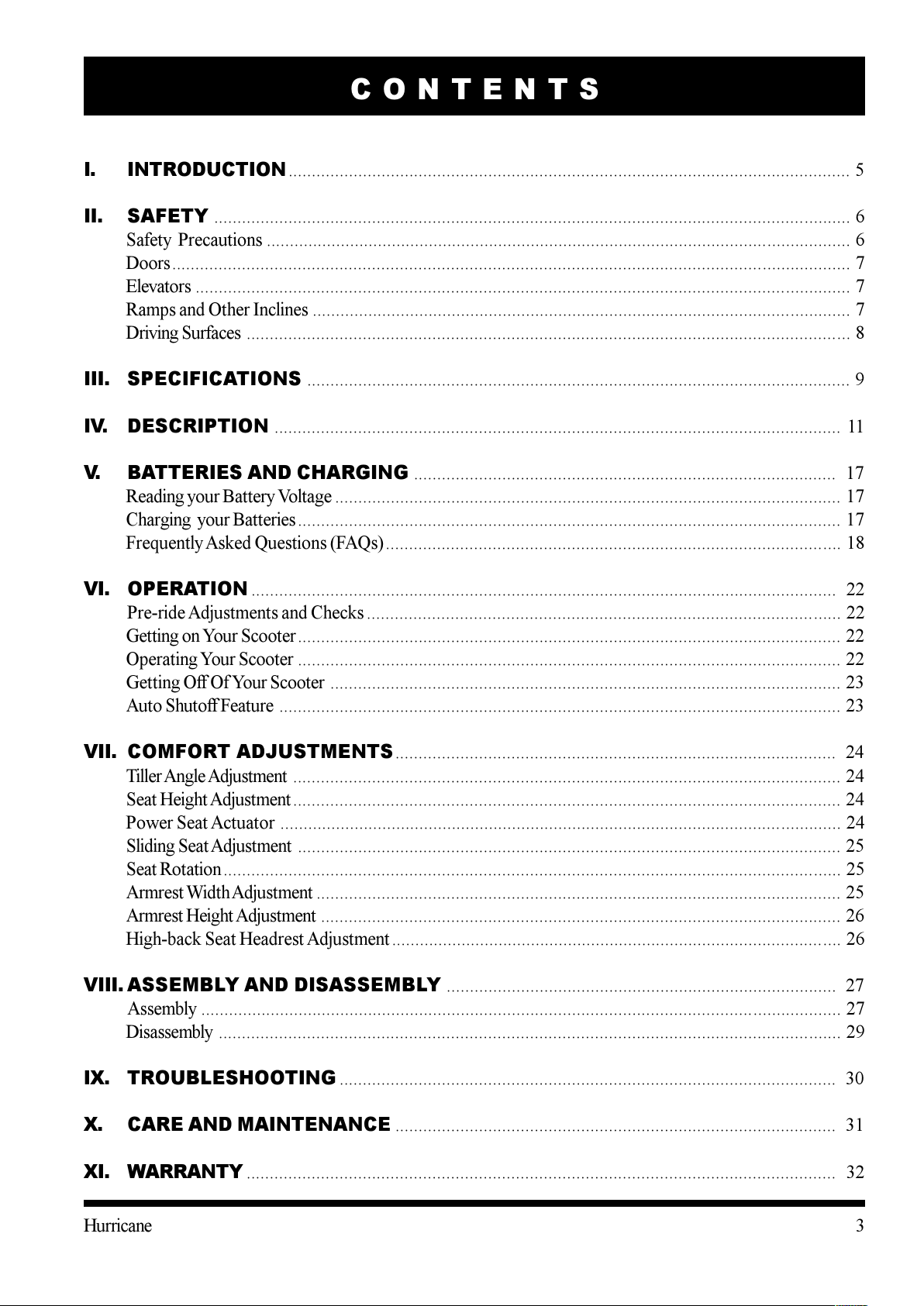

I. INTRODUCTION ......................................................................................................................... 5
II. SAFETY ......................................................................................................................................... 6
Safety Precautions .............................................................................................................................. 6
Doors.................................................................................................................................................. 7
Elevators ............................................................................................................................................. 7
Ramps and Other Inclines .................................................................................................................... 7
Driving Surfaces .................................................................................................................................. 8
III. SPECIFICATIONS ..................................................................................................................... 9
IV. DESCRIPTION .......................................................................................................................... 11
V. BATTERIES AND CHARGING ........................................................................................... 17
Reading your Battery Voltage ............................................................................................................. 17
Charging your Batteries ..................................................................................................................... 17
Frequently Asked Questions (FAQs).................................................................................................. 18
VI. OPERATION .............................................................................................................................. 22
Pre-ride Adjustments and Checks ...................................................................................................... 22
Getting on our Scooter..................................................................................................................... 22
Operating our Scooter ..................................................................................................................... 22
Getting Off Of our Scooter .............................................................................................................. 23
Auto Shutoff Feature ......................................................................................................................... 23
VII. COMFORT ADJUSTMENTS............................................................................................... 24
Tiller Angle Adjustment ...................................................................................................................... 24
Seat Height Adjustment ...................................................................................................................... 24
Power Seat Actuator ......................................................................................................................... 24
Sliding Seat Adjustment ..................................................................................................................... 25
Seat Rotation ..................................................................................................................................... 25
Armrest Width Adjustment ................................................................................................................. 25
Armrest Height Adjustment ................................................................................................................ 26
High-back Seat Headrest Adjustment................................................................................................. 26
VIII. ASSEMBLY AND DISASSEMBLY .................................................................................... 27
Assembly .......................................................................................................................................... 27
Disassembly ...................................................................................................................................... 29
IX. TROUBLESHOOTING ........................................................................................................... 30
X. CARE AND MAINTENANCE ............................................................................................... 31
XI. WARRANTY ............................................................................................................................... 32
CONTENTS
All manuals and user guides at all-guides.com

4Hurricane
COPYRIGHT
Pride Mobility Products, Ltd. cannot be held responsible for any damage or injury incurred due to improper or
unsafe use of a scooter. Nor can Pride be held responsible for any damage or injury incurred during or resulting
from attempts to follow the instructions and recommendations set forth in this owner's manual or in any of the
instructions displayed on or accompanying the product itself. If you do not feel capable of safely following any of
the instructions and recommendations pertaining to your scooter, please contact your authorized Pride provider.
Copyright © 2000
Pride Mobility Products, Ltd.
All manuals and user guides at all-guides.com

5Hurricane

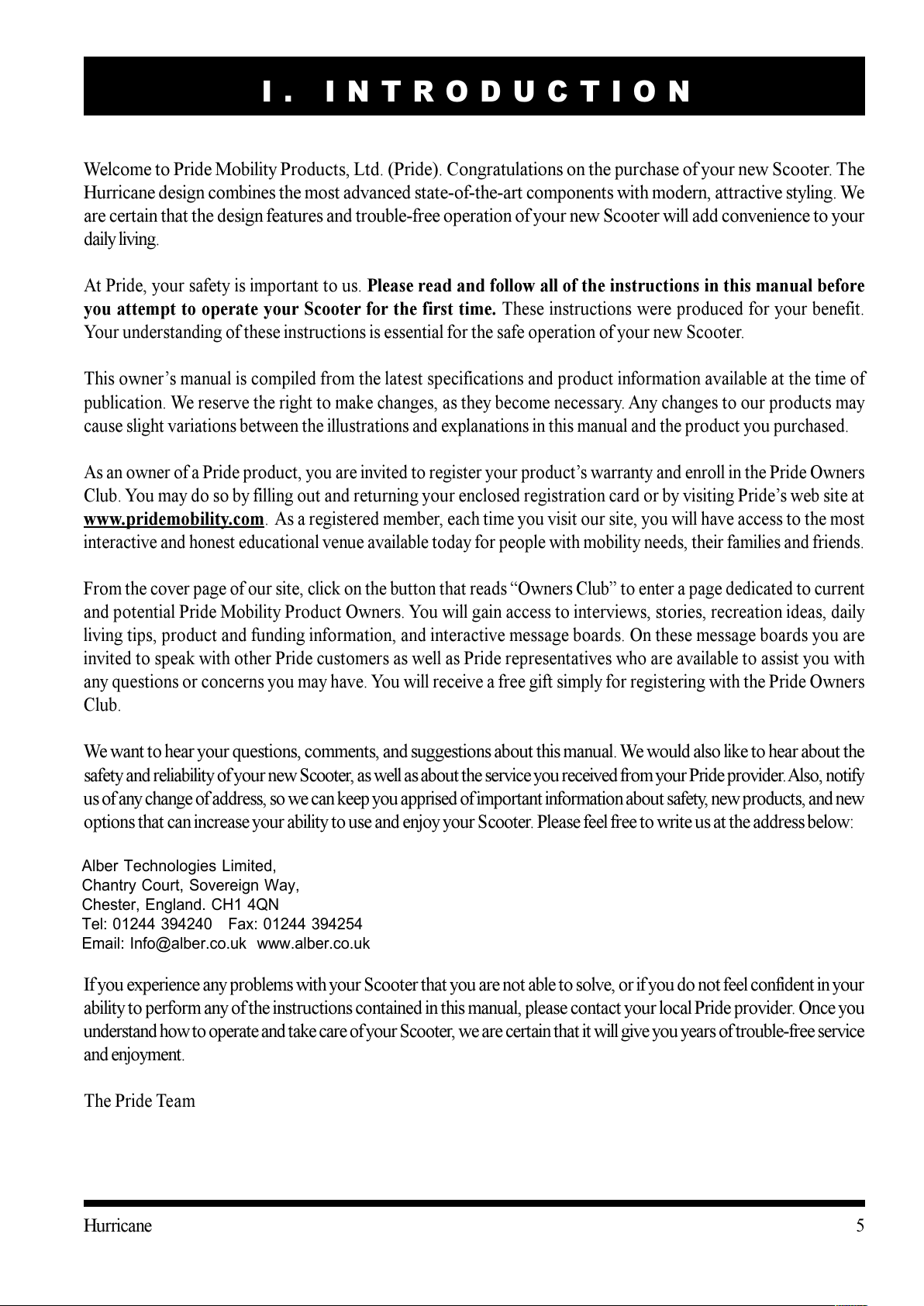

I. INTRODUCTION
Welcome to Pride Mobility Products, Ltd. (Pride). Congratulations on the purchase of your new Scooter. The
Hurricane design combines the most advanced state-of-the-art components with modern, attractive styling. We
are certain that the design features and trouble-free operation of your new Scooter will add convenience to your
daily living.
At Pride, your safety is important to us. Please read and follow all of the instructions in this manual before
you attempt to operate your Scooter for the first time. These instructions were produced for your benefit.
our understanding of these instructions is essential for the safe operation of your new Scooter.
This owners manual is compiled from the latest specifications and product information available at the time of
publication. We reserve the right to make changes, as they become necessary. Any changes to our products may
cause slight variations between the illustrations and explanations in this manual and the product you purchased.
As an owner of a Pride product, you are invited to register your products warranty and enroll in the Pride Owners
Club. ou may do so by filling out and returning your enclosed registration card or by visiting Prides web site at
www.pridemobility.com. As a registered member, each time you visit our site, you will have access to the most
interactive and honest educational venue available today for people with mobility needs, their families and friends.
From the cover page of our site, click on the button that reads Owners Club to enter a page dedicated to current
and potential Pride Mobility Product Owners. ou will gain access to interviews, stories, recreation ideas, daily
living tips, product and funding information, and interactive message boards. On these message boards you are
invited to speak with other Pride customers as well as Pride representatives who are available to assist you with
any questions or concerns you may have. ou will receive a free gift simply for registering with the Pride Owners
Club.
We want to hear your questions, comments, and suggestions about this manual. We would also like to hear about the
safety and reliability of your new Scooter, as well as about the service you received from your Pride provider. Also, notify
us of any change of address, so we can keep you apprised of important information about safety, new products, and new
options that can increase your ability to use and enjoy your Scooter. Please feel free to write us at the address below:
If you experience any problems with your Scooter that you are not able to solve, or if you do not feel confident in your
ability to perform any of the instructions contained in this manual, please contact your local Pride provider. Once you
understand how to operate and take care of your Scooter, we are certain that it will give you years of trouble-free service
and enjoyment.
The Pride Team
Alber Technologies Limited,
Chantry Court, Sovereign Way,
Chester, England. CH1 4QN
Tel: [phone] Fax: [phone]
Email: [email protected] www.alber.co.uk
All manuals and user guides at all-guides.com

6Hurricane

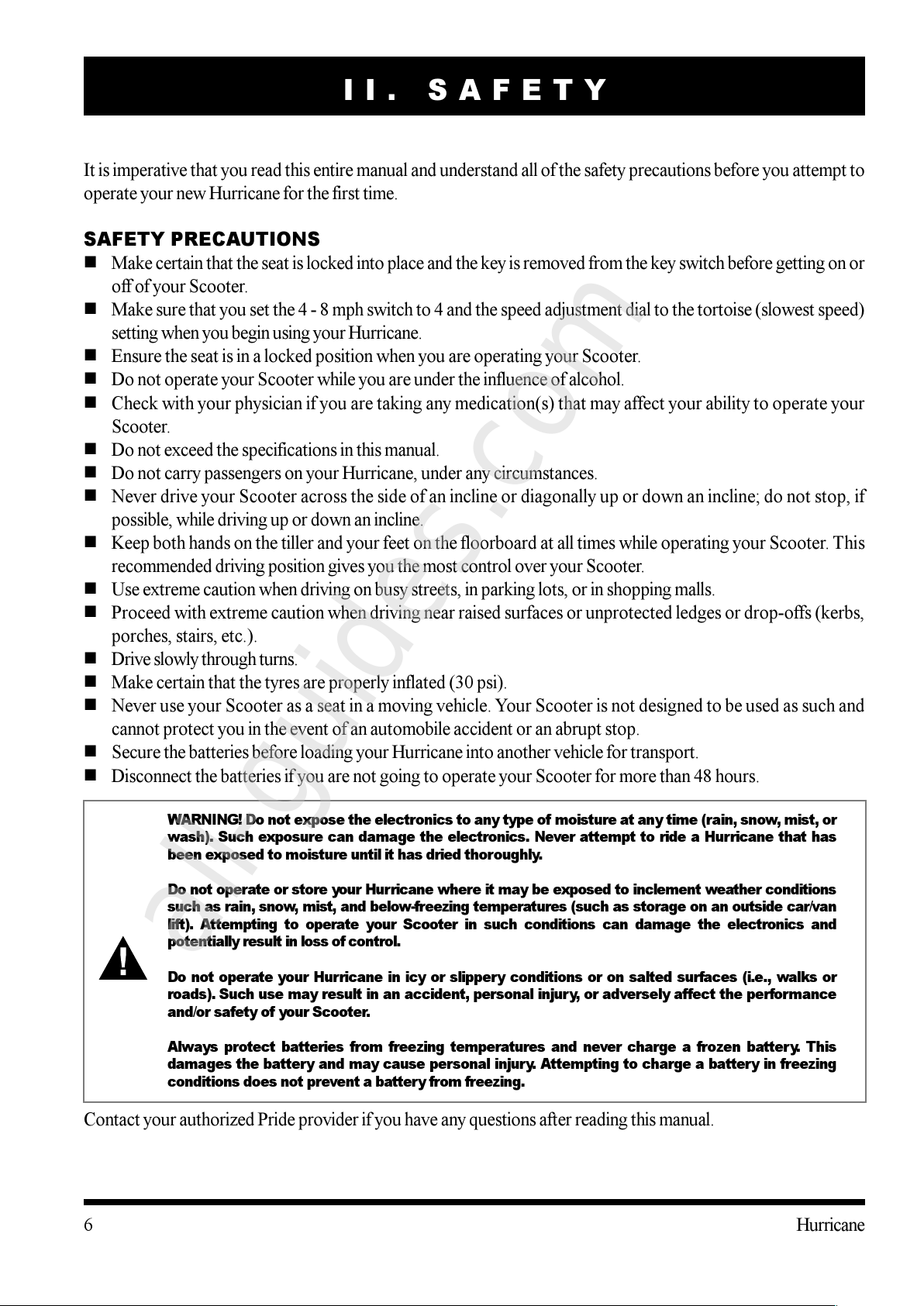

It is imperative that you read this entire manual and understand all of the safety precautions before you attempt to
operate your new Hurricane for the first time.
SAFETY PRECAUTIONS
nMake certain that the seat is locked into place and the key is removed from the key switch before getting on or
off of your Scooter.
nMake sure that you set the 4 - 8 mph switch to 4 and the speed adjustment dial to the tortoise (slowest speed)
setting when you begin using your Hurricane.
nEnsure the seat is in a locked position when you are operating your Scooter.
nDo not operate your Scooter while you are under the influence of alcohol.
nCheck with your physician if you are taking any medication(s) that may affect your ability to operate your
Scooter.
nDo not exceed the specifications in this manual.
nDo not carry passengers on your Hurricane, under any circumstances.
nNever drive your Scooter across the side of an incline or diagonally up or down an incline; do not stop, if
possible, while driving up or down an incline.
nKeep both hands on the tiller and your feet on the floorboard at all times while operating your Scooter. This
recommended driving position gives you the most control over your Scooter.
nUse extreme caution when driving on busy streets, in parking lots, or in shopping malls.
nProceed with extreme caution when driving near raised surfaces or unprotected ledges or drop-offs (kerbs,
porches, stairs, etc.).
nDrive slowly through turns.
nMake certain that the tyres are properly inflated (30 psi).
nNever use your Scooter as a seat in a moving vehicle. our Scooter is not designed to be used as such and
cannot protect you in the event of an automobile accident or an abrupt stop.
nSecure the batteries before loading your Hurricane into another vehicle for transport.
nDisconnect the batteries if you are not going to operate your Scooter for more than 48 hours.
WARNING! Do not expose the electronics to any type of moisture at any time (rain, snow, mist, or
wash). Such exposure can damage the electronics. Never attempt to ride a Hurricane that has
been exposed to moisture until it has dried thoroughly.
Do not operate or store your Hurricane where it may be exposed to inclement weather conditions
such as rain, snow, mist, and below-freezing temperatures (such as storage on an outside car/van
lift). Attempting to operate your Scooter in such conditions can damage the electronics and
potentially result in loss of control.
Do not operate your Hurricane in icy or slippery conditions or on salted surfaces (i.e., walks or
roads). Such use may result in an accident, personal injury, or adversely affect the performance
and/or safety of your Scooter.
Always protect batteries from freezing temperatures and never charge a frozen battery. his
damages the battery and may cause personal injury. Attempting to charge a battery in freezing
conditions does not prevent a battery from freezing.
Contact your authorized Pride provider if you have any questions after reading this manual.
II. SAFETY
All manuals and user guides at all-guides.com
all-guides.com

7Hurricane
II. SAFETY
As you begin to use your Hurricane during your daily activities, you will encounter situations that may require some
practice. Simply take your time as you operate your Scooter and you will soon be in full and confident control as
you maneuver through doorways, on and off of elevators, up and down ramps, and over moderate terrain.
DOORS
nDetermine if the door opens toward or away from you.
nUse your hand to turn the knob or push the handle or push-bar.
nDrive your Hurricane slowly forward to push the door open; or drive your Scooter slowly backwards as you
pull the door open.
ELEVATORS
Modern elevators have a door-edge safety mechanism that, when pushed, reopens the elevator door(s).
nIf you are in the doorway of an elevator when the door(s) begin to close, push on the rubber door edge or
allow the rubber door edge to contact your Scooter to reopen the door.
nUse care that pocketbooks, packages, or Hurricane accessories do not become caught in the elevator doors.
RAMPS AND OTHER INCLINES
More and more buildings have ramps with specified degrees of inclination, designed for easy and safe scooter
access. Some ramps may have turning switchbacks that require you to have good cornering skills on your Hurricane.
nTake slow, wide swings with your Scooters front wheel(s) around any tight corners. If you do that, the rear
wheels will follow a wide arc and will not cut the corner short, bump into, or get hung up on any railing corners.
nWhen driving down a ramp, keep your Hurricanes speed adjustment dial (see IV. Description) set to the
tortoise (slowest speed setting) to ensure a safely controlled descent.
nAvoid sudden stops and starts.
Other inclines may be natural or, if man-made, not designed specifically for scooters. Figure 1 illustrates your
Hurricanes stability and its ability to climb grades under various weight loads and under controlled testing conditions.
Figure 1. Maximum Recommended Incline Angle
8.7%
10.5%
(150-200 lbs.) (250-300 lbs.)
68-90 kg/
11-14 stone 113-136 kg/
18-21 stone
All manuals and user guides at all-guides.com

8Hurricane

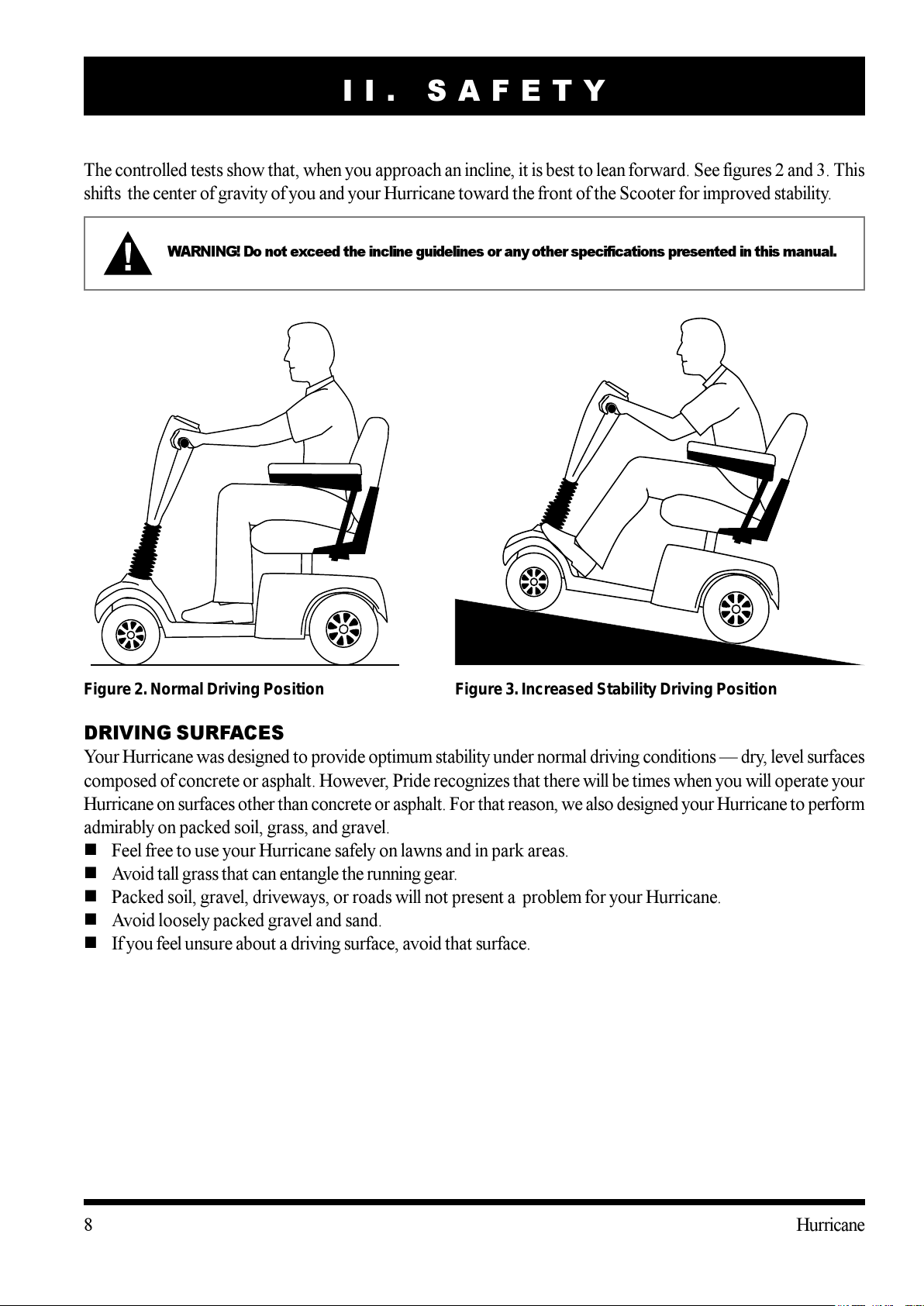

The controlled tests show that, when you approach an incline, it is best to lean forward. See figures 2 and 3. This
shifts the center of gravity of you and your Hurricane toward the front of the Scooter for improved stability.
II. SAFETY
Figure 3. Increased Stability Driving PositionFigure 2. Normal Driving Position
DRIVING SURFACES
our Hurricane was designed to provide optimum stability under normal driving conditions  dry, level surfaces
composed of concrete or asphalt. However, Pride recognizes that there will be times when you will operate your
Hurricane on surfaces other than concrete or asphalt. For that reason, we also designed your Hurricane to perform
admirably on packed soil, grass, and gravel.
nFeel free to use your Hurricane safely on lawns and in park areas.
nAvoid tall grass that can entangle the running gear.
nPacked soil, gravel, driveways, or roads will not present a problem for your Hurricane.
nAvoid loosely packed gravel and sand.
nIf you feel unsure about a driving surface, avoid that surface.
WARNING! Do not exceed the incline guidelines or any other specifications presented in this manual.
III
All manuals and user guides at all-guides.com

9Hurricane
III. SPECIFICATIONS
I. SPECIFICATIONS II
Figure 4. Hurricane Specifications
(48.75"- 55")
(18.5")
(19.5")
(25")
(24"- 28.5")
(55.5")
(43")
Turning Radius
15 cm (6")
(1.75")
(18"- 21")
46 cm - 53 cm
50 cm 141 cm
109 cm
47 cm
61 cm-72 cm
63.5 cm
(8"-12")
20 cm-30.5 cm
124 cm-140 cm
80˚
3.8 cm
4.4 cm
(1.5")
(25"- 28")
63.5 cm-71 cm
All manuals and user guides at all-guides.com

10 Hurricane
6SHFLILFDWLRQV
Length: 141 cm (55.5”)
Width: 63.5 cm (25”)
Tyres: Type: Pneumatic Front: 10 cm x 29 cm (4” x 11.5”)
Rear:10 cm x 30 cm (4” x 12”)
Weight Capacity: 136 kg/21 stone (300 lbs.) maximum
Battery Type
(not included): Choices: Two 12V, 32 amp hours (AH), U-1 type SLA (sealed lead-acid) or gell cell
Horsepower: 2.0 HP (Peak)
Charger: Onboard 5-amp charger
Speed (Max): Variable up to 13 km/hr (8 mph) (60% reverse)
Maximum Grade: Please refer to figure 1.
Range: Up to 32 - 40 km (20 - 25 miles) per charge with 32 AH batteries
Up to 40 - 48 km(25 - 30 miles) per charge with 40 AH batteries
Turning Radius: 109 cm (43” )
Body Colours: Candy Apple Red, Forest Green, Viper Blue, or Onyx Black
Seating:
Style: High back with headrest and sliders
Dimensions: 49.5 cm (19.5”) width (usable) x 63.5 cm - 71 cm (25” - 28”) height (usable) x 47
cm (18.5”) depth (usable)
Seat cover material: Gray, brown, or beige vinyl
Armrests: Match seat cover material
User adjustable seat height from ground: 65 cm - 72 cm (25.5” - 28.5”)
User adjustable seat height from scooter deck: 46 cm - 53 cm (18” - 21”)
Included Features: Sliding seat, energy-saving auto shutoff feature, height adjustable armrests, front and rear suspension, full lighting package, front and rear bumpers, front basket, rearview mirror, hand
brake, height adjustable armrests
Brakes: Electronic regenerative braking and electromechanical disc brake
Rear Wheel Drive: Sealed transaxle, 24 VDC motor
Wheels: Pride MicroMag aluminum alloy wheels in black, red, or gold
Tiller Type: Infinitely adjustable between forward stop and scooter deck
Freewheel Mechanism: Freewheel release lever located on transaxle
Scooter Weight:
Total weight with batteries: w/two 12V, 32 AH batteries: 99 kg (219.5 lbs.)
w/two 12V, 40 AH batteries:106 kg(234.5 lbs.)
Total weight without batteries: 76 kg (169.5 lbs.)
Component Breakdown:
Front Section: 25 kg (61.5 lbs.)
Rear Section (without batteries or rear shroud): 31 kg (68.5 lbs.)
Rear Plastic Shroud: 1.5 kg (3.5 lbs.)
Seat:16 kg (36 lbs.)
Batteries (2 required): 11 kg (25 lbs.) each (12V, 32 AH)
15 kg (32.5 lbs.) each (12V, 40 AH)
Front-to-rear Lockup: Lock pin and cam lever system
Ground Clearance: 15 cm (6”)
Optional Accessories: Cup holder, rear basket, dust cover, flag, oxygen holder, canopy, power elevating seat, crutch
holder
All manuals and user guides at all-guides.com

11Hurricane
IV. DESCRIPTION
our Hurricane is an indoor/outdoor motorized electric scooter designed to enhance your personal mobility. It
was designed to travel primarily on smooth surfaces such as sidewalks, roads, parking lots, floors, and driveways.
For easy transportation or storage, you can disassemble your Hurricane into seven components. See figure 5.
To decrease the rear section weight or to charge your batteries while your Scooter is disassembled, you can
also remove the utility tray and its subcomponents from the rear section. For further information on disassembly,
see VIII. Assembly and Disassembly. For further information on charging your batteries while your Hurricane
is disassembled, see V. Batteries and Charging.
CONTROL CONSOLE ASSEMBLY
The control console assembly located on the front section houses all of the controls you need to operate your
Hurricane. See figure 6.
WARNING! Do not expose the control console assembly to moisture. In the event it does become
exposed to moisture, do not attempt to operate your Hurricane until it has thoroughly dried.
Tiller Adjustment Lever
This lever allows you to adjust the tiller between the forward stop and the scooter deck. For tiller adjustment
instructions, see VII. Comfort Adjustments.
Hazard Light Switch
This switch enables you to control your Hurricanes front and rear (amber) hazard lights.
nToggle this switch to turn the hazard lights on and off.
Throttle Control Levers
These levers allow you to control your Hurricanes forward and reverse speed up to the maximum speed you
preset on the speed adjustment dial. For instructions on how to operate your Hurricanes throttle control, see
VI. Operation.
Batteries
Rear Section Front Section
Seat
Rear Shroud
Front Basket
Figure 5. Hurricane Components
All manuals and user guides at all-guides.com
all-guides.com

12 Hurricane

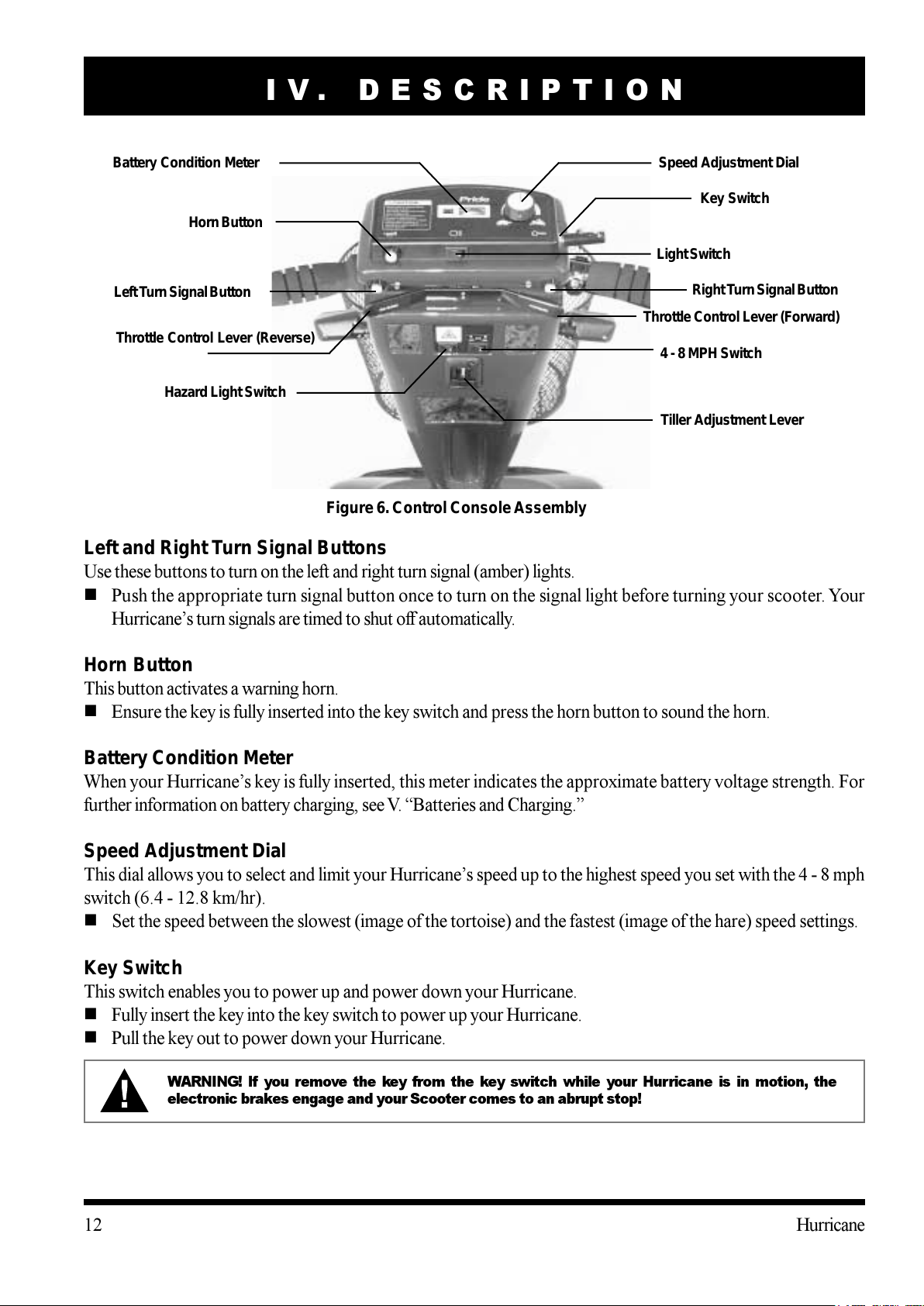

Left and Right Turn Signal Buttons
Use these buttons to turn on the left and right turn signal (amber) lights.
nPush the appropriate turn signal button once to turn on the signal light before turning your scooter. our
Hurricanes turn signals are timed to shut off automatically.
Horn Button
This button activates a warning horn.
nEnsure the key is fully inserted into the key switch and press the horn button to sound the horn.
Battery Condition Meter
When your Hurricanes key is fully inserted, this meter indicates the approximate battery voltage strength. For
further information on battery charging, see V. Batteries and Charging.
Speed Adjustment Dial
This dial allows you to select and limit your Hurricanes speed up to the highest speed you set with the 4 - 8 mph
switch (6.4 - 12.8 km/hr).
nSet the speed between the slowest (image of the tortoise) and the fastest (image of the hare) speed settings.
Key Switch
This switch enables you to power up and power down your Hurricane.
nFully insert the key into the key switch to power up your Hurricane.
nPull the key out to power down your Hurricane.
WARNING! If you remove the key from the key switch while your Hurricane is in motion, the
electronic brakes engage and your Scooter comes to an abrupt stop!
IV. DESCRIPTION
Figure 6. Control Console Assembly
Battery Condition Meter
Key Switch
HornButton
LightSwitch
Speed Adjustment Dial
Throttle Control Lever (Reverse)
Tiller Adjustment Lever
RightTurnSignalButton
LeftTurnSignalButton
Throttle Control Lever (Forward)
Hazard Light Switch
4 - 8 MPH Switch
All manuals and user guides at all-guides.com

13Hurricane
IV. DESCRIPTION
Light Switch
This switch enables you to control your Hurricanes headlight and running (rear red) lights.
nToggle this switch to turn your headlight and running lights on and off.
4 - 8 MPH Switch
This switch limits the top speed of your Hurricane to either 4 or 8 mph (6.4 or 12.8 km/hr).
nToggle this switch to either 4 or 8.
NOTE: When driving indoors, set the switch to 4 mph (6,4 km/hr).
Power Seat Switch (Optional)
If your Hurricane is equipped with a power seat, this switch enables you to raise and lower the seat. For power
seat adjustment directions, see VII. Comfort Adjustments.
WARNING! Strict adherence to the following safety rules is vital:
nDo not attempt to raise or lower the seat while your Hurricane is in motion!
nAdjust the power seat only when your Hurricane is level and stationary!
nDrive your Scooter only with the seat in the lowest position!
nDo not operate your Hurricane with the power seat elevated!
Handbrake Lever
our Hurricane is equipped with a handbrake lever, located on the tiller handle. See figure 7. This lever provides
you with additional stopping power.
nRelease the throttle and gently squeeze the handbrake lever to come to a stop.
CAU ION! If you do not release the throttle before using the handbrake, your Hurricane may not
come to a complete stop.
Figure 7. Handbrake Lever
Handbrake Lever
All manuals and user guides at all-guides.com

14 Hurricane
Charger Cord
Battery Connectors
Ammeter
Onboard Battery
Charger
Front-to-Rear
Connector
Main Circuit Breaker
(Reset Button)
UtilityTray
Freewheel Lever
Electronic Controller Module
Figure 8. Utility Tray Components

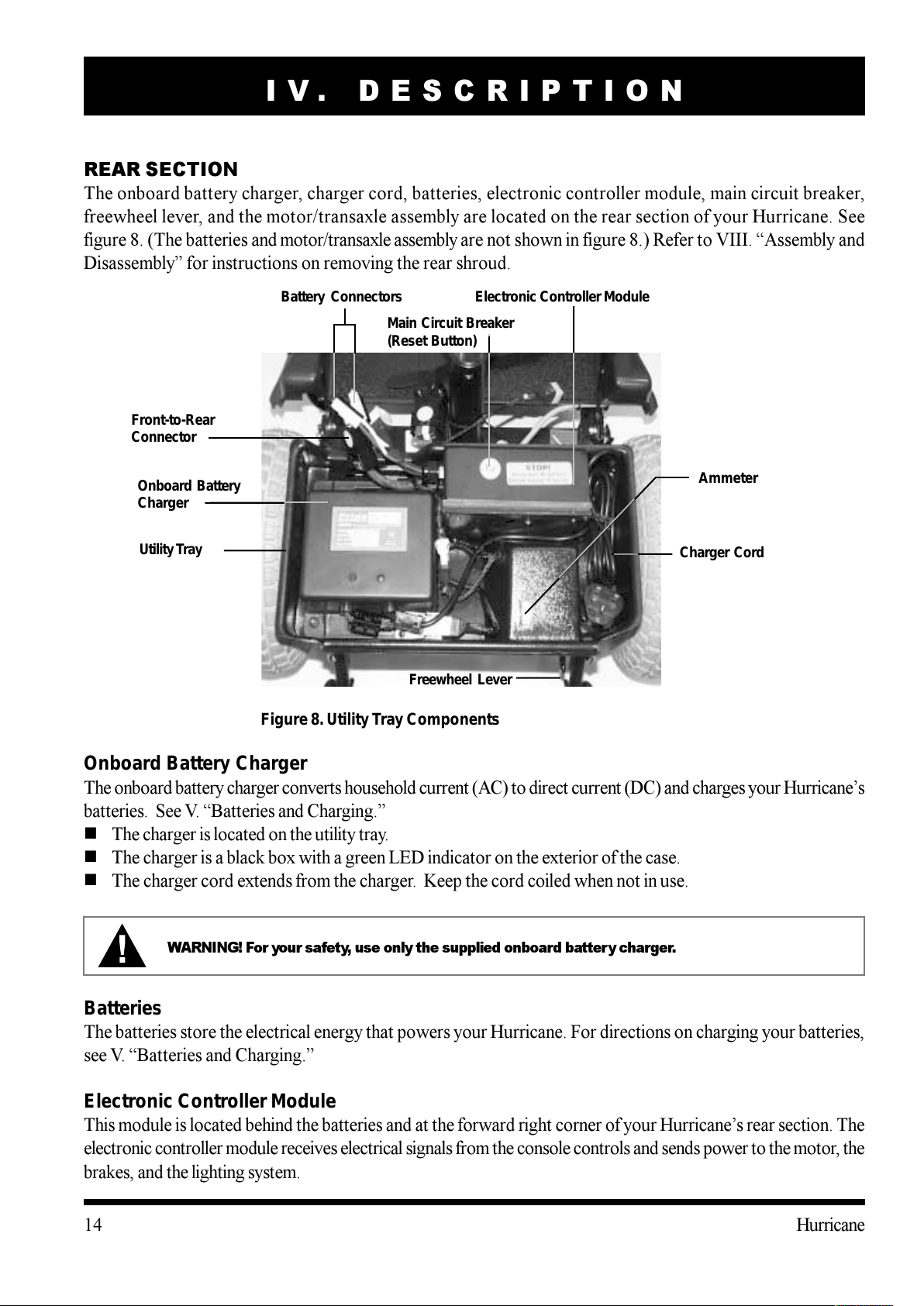

REAR SECTION
The onboard battery charger, charger cord, batteries, electronic controller module, main circuit breaker,
freewheel lever, and the motor/transaxle assembly are located on the rear section of your Hurricane. See
figure 8. (The batteries and motor/transaxle assembly are not shown in figure 8.) Refer to VIII. Assembly and
Disassembly for instructions on removing the rear shroud.
IV. DESCRIPTION
Onboard Battery Charger
The onboard battery charger converts household current (AC) to direct current (DC) and charges your Hurricanes
batteries. See V. Batteries and Charging.
nThe charger is located on the utility tray.
nThe charger is a black box with a green LED indicator on the exterior of the case.
nThe charger cord extends from the charger. Keep the cord coiled when not in use.
WARNING! For your safety, use only the supplied onboard battery charger.
Batteries
The batteries store the electrical energy that powers your Hurricane. For directions on charging your batteries,
see V. Batteries and Charging.
Electronic Controller Module
This module is located behind the batteries and at the forward right corner of your Hurricanes rear section. The
electronic controller module receives electrical signals from the console controls and sends power to the motor, the
brakes, and the lighting system.
All manuals and user guides at all-guides.com

15Hurricane
IV. DESCRIPTION
WARNING! Do not expose the electronic controller module to moisture. If it does become exposed
to moisture, do not attempt to operate your Hurricane until it has thoroughly dried.

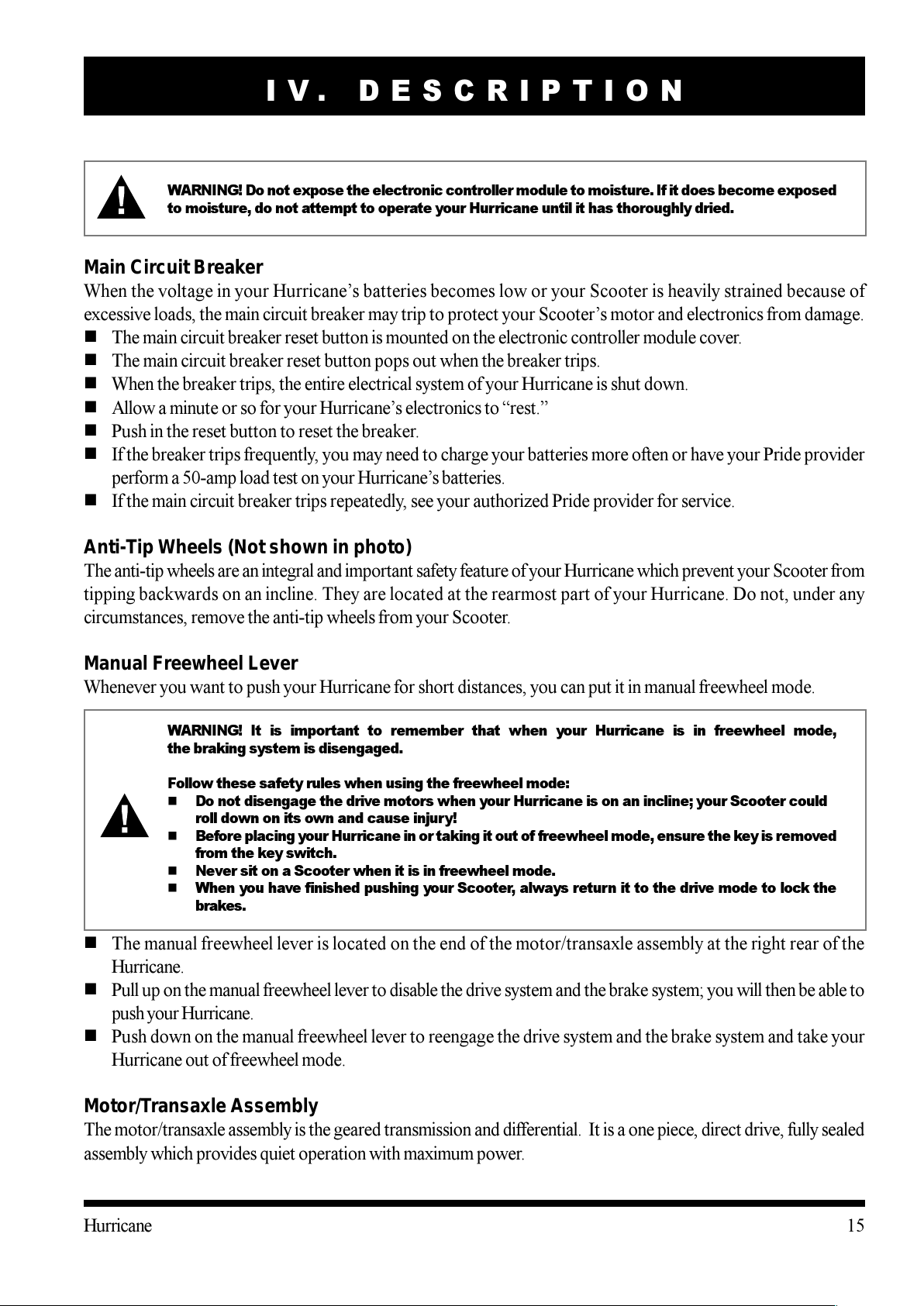

Main Circuit Breaker
When the voltage in your Hurricanes batteries becomes low or your Scooter is heavily strained because of
excessive loads, the main circuit breaker may trip to protect your Scooters motor and electronics from damage.
nThe main circuit breaker reset button is mounted on the electronic controller module cover.
nThe main circuit breaker reset button pops out when the breaker trips.
nWhen the breaker trips, the entire electrical system of your Hurricane is shut down.
nAllow a minute or so for your Hurricanes electronics to rest.
nPush in the reset button to reset the breaker.
nIf the breaker trips frequently, you may need to charge your batteries more often or have your Pride provider
perform a 50-amp load test on your Hurricanes batteries.
nIf the main circuit breaker trips repeatedly, see your authorized Pride provider for service.
Anti-Tip Wheels (Not shown in photo)
The anti-tip wheels are an integral and important safety feature of your Hurricane which prevent your Scooter from
tipping backwards on an incline. They are located at the rearmost part of your Hurricane. Do not, under any
circumstances, remove the anti-tip wheels from your Scooter.
Manual Freewheel Lever
Whenever you want to push your Hurricane for short distances, you can put it in manual freewheel mode.
WARNING! It is important to remember that when your Hurricane is in freewheel mode,
the braking system is disengaged.
Follow these safety rules when using the freewheel mode:
nDo not disengage the drive motors when your Hurricane is on an incline; your Scooter could
roll down on its own and cause injury!
nBefore placing your Hurricane in or taking it out of freewheel mode, ensure the key is removed
from the key switch.
nNever sit on a Scooter when it is in freewheel mode.
nWhen you have finished pushing your Scooter, always return it to the drive mode to lock the
brakes.
nThe manual freewheel lever is located on the end of the motor/transaxle assembly at the right rear of the
Hurricane.
nPull up on the manual freewheel lever to disable the drive system and the brake system; you will then be able to
push your Hurricane.
nPush down on the manual freewheel lever to reengage the drive system and the brake system and take your
Hurricane out of freewheel mode.
Motor/Transaxle Assembly
The motor/transaxle assembly is the geared transmission and differential. It is a one piece, direct drive, fully sealed
assembly which provides quiet operation with maximum power.
All manuals and user guides at all-guides.com

16 Hurricane
OPTIONAL ACCESSORIES
For information concerning these and other optional accessories, see your authorized Pride provider.
IV. DESCRIPTION
Cup Holder
Rear Basket
Flag
Oxygen Holder
All manuals and user guides at all-guides.com
all-guides.com

17Hurricane
our Hurricane requires two long-lasting, 12-volt, deep-cycle batteries that are sealed and maintenance free.
Recharge the batteries with the convenient 5-amp onboard battery charger. See figure 8.
Two important points to remember are:
nCharge your Hurricanes batteries with the supplied onboard battery charger prior to using it for the first time.
nKeep your batteries fully charged to keep your Hurricane running smoothly.
NOTE:Use on y the onboard battery charger supp ied with your Hurricane.
READING YOUR BATTERY VOLTAGE
The battery condition meter on the control console assembly indicates the approximate strength of your batteries.
(The meter reads 26 volts when your batteries are fully charged.) To check the charge, you must first unplug the
battery charger and insert the key into the key switch.
ou can also use the ammeter to check your batteries charge. The ammeter is located on the utility tray under the
rear shroud. (The amperage reading should be at or near zero (0) when the batteries are fully charged.) The
battery charger must be plugged into a wall outlet to obtain an ammeter reading.
CHARGING YOUR BATTERIES
ou can charge your batteries with your Hurricane completely assembled or with your Hurricane disassembled,
as described in VIII. Assembly and Disassembly. We strongly recommend you charge your batteries while
your Hurricane is fully assembled. However, if you are traveling and you disassemble your Hurricane to transport
it, you may find it necessary to charge your batteries. In such instances, it is easier to take out the utility tray and
batteries to perform the charging.
Follow these steps to safely charge your batteries while your Hurricane is fully assembled.
1. Position your Scooter close to a standard wall outlet.
2. Remove the key from the key switch.
3. Ensure the freewheel lever is in the down (drive) position.
4. Extend the charger power cord and plug it into the wall outlet. We recommend you charge your batteries for
8 to 14 hours.
5. When the batteries are fully charged, unplug the charger power cord from the wall outlet, recoil the cord, and
place it neatly inside the utility tray.
NOTE: There is a charger inhibit on your Hurricane. Your Scooter does not run and the battery condition
meter does not operate whi e the batteries are charging.
Follow these steps to safely charge your batteries with the utility tray and batteries removed.
1. Disassemble your Hurricane, as described in VIII. Assembly and Disassembly.
2. Position your utility tray and batteries close to a standard wall outlet.
3. Plug both the 2-pin battery harnesses into the adjoining harnesses extending from the electronic controller
module on the utility tray. See figure 9.
4. Extend the charger power cord and plug it into the wall outlet. We recommend you charge your batteries for
8 to 14 hours.
V. BATTERIES AND CHARGING
All manuals and user guides at all-guides.com

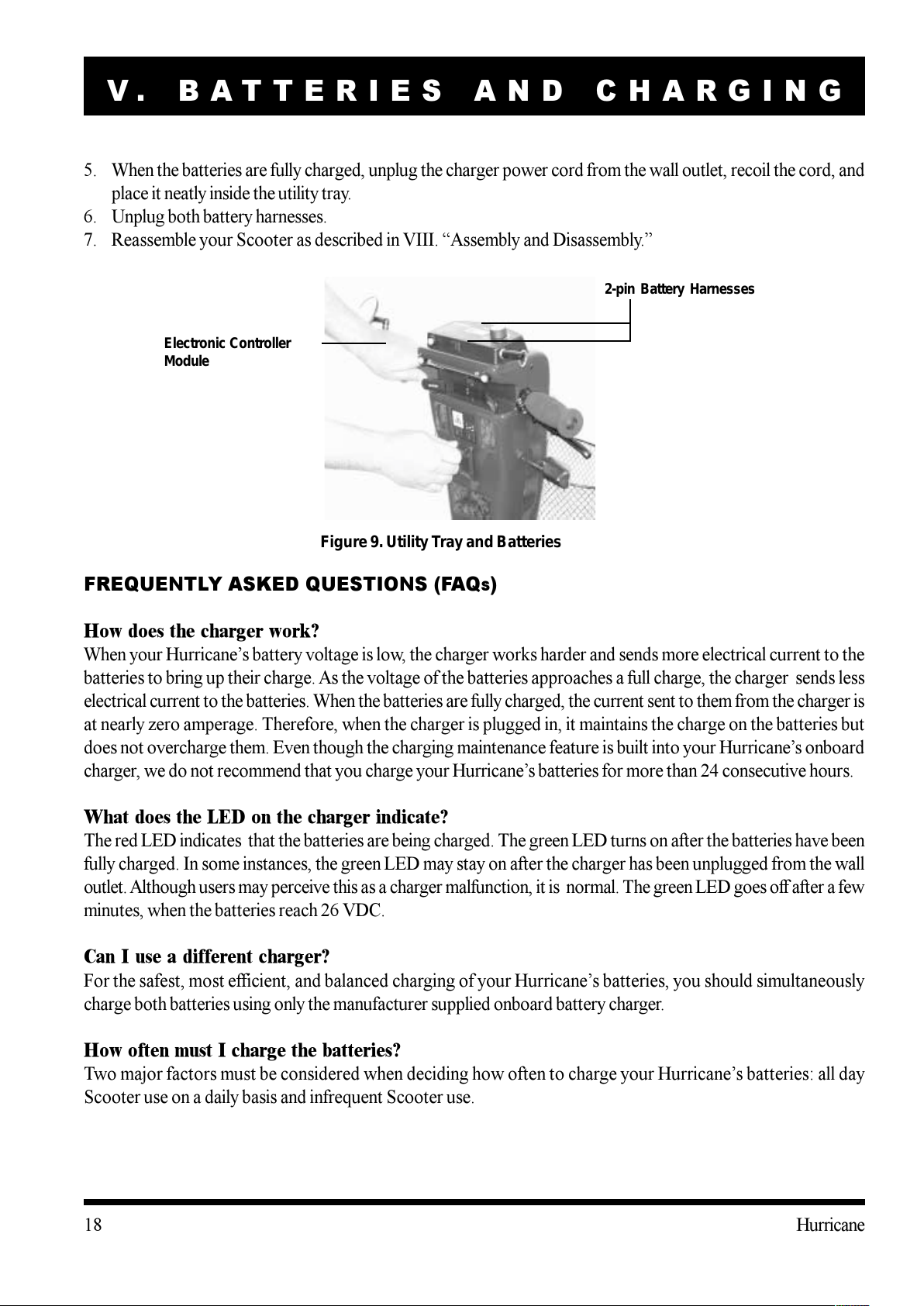

18 Hurricane
5. When the batteries are fully charged, unplug the charger power cord from the wall outlet, recoil the cord, and
place it neatly inside the utility tray.
6. Unplug both battery harnesses.
7. Reassemble your Scooter as described in VIII. Assembly and Disassembly.
Figure 9. Utility Tray and Batteries
Electronic Controller
Module
2-pin Battery Harnesses
FREQUENTLY ASKED QUESTIONS (FAQS)
How does the charger work?
When your Hurricanes battery voltage is low, the charger works harder and sends more electrical current to the
batteries to bring up their charge. As the voltage of the batteries approaches a full charge, the charger sends less
electrical current to the batteries. When the batteries are fully charged, the current sent to them from the charger is
at nearly zero amperage. Therefore, when the charger is plugged in, it maintains the charge on the batteries but
does not overcharge them. Even though the charging maintenance feature is built into your Hurricanes onboard
charger, we do not recommend that you charge your Hurricanes batteries for more than 24 consecutive hours.
What does the LED on the charger indicate?
The red LED indicates that the batteries are being charged. The green LED turns on after the batteries have been
fully charged. In some instances, the green LED may stay on after the charger has been unplugged from the wall
outlet. Although users may perceive this as a charger malfunction, it is normal. The green LED goes off after a few
minutes, when the batteries reach 26 VDC.
Can I use a different charger?
For the safest, most efficient, and balanced charging of your Hurricanes batteries, you should simultaneously
charge both batteries using only the manufacturer supplied onboard battery charger.
How often must I charge the batteries?
Two major factors must be considered when deciding how often to charge your Hurricanes batteries: all day
Scooter use on a daily basis and infrequent Scooter use.
V. BATTERIES AND CHARGING
All manuals and user guides at all-guides.com

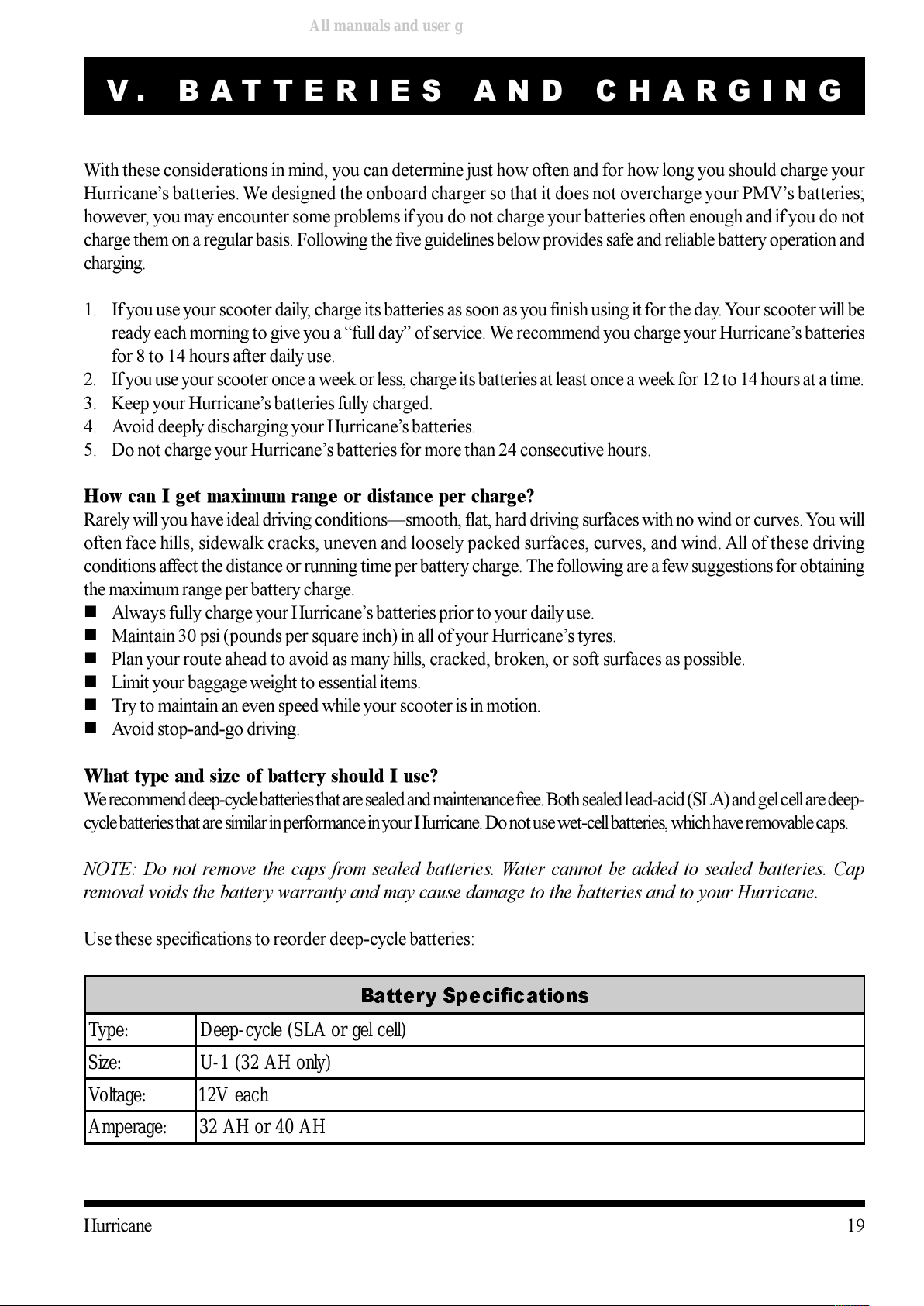

19Hurricane
With these considerations in mind, you can determine just how often and for how long you should charge your
Hurricanes batteries. We designed the onboard charger so that it does not overcharge your PMVs batteries;
however, you may encounter some problems if you do not charge your batteries often enough and if you do not
charge them on a regular basis. Following the five guidelines below provides safe and reliable battery operation and
charging.
1. If you use your scooter daily, charge its batteries as soon as you finish using it for the day. our scooter will be
ready each morning to give you a full day of service. We recommend you charge your Hurricanes batteries
for 8 to 14 hours after daily use.
2. If you use your scooter once a week or less, charge its batteries at least once a week for 12 to 14 hours at a time.
3. Keep your Hurricanes batteries fully charged.
4. Avoid deeply discharging your Hurricanes batteries.
5. Do not charge your Hurricanes batteries for more than 24 consecutive hours.
How can I get maximum range or distance per charge?
Rarely will you have ideal driving conditionssmooth, flat, hard driving surfaces with no wind or curves. ou will
often face hills, sidewalk cracks, uneven and loosely packed surfaces, curves, and wind. All of these driving
conditions affect the distance or running time per battery charge. The following are a few suggestions for obtaining
the maximum range per battery charge.
nAlways fully charge your Hurricanes batteries prior to your daily use.
nMaintain 30 psi (pounds per square inch) in all of your Hurricanes tyres.
nPlan your route ahead to avoid as many hills, cracked, broken, or soft surfaces as possible.
nLimit your baggage weight to essential items.
nTry to maintain an even speed while your scooter is in motion.
nAvoid stop-and-go driving.
What type and size of battery shou d I use?
We recommend deep-cycle batteries that are sealed and maintenance free. Both sealed lead-acid (SLA) and gel cell are deep-
cycle batteries that are similar in performance in your Hurricane. Do not use wet-cell batteries, which have removable caps.
NOTE: Do not remove the caps from sea ed batteries. Water cannot be added to sea ed batteries. Cap
remova voids the battery warranty and may cause damage to the batteries and to your Hurricane.
Use these specifications to reorder deep-cycle batteries:
V. BATTERIES AND CHARGING
%DWWHU\6SHFLILFDWLRQV
Type: Deep-cycle (SLA or gel cell)
Size: U-1 (32 AH only)
Voltage: 12V each
Amperage: 32 AH or 40 AH
All manuals and user guides at all-guides.com

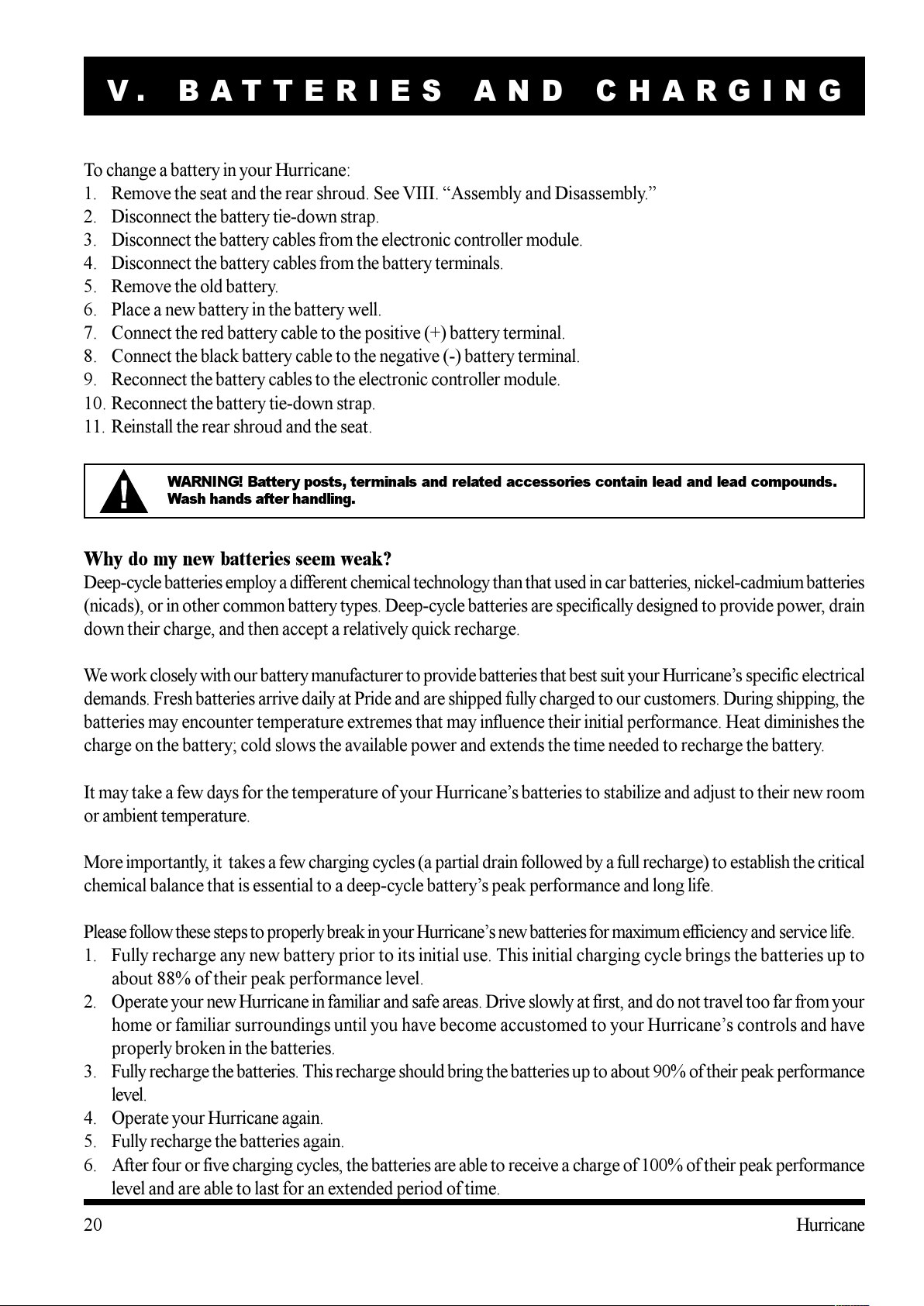

20 Hurricane
To change a battery in your Hurricane:
1. Remove the seat and the rear shroud. See VIII. Assembly and Disassembly.
2. Disconnect the battery tie-down strap.
3. Disconnect the battery cables from the electronic controller module.
4. Disconnect the battery cables from the battery terminals.
5. Remove the old battery.
6. Place a new battery in the battery well.
7. Connect the red battery cable to the positive (+) battery terminal.
8. Connect the black battery cable to the negative (-) battery terminal.
9. Reconnect the battery cables to the electronic controller module.
10. Reconnect the battery tie-down strap.
11. Reinstall the rear shroud and the seat.
V. BATTERIES AND CHARGING
WARNING! Battery posts, terminals and related accessories contain lead and lead compounds.
Wash hands after handling.
Why do my new batteries seem weak?
Deep-cycle batteries employ a different chemical technology than that used in car batteries, nickel-cadmium batteries
(nicads), or in other common battery types. Deep-cycle batteries are specifically designed to provide power, drain
down their charge, and then accept a relatively quick recharge.
We work closely with our battery manufacturer to provide batteries that best suit your Hurricanes specific electrical
demands. Fresh batteries arrive daily at Pride and are shipped fully charged to our customers. During shipping, the
batteries may encounter temperature extremes that may influence their initial performance. Heat diminishes the
charge on the battery; cold slows the available power and extends the time needed to recharge the battery.
It may take a few days for the temperature of your Hurricanes batteries to stabilize and adjust to their new room
or ambient temperature.
More importantly, it takes a few charging cycles (a partial drain followed by a full recharge) to establish the critical
chemical balance that is essential to a deep-cycle batterys peak performance and long life.
Please follow these steps to properly break in your Hurricanes new batteries for maximum efficiency and service life.
1. Fully recharge any new battery prior to its initial use. This initial charging cycle brings the batteries up to
about 88% of their peak performance level.
2. Operate your new Hurricane in familiar and safe areas. Drive slowly at first, and do not travel too far from your
home or familiar surroundings until you have become accustomed to your Hurricanes controls and have
properly broken in the batteries.
3. Fully recharge the batteries. This recharge should bring the batteries up to about 90% of their peak performance
level.
4. Operate your Hurricane again.
5. Fully recharge the batteries again.
6. After four or five charging cycles, the batteries are able to receive a charge of 100% of their peak performance
level and are able to last for an extended period of time.
All manuals and user guides at all-guides.com
