Prince Castle TX-208 User manual

TX-208 537-511revBPrinted in USA 0324 © 2003
T
TOASTER OASTER
TX-208
TX-208
Operation
Operation
Manual
Manual
355 East Kehoe Blvd. • Carol Stream, IL 60188
Phone: [phone] • Toll Free: 1-800-PCASTLE
Fax: [phone] • www.princecastle.com
LIMITED WARRANTY
This product is warranted to be free from defects in material and/or work-
manship for a period of two (2) years from date of original installation. One
(1) year on-site with the exception of conveyor belts and Teflon sheets
(they are subject to regular wear and tear and required routine replace-
ment.
Any component which proves to be faulty in material and/or workmanship
will be replaced or repaired (at the option of Prince Castle, Inc.) without
cost to the customer for parts or labor. This warranty covers on location
service (i.e. trip charges and/or mileage). Travel mileage is limited to 100
miles (200 kilometers) round trip (one trip warranty) from an authorized ser-
vice agency or its sub-service agency.
This warranty is subject to the following exceptions/conditions:
• Use of any non-genuine Prince Castle parts voids this warranty.
• All labor shall be performed during regular work hours. Overtime premi-
um will be charged to the buyer.
• Damage caused by carelessness, neglect, and/or abuse (e.g., dropping,
tampering or altering parts, equipment damaged in shipment, by fire,
flood or an act of God) is not covered under this warranty.
TABLE OF CONTENTS
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . .2
Product Identification . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Daily Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Parts List and Exploded View . . . . . . . . . . . . . . . . . . .8-9
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

TX-208 537-511revB Printed in USA 0324 © 2003
2
TOASTER
TX-208

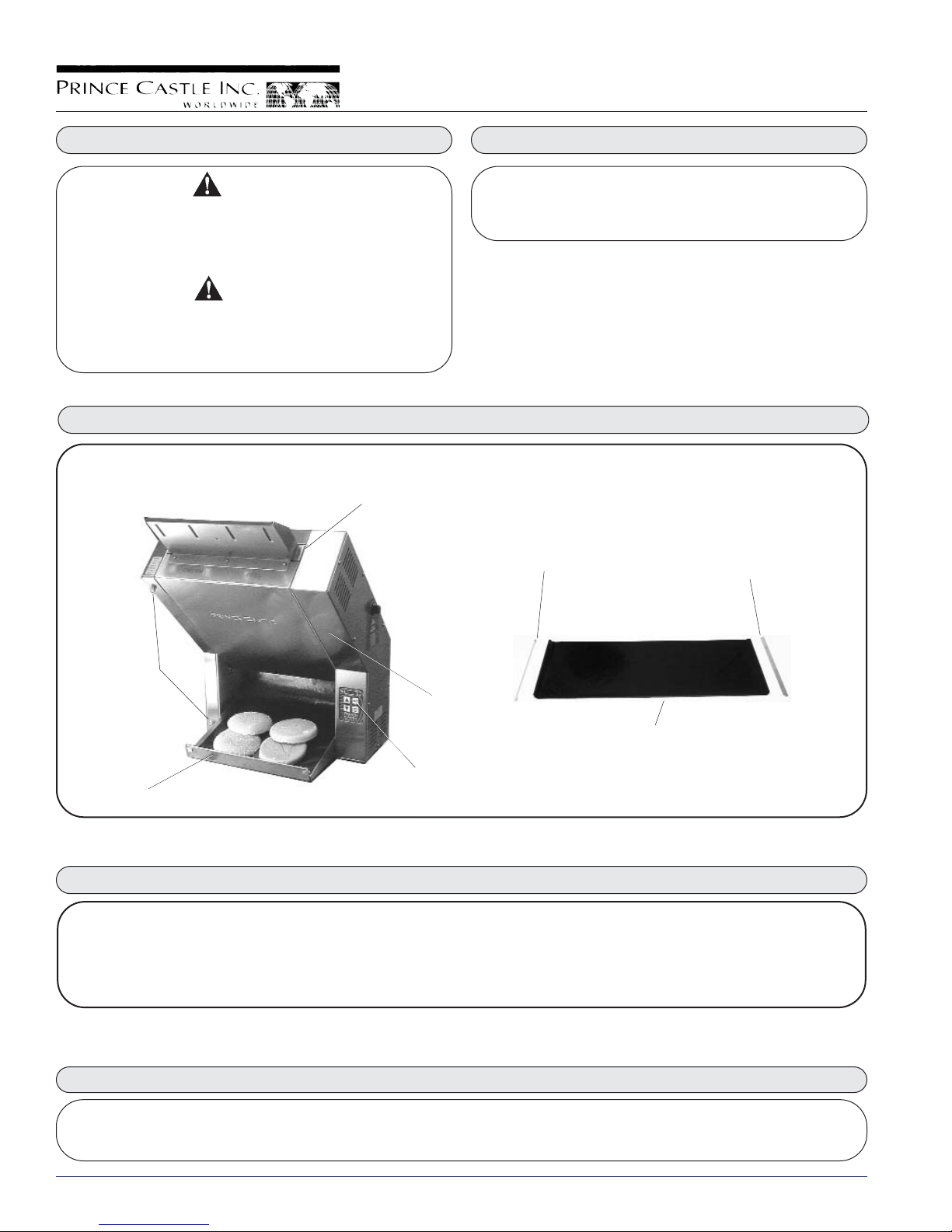

Product Identification
Electrical Specifications
Installation
Model No. Volts Watts Amps Hz
TX-208 208 4000 19.2 60
Safety Information
Remove the unit from the carton and inspect for signs of damage. If
there is damage to the unit:
• notify the carrier within 24 hours of delivery
• save carton and packaging materials for inspection purposes
• contact your local dealer, or if purchased directly, the Prince Castle
Sales Department at 800-722-7853 or 1-630-462-8800 to arrange for a
replacement unit.
Verify that all parts have been received (see Components, page 2).
Plug the power cord into the proper electrical receptacle. All electrical
connections must be in accordance with local electrical codes and any
other applicable codes.
Important
Prince Castle reserves the right to change specifications and product design without notice. Such
revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements
for previously purchased equipment.
WARNING
Indicates information important to the proper opera-
tion of the unit. Failure to observe may result in dam-
age to the equipment and/or severe bodily injury or
death.
CAUTION
Indicates information important to the operation of
the unit. Failure to observe may result in damage to
the equipment.
Side Cover and
Thumbscrews
Lower Retaining Bar Upper Retaining Bar
Teflon Release Sheet
Conveyor Belt
(under cover)
Power On/Off
Button
Front
Cover
Bun Ramp

TX-208 537-511revBPrinted in USA 0324 © 20033
TOASTER
TX-208

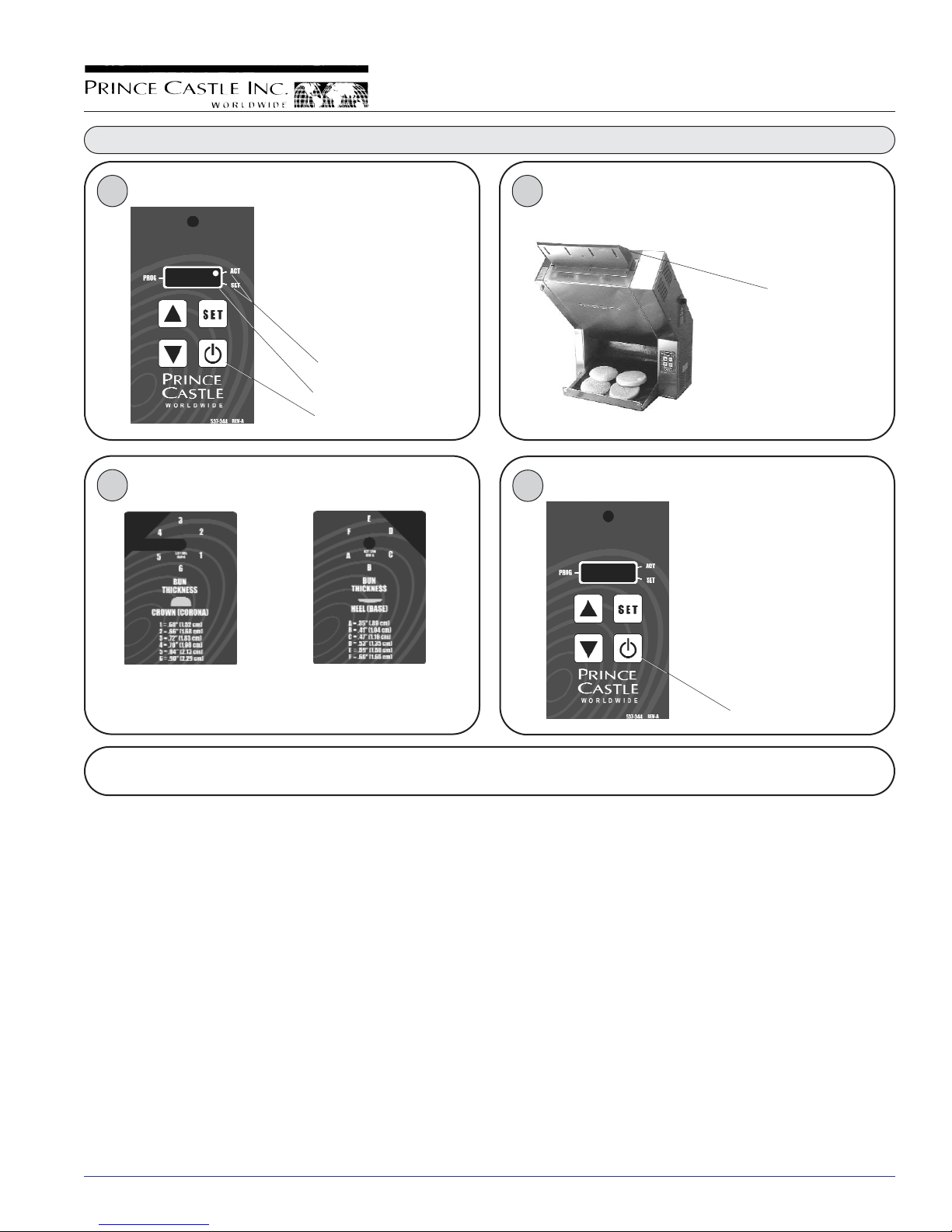

Operation
1
Power On/Off Button
Display
Temperature LED’s
Press the On/Off Button to turn the unit on.
The conveyor will begin to turn
and the display will read “
LLOO
”.
When the unit is at operating
temperature the display will
read “
RRDDYY
” and the ACT (actual
temperature) LED will be lit.
2Turn the Bun Thickness Adjustment Knobs to the desired setting.
RRDDYY
Power On/Off Button
If the heater is above 450°F, the
display will alternately show
“
CCOOOOLL
” and “
OOFFFF
”, and the con-
veyor belt will continue to run
approximately 45 minutes. When
the unit has cooled sufficiently,
the display will go blank and the
conveyor motor will turn off.
Left Side Control
1 = Thinnest Cut
6 = Thickest Cut
Right Side Control
A = Thinnest Cut
F = Thickest Cut
3Feed the buns into the bun chute, flat (toasted) side up.
4Press the On/Off Button to turn the unit off.
Bun Chute
NOTE: Factory preset temperature is 570°F and should provide satisfactory results in most applications. Maximum
temperature of unit is 580°F (304°C).

TX-208 537-511revBPrinted in USA 0324 © 2003
4
TOASTER
TX-208
Power On/Off Button
Press the On/Off Button to turn the unit off.
3Remove the lower retaining bar from the release sheet and pull
the release sheet up thru the top of the unit. Remove the upper
retaining bar from the release sheet.
WARNING
Before performing any maintenance, press the power switch to the
OFF position. If the heater is above 450°F, the display will alternately
show “CCOOOOLL” and “OOFFFF”, and the conveyor belt will continue to run
approximately 45 minutes. When the unit has cooled sufficiently, the
display will go blank and the conveyor motor will turn off.
Unplug the power cord from the electrical receptacle.
CAUTION
This unit is not watertight. Do not clean with a water jet or jet spray.
Do not immerse the unit in water.
1. Turn the unit off and unplug the power cord from the electrical
receptacle.
2. Wipe all stainless parts and unit with a damp cloth. DO NOT use
a green scotch bright pad cleaner, ice or water.
1
If the heater is above 450°F, the
display will alternately show
“
CCOOOOLL
” and “
OOFFFF
”, and the convey-
or belt will continue to run approx-
imately 45 minutes. When the unit
has cooled sufficiently, the display
will go blank and the conveyor
motor will turn off.
Unplug the power cord from the
electrical outlet.
2Remove the front cover by pulling up and off the unit.
Set the cover aside.
Front Cover
Lower Retaining Bar Remove release sheet

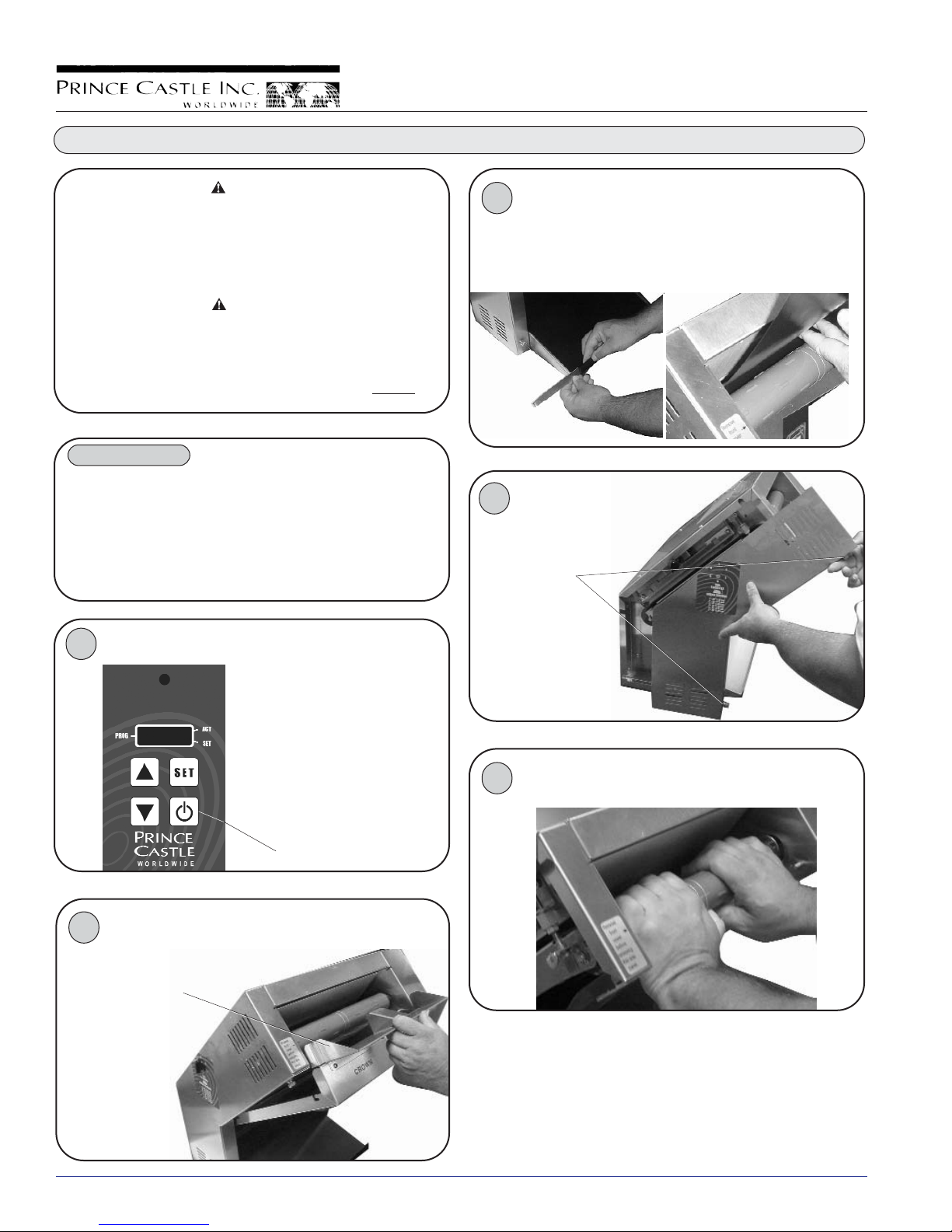

Daily Cleaning
Loosen the thumbscrews
and remove the side panel.
4
Thumbscrews
5To release tension on the conveyor belt,
press in and down on the roller.
General
• As buns are toasted, they leave an oily residue buildup on the
conveyor belt and Teflon release sheet.
• Over a period of time, the residue will form a slick coating where
buns make contact on the belt surface.
• If this slick coating is not removed, the belt may not pull the buns
into the toaster or will not pull the buns completely through the
toaster, and the buns will burn.

TX-208 537-511revBPrinted in USA 0324 © 20035
TOASTER
TX-208

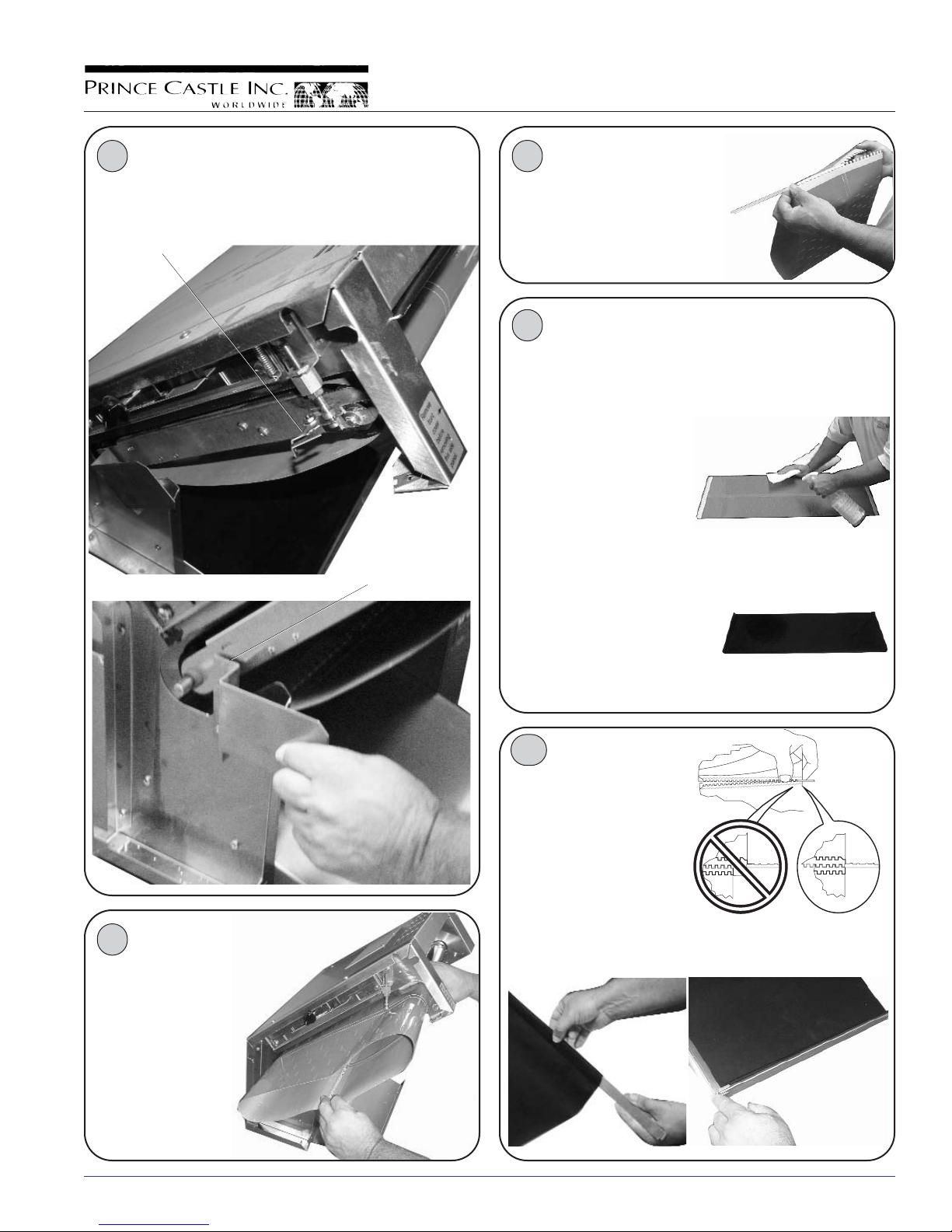

6Release the upper and lower locking latches from the conveyor
rollers.
Upper Latch
7Remove the conveyor belt.
Rotate the belt while removing
it from the side of the unit.
Lower Latch
Reassemble the unit by
reversing steps 1 - 8.
10
When reassembling convey-
or belt, make sure plastic
spline is positioned correctly
as shown.
When reassembling release
sheet, be sure to install upper
and lower retaining bars in
the correct end.
Release Sheet
Upper Retaining Bar
Release Sheet
Lower Retaining Bar
8Remove the plastic spline from the belt.
9
Place the release sheet on a flat surface. Clean the release sheet with
a mild dishwashing detergent (CAPITAL used to clean trays works
well). Sanitize the surface by wiping it
with a cloth damp with tray sanitizing
liquid (Kay-5 Sanitizer).
The Teflon sheet uses both sides as the contact surface. When re-
installing, rotate the usage by turning top-to-bottom and/or turning the
sheet inside/out.
Residue on the belt is easy
to remove if it is still oily. If
the residue has formed a
slick coating, additional
scrubbing effort is required
to remove it.
The conveyor belt has only one contact surface and must be
re-installed with orange side facing out.
Place the belt (orange surface up) on a flat surface. Clean the
belt orange surface with a mild dishwashing detergent (CAPITAL
used to clean trays works well. Mix 1 part CAPITAL to 9 parts
water). Spray detergent onto orange portion of belt, then wait
1 minute for residue to dissolve. Spray detergent onto a
no-scratch pad and wipe the belt to remove residue. When the
belt is clean, the surface will have a tacky grip when you rub a
finger over the surface. Sanitize the surface by wiping it with a
cloth damp with tray sanitizing liquid (Kay-5 Sanitizer).

TX-208 537-511revBPrinted in USA 0324 © 2003
6
TOASTER
TX-208

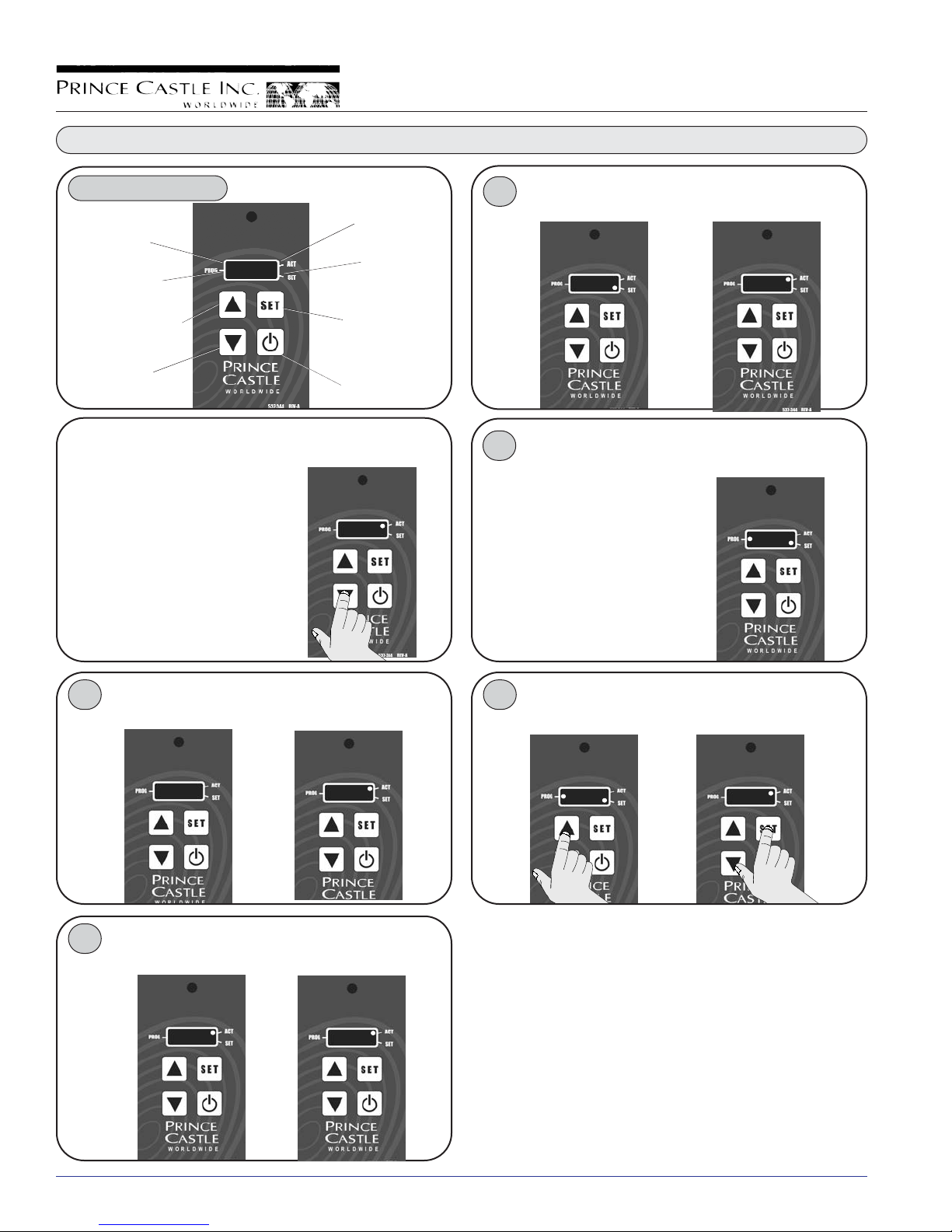

Programming
Power On/Off
Button
Set Button
Scan Up/Actual Temp
Button
Display
Program LED
Actual Temperature
LED
Setpoint
LED
Scan Down
Button
Control Panel
LO
1Press the On/Off button.
Conveyor will begin to turn
and the display will read LLOO.
When the unit reaches its
setpoint temperature, the
display will read RRDDYY.
540
2To view the actual temperature, press and release the UP or
DOWN Arrow Button. The display will show the actual platen
temperature for 5 seconds, then change back to RRDDYY.
RDY
282
To switch from Fahrenheit to
Celsius, turn the unit off. Press and
hold the DOWN Arrow Button and
turn the unit back on. When you
release the Arrow Button, the dis-
play will be in Celsius.
To switch from Celsius to
Fahrenheit, turn the unit off. Press
and hold the UP Arrow Button when
turn the unit back on. When you
release the Arrow Button, the dis-
play will be in Fahrenheit.
Temperature displayed
in Celsius
RDY
545
540
3To view the setpoint temperature, press and release the SET
Button. The setpoint LED will glow and the setpoint will be
displayed for 5 seconds, then change back to RRDDYY.
RDY
540
4To change the setpoint temperature, press and hold the SET
Button for 6 seconds. The setpoint and program LED’s will
glow and the setpoint will be displayed.
545
5Use the UP or DOWN
Arrow Buttons to
adjust to the desired
setpoint.
Press and release the
SET Button to save the
new setpoint and return
to the operation mode.

TX-208 537-511revBPrinted in USA 0324 © 20037
TOASTER
TX-208

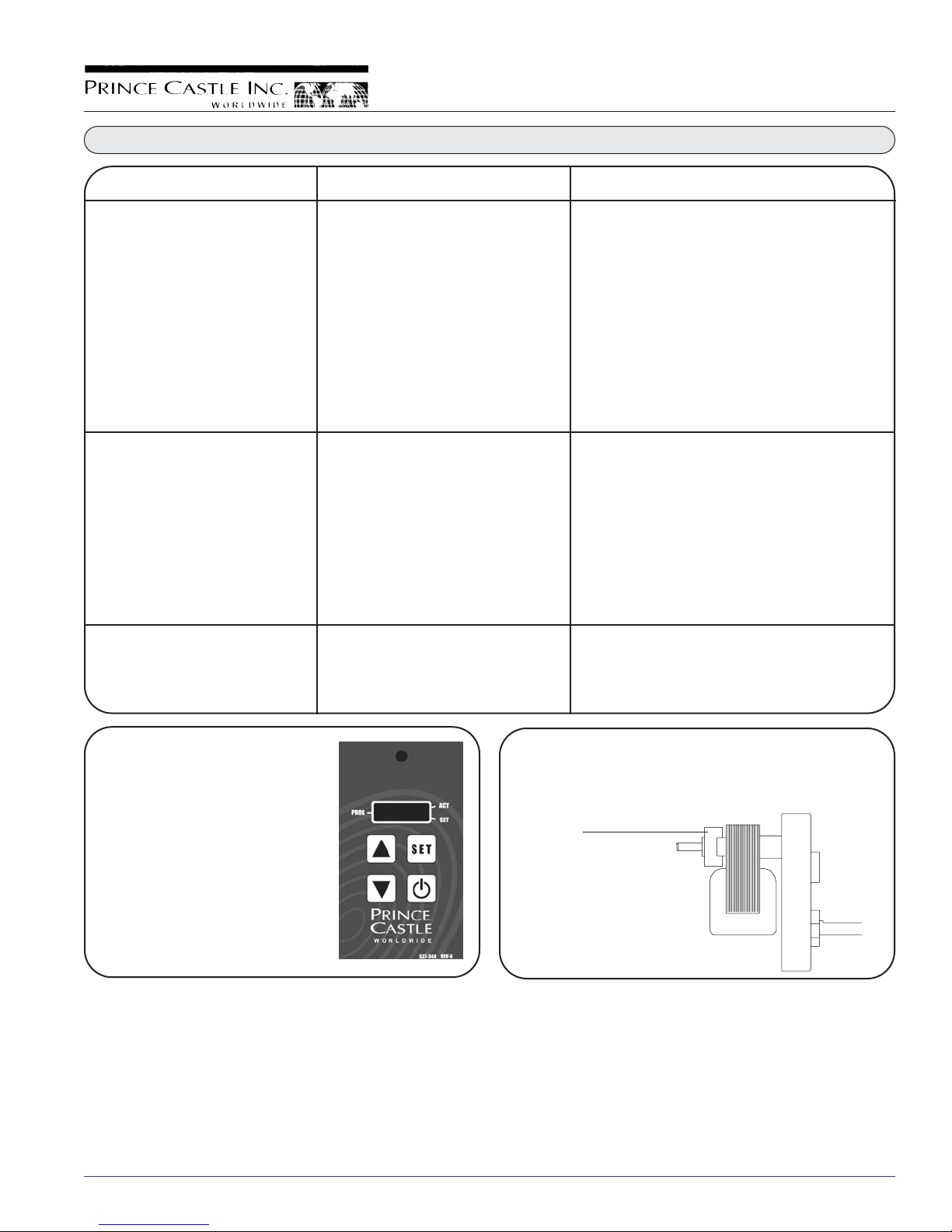

Troubleshooting
Unit will not heat up.
Unit heats up but conveyor
will not run.
Buns under or over done.
No power to unit.
Inoperable power cord.
Loose connection on power switch.
Inoperable power switch.
High limit switch tripped.
Loose motor connection.
Inoperable motor.
Stripped drive gear.
High limit switch tripped.
Check bun crush setting.
Verify setpoint temperature.
Dirty teflon sheet.
Make sure power cord plugged into the unit and
proper electrical receptacle.
Replace power cord.
Tighten power switch connections.
Replace power switch.
Reset limit switch. Using a pencil or pen, press
the hollow portion of the 3/8" long brown, plastic
stem located at the right-hand rear of the unit.
Allow the unit to cool (approximately 15 min-
utes) before starting.
Tighten motor connection.
Replace motor.
Replace drive gear.
Reset limit switch. Using a pencil or pen, press
the hollow portion of the 3/8" long brown, plastic
stem located at the right-hand rear of the unit.
Allow the unit to cool (approximately 15 min-
utes) before starting.
Adjust for proper compression.
Adjust setpoint for proper temperature.
Clean or replace teflon sheet.
Problem Possible Cause Corrective Action
LO
When the platen temperature drops 24° or
more below the setpoint temperature, the
display will switch from RRDDYYto LLOO. If the dis-
play remains at LLOOfor 30 minutes,,contact an
authorized Prince Castle Service Agent.
To extend the life of the motor, add 2-3 drops
of high-temperature oil on a monthly basis.
This task can be performed by an authorized
technician.
Oil Port

TX-208 537-511revBPrinted in USA 0324 © 2003
8
TOASTER
TX-208
Parts List & Exploded View
14
15
16 17
18 19 20
21
12 11
3
2
1
5
4
10
7
6
8
922
43
24
30
38
39
41
40
44
33
15
42
29
25
36
37
35
34
27
26 28
23
32
45 46
47
13
1 537-324 Front Cover
2 537-618 Bun Chute
3537-725S Rubber Belt
4537-330S Conveyor Assy.
5537-338 Base Pad
6537-320 Bottom Plate
7537-373 Ramp Baffle
887-028TXBSMotor
988-577 Fuse Block
88-578 Fuse
10 537-383 Retainer Bar Lower
11537-398 Retainer Bar Upper
12 537-403-3S Teflon Sheet
13 537-333 LH Cover
14 537-395 Bun Crush Overlay
15 70-050 Bun Crush Adj. Knob
16 537-298 Cam Bracket
17 537-379 Guide Bracket
18 537-329 LH Cam Shaft
19 537-300 LH Slide Plate
20 537-381 Conveyor Bracket
21 537-382 Conveyor Bracket
22 537-319 Ramp
23 537-336 LH Upright
24 537-335 RH Upright
25 537-295S Platen
26 537-337 Insulation
27 537-296 Heater Housing
28 537-366 Heater Housing Plate
29 537-409 Rear Panel
30 537-332 RH Cover
31 537-396 Bun Thickness Overlay
32 537-476 Hi-Temperature Switch
33 537-343S PC Board & Overlay Assy.
34 537-328 RH Cam Shaft
35 537-299 RH Slide Plate
36 65-058S Heater Relay
37 537-341S Heater
38 537-352SSprocket
39 537-704S Idler Sprocket & Bracket Assy
40 537-348S Sprocket
41 537-704S Idler Sprocket & Bracket Assy
42 66-034 Strain Relief
43 72-190S Power Cord
44 537-380 Drive Chain
45 65-048-14 Power Relay
46 537-388S Transformer Assy.
47 537-400 Temperature Probe
Ref. Part No. Description Ref. Part No. Description

TX-208 537-511revBPrinted in USA 0324 © 20039
TOASTER
TX-208
Parts List & Exploded View
16
17
6
2
3
8
4
7
5
14
9
13
1
10
12
11
15
1 537-351 Frame
2 537-354 Air Shield
3 537-349 Cross Brace
4 537-412 Lower Roller
5 537-370S Lower Bearing (Package of 2)
6 537-318S Lower Shaft (Short)
7 537-316S Lower Shaft (Long)
8 197-279 Pin
9 537-334 Slide Bracket
10 537-411 Upper Roller
11 537-315 Upper Shaft
12 537-317S Upper Bearing (Package of 2)
13 79-055S Washer (Package of 2)
14 81-017S Spring (Package of 2)
15 86-272S Cotter Pin (Package of 2)
16 69-011S Rivet (Package of 4)
17 76-640 Screw
Ref. Part No. Description Ref. Part No. Description

TX-208 537-511revBPrinted in USA 0324 © 2003
10
TOASTER
TX-208
Wiring Diagram
PLATEN HEATER RELAY
RED
BLK
VIO
BLK
TRANSFORMER
YEL
YEL BLK
BLK
NOT USED
POWER
RELAY
WHT
RED
NC CNO
WHT
WHT
BLK
BLK
POWER
TERMINAL
BLOCK
WHT
BLK
BLU
(WHT)
BRN
(BLK)
WHT
WHT
BLK
BLK
BLK
BLK
WHT
POWER CORD
GRN/YEL
3A FUSE BLOCK
CONNECTION DETAIL
USED ONLY ON
TX-208 & TX-240
MOTOR BLK BLK
CONNECT WHITE WIRE
TO PROPER MOTOR
VOLTAGE TAB
WHT
240V 200V
J1
YEL
YEL
J7J14
CONTROL
BOARD
DISTRIBUTION
TERMINAL
BLOCK
OPTIONAL FUSE BLOCK
SEE CONNECTION DETAIL
FOR USAGE
PLATEN HEATER
AUXILIARY HEATER
WHT
BLK
WHT
WHT
TEMPERATURE
SENSOR
HI-LIMIT
THERMOSTAT
12
11 ORG WHT
BLK
ORG
RED
