PROEL ATMP240ZXL User manual

ATMP240ZXL
4-zone 240W Amplifier Mixer with Media Player
Amplificatore Mixer a 4 zone 240W con Modulo
Multimediale
USER’S MANUAL
MANUALE D’USO
ENGLISH
ITALIANO
96MAN0162-REV.09/22

2

3
IMPORTANT SAFETY INSTRUCTIONS
Watch for these symbols:
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence
of uninsulated “dangerous voltage” within the product’s enclosure, that may be of sufficient magnitude to constitute
a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the appliance.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or
the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury
from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in
any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. Warning: to reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
16. Do not expose this equipment to dripping or splashing and ensure that no objects filled with liquids, such as
vases, are placed on the equipment.
17. To completely disconnect this apparatus from the ac mains, disconnect the power supply cord plug from the ac
receptacle.
18. The mains plug of the power supply cord shall remain readily operable.
19. This apparatus contains potentially lethal voltages. To prevent electric shock or hazard, do not remove the
chassis, input module or ac input covers. No user serviceable parts inside. Refer servicing to qualified service
personnel.
20. This owner’s manual should be considered as a part of the product, it must accompany it at all times, and it
needs to be delivered to the new user when this product is sold. In this way the new owner will be aware of all
the installation, operating and safety instructions.
21. This apparatus should only be connected to a power source of type specified in this owner’s manual or on the
unit.
22. You can clean the exterior of the unit with compressed air or with a dry cloth.
23. Don’t clean the unit using solvents like trichloroethylene, thinners, alcohol, or other volatile or flammable fluids.
24. To reduce the risk, close supervision is necessary when the product is used near children.

4
DISPOSAL OF OLD ELECTRICAL & ELECTRONIC EQUIPMENT
This marking shown on the product or its literature, indicates that it should not be disposed with other
household wastes at the end of its working life. To prevent possible harm to the environment or human health
from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to
promote the sustainable reuse of material resources. Household users should contact either the retailer where
they purchased this product, or their local government office, for details of where and how they can take this item for
environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product should not be mixed with other commercial wastes for disposal.
DECLARATION OF CONFORMITY
The product is in compliance with:
EMC Directive 2014/30/EU, LVD Directive 2014/35/EU, RoHS Directive 2011/65/EU and 2015/863/EU, WEEE
Directive 2012/19/EU.
CONDITIONS OF USE
Proel do not accept any liability for damage caused to third parties due to improper installation, use of non-original spare
parts, lack of maintenance, tampering or improper use of this product, including disregard of ascertainable and applicable
safety standards. Proel strongly recommends that this apparatus must be installed taking into consideration all current
National, Federal, State and Local regulations. The product must be installed by qualified personal. Please contact the
manufacturer for further information.
PACKAGING, SHIPPING AND COMPLAINT
This unit package has been submitted to ISTA 1A integrity tests. We suggest you control the unit conditions immediately
after unpacking it.
If any damage is found, immediately advise the dealer. Keep all unit packaging parts to allow inspection.
Proel is not responsible for any damage that occurs during shipment.
Products are sold “delivered ex warehouse” and shipment is at charge and risk of the buyer.
Possible damages to unit should be immediately notified to forwarder. Each complaint for manumitted package should
be done within eight days from product receipt.
WARRANTY AND PRODUCTS RETURN
Proel products have operating warranty and comply their specifications, as stated by manufacturer.
Proel warrants all materials, workmanship and proper operation of this product for a period of two years from the original
date of purchase. If any defects are found in the materials or workmanship or if the product fails to function properly
during the applicable warranty period, the owner should inform about these defects the dealer or the distributor,
providing receipt or invoice of date of purchase and defect detailed description. This warranty does not extend to damage
resulting from improper installation, misuse, neglect or abuse. Proel S.p.A. will verify damage on returned units, and when
the unit has been properly used and warranty is still valid, then the unit will be replaced or repaired. Proel S.p.A. is not
responsible for any "direct damage" or "indirect damage" caused by product defectiveness.

5
SUMMARY
IMPORTANT SAFETY INSTRUCTIONS .........................................................................................................3
DISPOSAL OF OLD ELECTRICAL & ELECTRONIC EQUIPMENT .......................................................................4
DECLARATION OF CONFORMITY ...............................................................................................................4
CONDITIONS OF USE ................................................................................................................................4
PACKAGING, SHIPPING AND COMPLAINT..................................................................................................4
WARRANTY AND PRODUCTS RETURN .......................................................................................................4
INTRODUCTION .......................................................................................................................................7
DESCRIPTION ...........................................................................................................................................7
MAIN FUNCTIONS ....................................................................................................................................7
MAIN PANEL OPERATIONS........................................................................................................................8
1POWER .........................................................................................................................................9
2MASTER........................................................................................................................................9
3BASS AND TREBLE TONE CONTROLS...............................................................................................9
4INPUT 1 – 4 LEVEL .........................................................................................................................9
5LED INDICATOR .............................................................................................................................9
6ZONE 1-4 LEVEL SET.......................................................................................................................9
7ZONE 1-4 SELECTOR.......................................................................................................................9
8ALL ZONE SELECTOR .................................................................................................................... 10
9AUX LEVEL .................................................................................................................................. 10
10 AUX SELECTOR ........................................................................................................................ 10
11 RACK mounting ....................................................................................................................... 10
12 MEDIA PLAYER ........................................................................................................................ 10
REAR PANEL OPERATIONS ...................................................................................................................... 10
13 CHIME ROUTING AND LEVEL.................................................................................................... 11
14 VOX MIC PRIORITY .................................................................................................................. 11
15 REMOTE MIC........................................................................................................................... 11
16 ANT ........................................................................................................................................ 12
17 INPUT 1-4................................................................................................................................ 12
18 AUX IN A / B............................................................................................................................ 13
19 PRE OUT – AMP IN................................................................................................................... 13
20 REC OUT.................................................................................................................................. 14
21 ZONE LINE OUTPUTS................................................................................................................ 14
22 GENERAL LOUDSPEAKER OUTPUT ............................................................................................ 14
23 ZONE LOUDSPEAKER OUTPUT.................................................................................................. 15
24 MAINS SELECTOR..................................................................................................................... 16
25 FUSE holder............................................................................................................................. 17
26 AC~ SOCKET ............................................................................................................................ 17
MEDIA PLAYER OPERATIONS................................................................................................................... 17
27 DISPLAY................................................................................................................................... 17
28 USB PORT................................................................................................................................ 17
29 SD CARD.................................................................................................................................. 18
30 AUX INPUT.............................................................................................................................. 18
31 IR RECEIVER............................................................................................................................. 18
32 MODE ..................................................................................................................................... 18
33 PLAY/PAUSE ............................................................................................................................ 18
34 PREV/VOL- .............................................................................................................................. 18
35 NEXT/VOL+.............................................................................................................................. 18
36 ON/OFF................................................................................................................................... 18
37 MUTE...................................................................................................................................... 19

6
38 EQ........................................................................................................................................... 19
39 U/SD....................................................................................................................................... 19
40 RPT ......................................................................................................................................... 19
41 0-9 .......................................................................................................................................... 19
RM-4 PAGING BASE OPERATIONS ........................................................................................................... 20
42 INPUT ..................................................................................................................................... 20
43 OUTPUT .................................................................................................................................. 20
44 POWER ................................................................................................................................... 20
45 MIC INPUT .............................................................................................................................. 21
46 MIC LEVEL ............................................................................................................................... 21
47 CHIME BUTTON....................................................................................................................... 21
48 CHIME LEVEL........................................................................................................................... 21
49 ALL BUTTON............................................................................................................................ 21
50 Z1, Z2, Z3, Z4 BUTTONS............................................................................................................ 21
51 TALK BUTTON .......................................................................................................................... 21
52 SIG LED ................................................................................................................................... 21
53 CLIP LED.................................................................................................................................. 21
54 BUSY LED ................................................................................................................................ 21
SETUP EXAMPLE 1.................................................................................................................................. 22
SETUP EXAMPLE 2.................................................................................................................................. 23
55 TECHNICAL SPECIFICATION....................................................................................................... 24

7
INTRODUCTION
Thank you for choosing a PROEL product. Please take some time to read this manual to understand all the
features of your system and take advantage of all its performance capabilities. All PROEL products are CE
approved and designed for continuous use in professional applications.
DESCRIPTION
ATMP240ZXL is a professional mixer amplifier capable of delivering up to 240W over 4 zones, complete with
Media Player with FM radio, MP3 player on SD / USB support and Bluetooth connection.
This new mixer amplifier has been designed to meet the needs of a constantly evolving market in the most
flexible and professional way, by responding to precise operational criteria, and it is built and tested to ensure
absolute reliability for the user, even in continuous operational operation.
By combining up to 4 RM4 paging microphone bases with the ATMP240ZXL, it is possible to create a zone
system with call on a single zone, on groups of zones or in general on all zones. Moreover, by using the zone
outputs at line level it is possible to combine it with booster amplifiers to create a 4-zone system of even greater
power.
MAIN FUNCTIONS
•Zone paging function through dedicated PA RM4 microphone base (optional).
•Overload and short circuit protection for each speaker outputs.
•LED power indicator.
•LED audio level indicator.
•Master level control.
•Separated Level Controls for 1÷4 zones and AUX inputs.
•Bass and Treble tone adjustment.
•Media Player equipped with remote control with FM radio tuner, MP3 player on SD / USB support and
Bluetooth connection.
•N° 4 MIC / MIC Phantom 48V / LINE inputs balanced on Euroblock terminals.
•N° 3 AUX inputs switchable by front selector.
•Inputs 1 ÷ 4 with independent priority function (VOX / Contact) on the other inputs selectable by
dipswitch 1 ÷ 4.
•Main power output 4Ω/ 70 / 100V on Euroblock terminal.
•N° 4 zone outputs at 100V on Euroblock terminal.
•N° 4 balanced line level zone outputs on Euroblock terminal.
•Independent CHIME function for each input (routing).
•REC OUT on RCA.
•230 / 115 V~ 50 / 60 Hz power supply via voltage selector.
•19" 2U rack adapters included.

8
MAIN PANEL OPERATIONS

9
1POWER
Main switch with LED indicator.
2MASTER
Main level control.
3BASS AND TREBLE TONE CONTROLS
The BASS control is used to adjust the low frequency band, the TREBLE control is used to adjust the high
frequency band. The control’s range is -10 dB to +10 dB for each band. Turning the knob to the right boosts
the corresponding frequency band, while turning to the left attenuates the band. Adjust the controls to
obtain the best intelligibility and equalization for your audio system.
4INPUT 1 – 4 LEVEL
Level controls of the corresponding rear input, which can be either a microphone or a line level device
(see point 17).
5LED INDICATOR
SIG: indicates the presence of an output signal.
-10dB: indicates a normal output level.
CLIP: indicates that the input signal is too high and the amplifier is starting to limit the signal.
PROT: indicates that the amplifier is in protection and no signal will be reproduced from the outputs. The
amplifier may have a shorted output or has overheated due to incorrect use.
ON: indicates that the device is turned on.
For a correct operation, the -10dB LED should light up often and CLIP LED should light up rarely. If the CLIP
LED stays always on, turn down the MASTER level or the corresponding INPUT level control.
6ZONE 1-4 LEVEL CONTROLS
These LEVEL controls set the output volume for each corresponding zone with 6 steps. These controls
operate as attenuators starting from the MASTER LEVEL, so position 5 corresponds to full output while
position 0 corresponds to the zone muted. The attenuation steps are the following:
STEP
5
4
3
2
1
0
Attenuation
0
-3 dB
-6 dB
-12 dB
-18 dB
- inf.
Pwr ratio
1
1/2
1/4
1/16
1/64
inf.
NOTE: each ZONE LEVEL control acts exclusively on the corresponding 100V ZONE OUTPUT (9).
NOTE: when a paging call is made using the dedicated PA RM4 base, the zone volume controls will be by-
passed and the message will be played at the volume set by the PA RM4 base and by the MASTER control.
7ZONE 1-4 SELECTOR
Using these keys, you can select the zone output where you want to direct audio program.
NOTE: these controls act both on the Zone outputs at 100V (9) and on the zone outputs at line level (11).
NOTE: when a paging call is made using the dedicated PA RM4 base, the zone selectors will be by-passed
and the message will still reach the zone or group of zones selected on the base, temporarily silencing any
background music.

10
8ALL ZONE SELECTOR
Press the ALL button to activate all zones at the same time.
NOTE: this control acts both on the Zone outputs at 100V (9) and on the zone outputs at line level (11).
NOTE: when a paging call is made via the dedicated PA RM4 base, the zone selectors will be by-passed and
the message will still reach the zone or group of zones selected on the base, temporarily silencing any
background music.
9AUX LEVEL
AUX A / B or Media Player (12) input level control.
10 AUX SELECTOR
With the A, B and PLAYER buttons you can choose between the rear auxiliary inputs AUX A or AUX B (4)
or the internal Media Player (12). The corresponding LED indicates the selected input.
Note: only one input at a time can be selected.
11 RACK mounting
The equipment is supplied with 2 adapters for mounting in a 19" RACK cabinet.
12 MEDIA PLAYER
The Media Player allows to play music or other audio contents choosing between FM radio, USB pendrive,
MicroSD card or Bluetooth receiver (see below for further instructions).
REAR PANEL OPERATIONS

11
13 CHIME ROUTING AND LEVEL
The Chime Routing switches enable the Chime function on the respective INPUT 1 ÷ INPUT 4 (17) inputs:
Examples:
ON – ON – ON – ON - CHIME enabled on all inputs
ON – OFF – ON – OFF - CHIME enabled on inputs 1 - 3 and disabled on inputs 2 - 4
OFF – OFF – OFF – OFF - CHIME disabled on all inputs
With the Chime function enabled on an input, when the respective dry contact closes (17 - C), the
amplifier will reproduce an attention tone from all the loudspeaker lines.
The Chime Level potentiometer set the level of the attention tone.
14 VOX MIC PRIORITY
The VOX PRIORITY ENABLING switches enable the VOX function on the respective INPUT 1 ÷ INPUT 4 (17)
inputs:
Examples:
ON – ON – ON – ON – Vox Priority enabled on all inputs
ON – OFF – ON – OFF - Vox Priority enabled on inputs 1 - 3 and disabled on inputs 2 - 4
OFF – OFF – OFF – OFF - Vox Priority disabled on all inputs
When the VOX circuit of one of the channels with VOX enabled (ON) detects the presence of an audio
signal on the respective input (17), the AUX channels (A, B, media player) and the other channels having
VOX disabled (OFF) are silenced, while all channels with VOX enabled (ON) remain active at the output.
The MIC PRIORITY knob sets the level of the signal that activates the VOX function. Turn it clockwise with
lower input signals, if turned fully counterclockwise the VOX function will be bypassed.
15 REMOTE MIC
RJ45 connector for dedicated PA RM4 microphone base for selected zones, groups of zones and general
calls.
The amplifier accepts up to a maximum of 4 PA RM4 bases connected in daisy chain configuration, with a
maximum full length of 200m of CAT5 or CAT6 net cable. See further for detailed instructions.

12
16 ANT
This is a 9.5mm male antenna connector that accepts the FM antenna supplied with the unit or a 9.5mm
female TV connector wired to an external FM antenna wired with a typical coaxial 75 ohm cable.
Note: the antenna supplied is a simple wire of 140 cm length and to avoid interference it must be placed
distant from other cables and metal objects. If you experience problems with FM radio reception, we
suggest using a 75ohm coaxial cable to place the antenna in a more suitable location.
17 INPUT 1-4
These inputs can be used to connect low impedance dynamic microphones (30-600 ohm), condenser
microphones with phantom power supply and audio sources with line level signal output (e.g. radio
tuners, television receivers, media players, etc.).
a) Use a shielded cable terminated with a 3.5mm pitch Euroblock connector to make a balanced or
unbalanced connection as follows:
Connection of a Balanced line to the INPUT.
Connection of an Unbalanced line to the INPUT.
b) Use the correspondent upper switch to select the type of source connected to the input:
MIC for a dynamic microphone.
PH for a condenser microphone with phantom power.
LINE for a line level source.
c) Each input has two Euroblock terminals with 3.5mm pitch to which a "clean contact" can be connected
(clean means that it is not connected to other elements of the circuit such as GND). This contact is
usually connected to the TALK button present in the microphone bases, which also serves to activate
the microphone. When the contact is closed, two functions are activated:

13
CHIME
When the contact is closed, if the CHIME dipswitch (13) of the channel is in the ON position, an
attention tone will be played by the loudspeaker system.
SILENCING THE INPUTS
When the contact is closed, the AUX input and the other inputs 1-4 that have the respective VOX
PRIORITY dipswitch (14) in the OFF position are silenced. The inputs will remain muted as long as the
clean contact remains closed.
Note: it is advisable to always use microphone bases with TALK button and clean contact, for better
management of the silencing of inputs.
Note: the clean contact will not silence the inputs that have the VOX function activated (ON). For
details on the VOX function, see point 14
WARNING
It is recommended that you set the input level to the minimum before changing the position of the input
selector, to avoid unwanted noises.
Some line level devices do not support "PH" phantom power, which could therefore cause permanent
damage to them, so it is not recommended to activate it when a line device is connected to the input.
18 AUX IN A / B
These are two RCA female connectors that accept two RCA plug from LEFT and RIGHT channels of a line
level stereo source (e.g. radio tuners, television receivers, media players, etc.). Each RCA input is wired
as follows:
Tip = + positive or "hot"
Sleeve = shield or ground
By means of these inputs is possible to use an external source instead the media player inside the
amplifier, selecting it with the front panel switches (10) and adjusting the volume with the AUX LEVEL
potentiometer (9).
19 PRE OUT – AMP IN
These are two RCA female connectors that accept two RCA plug. As standard, the AMP IN input is
connected to the PRE OUT output with a jumper.
It is possible to optimize the signal to be amplified by inserting between the two terminals an external
processing unit, typically a graphic equalizer, to optimize the spoken words intelligibility. For the
connection refer to the figure.

14
20 REC OUT
These are two RCA female connectors that accept two RCA plug This is an unbalanced output that can be
used for recording or to connect other amplifiers. Please note that both left and right connectors have the
same audio content, so each one can be used also as mono output.
21 ZONE LINE OUTPUTS
The device has 4 line-level zone outputs for connecting additional zone amplifiers.
Use the balanced connection with booster amplifiers equipped with balanced input:
Use the unbalanced connection with booster amplifiers with an unbalanced input:
22 GENERAL LOUDSPEAKER OUTPUT
This is a 5.08 mm pitch Euroblock connector. This connector can accept 0.5÷2.5 mm2/ 20÷14 AWG size
cables, a Class 2 wiring is needed for fixed installation.
The device allows you to connect speakers to this general output without zone control, using constant
impedance (4Ωor 8Ω) or constant voltage (70V or 100V) speakers.

15
OBSERVE ALL THESE WARNINGS:
•DO NOT CONNECT MIXED CONSTANT IMPEDANCE (4Ω or 8Ω) AND CONSTANT VOLTAGE (70V or
100V) SPEAKERS.
•CONNECTING CONSTANT IMPEDANCE (4Ω or 8Ω) LOUDSPEAKER IT IS ADVISABLE TO REDUCE AS
MUCH AS POSSIBLE THE WIRES’LENGTH AND TO INCREASE THE CABLE SECTION ACCORDING TO
THE DISTANCE COVERED.
•THE TOTAL POWER HANDLING OF CONSTANT IMPEDANCE (4Ω or 8Ω) SPEAKER MUST BE AT
LEAST 240W CONTINUOS.
•WHEN CONSTANT IMPEDANCE SPEAKERS (4Ω or 8Ω) ARE CONNECTED, IT IS FORBIDDEN TO
CONNECT CONSTANT VOLTAGE LOUDSPEAKERS ON ANY GENERAL AND ZONE OUTPUTS.
•THE TOTAL POWER OF CONSTANT VOLTAGE (70V or 100V) LOUDSPEAKERS CONNECTED MUST
NOT EXCEED 240W CONSIDERING BOTH GENERAL AND ZONE OUTPUTS.
•ALL THE LOUDSPEAKERS CONNECTED TO CONSTANT VOLTAGE OUTPUTS (70V or 100V) MUST
BE EQUIPPED WITH A TRANSFORMER HAVING AN INPUT VOLTAGE EQUAL TO THAT SUPPLIED
BY THE AMPLIFIER.
•TO AVOID THE RISK OF ELECTRIC SHOCKS, NEVER TOUCH THE AMPLIFIER OUTPUTS DURING
OPERATION.
Constant impedance line connection examples:
Constant voltage line connection examples:
23 ZONE LOUDSPEAKER OUTPUT
This is a 5.08 mm pitch Euroblock connector. This connector can accept 0.5÷2.5 mm2/ 20÷14 AWG size
cables, a Class 2 wiring is needed for fixed installation.
Connect to these separate zone outputs only constant voltage speakers at 100V.

16
OBSERVE ALL THESE WARNINGS:
•DO NOT CONNECT CONSTANT IMPEDANCE SPEAKERS (4Ω or 8Ω) TO THESE OUPUTS.
•DO NOT EXCEED 120W ON EACH SINGLE ZONE LINE.
•THE TOTAL POWER OF CONSTANT VOLTAGE (70V or 100V) LOUDSPEAKER CONNECTED MUST
NOT EXCEED 240W CONSIDERING BOTH GENERAL AND ZONE OUTPUTS.
•TO AVOID THE RISK OF ELECTRIC SHOCKS, NEVER TOUCH THE AMPLIFIER OUTPUTS DURING
OPERATION.

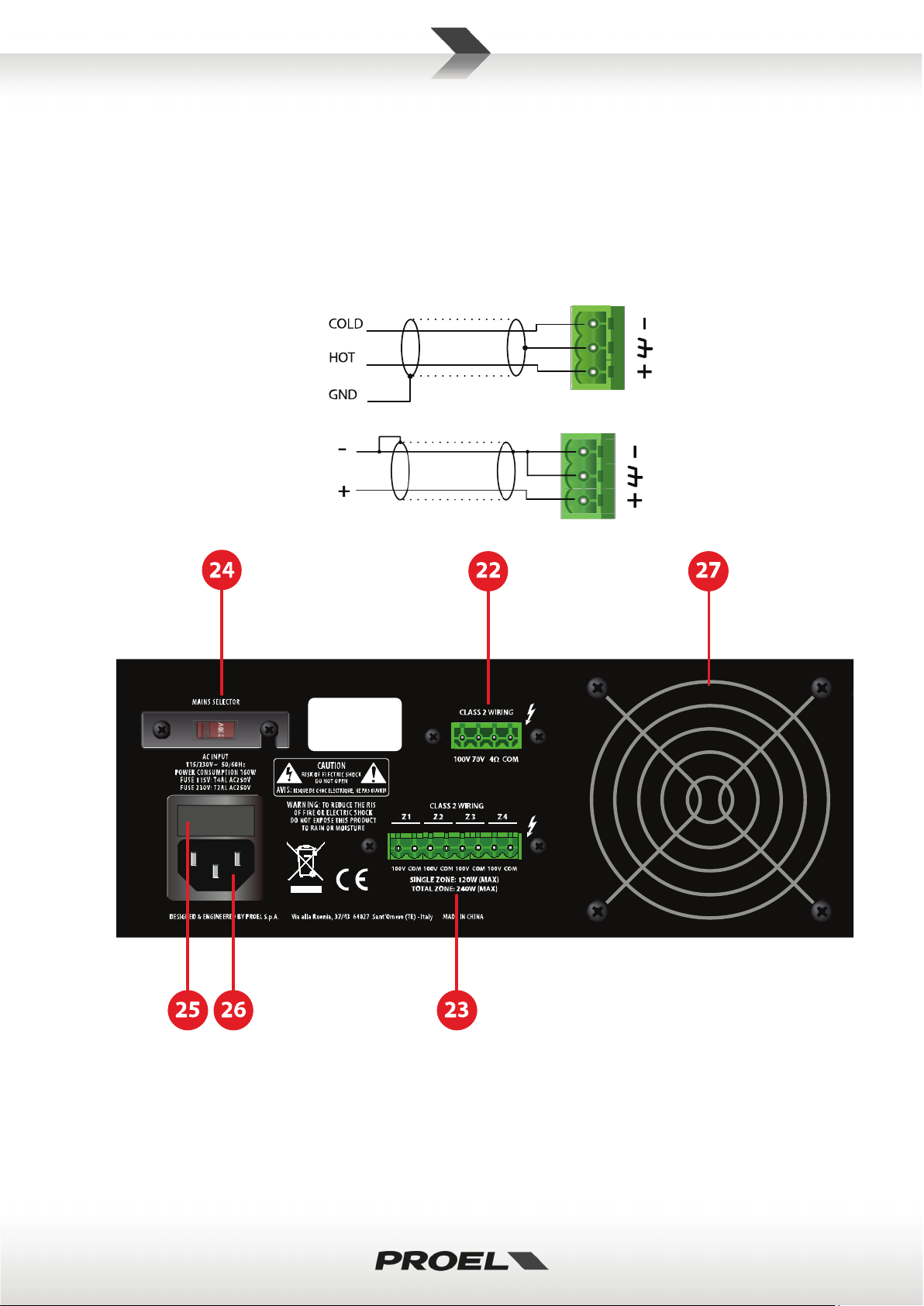

24 MAINS SELECTOR
This switch sets the AC voltage line of the country (usually it is set by factory and isn't necessary to change
it). The 115V setting is for mains lines in the range of 100-120V~ and 230V setting is for mains lines in the
range of 220-240V~.
WARNING: an incorrect setting of AC LINE VOLTAGE could seriously damage the device!

17
25 FUSE holder
Here is where the mains protection fuse is placed.
230V: T2AL AC250V.
115V: T4AL AC250V.
REPLACE THE PROTECTION FUSE ONLY WITH THE SAME TYPE.
IF, AFTER THE REPLACEMENT, THE FUSE IS BLOWN AGAIN, DO NOT TRY TO REPLACE IT AGAIN AND
CONTACT THE NEAREST PROEL SERVICE CENTER.
26 AC~ SOCKET
Here’s where you plug in your mains supply cord. You should always use the mains cord supplied with the
device. Be sure that your device is turned off before you plug the mains supply cord into an electrical
outlet.
MEDIA PLAYER OPERATIONS
27 DISPLAY
3-digit display that shows the status of the Media Player.
28 USB PORT
Slot for inserting a USB pendrive with music files in WAV, APE, FLAC, MP3 formats or standard pre-
recorded announcements.

18
29 SD CARD
Slot for inserting a microSD card with music files in WAV, APE, FLAC, MP3 formats or standard pre-recorded
announcements.
30 AUX INPUT
Minijack socket for connecting an external media player, a computer, a tablet or a mobile phone.
The AUX input is selected using the MODE key, "AUX" appears on the display.
31 IR RECEIVER
It receives the signal from the remote control.
32 MODE
It changes the mode of the media Media Player between Radio (the display shows the frequency and an
FM message), Bluetooth (the display shows Bt), the USB reader (the display shows USb), the microSD
reader (the display shows SD), the input auxiliary front minijack (the display shows AUX).
For Bluetooth mode, press MODE until the "Bt" symbol flashes on the display: now it is possible to connect
the external player device (mobile phone, tablet, computer, etc.). The name "JQ-BT" will appear on the
device and, when the device is connected, the "Bt" symbol remains fixed on the display.
To unpair the amplifier it is necessary to proceed from your device: in fact, the amplifier will always
remember the connected Bluetooth devices, even after being turned back on, and it will reconnect to
them if the device is within its range (about 10m or less).
To connect another device via Bluetooth, it may be necessary to disconnect the previous one if the latter
is within its range.
33 PLAY/PAUSE
In radio mode it stores FM radio stations based on signal reception from P00 to Pnn by scanning all
frequencies from 87.5MHz to 108MHz. If you press the button again before having scanned the entire FM
spectrum, the procedure is interrupted, not memorizing all the available radio stations, therefore it is
always advisable to let the memorization procedure finish.
In USB / SD and Bt mode, it pauses or plays the songs contained in the flash memory or the connected
Bluetooth device.
34 PREV/VOL-
On the panel, if pressed and released immediately, it returns to the previous radio station or to the
previous track, if held down it decreases the volume to the minimum value U00 (note if turned off and on
again the media player restarts at the standard volume which is U10).
On the remote control, the keys are separated, one returns to the previous station, while the other
decreases the volume.
35 NEXT/VOL+
On the panel, if pressed and released, it advances to the next radio station or to the next track, if held
down it increases the volume up to the maximum value U30.
On the remote control, the keys are separated, one advances to the next station, while the other increases
the volume.
36 ON/OFF
The message OFF appears on the display and the Media Player turns off immediately.

19
37 MUTE
Mutes the Media Player and the display flashes, pressing it again removes the mute and the display
returns to normal.
38 EQ
Through the settings between Eq0 and Eq5 it is possible to modify the frequency response of the Media
Player. The default equalization is Eq0 which is recalled each time the device is switched on. The
equalizations are as follows:
Eq0 = No equalization.
Eq1 = Voice Enhancement.
Eq2 = Enhancement of medium-high frequencies.
Eq3 = Enhancement of medium-low frequencies.
Eq4 = Strong high frequency enhancement.
Eq5 = Slight high frequency enhancement.
39 U/SD
In radio mode it stores FM radio stations based on signal reception from P00 to Pnn by scanning all
frequencies from 87.5MHz to 108MHz. If you press the button again before having scanned the entire FM
spectrum, the procedure is interrupted, therefore it is always advisable to let the memorization procedure
to be completed.
In USB / SD mode, if both cards are inserted, it switches playback between one card and the other.
40 RPT
In USB / SD mode, it activates the repeat which can be: ONE for the continuous repeat of the track being
played, ALL for the repeat of all the tracks contained in the USB / SD device. When the USB / SD device is
inserted, the media player restarts in ALL mode.
In the other modes it has no function.
41 0-9
In radio mode, pressing 001 to 0nn it selects the stored radio stations.
In USB / SD mode it skips to the track which, from the alphanumeric sequence determined by the file
name, results in the position of the number entered.

20
RM-4 PAGING BASE OPERATIONS
RM4 is the dedicated paging microphone bases designed to be combined with the ATMP240ZXL to create
a zone system with call on a single zone, a group of zones or all zones It is possible to connect up to 4
bases in cascade, using simple RJ45 CAT5 or CAT6 cables, with a maximum total length of the CAT5/6
cables shorter than 200 meters.
42 INPUT
RJ45 connector where the CAT5 cable coming from the ATMP240ZXL or other RM4 base must be plugged
in.
43 OUTPUT
RJ45 connector where the CAT5 cable destined for the next RM4 base must be inserted.
Note: even if the input and output connections are reversed, the RM4 bases work anyway.
44 POWER
This LED, when lit, shows that the base is powered by the ATMP240XL and ready for use.
