Progres AGRONIC 4000 User manual

1
INSTRUCTION
MANUAL
VERSION 2 AT 220 Vac (or 115 Vac)
INDEX
Section Theme Page
1. INDEX/PRESENTATION 1
2. BASIC FUNCTIONAL DESCRIPTION 2
Sections for the installer

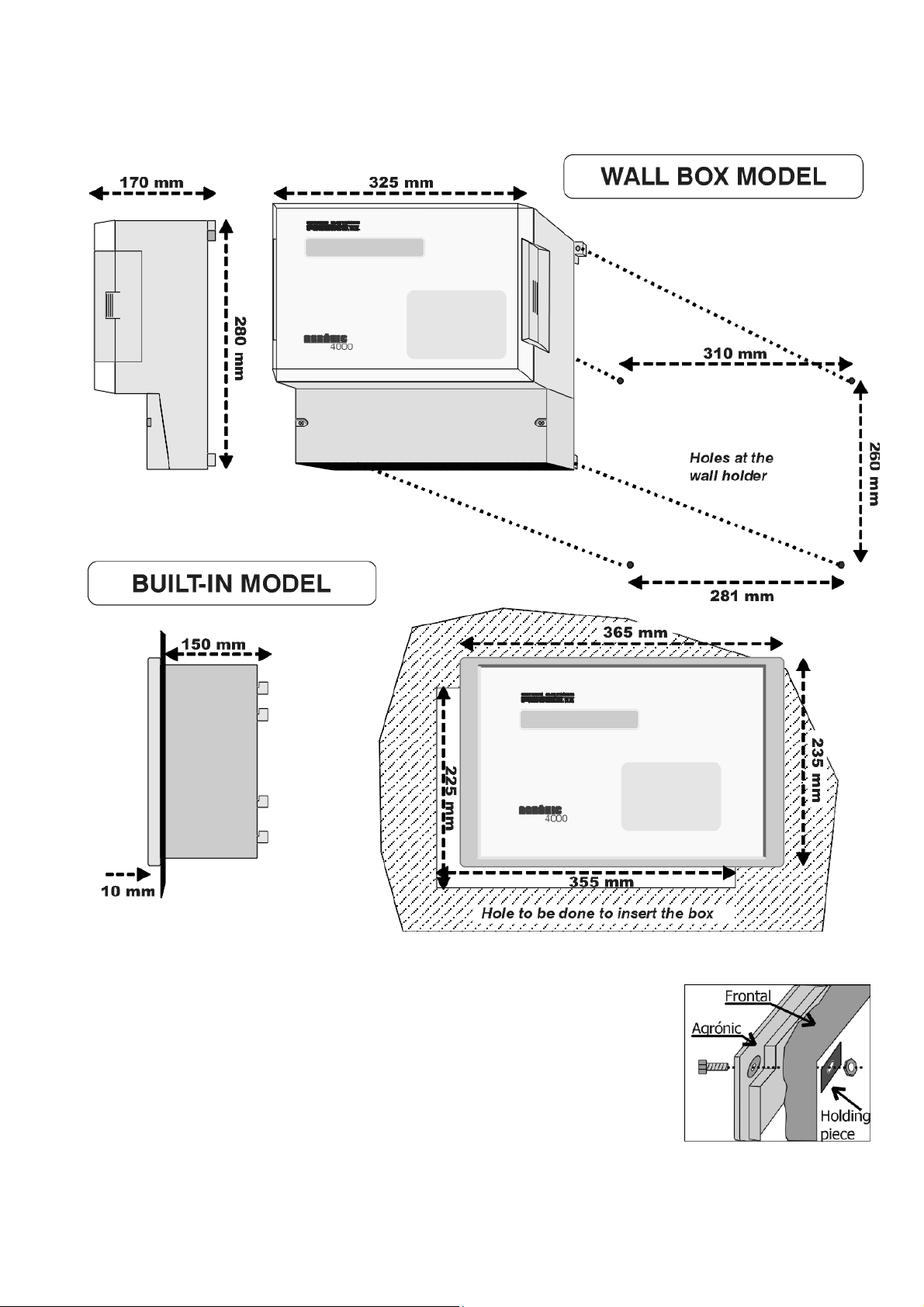

3. DIMENSIONS 5
4. INSTALLATION 5
4.1. Placing the unit 5
4.2. Connection placing 6
4.3. Connection 7
Charts to write down the relay outputs 9
4.4. Extensions 12
4.5. Maintenance 12
4.6. Codification of inputs and outputs 12
4.7. Installer’s configuration 13
5. TECHNICAL CHARACTERISTICS 15
6. PARAMETERS 16
6.1. Fertilization parameters 16
6.2. Filter cleaning parameters 17
6.3. General outputs parameters 18
6.4. Input parameters 19
6.5. Flow parameters 22
6.6. Sectors parameters 22
6.7. Programs parameters 23
6.8. Communication parameters 25
6.9. Miscellaneous parameters 29
Sections for the user
7. PROGRAMS 30
8. READINGS 33
8.1. Totals readings 33
8.2. Anomalies readings 34
8.3. History readings 35
8.4. Sensors readings 36
8.5. Agrónic Radio 868 readings 36
8.6. Agrónic Radio 2,4 readings 36
8.7. Agrónic Monocable readings 36
9. ERASURE 37
10. MANUAL 37
11. CLOCK 38
12. VIEW 39
12.1. General view 39
12.2. Programs view 40
Notes 41
GENERAL SUMMARY 42
PRESENTATION
We wish to take this opportunity to thank you for the confidence in us which you have demonstrated in ex-
pressing interest or acquiring the AGRÓNIC 4000.
This confidence, for our part, stimulates our efforts to meet and surpass the expectations of our clients to jus-
tify the traditional quality of our products.
This manual will explain the specification of the equipment as well as its installation and use.
However, if after reading this you still have any doubts, contact us and we will happily answer them.

2
2. BASIC FUNCTIONAL DESCRIPTION
Electronic unit for the control of irrigation, fertiliza-
tion, pH, pumping and filter cleaning, plus malfunction
detection and with the possibility of telemanaging the
data via PC or mobile phone.
Models with 16, 24, 32, 48, 64, 80 and 96 config-
urable outputs, plus 12 signal inputs at the base. Ex-
tension of configurable outputs and inputs for the
reading of analogical and digital sensors; both by
direct connection to the unit or by means of field
modules via cable 24 Vac or Monocable, or through
the Agrónic Radio system. Possibility of programming
by time and volume, both in irrigation and fertilization
as in filter cleaning, with possibility of mixed
perform-
ance (independent for each sub-program).
By means of climatic or crop sensors, it can influ-
ence the start conditions or the irrigation and fertilizer
units.
IRRIGATION
It can control up to 99 irrigation sectors, gov-
erned by 40 sequential programs, with 12 sub-
programs in every sequence (total 480), and possibil-
ity of linking programs in order to carry out sequences
of 24, 36, or more sub-programs.
Every sub-program can activate from 1 to 10 irri-
gation sectors simultaneously.
Every program can start its performance at a
concrete time, when another program finishes, when a
sensor reaches a certain value (°C, soil moisture, etc.),
due to an input when a contact is closed, by mobile
telephone via SMS message. It can also start its per-
formance according to the days of the week, the irriga-
tion frequency (irrigate every day, every 2 days, every
3 days, etc.) or irrigate every day with several per-
formances. The period of the year when the program
has to work can also be indicated. In a start by sen-
sors, an active period and a margin of time between
starts can be chosen.
Modification of irrigation and fertilization units by
a manual factor or by sensors which will have an influ-
ence depending on their values from the previous
irrigation, such as rain, evapotranspiration, integration
of the solar radiation, etc.
When an irrigation is taking place, a program can
be cancelled temporarily by sensor values such as
wind, temperature, level, etc.
Grouping of programs up to 9 groups so that only
one program of every group can irrigate at the same
time.
Complete control of instantaneous flow of four
possible irrigation counters, with programming of the
expected flow in each sector and tolerance percent-
age both for excess or lack.
FERTILIZATION
Capacity to configure from 0 to 8 fertilizers, in in-
dependent tanks.
Independent pre- and post-irrigation values for
every program.
The time or volume of application of every fertil-
izer can be programmed independently for every sub-
program.
The use of mixers can be configured, with pre-
mixing and intermittent or non-stop mixing.

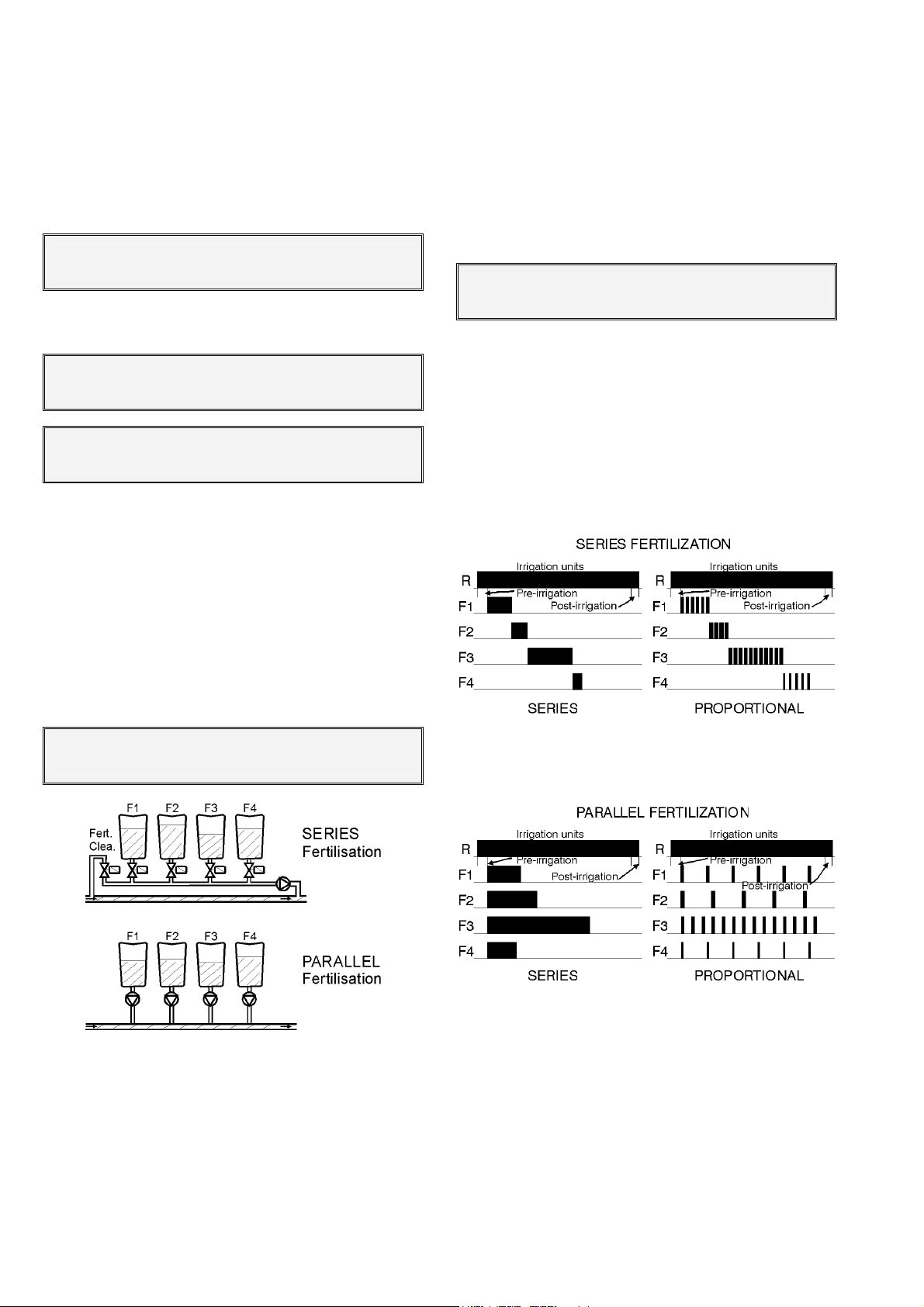

Fertilizers can be applied in two different ways:
 In series: one type of fertilizer after the other,
with just one injector. In proportional fertiga-
tion, independent proportions for every fertil-
izer.
 In parallel: several fertilizers are applied si-
multaneously, with one injector for every one
of them. In proportional fertilization, inde-
pendent proportions for every type of fertilizer
and sub-program.
The injection track can be cleaned automatically,
with water, between the application of different types
of fertilizer and at the end of the fertilization.
Reading of the instantaneous flow of fertilizers, as
in irrigation.
With the option of “control pH”, it can be con-
trolled by injecting acid or base with a reference value
independent for every sub-program. With values of
alarm by excess or lack in the reading of the pH and in
the electrical conductivity (EC).
It is possible to choose the control of pH at the
pre-irrigation and post-irrigation.
PUMPING

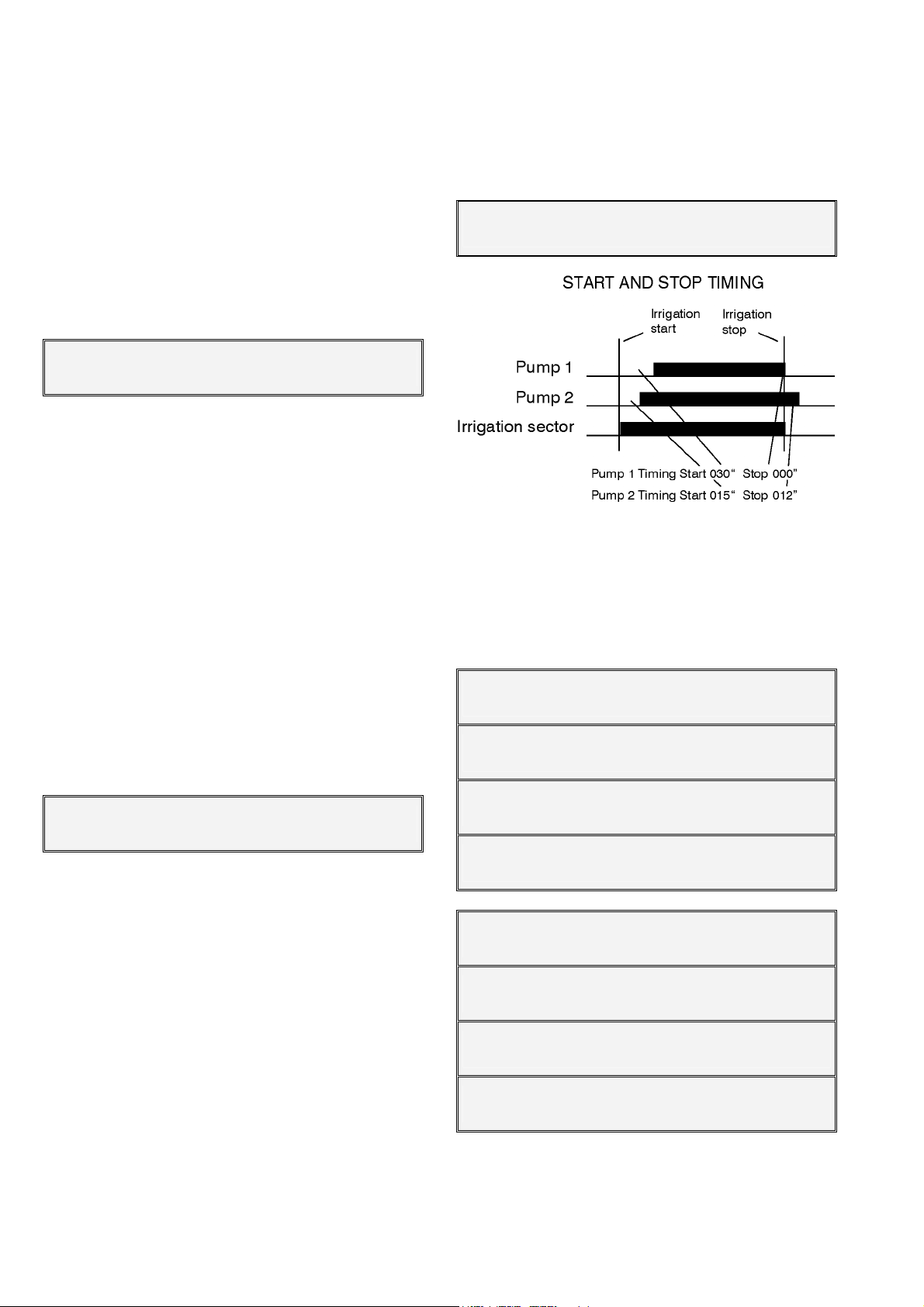

It has from 1 to 4 general irrigation outputs, which
can be assigned to sectors, with independent activa-
tion and deactivation temporizations. The general
number 1, by means of the “pressure regulation op-
tion”, can give a 0-10 volt Analog output, in order to
connect it to a frequency variator and maintain a pres-
sure in the irrigation pipe line independent for every
sector.
Optional control of a diesel engine, with outputs
for start, stop, contact and warming up. Start and stop
control of the electrical pumps.
FLOWS
Every irrigation sector can be assigned to one of
the 4 possible volumetric counters to irrigate in liters
or m
3
. In the totals, the volume of irrigation and fertil-
izer is shared in proportion to the nominal flow as-
signed to every sector.
The fertilizer is programmed in liters, deciliters or
centiliters with 8 counters.
FILTER CLEANING
Up to four groups of independent filters, with the
following values:
The number of filters to be used in every group
can be configured. Two cleaning times for every filter
group. Pause time between filters. The cleaning can
be started by the differential pressure and/or by the
time or volume of water circulation. Start or not of the

3
sectors when cleaning. Assignation of generals and
counters. Control of continuous cleanings.
MANUAL CONTROL
With manual control, you can start, stop and
leave out of service irrigation programs; out of service
or general Stop; start or stop the filter cleaning; end of
alarms and malfunctions; direct activation of the out-
puts.
READINGS
It can have the following records which are al-
ways updated:
 Sector totals and a general one to show the irri-
gation units in time and volume plus the calculated
flow and the applied units of every fertilizer.
 Anomalies which have taken place during a pe-
riod of several weeks, such as a power cut, flow cut,
filter cleaning, fertilizer without control, irrigation or
fertilizer counters, too much fertilizer, proportional
fertilization, lack of communication with external mod-
ules, due to inputs of general malfunction, definitive,
temporary or conditional stop, intrusion alarm, pH and
EC sensors, error in memory, start and pressure in
diesel engine, etc. All of them go with the day and
time when they took place and the most relevant data
in relation to the type of anomaly.
 New anomalies: with this record, the anomalies
that have taken place since the last visualization are
displayed.
 Record of the last 30 days, where the starts of
every program, the filter cleanings that have taken
place, the integration of the solar radiation and the
room temperature, the rain accumulated that day and
the evapotranspiration are showed. It will also show,
for every sector, the irrigating units which have been
carried out, the average of EC and pH applied and the
fertilizer units. When there is a connection to a PC, the
average of the readings of every half an hour, of every
one of the 30 days will be recorded from the first 20
sensors, and the readings of all the active life of the
unit can be stored.
 Sensors: with the instantaneous value of the dif-
ferent sensors connected to extensions, field modules
or Microisis connected to the Agrónic 4000.
 Connecting a personal computer (PC), the op-
erations are recorded, showing the day and time of
every operation carried out by the unit, such as
anomalies, irrigation starts with their main values, per-
formance of the filters, mixers, erasures, etc. The in-
formation can be selected by means of the date, pro-
grams and anomalies. The Agrónic 4000 has a re-
cording capacity of several weeks.
ALARMS
It can generate alarms for more than 20 different
conditions, activating one of the two alarm outputs
(general and fertilization), recording the anomaly and
sending a warning by GSM message if necessary.
VISUALIZATION
Lightened screen of 2 lines of 40 characters, with
internal contrast adjustment. Membrane keyboard with
23 keys and pulsing acoustic warning device. “STOP”
key.
MANAGEMENT THROUGH A PC
The unit can be managed through a personal
computer by means of a PC program for the Agrónic
4000.
It can be linked via cable (RS232 or RS485) or by
means of a telephonic modem (conventional or GSM).
Punctual information of the controller (recording,
incidences, situation of the irrigation, etc.) can be ob-
tained from the PC, giving the opportunity of acting on
the Agrónic, modifying parameters, programs, ranks,
etc., from any place using the PC.
SMS MESSAGES
Connected to a GSM modem, “SMS messages”
can be sent to a digital telephone, with alarms and
incidences and regular messages of pre-established
values. It can also receive orders such as start or stop
a program, set at “Stop”, modify the manual factor of
a program, give the value of a virtual sensor such as
the evapotranspiration, etc.
The sending of one or two reports a day about
the irrigations that have taken place to a mobile phone
can be configured
EXTERNAL MODULES
Capacity to connect with external modules of dif-
ferent types:
 Expansion modules: up to 16 modules with 5 re-
lay outputs, 2 digital inputs and 2 Analog inputs
every one and communication through the 24
Vac line.
 Agrónic Radio 868 and 868-16: up to 64 modules,
it is possible up to 16 latch solenoid outputs,
and up to 16 digital inputs, and 2 analog inputs
for sensors for each one of them.
 Agrónic Radio 2,4: up to 120 modules, it is possi-
ble up to 16 latch solenoid outputs, and up to
16 digital inputs, and 2 analog inputs for sen-
sors for each one of them.
 Agrónic Monocable 64 and 120: up to 120 mod-
ules, it is possible up to 8 latch solenoid out-
puts, and up to 10 digital inputs and 1 analog
input at every one.
 Via Radio 400 MHz: up to 31 modules with 4 or 7
outputs for latch solenoids of 2 wires, solar
panel and battery for every one of them.
 4 Microisis with 8 Analog inputs for sensors every
one.
 µMetos: reading collection station of 24 different
probes.
MODELS AND OPTIONS
 Model to “to built- in” a frame or “box” in a wall.

4
 Model with power supply at 230 Vac. (115 Vac.)
or at 12Vdc.
 Extension of Analog inputs and outputs, 4 in-
puts and 2 outputs 0-10 V.
 Extension at 3 serial ports.
 Modem for connection to expansion modules.
 Expansion modules for field by cable being able
to collect data about sensors.
 Expansion modules for field via radio.
 Option of sending GSM messages.
 Option of link to PC through a serial port RS232,
RS485 or by means of GSM modem.
 Option of regulation of the pressure of the irriga-
tion water.
 Option control pH and reading EC with alarm.
 Option conditioning of programs by sensors.
 Option diesel engine.
 Latch outputs (pulses) for two or three wires.
 Double voltage at outputs.
 Option of link with Agrónic radio.
 Option of link Monocable Modules.
 Option of link Microisis.
 Option of link MicroMetos.
 Version in Spanish, French, English, Italian and
Portuguese.
WARRANTY
The irrigation controller Agrónic 4000 meets all the
norms set by the CE.
The products created by PROGRÉS enjoy a two-
year warranty against all manufacturing defects.
Compensation for direct or indirect damage
caused by the use of the equipment is excluded from
the warranty.

5
3. DIMENSIONS
4. INSTALLATION
4.1. PLACING THE UNIT
Place the unit at the right position and height.
Avoid direct sun exposure, humidity, dust and
vibrations.
Avoid proximity to any source of interference
which could affect the correct operation of the unit.
The A-4000 is made up of just one piece, except
the built-in models with more than 32 outputs, which
go with a second box.

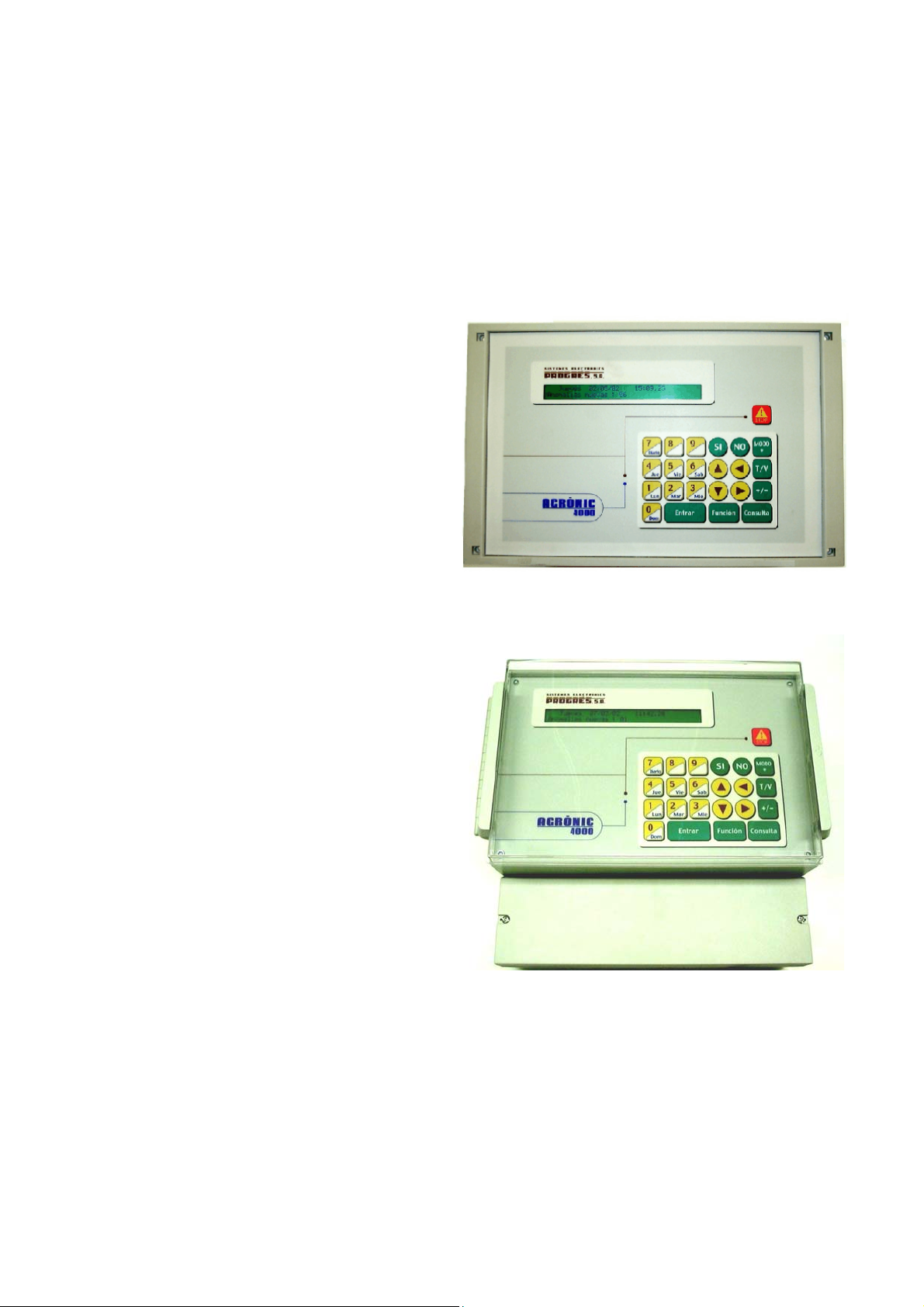

In the “built-in mo-
del”, a hole is to be
done in the frontal part
of the wall or desk,
according to the mea-
sures in the section
DIMENSIONS. It will be
held with the screws of
the corners, using the
four pieces which are included in the unit.
The wardrobe must have a double isolation with
protection for the operation relationship to the net
power supply circuit.

6
In the “box” model, the unit is held by the upper
pieces at the corners and by the two holes placed at
the below cover of the connection housing, according
to the measures shown in the section DIMENSIONS.
In the version with "box", the equipment is
provided in a hermetically sealed (box IP65) with a
transparent front cover for the keyboard/display and
an opaque cover for the connection housing.
In order to maintain isolation of the box it is
necessary to maintain the covers always closed, as
well as install grommets at the outputs of the cables.
4.2. CONNECTION PLACING
In order to carry out the connections in the unit of
the “built-in” model, access the connectors placed at
the back.
In the “box” model, take the below cover off to
access the connectors.
The necessary terminals have to be taken out to
enter
the cables (do it with the connection cover on
and screwed, in order to avoid possible malfunc-
tions.).
It is advisable to link the cables to the terminals
with connection terminals, which are supplied with the
unit. (The terminals accept cables of up to 2.5 mm
2
of
section).

7
4.3. CONNECTION
The unit has to be installed following the
prevailing regulations for electrical installations. The
unit will not be completely protected if it is not used
according to the information given in the manual.
The unit has to be placed in such a way that the
elements which may get interferences, such as the
sensor inputs, the sensor power supply, the links to
the PC and modem, have their cables in the best
emplacement, so that they do not receive
interferences from power elements which might be in
their surroundings.
All the connection terminals of the Agrónic 4000
can be switched which allows a fast maintenance.
Progrés also offers a protection box for all the
terminals, in case there is a high risk of electrical
sparks from storms entering the cables.
4.3.1. Power connection
Before connecting the unit, it is necessary to
check its identification label where the characteristics
of the power supply are to be found.
The standard power supply is at 230 Vac, being
possible at 115
Vac. but it is
necessary to ask
Progrés about this
last one.
Connect the
phase and the
power supply
neutral to the terminals marked as “N” and “F”.
A 6 amp magneto-thermal switch is to be
included in the installation. It will be used as a
disconnection device and it has to be placed near the
unit at an accessible place for the user.
It is recommendable to do this as directly as
possible, avoiding that the same cable supplies other
devices. Use cable of the H05VV-F type, 1mm
2
.
The power supply input is protected by a fuse,
marked as General Fuse and a varistor.
The varistor might short-circuit the fuse
automatically, on detecting an overload on the line
(lightning, etc.). Replace it with one of the same
characteristics.
For unstable or fluctuating voltages use grid
stabilizers.
4.3.2. Earth terminal connection
The “built-in” model has a terminal screw to
connect the protection earth terminal (in the “box”
model it is not necessary as it has not got a metallic
casing). A pressed terminal will be applied to the
cable when joining it to the screw.
The box terminal marked as is internally
connected to the filters and protections.
Both the earth and the box terminals are used to
screen the circuitry, for this reason, it is very important
that the earth line is correctly installed and free of
electric noise. It is also used to protect the unit by
directing all electrical sparks through the internal gas
discharger to the earth. These sparks can come in
through the output cables when lightning strikes
during a storm.
4.3.3. Digital input connection
The different elements of the installation, such as
pressure gauges, levels, counters, etc. are to be con-
nected to the group of 12 terminals labeled as “Digital
inputs (D)”. This is done by connecting one contact
pole to the corresponding input and the other pole to
the 24 Vac “COMMON”.
Contacts must normally be open and free of volt-
age.
One of the 44 possible functions can be assigned
to everyone of the inputs in the section “Parameters-
Inputs”.
The inputs are optically isolated from the internal
circuitry and depend on the same 24 Vac power
supply of the outputs.
4.3.4. Output connection

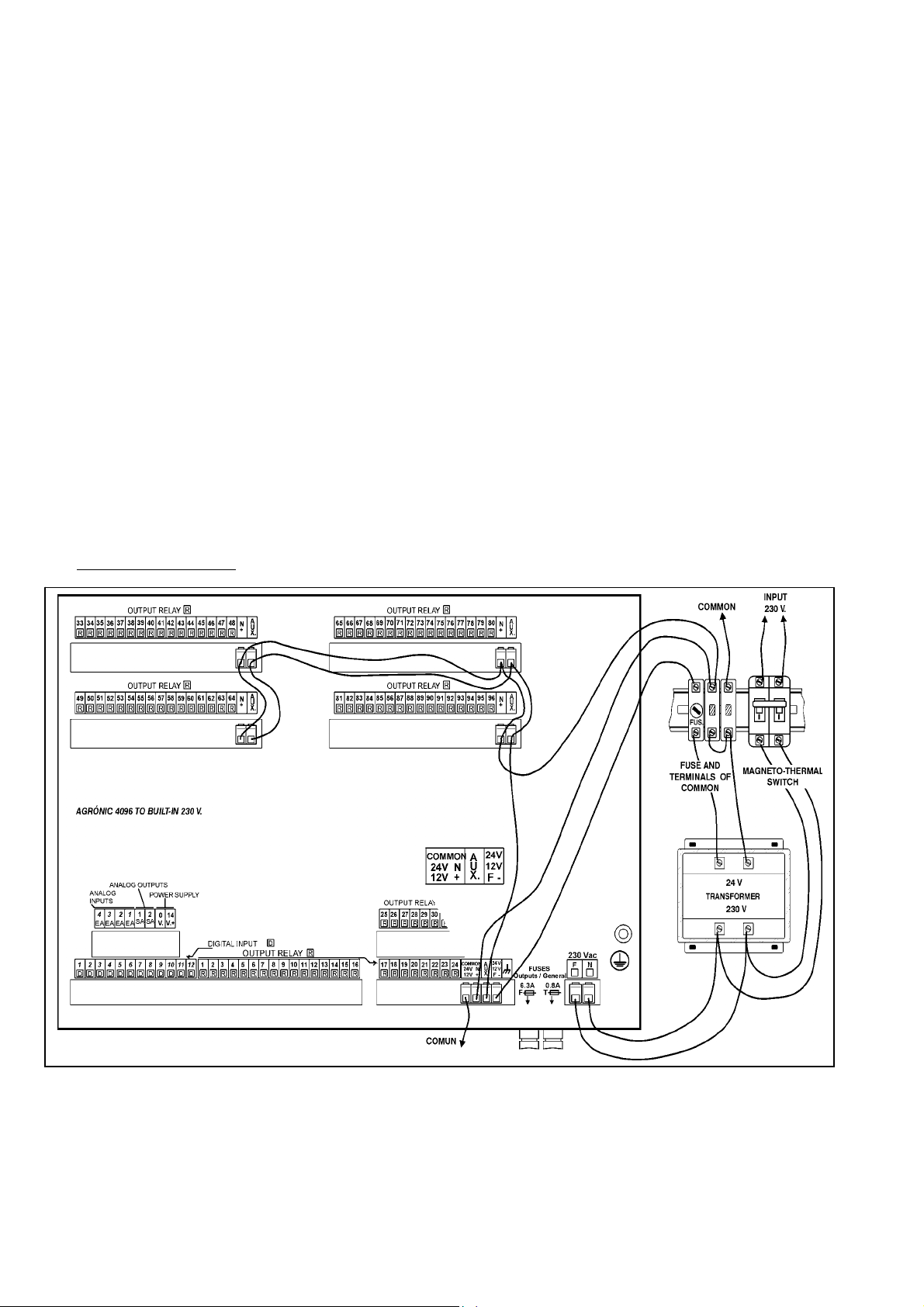

All outputs are ready to work at 24 Vac (it is very
important not to supply the unit with voltages above to
30V).
The unit must have a external transformer with 24
Vac output and double isolation according to the UNE
EN61010 norm. Its input will be connected to the out-
put of the magneto-thermal switch which protects the
Agrónic 4000. The 24Vac output is connected to the
terminals marked with this voltage, entering a pole of

8
the output of the transformer into one of the terminals
marked as “COMMON / 24 V N”, and the other pole
into one of the terminals marked as “24 V F”.
Connect the solenoids, relays, etc. between the
output common “COMMON” and the corresponding
output.
Do not exceed the maximum power by output of
1 Amp and the general of 6,3 Amp. If this happens
insert external relays.
The “output fuse” protects from overloads and
short-circuits; to replace it half turn the cover of the
fuses box and replace it by another one of similar
characteristics.
The “AUX” terminal corresponds to the “PHASE”
of the 24 Vac which goes through the fuse. It will be
useful to connect auxiliary elements of manual com-
mand and extensions of relays above to 32 outputs.
The outputs are isolated from the internal circuitry
by relays and protected by a varistor at everyone of
them, plus a general gas discharger in the lines of 24
Vac.
The number of outputs can vary from 16 to 24,
32, 48, 64, 80 or 96 in the same unit. It is possible to
extend the outputs at a distance, in external modules
“via radio” or “via cable”.
The maximum number of sectors to be controlled
by the Agrónic 4000 is 99.
Every output can be assigned to an irrigation sec-
tor (one or more electrovalves) or to a general output
(pumps, filters, mixers, etc.). To do so, go to the sec-
tion of “Parameters-Sectors” or “Parameters-
Generals”.
4.3.5. RS232 and RS485 connection links
An Agrónic 4000 with RS232 option will have a
side connector where the power cable may be linked
to a PC and an adapter for connection to modem.
An Agrónic 4000 with RS485 link will have a side
connector (box model) or on the top (built-in model).
This link is always made with bifilar wire: wires A and
B. The connection shall be made by inserting wire “A”
in terminal “1” of the connector and wire “B” in termi-
nal “2”. To connect different equipment through RS-
485 communication a linear bus must be used, with a
single start and end; it must not be in star topology.
Example of connection

9
Charts to write down the relay outputs to generals and sectors:
Relay Relay Relay Relay Relay
00000001 00000021 00000041 00000061 00000081
00000002 00000022 00000042 00000062 00000082
00000003 00000023 00000043 00000063 00000083
00000004 00000024 00000044 00000064 00000084
00000005 00000025 00000045 00000065 00000085
00000006 00000026 00000046 00000066 00000086
00000007 00000027 00000047 00000067 00000087
00000008 00000028 00000048 00000068 00000088
00000009 00000029 00000049 00000069 00000089
00000010 00000030 00000050 00000070 00000090
00000011 00000031 00000051 00000071 00000091
00000012 00000032 00000052 00000072 00000092
00000013 00000033 00000053 00000073 00000093
00000014 00000034 00000054 00000074 00000094
00000015 00000035 00000055 00000075 00000095
00000016 00000036 00000056 00000076 00000096
00000017 00000037 00000057 00000077
00000018 00000038 00000058 00000078
00000019 00000039 00000059 00000079
00000020 00000040 00000060 00000080
Base and extensions
01000101→
01000105 01000501→ 01000505 01000901→ 01000905 01001301→ 01001305
01000201→
01000205 01000601→ 01000605 01001001→ 01001005 01001401→ 01001405
01000301→
01000305 01000701→ 01000705 01001101→ 01001105 01001501→ 01001505
01000401→
01000405 01000801→ 01000805 01001201→ 01001205 01001601→ 01001605
Expansion
modules
02100101→
02100108 02100801→ 02100808 02101501→ 02101508 02102201→ 02102208 02102901→ 02102908
02100201→
02100208 02100901→ 02100908 02101601→ 02101608 02102301→ 02102308 02103001→ 02103008
02100301→
02100308 02101001→ 02101008 02101701→ 02101708 02102401→ 02102408 02103101→ 02103108
02100401→
02100408 02101101→ 02101108 02101801→ 02101808 02102501→ 02102508 02103201→ 02103208
02100501→
02100508 02101201→ 02101208 02101901→ 02101908 02102601→ 02102608
02100601→
02100608 02101301→ 02101308 02102001→ 02102008 02102701→ 02102708
02100701→
02100708 02101401→ 02101408 02102101→ 02102108 02102801→ 02102808
Agrónic Radio 868 modules
03100101 03101401 03102701 03104001 03105301
03100201 03101501 03102801 03104101 03105401
03100301 03101601 03102901 03104201 03105501
03100401 03101701 03103001 03104301 03105601
03100501 03101801 03103101 03104401 03105701
03100601 03101901 03103201 03104501 03105801
03100701 03102001 03103301 03104601 03105901
03100801 03102101 03103401 03104701 03106001
03100901 03102201 03103501 03104801 03106101
03101001 03102301 03103601 03104901 03106201
03101101 03102401 03103701 03105001 03106301
03101201 03102501 03103801 03105101 03106401
03101301 03102601 03103901 03105201
Monocable 64 modules

10
Relay Relay Relay Relay Relay
06000101→
06000115 06000701→ 06000715 06001301→ 06001315 06001901→ 06001915 06002501→ 06002515
06000201→
06000215 06000801→ 06000815 06001401→ 06001415 06002001→ 06002015 06002601→ 06002615
06000301→
06000315 06000901→ 06000915 06001501→ 06001515 06002101→ 06002115 06002701→ 06002715
06000401→
06000415 06001001→ 06001015 06001601→ 06001615 06002201→ 06002215 06002801→ 06002815
06000501→
06000515 06001101→ 06001115 06001701→ 06001715 06002301→ 06002315 06002901→ 06002915
06000601→
06000615 06001201→ 06001215 06001801→ 06001815 06002401→ 06002415 06003001→ 06003015
Radio modules (400MHz)
07100101→
07100108 07102501→ 07102508 07104901→ 07104908 07107301→ 07107308 07109701→ 07109708
07100201→
07100208 07102601→ 07102608 07105001→ 07105008 07107401→ 07107408 07109801→ 07109808
07100301→
07100308 07102701→ 07102708 07105101→ 07105108 07107501→ 07107508 07109901→ 07109908
07100401→
07100408 07102801→ 07102808 07105201→ 07105208 07107601→ 07107608 07110001→ 07110008
07100501→
07100508 07102901→ 07102908 07105301→ 07105308 07107701→ 07107708 07110101→ 07110108
07100601→
07100608 07103001→ 07103008 07105401→ 07105408 07107801→ 07107808 07110201→ 07110208
07100701→
07100708 07103101→ 07103108 07105501→ 07105508 07107901→ 07107908 07110301→ 07110308
07100801→
07100808 07103201→ 07103208 07105601→ 07105608 07108001→ 07108008 07110401→ 07110408
07100901→
07100908 07103301→ 07103308 07105701→ 07105708 07108101→ 07108108 07110501→ 07110508
07101001→
07101008 07103401→ 07103408 07105801→ 07105808 07108201→ 07108208 07110601→ 07110608
07101101→
07101108 07103501→ 07103508 07105901→ 07105908 07108301→ 07108308 07110701→ 07110708
07101201→
07101208 07103601→ 07103608 07106001→ 07106008 07108401→ 07108408 07110801→ 07110808
07101301→
07101308 07103701→ 07103708 07106101→ 07106108 07108501→ 07108508 07110901→ 07110908
07101401→
07101408 07103801→ 07103808 07106201→ 07106208 07108601→ 07108608 07111001→ 07111008
07101501→
07101508 07103901→ 07103908 07106301→ 07106308 07108701→ 07108708 07111101→ 07111108
07101601→
07101608 07104001→ 07104008 07106401→ 07106408 07108801→ 07108808 07111201→ 07111208
07101701→
07101708 07104101→ 07104108 07106501→ 07106508 07108901→ 07108908 07111301→ 07111308
07101801→
07101808 07104201→ 07104208 07106601→ 07106608 07109001→ 07109008 07111401→ 07111408
07101901→
07101908 07104301→ 07104308 07106701→ 07106708 07109101→ 07109108 07111501→ 07111508
07102001→
07102008 07104401→ 07104408 07106801→ 07106808 07109201→ 07109208 07111601→ 07111608
07102101→
07102108 07104501→ 07104508 07106901→ 07106908 07109301→ 07109308 07111701→ 07111708
07102201→
07102208 07104601→ 07104608 07107001→ 07107008 07109401→ 07109408 07111801→ 07111808
07102301→
07102308 07104701→ 07104708 07107101→ 07107108 07109501→ 07109508 07111901→ 07111908
07102401→
07102408 07104801→ 07104808 07107201→ 07107208 07109601→ 07109608 07112001→ 07112008
Agrónic Monocable 120 modules
08100101→
08100116 08101401→ 08101416 08102701→ 08102716 08104001→ 08104016 08105301→ 08105316
08100201→
08100216 08101501→ 08101516 08102801→ 08102816 08104101→ 08104116 08105401→ 08105416
08100301→
08100316 08101601→ 08101616 08102901→ 08102916 08104201→ 08104216 08105501→ 08105516
08100401→
08100416 08101701→ 08101716 08103001→ 08103016 08104301→ 08104316 08105601→ 08105616
A
gr
ó
n
i
c
R
a
di
o
868-
16 module
s

11
Relay Relay Relay Relay Relay
08100501→
08100516 08101801→ 08101816 08103101→ 08103116 08104401→ 08104416 08105701→ 08105716
08100601→
08100616 08101901→ 08101916 08103201→ 08103216 08104501→ 08104516 08105801→ 08105816
08100701→
08100716 08102001→ 08102016 08103301→ 08103316 08104601→ 08104616 08105901→ 08105916
08100801→
08100816 08102101→ 08102116 08103401→ 08103416 08104701→ 08104716 08106001→ 08106016
08100901→
08100916 08102201→ 08102216 08103501→ 08103516 08104801→ 08104816 08106101→ 08106116
08101001→
08101016 08102301→ 08102316 08103601→ 08103616 08104901→ 08104916 08106201→ 08106216
08101101→
08101116 08102401→ 08102416 08103701→ 08103716 08105001→ 08105016 08106301→ 08106316
08101201→
08101216 08102501→ 08102516 08103801→ 08103816 08105101→ 08105116 08106401→ 08106416
08101301→
08101316 08102601→ 08102616 08103901→ 08103916 08105201→ 08105216
Agrónic Radio 868-16 modules
(continuation)
09100101→
09100116 09102501→ 09102516 09104901→ 09104916 09107301→ 09107316 09109701→ 09109716
09100201→
09100216 09102601→ 09102616 09105001→ 09105016 09107401→ 09107416 09109801→ 09109816
09100301→
09100316 09102701→ 09102716 09105101→ 09105116 09107501→ 09107516 09109901→ 09109916
09100401→
09100416 09102801→ 09102816 09105201→ 09105216 09107601→ 09107616 09110001→ 09110016
09100501→
09100516 09102901→ 09102916 09105301→ 09105316 09107701→ 09107716 09110101→ 09110116
09100601→
09100616 09103001→ 09103016 09105401→ 09105416 09107801→ 09107816 09110201→ 09110216
09100701→
09100716 09103101→ 09103116 09105501→ 09105516 09107901→ 09107916 09110301→ 09110316
09100801→
09100816 09103201→ 09103216 09105601→ 09105616 09108001→ 09108016 09110401→ 09110416
09100901→
09100916 09103301→ 09103316 09105701→ 09105716 09108101→ 09108116 09110501→ 09110516
09101001→
09101016 09103401→ 09103416 09105801→ 09105816 09108201→ 09108216 09110601→ 09110616
09101101→
09101116 09103501→ 09103516 09105901→ 09105916 09108301→ 09108316 09110701→ 09110716
09101201→
09101216 09103601→ 09103616 09106001→ 09106016 09108401→ 09108416 09110801→ 09110816
09101301→
09101316 09103701→ 09103716 09106101→ 09106116 09108501→ 09108516 09110901→ 09110916
09101401→
09101416 09103801→ 09103816 09106201→ 09106216 09108601→ 09108616 09111001→ 09111016
09101501→
09101516 09103901→ 09103916 09106301→ 09106316 09108701→ 09108716 09111101→ 09111116
09101601→
09101616 09104001→ 09104016 09106401→ 09106416 09108801→ 09108816 09111201→ 09111216
09101701→
09101716 09104101→ 09104116 09106501→ 09106516 09108901→ 09108916 09111301→ 09111316
09101801→
09101816 09104201→ 09104216 09106601→ 09106616 09109001→ 09109016 09111401→ 09111416
09101901→
09101916 09104301→ 09104316 09106701→ 09106716 09109101→ 09109116 09111501→ 09111516
09102001→
09102016 09104401→ 09104416 09106801→ 09106816 09109201→ 09109216 09111601→ 09111616
09102101→
09102116 09104501→ 09104516 09106901→ 09106916 09109301→ 09109316 09111701→ 09111716
09102201→
09102216 09104601→ 09104616 09107001→ 09107016 09109401→ 09109416 09111801→ 09111816
09102301→
09102316 09104701→ 09104716 09107101→ 09107116 09109501→ 09109516 09111901→ 09111916
09102401→
09102416 09104801→ 09104816 09107201→ 09107216 09109601→ 09109616 09112001→ 09112016
Agrónic Radio 2,4 modules

12
4.4. EXTENSIONS
On installing extensions in the Agrónic 4000, pro-
tecting measures have to be taken in order not to
damage the circuits. It is very important to disconnect
any connection to the mains to avoid electro-shock.
Follow the installation instructions enclosed in the
extension element.

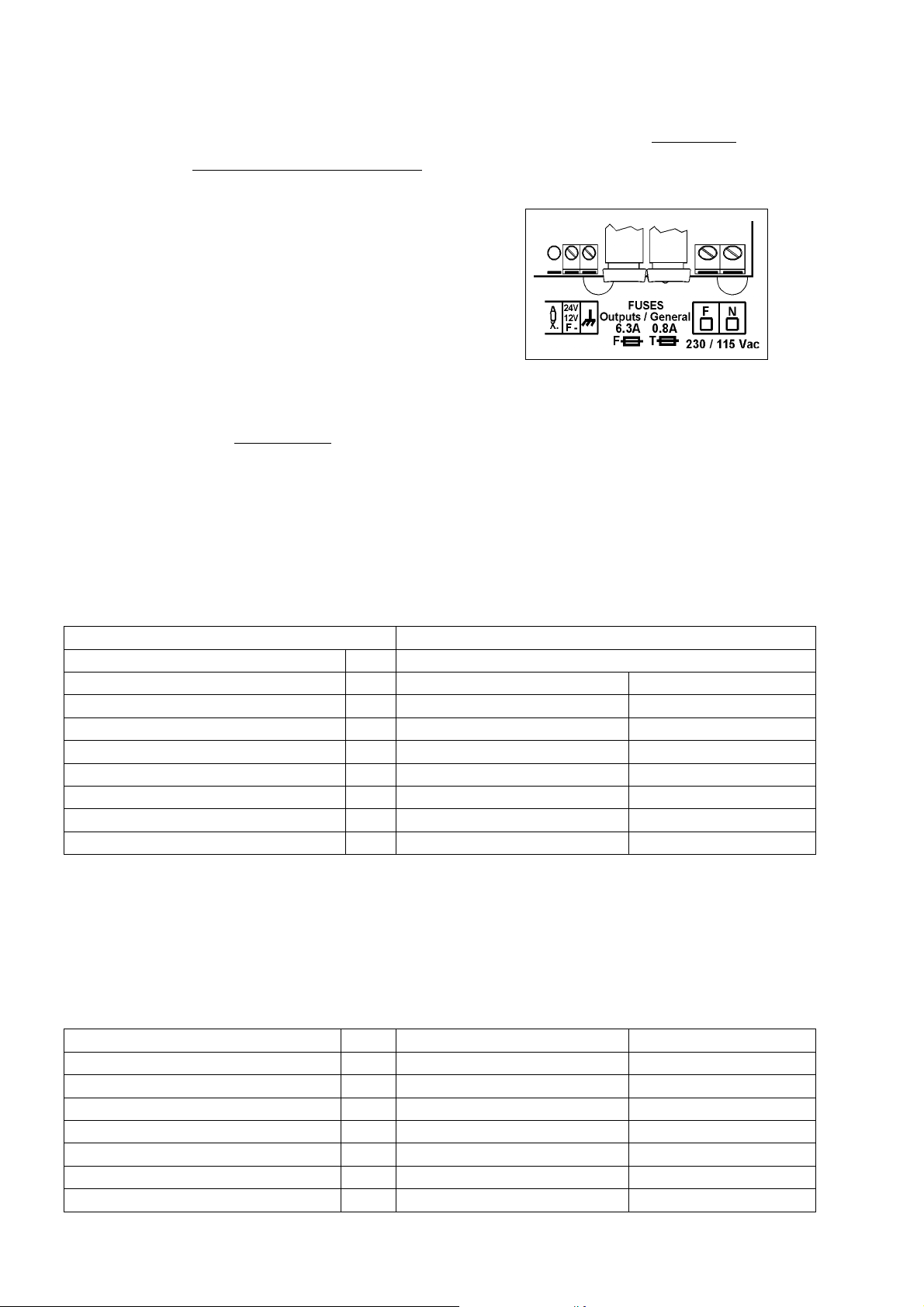

4.5. MAINTENANCE
4.5.1. Fuses
In order to replace the fuses it is necessary, for
precaution, to disconnect the unit from the general
mains, half turn the cover of the fuse holder and insert
one of the same characteristics, as it is indicated at
the label placed next to the fuse holder. Spare fuses
are included in the unit.
The fuse marked as “General fuse” protects the
power supply input. Replace it with one of the same
characteristics as it may damage the unit if this is not
taken into account.
The fuse marked as “Output fuse” protects the
outputs from short-circuits. Replace it with one with
the same characteristics as it may damage the unit if
this is not taken into account.
4.5.2. Cleaning
The frontal part is cleaned with a slightly humid
cloth, disconnecting the unit from the mains previ-
ously.
4.6. CODIFICATION OF INPUTS AND OUTPUTS
Both the analog and digital inputs as well as the digital outputs (relays) are coded using an 8-digit number
that indicates its physical location. Following tables are shown to help code them.
4.6.1. Digital outputs (relays)
Device Output
00: Base 0 00001 a 00096
Module Output
01: Expansion modules 0 001 to 016 01 to 05
02: Agrónic Radio 868 module 1 001 to 032 01 to 08
03: Agrónic Monocable 64 modules 1 001 to 064 01
06: Via radio a 400MHz modules 0 001 to 030 01 to 15
07: Agrónic Monocable 120 modules 1 001 to 120 01 to 08
08: Agrónic Radio 868-16 modules 1 001 to 064 01 to 16
09: Agrónic Radio 2,4 modules 1 001 to 120 01 to 16
Examples:
00000001: output 1 of the Base
01000103: output 3 of the Expansion module 1 (ME1)
08100503: output 3 of the Agrónic Radio 868-16, Agrónic Radio module 5 (MAR5)
09102301: output 1 of the Agrónic Radio 2,4, Agrónic Radio module 23 (MAR023)
07101005: output 5 of the Agrónic Monocable 120, Agrónic Monocable module 10 (MAM10)
4.6.2. Digital inputs
Device Module Input
00: Base 0 000 01 to 12
01: Expansion modules 0 001 to 016 01 to 02
02: Agrónic Radio 868 modules 1 001 to 032 01 to 08
03: Agrónic Monocable 64 modules 1 001 to 064 01
07: Agrónic Monocable 120 modules 1 001 to 120 01 to 10
08: Agrónic Radio 868-16 modules 1 001 to 064 01 to 16
09: Agrónic Radio 2,4 modules 1 001 to 120 01 to 16

13
Examples:
00000008: digital input 8 of the Base
01000402: digital input 2 of the Expansion module 4 (ME4)
08101502: digital input 2 of the Agrónic Radio 868-16, Agrónic Radio module 15 (MAR15)
09102301: digital input 1 of the Agrónic Radio 2.4, Agrónic Radio module 23 (MAR023)
07109007: digital input 7 of the Agrónic Monocable 120, Agrónic Monocable module 90 (MAM90)
4.6.3. Analog inputs (sensors)
Device Module Input
00: Base 0 000 01 to 04
01: Expansion modules 0 001 to 016 01 to 02
02: Agrónic Radio 868 modules 1 001 to 032 01 to 02
04: SMS Messages 0 000 01 to 08
05: MicroIsis 0 001 to 004 01 to 08
06: Metos 0 000 01 to 24
07: Agrónic Monocable 120 modules 1 001 to 120 01
08: Agrónic Radio 868-16 modules 1 001 to 064 01 to 02
09: Agrónic Radio 2,4 modules 1 001 to 120 01 to 02
Examples:
00000003: analog input 3 of the Base
01001601: analog input 1 of the Expansion module 16 (ME16)
04000003: input of SMS message 3
05000203: analog input 3 of the MicroIsis 2
07101001: analog input 1 of the Agrónic Monocable 120, Monocable module 10 (MAM10)
4.7. INSTALLER’S CONFIGURATION
Upon entering in this section the following menu
is displayed:
Erasure : 1 Test : 2 Various: 3
Options : 4 Alarms : 5 Comunic. : 6
Erasure
•Erasure: Carry out a total erasure.
•Carry out an erasure of the record.
Test
•Carry out a test of relays.
•Test of Analog outputs (0-10 V.)
•Test of the serial ports.
•Value of digital adjustment of the clock, nor-
mally there is “210” for an average tempera-
ture of 25 °C. If the average temperature was
higher the value should be lowered.
Various:
•Choose whether to operate the volume in met-
ric units (m
3
) or in U.S.A. units (Gallons).
•Increase the format of the instantaneous vol-
ume for irrigation and fertilizing meters, going
from 650.00 m
2
o liters per hour to 6500,0.
•The minutes for control of error in watering or
fertilizer counters; by default there are 10 min-
utes.
•When a watering program is outside of the
schedule or active period and has pending ac-
tivations to be completed, it must be config-
ured if it is to be cancelled or continued.
•When a program comes out of its active time-
table, the watering in progress may be can-
celled.
•To be able to keep the motors on when there
is a conditional stop by digital or analog sen-
sor.
•In the pH regulation option, choose the regu-
lar by output pressed or analog 0-10 volts.
•Fertilization may be stopped on cleaning the
filters.
•In parallel and proportional fertilization, the
pulses that occur as the proportion ends may
be counted (useful when the time between
pulses is less than two seconds).
Options:
•Activation or deactivation of options once the
equipment is installed, to activate enter the
code supplied by PROGRÉS and to deactivate
enter an incorrect code.
Alarms:
•Activation of alarms and/or SMS messages for
each of the anomalies.
Communications:
Agr.Rad868 : 1 Agr.Rad24 : 2 Agr.Mon. : 3
ModBus : 4 Others : 5

14
•Agrónic Radio 868:
•Agrónic Radio 868-16?. Responding yes
indicates that the model connected to the
equipment is 868-16 (with 16 outputs), no
indicates that it is model 868 (8 outputs).
•Channel: radio channel to be used in the
communication with the modules. It can be
from 1 to 6. *1*
•Suspend Agrónic Radio: responding yes
puts the Agrónic Radio system in low con-
sumption, stopping communication with
the modules. It is recommended that the
Agrónic Radio be suspended during peri-
ods when watering is not going to be per-
formed, therefore considerably lengthening
the life of the batteries. *4*
•Record collisions: answering yes will regis-
ter incorrect radio communications as an
anomaly.
•If the model selected is the Agrónic Radio
868:
oModule attempts: number of commu-
nication attempts before displaying er-
ror with the MR.
oConnection box attempts: number of
communication attempts before dis-
playing error with the CER.
Communication in this model is always
through port 2 (RS485).
•If the model selected is the Agrónic Radio
868-16:
oModule attempts.
oModBus address. *3*
oNet code. *5*
Consult the Agrónic Radio 868-16 manual
for more information about settings. *3*
Communication with this model is per-
formed using the ModBus protocol, and is
connected to the serial port that it assigns
to the ModBus.
•Agrónic Radio 2,4:
•Channel: radio channel to be used in the
communication with the modules. It can be
from 1 to 7. *1*
•Module attempts: number of communica-
tion attempts before displaying error with
the MAR. *2*
•ModBus address: (consult the Agrónic Ra-
dio 2,4). *3*
•Suspend Agrónic Radio: responding yes
puts the Agrónic Radio system in low con-
sumption, stopping communication with
the modules. It is recommended that the
Agrónic Radio be suspended during peri-
ods when watering is not going to be per-
formed, therefore considerably lengthening
the life of the batteries. *4*
•Net code: (consult the Agrónic Radio 2,4).
*5*
•Agrónic Monocable:
•Agrónic Monocable 120?. By responding
yes indicates that the model connected to
the equipment is the 120 (up to 120 MAM
of 8 outputs), no indicates that it is model
64 (up to 64 MM of 1 output).
•If the model selected is the Agrónic Mono-
cable 64:
oModule attempts: number of commu-
nication attempts before displaying er-
ror with the MM. *2*
oConnection box attempts: number of
communication attempts before dis-
playing error of CEM.
Communication with this model is always
through port 2 (RS485).
•If the model selected is the Agrónic Mono-
cable 120:
oModule attempts.
oModBus address.
oInitial waiting time.
oVdc anomaly cut-off delay.
oVdc action cut-off delay.
oVdc action cut-off.
Consult the Agrónic Monocable 120 man-
ual for information about these settings.
Communication with this model is per-
formed using the ModBus protocol, and is
connected to the serial port that it assigns
to the ModBus.
•ModBus:
•Serial port: indicates the serial port through
which communication is made with the
ModBus protocol. It may be ports 1
(RS232) and 2 (RS485). If left at 0 no port is
assigned.
•Transmission velocity: 0-1200 bps, 1-2400
bps, 2-4800 bps, 3-9600 bps, 4-19200 bps.
•Parity: 0-none, 1-even, 2-odd
•Length of timeout: time that will be waited
for a response before reattempting com-
munication.
•Number of reattempts: number of times
that the same thread will be resent in case
of error.
•Others:
•MicroIsis – attempts: number of communi-
cation attempts before displaying error with
the MicroIsis.
•uMetos – attempts: number of communica-
tion attempts before displaying error with
the uMetos.
•SMS messages – attempts: number of at-
tempts to send an SMS.
This programming is only carried out by the in-
staller the first time the unit is started. He is also the
only one who can modify it according to the variations
or extensions which are incorporated into the installa-
tion or the unit.

15
5. TECHNICAL CHARACTERISTICS
Power supply
Tension 230 Vac or 115 Vac+5% -10% CAT II
Frequency 50-60 Hz
Energy consumption Below to 43 VA
Input 0,800 A, T type, 250 V (slow)Fuses
Output 6,3 A, F type, 250 V (fast)
Keeping the memory which can be erased
when there is a power cut
Lithium Battery, at 3 V.
Digital Number 16 extensible to 24, 32, 48, 64, 80, 96.
Type By relay contact, with potential of 24 VAC (External transformer)
Limits 30VAC / 30VDC, 1 Amp, 50-60 Hz, CAT II
Analog Number 2
(option) Type By voltage of 0 to 10 volts.
Outputs
All outputs have double isolation in reference to the net input.
Number 12Digital
Type Optolinked, work at 24 VAC
Analog Number 4
Inputs
(option) Type 4-20 mA, 0-5 V.(with galvanic separation)
Temperature 0ºC to 45ºC Box model Built-in model
Humidity <85%
Weight
(Kg.) From 3.2 to 6.3 From 4.0 to 5.0
Height 2000m
Atmosphere
Pollution Grade 2
Memory backup Clock and data Above to 5 years.
DECLARATION OF CONFORMITY
It follows the 89/336/CEE guidelines for the Electromagnetic Compatibility and the
73/23/CEE guidelines of Low tension for the fulfillment of the product security. The fulfill-
ment of the following specifications was demonstrated as indicated in the Official Diary of
the European Communities:
Emissions EN 50081-1:94 EN 55022:1994 Type B Radiated and conducted emissions.
Immunity EN 50082-1:97 EN 61000-4-2 (95) Immunity to electrostatic discharges.
EN 61000-4-3 (96) Immunity to the electromagnetic field of radioelectric fre-
quency.
EN 61000-4-4 (95) Immunity to fast transitional in gusts.
EN 61000-4-5 (95) Immunity to crash waves.
EN 61000-4-6 (96) Current injection
EN 61000-4-11 (94) Variations to the power supply.
Harmonics EN 61000-3-2 (95) Current harmonics.
Fluctuations EN 61000-3-3 (95) Tension fluctuations (Flickers).
Low tension guidelines: EN 61010-1 Security requirements of measurement electric units, con-
trol and use in laboratory.
Symbols which may appear
in the product
Protection earth
terminal
Danger, risk of
electroshock
Box terminal
This symbol indicates that the electrical and electronic equipment should not be disposed of as gen-
eral household waste at its end-of-life. Instead, the product should be handed over to the applicable
collection point for the recycling of electrical and electronic equipment for proper treatment, recovery
and recycling in accordance with your national legislation.

16
6. PARAMETERS
In order to install the unit, it is necessary to enter
in the section of “Parameters” to adapt it to the par-
ticular necessities of each installation. Press “FUN”
(functions) and choose the function by its number (4).
Then press “Enter".
Programs : 1 Readings : 2 Erasure : 3
Parameters: 4 Manual : 5 Clock : 6
There are 9 options to choose in the “Parame-
ters” menu:
PARAMETERS Fertilis.: 1 Cleaning : 2
Generals : 3 Inputs : 4 Flows : 5
PARAMETERS Sectors : 6 Programmes : 7
Comunication: 8 Miscellaneous: 9
In order to get placed in one of the two screens of
the menu, press the up and down arrow keys. Then
press the number of the option and the “Enter” key.
6.1. FERTILIZATION PARAMETERS
Of the 8 possible fertilizers, the ones which are
going to work have to be configured. It has to be also
defined if the fertilization will be in series [1] (apply
one fertilizer after the other) or in parallel [2] (apply
several at a time).
Fertilisers number ( 0 – 8 ) : 3
Fertilisation series (1) parallel (2) : 1
Each one of the types of fertilization can be con-
figured to be applied one after the other or propor-
tionally to the irrigation units.
As shown in the picture above, the series fertili-
zation applies each one of the fertilizers for the total of
the programmed value once its addition starts. When
the series fertilization is programmed the totality is
applied before the next one. They are applied at a time
and in its totality when it is programmed in parallel.
They stop when the programmed units in one of them
finish. Look at the explicative drawings.
The proportional fertilization consists in apply-
ing each type of fertilizer not one after the other but in
several activations, with doses which will maintain a
prefixed proportionality in relation to the amount of
water circulating.
Proportional Fertilization (Y/N) : YES
F1 005/012 F2 005/014 F3 005/009 F4 010/002
If the proportional modality is chosen, at the se-
ries application format will ask for the proportions for
each one of the fertilizers and at the irrigation pro-
grams, the total quantity of water and fertilizer to be
applied to the crop will be programmed.
For example, the proportion “010/002” corre-
sponds to 10 irrigation units per each 2 fertilizer units.
These units can be in time (hours: minutes, minutes’
seconds’’) or in volume (m
3
, L, dl, cl), in relation to the
units each sub-program has.
At the parallel fertilization modality it does not ask
here for the proportions of the different fertilizers, but it
does for each one of the irrigation programs.
The pre-irrigation and the post-irrigation are inde-
pendently programmed in each program.
The way of acting of the proportional modality is
the next: the pre-fixed pre-irrigation is done, it applies
the programmed water/fertilizer proportion, when the
fertilizer units conclude, it will wait until the irrigation
units of the proportion conclude and it will apply an-
other proportional cycle. It will continue this way until
arriving at the post-irrigation or end of the irrigation in
the parallel application or it will wait until the fertilizer
units of the program conclude in the series one.

17
The unit allows to do a cleaning of the pipe lines
and injector with water at the end of each fertilizers at
the series application or at the end of them all in the
parallel one. If no cleaning is desired, leave the clean-
ing seconds at 0.
Fertilizer end cleaning : 018”
Each fertilizer can have its associated mixer, with
independent pre-mixing set on mixing and stop mixing
values.
Mixer 1 Pre-mixing : 035”
On/off mixing : 015” / 120”
The pre-mixing will enter when the irrigation in the
pre-irrigation units start. If pre-mixing is not desired
leave the value at 0.
The mixing will enter when starting the corre-
spondent fertilizer and will constantly act during the
whole application of the fertilizer if value is only given
in the set on seconds. If value is only given to the stop
seconds, there will not be mixing. Programming the
set on and stop temporization, the mixing will be in-
termittent.
At the proportional fertilization modality, the mix-
ers will act without having in consideration the pauses
of the fertilizer.
[ values for pH/EC control option ]
[Every time a sentence like this appears in shad-
ing letters, it means more screens will appear when
having this option activated. To work with this option it
is necessary to have it discharged and to have the
supplement to the explanation manual of this one.]
6.2. FILTER CLEANING PARAMETERS
The filters cleaning is another important service of
the Agrónic range which allows to clean periodical
and automatically the four possible groups of filters by
means of a sequenced cleaning.
Before configuring the values for the cleaning of
this sector, it is necessary to enter in the sector [6.3]
of “General outputs parameters” to configure the
number and the outputs of each group of filters.
Each group of filters is independent, in its con-
figuration and operation, to the others.
First it will ask which group the values will be en-
tered for.
Filters group number : 1
To apply the cleaning two times can be pro-
grammed, of utility, for instance, when there are both
rings and sand filters, or when there is a first filter
which gets dirtier than the other ones. In case of being
the cleaning time common to all the filters of the
group, the values of the second subgroup will be left
at 0.
Let’s see a configuration example of a filters
cleaning group: there are 8 filters. The 4 first have a 30
second cleaning time and the others a two minute
time.
Cleaning time: 030” sub-g. 1 : 01 a 04
Cleaning time: 120” sub-g. 2 : 05 a 08
The pause time between filters is the delay in the
starting of each filter’s cleaning.
The units between cleanings correspond to the
time or volume of water circulating through the filters
to make a new cleaning of them. The units will be in
minutes, cubic meters or liters, depending on what
programmed in the “Irrigation units” of the “Flow pa-
rameters” (6.5).
The cleaning can also be started by a differential
pressure gauge connected to a digital input. When-
ever a filter cleaning takes place, the counter of units
between cleanings is reinitiated.
In order to avoid the filters cleaning by units,
leave the value at 0.
Pause time between filters : 04”
Units between cleanings: 02300
Answering affirmatively to the “Stop sectors when
cleaning” request, the sectors which have common
irrigation pumps assigned with those assigned to the

18
filters cleaning will temporary stop. Once finished, the
sectors will continue at the same point where they
stopped.
In order to avoid a continued filter cleaning, a
maximum number of cleanings can be configured.
When the programmed value is surpassed it enters in
the “Filter cleaning without control” malfunction. In
order to reactivate the cleaning go to the “manual”
function, “malfunctions” sector and stop it.
In order to count a cleaning as a continued one,
the time between one cleaning and another must be
of 5 minutes.
In order to avoid the control, leave the value at 0.
Stop sectors when cleaning : YES
Max. Num. of cleanings in a row : 3
At the following screen, the pumps and volume
counters are assigned to the filters group. With this the
next features are reached:
•Count the time between cleanings when
pumps irrigating and coinciding with the as-
signed in this sector, whenever at flow pa-
rameters the irrigation had been configured in
units of time.
•Count the volume between cleanings when
pulses of the volume counters coinciding with
the assigned here arrive, whenever at flow pa-
rameters the irrigation had been configured in
units of volume.
•Start the pumps configured here when the
stop of the irrigation sectors in the filters
cleaning has been ordered.
•Take into account the differential pressure
gauge correspondent to the group of filters,
whenever that any pump of the ones assigned
here is set on.
In relation to P 1 2 3 4 C 1 2 3 4
Y Y N N Y Y N N
6.3. GENERAL OUTPUTS PARAMETERS
The general outputs necessary for the correct
working of the installation are configured in this sector.
Each function (pump, fertilizer, mixer, filter, etc.)
is assigned an output relay. This can be placed at the
base of the unit or in distance external modules by
cable or radio. Section 4.6.1 specifies how the eight
digits of the outputs are coded.
The Agrónic 4000 can control 4 independent irri-
gation pumps which will automatically start or stop if
irrigation sectors are set on and have the pump as-
signed.
An output relay has to be assigned to each
pump. In case of avoiding the use, leave the value at
0.
The start temporization corresponds to the time
the activation of the relay will be delayed since the
start is ordered. If the value is set at 0, the output acti-
vation is immediate.
The stop temporization keeps the output acti-
vated as long as programmed here when the order of
stop arrives. At 0, the deactivation is immediate.
Pump 1 Nº of output : 00000024
Temporisation on/off : 022” / 005”
The following four screens will be used to assign
output relays to the fertilizers and mixers set in the
installation. The ones which are not going to be used
will be left at 0.
In case of a common mixing to all the fertilizers,
the same output relay has to be assigned to all the
configured mixers.
Fertilizers F1 F2
Nº of output : 00000020 00000019
Fertilizers F3 F4
Nº of output : 00000000 00000000
Fertilizers F5 F6
Nº of output : 00000000 00000000
Fertilizers F7 F8
Nº of output : 00000000 00000000
Mixers F1 F2
Nº of output : 00000017 00000016
Mixers F3 F4
Nº of output : 00000000 00000000
Mixers F5 F6
Nº of output : 00000000 00000000
Mixers F7 F8
Nº of output : 00000000 00000000
If necessary a fertilizer general output can be
configured so that whenever one is activated, the
general one is activated too.

19
When applying water is necessary for the fertilizer
injector cleaning, an output relay will be assigned.
Fertilizer general output : 00000000
Fertilizer cleaning output : 00000000
An auxiliary output may be assigned for each of
the fertilizers. The output number of the relay may be
common for various auxiliaries, with which for example
can be obtained different fertilizers.
Auxiliary Fert. F1 F2
Nº of output : 00000025 00000025
Auxiliary Fert. F3 F4
Nº of output : 00000000 00000000
Auxiliary Fert. F5 F6
Nº of output : 00000000 00000000
Auxiliary Fert. F7 F8
Nº of output : 00000000 00000000
In this chapter it will be configured the filters
number for every one of the 4 independent groups
that the unit can control, in order to automatically
clean the filters.
For every group (G1-G4), enter the output relay of
the first filter and the last one, in the next example it is
assigned the 15 output for the first one and the 18 for
the last one, with this it is defined automatically the
control for 4 filters, always it has to be set from minor
output to higher. If it is necessary, it can be used a
general output that it will be activated anytime that a
cleaning of any filters group will be carried out, left to
“0” when it will not be used.
The other filters configuration values are intro-
duced in the chapter [6.2.] of “Parameters cleaning
filters”.
When there are a filters group not used, leave the
values to “0”.
Filters outputs G1: 00000015 to 00000018
Filters general outputs G1: 00000000
The units dispose of two alarm outputs, one of
general character and the other related to the fertiliza-
tion.
When the use is required, the correspondent out-
puts will be assigned in the unit.
General alarm output : 00000000
Fertilization alarm output : 00000000
The alarm outputs will be activated when an
anomaly takes place. The section “Anomalies reading”
shows which anomalies will activate the alarm if noth-
ing is set, although at the “installer configuration” the
fact of activating or not the alarm at each anomaly can
be modified.
The alarm outputs can act intermittently by giving
start or stop temporization, or fixed by giving them
when working.
The alarm output can be normally open (YES) or
normally closed (NO) configured, in order to have the
chance of activating sirens or telephone advisers, for
example:
Alarms, temporization, on/off : 008” / 030”
Alarm output normally open (Y/N) : YES
[ values for pH / EC Control option ]
[ values for DIESEL Control option ]
6.4. INPUT PARAMETERS
There are two kinds of inputs, the digital ones to
connect elements which act by contact (differential
pressure gauge, level, counter, etc.) and the Analog
ones for sensors which give a proportional signal to
the magnitude that has to be measured (temperature,
sun radiation, humidity, etc.)
Once the “Inputs” option has been chosen at the
“Parameters” menu, the following screen will be
shown to choose the type of input to configure.
INPUT PARAMETERS
Digitals : 1 Analogs : 2
6.4.1. Digital inputs
Each input can be assigned a function in order to
act in a pre-determined way when connecting.
Function code number : 00
At the following list the different function codes
and the request it makes to each of them are de-
scribed:
•Code 01: General Malfunction
•Code 02: Differential pressure gauge 1
•Code 03: Differential pressure gauge 2
•Code 04: Differential pressure gauge 3
•Code 05: Differential pressure gauge 4
-Detection delay: 030”
•Code 06: Stop 1
•Code 07: Stop 2
•Code 08: Stop 3
•Code 09: Stop 4
- Detection delay: 030”
- Conditional, Temporary, Definitive
- Show it as an Anomaly Y/N?
•Code 10:Intrusion alarm
- Detection delay

20
•Code 11: Irrigation counter 1, pulses
•Code 12: Irrigation counter 2, pulses
•Code 13: Irrigation counter 3, pulses
•Code 14: Irrigation counter 4, pulses
-Pulse value: 01000 L
-Maximum time between pulses: 240”
•Code 15: Fertilizer counter 1, pulses
•Code 16: Fertilizer counter 2, pulses
•Code 17: Fertilizer counter 3, pulses
•Code 18: Fertilizer counter 4, pulses
•Code 19: Fertilizer counter 5, pulses
•Code 20: Fertilizer counter 6, pulses
•Code 21: Fertilizer counter 7, pulses
•Code 22: Fertilizer counter 8, pulses
-Pulse value: 0100 cl
-Maximum time between pulses: 200”
•Code 23: Irrigation counter 1, frequency
•Code 24: Irrigation counter 2, frequency
•Code 25: Irrigation counter 3, frequency
•Code 26: Irrigation counter 4, frequency
-Cycles per litre: 009.43 Hz
•Code 27: Fertilizer counter 1, frequency
•Code 28: Fertilizer counter 2, frequency
•Code 29: Fertilizer counter 3, frequency
•Code 30: Fertilizer counter 4, frequency
•Code 31: Fertilizer counter 5, frequency
•Code 32: Fertilizer counter 6, frequency
•Code 33: Fertilizer counter 7, frequency
•Code 34: Fertilizer counter 8, frequency
-Cycles per centiliter: 128.50 Hz
•Code 35: Rain gauge
-Liters per pulse: 00.5 L/m
2
•Code 36:Start 1 of programs
•Code 37: Start 2 of programs
•Code 38: Start 3 of programs
•Code 39: Start 4 of programs
•Code 40: Start 5 of programs
•Code 41: Start 6 of programs
•Code 42: Start 7 of programs
•Code 43: Start 8 of programs
-Detection delay: 030”
-Stop Y/N : NO
[ values for DIESEL Control option ]
Once the function has been entered, the number
of input has to be chosen, to do so, take into account
the chart of the section 4.6.2.
Sector 4.3.3 has to be taken into account to deal
with the installation and the connection.
For most of the inputs there is a common value
which is the “Detection delay”. This temporization
guarantees the time the input has to keep connected
to carry out its function.
The “General malfunction” function is used to
stop completely the unit due to the connection of a
security element. It is necessary to have any pump
general output operation in order to have the chance
of acting.
When a malfunction has taken place and then it
has been repaired, the “Manual Function” has to be
used in order to finish it and continue with the irriga-
tion proceeding at that moment at the same point
where it stopped.
Each one of the four filter group the unit allows
can start the cleaning by connecting a “Differential
pressure gauge”, which measures the difference of
pressure between the input and output of the filters.
When the power is switched on and the irrigation is
working, after the “detection delay“ temporization, it
will clean the filters.
For the 06 to 09 “Stop” functions, the input op-
eration can be configured in three different ways, be-
sides this, the stop inputs that each irrigation sector
has to use are configured at the “Sector parameters”
sector.
The ”Temporary” one will cancel the irrigation of
the sector or group of sectors in order to go to the
following sub-program. If the program is reinitiated, it
will try to irrigate the sectors were previously affected
by the input.
With “Conditional” the irrigation of the sector or
group of sectors is stopped and adjourned as long as
the input is connected. Once the input is discon-
nected, the irrigation will continue at the same point
where it stopped.
At the “Definitive”, all the sectors assigned to the
input will stop operation definitively. Enter at the
“Function-Manual-Malfunctions” to end the stop.
If in an irrigation program, a group of sectors is ir-
rigating and a “Stop” input is activated, all the group
will stop irrigating, even though not all of them are
assigned to the input.
The “Intrusion alarm” function is used to protect
from vandalism the installation. To do so, connect the
protection elements such as radars, door sensors, etc.
in series with the normally closed contacts, to the in-
put; the first one that opens, after the detection delay
temporization, will activate the alarm output and, if the
SMS messages option is installed, will send a text
message to a mobile phone (SMS messages sending
option).
The four possible irrigation counters, functions
11 to 14, can work with pulses transmitter from 1 to
10.000 liters.
It is necessary to enter the value in seconds of
the time between two pulses with the lowest operation
flow at the “Maximum time between pulses”. This de-
tects the fact that there is no irrigation flow. As an ex-
ample, we will calculate the time for a flow of 2 m
3
/h
and a counter of 100 liters:
2.000 L/h ÷3600 = 0,5555 L/sec.
100 ÷0,5555 = 180 seconds.
