Progress Lighting PCOWP Series Service manual

INSTALLATION INSTRUCTION MANUAL
LED WALLPACKS LIGHT, 100-277VAC
MODELS:

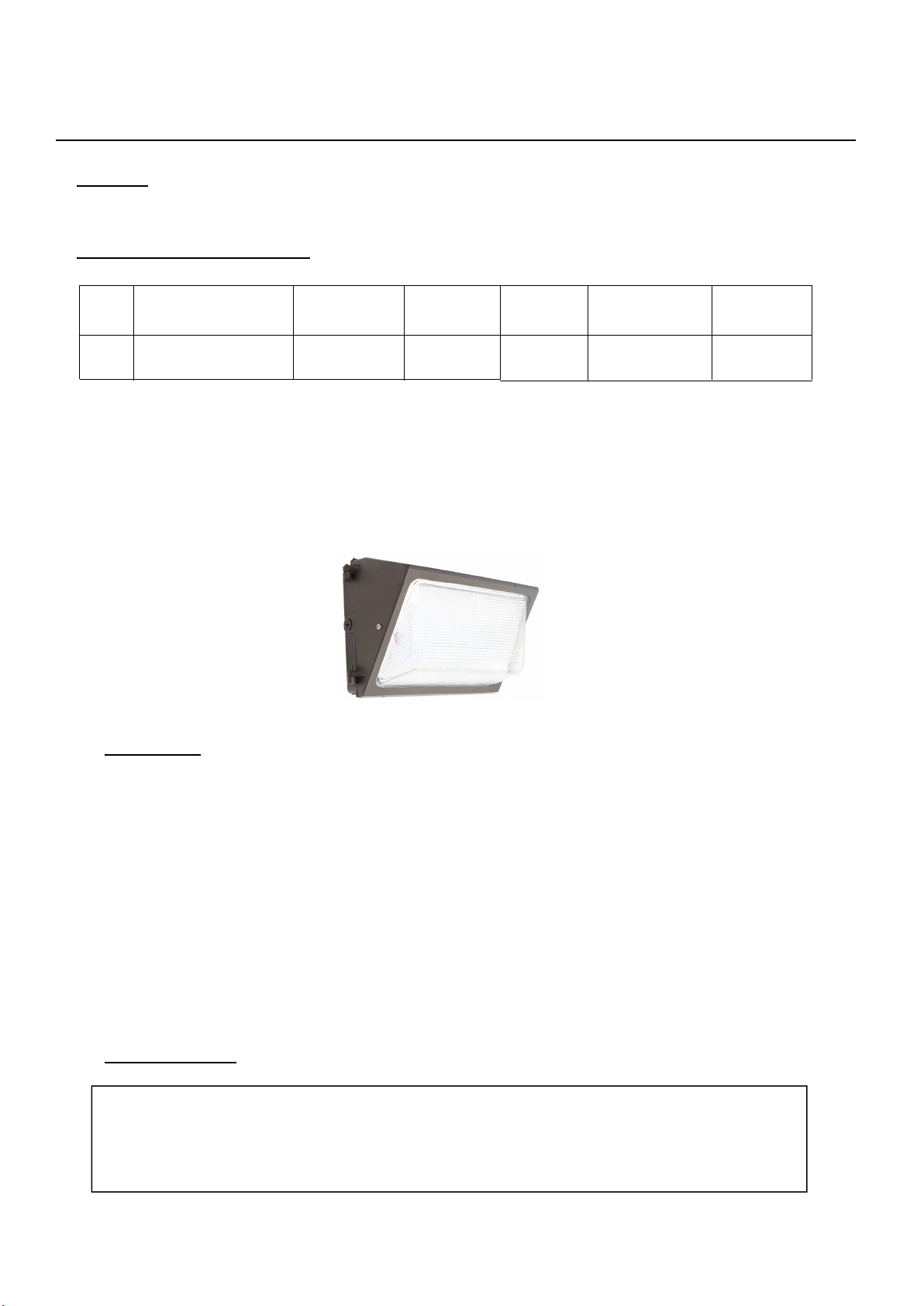

60W LED Wallpack
Model number parameter list:
CAUTION: This product uses input 100-277VAC driver of wide range voltage, but the actual working voltage depends
on the input voltage of the photocell that installed on the product. Normally the input voltage of photocell is
120V/208V/240V/277V single range, and also have 120-277VAC wide range. Please pay attention when installation
1. Introduction
This LED Wall-Packs light uses the latest in solid state lighting technology for long life, low
maintenance, and high efficiency.
The same as traditional HID lighting, it could be mounted a standard photocell on the enclosure,
to make it completely suitable for street lighting.
An internal power-factor-corrected switch-mode supply allows it to be used from
any nominal 100V-277V, 60Hz AC supply without any variation in light output.
Suitable for use in the following locations:
• Ambient Temp: -30~+40°C
• Wet Locations
Note: Save these instructions for future reference.
2. Install Guidelines
Item
Model
Input Voltage
Power
Factor
Watt
Input Current
Weight
A
60W Wallpack 100-277V AC ＞0.9
60W
0.65A
4.1Kg
Warning:
To avoid the risk of fire, explosion, or electric shock, this product should be installed,
inspected, and maintained by a qualified electrician only, in accordance with all applicable
electrical codes.
Customer Service: 1-800-447-1723 PAGE 1 of 3 93109038 08/15/19

For supply connections use wire rated for at least 90°C
Installation:
1.Wall Mount Installation
Warning:
To avoid electric shock:
•Be certain electrical power is OFF before and during installation and maintenance.
•Luminaire must be connected to a wiring system with an equipment-grounding conductor.
Warning:
To avoid explosion:
•Make sure the supply voltage is the same as the rated luminaire voltage.
•Do not install where marked operating temperatures exceed the ignition temperature of
the hazardous atmosphere.
•Do not operate in ambient temperatures above those indicated on the luminaire
nameplate.
•Keep lens tightly closed when in operation.
FIG.1
FIG.2
Customer Service: 1-800-447-1723 PAGE 2 of 3 93109038 08/15/19

Step 1
Open the back box by using philips screw driver (FIG.2), refer to size of the diagram to bore the holes
on the wall(FIG.1).
Step 2
screw the two green/yellow grounding cord to the position which indicated "GR"(FLG.3)
Step 3
Install the rear cover on the wall, connect the cable refer to the circuit diagram(FIG.5)
Step 4
Tighten enclosure screws to seal fixture. (FIG.4)
After installation, please
check whether the lighting fixture is firmly fixed.
check whether wires are connected correctly.
At last, turn on the power, and check if the lighting fixture works well. If not, please turn off the power
and contact with local dealer.
Warning: the luminaire shall be installed by qualified electrician.
FIG.4
FIG.5
FIG.3
Customer Service: 1-800-447-1723 PAGE 3 of 3 93109038 08/15/19
