ACME BRIGHT User manual

CONTENTS
1. Safety Instructions ......................................................................................... 2
2. Technical Specifications ................................................................................. 3
3. Control Panel ................................................................................................. 5
4. Installation ..................................................................................................... 6
5. How To Set The Unit....................................................................................... 7
5.1 Main Function.......................................................................................... 7
5.2 Home Position Adjustment .................................................................... 13
6. Control By Universal DMX Controller ........................................................... 15
6.1 DMX512 Connection.............................................................................. 15
6.2 Address Setting ...................................................................................... 16
6.3 DMX512 Configuration........................................................................... 16
7. Error Information......................................................................................... 32
8. Troubleshooting........................................................................................... 33
9. Fixture Cleaning ........................................................................................... 33
1B

1. Safety Instructions
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that
they also receive this instruction manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty. The dealer will
not accept liability for any resulting defects or problems.
Unpack and check carefully to ensure that there is no transportation damage before using the
unit.
This product is for indoor use only. Use only in a dry location.
DO install and operate by qualified operator.
DO NOT allow children to operate the fixture.
Use safety chain when fixing the unit. Handle the unit by carrying its base instead of head only.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces.
Be sure that no ventilation slots is blocked, otherwise the unit will be overheated.
Before operation, ensure that you are connecting this product to the proper voltage in
accordance with the specifications in this manual or on the product’s specification label.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
Minimum ambient temperature TA: 0℃. Maximum ambient temperature TA: 40℃.Do not
operate this product at a lower or higher temperature.
DO NOT connect the device to any dimmer pack.
Keep flammable materials away from the fixture while operating to avoid fire hazard.
Make sure the power cord is not crimped or damaged; replace it immediately if damaged.
Unit’s surface temperature may reach up to 65℃. DO NOT touch the housing bare-handed
during its operation.
Avoid any flammable liquids, water or metal from entering the unit. Once it happens, cut off
the mains power immediately.
Please read the instruction carefully which includes important information about
the installation, usage and maintenance.
2B

DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.
DO NOT touch any wire during operation as there might be a hazard of electric shock.
Avoid entanglement of the power cord with other wires.
The minimum distance to objects/surface must be more than 0.5 meters.
In the event of serious operating problem, stop using the unit immediately.
Never turn on and off the unit time after time.
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
DO NOT open the housing as there are no user serviceable parts inside.
DO NOT attempt to operate this unit if it becomes damaged. DO NOT attempt any repairs
yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please
contact the nearest authorized technical assistance center if needed.
Disconnect this product from its power source before servicing.
DO use the original packaging if the device is to be transported.
Avoid direct eye exposure to the light source while the product is on.
DO NOT operate this product if you see damage on the housing, shields, or cables. Have the
damaged parts replaced by an authorized technician at once.
2. Technical Specifications
Power Voltage:
180-240V~ 50/60Hz
Power Consumption:
155W
Light Source:
36x12W RGBW LED
Beam Angle:
2°
Dimmer/Shutter:
Smooth dimmer from 0-100%; outstanding variable speed strobe effect
Control:
DMX Channel: 147/17/11/4/44/144 Channels
Control Mode: DMX512, RDM
Firmware Upgrade via DMX link
3B

Construction:
Display: OLED display
Data In/Out: 3-pin XLR (5-pin XLR is optional)
Power In/Out: Power Connector in/out
Protection Rating: IP20
Features:
Compact design, light in weight
Multiple units can be split-jointed horizontally with connecting board
LED can be controlled pixel by pixel, delivering versatile effects
Dimensions/ Weight:
500x152x500mm, 12.6kgs
19.7”x6”x19.7”in, 27.8lbs

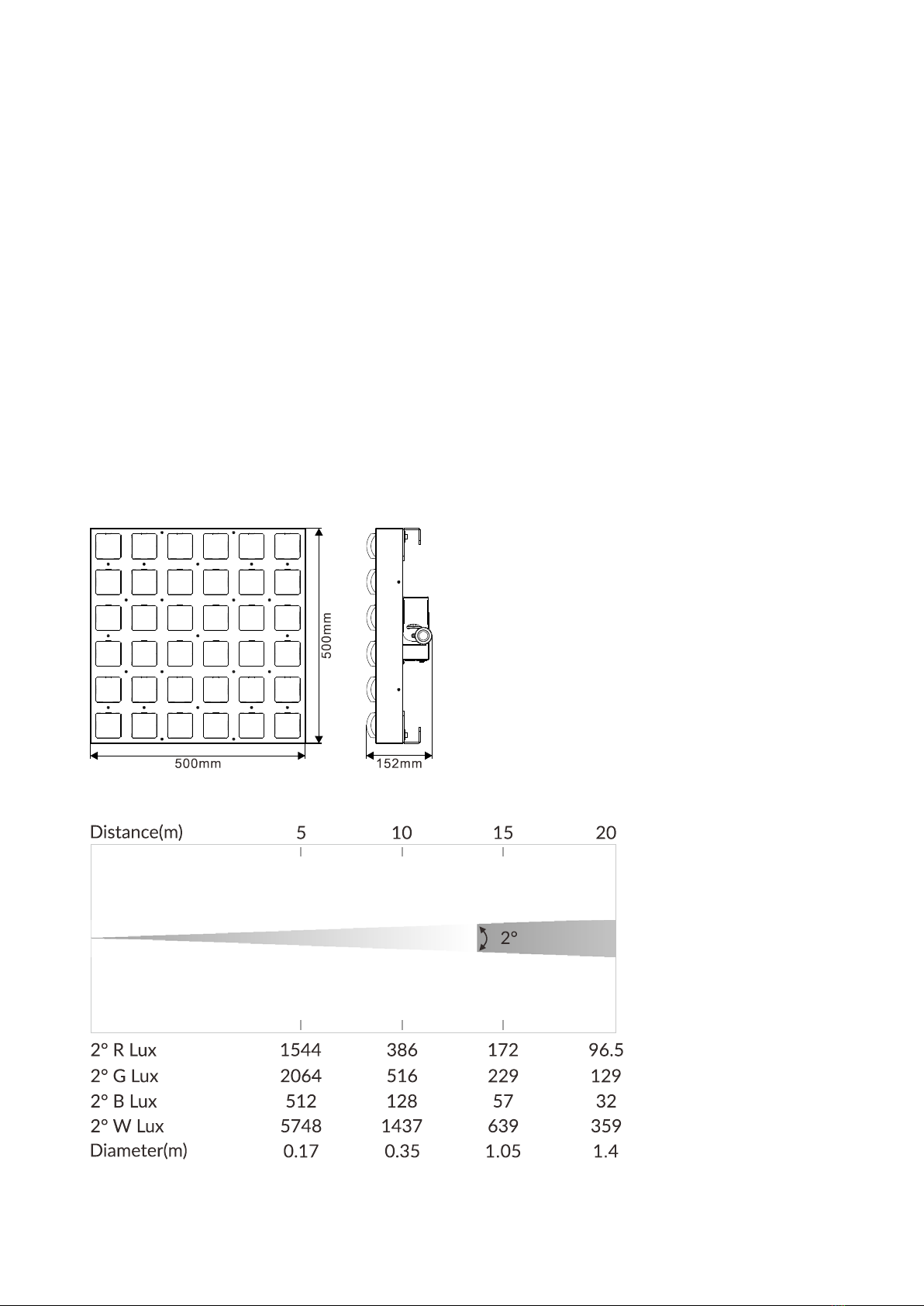

Photometric Diagram:
4B

3. Control Panel
1. Display: To show the various menus and the selected function
2. Button:
MENU
To enter into move backward or leave the menu
UP
To go backward to move up in the menu
DOWN
To go forward to move down in the menu
ENTER
To perform the desired functions
3. DMX IN:
For DMX512 link, use 3-pin XLR cable to link the unit and DMX controller (5-pin XLR is optional)
4. DMX OUT:
For DMX512 link, use 3-pin XLR cable to link the next units (5-pin XLR is optional)
5. POWERCON IN: Connects to supply power
6. POWERCON OUT: Connects to the next fixture
5B

4. Installation
The fixture should be fixed on the clamp. Always ensure that the unit is firmly fixed to avoid
vibration and slipping off during operation. Ensure that the trussing or area of installation must be
able to hold 10 times the weight without any deformation. Always install a safety cable that can
hold at least 12 times the weight of the fixture when installing.
DO install and operate by qualified operator. It must be installed in a place where there is out of the
reach of people.

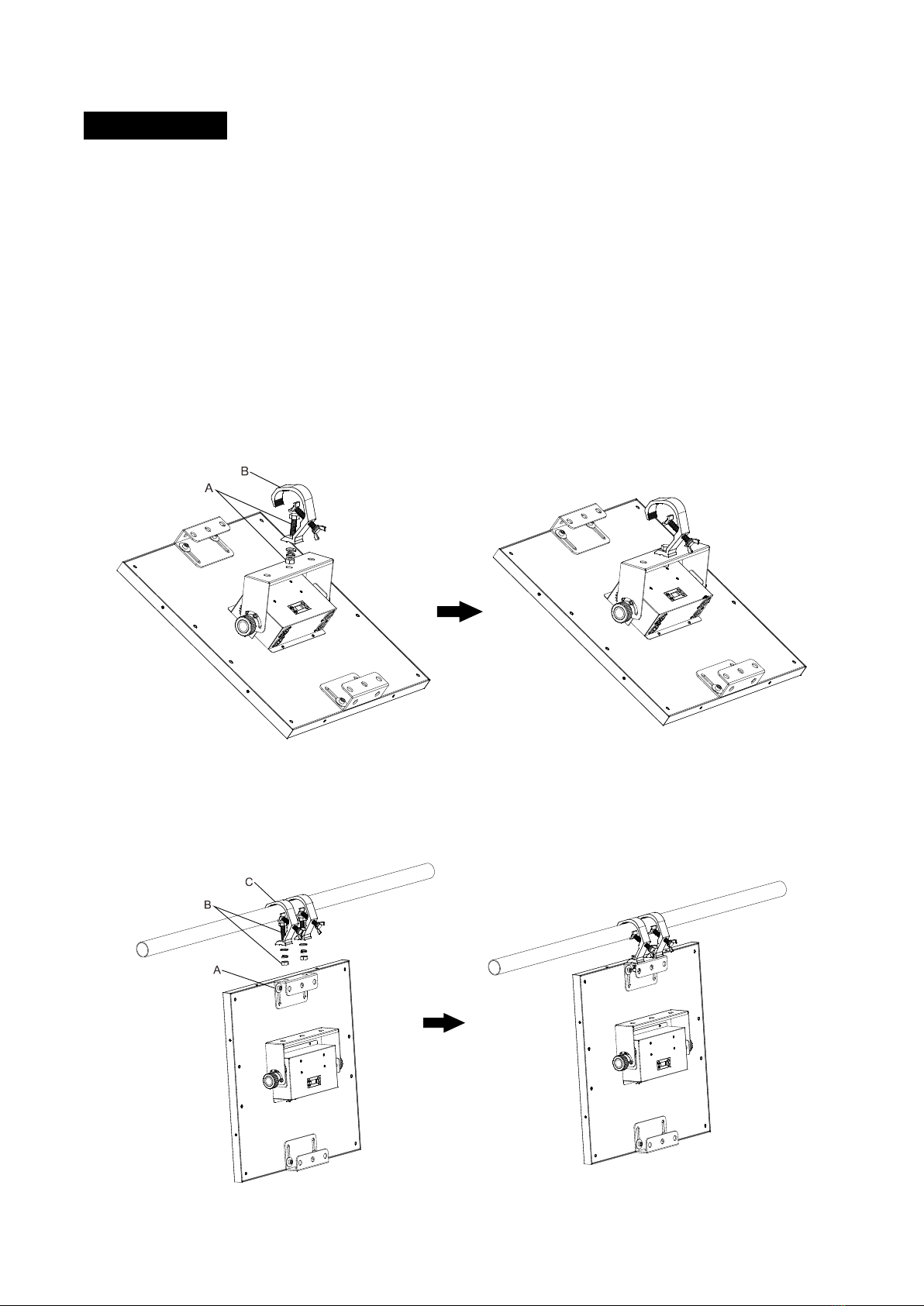

1. Installation parallel to the plane
As shown in the figure, fix the clamp (B) on the hanger of the fixture by using screws and nuts (A)
and lock the clamp (B) on the truss.
2. Installation vertical to the plane
As shown in the figure, fix the clamp (C) on the splicing plate (A) of the fixture by using screws and
nuts (B) and lock the clamp (C) on the truss.
6B

3. Multi-machine assembly
As shown in the figure, loosen the screws (A) of the splicing plate of the fixture. Then join the
fixtures together in pairs and move the splicing plate, tighten the screws and fix them on the two
fixtures; Fix the connecting plate (B) on the four corners of the fixtures by using screws and nuts so
that the fixtures are spliced and fastened to each other; Fix the clamp (D) on the splicing plate of
the fixture by using screws and nuts (C) and lock the clamp (D) on the truss.
5. How To Set The Unit
5.1 Main Function
Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN button until
the required function is shown on the monitor. Select the function by pressing the ENTER button.
Use the UP/DOWN button to choose the submenu, press the ENTER button to store and
automatically return to the last menu. Press the MENU button or let the unit idle 30 seconds to exit
menu mode.

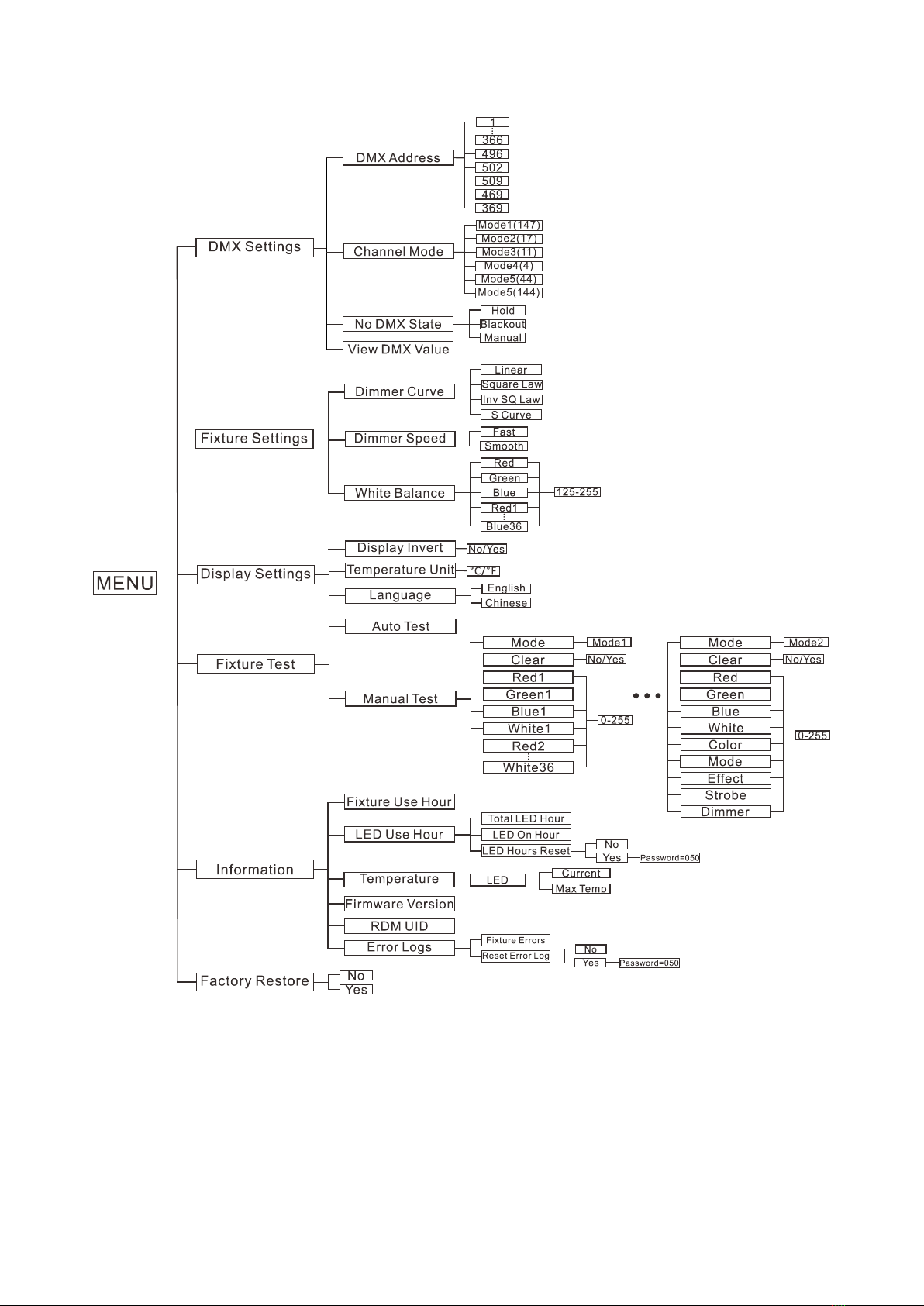

The main functions are shown below:
7B

8B

DMX Settings
To select DMX Settings,press the ENTER button to confirm, use the UP/DOWN button to select
DMX Address, Channel Mode, No DMX State or View DMX Value.
DMX Address
To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust the
address from 001 to 366/496/502/509/469/369, press the ENTER button to store. Press the MENU
button back to the last menu or let the unit idle 30 seconds to exit menu mode.
Channel Mode
To select Channel Mode, press the ENTERbutton to confirm. Use the UP/DOWN button to select
Mode1(147), Mode2(17), Mode3(11), Mode4(4), Mode5(44) or Mode6(144), press the ENTER
button to store. Press the MENU button back to the last menu or let the unit idle 30 seconds to exit
menu mode.
No DMX State
To select No DMX State, press the ENTER button to confirm. Use the UP/DOWN button to select
Hold(fixture continues to obey the last command it received Via DMX if DMX signal stops),
Blackout(fixture blacks out if DMX signal stops), or Manual(the fixture will automatically read the
DMX value in the “Manual Test” menu for operation after selecting this mode), press the ENTER
button to store. Press the MENU button back to the last menu or let the unit idle 30 seconds to exit
menu mode.
View DMX Value
To select View DMX Value, press the ENTER button to confirm. Use the UP/DOWN button to view
the DMX channel value. Press the MENU button back to the last menu or let the unit idle 30
seconds to exit menu mode.
Fixture Settings
To select Fixture Settings, press the ENTER button to confirm, use the UP/DOWN button to select
Dimmer Curve, Dimmer Speed or White Balance.
Dimmer Curve
To select Dimmer Curve, press the ENTER button to confirm. Use the DOWN/UP button to select
Linear, Square Law, Inv SQ Law or S Curve, press the ENTER button to store. Press the MENU button
back to the last menu or let the unit idle 30 seconds to exit menu mode.
9B

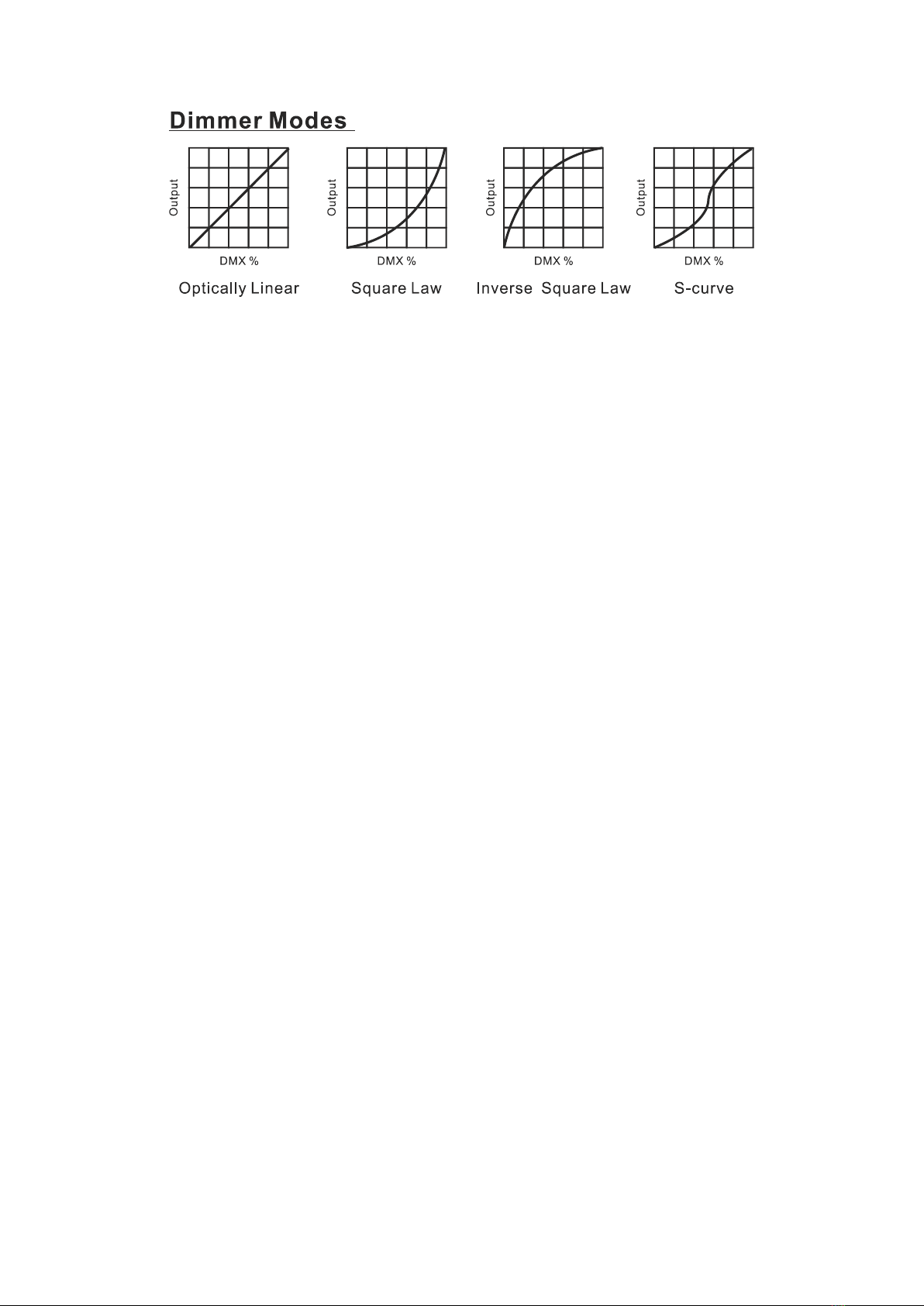

Optically Linear: The increase in light intensity appears to be linear as DMX value is increased.
Square Law: Light intensity control is finer at low levels and coarser at high levels.
Inverse Square Law: Light intensity control is coarser at low levels and finger at high levels.
S-Curve: Light intensity control is finger at low levels and high levels and coarser at medium levels.
Dimmer Speed
To select Dimmer Speed, press the ENTER button to confirm. Use the UP/DOWN button to select
Fast or Smooth, press the ENTER button to store. Press the MENU button back to the last menu or
let the unit idle 30 seconds to exit menu mode.
White Balance
To select White Balance, press the ENTER button to confirm. Use the UP/DOWN button to select
Red, Green, Blue, Red1, Green1, Blue1…… or Red36, Green36, Blue36, press the ENTER button to
store. Press the MENU button back to the last menu or let the unit idle 30 seconds to exit menu
mode.
Display Settings
To select Display Settings, press the ENTER button to confirm, use the UP/DOWN button to select
Display Invert, Temperature Unit or Language.
Display Invert
Select Display Invert, press the ENTER button to confirm, present mode will blink on the display, use
the UP/DOWN button to select No (normal display) or Yes (invert display), press the ENTER button
to store. Press the MENU button back to the last menu or let the unit idle 30 seconds to exit menu
mode.
Temperature Unit
Select Temperature Unit, press the ENTER button to confirm. Use the UP/DOWN button to
select ℃or ℉, press the ENTER button to store. Press the MENU button back to the last menu or
let the unit idle 30 seconds to exit menu mode.
10B

Language
Select Language, press the ENTER button to confirm, present mode will blink on the display, use the
UP/DOWN button to select English or Chinese. Press the MENU button back to the last menu or let
the unit idle 30 seconds to exit menu mode.
Fixture Test
To select F ix ture Test , press the ENTER button to confirm, use the UP/DOWN button to select Auto
Test or Manual Test
Auto Test
Select Auto Test, press the ENTER button to confirm, the unit will run built-in programs to
automatically test its functions. Press the MENU button back to the last menu or exit menu mode
after auto test.
Manual Test
Select Manual Test, press the ENTER button to confirm, the present channel will show on the
display, use the UP/DOWN button to select channel, press the ENTER button to confirm, then use
the UP/DOWN button to adjust the value, press the ENTER button to store, the fixture will run as
the channel value indicates. Press the MENU button back to the last menu or exit menu mode idling
30 seconds.
(The fixture will return to the previous DMX state after exiting Manual Test menu and the Manual
Test parameters will be automatically saved after power off and restart.)
Information
To select Information, press the ENTER button to confirm, use the UP/DOWN button to select
Fixture Use Hour, LED Use Hour,Temperatue, Firmware Version, RDM UID or Error Logs.
Fixture Use Hour
Select Fixture Use Hour, press the ENTER button to confirm, fixture use hour will show on the
display, press the MENU button to exit.
11B

LED Use Hour
To select LED Use Hour, press the ENTER button to confirm, use the UP/DOWN button to select
Total LED Hour, LED On Hour or LED Hours Reset, press the ENTER button to store. Select LED Hours
Reset, press the ENTER button to confirm, use the UP/DOWN button to select No or Yes, press the
ENTER button to store. Select Yes, press the ENTER button to confirm, use the UP/DOWN button to
set the password 050 to reset the LED hours, press the ENTER button to store. Press the MENU
button back to the last menu or exit menu mode let the unit idle 30 seconds.
Temperature
Select Temperature, press the ENTER button to confirm, use the UP/DOWN button to select LED,
press the ENTER button to confirm, the current temperature and max temperature of the unit will
show on the display, press the MENU button to exit.
Firmware Version
Select Firmware Version, press the ENTER button to confirm, firmware version will show on the
display, press the MENU button back to exit.
RDM UID
Select RDM UID, press the ENTER button to confirm, RDM UID will show on the display, press the
MENU button back to exit.
Error Logs
Select Error Logs, press the ENTER button to confirm. Use the UP/DOWN button to select Fixture
Errors or Reset Error Log, press the ENTER button to store. Select Reset Error Log, press the ENTER
button to confirm. Use the UP/DOWN button to select No or Yes, press the ENTER button to store.
Select Yes, press the ENTER button to confirm. Use the UP/DOWN button to set the password 050,
press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle
30 seconds to exit menu mode.
Factory Restore
Select Factory Restore,press the ENTER button to confirm, use the UP/DOWN button to select No
(normal) or Yes (the fixture will reset to factory settings), press ENTER button to store. Press the
MENU button to exit.
12B

RDM FUNCTIONS
Select the MANUFACTURER menu to display the manufacturer of the fixture.
Select the SOFTWARE VERSION menu and the program version number of the fixture will be
displayed.
Select the DMX START ADDRESS menu to change the DMX512 address (001-512).
Select the DEVICE MODEL DESCRIPTION menu to display the model of the fixture.
Select the DEVICE LABEL menu to change the model of the fixture.
Select the DMX PERSONALITY menu to set the channel mode of the fixture (147/17/11/4/44/144
channel).
Select the DMX PERSONALITY DESCRIPTION menu to display the current channel mode of the
fixture.
Select the DEVICE HOURS menu to display the running time of the fixture.
5.2 Home Position Adjustment
Press the MENU button into menu mode, then press the ENTER button for about 3 seconds into
offset mode to adjust the home position. Select the function by pressing the ENTER button. Use the
UP/DOWN button to choose the submenu, press the ENTER button to store and automatically
return to the last menu. Press MENU button to exit.
Frequency(Hz)
Enter offset mode, select Frequency(Hz), press the ENTER button to confirm, the present position
will blink on the display, use the UP/DOWN button to offset the value from 1072 to 1327, press the
ENTER button to store. Press the MENU button to exit.
13B

Red
Enter offset mode, select Red, press the ENTER button to confirm, the present position will blink on
the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button to
store. Press the MENU button to exit.
Green
Enter offset mode, select Green, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button
to store. Press the MENU button to exit.
Blue
Enter offset mode, select Blue, press the ENTER button to confirm, the present position will blink on
the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button to
store. Press the MENU button to exit.
White
Enter offset mode, select White, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button
to store. Press the MENU button to exit.
Red1
Enter offset mode, select Red1, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button
to store. Press the MENU button to exit.
……
White 36
Enter offset mode, select White 36, press the ENTER button to confirm, the present position will
blink on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER
button to store. Press the MENU button to exit.
14B

6. Control By Universal DMX Controller
6.1 DMX512 Connection
1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-o h m 1/4 W
resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output
of the last unit.
2. Connect the unit together in a “daisy chain” by XLR plug cable from the output of the unit to
the input of the next unit. The cable can only be used in series and cannot be connected in parallel.
DMX 512 is a very high-speed signal. Inadequate or damaged cables, soldered joints or corroded
connectors can easily distort the signal and shut down the system.
3. The DMX output and input connectors are pass-through to maintain the DMX circuit, when one
of the units’ power is disconnected.
4. Each lighting unit needs to have a DMX address to receive the data by the controller. The
address number is between 1-512.
5. The end of the DMX 512 system should be terminated to reduce signal errors.
6. 3 pin XLR connectors are more popular than 5 pins XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin4, Pin5 not used.
15B

6.2 Address Setting
If you use a universal DMX controller to control the units, you have to set DMX address from 1 to
512 so that the units can receive DMX signal.
Press the MENU button to enter menu mode, select DMX Settings, press the ENTER button to
confirm, use the UP/DOWN button to select DMX Address, press the ENTER button to confirm, the
present address will blink in the display, use the UP/DOWN button to adjust the address from 001 to
512, press the ENTER button to store. Press the MENU button back to the last menu or let the unit
idle 30 seconds to exit menu mode.
Please refer to the following diagram to address your DMX512 channel for the first 4 units.
Channel mode
Unit 1
Address
Unit 2
Address
Unit 3
Address
Unit 4
Address
147 channels 1 148 295 442
17 channels 1 18 35 52
11 channels 1 12 23 34
4 channels 1 5 9 13
44 channels 1 45 89 133
144 channels 1 145 289 433
6.3 DMX512 Configuration
Please control the fixture by referring to the configurations below
Attentions:
1. The unit will maintain the last condition until reset if you cut-off the DMX signal.
2. For the channel Function, keep the value for about 3 seconds, then the corresponding function
will take into effect.
16B

147 Channels (Mode 1):
CHANNEL VALUE FUNCTION
1
000-255
RED1
0%

100%
2
000-255
GREEN1
0%100%
3
000-255
BLUE1
0%

100%
4
000-255
WHITE1
0%100%
5
000-255
RED2
0%

100%
6
000-255
GREEN2
0%100%
7
000-255
BLUE2
0%

100%
8
000-255
WHITE2
0%

100%
…… …… ……
141
000-255
RED36
0%

100%
142
000-255
GREEN36
0%100%
143
000-255
BLUE36
0%

100%
144
000-255
WHITE36
0%100%
145
000-007
008-015
016-131
132-139
140-181
182-189
190-231
232-239
240-247
248-255
STROBE
Close
Open
Strobe from Slow to Fast
Open
Fast Close Slow Open
Open
Fast Open Slow Close
Open
Random Strobe
Open
146
000-255
DIMMER
0%100%
147 000-255 DIMMER FINE
17B

17 Channels (Mode 2):
CHANNEL VALUE FUNCTION
1
000-255
RED (RING 1)
0%

100%
2
000-255
GREEN (RING 1)
0%100%
3
000-255
BLUE (RING 1)
0%

100%
4
000-255
WHITE (RING 1)
0%100%
5
000-255
RED (RING 2)
0%

100%
6
000-255
GREEN (RING 2)
0%100%
7
000-255
BLUE (RING 2)
0%

100%
8
000-255
WHITE (RING 2)
0%

100%
9
000-255
RED (RING 3)
0%

100%
10
000-255
GREEN (RING 3)
0%

100%
11
000-255
BLUE (RING 3)
0%100%
12
000-255
WHITE (RING 3)
0%

100%
13
000-009
010-014
015-019
020-024
025-029
030-034
035-039
040-044
045-049
050-054
055-059
060-064
065-069
070-074
075-079
080-084
085-089
COLOR MACRO
Open
LEE 790-Moroccan Pink
LEE 157-Pink
LEE 332-Special Rose Pink
LEE 328-Follies Pink
LEE 345-Fuchsia Pink
LEE 194-Surprise Pink
LEE 181-Congo Blue
LEE 071-Tokyo Blue
LEE 120-Deep Blue
LEE 079-Just Blue
LEE 132-Medium Blue
LEE 200-Double CT Blue
LEE 161-State Blue
LEE 201-Full CT Blue
LEE 202-Half CT Blue
LEE 117-Steel Blue
18B

090-094
095-099
100-104
105-109
110-114
115-119
120-124
125-129
130-134
135-139
140-144
145-149
150-154
155-159
160-164
165-169
170-174
175-179
180-201
202-207
208-229
230-234
235-239
240-244
245-249
250-255
LEE 353-Lighter Blue
LEE 118-Light Blue
LEE 116-Medium Blue Green
LEE 124-Dark Green
LEE 139-Primary Green
LEE 089-Moss Green
LEE 122-Fern Green
LEE 738-JAS Green
LEE 088-Lime Green
LEE 100-Spring Yellow
LEE 104-Deep Amber
LEE 179-Chrome Orange
LEE 105-Orange
LEE 021-Gold Amber
LEE 778-Millennium Gold
LEE 135-Deep Gold Amber
LEE 164-Flame Red
Open
Clockwise Rotation, Fast to Slow
Stop
Counter-clockwise Rotation, Slow to Fast
Open
Random Color: Fast
Random Color: Medium
Random Color: Slow
Open
14
000-007
008-015
016-131
132-139
140-181
182-189
190-231
232-239
240-247
248-255
STROBE
Close
Open
Strobe from Slow to Fast
Open
Fast Close Slow Open
Open
Fast Open Slow Close
Open
Random Strobe
Open
15
000-255
DIMMER
0%

100%
16 000-255 DIMMER FINE
17
000-029
030-039
040-049
050-059
060-069
SPECIAL FUNCTION
Null
Dimmer Curve Linear
Dimmer Curve Square Law
Dimmer Curve Inv SQ Law
Dimmer Curve S
19B
