Progressive Corner Ryzer FLT-05 User manual

Contents
Caution
Specifications
Components
Assembly
Table Top Installation
Dimensional Drawing
Reset Procedure
Operations
Troubleshooting
Model: Corner Ryzer (FLT-05)
Table Lift and Table Top User Manual
Scan for video assembly!Scan for video assembly!
2
3
4
5-7
8-10
11
12
12-14
15
v3.00

02Caution
Have any queries? Our expert engineers are here to help!
Progressivedesk.com [email protected]1-800-828-9414
Use indoors only.
Using this product in outdoor and damp environments have a risk of fire, electric shock, and personal injury.
Use a properly grounded 120V outlet.
Unplug the table lift from the electrical outlet before moving the table lift or adding/removing parts or accessories. Risk of
electric shock.
Keep plug away from heat. Risk of electric shock.
Do not tamper with table lift components.
Do not open any table lift component or insert any object in a table lift component. Risk of electric shock.
Do not use a damaged cord or plug. Risk of electric shock.
In case of spilled liquids, immediately unplug table lift.
Clean spill with a dry cloth. Risk of table lift failure or electric shock if table lift components become wet.
Keep fingers and body parts clear of moving table lift.
Check surroundings before using the table lift to ensure there are no obstructions in the table lift's range of motion. Ensure
cords are all the appropriate length so they do not pull when the table lift moves.
Keep unsupervised children away from the table lift.
Teach children about table lift safety prior to use. Risk of personal injury and electric shock if the table lift is misused.
Warning
Please ensure you and each user read this manual carefully and thoroughly prior to use of the associated product.
This desk has been designed with an adjustable height range, and improper use or mishandling of this feature may
result in both property damage and/or bodily harm. Progressive Desk reserves the right not to accept any
responsibility or liability should damages or injuries occur through improper use of this product.

03Specifications
Description
120 VAC, 60 Hz
330 lbs (110 lbs per Leg)
1.57"/sec
23.6"
49.1"
23.6"
10% (2 Minutes On, 18 Minutes Off)
Yes
Program Up to 4 Memory Presets³, USB Charging Port
IP51 Legs and IP20 Controller
97.30 lbs
15 Year
UL and cUL (Customizable)
Description
The table lift will modulate movement when starting and stopping to ensure
smooth travel.
The table lift will stop movement and briefly move in the opposite direction if
an obstruction is detected. Refer to Collision Detection Sensitivity in
Operations section to configure.
The wired remote has the ability to save preset height locations for convenience.
Refer to Memory Presets in Operations section.
Note: Not available in all remote models.
Remote LED height display will turn off when left idle for 10 seconds.
Note: Not available in all remote models.
Input Voltage
Force
Speed¹
Install Size Retracted
Install Size Extended
Foot Length
Duty Cycle
Collision Detection²
Remote Functions
Protection Class
Unit Weight
Limited Warranty
Certifications
Specification
Feature
¹Soft Start and Stop
²Collision Detection
³Memory Presets
Low Power Mode

04Components
Important: The drawings below are for reference only and may be slightly different from
the physical product. Please contact us if you have missing or damaged components.
2
5
8
11
14
3
6
9
12
15
1
4
7
10
13
16
Progressive Desk Table Top Hardware
For added convenience, all Progressive Desk
table tops are also shipped with compatible
mounting hardware.
Tools
Included
17 18
Side Bracket
Center Rail
Cable Clip
Frame End
(Pre-installed)
Foot Leveller
Foot
Control Box
Remote
Leg
Extension
Cable (4 ft.) Power Cord
19
Straight Bracket
20 M5x20
Self Tapping
Wood Screw
M5x16
Wood Screw
M5x20
Wood Screw
M6x10
Machine Screw
M6x14
Machine Screw
(Pre-installed)
Rubber Grommet Primary Frame Secondary Frame
12
3
4
16
32
2
2
12
6
2
2
18
1
1
3
3
12
1
1
1
(may vary based on selection)
You'll
Also Need Phillips Head
Screwdriver
Electric Drill
(optional)
No. Part Qty No. Part Qty No. Part Qty
Allen Wrench

55
05Assembly
•Table top dimensions
•Leg and feet orientation
•Grommet hole location
Scan for video assembly!
Orientation A Orientation B
Bottom View Bottom View
3
2
15
Contact us for assembly assistance!
[email protected]
Progressivedesk.com
1-800-828-9414
STEP 1: Determining table lift orientation
The Secondary Frame (3) can be attached to either side of the Primary Frame (2) to achieve your desired orientation.
Refer to the 2 orientations below.
We recommend considering the following when determining the orientation:
STEP 2
On the protected surface of your floor, lay your table top facing down. Orient it according to Step 1. The table lift
assembly process can be done directly on the table top surface as if you were building the table lift upside down.
Note: Some table tops are reversible. Take care to orient them according to features like pre-drilled holes and
grommet holes.
Important: Do not slide the table lift components on the table top as this may
damage the Rubber Grommets (1) pre-installed on the Frames.
Important: To avoid damage to your floor and to the products, assemble on a soft and even surface that is free
from any obstructions. This can be a carpeted floor, rug or towel. The table top foam panels and cardboard can be
used as well.

06Assembly
Ensure the slot is facing inward
and is closer to the top edge.
STEP 4
Slide one Side Bracket (4) onto the Frame End (5) of
the subassembly created in Step 3.
Insert two M6x14 Machine Screws (14) through the
two holes at the bottom of the Side Bracket (4) to
secure it to the Frame End (5). Tighten the screws.
Repeat these steps for the other 2 subassemblies
created in Step 3.
STEP 6
Slide two Center Rails (7) into the Primary Frame (2)
subassembly. Make sure the slots on the two Center Rails
(7) are facing each other. The slots on each Center Rail (7)
will be closer to one side, see the diagram below for the
correct orientation. Installing it in the correct orientation will
prevent the Center Rails (7) from being inserted all the way
into the frame.
Slide the End Frame (5) subassembly into the opposite end
of the two Center Rails (7). Loosely insert eight M6x10
Machine Screws (13) to partially secure the Center Rails (7)
onto the frame. This is to allow for adjustments at a later
stage.
STEP 3
Use four M6x10 Machine Screws (13) to attach one
Frame End (5) to one Leg (9).
Repeat these steps to attach the remaining two
Legs (9) to one Frame End (5) and one Primary
Frame (2).
STEP 5
Install one Control Box (15), by sliding the interlocking
slots of the Control Box (15) and Primary Frame (2)
together.

07Assembly
STEP 7
Place the completed table lift frame subassemblies on top of your upside-down table top, according to the
Bottom View of your chosen orientation from Step 1.
The side of the Primary Frame (2) to attach the Secondary Frame (3) onto is determined by your selected
orientation. There are 6 holes on the Primary Frame (2) to accommodate varying table top widths and pre-drilled
hole locations. Ensure edges of table tops are flush against each other and table top is centered on table lift frame.
For Progressive Desk 30" wide table tops, use Holes 2 to 5. For Progressive Desk DT-90 Corner table top, use
holes 3 to 6.
Once the holes have been determined, insert four M6x10 Machine Screws (13).
STEP 8
Slide two Center Rails (7) into the Secondary Frame (2).
Note the Center Rails' (7) orientation as described in
Step 6.
Slide the End Frame (5) subassembly into the opposite
end of the Center Rails (7). Loosely insert eight M6x10
Machine Screws (13) to partially secure the Center Rails
(7) onto the frame. This is to allow for adjustments at a
later stage.
STEP 9
Install one Foot (6) using four M6x14 Machine
Screws (14) onto one Leg (9). Tighten the screws in
a criss-cross formation to prevent misalignment.
Repeat these steps for the other two Legs (9).
Orientation (A) shown Primary Frame (2) Hole Locations

08Table Top Installation
STEP 10
This step is for table tops without pre-drilled holes. Skip this step if it has pre-drilled holes.
Move the table lift frame components to desired final position on top of the upside-down table top. Use a pencil to
mark the twelve table top mounting hole locations. Remove the table lift frame from the table top.
To assist in installation of table tops once it is right side up, you will need to create pilot holes. Install M5x20 Wood
Screws (12) on the marked locations. Install only 1/4 of screw's length and then remove the screws.
Optional: An electric drill may be used to create pilot holes instead of the wood screws.
STEP 11
For this step, it is advised that you use two or more people for flipping the table lift right-side up.
To make the flipping process easier, the Frame End (5) and Center Rails (7) connected to the Secondary Frame
(3) will need to be temporarily detached.
To do this, loosen the screws connecting the Center Rails (7) to the Secondary Frame (3). Once loose, detach the
entire subassembly.
Flip all of the sub-assemblies right-side up.
STEP 12
Once upright, reattach the subassembly. Do not fully tighten the screws on the Center Rails (7) to allow for
adjustments at a later stage.
STEP 13
Place the table top on the table lift, in the desired orientation as determine in Step 1.
STEP 14
Attach the table top onto the table lift using the mounting screws that were provided with the table top until the
Rubber Grommets (1) attached to the Side Brackets (4) are slightly compressed but not flattened.
STEP 15
Review the table top position on the table lift frame. Ensure edges of table tops are flush against each other and
table top is centered on table lift frame. Tighten the four M6x10 Machine Screws (13) connecting the Secondary
Frame (3) to the Primary Frame (2).
Ensure the Center Rails (7) are at the center of the two adjoining Frame components by sliding them to the
appropriate position.
Tighten all twelve screws securing the Center Rails (7) on all Leg (9) subassemblies.
Important: Do not slide the table lift components on the table top as this may
damage the Rubber Grommets (1) pre-installed on the Frames.

09Table Top Installation
STEP 16
This step is for two-piece table tops. Skip this step if you have a one-piece table top.
Position two Straight Brackets (19) on the bottom side of the table tops as shown in the diagram. Make sure
the countersunk holes are facing away from the table top.
Install each of the two Straight Brackets (19) to the table tops using six M5x20 Self Tapping Wood Screws (20).
Hand tighten only to prevent damage to the table top.
STEP 17
Identify the desired Remote (18) location, ensuring that the cable is able to reach the Control Box (15).
Note: The ideal position is within user's reach and does not impede with the user's legs when leaving the desk.
STEP 18
Align the Remote (18) with the table top edge. Use two M5x16 Wood Screws (11) to install.
Optional: An electric drill may be used to add pilot holes before installing screws.

10Table Top Installation
Step 19
Connect the Remote (18) to the HS port of the Control Box (15).
Step 20
Connect the cables coming from the three Legs (9) to the Control Box (15) ports M1, M2 and M3 in any order. Use
the Extension Cables (16) if necessary.
Plug the Power Cord (17) to the Control Box (15).
Use Cable Clips (10) to affix any loose cables to the table top or table lift frame.
Step 21
Once the Corner Ryzer is connected to power, calibrate the system with a Reset Procedure as described in the
Operations section.
Move the completed Corner Ryzer to the desired location and adjust the Foot Levellers (8) to achieve a level table
top surface.
Thank you for choosing Progressive Desk!
If you have any feedback or questions, please contact us - we would love to hear your thoughts.
Enjoy your healthier and smarter workspace!
progressivedesk.com [email protected]1-800-828-9414

11Dimensional Drawing
Maximum Width - 72.6"
Minimum Width - 42.8"
Maximum Length - 73.8"
Minimum Length - 42.3"
1.7"
22.6"
Extended - 49.1"
Retracted - 23.6"
3.1" 2.0"
1.3"
27.6"
2.8"

12

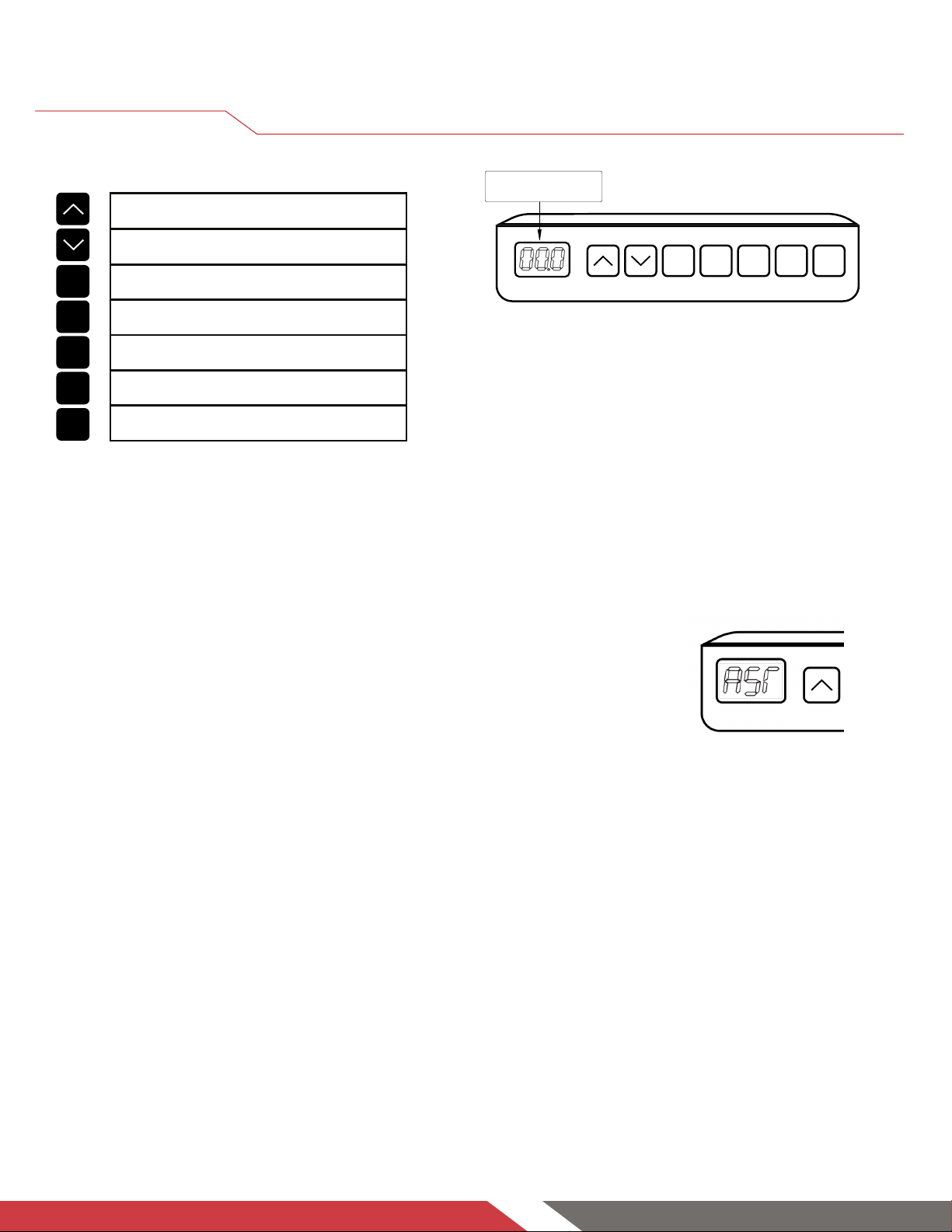

1. Move the table lift to the lowest position using the DOWN button. Measure the height from the floor to surface of table
top. If measured height does not match the height on the remote height display, continue with the following steps.
2. Press and hold the DOWN button until height display shows "ASr". Release the DOWN button.
3. Press and hold the M button until the height display flashes.
4. Use the UP and DOWN buttons to match the height display with your measured height.
5. Once the correct value is displayed, do not touch the remote until the height display flashes "ASr". Hold the DOWN
button until the table lift slightly lowers, then slightly rises back up. Release when the table lift height is displayed on the
remote.
Operations
RESET PROCEDURE
WARNING: During the Reset Procedure, the table lift will retract 0.28 inches below the lowest normal operating
position. Ensure there are not obstructions in the path of the table lift. Release the DOWN button to stop motion at any
time.
HEIGHT CALIBRATION
Calibrate the Remote height display to match actual height of desk which may differ depending on feet height or table
top thickness.
1234M
1. If remote height display shows "ASr", skip to step 4.
2. Move the table lift to the lowest position using DOWN button.
3. Once at the lowest position, press and hold the DOWN button on the remote until
height display shows "ASr". Release the DOWN button.
4. Press and hold the DOWN button, the table lift will move down 0.28 inches below
the lowest normal operating position. Continue to hold the DOWN button until the
table lift moves back up to the lowest normal operating position. Release the DOWN
button.
5. The table lift height will be displayed on the remote height display and is now ready
for use.
UP - Hold to move table lift up
DOWN - Hold to move table lift down
Memory Preset 1
Memory Preset 2
Memory Preset 3
Memory Preset 4
Memory Preset programming button
"ASr" shown on
Height Display
REMOTE BUTTONS
1
2
3
4
M
MEMORY PRESET PROGRAMMING
1. Use the UP or DOWN button to bring the desk to the
desired height.
2. Press M button once, followed by the desired
Memory Preset button.
Height Display

13
Operations
1.
REMOTE CONTROL LOCK
To Lock
Press and hold the M button. The remote height display will show "S-", then it will show the table lift height, and finally
it will display "LOC". The remote control buttons are now locked.
To Unlock
Press and hold the M button until the height display shows the table lift height.
HEIGHT DISPLAY UNITS (inch or centimeter)
2.
3.
4.
Move the table lift to the lowest position using the DOWN button.
Press and hold the DOWN button until the display shows "ASr". Release the DOWN button.
Hold the 2 button to select through the options. Release once the display shows the code corresponding to the
desired setting.
"10.3" - centimeters
"10.4" - inches
Once the selection is made, "ASr" will show up on the display.
Hold the DOWN button until the table lift slightly lowers, then slightly rises back up. Release when the table lift
height is displayed on the remote.
1.
COLLISION DETECTION SENSITIVITY
2.
3.
4.
Move the table lift to the lowest position using the DOWN button.
Press and hold the DOWN button until the display shows "ASr". Release the DOWN button.
Hold the UP button to select through the options. Release once the display shows the code corresponding to the
desired setting.
"10.5" - 22lbs
"10.6" - 33lbs
"10.7" - 55lbs
Once the selection is made, "ASr" will show up on the display.
Hold the DOWN button until the table lift slightly lowers, then slightly rises back up. Release when the table lift
height is displayed on the remote.

14
Operations
MEMORY PRESET ONE-TOUCH and CONSTANT-TOUCH MODE
One-Touch mode is the default setting. The memory preset button may be pressed once without holding and the table lift
will move to the desired height. Any button may be pressed to stop movement.
Constant-Touch mode requires you to hold the memory preset button until the desired height is reached. Releasing the
memory preset button earlier will make the table lift stop immediately.
1. Move the table lift to the lowest position using the DOWN button.
2. Press and hold the DOWN button until the display shows "ASr". Release the DOWN button.
3. Hold the 1 button to select through the options. Release once the display shows the code corresponding to the
desired setting.
"10.1" - One-Touch
"10.2" - Constant-Touch
Once the selection is made, "ASr" will show up on the display.
4. Hold the DOWN button until the table lift slightly lowers, then slightly rises back up. Release when the table lift height
is displayed on the remote.
1.
Setting Minimum Height Limit
2.
3.
Use the UP or DOWN button to bring the desk to the desired minimum height limit.
Press the M button once. "S-" will appear on the display screen. Press the DOWN button once, the "S-" will
flash once.
Hold the M button until the display shows "000". Release the M button.
1.
2.
MINIMUM AND MAXIMUM HEIGHT LIMIT
3.
Use the UP or DOWN button to bring the desk to the desired maximum height limit.
Press the M button once. "S-" will appear on the display screen. Press the UP button once, the "S-" will flash
once.
Hold the M button until the display shows "999". Release the M button.
Setting Maximum Height Limit
Resetting to Default Minimum and Maximum Height Limit
1. Press the M button once and wait for the display to show "S-".
2. Hold the M button until the display shows "555" and then release.

15Troubleshooting
Common Problems
Problem
Connection issue
Weight issue
Low Power
Mode active
Remote height
display is off Connection issue
Travel limits reached
Table lift
unresponsive
Connection issue
Significantly
slow movement Weight issue
Unusual noise
during travel Weight issue
Table lift stops
abruptly Obstruction
Code Solution
E01 - E04
H01
E07
E08
E09
E10
Description
Power issue
or
Firmware issue
Over heat / Duty
Cycle protection
M2 - Connection issue or
Legs are uneven
M1 - Connection issue or
Legs are uneven
M3 - Connection issue or
Legs are uneven
M4 - Connection issue or
Legs are uneven
Have any queries? Our expert engineers are here to help!
Progressivedesk.com [email protected]1-800-828-9414
Allow the system to rest for 18 minutes, then it may be used
normally. Follow the Duty Cycle rating listed in Specifications to
prevent overheating.
Ensure all Legs are securely connected to the Control Box and cables are free of
damage.
Ensure there are no obstructions affecting the table lift travel path.
Ensure weight on table lift is evenly distributed and does not exceed table lift
limits.
Initiate Reset Procedure to clear the error.
Ensure AC outlet is not faulty.
Ensure all parts in the table lift are authentic and compatible.
Initiate Reset Procedure to clear the error.
Solution
Disconnect and reconnect all cables (Lifting Column, Control Box, AC Power,
and Remote), then initiate the Reset Procedure.
Ensure Remote and Power Cord connection to Control Box is secure and free
of damage.
Please refer to Setting Minimum and Maximum Height Limit.
Disconnect and reconnect all cables connected to Control Box. Ensure all
cables are secure and free of damage.
Ensure weight on table lift is evenly distributed and does not exceed table lift limits.
Ensure weight on table lift is evenly distributed and does not exceed table lift limits.
Ensure there are no obstructions affecting the table lift travel path.
Ensure weight on table lift is evenly distributed and does not exceed table
lift limits, then initiate the Reset Procedure.
Press any button on the Remote.
Table lift is
not level
Error Codes (Remotes with Height Display)
Description
