ProLights EclFresnel CT+M User manual

USER MANUAL
REV.01-10/23-PRELIMINARY English version
EclFresnel CT+M
EclFresnel CT+MIP
350W 6 colours LED Fresnel with 9,4°-80,8°
zoom

Thank you for choosing PROLIGHTS
Please note that every PROLIGHTS product has been designed in Italy to meet quality and performance requirements
for professionals and designed and manufactured for the use and application as shown in this document.
Any other use, if not expressly indicated, could compromise the good condition/operation of the product and/or be
a source of danger.
This product is meant for professional use. Therefore, commercial use of this equipment is subject to the respectively
applicable national accident prevention rules and regulations.
Features, specications and appearance are subject to change without notice. Music & Lights S.r.l. and all afliated
companies disclaim liability for any injury, damage, direct or indirect loss, consequential or economic loss or any other
loss occasioned by the use of, inability to use or reliance on the information contained in this document.
Product user manual can be downloaded from the website www.prolights.it , or can be inquired to the ofcial
PROLIGHTS distributors of your territory (https://www.prolights.it/sales_network.html).
Scanning the below QR Code, you will access the download area of the product page, where you can nd a broad
set of always updated technical documentation: specications, user manual, technical drawings, photometrics,
personalities, xture rmware updates.
Visit the download area
of the product page
The PROLIGHTS Logo, PROLIGHTS names and all other trademark in this document pertaining to PROLIGHTS services
or PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its afliates, and subsidiaries.
PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc -
04026 - Minturno (LT) ITALY.
EclFresnel CT+M EclFresnel CT+MIP

01PROLIGHTS - EclFresnel CT+M / EclFresnel CT+MIP
INDEX
SAFETY INFORMATION 02
1 - PACKAGING 05
PACKAGE CONTENT..................................................................................................... 05
OPTIONAL ACCESSORIES............................................................................................. 05

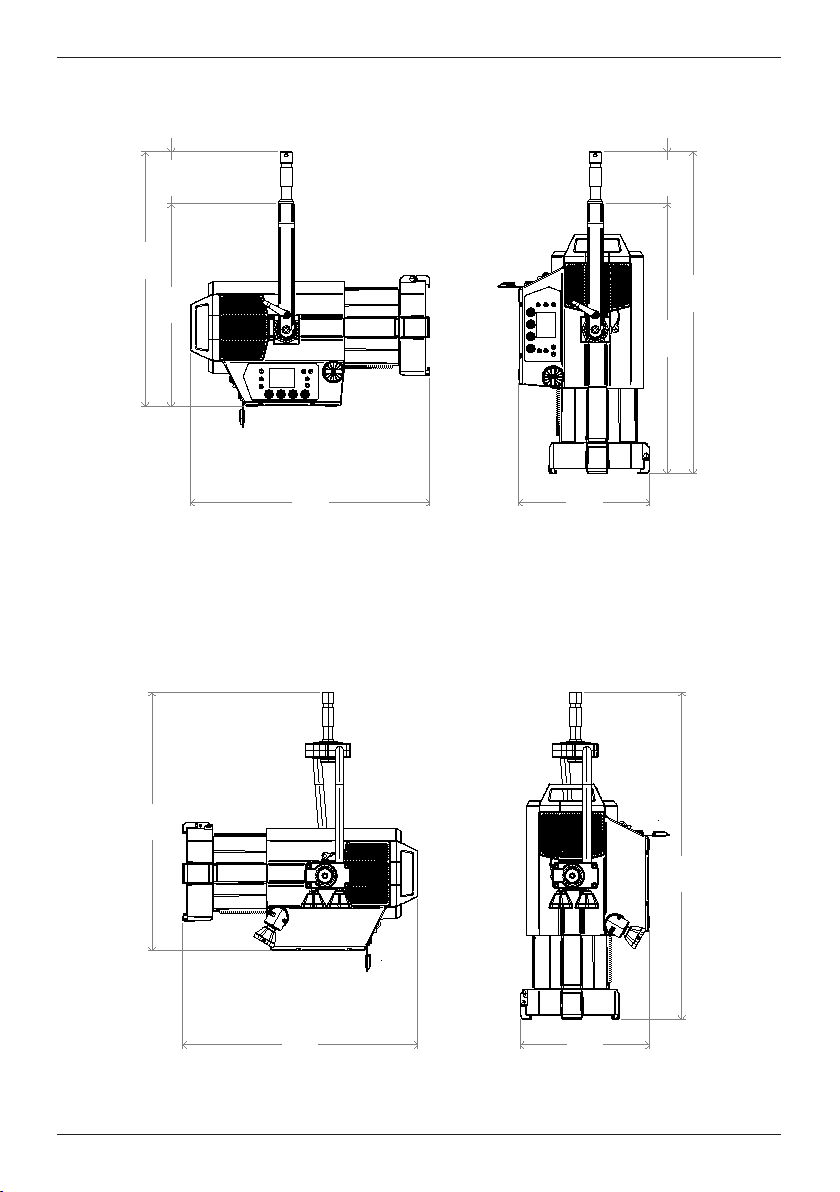

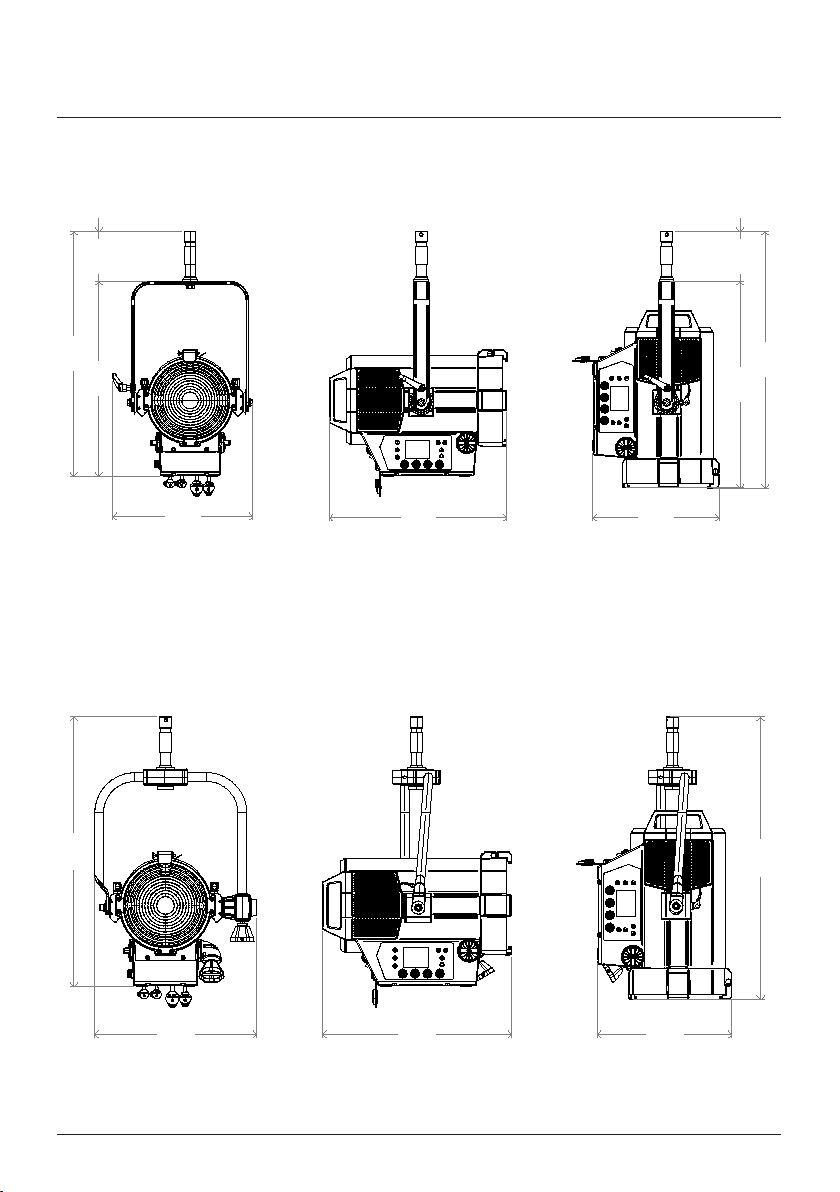

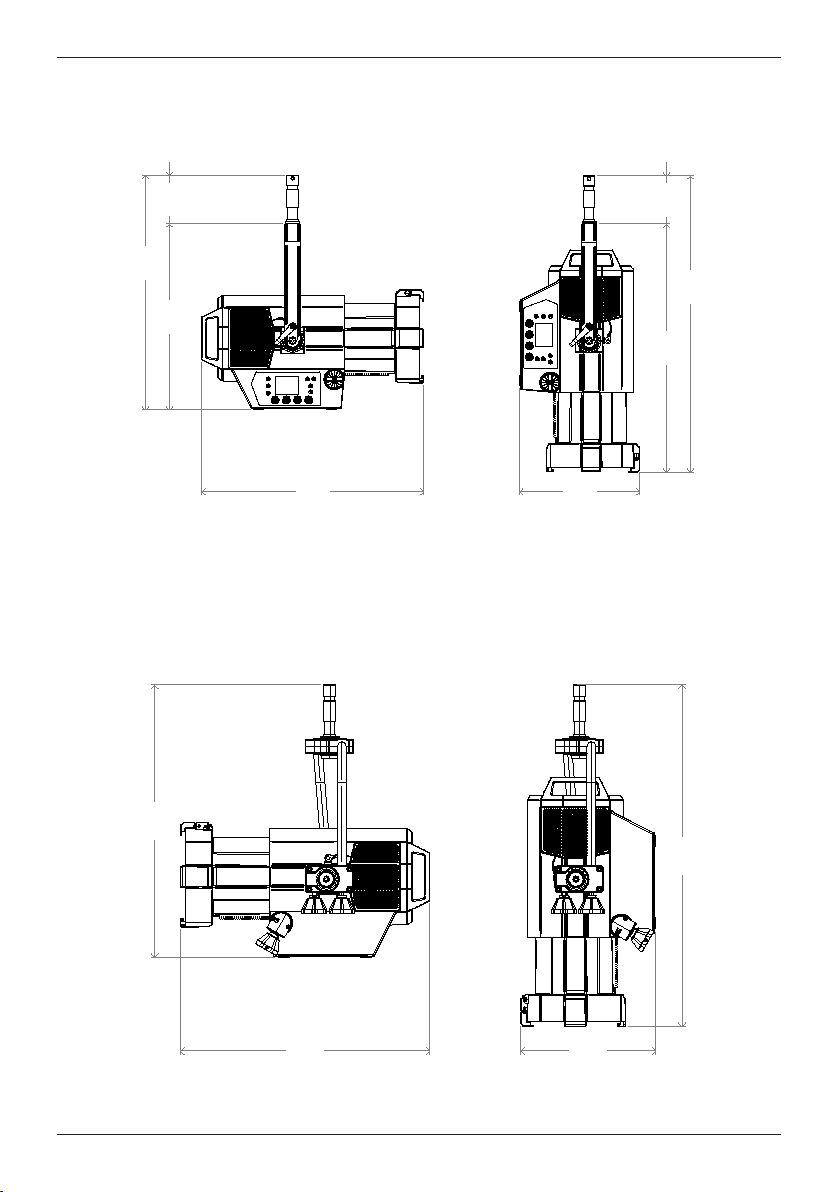

2 - TECHNICAL DRAWING 06
3 - INSTALLATION 10
MOUNTING.................................................................................................................... 10
4 - CONNECTION TO THE MAINS SUPPLY 11
5 - START UP 11
CONNECT AND DISCONNECT POWER FROM THE PRODUCT.................................. 11
6 - PRODUCT OVERVIEW 12
7 - DMX CONNECTION 13

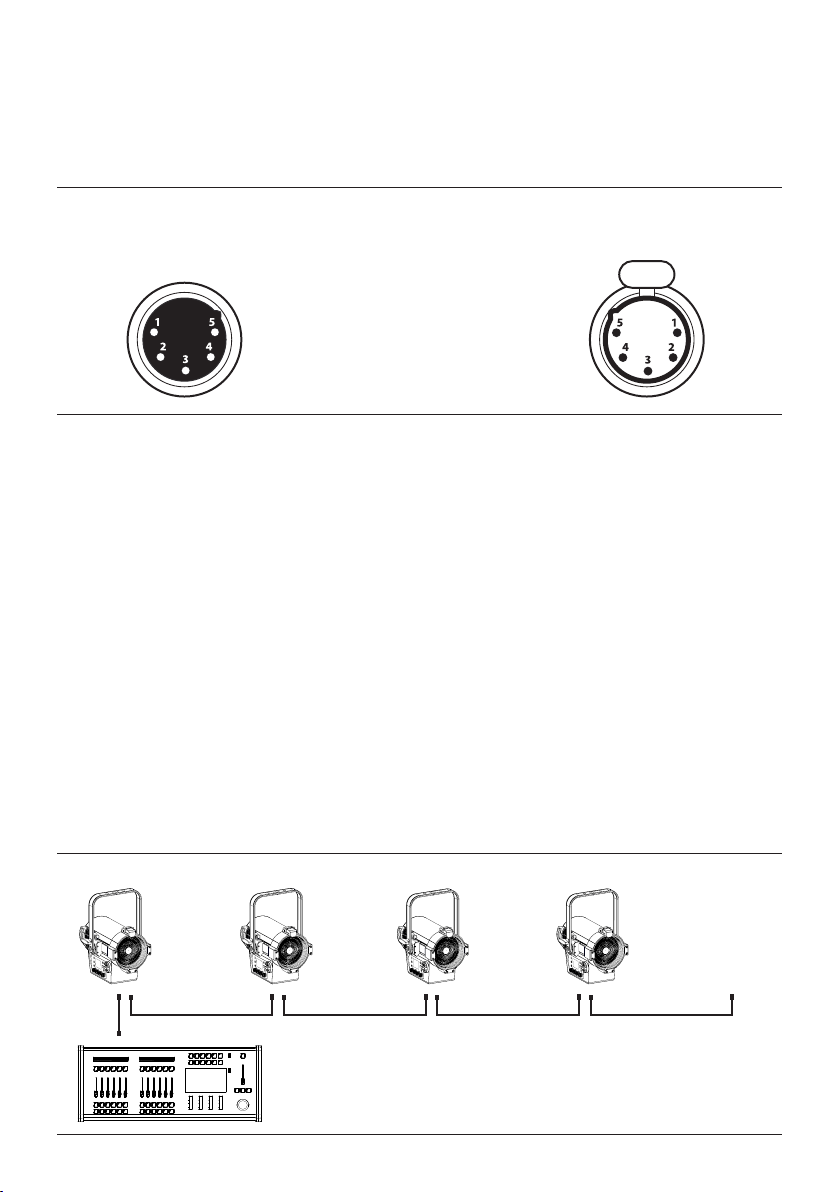

CONNECTION OF THE CONTROL SIGNAL: DMX LINE .............................................. 13
INSTRUCTIONS FOR A RELIABLE DMX CONNECTION ............................................... 13
CONNECTION DAISY CHAIN........................................................................................ 13
CONNECTION OF THE DMX LINE................................................................................ 13
CONSTRUCTION OF THE DMX TERMINATION ........................................................... 14
DMX ADDRESSING ........................................................................................................ 14
8 - CONTROL PANEL 15
DISPLAY AND BUTTONS LAYOUT................................................................................. 15
9 - MENU STRUCTURE 16
10 - RDM FUNCTIONS 20
11 - DMX CHARTS 21
12 - ACCESSORIES INSTALLATION 58
FILTER FRAME (CODE ECLFRCTPMFF) ......................................................................... 58
BARN DOOR (CODE ECLFRCTPMBD)........................................................................... 59
SLIDING BRACKET MOVEMENT ................................................................................... 60
13 - MAINTENANCE 61
MAINTENANCE AND CLEANING THE PRODUCT........................................................ 61
REPLACING THE FUSE................................................................................................... 61
VISUAL CHECK OF PRODUCT HOUSING ..................................................................... 61
TROUBLESHOOTING..................................................................................................... 62

PROLIGHTS - EclFresnel CT+M / EclFresnel CT+MIP02
SAFETY INFORMATION
WARNING!
• See https://www.prolights.it/product/ECLFRCTPM#download for installation instructions.
• Please read carefully the instruction reported in this section before installing, power-
ing, operating or servicing the product and observe the indications also for its future
handling.
This unit is not for household use, only professional applications.
Connection to mains supply
• The Connection to the mains supply must be carried out by a qualied electrical
installer.
• Use only AC supplies 100-240V 50-60 Hz, the xture must be electrically connected
to ground (earth).
• Select the cable cross section in according with the maximum current draw of the
product and the possible number of products connected at the same power line.
• The AC mains power distribution circuit must be equipped with magnetic+residual
current circuit breaker protection.
• Do not connect it to a dimmer system; doing so may damage the product.
Protection and Warning against electrical shock
• Do not remove any cover from the product, always disconnect the product from AC
power before servicing.
• Ensure that the xture is electrically connected to ground (earth). And use only a
source of AC power that complies with local building and electrical codes and has
both overload and ground-fault (earth-fault) protection.
• Before using the xture, check that all power distribution equipment and cables are
in perfect condition and rated for the current requirements of all connected devices.
• Isolate the xture from power immediately if the power plug or any seal, cover, ca-
ble, or other components are damaged, defective, deformed or showing signs of
overheating.
• Do not reapply power until repairs have been completed.
• Refer any service operation not described in this manual to PROLIGHTS Service team
or an authorized PROLIGHTS service center.
Installation
• Make sure that all visible parts of the product are in good visible condition before its
use or installation.
• Make sure the point of anchorage is stable before positioning the projector.
• When suspending the xture above ground level, secure it against failure of primary
attachments by attaching a safety cable that is approved as a safety attachment for
the weight of the xture to the attachment point on the main frame of the product. ln
case the safety cable, enter in action, it needs to be replaced with a new one.
• Install the product only in well ventilated places.
• For non temporary installations, ensure that the xture is securely fastened to a load-
bearing surface with suitable corrosionresistant hardware.
• For a temporary installation with clamps, ensure that the quarter-turn fastener and/or
screws are turned fully, and secured with a suitable safety cable.
0,5 m Minimum distance of illuminated objects
• The projector needs to be positioned so that the objects hit by the beam of light are
at least 0.5 meters (1.64 ft) from the lens of the projector.

03PROLIGHTS - EclFresnel CT+M / EclFresnel CT+MIP
Protection from burns and re
• The exterior of the xture becomes hot during use. Avoid contact by persons and
materials.
• Ensure that there is free and unobstructed airow around the xture.
• Keep ammable materials well away from the xture
• Do not expose the front glass to sunlight or any other strong light source from any an-
gle. Lenses can focus the sun’s rays inside the xture, creating a potential re hazard.
• Do not attempt to bypass thermostatic switches or fuses.
Maintenance
• Warning! Disconnect the xture from AC mains power and allow to cool for at least
10 minutes before handling.
• Only technicians who are authorized by PROLIGHTS or Authorised service partners
are permitted to open the xture.
• Users may carry out external cleaning, following the warnings and instructions pro-
vided, but any service operation not described in this manual must be referred to a
qualied service technician.
• Important! Excessive dust, smoke uid, and particle build up degrades performance,
causes overheating and will damage the xture. Damages caused by inadequate
cleaning or maintenance is not covered by the product warranty.
Photobiological safety
• This device emits potentially dangerous optical radiation and is identied in the cat-
egory of Risk Group 2 according to EN 62471.
Disposal
• This product is supplied in compliance with European Directive 2012/19/EU – Waste
Electrical and Electronic Equipment (WEEE). To preserve the environment please dis-
pose/ recycle this product at the end of its life according to the local regulation.
The products to which this manual refers comply with:
• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD).
• 2014/30/EU - Electromagnetic Compatibility (EMC).
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS).
Other approvals
Do not stare at the operating light source
• Do not look directly at the LED source during operation. It can be harmful to the eyes
and skin.
• During Installation, operation and maintenance, be prepared for the xture to light
and move suddenly when connected to power.
• The device should be positioned so that prolonged staring into the luminaire at adis-
tance closer than 14,54 m (47,70 ft) is not expected.
Minimun
distance
Risk
Group 2
Risk
Group 1
0.2 m
0.7 ft
10.5 m
34.45 ft
Minimun
distance
Risk
Group 2
Risk
Group 1
0.2 m
0.7 ft
10.5 m
34.45 ft
Minimun
distance
Risk
Group 2
Risk
Group 1
0.2 m
0.7 ft
14,54 m
47,70 ft

PROLIGHTS - EclFresnel CT+M / EclFresnel CT+MIP04
ECLFRCTPM - IP20 Version
Indoor use
• This product is designed for indoor and dry environments.
• Do not use in wet location and do not expose the xture to rain or moisture.
• Never use the xture in places subject to vibrations or bumps.
• Make certain that no inammable liquids, water or metal objects enter the xture.
• Excessive dust, smoke uid, and particle build up degrades performance, causes
overheating and will damage the xture.
• Damages caused by inadequate cleaning or maintenance are not covered by the
product warranty.
T
45°
C
a
Max operating ambient temperature (Ta)
• Do not operate the xture if the ambient temperature (Ta) exceeds 45 °C (113 °F).
T
-10°
C
aMinimum operating ambient temperature (Ta)
• Do not operate the xture if the ambient temperature (Ta) is below -10 °C (14 °F).
T
70°
C
c
Temperature of the external surface
• The surface of the xture can reach up to 70 °C (158 °F) during operation. Avoid
contact with people and materials.
ECLFRCTPMIP - IP65 Version
IP65
Permanent Outdoor use
• This product is rated with an IP (Ingress protection) for permanent outdoor use when
used and serviced according to the instruction contained in this document.
• Never use the xture in places subject to vibrations or bumps.
• Make certain that no inammable liquids, water or metal objects enter the xture.
• Excessive dust, smoke uid, and particle build up degrades performance, causes
overheating and will damage the xture.
• Damages caused by inadequate cleaning or maintenance are not covered by the
product warranty.
T
45°
C
aMax operating ambient temperature (Ta)
• Do not operate the xture if the ambient temperature (Ta) exceeds 45 °C (113 °F).
T -20°C
a
Minimum operating ambient temperature (Ta)
• Do not operate the xture if the ambient temperature (Ta) is below -20 °C (-4 °F).
T 80°C
c
Temperature of the external surface
• The surface of the xture can reach up to 80 °C (176 °F) during operation. Avoid
contact with people and materials.

05PROLIGHTS - EclFresnel CT+M / EclFresnel CT+MIP
1 - PACKAGING
PACKAGE CONTENT
• 1x ECLFRESNEL CT+M / CT+MIP;
• 1x ECLFRSPG: spigot for PROLIGHTS Fresnel series;
• 1x ECLFRCTPMBD: barn door with 8 directional aps to adjust the light beam;
• 1x ECLFRCTPMFF: lter frame for ECLFRESNEL series;
• 1x 1,5 meters power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65);
• 1x User manual
OPTIONAL ACCESSORIES
• FCLECLFRCTPM: Flight case for 4 pcs of ECLFRCTPM series
• ECLFRCTPMBAG1U: Empty ABS case for 1 pc of ECLFRCTPM series
• ECLFRCTPMKPOYO: Pole operated aluminium yoke bracket and zoom kit for ECLFRCTPM series
• SPGM10: 28mm spigot for xtures, M10 bolt
• SPGM12: 28mm spigot for xtures, M12 bolt
• LRTM2SPIBK: CRMX Timo Two SPI kit, black
• EFSBUFDS: SNAPBAG - Universal Small Deeper for barndoors
• SPGM10: 28mm spigot for xtures, M10 bolt
• SPGM12: 28mm spigot for xtures, M12 bolt
• UPBOXPRO: Firmware uploader kit, USB IN, 5pin XLR DMX OUT
• UPBOX1UP5: Firmware uploader kit, USB IN, 5pin XLR DMX OUT
• C6040B: Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black inc
• TOUR53415L03: Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
• 958225L03: 3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
• 9513FXWL03: Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
• RSR0630B: Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
• C6002B: Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
• 9533FXWL03: Ass. 3x2.5mm TH07 cable, SHUKO plug, MENAC3FXW socket, L.3m

PROLIGHTS - EclFresnel CT+M / EclFresnel CT+MIP06
2 - TECHNICAL DRAWING
338 mm
[13.3 in]
466 mm
[18.3 in]
587 mm
[23.1 in]
121 mm
[4.8 in]
284 mm
[11.2 in]
428 mm
[16.9 in]
493 mm
[19.4 in]
614 mm
[24.2 in]
300 mm
[11.8 in]
121 mm
[4.8 in]
428 mm
[16.9 in]
367 mm
[14.4 in]
479 mm
[18.9 in]
606 mm
[23.9 in]
127 mm
[5.0 in]
300 mm
[11.8 in]
513 mm
[20.2 in]
634 mm
[25.0 in]
121 mm
[4.8 in]
Fig. 01ECLFRCTPM+ECLFRCTPMKPOYO - Weight: 11,9 kg - 26,23 lbs
ECLFRCTPM - Weight: 9,9 kg / 21,82lbs

07PROLIGHTS - EclFresnel CT+M / EclFresnel CT+MIP
121 mm
[4.8 in]
466 mm
[18.3 in]
587 mm
[23.1 in]
555 mm
[21.9 in]
121 mm
[4.8 in]
620 mm
[24.4 in]
741 mm
[29.2 in]
300 mm
[11.8 in]
606 mm
[23.9 in]
555 mm
[21.9 in]
761 mm
[29.9 in]
300 mm
[11.8 in]
Fig. 02
ECLFRCTPM - Weight: 9,9 kg / 21,82lbs
ECLFRCTPM+ECLFRCTPMKPOYO - Weight: 11,9 kg - 26,23 lbs

PROLIGHTS - EclFresnel CT+M / EclFresnel CT+MIP08
2 - TECHNICAL DRAWING
338 mm
[13.3 in]
470 mm
[18.5 in]
591 mm
[23.3 in]
121 mm
[4.8 in]
428 mm
[16.9 in]
620 mm
[24.4 in]
499 mm
[19.6 in]
304 mm
[12.0 in]
121 mm
[4.8 in]
304 mm
[12.0 in]
641 mm
[25.2 in]
428 mm
[16.9 in]
367 mm
[14.4 in]
611 mm
[24.0 in]
Fig. 01
ECLFRCTPMIP+ECLFRCTPMKPOYO - Weight: 12,9 kg - 28,44 lbs
ECLFRCTPMIP - Weight: 10,9 kg / 24,03 lbs

09PROLIGHTS - EclFresnel CT+M / EclFresnel CT+MIP
121 mm
[4.8 in]
470 mm
[18.5 in]
591 mm
[23.3 in]
555 mm
[21.9 in]
304 mm
[12.0 in]
121 mm
[4.8 in]
626 mm
[24.6 in]
747 mm
[29.4 in]
611 mm
[24.0 in]
555 mm
[21.9 in]
771 mm
[30.4 in]
304 mm
[12.0 in]
Fig. 02
ECLFRCTPMIP - Weight: 10,9 kg / 24,03 lbs
ECLFRCTPMIP+ECLFRCTPMKPOYO - Weight: 12,9 kg - 28,44 lbs

PROLIGHTS - EclFresnel CT+M / EclFresnel CT+MIP10
Fig. 03
3 - INSTALLATION
MOUNTING
Check that the supporting structure can safely bear the weight of all installed xtures, clamps, cables,
auxiliary equipment, etc. and complies with locally applicable regulations.
When suspending the xture above ground level, secure it against failure of primary attachments by
attaching a safety wire that is approved as a safety attachment for the weight of the xture to an anchor
point on the product main frame.
Do not use removable parts or weak anchors for secondary attachment.
Warning! When clamping the xture to a truss or other structure at any angle, use clamps of half-cou-
pler type. Do not use any type of clamp that does not completely encircle the structure when fastened.
RSR0630A/B
steel security cable
80 mm
[3.1 in]
Ø13 mm
[Ø0.5 in]
38 mm
[1.5 in]
284 mm
[11.2 in]
C6002
clamp C6040
clamp
RSR0630A/B
steel security cable
RSR0630A/B
steel security cable
C6040
clamp

11PROLIGHTS - EclFresnel CT+M / EclFresnel CT+MIP
5 - START UP
CONNECT AND DISCONNECT POWER FROM THE PRODUCT
To apply and disconnect power to the product:
• Check that the product is installed and secured as indicated in the Safety Informations, and that
personal safety will not be put at risk when the xture lights up.
• Connect the power connector into the Mains input socket (100-240 VAC-50/60 Hz).
• The product is then ready for its operations and can be controlled through the available input sig-
nals on board.
• To disconnect power from the product, disconnect the Mains from the socket.
4 - CONNECTION TO THE MAINS SUPPLY
WARNING: For protection from electric shock, the xture must be earthed!
The product is equipped with auto-switching power supply that automatically adjusts to any 50-60Hz
AC power source from 100-240 Volts.
If you need to install a power plug on the power cable to allow connection to power outlets, install a
grounding-type (earthed) plug, following the plug manufacturer’s instructions. If you have any doubts
about proper installation, consult a qualied electrician.
The max power consumption is 350W.
Core (EU) Core (US) Connection Plug terminal marking
Brown Black Live L
Blue White Neutral N
Yellow+green Green Earth

PROLIGHTS - EclFresnel CT+M / EclFresnel CT+MIP12
6 - PRODUCT OVERVIEW
1. SLIDING BRACKET;
2. KNOB for bracket;
3. USER INTERFACE with display and ROTATORY KNOBS for access to the control panel functions;
4. ZOOM KNOB;
5. Sliding bracket lock and release mechanism;
6. POLE OPERATED BRACKET;
7. YELLOW KNOB: zoom function;
8. WHITE KNOB: tilt function;
9. BLUE KNOB: pan function;
10.DC POWER IN (3-pole XLR): for battery within 48 V range, 1 = V -, 2 = V+, 3 = N/C
11.MAIN FUSE HOLDER: (ONLY IP20) replace a burnt-out fuse by one of the same type only (T6.3A 250V);
12.WEIPU SA12 series 4P-F connector for remote control;
13.ANTENNA (Included in IP65, Optional kit LRTM2SPIBK for IP20);
14.POWER IN: for connection to the Mains 100-240V~/50-60Hz;
15.POWER OUT: power output for connection of multiple units in series.
16.DMX IN (5-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C, 5 N/C;
17.DMX OUT (5-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C, 5 N/C;
Fig. 04
1
2
3
4
6
7
8
9
5
14 15 16 17
10 11 12 13
5

13PROLIGHTS - EclFresnel CT+M / EclFresnel CT+MIP
7 - DMX CONNECTION
CONNECTION OF THE CONTROL SIGNAL: DMX LINE
The product has XLR sockets for DMX input and output.
The default pin-out on both socket is as the following diagram:
Fig. 05
Pin1 : GND - Shield
Pin2 : - Signal
Pin3 : + Signal
Pin4 : N/C
Pin5 : N/C
DMX - OUTPUT
XLR socket
DMX - INPUT
XLR plug
INSTRUCTIONS FOR A RELIABLE DMX CONNECTION
Use shielded twisted-pair cable designed for RS-485 devices: standard microphone cable cannot trans-
mit control data reliably over long runs. 24 AWG cable is suitable for runs up to 300 meters (1000 ft).
Heavier gauge cable and/or an amplier is recommended for longer runs.
To split the data link into branches, use splitter-ampliers in the connection line.
Do not overload the link. Up to 32 devices may be connected on a serial link.
CONNECTION DAISY CHAIN
Connect the DMX data output from the DMX source to the product DMX input (male connector XLR)
socket.
Run the data link from the product XLR output (female connector XLR) socket to the DMX input of the
next xture.
Terminate the data link by connecting a 120 Ohm signal termination. If a splitter is used, terminate
each branch of the link.
Install a DMX termination plug on the last xture on the link.
CONNECTION OF THE DMX LINE
DMX connection employs standard XLR connectors. Use shielded pair-twisted cables with 120Ω im-
pedance and low capacity.
The following diagram shows the connection mode:
. . . . . . . . . . . .
. . . . . . . . . . . .
DMX512 Controller
DMX IN DMX IN DMX IN DMX INDMX OUT DMX OUT DMX OUT DMX OUT
Fig. 06 - Example 17 DMX channels conguration
DMX Address: 33 DMX Address: 84DMX Address: 50 DMX Address: 67

PROLIGHTS - EclFresnel CT+M / EclFresnel CT+MIP14
DMX ADDRESSING
In order to start controlling the product via DMX, the rst step is to select a DMX address, also known
as the start channel, this is the rst channel used to receive instructions from a DMX controller. If you
wish to control the product individually, it is necessary to assign a different starting address channel to
each xture.
The number of channels occupied from the product depends on the DMX mode selected, so always
verify the DMX Mode in the MENU before start addressing.
If you assign two xtures the same address, they will be executing the same behaviour. Selecting the
same address to multiple xtures can be useful for diagnostic purposes and symmetrical control.
DMX addressing is limited to make it impossible to set the DMX address so high that you are left with-
out enough control channels for the product.
To set the xture’s DMX address:
1. Press MENU to open the main menu.
2. Reach the addressing menu, then select the DMX ADDRESS settings.
3. Select the address from 1 to 512 using the navigation arrows/buttons and conrm by pressing
ENTER.
4. Press Menu to exit and return to the Home screen.
CONSTRUCTION OF THE DMX TERMINATION
The termination is prepared by soldering a 120Ω 1/4 W resistor between pins 2 and 3 of the male XLR
connector, as shown in gure.
Fig. 07
Example:
5 pin XLR connector
4

15PROLIGHTS - EclFresnel CT+M / EclFresnel CT+MIP
Fig. 08
8 - CONTROL PANEL
The product has a display and buttons for access to the control panel functions.
DISPLAY AND BUTTONS LAYOUT
The product has a display and buttons for access to the control panel functions:
1. INFO: used to access in "Information","current output","documentation" windows.
2. SETTINGS: used to access in "quick settings" window.
3. PRESETS: CCT RGB HSI CIExy GEL, PRESET, Color Correction
4. ENTER: used to conrm the current menu or conrm the current value or option within a menu.
5. MENU: used to access the menu tree or to return a previous menu window;
6. UP: browse upwards through the menu list and increases the numeric value displayed;
7. DOWN: browse downwards through the menu list and decreases the numeric value displayed;
8. PUSHABLE ENCODERS: used to control stand alone modes.
1
2
3
4
5
6
7
8

PROLIGHTS - EclFresnel CT+M / EclFresnel CT+MIP16
9 - MENU STRUCTURE
The following chart describes the MENU tree of the product, the terms shown in BOLD indicates the
default settings.
MENU
1
CONNECT
DMX ADDRESS 001-512
DMX MODE
Mode List of Modes without Color
Correction. Example of
mode."M18 - CCT + RGB
16 Bit (20)"
Mode + Color Correction "Modes with Color
Correction" should appear
on the display only if Color
Correction is set to ON
Wireless CRMX
ON/OFF
On-Off Hides all other CRMX
settings, if off. Menu is
hidden, if no W-DMX
module is installed in the
xture
CRMX Mode TX CRMX Lumen Radio Mode,
congurable via SPI, need
to check correct register
TX G4S Wireless Solution G4S mode
TX G3 Wireless Solution G3 mode
RX
Generic receiver mode
(will autoselect based
on transmitter) (expects
CRMX2, CRMX, G4S, G3)
TX link
receivers Yes-No
Only in TX mode,
Hidden if CRMX
Mode=RX
TX link unlock when the unit
is set as a transmitter
TX unlink all
receivers
Yes-No
Disconnect the transmitter
from all receivers.
TX unlink unlocks only if
WDMX mode is on
transmitter
RX unlink
receiver Yes-No
Only in RX mode,
Hidden if CRMX
Mode=TX
Linking key
(RX mode) Set linking key Insert 8 digit code See Timo Two Documentation Linking
Key Register containing
Code, Mode and Universe
to link to.
Set linking mode CRMX or CRMX²
Set linking universe
CRMX: A,C,E,G
CRMX²: A,B,C,D,
E,F,G,H
Linking key
(TX mode) Set linking key Insert 8 digit code
Use Bluetooth Yes-No Enable/Disable Bluetooth
Set universe
RGB Color
RGB Color set from
R,G,B combo list In TX CRMX
Mode
In RX Mode values received
from TX
Universe
Name
rst 16 characters of
Model Name
CRMX status Refer to status register on SPI
Software
Version Refer to software version
CRMX
Module Refer to CRMX module

17PROLIGHTS - EclFresnel CT+M / EclFresnel CT+MIP
2SETUP Light Control Dimmer
Speed Auto Set Dimmer Speed. This parameter denes
interpolation of DMX
Changes for main functions.
Off turns off interpolation
Slow
Medium
Fast
Off
Dimmer
Curve Linear Choose dimmer curve.
S-Curve
Square Law
Inverse square law
High Res @ Low
Tungsten
Tungsten
Emulation Use tungsten dimmer curve
Keep selected dimmer curve
Tungsten OFF
Color Space Native Dene color space being
used by xture
ProPhoto RGB
sRGB
Rec. 2020
Rec. 709
LED Mode High Brightness
High Quality
Color Correc-
tion On-Off
Fixture Control Fan Mode Auto See table at the end of the
Menu for Fan Modes
behaviour
Turbo
Manual 0-100%
Quiet 1 DLO
Quiet 2 DLO
OFF DLO
Quiet 1 CLO
Quiet 2 CLO
OFF CLO
Signal Fault
Behaviour Hold Set the behaviour when Signal is lost.
"Color Correction" should
appear on the display only
if Color Correction is set
to ON
Hold - On Encoder
Touch CCT Mode
RGB Mode
HSI Mode
XY Mode
Gel Mode
Preset Mode
Color Correction
Standalone
Blackout
Emergency
Startup
Behaviour Hold Set the behaviour when xture is powered on
without any signal
Hold - On Encoder
Touch;CCT Mode
RGB Mode
HSI Mode
XY Mode

PROLIGHTS - EclFresnel CT+M / EclFresnel CT+MIP18
Gel Mode
Preset Mode
Color Correction
Standalone
Emergency
LED
Frequency
600Hz, 1282Hz, 2000Hz, 4000Hz, 6000Hz,
10kHz, 12kHz, 15kHz, 20kHz, 25kHz,
36kHz, 40kHz
Power Limit 350W, 300W, 250W, 200W, 150W, 100W,
50W
UI Settings Values Format Temperature °C Allows you to choose Tem-
perature unit showed in
home screen.
°F
Backlight
Settings
Backlight timeout Always ON Select the timing after that
display / buttons
will switch automatically off
when unactive.
10s
30s
60s
Backlight Dimmer 25% Select backlight intensity.
50%
75%
100%
Flip Display On Allows you to rotate the
display by 180°.
Off
Keylock On
Off
Conguration
Presets
Preset 1 Save-Recall Stores all settings to the pre-
set chosen.
Preset 2
Preset 3
Preset 4
3ADVANCED Management
Tools
Clear Color
presets Clear
Cancel
Factory Reloads Reload
Cancel
4 STANDALONE CCT Mode
RGB Mode
HSI Mode
XY Mode
Gel Mode
Preset Mode
Color Correction
5 INFORMATION Fixture Hours <99999h>
Source Hours <99999h>
Power Cycles <99999>
Power Consumption Real time Informations.
Fan Speed
Temperatures LED Temperature
CPU Temperature
