ProLights Astra Profile400 User manual

USER MANUAL
English version
Astra Prole400
Indoor LED Moving Prole, with a
400W White source
REV.01-12/22

Thank you for choosing PROLIGHTS
Please note that every PROLIGHTS product has been designed in Italy to meet quality and performance requirements
for professionals and designed and manufactured for the use and application as shown in this document.
Any other use, if not expressly indicated, could compromise the good condition/operation of the product and/or be
a source of danger.
This product is meant for professional use. Therefore, commercial use of this equipment is subject to the respectively
applicable national accident prevention rules and regulations.
Features, specications and appearance are subject to change without notice. Music & Lights S.r.l. and all afliated
companies disclaim liability for any injury, damage, direct or indirect loss, consequential or economic loss or any other
loss occasioned by the use of, inability to use or reliance on the information contained in this document.
Product user manual can be downloaded from the website www.prolights.it , or can be inquired to the ofcial
PROLIGHTS distributors of your territory (https://www.prolights.it/sales_network.html).
Scanning the below QR Code, you will access the download area of the product page, where you can nd a broad
set of always updated technical documentation: specications, user manual, technical drawings, photometrics,
personalities, xture rmware updates.
The PROLIGHTS Logo, PROLIGHTS names and all other trademark in this document pertaining to PROLIGHTS services
or PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its afliates, and subsidiaries.
PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc -
04026 - Minturno (LT) ITALY.
Visit the download area
of the product page

PROLIGHTS - Astra Prole400 01
INDEX
SAFETY INFORMATION 02
1 - PACKAGING 05
PACKAGE CONTENT..................................................................................................... 05
OPTIONAL ACCESSORIES............................................................................................. 05
2 - TECHNICAL DRAWING 05
3 - PAN AND TILT LOCK 06
4 - INSTALLATION 07
MOUNTING.................................................................................................................... 07
5 - CONNECTION TO THE MAINS SUPPLY 08
6 - START UP 08
CONNECT AND DISCONNECT POWER FROM THE PRODUCT.................................. 08
7 - PRODUCT OVERVIEW 09
8 - DMX CONNECTION 10
CONNECTION OF THE CONTROL SIGNAL: DMX LINE .............................................. 10
INSTRUCTIONS FOR A RELIABLE DMX CONNECTION ............................................... 10
CONNECTION DAISY CHAIN........................................................................................ 10
CONNECTION OF THE DMX LINE................................................................................ 10
CONSTRUCTION OF THE DMX TERMINATION ........................................................... 11
DMX ADDRESSING ........................................................................................................ 11
ETHERNET CONNECTION ............................................................................................ 11
ETHERNET OPERATION ................................................................................................ 11
ETHERNET TO DMX OPERATIONS ............................................................................... 12
OPERATION AS A WIRELESS TRANSMITTER................................................................ 12
IN TO WDMX ................................................................................................................. 12
OPERATION AS A WIRELESS RECEIVER........................................................................ 13
WDMX TO DMX (RX)...................................................................................................... 13
9 - CONTROL PANEL 14
DISPLAY AND BUTTONS LAYOUT................................................................................. 14
10 - MENU STRUCTURE 15
11 - SHORTCUT 21
12 - RDM FUNCTIONS 22
13 - DMX CHARTS 24
RDM Personality ID List .................................................................................................. 24
RDM Model ID................................................................................................................ 24
DMX Chart Summary...................................................................................................... 25
14 - ROTATING GOBOS WHEEL 33
15 - COLOR WHEEL 34
16 - ANIMATION WHEEL 35
17 - ERROR MESSAGES 36
18 - PERIODICAL CLEANING 40
19 - GOBOS REPLACEMENT 41
20 - MODULE REMOVAL (ANIMATION, COLOR, GOOS WHEEL) 42
21 - MAINTENANCE 43
MAINTENANCE AND CLEANING THE PRODUCT........................................................ 43
REPLACING THE FUSE................................................................................................... 43
VISUAL CHECK OF PRODUCT HOUSING ..................................................................... 43
TROUBLESHOOTING..................................................................................................... 44

PROLIGHTS - Astra Prole40002
SAFETY INFORMATION
WARNING!
• Please read carefully the instruction reported in this section before installing, powering,
operating or servicing the product and observe the indications also for its future handling.
This unit is not for household and residential use, only professional applications.
Connection to mains supply
• The Connection to the mains supply must be carried out by a qualied electrical
installer.
• Use only AC supplies 100-240V 50-60 Hz, the xture must be electrically connected
to ground (earth).
• Select the cable cross section in according with the maximum current draw of the
product and the possible number of products connected at the same power line.
• The AC mains power distribution circuit must be equipped with magnetic+residual
current circuit breaker protection.
• Do not connect it to a dimmer system; doing so may damage the product.
Protection and Warning against electrical shock
• Do not remove any cover from the product, always disconnect the product from AC
power before servicing.
• Ensure that the xture is electrically connected to ground (earth). And use only a
source of AC power that complies with local building and electrical codes and has
both overload and ground-fault (earth-fault) protection.
• Before using the xture, check that all power distribution equipment and cables are
in perfect condition and rated for the current requirements of all connected devices.
• Isolate the xture from power immediately if the power plug or any seal, cover, ca-
ble, or other components are damaged, defective, deformed or showing signs of
overheating.
• Do not reapply power until repairs have been completed.
• Refer any service operation not described in this manual to PROLIGHTS Service team
or an authorized PROLIGHTS service center.
Installation
• Make sure that all visible parts of the product are in good visible condition before its
use or installation.
• Make sure the point of anchorage is stable before positioning the projector.
• When suspending the xture above ground level, secure it against failure of primary
attachments by attaching a safety cable that is approved as a safety attachment for
the weight of the xture to the attachment point on the main frame of the product. ln
case the safety cable, enter in action, it needs to be replaced with a new one.
• Install the product only in well ventilated places.
• For non temporary installations, ensure that the xture is securely fastened to a load-
bearing surface with suitable corrosionresistant hardware.
• For a temporary installation with clamps, ensure that the quarter-turn fastener and/or
screws are turned fully, and secured with a suitable safety cable.
1 m Minimum distance of illuminated objects
• The projector needs to be positioned so that the objects hit by the beam of light are
at least 1 meters (3,28 ft) from the lens of the projector.

PROLIGHTS - Astra Prole400 03
T 45°C
a
Max operating ambient temperature (Ta)
• Do not operate the xture if the ambient temperature (Ta) exceeds 45 °C (113 °F).
T
-10°
C
a
Minimum operating ambient temperature (Ta)
• Do not operate the xture if the ambient temperature (Ta) is below -10 °C (14 °F).
Protection from burns and re
• The exterior of the xture becomes hot during use. Avoid contact by persons and
materials.
• Ensure that there is free and unobstructed airow around the xture.
• Keep ammable materials well away from the xture.
• Do not expose the front glass to sunlight or any other strong light source from any an-
gle. Lenses can focus the sun’s rays inside the xture, creating a potential re hazard.
• Do not attempt to bypass thermostatic switches or fuses.
Indoor use
• This product is designed for indoor and dry environments.
• Do not use in wet location and do not expose the xture to rain or moisture.
• Never use the xture in places subject to vibrations or bumps.
• Make certain that no inammable liquids, water or metal objects enter the xture.
• Excessive dust, smoke uid, and particle build up degrades performance, causes
overheating and will damage the xture.
• Damages caused by inadequate cleaning or maintenance are not covered by the
product warranty.
Light collimation optical system
• This product contains internal light collimation opticsl system. Avoid to expose the
optical system to any intense source of light (including sunlight) from any angle.
T
70°
C
c
Temperature of the external surface
• The surface of the xture can reach up to 70 °C (158 °F) during operation. Avoid
contact with people and materials.
Radio receiver
This product contains a radio receiver and/or transmitter:
• Maximum output power: 17 dBm.
• Frequency band: 2.4 GHz.
Maintenance
• Warning! Disconnect the xture from AC mains power and allow to cool for at least
10 minutes before handling.
• Only technicians who are authorized by PROLIGHTS or Authorised service partners
are permitted to open the xture.
• Users may carry out external cleaning, following the warnings and instructions pro-
vided, but any service operation not described in this manual must be referred to a
qualied service technician.
• Important! Excessive dust, smoke uid, and particle build up degrades performance,
causes overheating and will damage the xture. Damages caused by inadequate
cleaning or maintenance is not covered by the product warranty.
Photobiological safety
• This device emits potentially dangerous optical radiation and is identied in the cat-
egory of Risk Group 2 according to EN 62471.

PROLIGHTS - Astra Prole40004
Do not stare at the operating light source
• Do not look directly at the LED source during operation. It can be harmful to the eyes
and skin.
• During Installation, operation and maintenance, be prepared for the xture to light
and move suddenly when connected to power.
• The device should be positioned so that prolonged staring into the luminaire at a
distance closer than 1,509 m (4,95 ft) is not expected.
Minimun
distance
Risk
Group 2
Risk
Group 1
0.2 m
0.7 ft
1,509 m
4,95 ft
Disposal
• This product is supplied in compliance with European Directive 2012/19/EU – Waste
Electrical and Electronic Equipment (WEEE). To preserve the environment please dis-
pose/ recycle this product at the end of its life according to the local regulation.
The product contains a lithium ion battery
• Don't throw the unit into the garbage at the end of its lifetime.
• Make sure to dispose according to your local ordinances and/or regulations, to avoid
polluting the environment!
• The packaging is recyclable and can be disposed.
The products to which this manual refers comply with:
• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD).
• 2014/30/EU - Electromagnetic Compatibility (EMC).
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS).
• 2014/53/EU - Radio Equipment Directive (RED).
The products to which this manual refers comply with:
• UL 1573 + CSA C22.2 No. 166 - Stage and Studio Luminaires and Connector Strips.
• UL 1012 + CSA C22.2 No. 107.1 - Standard for power units other than class 2.
FCC Compliance:
• This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may
cause undesired operation.
Other approvals
• The product meets the safety requirements of the certification procedures of the
market in which it is placed and sold.

PROLIGHTS - Astra Prole400 05
1 - PACKAGING
PACKAGE CONTENT
• 1x ASTRAPROFILE400.
• 1x 1,5 meters power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65).
• 2x OS24.
• User Manual.
OPTIONAL ACCESSORIES
• WSBBR512G6: blackBox R-512 G6 receiver 512Ch, 2.45GHz,DMX&RDM,Bluetooth,G3,G4,G4S,G5,CRMX
• WSBBR512G5: blackBox R-512 G5 receiver 512Ch, 2.45GHz & 5.8GHz, DMX/RDM optional.
• WSBBF1G6: blackBox F-1 G6 transrec, 512ch, 2.45GHz, DMX&RDM,Bluetooth,G3,G4,G4S, G5, CRMX.
• WSBBF1G5: blackBox F-1 G5 transmitter, 2,45GHz & 5.2/5,8 GHz, DMX/RDM, 512Ch.
• TOUR53415L03BK: dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m.
• 938225L03: 3x2.5mm TH07 Cable, 16A SETSAC3MX, 16A SETSAC3FX, L. 3m.
• 9313FXWL03: ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, SETSAC3FX socket, L.3 m.
• 9333FXWL03: ass. 3x2.5mm TH07 cable, SHUKO plug, SETSAC3FX socket, L.3m.
• RSR0670A/B: steel security cable for hanging bodies, inox steel shackle, L=60 cm, silver/black.
• C6002A/B: slim aluminium clamp, 200 kg loading, 48-51 mm tubes, M10 bolt, silver/black.
• FCLASTRAP400: ight case for 3 pcs of ASTRAPROFILE400.
• OS24: quick-lock omega bracket.
• UPBOX2P5: rmware uploader kit, USB IN, 5-pin XLR DMX OUT.
410 mm
[16.1 in]
653 mm
[25.7 in]
Ø278 mm
[10.9 in]
536 mm
[21.1 in]
Ø538 mm
[21.2 in]
455 mm
[17.9 in]
Fig. 01
Weight: 27,6 kg - 60,84 lbs
2 - TECHNICAL DRAWING

PROLIGHTS - Astra Prole40006

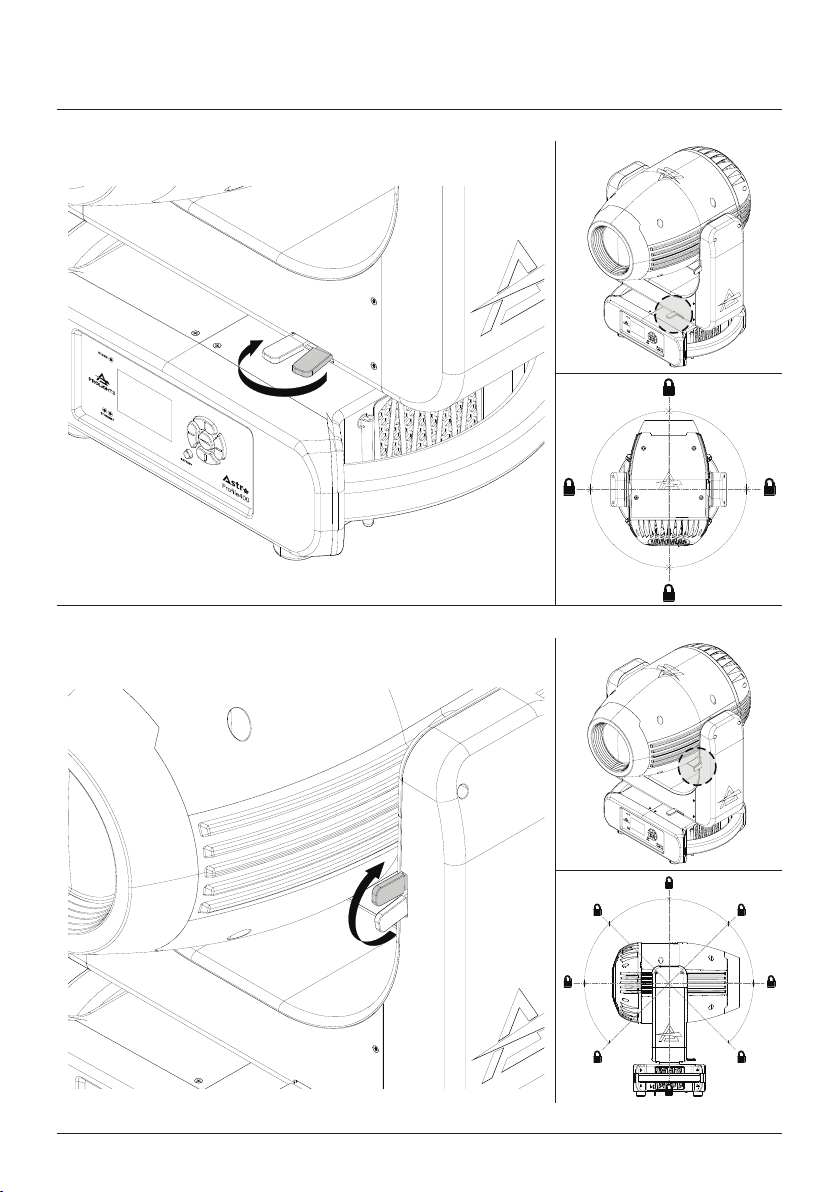

3 - PAN AND TILT LOCK
PAN Mechanism lock and release
90°
90°
90°
90°
TILT Mechanism lock and release
45°
45°
45°
45°
45°
45°
Fig. 02

PROLIGHTS - Astra Prole400 07
Fig.03
4 - INSTALLATION
MOUNTING
Check that the supporting structure can safely bear the weight of all installed xtures, clamps, cables,
auxiliary equipment, etc. and complies with locally applicable regulations.
When suspending the xture above ground level, secure it against failure of primary attachments by
attaching a safety wire that is approved as a safety attachment for the weight of the xture to an anchor
point on the product main frame.
Do not use removable parts or weak anchors for secondary attachment.
Warning! When clamping the xture to a truss or other structure at any angle, use clamps of half-cou-
pler type. Do not use any type of clamp that does not completely encircle the structure when fastened.
108 mm
[4.3 in]
108 mm
[4.3 in]
C6002
clamp
RSR0670A/B
Steel security cable
OS24

PROLIGHTS - Astra Prole40008
6 - START UP
CONNECT AND DISCONNECT POWER FROM THE PRODUCT
To apply and disconnect power to the product:
• Check that the product is installed and secured as indicated in the Safety Informations, and that
personal safety will not be put at risk when the xture lights up.
• Connect the power connector into the Mains input socket (100-240 VAC-50/60 Hz).
• The product is then ready for its operations and can be controlled through the available input sig-
nals on board.
• To disconnect power from the product, disconnect the Mains from the socket.
5 - CONNECTION TO THE MAINS SUPPLY
WARNING: For protection from electric shock, the xture must be earthed!
The product is equipped with auto-switching power supply that automatically adjusts to any 50-60Hz
AC power source from 100-240 Volts.
If you need to install a power plug on the power cable to allow connection to power outlets, install a
grounding-type (earthed) plug, following the plug manufacturer’s instructions. If you have any doubts
about proper installation, consult a qualied electrician.
The max power consumption is 620W.
Core (EU) Core (US) Connection Plug terminal marking
Brown Black Live L
Blue White Neutral N
Yellow+green Green Earth

PROLIGHTS - Astra Prole400 09
653 421 8 96 7 11
10
7 - PRODUCT OVERVIEW
1. SAFETY EYE to attach safety cable.
2. PAN Mechanism lock and release.
3. USER INTERFACE with display and buttons for access to the control panel functions.
4. TILT Mechanism lock and release.
5. ANTENNA of Wireless DMX Receiver internal module.
6. ETHERCON CONNECTORS IN / OUT signal.
7. DMX IN (5-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C, 5 N/C.
8. DMX OUT (5-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C, 5 N/C.
9. POWER OUT: power output for connection of multiple units in series.
10.POWER IN: for connection to the Mains 100-240V~/50-60Hz.
11.MAIN FUSE HOLDER: replace a burnt-out fuse by one of the same type only (T8A 250V).
Fig 04

PROLIGHTS - Astra Prole40010
8 - DMX CONNECTION
CONNECTION OF THE CONTROL SIGNAL: DMX LINE
The product has XLR sockets for DMX input and output.
The default pin-out on both socket is as the following diagram:
Fig. 05
Pin1 : GND - Shield
Pin2 : - Signal
Pin3 : + Signal
Pin4 : N/C
Pin5 : N/C
DMX - OUTPUT
XLR socket
DMX - INPUT
XLR plug
INSTRUCTIONS FOR A RELIABLE DMX CONNECTION
Use shielded twisted-pair cable designed for RS-485 devices: standard microphone cable cannot trans-
mit control data reliably over long runs. 24 AWG cable is suitable for runs up to 300 meters (1000 ft).
Heavier gauge cable and/or an amplier is recommended for longer runs.
To split the data link into branches, use splitter-ampliers in the connection line.
Do not overload the link. Up to 32 devices may be connected on a serial link.
CONNECTION DAISY CHAIN
Connect the DMX data output from the DMX source to the product DMX input (male connector XLR)
socket.
Run the data link from the product XLR output (female connector XLR) socket to the DMX input of the
next xture.
Terminate the data link by connecting a 120 Ohm signal termination. If a splitter is used, terminate
each branch of the link.
Install a DMX termination plug on the last xture on the link.
CONNECTION OF THE DMX LINE
DMX connection employs standard XLR connectors. Use shielded pair-twisted cables with 120Ω im-
pedance and low capacity.
The following diagram shows the connection mode:
Fig. 06 - Example 54 DMX channels conguration
. . . . . . . . . . . .
DMX Address: 1 DMX Address: 165DMX Address: 55 DMX Address: 110
. . . . . . . . . . . .
DMX512 Controller
DMX IN DMX IN DMX IN DMX INDMX OUT DMX OUT DMX OUT DMX OUT

PROLIGHTS - Astra Prole400 11
DMX ADDRESSING
In order to start controlling the product via DMX, the rst step is to select a DMX address, also known
as the start channel, this is the rst channel used to receive instructions from a DMX controller. If you
wish to control the product individually, it is necessary to assign a different starting address channel to
each xture.
The number of channels occupied from the product depends on the DMX mode selected, so always
verify the DMX Mode in the MENU before start addressing.
If you assign two xtures the same address, they will be executing the same behaviour. Selecting the
same address to multiple xtures can be useful for diagnostic purposes and symmetrical control.
DMX addressing is limited to make it impossible to set the DMX address so high that you are left with-
out enough control channels for the product.
To set the xture’s DMX address:
1. Press ENTER to open the main menu.
2. Reach the addressing menu, then select the DMX ADDRESS settings.
3. Select the address from 1 to 512 using the navigation arrows/buttons and conrm by pressing
ENTER.
4. Press Menu to exit and return to the Home screen.
ETHERNET CONNECTION
The products is provided with two 8-pin RJ-45 sockets for Ethernet input/output for a simple daisy
chain connection to the network.
The product can be controlled with ArtNet/sACN/Klingnet communication protocol.
Use a network cable category 5 (with four “twisted” wire pairs) and standard RJ-45 plugs.
ETHERNET OPERATION
Please refer to the section MENU STRUCTURE contained in this document for detailed informations
about the parameters of setting on the xture (Protocol, Net, Subnet, Universe, Start Channel and IP
Address, Ethernet to DMX No/Yes).
• IP addresses recommended: 002.xxx.xxx.xxx or 010.xxx.xxx.xxx.
• The submask net is xed at 255.0.0.0.
CONSTRUCTION OF THE DMX TERMINATION
The termination is prepared by soldering a 120Ω 1/4 W resistor between pins 2 and 3 of the male XLR
connector, as shown in gure.
Fig. 07
Example:
5 pin XLR connector
4

PROLIGHTS - Astra Prole40012
ETHERNET TO DMX OPERATIONS
Please refer to the section MENU STRUCTURE contained in this document for detailed informations
This function allow a product receiving an ethernet signal protocol to re-transmit the incoming signal
onto a wired DMX line through its onboard XLR-out connector.
• An Ethernet protocol (Artnet, sACN or others available) has to be enabled from Ethernet menu
at rst xture. Please make sure that wireless receiver is switched to OFF if you use Ethernet
comunication.
• Enable the option Ethernet To DMX choosing which xture needs to be retransmitted (Main Fixture
or Pixel Engine) from the Ethernet menu at the rst product (connected to the Ethernet) in the signal
chain, next products have standard DMX setting.
• Connect the Ethernet input of the rst product in the data chain with the network. Connect the
DMX output of this product with the input of the next product until all products are connected to
the DMX chain.
• Caution: At the last product, the DMX chain has to be terminated with a terminator. Solder a 120 Ω
resistor between Signal (–) and Signal (+) into a XLR-plug and connect it in the DMX-output of the
last product.
OPERATION AS A WIRELESS TRANSMITTER
ASTRAPROFILE400 can be used as wireless transmitter to transmit DMX signal to different wireless
receivers. To use ASTRAPROFILE400 as wireless transmitter, please follow the procedure below:
1. Push ENTER button untill you show CONNECT on display, then press ENTER button to conrm.
2. Use UP/DOWN buttons for select WIRELESS, then press ENTER to conrm.
3. Push ENTER button on WDMX ON/OFF function and enable it to ON.
4. Select WDMX mode and set it on Transmitter (please note that WDMX mode will be available only
if WDMX ON/OFF is set to ON).
5. Ensure that the receiver units are not connected to any other transmitter. Please refer to "Reset the
receiver" paragraph.
6. Enable TX LINK to ON to link transmitter to receivers (please note that TX LINK will be available only
if WDMX mode is set to Transmitter).
• The transmitter scans for all unlinked receivers for a period of about 5 seconds.
• If the connection fails, check the position of the receiver.
• The wireless icon on the receiver display indicates the received signal strength.
Unlinking the transmitter
Follow the procedure below to unlink the transmitter from all receivers connected with the unit.
1. Push ENTER button untill you show CONNECT on display, then press ENTER button to conrm.
2. Use UP/DOWN buttons for select Wireless, then press ENTER to conrm.
3. Enable TX UNLINK to ON 8 (please note that TX UNLINK will be available only if WDMX mode is
set to Transmitter).
• All connected receivers will be unlinked.
IN TO WDMX
This function enable or disable the transmission throught wireless of the DMX signal from the transmit-
ter side to the receiver.
Any incoming signal (ArtNet, sACN or DMX) is retransmitted throught wireless.
It's possible to choose retransmission of Main Fixture or Pixel Engine.
If the ASTRAPROFILE400 protocol selected is ArtNet / sACN, the WDMX module will retransmit the
DMX values contained in the ArtNet / sACN signal received from the ASTRAPROFILE400.
NOTE: Artnet and sACN have higher priority on DMX if they are connected to transmitter.
NOTE: Do not use IN TO WDMX and ETH TO DMX simultaneously, this will cause data conict on
DMX output signal.

PROLIGHTS - Astra Prole400 13
OPERATION AS A WIRELESS RECEIVER
ASTRAPROFILE400 can be used as wireless receiver connected to a wireless transmitter.
To use ASTRAPROFILE400 as wireless receiver, please follow the procedure below:
1. Push ENTER button untill you show CONNECT on display, then press ENTER button to conrm.
2. Use UP/DOWN buttons for select Wireless, then press ENTER to conrm.
3. Push ENTER button on WDMX ON/OFF function and enable it to ON.
4. Select WDMX mode and set it on Receiver (please note that WDMX mode will be available only if
WDMX ON/OFF is set to ON).
5. Enable RX RESET to ON to reset the receiver (please note that RX RESET will be available only if
WDMX mode is set to Receiver).
6. On the transmitter, enable TX LINK to ON to link transmitter to the receivers.
7. If the connection is successful and DMX input is available the display the display on the receiver unit
will shows the DMX address. If DMX signal is not available, the display will shows "No signal" but
keeps the transmitter linked.
8. If the connection fails, check the position of the receiver.
9. The wireless icon on the receiver display indicates the received signal strength.
Reset the receiver
Follow the procedure below to reset the receiver.
1. Push MENU button untill you show CONNECT on display, then press ENTER button to conrm.
2. Use UP/DOWN buttons for select Wireless, then press ENTER to conrm.
3. Enable RX RESET to ON.
• The wireless icon on the receiver display indicates the received signal strength.
WDMX TO DMX (RX)
This function enable or disable the retransmission of the wireless DMX signal received throught the
DMX port on the receiver side.

PROLIGHTS - Astra Prole40014
Fig. 08
9 - CONTROL PANEL
The product has a display and buttons for access to the control panel functions.
DISPLAY AND BUTTONS LAYOUT
The product has a display and buttons for access to the control panel functions:
1
3
24
5
1• Browse upwards through the menu list and increases
the numeric value displayed.
2• Return to the top level.
3• Browse downwards through the menu list and de-
creases the numeric value displayed.
4• Commute from units, tens, hundred in the menu.
5• Used to access the menu tree or to return a previous
menu window.
• Switch on the display using backup battery. Hold for 5s.
• Switch off display by pressing button 4 for 5s while on being on
Home screen.
• LED indicator for Wireless dmx (color red and green).
• LED indicator for Ethernet network.(color orange).

1CONNECT ADDRESS DMX / WDMX VALUE (1-512) Set address used for Fixture.
sACN
ARTNET
DMX MODE BASIC Set DMX chart for Main Fixture.
STANDARD
EXTENDED
WIRELESS WDMX ON/OFF ON/OFF Enable/Disable the wireless card.
WDMX MODE TRANSMITTER/
RECEIVER
Allows to choose whether to set the wireless
on the Transmitter or Receiver.
WDMX mode is unlocked only if WDMX ON
/ OFF is ON.
TX LINK ON/OFF TX link unlock when the unit is set as a
transmitter.
TX UNLINK ON/OFF
Disconnect the transmitter from all receivers.
TX unlink unlocks only if WDMX mode is on
transmitter
RX RESET ON/OFF
Total reset of the receiver.
RX reset unlocks only if WDMX mode is
receiver.
DMX TO WDMX (TX) ON/OFF
Enable/Disable the transmission of the DMX
values via wdmx.
Main Fixture to WDMX: transmitt main
xture DMX values
Pixel Engine to WDMX: transmitt pixel
engine dmx values
WDMX TO DMX (RX) ON/OFF
Enable/Disable the retransmission of the
DMX from the receiver to the other units
connected by cable to the receiver itself.
ETHERNET
SETTING
ARTNET SETTINGS IP ADDRESS Set IP address of the xture.
NET Set Net for ArtNet protocol. (Default 0)
SUBNET Set Subnet for ArtNet protocol. (Default 0)
UNIVERSE Set Universe for ArtNet protocol. (Default 0)
sACN SETTINGS IP ADDRESS Set IP address of the xture.
UNIVERSE Set Universe for sACN protocol. (Default 1)
MERGE MODE Set Merge Mode for sACN protocol. (Default OFF)
ETHERNET TO DMX ON Enable / Disable DMX retrasmission from
sACN/ArtNet signal to DMX out port.
OFF
2SET UP SCREEN BACKLIGHT ON/10S/20S/30S Allows you to select the timing after that
display will switch automatically off when
unactive.
FLIP DISPLAY ON/OFF/AUTO Allows you to rotate the display by 180°.
10 - MENU STRUCTURE
The following chart describes the MENU tree of the product, the terms shown in BOLD indicates the
default settings.
PROLIGHTS - Astra Prole400 15

KEY LOCK ON/OFF
Allows you lock the buttons on the control
panel by a password. Press following combi-
nations (password) in order to access to the
user menu : UP, DOWN, UP, DOWN.
MOVE-
MENT
PAN REVERSE ON/OFF Allows you to reverse Pan movement.
TILT REVERSE ON/OFF Allows you to reverse Tilt movement.
PAN/TILT FEEDBACK ON/OFF To activate / deactivate the reading of the
feedbacks given by the encoders.
MOVEMENT
BLACKOUT ON/OFF Make fixture goes blackout OFF while moving.
PAN/TILT MODE SLOW/MEDIUM/FAST
To choose the horizontal/
vertical movement speed.
SYNC mode will sync movement speed with
the whole ASTRAWASH familiy xtures.
HOME POSITION STANDARD To choose the home position.
CUSTOM
CUSTOM P DEGREE 0° To choose pan values in case of Custom po-
sition.
45°
90°
135°
180°
225°
270°
315°
CUSTOM T DEGREE 0% To choose tilt values in case of Custom posi-
tion.
12.5%
25%
50%
75%
87.5%
100%
FIXTURE
SETTINGS
FAN MODE AUTO/SILENT/HIGH Select Fan behaviour.
DMX FAULT HOLD/BLACKOUT To choose the behaviour of xture in case of
dmx signal lost.
STATUS LED ON/OFF To turn the status LEDs on the front panel
on or off.
DIMMER CURVE
LINEAR/S-CURVE/
SQUARE LAW/ IN-
VERSE SQUARE LAW
Select different curve behaviour of dimmer.
DIMMER SPEED AUTO/FAST/
MEDIUM/SLOW
Linear dimmer behaviour.
Dimmer curve adding long fade.
Dimmer curve adding medium fade.
Dimmer curve adding little fade.
LED FREQUENCY
600HZ/1200HZ/
2000 HZ/ 4000 HZ/
6000HZ/25KHZ/50KHz
Select PWM frequency.
PROLIGHTS - Astra Prole40016

INVERT ZOOM ON/OFF Invert zoom values.
COLOR WHEEL
BLACKOUT ON/OFF To set Gobo Wheel Movement in blackout mode.
COLOR WHEEL
MODE STEP To set Color Wheel Movement scrolling
mode.
COUNTINUOUS
GOBO WHEEL
BLACKOUT ON/OFF To set Gobo Wheel Movement scrolling mode.
GOBO WHEEL MODE STEP To set Gobo Wheel Movement
scrolling mode.
COUNTINUOUS
TRANSFER
CONFIGURATION
WITHOUT DMX
ADDRESS
To transfer the same menu settings of one
fixtures to all the other in the daisy chain,
including or not the dmx address.
WITH DMX ADDRESS
3AD-
VANCED
RESET
FUNC-
TIONS
ALL To reset these functions.
PAN
TILT
PAN & TILT
CYAN
MAGENTA
YELLOW
CTO
COLOR WHEEL
GOBO WHEEL
GOBO ROTATION
ANIMATION
ANIMATION ROTA-
TION
PRISM
PRISM ROTATION
FROST
IRIS
ZOOM
FOCUS
FRAME ROT
BLADE 1 POSITON
BLADE 1 ROT
…
BLADE 4 POSITON
BLADE 4 ROT
CALIBRA-
TION PASSWORD For the calibration of these functions. 050 password for user reset.
PROLIGHTS - Astra Prole400 17

PAN (16 BIT)
TILT (16 BIT)
DIMMER (16 BIT)
CYAN
MAGENTA
YELLOW
CTO
COLOR WHEEL
GOBO WHEEL
GOBO ROTATION
ANIMATION
ANIMATION ROTA-
TION
PRISM
PRISM ROTATION
FROST
IRIS
ZOOM ON OPEN
FOCUS ON OPEN
GOBO 1 FOCUS
…
GOBO 8 FOCUS
GOBO 1 INDEX
…
GOBO 8 INDEX
…
FRAME ROT
BLADE 1 POSITON
BLADE 1 ROT
…
BLADE 4 POSITON
BLADE 4 ROT
ENCODER RESET CLEAR VALUE ON
ENCODER PCB
MANUAL
CONTROL
PAN For manual control of the unit.
PAN (16 BIT)
TILT (16 BIT)
DIMMER (16 BIT)
CYAN
PROLIGHTS - Astra Prole40018
