EN-1
WARNINGS
This appliance is intended for domestic
household use only and should not be
used for any other purpose or in any other
application, such as for non-domestic use
or in a commercial environment.
If the supply cord is damaged, it must be
replaced by a special cord or assembly
available from the manufacturer or its
service agent.
Regarding the detailed instructions for the
method and frequency of cleaning and the
precautions during user maintenance,
refer to the section “Cleaning and
Maintenance” on page EN7 to EN9of the
manual.
This appliance can be used by children
aged from 8 years and above and persons
Downloaded from www.vandenborre.be

EN-2
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given
supervision or instruction concerning use
of the appliance in a safe way and
understand the hazards involved. Children
shall not play with the appliance. Cleaning
and user maintenance shall not be made
by children without supervision.
Following objects are strictly banned,
otherwise the vacuum cleaner will be
damaged or fire calamity will be caused,
which bring such accidents as human body
injuries:
Don’t pick up large or sharp broken such
as glasses.
Don’t pick up harming or erodent liquids
Downloaded from www.vandenborre.be

EN-3
(solvent, corrosive, detergent…).
Don’t pick up inflammable or explosive
substance such as gasoline or alcohol.
Don’t pick up/ vacuum burning or glowing
objects (cigarettes, matches, hot ashes).
WARNING: the plug must be removed
from the socket-outlet before cleaning or
maintaining the appliance.
Regarding the detailed instructions for the
safe use of the appliance, refer to the
section “Operation”.
Downloaded from www.vandenborre.be

EN-4
IMPORTANT SAFETY INSTRUCTIONS
Always disconnect the plug from the power supply if it is left
unattended and before assembling, disassembling or cleaning.
Do not use the appliance with wet hands or feet.
Do not use without filter in place.
Do not use the appliance to suck up water or any other liquid.
Do not immerse the product in water or any other liquid for cleaning.
Use only original accessories approved by the manufacturer.
The hose must be checked regularly and must not be used if
damaged.

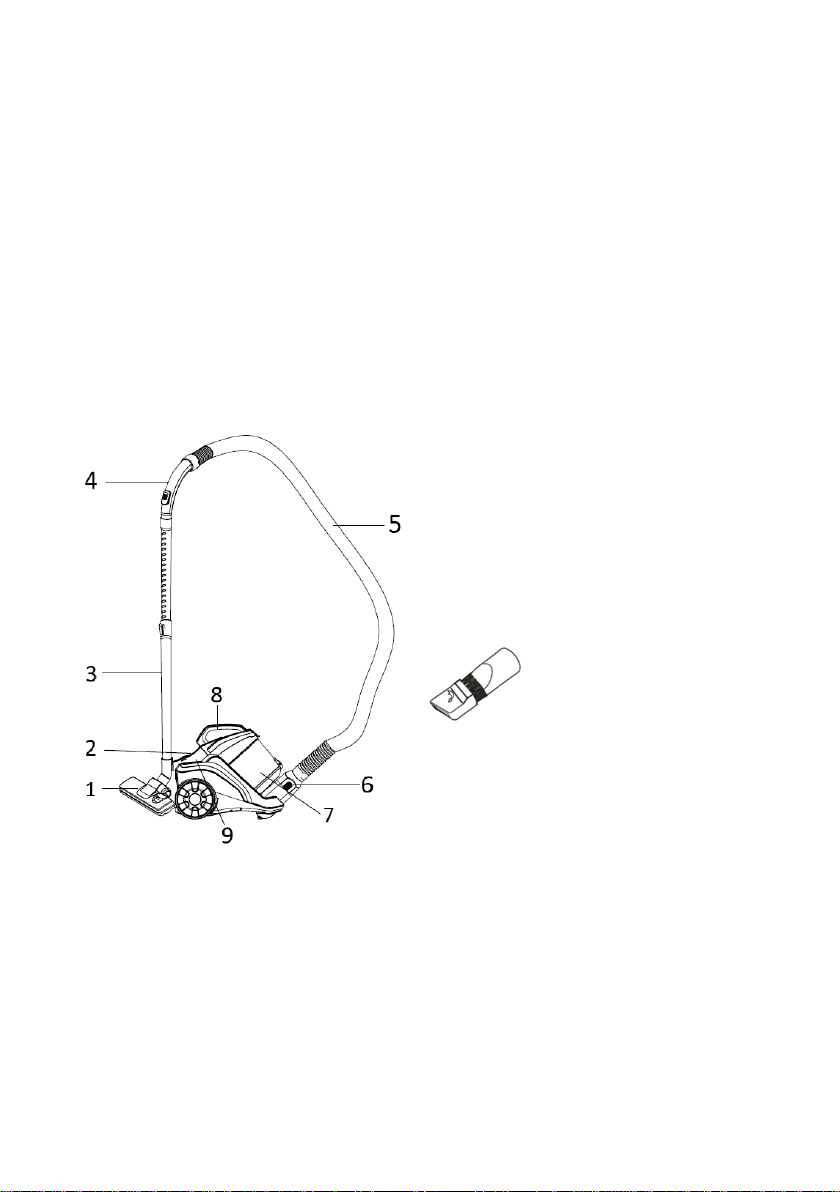

DESCRIPTION
10
1. Floor brush
2. Power button
3. Telescopic tubes
4. Hose handle
5. Hose
6. Hose socket
7. Dust tank
8. Handle of the dust tank
9. Cord rewind button
10. Combination tool (Dusting
brush and crevice tool)
Downloaded from www.vandenborre.be

EN-5
ASSEMBLY
Always remove the plug from the mains socket before assembling or
disassembling accessories.
Hose
1. To fit the hose, push it firmly into the
hose socket on the front of the
appliance until the hose clicks into
place.
2. To remove the hose, press the
release tabs on the hose sides and
pull the hose out of the appliance.
Connecting tubes and accessories
1. Attach the bigger end of the tubes into the hose handle.
2. Adjust the tubes to your desired length.
Push forward the switch on the tube then adjust. Release the switch
until the
desired length is achieved.
3. Attach the desired cleaning accessory to the end of the tube.
To remove the tubes and accessories, hold each piece tightly and pull
firmly apart.
Downloaded from www.vandenborre.be

EN-6
OPERATION
1. Pull the power cord out of the
appliance and insert the mains
plug into the mains socket.
A YELLOW mark on the power
cord indicates the ideal cable
length. Do not extend the power
cord beyond the RED mark.
2. Press the power button on top
of the appliance to switch on the
appliance.
3. You can quickly reduce the suction power by pushing the air flow
regulator on the hose handle. Push it forward,
suction power will increase; push it backward,
suction power will reduce.
Using the Cleaning Accessories
●Dual position carpet / floor brush (Drawings for reference only)
Position 1: Bristles extended
-For hard floors
Position 2: Bristles retracted
-For carpets
Downloaded from www.vandenborre.be

EN-7
●Combination tool (dusting brush and crevice tool)
For corners, edges or small spaces
CLEANING AND MAINTENANCE
Always switch off the appliance and unplug from the mains socket
before carrying out any maintenance or cleaning.
Clean the outside of the appliance with a slightly damp cloth. Dry
thoroughly before use.
Emptying the Dust Tank
Empty the dust tank when the dust reaches the MAX line.
1. Press the dust tank release
button to remove the dust tank.
