Prominence Home Arthur 52" User manual

PACKAGE CONTENTS
2
1. Motor Housing
2. Upper Mounting Bracket
3. Lower Mounting Bracket
4. Motor
5. Fitter Plate
6. Light Kit
7. E26-base LED Bulb (x3)
8. Glass Shade (x3)
9. Socket Ring (x3)
10. Blade (x5)
11. Blade Arm (x5)
12. Hardware Kit
13. Owner’s Manual
14. Motor Housing Screw
(x4)
15. Mounting Bracket Screw
(x4)
16. Motor Screw (x10)
17. Fitter Plate Screw (x3)
Unpack your fan and check the contents. You should
have the following items:
PACKAGE CONTENTS
HARDWARE CONTENTS
Note: Some extra hardware has been included. The quantity
listed above is the number required for installation.
Hardware Kit
Owner’s
Manual
HARDWARE CONTENTSHARDWARE CONTENTS
19 22
21
20
TOOLS REQUIRED (not included)
Tools required for assembly: Electrical tape, Phillips Screwdriver, Pliers, Safety Glasses, Step Ladder, Wire Cutters
and Wire Strippers
Helpful Tools: AC Tester Light, Tape Measure, and Wiring Handbook
23 24 25
18
18. Blade Screw (x15)
19. Blade Washer (x15)
20. Wire Connector (x3)
21. Pull Chain Extension (x2)
22. Secondary Support Screw
23. Support Washer
24. Secondary Spring Washer
25. Blade Balancing Kit
1
14
2
3
15
4
16
5
6
7
8
17
9
10
11
12
13

3
Upper Mounting Bracket
Motor Housing
Lower Mounting Bracket
Motor
Blade
Blade Arm
Fitter Plate
Mounting Bracket Screw
Mounting Housing
Screw
Light Kit
Bulb
Glass Shade

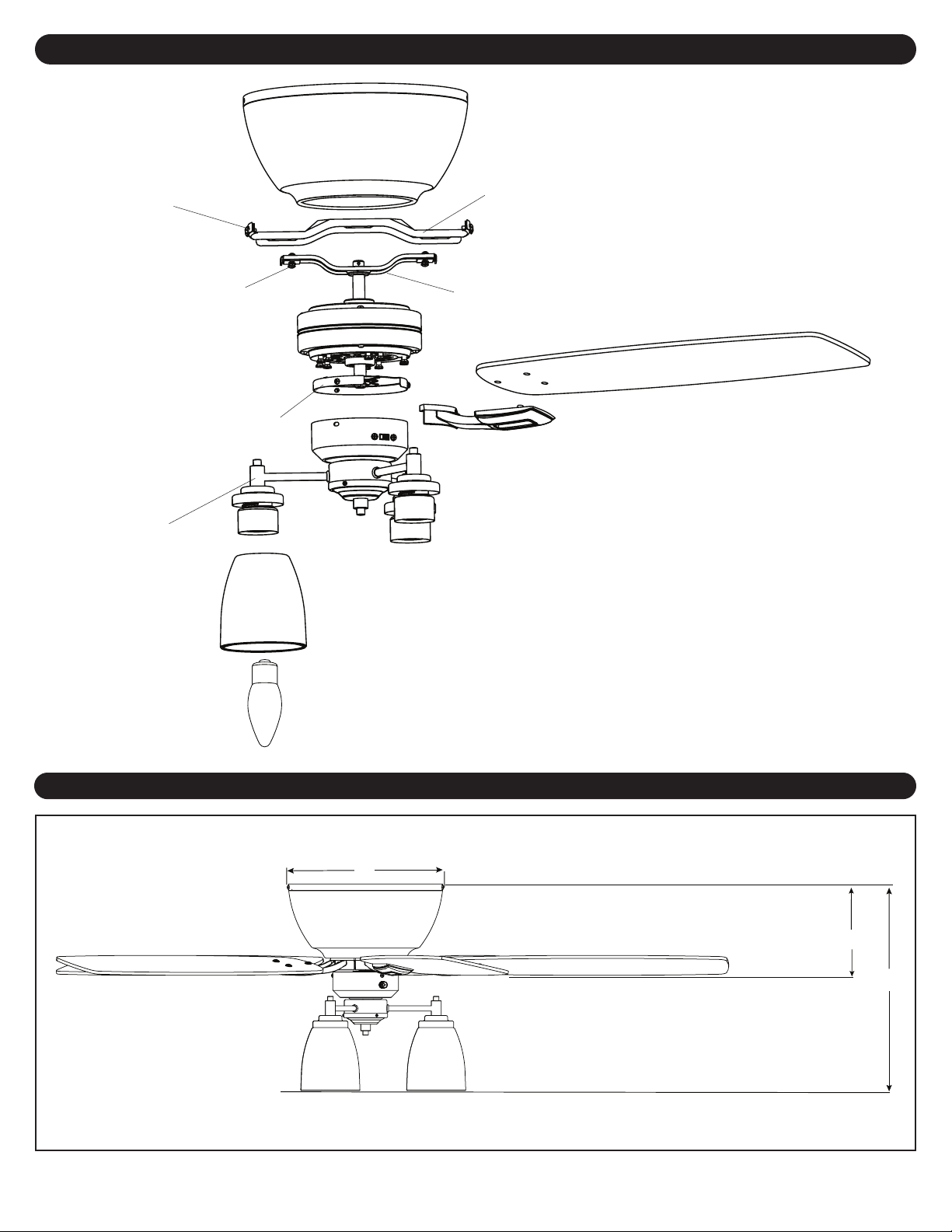

EXPLODED VIEW DETAIL
A. 14.28 in. B. 6.51 in. C. 11.07 in.
DIMENSION REFERENCE
C
A
B

4
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE
FAN AND SAVE INSTRUCTIONS.
All set screws of the fan must be checked and retightened where necessary before installation.
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing the
blades or cleaning fan. Do not insert foreign objects in between rotating fan blades.
Before changing the fan direction, turn o the fan and wait for the fan blades to stop completely.
The safeguards provided by these safety instructions and by the separate installation instructions are not meant
to cover all possible conditions and situations that may occur. It must be understood that common sense,
caution and care are factors which can not be built into this product. These factors must be supplied by the
person(s) installing, caring for and operating the fan.
The fan weight is Net Weight: 17.17 lbs (7,79 kg). Be sure the outlet box (not included) is securely attached to the
building structure and is marked “Acceptable For Fan Support”. Failure to do so can result in serious injury.
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following
two conditions: (1) this device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device (if applicable).
CAN ICES-005 (B) / NMB-005 (B)
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
o and on, the user is encouraged to try to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver
--Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
HKC-US
3350 Player’s Club Parkway, #225
Memphis, TN 38125
1-877-706-3267
SAFETY INSTRUCTIONS
CAUTION:

WARNING:
To avoid risk of electric shock, be sure to shut o power at the main fuse or circuit breaker box before
installing or servicing this xture. Turning o the electrical power by using the light switch is not
sucient to prevent electrical shock.
To reduce the risk of injury, install the fan so that the blades are at least 7 feet (2.1 Meters) above the
oor and at least 18 inches (0.5 Meters) from the tip of the blades to the wall.
To reduce the risk of re, electric shock, or personal injury, mount to outlet box marked “acceptable for
fan support” and use mounting screws provided with the outlet box.
The installation has to be in accordance with the national electrical code, ANSI/NFPA 70-1999 and
local codes. If you are unfamiliar with the methods of installing electrical wiring, seek the services of a
qualied licensed electrician.
Using a full-range dimmer switch to control fan speed will cause a loud humming noise from the fan. To
reduce the risk of re or electric shock, do NOT use a full-range dimmer switch to control the fan speed.
SAFETY INSTRUCTIONS
5

6
ASSEMBLY INSTRUCTIONS
3
4
2
1
1. Turn OFF the electrical power at the main fuse or circuit
breaker.
DANGER: Failure to disconnect the power supply prior to
installation may result in serious injury or death.
2. Install the upper mounting bracket to the outlet box
(not included) using the screws and washers provided
with the outlet box.
WARNING: To reduce the risk of re, electric shock,
or personal injury, mount to the outlet box marked
“acceptable for fan support” .
4. Place one tab of the lower bracket into a large slot in
the upper mounting bracket. Then slide the second tab
of the lower mounting bracket into the second large slot
on the upper mounting bracket until all four holes are in
alignment.
3. Remove the mounting bracket screws from underneath
the lower mounting bracket. Remove the motor screws
and set aside for later.
Note: The notch in the tter plate allows a Phillips
screwdriver (not included) access to motor screws.
Motor
Motor Screw
Notch
Large Slot
Lower Bracket
Tab
Mounting
Bracket
Screw
Upper
Mounting
Bracket
Lower
Mounting
Bracket
Upper Mounting Bracket

7
Mounting
Bracket Screw
Upper Mounting Bracket
Lower
Mounting
Bracket
ASSEMBLY INSTRUCTIONS
7
6
8
5. Reinstall the previously removed mounting bracket
screws to secure the lower mounting bracket to upper
mounting bracket. Securely tighten the screws.
Secondary
Support
Screw
Open Loop Support
Washer
Secondary
Spring
Washer
7. Install secondary support screw, secondary spring
washer, and support washer partly into the side of the
brace installed in the ceiling. Then lift the braided cable up
and over the ceiling brace and place the open loop of the
braided cable around the secondary support screw.
Note: The ceiling support brace may not be accessible
from below. If not, it must be accessed from above.
Important: The braided cable must make a complete
circle around the support brace to secure the fan.
8. Tighten the secondary support screw securing the
braided cable.
Secondary
Support Screw
Braided Cable
Outlet Box
Brace
SECONDARY HANGING SYSTEM
For installation in the United States: Building codes
in the U.S.A. do not require installation of a Secondary
Hanging System. If desired, the braided cable can be cut
and removed using wire cutters (sold separately). Skip to
Step 9.
For installation in Canada: In compliance with building
codes in Canada, installation of the Secondary Hanging
System is required.
6. Feed the loop of the braided cable, preassembled to the
motor assembly, up through the outlet box mounted in the
ceiling.
5

8
ASSEMBLY INSTRUCTIONS
Black (Hot)
White (Neutral)
Bare/Green (Ground)
Black Blue White Green

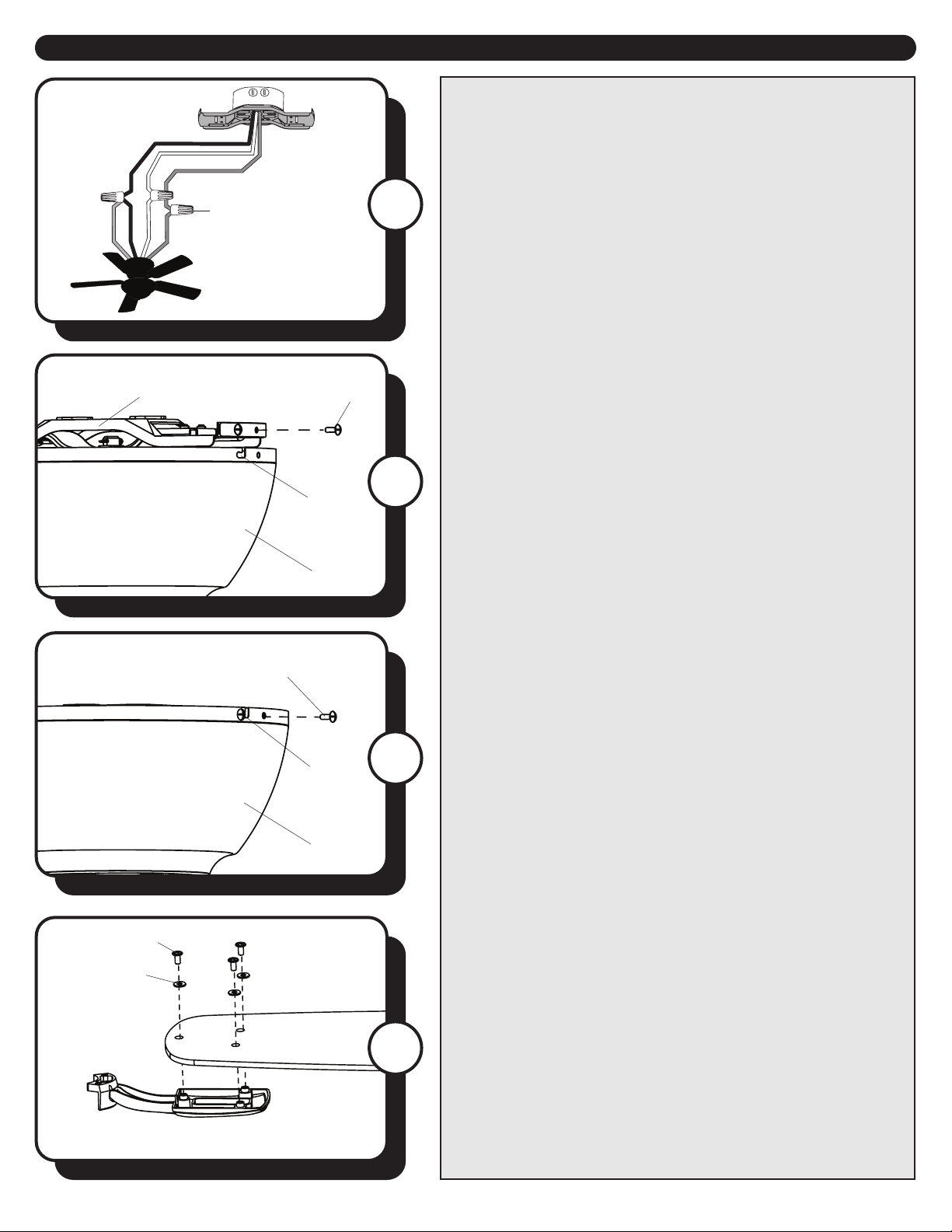

10. Temporarily lift the motor housing to the upper
mounting bracket to determine which two motor
housing screws in the sides of the upper mounting
bracket align with the slotted holes in the top edge
of the motor housing. Partially loosen the two motor
housing screws that align with the slotted holes. Remove
the other two motor housing screws from opposite sides
of the upper mounting bracket.
11. Slide the motor housing over the motor, aligning the
slotted holes in the motor housing with the loosened
motor housing screws in the upper mounting bracket.
Twist the motor housing to lock. Then re-insert the two
previously removed motor housing screws and securely
tighten all screws.
12. Partially insert the blade screws along with the blade
washers through the blade and into the blade arm.
Tighten each blade screw with a Phillips screwdriver (not
included), starting with the one in the middle. Repeat this
step for the remaining blades and blade arms.
9. Use wire connectors to connect the fan wires to the
power supply wires according to the wiring diagram
and the following instructions:
• Connect the green wire from the lower bracket to the
bare/green (ground) supply wire.
• Connect the white wire from the fan to the white
(neutral) supply wire.
• Connect the black and blue wires from the fan to the
black (hot) supply wire.
Note: If there is a second hot/power wire coming from
the outlet box, connect it to the blue (light power) fan
wire for separate light and fan control.
Important: After the connections have been made, the
wires should be turned upward and pushed carefully
up into the outlet box. Place the black and white wire
connections on opposite sides of the outlet box.
Wire Connector
Motor Housing
Screw
Motor Housing Screw
Upper Mounting Bracket
Blade Screw
Blade Washer
Blade
Blade Arm
WARNING:Do NOT
use a full-range
dimmer switch to
control the fan speed.
Slotted Hole
Slotted Hole
Motor
Housing
Motor
Housing
9
10
11
12

9
Motor Screw
Blade Arm
Slot
ASSEMBLY INSTRUCTIONS
16
15. Remove the socket ring from each socket. Raise the
glass shade over the socket of the light kit. Secure the
glass shade by twisting the socket ring clockwise onto
the socket. Repeat for each socket.
Glass Shade
Light Kit
14
15
Bulb
Light Kit
Notch
Light Kit
9-pin Connector
Fitter Plate
Screw
Fitter Plate
16. Install the E26-base LED bulbs into the sockets of the
light kit.
Important: Make sure you allow the bulbs and light kit to
cool before you replace the bulbs.
Socket Ring
14. Remove the three tter plate screws from the tter
plate. Then, connect the 9-pin connectors from the fan to
the 9-pin connectors from the light kit. Secure the light kit
to the tter plate by reinstalling the tter plate screws.
Note: Align the notch on the tter plate with the reverse
switch on the light kit.
13
13. Install the blade arm to the underside of the motor
assembly with previously removed motor screws (Step 3,
page 6). Tighten each blade arm completely before moving
to the next. Repeat for each blade arm.
Note: The notch in the tter plate allows a Phillips
screwdriver (not included) access to motor screws.

10
Pull Chain Extension
17. Attach pull chain extensions to the pull chains.
Note: The pull chain in the center of the light kit controls
the light.

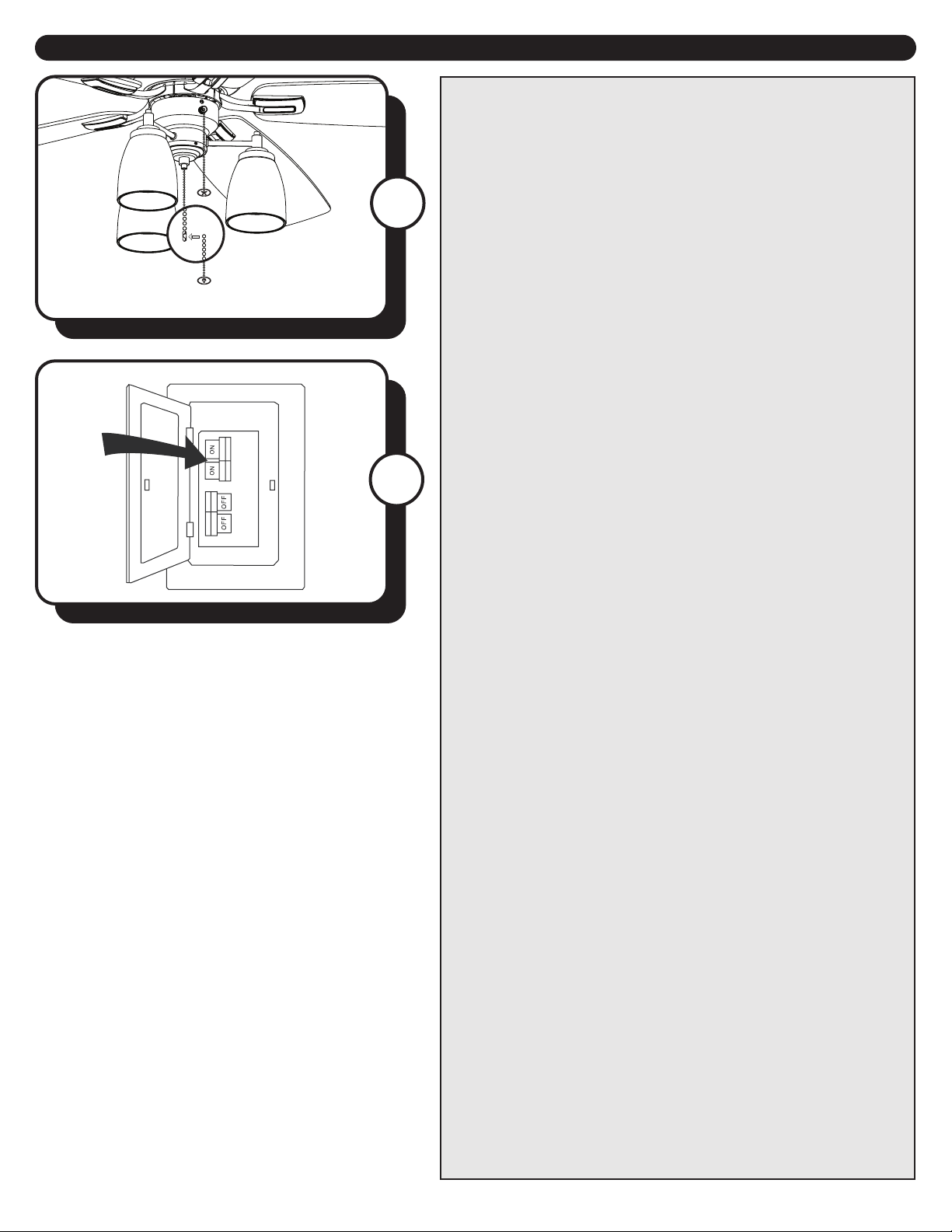

18. Restore the power at the main fuse or circuit breaker
and wall switch.
Assembly is complete.
ASSEMBLY INSTRUCTIONS
18
17

11
OPERATING INSTRUCTIONS
1
2. The fan pull chain has four positions to control the fan
speed. One pull is HIGH, two is MEDIUM, three is LOW,
and four turns the fan OFF. The light pull chain turns the
lights ON and OFF.
2
Fan Pull Chain
Light Pull Chain
Reverse
Switch
1. Using a ceiling fan will allow you to raise your
thermostat setting in summer and lower your thermostat
setting in winter without feeling a dierence in your
comfort.
In warmer weather, push the reverse switch left which
will result in downward airow creating a wind chill eect.
In cooler weather, push the reverse switch right which
will result in upward airow that can help move stagnant,
hot air o the ceiling area.
Important: Wait for the fan to stop before moving the
reverse switch. The reverse switch must be set either
completely left or right in order for the fan to function
correctly. If the reverse switch is set in the middle position,
the fan will not operate.

12
PROBLEM SUGGESTED REMEDY
TROUBLESHOOTING
If you have diculty operating your new ceiling fan, it may be the result of incorrect assembly, installation or
wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please
check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing diculty in
installation, please contact the Service Department: 1-877-706-3267, 8 a.m. - 5 p.m. Central, Monday - Friday.
WARNING: To reduce the risk of re, electrical shock or personal injury, shut o the power supply to fan before
you begin any maintenance tasks.
1. Fan does not start: 1. Make sure that the wall switch is turned ON.
2. Check main and branch circuit fuses or circuit breakers.
3. Check all wire connections from household supply wires to the fan.
4. Make sure forward/reverse switch pushed completely left or right. Fan will not operate
when switch is in the middle.
1. Make sure all screws in motor housing are snug, but not overtightened.
2. Make sure the screws that attach the blade arms to the motor are tight.
3. Make sure wire connectors are not rattling against each other or against the interior wall
of the switch housing.
4. Some fan motors are sensitive to signals from Solid State variable speed controls. DO NOT
USE a Solid State variable speed control.
5. Ensure fan does not wobble excessively (see Fan wobbles solutions below).
1. Ensure the mounting bracket is tightened securely to outlet box and outlet box is
mounted rmly to ceiling joist.
2. Ensure all blades are screwed rmly into blade arms.
3. Ensure all blade arms are tightened securely to motor.
4. Switch one blade with a blade from the opposite side. Or balance the fan using the blade
balancing kit.
5. If blade wobble is still noticeable, interchanging two adjacent (side by side) blades can
redistribute the weight and possibly result in smoother operation.
1. Check for loose or disconnected 9-pin and/or single-pin connectors in switch housing or
light kit.
2. Ensure the blue wire from fan is connected to hot power supply wire.
3. Check for faulty light bulbs.
4. Ensure total wattage of bulbs does not exceed 180 watts (for incandescent bulbs only).
2. Fan is noisy:
3. Fan wobbles:
4. Light does not work:

13
LIMITED LIFETIME WARRANTY
Model Name: 52” Ceiling Fan
Model No: 51486 - Espresso
Set forth below, the manufacturer, Hong Kong China Electric appliance Company (HKC) warrants the fan
motor for this ceiling fan to be free from defects in workmanship and material for the life of the product.
Also, subject to the limitations below, HKC warrants all ceiling fan parts (“ceiling fan parts” excludes the
motor and parts made in whole or in part with glass) to be free from defects in workmanship and material
for a period of one year after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product through a
store or contractor. Ceiling fan part defects must be reported within the rst year from the date of purchase.
Parts made in whole or in part with glass and the nishes of metal and other surfaces are not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by this
warranty. HKC assumes no responsibility whatsoever for fan installation. Any service performed by a non-
licensed electrician will render the warranty invalid.
HKC’s sole responsibility shall be to repair or replace the motor, parts, or product within the terms stated
above. HKC shall not be liable for any loss or damage of any kind, including any incidental or consequential
damages resulting directly or indirectly, from any breach of warranty, express or implied, or any other
failure of this product. Some states do not allow the exclusion or limitation of incidental or consequential
damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials
within the warranty period associated with the defective part, HKC agrees to replace the defective part
without charge, or at its option, to replace the ceiling fan with a comparable or superior model.
HKC’s warranties are limited to the written warranties set out in this HKC ceiling fan limited lifetime
warranty. All other express and implied warranties, including, without limitation, the implied warranty of
tness for a particular purpose and the implied warranty of merchantability are disclaimed. Some states do
not allow the disclaimer of implied warranties, so this disclaimer may not apply to you.
To obtain Service, please contact the Service Department:
1-877-706-3267, 8 a.m. - 5 p.m. Central, Monday - Friday.
