Prominence Home Montauk User manual

PACKAGE CONTENTS
2
HARDWARE CONTENTS
1. Canopy
2. Canopy Cover
3. Mounting Bracket
4. Mounting Bracket Screw
(x4)
5. Downrod
6. Downrod Pin
7. Downrod Clip
8. Yoke Cover
9. Set Screw (x2)
10. Closemount Screw (x3)
11. Motor Assembly
12. Motor Screw (x10)
13. Switch Housing
14. Owner’s Manual
15. Hardware Kit
16. Blade Arm (x5)
17. Blade (x5)
18. Blade Screw (x 5)
19. Blade Washer (x 5)
20. Rubber Washer (x 5)
21. Wire Connector (x 3)
22. Pull Chain Extension
23. Blade Balancing Kit
Unpack your fan and check the contents. You should
have the following items:
PACKAGE CONTENTS
HARDWARE CONTENTS
18 22 232119 20
Note: Some extra hardware has been included. The quantity
listed above is the number required for installation.
TOOL REQUIRED (not included)
Tool required for assembly: Electrical tape, Phillips Screwdriver, Pliers, Safety Glasses, Step Ladder, Wire Cutters
and Wire Strippers
Helpful Tools: AC Tester Light, Tape Measure, and Wiring Handbook
Hardware Kit
Owner’s
Manual
12
11 9
8
10
76
5
16
17
13
3
4
14
15
2
1

MOUNTING OPTIONS
3
DIMENSION REFERENCE
C
D
B
A
A. 12.53 in. B. 10.86 in. C. 11.38 in. D. 5.13 in.
Downrod Mount
Closemount
Angle Ceiling Mount (Up to 16 degrees)
Three Mounting Options
Choose one of the following mounting options:
Closemount method is best suited for ceilings lower than 8 feet. It does not utilize the downrod.
Downrod Mount is best suited for ceilings 8 ft. or higher. For taller ceilings you may want to use a longer
downrod (not included).
Angled Ceiling Mount is best suited for angled or vaulted ceilings. A longer downrod is sometimes necessary to
ensure proper blade clearance from the ceiling. If using the angle mount, check to ensure the ceiling angle is not
steeper than 16°.

4
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE
FAN AND SAVE INSTRUCTIONS.
All set screws of the fan must be checked and retightened where necessary before installation.
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing the
blades or cleaning fan. Do not insert foreign objects in between rotating fan blades.
Before changing the fan direction, turn o the fan and wait for the fan blades to stop completely.
The safeguards provided by these safety instructions and by the separate installation instructions are not meant
to cover all possible conditions and situations that may occur. It must be understood that common sense,
caution and care are factors which can not be built into this product. These factors must be supplied by the
person(s) installing, caring for and operating the fan.
The fan weight is Net Weight: 15.19 lb (6,89 kg). Be sure the outlet box (not included) is securely attached to the
building structure and is marked “Acceptable For Fan Support”. Failure to do so can result in serious injury.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
o and on, the user is encouraged to try to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver
--Connect the equipment into and outlet on a circuit dierent from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
HKC-US
3350 Player’s Club Parkway, #225
Memphis, TN 38125
1-877-706-3267
SAFETY INSTRUCTIONS
CAUTION:

5
WARNING:
To avoid risk of electric shock, be sure to shut o power at the main fuse or circuit breaker box before
installing or servicing this xture. Turning o the electrical power by using the light switch is not sucient
to prevent electrical shock.
To reduce the risk of injury, install the fan so that the blades are at least 7 feet (2.1 Meters) above the oor
and at least 18 inches (0.5 Meters) from the tip of the blades to the wall.
To reduce the risk of re, electric shock, or personal injury, mount to outlet box marked “acceptable for fan
support” and use mounting screws provided with the outlet box.
The installation has to be in accordance with the national electrical code, ansi/nfpa 70-1999 and local codes.
If you are unfamiliar with the methods of installing electrical wiring, seek the services of a qualied licensed
electrician.
Using a full-range dimmer switch to control fan speed will cause a loud humming noise from the fan. To
reduce the risk of re or electric shock, do NOT use a full-range dimmer switch to control the fan speed.
SAFETY INSTRUCTIONS

Mounting Bracket Screw
Motor Screw
Motor Block
6
ASSEMBLY INSTRUCTIONS
3
2
1

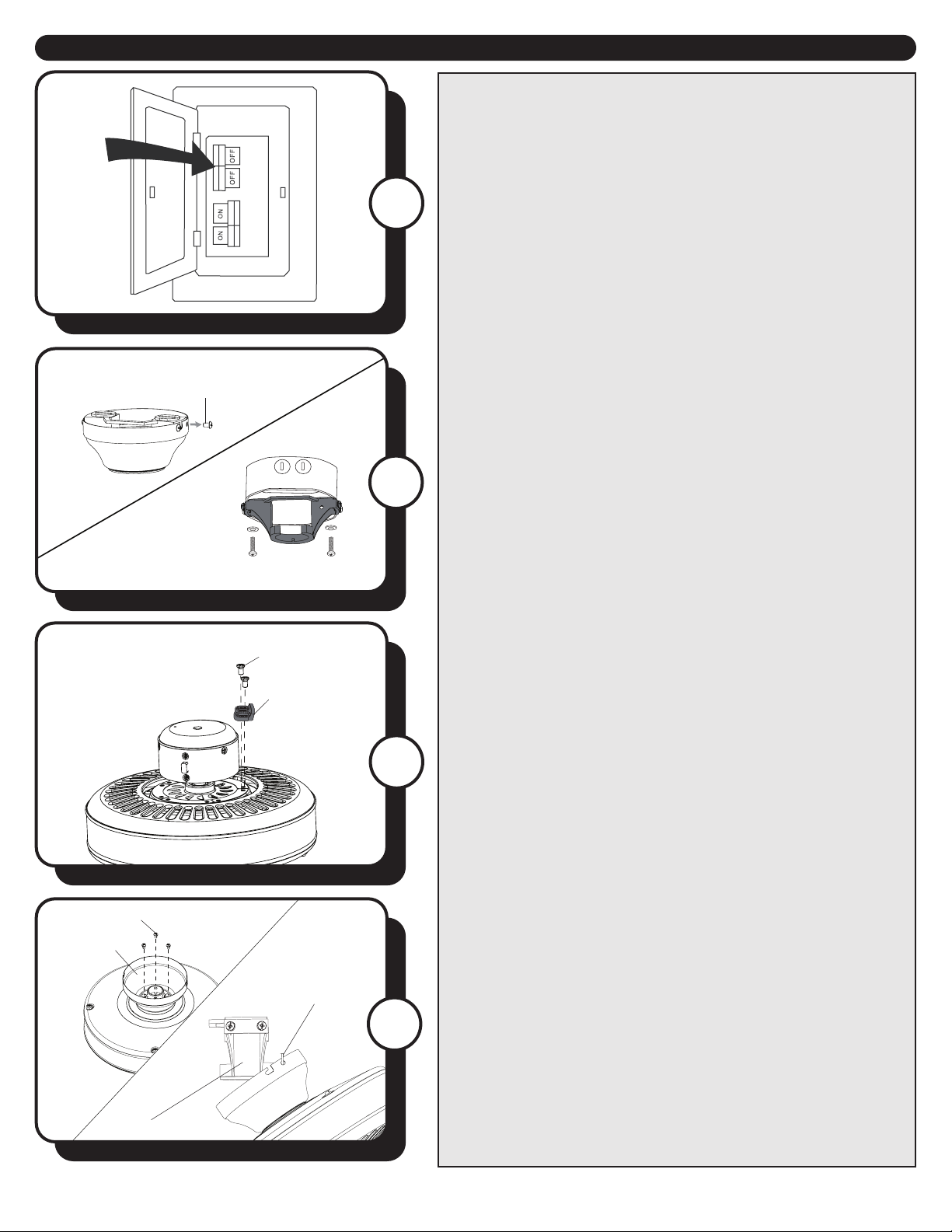

1. Turn OFF the electrical power at the main fuse or circuit
breaker.
DANGER: Failure to disconnect the power supply prior to
installation may result in serious injury or death.
3. Remove all 10 preassembled motor screws and plastic
motor blocks from the underside of the motor assembly.
Discard the motor blocks, but save the motor screws for
later use.
4
2. Remove the mounting bracket by removing the two
mounting bracket screws from the round holes in the
canopy. Then loosen the other two mounting bracket
screws from the J-shaped slots. Retain the mounting
bracket screws for later. Install the mounting bracket
to the outlet box (not included) using the screws and
washers provided with the outlet box.
Warning: To reduce the risk of re, electric shock,
or personal injury, mount to the outlet box marked
“acceptable for fan support” and use the mounting
screws and washers provided with the outlet box.
4. CLOSEMOUNT INSTALLATION (OPTIONAL)
a. Remove the canopy cover from the bottom of the
canopy.
b. Remove the three Phillips-head closemount screws from
the top of the motor assembly.
c. Align the holes in the bottom of the canopy with the
screw holes in the top of the motor assembly. The larger
holes in the canopy will encompass the three pre-installed
screws.
d. Secure the canopy to the top of the motor assembly
with the closemount screws that were previously
removed.
e. Hang the fan on the hook of the mounting bracket.
Proceed to Step 9.
Closemount Screw
Hook
Canopy
Mounting Bracket

7
ASSEMBLY INSTRUCTIONS
Yoke
Set Screw
Downrod
Downrod Clip
Downrod Pin
DOWNROD INSTALLATION:
5. Remove the downrod clip and downrod pin from the
downrod. Then partially loosen the two set screws in the
yoke at the top of the motor assembly.
5
Downrod Clip
8
7
6
Canopy
Downrod Pin
Set Screw
Downrod
Yoke
Yoke Cover
Yoke
Downrod
6. Feed the wires from the yoke through the yoke cover,
canopy and downrod.
7. Insert the downrod into the yoke and re-install the
downrod pin and downrod clip. Then re-tighten the two
set screws.
Note: With wiring extending out of the downrod,
measure 8 inches of lead wire and cut o the excess
wire with wire cutters (not included). Then strip 1/2” of
insulation from the end of each wire.
Tab
Slot
Downrod
Mounting
Bracket
8. Lift the downrod into the mounting bracket. Rotate the
downrod until the tab in the mounting bracket is seated in
the slot in the downrod ball.
WARNING: The fan and/or downrod should not rotate in
the mounting bracket if installed correctly. Failure to align
the slot in the downrod ball with the tab on the mounting
bracket may result in fan falling causing serious injury or
death.

8
ASSEMBLY INSTRUCTIONS
Black (hot)
White (neutral)
Bare/Green
(ground)
Black Blue White
Green
9
11
10
12
WARNING: Do NOT
wire the fan motor to a
variable-speed (dimmer)
wall control.
Canopy
Mounting Bracket Screw
Wire
Connector
J-shaped Slot 10. Align the canopy over the loosened mounting
bracket screws. Place the J-slot of the canopy onto the
mounting bracket screws and rotate clockwise. Secure
the canopy with the two previously removed mounting
bracket screws. Tighten all the mounting bracket screws
securely.
Blade Screw
Blade Washer
Rubber Washer
Blade Arm
Blade Stud
Blade Arm
Motor Screw
Blade
11. Align the blade arm studs with their corresponding
holes in the blade and then insert the blade screw along
with the blade washer and rubber washer to attach the
one blade arm to the blade. Tighten the blade screw.
Repeat for each blade.
12. Install the blade arm to the underside of the motor
assembly with previously removed motor screws. Tighten
each blade arm completely before moving to the next.
9. Use wire connectors to connect the fan wires to the
power supply wires according to the wiring diagram and
the following instructions:
• Connect the white wire from the fan to the white
(neutral/common) supply wire.
• Connect the black and blue wires from the fan to the
black (live/hot) supply wire.
• Connect the green wire from the downrod and mounting
bracket to the bare/green (ground) supply wire.
Note: Closemount installation does not use the downrod,
so there will only be two green wires to connect.
Important: After the connections have been made, the
connected wires should be turned upward and pushed
carefully up into the outlet box. Place the black and white
wire connections on opposite sides of the outlet box.

9
14
Fitter Plate
Screw
Fitter Plate
ASSEMBLY INSTRUCTIONS
14. Turn ON the electrical power at the main fuse or circuit
breaker and the wall switch.
Installation is complete.
13. Attach the pull chain extension to the pull chain.
13
Pull Chain
Extension

10
OPERATING INSTRUCTIONS
1
2
Reverse Switch
Fan Pull Chain
2. Use the reverse switch, located on the switch housing to
optimize your fan for seasonal performance.
Using a ceiling fan will allow you to raise your thermostat
setting in summer and lower your thermostat setting in
winter without feeling a dierence in your comfort.
In warmer weather, push the reverse switch down which
will result in downward airow creating a wind chill eect.
In cooler weather, push the reverse switch up which will
result in upward airow that can help move stagnant, hot
air o the ceiling.
Important: Wait for the fan to stop before moving the
reverse switch. The reverse switch must be set either
completely up or down in order for the fan to function
correctly. If the reverse switch is set in the middle position,
the fan will not operate.

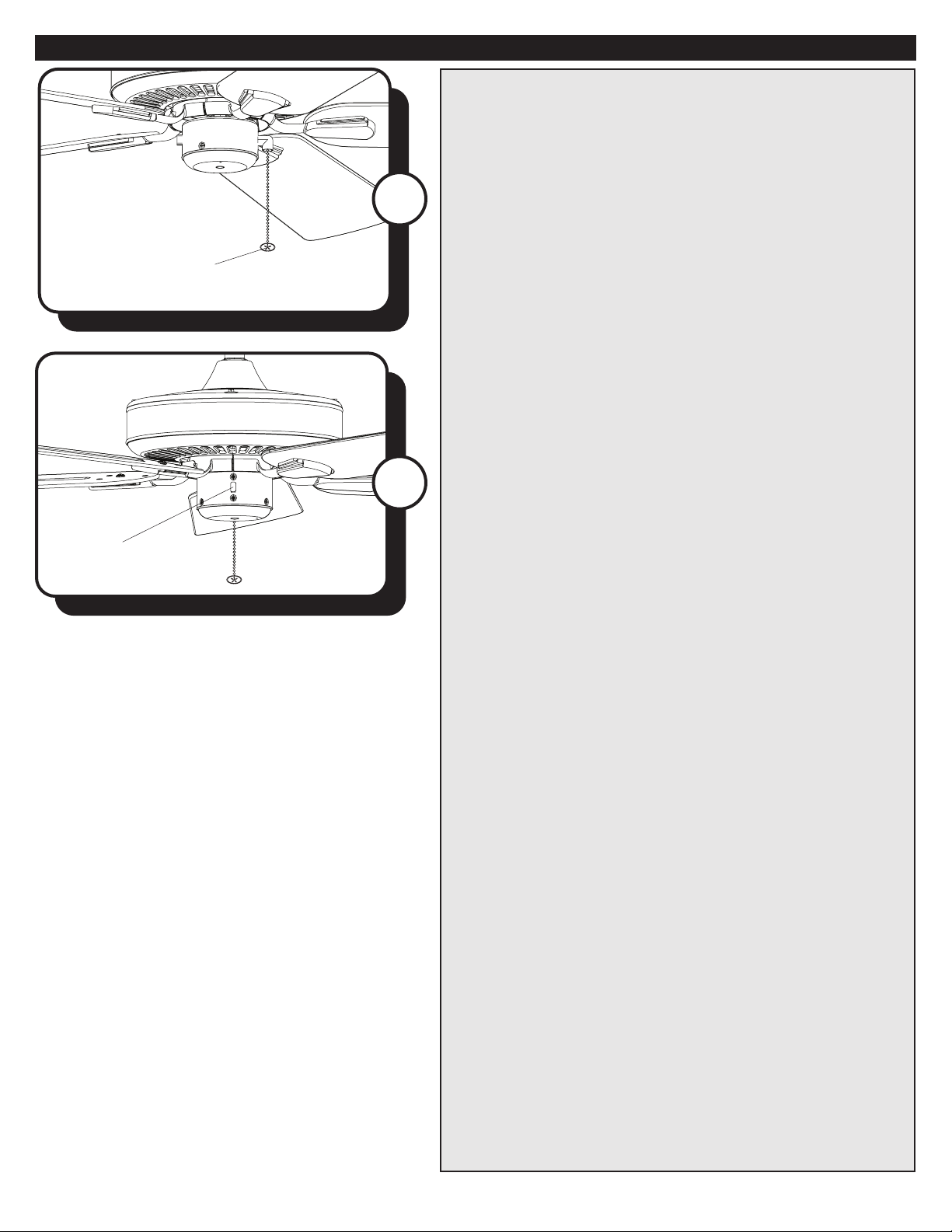

1. The fan pull chain has four positions to control fan
speed. One pull is HIGH, two is MEDIUM, three is LOW and
four turns the fan OFF.

11
PROBLEM SUGGESTED REMEDY
TROUBLESHOOTING
If you have diculty operating your new ceiling fan, it may be the result of incorrect assembly, installation or
wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please
check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing diculty in
installation, please contact the Service Department: 1-877-706-3267, 8 a.m.-5 p.m. Central, Monday-Friday.
WARNING: To reduce the risk of re, electrical shock or personal injury, shut o the power supply to fan before
you begin any maintenance tasks.
1. Fan does not start:
2. Fan is noisy:
3. Fan wobbles:
1. Make sure that the wall switch is turned ON.
2. Check main and branch circuit fuses or circuit breakers.
3. Check all wire connections from household supply wires to the fan.
4. Make sure forward/reverse switch pushed completely up or down. Fan will not operate
when switch is in the middle.
1. Make sure all screws in motor assembly are snug, but not overtightened.
2. Make sure the screws that attach the blade arms to the motor are tight.
3. Make sure wire connectors are not rattling against each other or against the interior wall
of the switch housing.
4. Make sure wire connectors are not rattling against each other or against the interior wall
of the canopy.
5. Some fan motors are sensitive to signals from Solid State variable speed controls. DO NOT
USE a Solid State variable speed control.
6. Ensure fan does not wobble excessively (see Fan wobbles solutions below).
1. Ensure the mounting bracket is tightened securely to outlet box and outlet box is
mounted rmly to ceiling joist.
2. Ensure all blades are screwed rmly into blade arms.
3. Ensure all blade arms are tightened securely to motor.
4. Switch one blade with a blade from the opposite side. Or balance the fan using the blade
balancing kit.
5. If blade wobble is still noticeable, interchanging two adjacent (side by side) blades can
redistribute the weight and possibly result in smoother operation.

12
Model Name: 52” Ceiling Fan
Model No: 51589 - Espresso
51590 - White
LIMITED LIFETIME WARRANTY
To obtain service, please contact the Service Department:
1-877-706-3267, 8 a.m.-5 p.m. Central, Monday-Friday.
Set forth below, the manufacturer, Hong Kong China Electric appliance Company (HKC) warrants the fan
motor for this ceiling fan to be free from defects in workmanship and material for the life of the product.
Also, subject to the limitations below, HKC warrants all ceiling fan parts (“ceiling fan parts” excludes the
motor and parts made in whole or in part with glass) to be free from defects in workmanship and material
for a period of one year after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product through a
store or contractor. Ceiling fan part defects must be reported within the rst year from the date of purchase.
Parts made in whole or in part with glass and the nishes of metal and other surfaces are not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by this
warranty. HKC assumes no responsibility whatsoever for fan installation. Any service performed by a non-
licensed electrician will render the warranty invalid.
HKC’s sole responsibility shall be to repair or replace the motor, parts, or product within the terms stated
above. HKC shall not be liable for any loss or damage of any kind, including any incidental or consequential
damages resulting directly or indirectly, from any breach of warranty, express or implied, or any other
failure of this product. Some states do not allow the exclusion or limitation of incidental or consequential
damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials
within the warranty period associated with the defective part, HKC agrees to replace the defective part
without charge, or at its option, to replace the ceiling fan with a comparable or superior model.
HKC’s warranties are limited to the written warranties set out in this HKC ceiling fan limited lifetime
warranty. All other express and implied warranties, including, without limitation, the implied warranty of
tness for a particular purpose and the implied warranty of merchantability are disclaimed. Some states do
not allow the disclaimer of implied warranties, so this disclaimer may not apply to you.
