Daewoo COL1073 User manual

IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should
always be followed. These instructions should be saved for future
reference:
• Read and familiarise yourself with all operating instructions before
using this Pedestal Fan.
• Before plugging your unit into the mains, visually check that the unit
is intact and has not su󰀨ered any transit damage.
• Do not use this product with a programmer, timer, separate
remote-control system or any other device.
• Check that the voltage indicated on the data plate corresponds with
that of the local network before connecting the appliance to the
mains power supply.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not be
made by children without supervision.
• Close supervision is required when using this appliance near
children.
• Never leave this appliance within reach of children.
• Children of less than 3 years should be kept away unless
continuously supervised.
• Do not immerse the appliance or its cord in water or any other
liquids.
• Do not leave the appliance unattended during use.
• Do not leave the appliance unattended whilst connected to the mains
supply.
• Always use this appliance on a solid, level, surface.
• Do not use this appliance outdoors.
16 Inch Chrome Pedestal Fan
COL1073
User Manual

• It is imperative to unplug the power cord after the appliance has been
used, before it is cleaned and whilst being repaired.
• Repairs to electrical appliances should only be performed by a
qualied electrician. Improper repairs may place user at serious risk.
• Do not operate this appliance with a damaged plug or cord, after a
malfunction or after being dropped or damaged in any way.
• Regular, periodic checks should be carried out on the mains cable to
ensure no damage is evident. Should there be any signs of damage
the appliance should not be used.
• If the power cable is damaged, it should only be replaced by the
manufacturer or a suitable qualied after-sales-service in order to
avoid a hazard.
• Do not allow the mains cable to hang over sharp edges or come in
contact with hot surfaces.
• Do not run the mains cable under carpets, rugs, etc.
• This appliance is intended for household use only and should not be
used for industrial purposes.
• Do not use any accessories or attachments with this appliance other
than those supplied or recommended by the supplier.
• Do not use this appliance for anything other than its intended use.
• Do not push objects (including ngers) into the fan grill or any open-
ings as this could risk injury, damage to the appliance and/or electric
shock.
• Unplug after each use. Grasp the plug, not the cord.
16 Inch Chrome Pedestal Fan
COL1073
User Manual

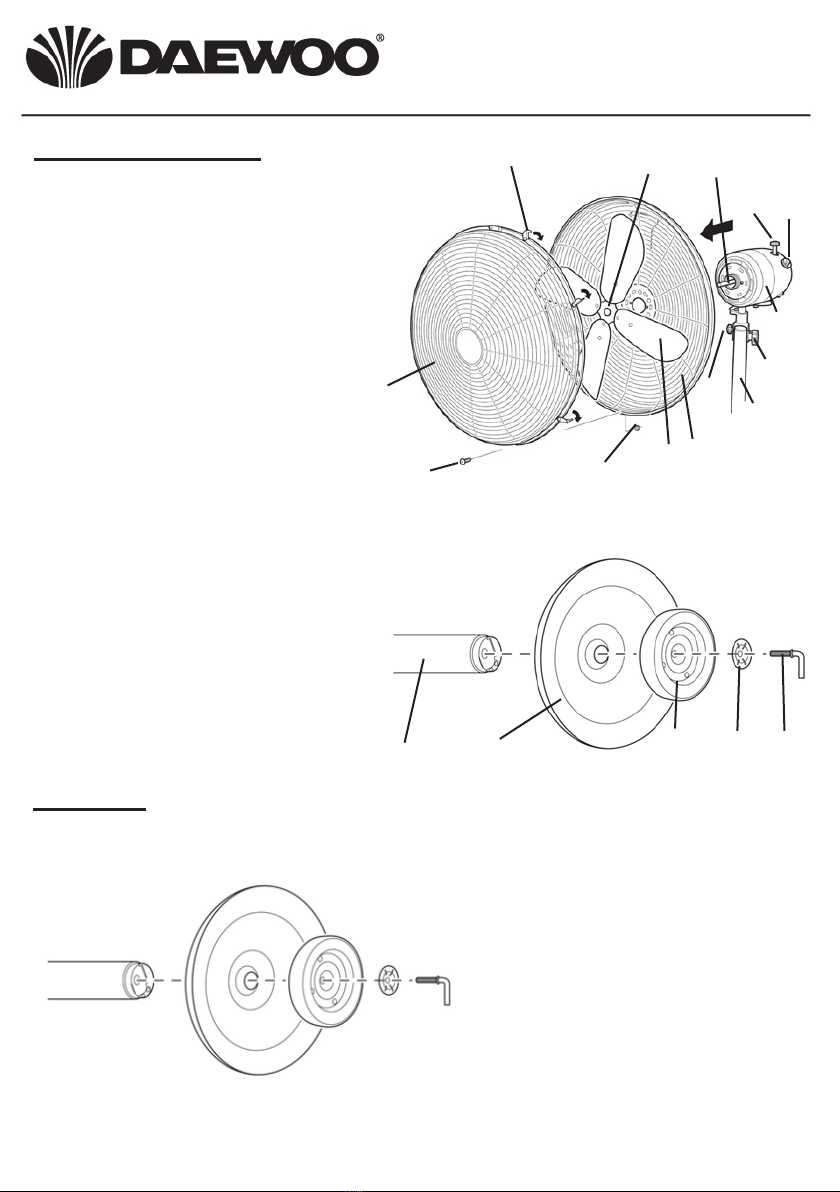

1. Front Guard
2. Front Guard Screw (x1)
3. Fan Blade
4. Rear Guard
5. Front Guard Nut (x1)
6. Telescopic Stand
7. Pivot Adjustment Screw
8. Tilt Adjustment Screw
9. Motor Housing
10.On/O󰀨/Speed Control
11. Oscillating Control
12.Motor Spindle
13.Fan Blade Retaining Screw
(x1)
14.Guard Retaining Clips
15.Stand Base
16.Weight
17.Clamping Washer
18.L – Shaped Screw
Description of parts
2.
16. 17. 18.15.
14. 13. 12.
11. 10.
9.
8. 7.
6.
5.
1.
4.3.
6.
Assembly 1. Attach the Telescopic Stand
(6) to the Base (15) by placing
the Weight (16) on the under-
side of the Base (15) and the
clamping washer (17) in the
centre of the weight. Thread the
L - Shaped Screw (18) through
the assembly and into the
thread in the Telescopic Stand
(6). Tighten rmly but do not
overtighten.
16 Inch Chrome Pedestal Fan
COL1073
User Manual

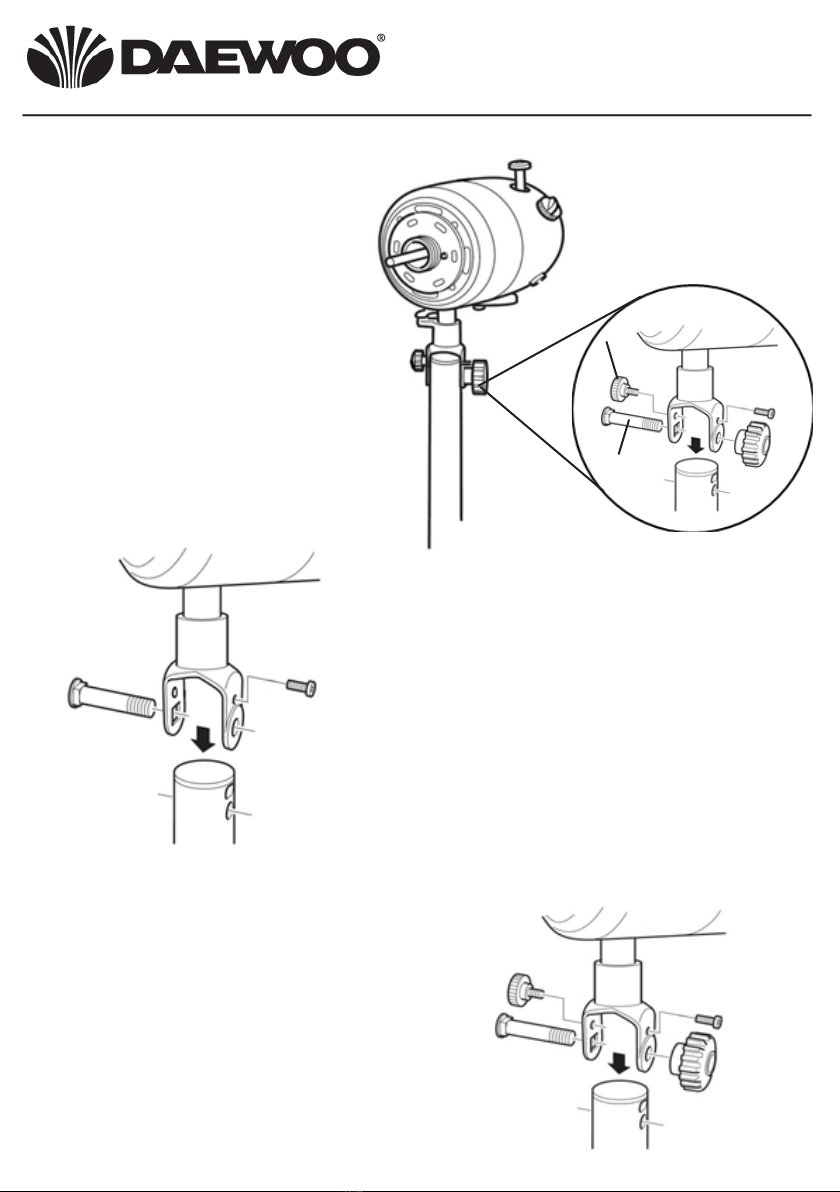

2. Next attach the motor
housing (9) to the top of the
telescopic stand (6).
First remove all the screws,
etc. (7, 8, 19 & 20) from the
motor housing bracket.
20.
19.
3. Place the Motor Housing on the top
of the stand and thread the Large Pivot
Bolt (20) through the bracket and screw
in the Small Retaining Screw (8) and
tighten (but do not over tighten).
4. Fit the Large Pivot Knob (7) onto
the end of the Bolt (20) and the
Small Adjusting Knob (19).
Hold the fan motor upright and tight-
en the Large Pivot Knob (7) and the
Small Adjusting Knob (19).
16 Inch Chrome Pedestal Fan
COL1073
User Manual

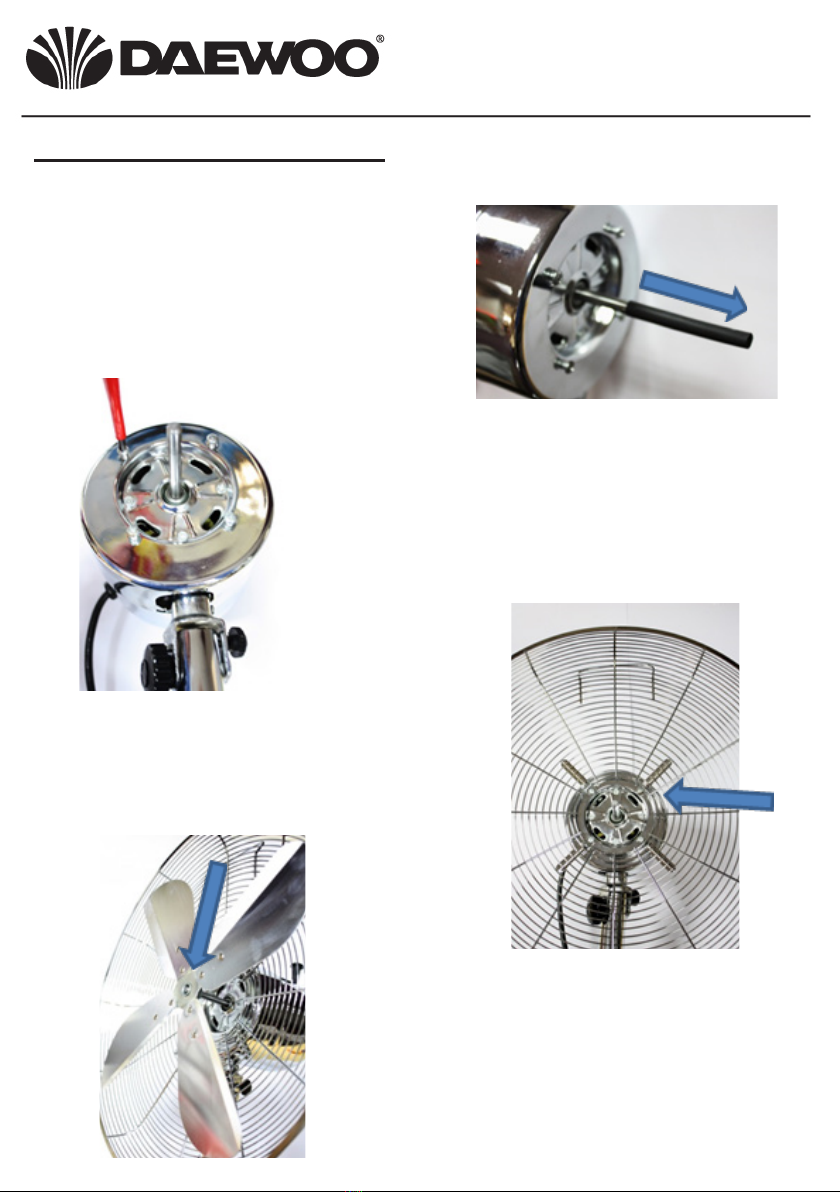

Fitting the fan guard and blade
1. Remove any sleeving from the
motor spindle.
2. Remove the four rear guard retaining
screws from the motor housing (9).
3. Attach the rear guard (4) to the motor
housing using the four screws.
4. Place the fan blade (3) over the
motor spindle (12) and tighten the fan
blade retaining screw (13) ensuring
that it tightens against the at on the
motor spindle (12).
16 Inch Chrome Pedestal Fan
COL1073
User Manual

5. Remove the front guard nut &
screw (5 & 2) from the front guard (1)
6. Turn the clips around the
outside edge of the front guard
(1) outwards.
7. Hang the front guard (1) by
its hook over the top of the rear
guard (5).
8. Bring the front guard down to
meet the rear guard and push the
clips inwards until the front guard
is fastened to the rear guard.
9. Finally t the Guard Nut and Screw
through the holes in the bottom edge
of the guard and tighten with a suit-
able pozidrive screwdriver (not sup-
plied).
• NB this screw and nut must
be tted so that the guard cannot be
removed accidentally.
16 Inch Chrome Pedestal Fan
COL1073
User Manual

Operate your fan using the following steps:
• Place the fan in the desired position and ensure that it is vertical and
stable.
• If desired, the fan guard can be tilted up and down to alter the direc-
tion of the airow. To do this, slacken the Large Pivot Knob (7) and
the Small Adjustment Knob (19). Set the position of the guard and
then tighten the two knobs (7 & 19)
• NB do not adjust the fan whilst connected to the mains.
• Height adjustment: Before adjusting the height, hold the fan motor
housing to prevent it dropping down.
• Loosen the height locking screw and raise or lower the height of the
fan to the desired position, tighten the screw after setting the height.
• NB do not adjust the fan whilst connected to the mains.
• To operate the fan, ensure that the on/o󰀨/speed control (10) is in the
‘0’ position.
• Insert the mains plug into the nearest socket.
• Rotate the on/o󰀨/speed control switch (10) as follows:
• I for the low speed,
• II for the medium speed
• III for the high speed.
• Return the control to the 0 position to switch the fan o󰀨
Making Your Fan Oscillate From Side To Side
Press the oscillation control (11) down to enable the fan to oscillate from
side to side.
Pull the control up to stop the fan oscillating.
Care and Use of your Fan
• Ensure that the fan is not connected to the mains supply before
cleaning.
• Wipe the fan body clean with a clean, soft damp cloth.
• Do not immerse the fan or its cord in water or any other liquid.
16 Inch Chrome Pedestal Fan
COL1073
User Manual

Waste electrical products should not be
disposed of with household waste. Please
recycle where facilities exist. Check with your
Local Authority or retailer for recycling advice
Technical Data
Model Number COL1073
Voltage 220-240V AC 50Hz
Rated power 50 W
Customer Support
Should you require any product information,
replacement parts or accessories, please contact our
customer care team at [email protected] or
call 0161 831 7879.
• Replacement parts and accessories are guaranteed
for 1 year from the date of purchase.
• It is important to note that your warranty becomes
invalid should non Daewoo parts or accessories be used
with this appliance
16 Inch Chrome Pedestal Fan
COL1073
User Manual

Electrical Connections
This appliance is tted with a fused three-pin plug to BS 1363. If the plug
has to be removed, it should be cut o󰀨 and carefully disposed of immedi-
ately. To avoid a possible shock hazard, do not insert the discarded plug
into a mains socket.

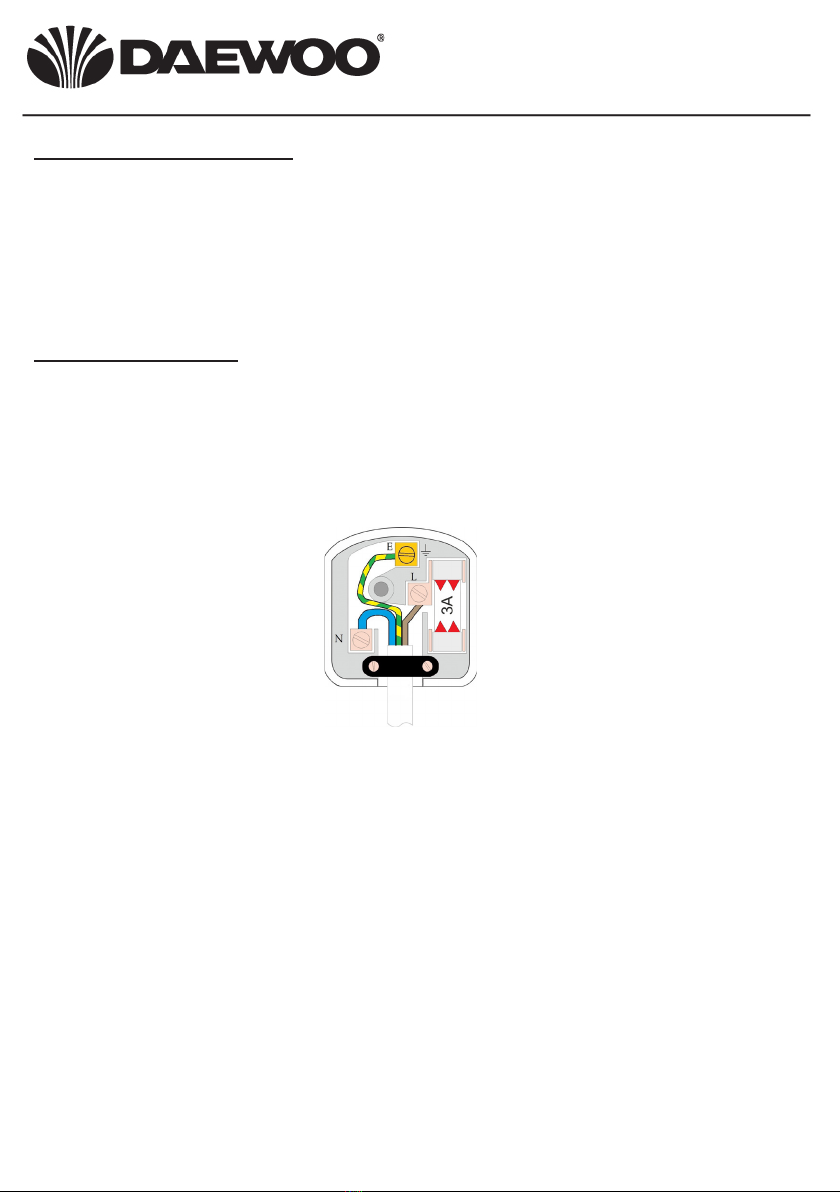

Fitting a new plug
If for any reason you need to t a new plug, the exible mains lead must
be connected as shown below. The wires in the mains lead tted to this
appliance are coloured in accordance with the following code:
Connect Blue to
Neutral (N)
Connect Brown to
Live (L)
Connect Green &
Yellow to Earth (E)
Ensure the outer sheath of
the mains lead is securely
held by the cable clamp
• The Blue wire must be connected to the terminal marked N or
coloured Black.
• The Brown wire must be connected to the terminal marked L or
coloured Red.
• The Green & Yellow wire must be connected to the terminal marked
E or coloured Green.
• Check that there are no cut or stray strands of wire inside the plug.
• Use a 3 Amp BS 1362 fuse, only use BSI or ASTA approved fuses.
• If you are in any way unsure which plug or fuse to use, always refer
to a qualied electrician.
• After replacing or changing a fuse on a moulded plug, the cover must
be retted to the plug; the appliance must not be used without a fuse
cover.

Thank you for purchasing your Daewoo product.
As part of our commitment to quality we are offering you an extra 2 years warranty in addition to your
1 year guarantee.
Your Daewoo product is guaranteed for 1 year from the date of original purchase, with proof of purchase or
receipt. If any defects should arise due to faulty workmanship or material, your faulty product should be returned
to the place of purchase, replacement or refund is at the discretion of the retailer.
The guarantee is subject to the following provisions:
• The product must be correctly installed and operated in accordance with the requirements contained
in the instruction manual.
• The product must be used solely for domestic purposes.
• It does not cover general wear and tear, damage, misuse or any consumable parts.
• The Guarantee is rendered invalid if the product has been resold or has been damaged through
inexpert repair.
• The guarantee is only valid within the UK and Eire.
Your standard 1 year guarantee will only be extended to the maximum available for your individual product upon
registration. (Note: products must be registered individually and covers the main body and housing) If you do not
register your product within 28 days of the original purchase date, your product will only be guaranteed for 1
year.
To validate your extended 2 year warranty* please register your purchase online within 28 days of the original
purchase date by registering at
www.daewoowarrantyregistration.com/warranty-registration
*Your extended warranty is only valid with proof of purchase receipt and
subject to the conditions outlined above.
Daewoo® is a registered trademark.
Produced and imported under licence by ESG Ltd
ESG Ltd
Manchester M3 1JS
www.esgltd.com
WARRANTY
