Prominence Home Liva 51016 User manual

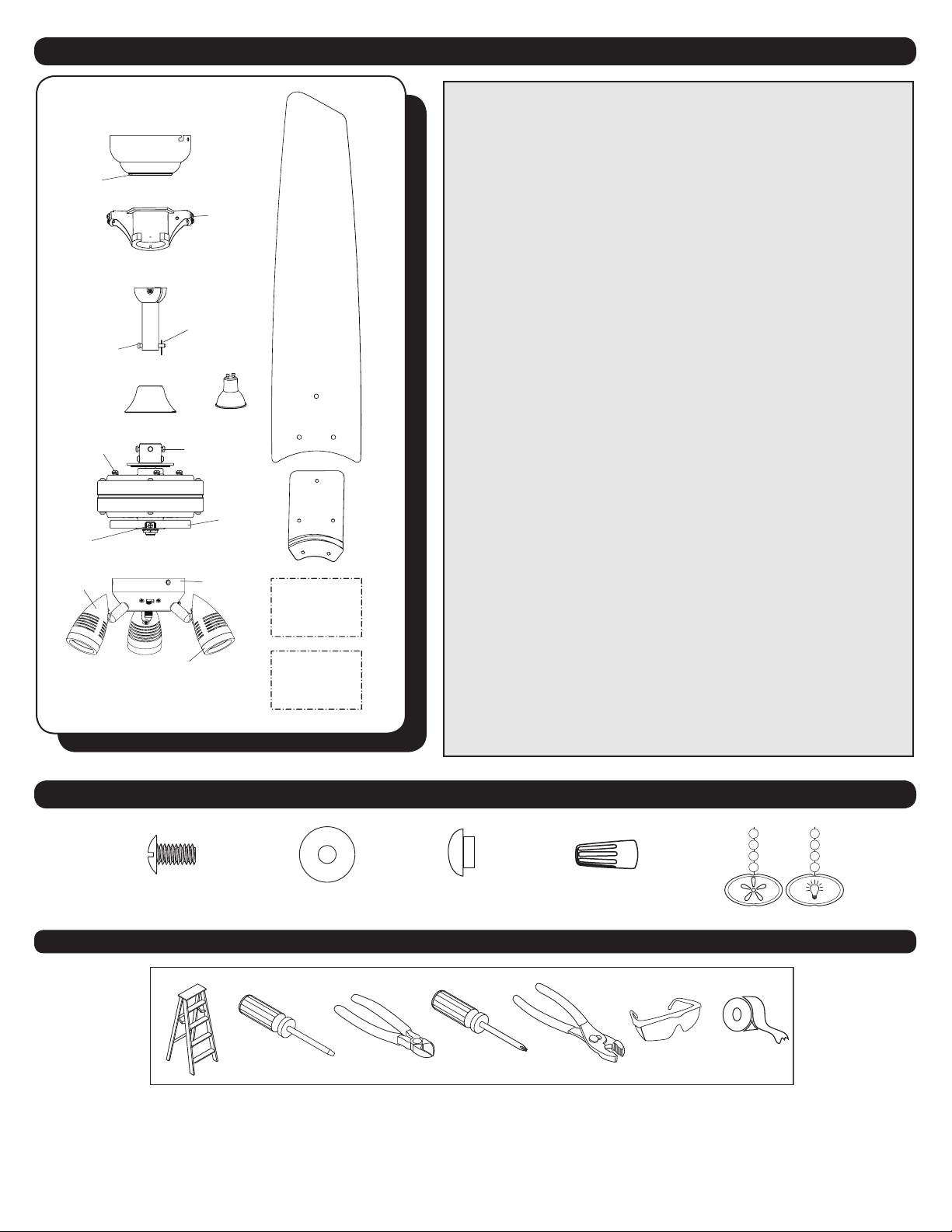

PACKAGE CONTENTS
2
HARDWARE CONTENTS
1. Canopy
2. Canopy Cover
3. Mounting Bracket
4. Mounting Bracket Screw
(x4)
5. Downrod
6. Downrod Pin
7. Downrod Clip
8. Yoke Cover
9. Set Screw (x2)
10. Motor Screw (x8)
11. Motor
12. Fitter Plate
13. Fitter Plate Screw (x3)
14. Light Kit
15. Light Housing (x3)
16. Light Ring (x3)
17. Owner’s Manual
18. Hardware Kit
19. Blade Arm (x4)
20. Blade (x4)
21. GU10-base LED Bulb (x3)
22. Blade Screw (x12)
23. Blade Washer (x12)
24. Screw Cap (x12)
25. Wire Connector (x3)
26. Pull Chain Extension (x2)
Unpack your fan and check the contents. You should
have the following items:
PACKAGE CONTENTS
HARDWARE CONTENTS
22 252423 26
Note: Some extra hardware has been included. The quantity
listed above is the number required for installation.
18
TOOL REQUIRED (not included)
Tool required for assembly: Electrical tape, Phillips Screwdriver, Pliers, Safety Glasses, Step Ladder, Wire Cutters
and Wire Strippers
Helpful Tools: AC Tester Light, Tape Measure, and Wiring Handbook
Hardware
Kit
Owner’s
Manual
12
11
9
8
10
7
6
5
16 17
18
21
20
19
13
3
4
14
15
2
1

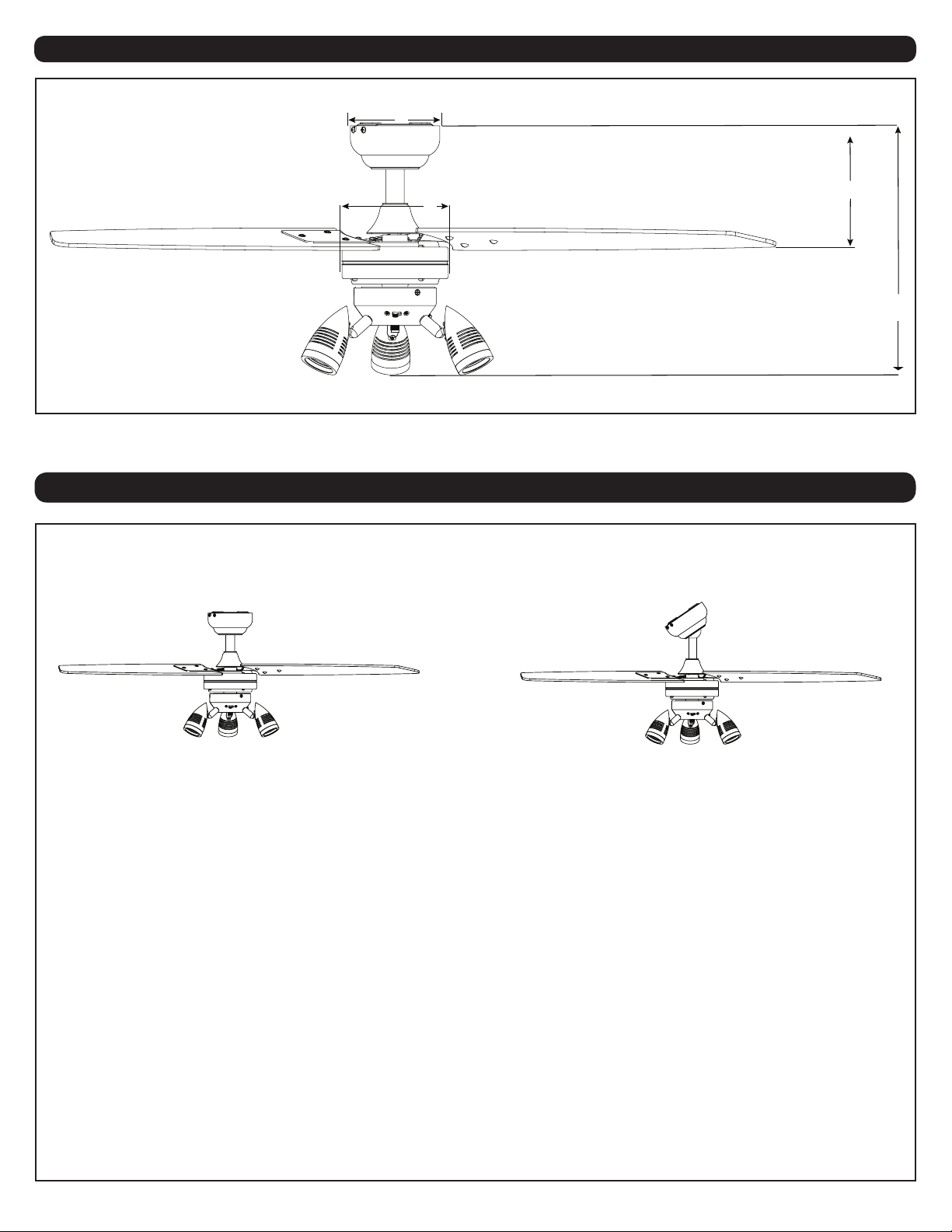

MOUNTING OPTIONS
3
DIMENSION REFERENCE
C
D
B
A
A. 14.6 in. B. 7.1 in. C. 7.5 in. D. 5.13 in.
Downrod Mount Angle Ceiling Mount (Up to 16 degrees)
Dual Mount Options
Choose one of the following mounting options:
Downrod Mount is best suited for ceilings 8 ft. or higher. For taller ceilings you may want to use a longer
downrod (not included).
Angled Ceiling Mount is best suited for angled or vaulted ceilings. A longer downrod is sometimes necessary
to ensure proper blade clearance from the ceiling. If using the angle mount, check to ensure the ceiling angle
is not steeper than 16°.

4
WARNING:
To avoid risk of electric shock, be sure to shut o power at the main fuse or circuit breaker box before
installing or servicing this xture. Turning o the electrical power by using the light switch is not
sucient to prevent electrical shock.
To reduce the risk of injury, install the fan so that the blades are at least 7 feet (2.1 Meters) above the
oor and at least 18 inches (0.5 Meters) from the tip of the blades to the wall.
To reduce the risk of re, electric shock, or personal injury, mount to outlet box marked “acceptable for
fan support” and use mounting screws provided with the outlet box.
The installation has to be in accordance with the national electrical code, ansi/nfpa 70-1999 and local
codes. If you are unfamiliar with the methods of installing electrical wiring, seek the services of a
qualied licensed electrician.
Using a full-range dimmer switch to control fan speed will cause a loud humming noise from the fan. To
reduce the risk of re or electric shock, do NOT use a full-range dimmer switch to control the fan speed.
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE
FAN AND SAVE INSTRUCTIONS.
All set screws of the fan must be checked and retightened where necessary before installation.
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing
the blades or cleaning fan. Do not insert foreign objects in between rotating fan blades.
Before changing the fan direction, turn o the fan and wait for the fan blades to stop completely.
The safeguards provided by these safety instructions and by the separate installation instructions are not
meant to cover all possible conditions and situations that may occur. It must be understood that common
sense, caution and care are factors which can not be built into this product. These factors must be supplied
by the person(s) installing, caring for and operating the fan.
The fan weight is Net Weight: 15.29 lbs. Be sure the outlet box (not included) is securely attached to the
building structure and is marked “Acceptable For Fan Support”. Failure to do so can result in serious injury.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver
--Connect the equipment into and outlet on a circuit dierent from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
HKC-US
3350 Player’s Club Parkway, #225
Memphis, TN 38125
1-800-643-0067
SAFETY INSTRUCTIONS
CAUTION:

Canopy
Mounting Bracket
Screws
Mounting Bracket
Motor Screw
Motor
5
ASSEMBLY INSTRUCTIONS
3
2
1

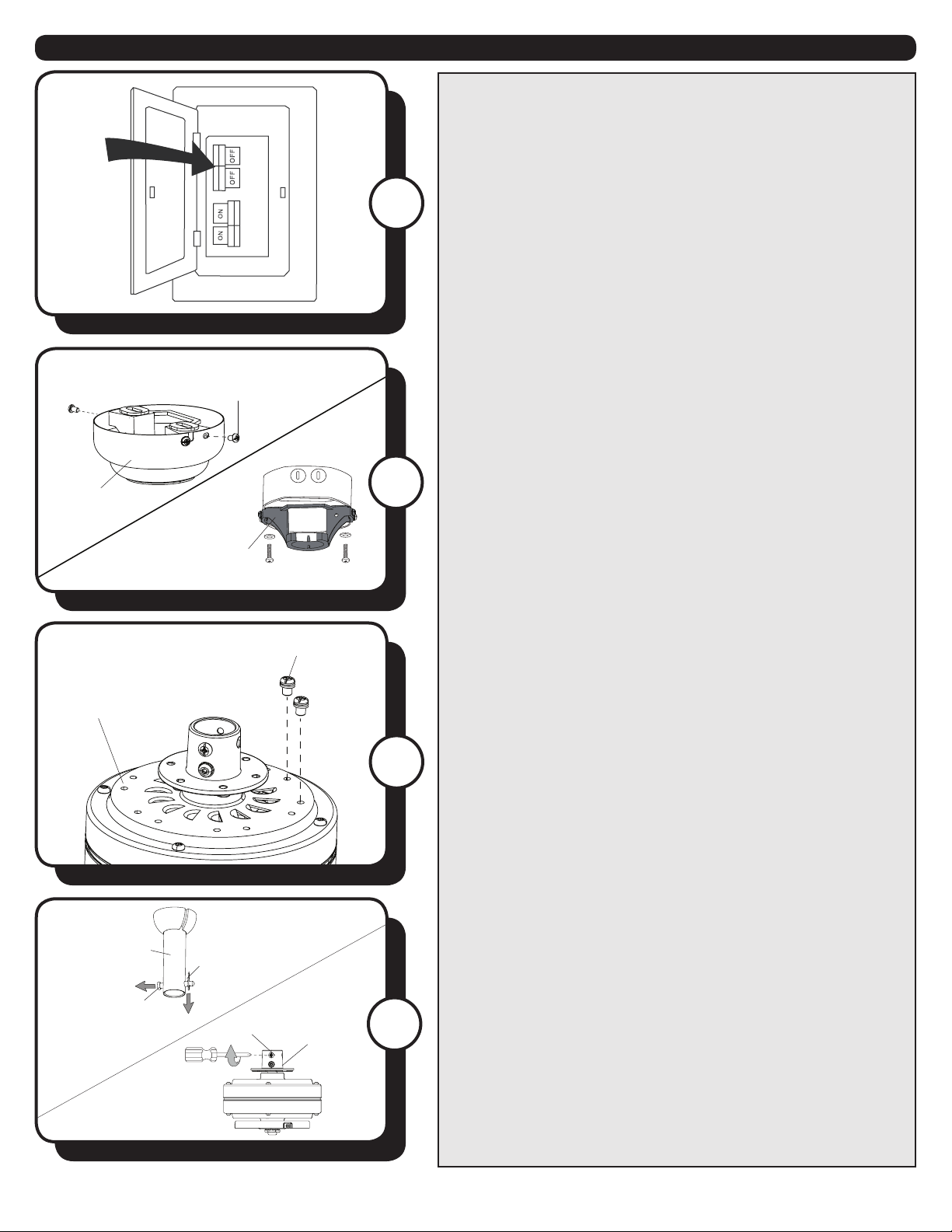

1. Turn OFF the electrical power at the main fuse or circuit
breaker.
3. Remove the eight Phillips-head motor screws from the
top of the motor. Set screws aside for later use.
4
2. Remove the mounting bracket by removing the two
mounting bracket screws from the round holes in the
canopy. Then loosen the other two mounting bracket
screws from the J-shaped slots. Retain the mounting
bracket screws for later. Install the mounting bracket
to the outlet box (not included) using the screws and
washers provided with the outlet box.
Warning: To reduce the risk of re electric shock,
or personal injury, mount to the outlet box marked
“acceptable for fan support” and use the mounting
screws and washers provided with the outlet box.
Yoke
Set Screw
Downrod
Downrod Clip
Downrod Pin
Motor
4. Remove the downrod clip and downrod pin from the
downrod. Then partially loosen the two set screws in the
yoke at the top of the motor.

6
ASSEMBLY INSTRUCTIONS
Black (hot)
White (neutral)
Bare/Green
(ground)
Black Blue White
Green
WARNING: Do NOT
wire the fan motor to a
variable-speed (dimmer)
wall control.
5
Downrod Clip
8
7
6
Canopy
Motor
Downrod Pin
Set Screw
Downrod
Yoke Cover
Yoke Cover
Yoke
Downrod

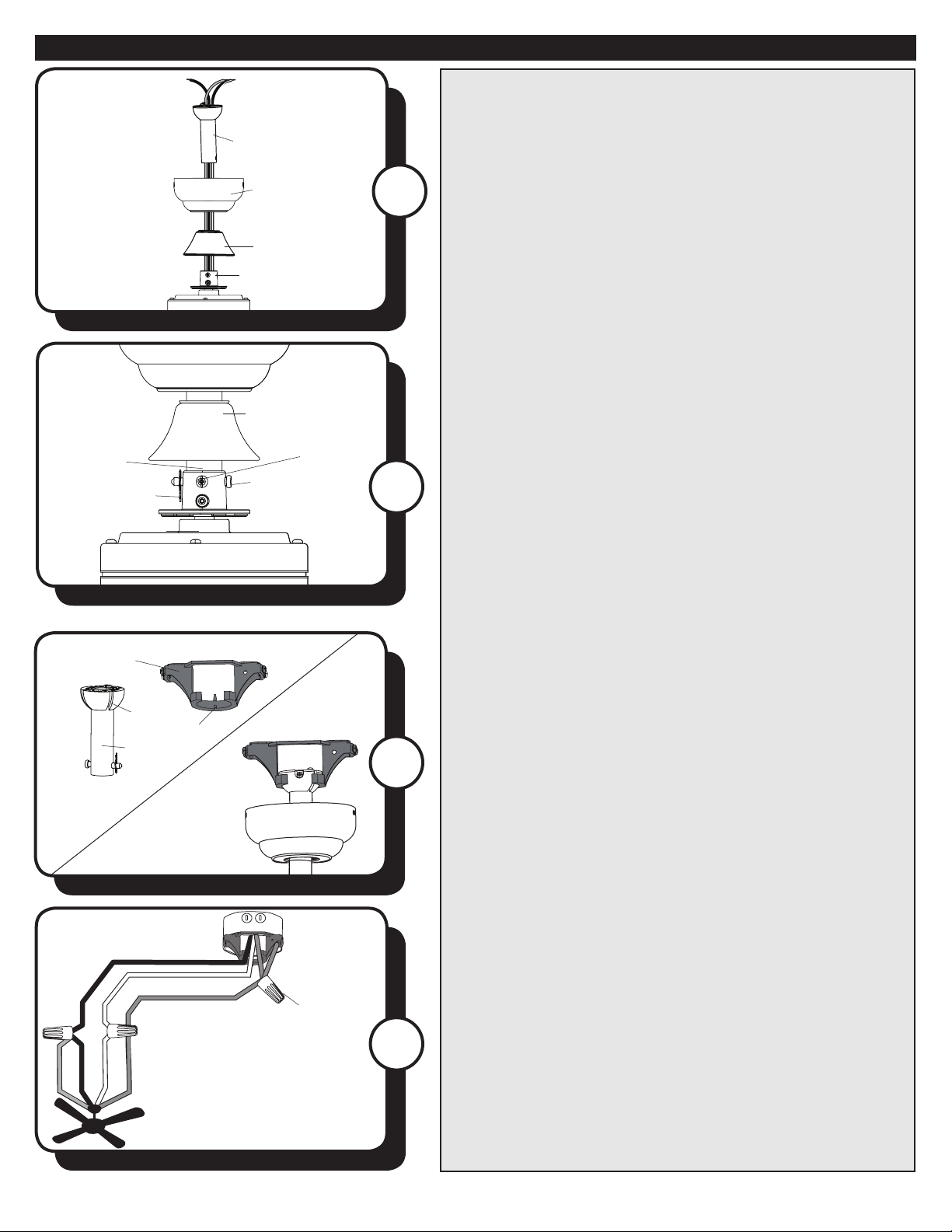

5. Feed the wires coming from the yoke through the yoke
cover, canopy, and downrod.
6. Insert the downrod into the yoke and reinstall the
downrod pin and downrod clip. Then retighten the two
set screws.
Note: With wiring extending out of the downrod,
measure 8 inches of lead wire and cut the excess wire
with wire cutters (not included). Then strip 1/2” of
insulation from the end of each wire.
Tab
Slot
Downrod
Wire Connector
Mounting
Bracket
7. Lift the downrod into the mounting bracket. Rotate the
downrod until the tab in the mounting bracket is seated in
the slot in the downrod ball.
WARNING: The fan and/or downrod should not rotate in
the mounting bracket if installed correctly. Failure to align
the slot in the downrod ball with the tab may result in fan
falling causing serious injury or death.
8. Use wire connectors to connect the fan wires to the
power supply wires according to the wiring diagram and
the following instructions:
• Connect the green wire from the downrod and mounting
bracket to the bare/green (ground) supply wire.
• Connect the white wire from the fan to the white
(neutral/common) supply wire.
• Connect the black and blue wires from the fan to the
black (live/hot) supply wire.
Note: If there is a second hot/power wire coming from the
outlet box, connect it to the Blue (light power) fan wire for
separate light and fan control.
Important: After the connections have been made, the
connected wires should be turned upward and pushed
carefully up into the outlet box. Place the black and white
wire connections on opposite sides of the outlet box.

7
9-Pin Connector
Light Kit
Fitter Plate
Screw
Fitter Plate
Motor Screw
Blade Arm
Canopy
Round
Hole
Mounting
Bracket Screw
J-shaped Slot
ASSEMBLY INSTRUCTIONS
9
11
10
12

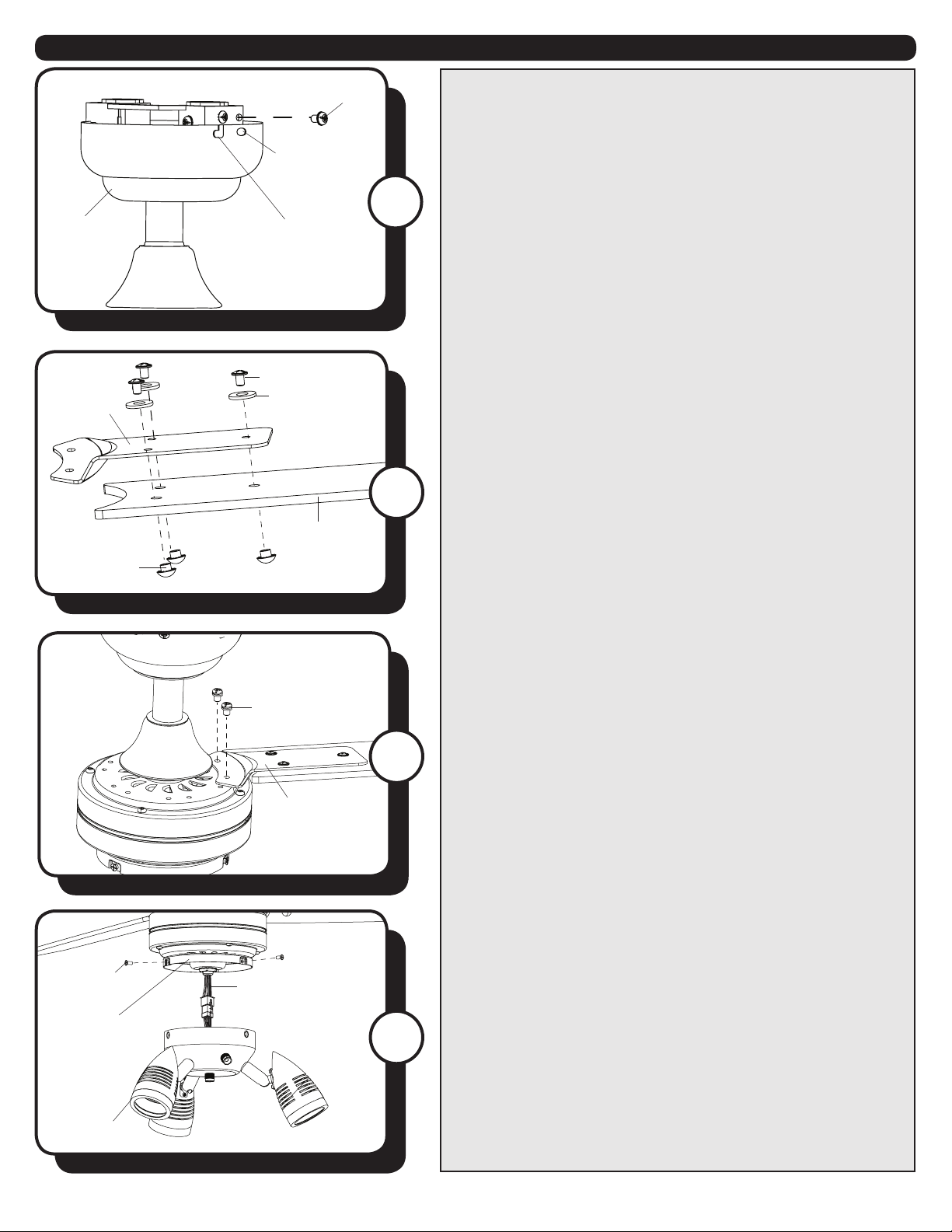

9. Raise the canopy, ensure the two mounting bracket
screws are aligned with the J-shaped slots in the canopy.
Then turn the canopy in a clockwise direction until the
mounting bracket screws are completely engaged in
the J-shaped slots. Install the two previously removed
mounting bracket screws in the round holes. Securely
tighten all four mounting bracket screws.
Blade Screw
Blade
Washer
Blade Arm
Blade
Screw Cap
10. Insert the blade screws along with the blade washers
through the blade arm and the blade and secure with a
screw cap. Repeat this step for the remaining blades and
blade arms.
11. Secure the blade arm to the top side of the motor
using the previously removed motor screws. Completely
secure each blade arm to motor before moving to the
next.
12. Remove the three tter plate screws from the tter
plate. Connect the 9-pin connector from the fan to the
9-pin connector in the light kit. Then, lift the light kit
over the tter plate and secure using the three previously
removed tter plate screws.

8
Light Housing
Bulb
Light Ring
Pull Chain
Extension
13
14
ASSEMBLY INSTRUCTIONS

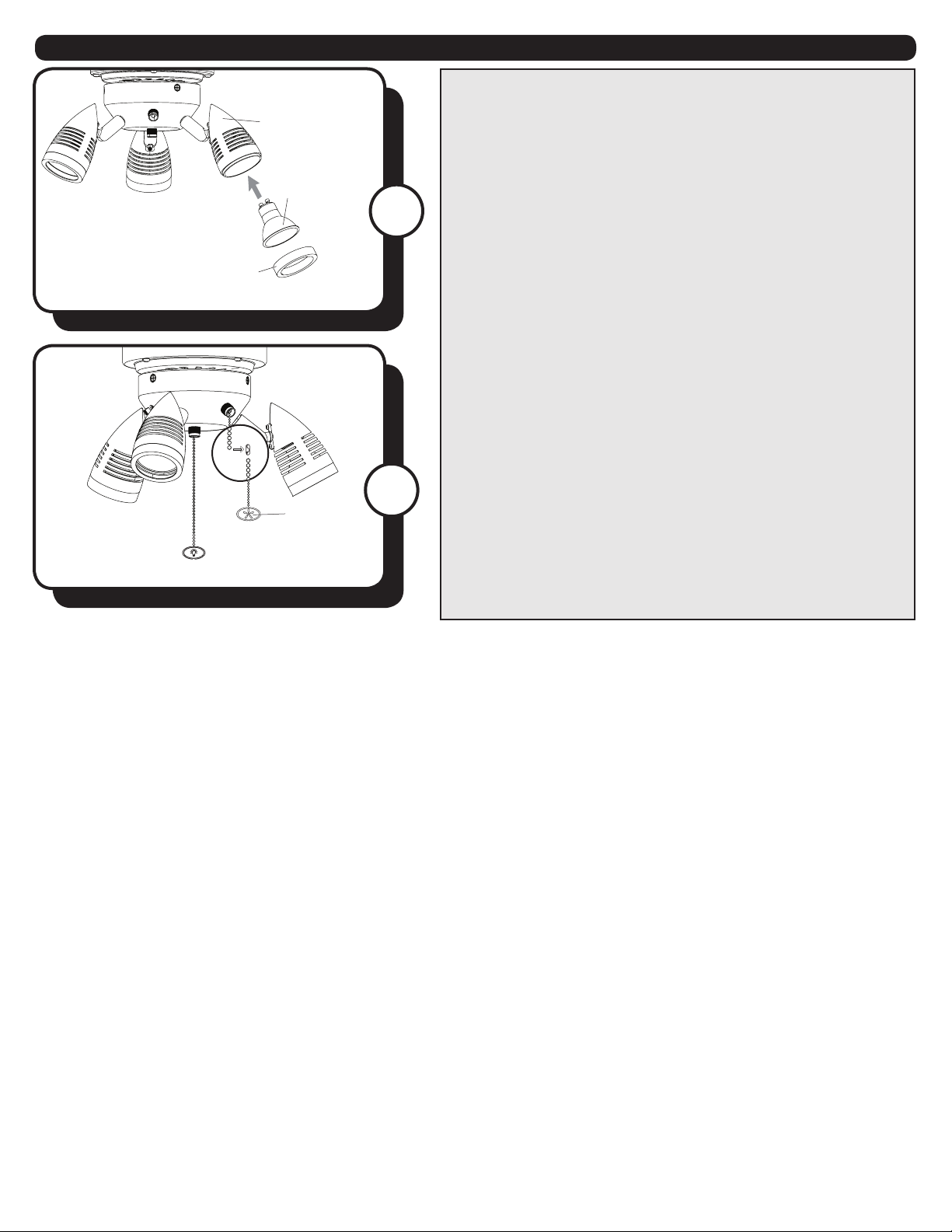

13. Unscrew and remove the light rings from the bottom
of the three light housings. Then, install the GU10-base
LED bulbs and re-install the light rings.
14. Attach the pull chain extensions to each of the pull
chains. The fan pull chain extends from the
side of the light kit and the light pull chain extends
from the center of the light kit.
Restore the power at the main fuse or circuit breaker.

9
OPERATING INSTRUCTIONS
1
2
Light Pull
Chain
Reverse Switch
Fan Pull Chain
2. Use the reverse switch, located on the light kit to
optimize your fan for seasonal performance.
Using a ceiling fan will allow you to raise your thermostat
setting in summer and lower your thermostat setting in
winter without feeling a dierence in your comfort.
In warmer weather, push the reverse switch to the left
which will result in downward airow creating a wind
chill eect.
In cooler weather, push the reverse switch to the right
which will result in upward airow that can help move
stagnant, hot air o the ceiling area.
Important: Wait for the fan to stop before moving the
reverse switch. The reverse switch must be set either
completely left or right in order for the fan to function
correctly. If the reverse switch is set in the middle
position, the fan will not operate.
1.The fan pull chain has four positions to control the fan
speed. One pull is HIGH, two is MEDIUM, three is LOW,
and four turns the fan OFF. The pull chain in the center of
the light kit turns the lights ON and OFF.

PROBLEM SUGGESTED REMEDY
1. Fan does not start 1. Check main and branch circuit fuses or circuit breakers.
2. Check power supply wire connections to fan and switch wire connections in switch
housing.
CAUTION: Make sure main power is turned o.
3. Make sure forward/reverse switch pushed completely left or right. Fan will not operate
when switch is in the middle.
4. Make sure that the wall control is turned ON.
1. Make sure all screws in motor housing are snug, but not overtightened.
2. Make sure the screws which attach the blade arm to the motor are tight.
3. Make sure wire connectors in switch housing are not rattling against each other or
against the interior wall of the switch housing.
CAUTION: Make sure main power is turned o before entering switch housing.
4. If using a light kit, be sure the glass shades are nger tight. Check to be sure light bulb are
snug in sockets and not touching glass shade(s). If vibration persists from glass, remove
glass and install a 1/4 in. wide rubber band on glass neck to act as an insulator. Replace
glass and tighten screws against rubber band.
5. Some fan motors are sensitive to signals from Solid State variable speed controls. DO NOT
USE a Solid State variable speed control.
1. Ensure all blades are screwed rmly into blade arms.
2. Ensure all blade arms are tightened securely to motor.
3. Ensure canopy and mounting bracket are tightened securely to outlet box and outlet box
is mounted rmly to ceiling joist.
4. Switch one blade with a blade from the opposite side. Or balance the fan using a
balancing kit.
5. If blade wobble is still noticeable, interchanging two adjacent (side by side) blades can
redistribute the weight and possibly result in smoother operation.
1. Ensure the 9-pin connectors from the fan are rmly connected to the 9-pin connectors
from the light kit.
2. Check for loose or disconnected wires in fan switch housing.
3. Check for loose or disconnected wires in light kit.
4. Check for faulty light bulbs.
CAUTION: Make sure main power is turned o before entering switch housing.
2. Fan is noisy
3. Fan wobbles
4. Light does not work:
TROUBLESHOOTING
10
If you have diculty operating your new ceiling fan, it may be the result of incorrect assembly, installation or
wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please
check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing diculty in
installation, please contact the Service Department: 1-877-706-3267, 9 a.m.- 5 p.m. Central time.

LIMITED LIFETIME WARRANTY
Model Name: 48” Civa Ceiling Fan
Model No: 51016 - Chrome
11
To obtain Service, please contact the Service Department:
1-877-706-3267, 9 a.m.- 5 p.m. Central time.
The manufacturer warrants this fan to be free from defects in workmanship and materials present at time
of shipment from the factory for a lifetime from the date of purchase by the original purchaser. The retailer
also warrants that all other fan parts, excluding any glass or acrylic blades, to be free from defects in
workmanship and material at the time of shipment from the factory for a period of one year after the date
of purchase by the original purchaser. The manufacturer agrees to correct such defects without charge or
at its option replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of the receipt as proof of purchase. All costs of removing and
reinstalling the product are your responsibility. Any damage to any part such as by accident or misuse
or improper installation or by axing any accessories, is not covered by this warranty. The manufacturer
assumes no responsibility whatsoever for fan installation during the limited lifetime warranty. Any service
performed by an unauthorized person will render the warranty invalid.
Due to varying climate conditions, this warranty does not cover any changes in brass nish, including
rusting, pitting, corroding, tarnishing or peeling. Brass nishes of this type give their longest useful life
when protected from varying weather conditions. Any glass provided with this fan is not covered by the
warranty.
Any replacement of defective parts from the ceiling fan must be reported within the rst year from
the date of purchase. For the balance of the warranty, call our customer service department for return
authorization and shipping instructions so that we may repair or replace the ceiling fan. Any fan or parts
returned improperly is the sole responsibility of the purchaser. There is no other expressed warranty. The
manufacturer disclaims any and all warranties. The duration of any implied warranty which cannot be
disclaimed is limited to the time period as specied in the expressed warranty. The manufacturer shall not
be liable for incidental, consequential, or special damages arising out of or in connection with product
use or performance except as may otherwise be accorded by law. This warranty gives specic legal rights,
and you may also have other rights which vary from state to state.
This warranty supersedes all prior warranties.
Note: A small amount of“wobble”is normal and should not be considered a defect.
